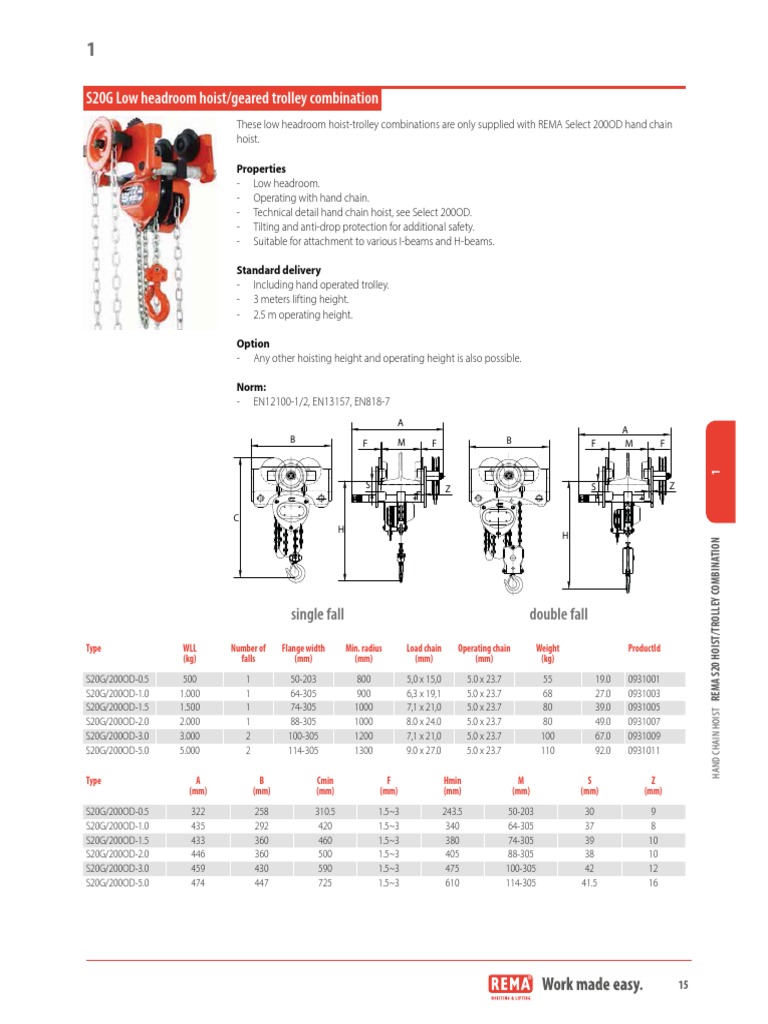

S20G Low headroom hoist/geared trolley combination

These low headroom hoist-trolley combinations are only supplied with REMA Select 200OD hand chain
hoist.

Properties
- Low headroom.
- Operating with hand chain.
- Technical detail hand chain hoist, see Select 200OD.
- Tilting and anti-drop protection for additional safety.
- Suitable for attachment to various I-beams and H-beams.

Standard delivery
- Including hand operated trolley.
- 3 meters lifting height.
- 2.5 m operating height.

Option
- Any other hoisting height and operating height is also possible.

Norm:
- EN12100-1/2, EN13157, EN818-7
A
A
B F M F B F M F

1
S Z S Z

C
H
H

HAND CHAIN HOIST REMA S20 HOIST/TROLLEY COMBINATION

single fall double fall
Type WLL Number of Flange width Min. radius Load chain Operating chain Weight ProductId
(kg) falls (mm) (mm) (mm) (mm) (kg)

S20G/200OD-0.5 500 1 50-203 800 5,0 x 15,0 5.0 x 23.7 55 19.0 0931001
S20G/200OD-1.0 1.000 1 64-305 900 6,3 x 19,1 5.0 x 23.7 68 27.0 0931003
S20G/200OD-1.5 1.500 1 74-305 1000 7,1 x 21,0 5.0 x 23.7 80 39.0 0931005
S20G/200OD-2.0 2.000 1 88-305 1000 8.0 x 24.0 5.0 x 23.7 80 49.0 0931007
S20G/200OD-3.0 3.000 2 100-305 1200 7,1 x 21,0 5.0 x 23.7 100 67.0 0931009
S20G/200OD-5.0 5.000 2 114-305 1300 9.0 x 27.0 5.0 x 23.7 110 92.0 0931011

Type A B Cmin F Hmin M S Z

(mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)

S20G/200OD-0.5 322 258 310.5 1.5~3 243.5 50-203 30 9

S20G/200OD-1.0 435 292 420 1.5~3 340 64-305 37 8
S20G/200OD-1.5 433 360 460 1.5~3 380 74-305 39 10
S20G/200OD-2.0 446 360 500 1.5~3 405 88-305 38 10
S20G/200OD-3.0 459 430 590 1.5~3 475 100-305 42 12
S20G/200OD-5.0 474 447 725 1.5~3 610 114-305 41.5 16

15
 1

KBT200OD extremely low headroom hoist-trolley

Hand-operated trolley in combination with the REMA Select 200OD hand chain hoist.
Only available in combination with the REMA Select 200 OD manual chain hoist.

Properties
- Extremely low building height (135-235 mm).
- Suitable for I-beams and H-beams.
- Maintenance-free ball bearings.
- Wheel rupture supports for extra safety.
- Hand chain operated trolley.
- Technical specifications for manual hoist see Select 200 OD chain hoist.

Standard delivery
- 3 meters lifting height.
- 2.5 meters operating height.

Option
- Available in other lifting and operating heights.

Norm:
- EN12100-1/2, EN13157, EN818-7

A
B1 B2 E1 E2
C1 C2
F F
1

D1
HAND CHAIN HOIST KBT 200 OD LOW HEADROOM HOIST-TROLLEY

Hmin M
D2

M2
M1
L

Type WLL Number of falls Flange width Min. radius Load chain Operating chain Weight ProductId
(kg) (mm) (mm) (mm) (mm) (kg)

KBT200OD-1 1.000 2 74-150 2500 5,0 x 15,0 5.0 x 23.7 69 0923001

KBT200OD-2 2.000 2 82-156 4000 6,3 x 19,1 5.0 x 23.7 118 0923003
KBT200OD-3.2 3.200 2 103-223 4500 8,0 x 24,2 5.0 x 23.7 181 0923005
KBT200OD-5 5.000 4 119-215 6000 8,0 x 24,2 5.0 x 23.7 293 0923007
KBT200OD-6.3 6.300 4 119-215 6000 8,0 x 24,2 5.0 x 23.7 296 0923009

Type A B1 B2 C1 C2 D1 D2 E1 E2 F H L M1 M2
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)

KBT200OD-1 554 206 234 129 151 117 223 217 134 27.5 135 348 40 18
KBT200OD-2 684 254 406 149 211 165 265 240 152 36.5 160 392 50 24
KBT200OD-3.2 765 279 461 169 236 165 325 240 173 44.0 190 499 55 28
KBT200OD-5 873 336 524 201 279 184 327 259 180 39.0 235 512 65 37
KBT200OD-6.3 873 336 524 201 279 184 327 259 180 39 235 512 65 37

catgenforcetextbelowlasttable

16
2 18

Comparison list lever hoist

18
18

REMA Elephant YA ratchet hoist

19
19

REMA Select 2 OD ratchet hoist

23
23

REMA X-Line ratchet hoist

24
24

17
 2

Ratchet hoist selection chart

REMA YA REMA YA mini ratchet hoist

The no. 1 amongst the ratchet hoists. Top Same as YA, but very compact and weighing
quality and easy to use. just 2 kg for 1.5 meters lifting height.

Main features Main features

Suitable for very intensive use in the offshore Due to its very low weight, ideal for every
industry and heavy industry. toolbox and/or service vehicle.

1.000 kg - 9.000 kg 250 kg

Page 19 Page 20
2

REMA YAM REMA YAS

RATCHET HOIST COMPARISON LIST LEVER HOIST

Same as YA, except it is extremely compact Same as YA, except it is fitted with shipyard
with a gear transmission in 500 kg version. hooks.

Main features Main features

Due to its extremely low weight of 2.8 kg, ideal For pulling in all directions in shipbuilding.
for every toolbox and/or service vehicle.

500 kg 1.600 kg and 3.200 kg

Page 21 Page 22

REMA S2-OD REMA X-line

With innovative overload protection for safely Produced to the same quality requirements as
lowering the load in the event of overloading. the Select 2-OD.

Main features Main features

Safe working. Protects both the hoist and the Equivalent to the Select 2-OD, but without the
structure against undesirable overloading. overload protection.

250 kg - 9.000 kg 250 kg - 9,000 kg

Page 23 Page 24

18
 2

REMA YA ratchet hoist

Model REMA YA ratchet hoist is a robust ratchet lever hoist suitable for lifting, pulling, tensioning and
lashing in any directions.

Properties
- Grade 10 Galvanized load chain with high tensile strength (EN 818/7).
- Compact construction and very low self-weight.
- Reliable self-locked brake which will retain the load at every required height.
- Hooks provided with safety latches.
- In case of overload, the hooks will gradually bend and do not suddenly break off.
- Patented guide for the load chain.
- A double spring on each catch for additional safety.

Standard delivery
- 1,5 m lifting height (max distance between top and bottom hookpositions).

Option
- Available in other lifting heights.

Norm:
- EN12100-1/2, EN13157, EN818-7

1.0-3.2 t 6.3 t 9.0 t

A A C
B C A C B
B

2
RATCHET HOIST REMA ELEPHANT YA RATCHET HOIST
D
H H D
H
D

E E
E

F F F

Type WLL Hand force max. Load chain Number of falls Construction height Weight ProductId
(kg) (kg) (mm) (mm) (kg)

YA-1000KG 1.000 37 5,6 x 17,1 1 312 6.2 0208003

YA-1600KG 1.600 37 7,1 x 21,0 1 352 9.2 0208005
YA-3200KG 3.200 37 9,0 x 27,2 1 420 15.5 0208007
YA-6300KG 6.300 38 9,0 x 27,2 2 564 26.5 0208009
YA-9000KG 9.000 39 9,0 x 27,2 3 589 42.0 0208011

Type A B C D E F H
(mm) (mm) (mm) (mm) (mm) (mm) (mm)

YA-1000KG 144 91 122 268 28 43 312

YA-1600KG 162 99 136 310 29 43 352
YA-3200KG 186.5 104 180 310 36 53 420
YA-6300KG 186.5 104 235 310 47 70 564
YA-9000KG 186.5 104 300 310 73 85 689
