Operation Manual: High Pressure Water-Based Mist Fire Fighting System

Hangzhou Huayan Digital Electronic Co. Ltd.
High pressure water-based mist fire fighting system

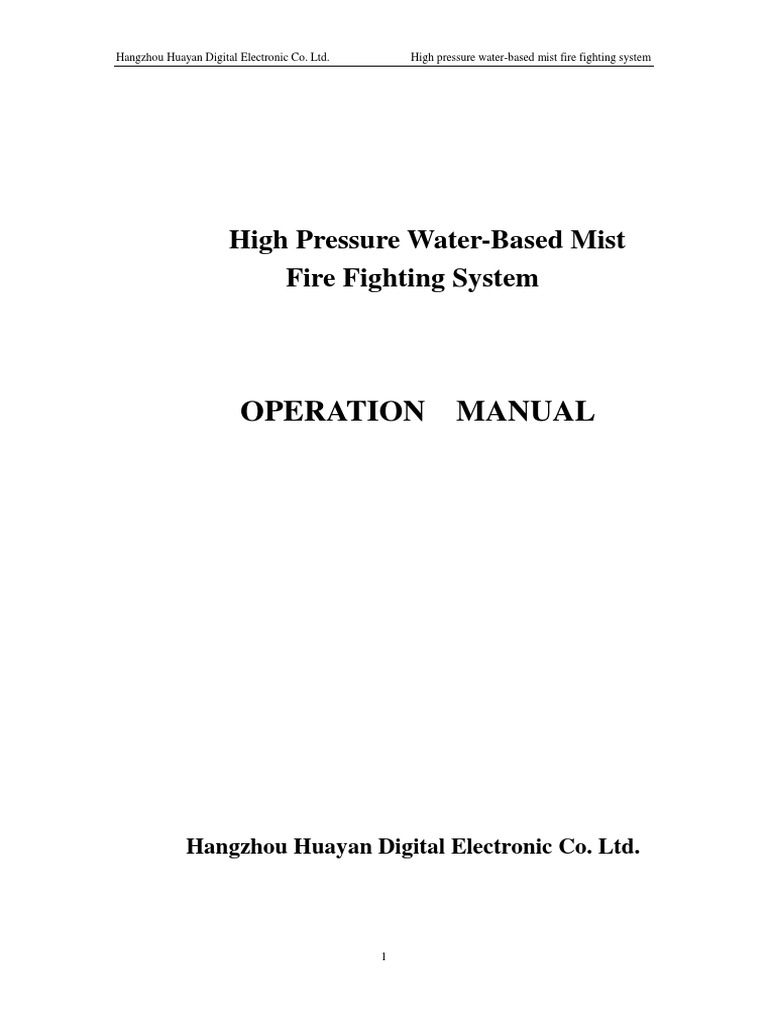

High Pressure Water-Based Mist

Fire Fighting System
OPERATION MANUAL
1
Hangzhou Huayan Digital Electronic Co. Ltd. High pressure water-based mist fire fighting system
CONTENT OF SYSTEM
1. High pressure water-based mist fire fight system instruction

2. FCU-5000 type fire alarm controller operation specification
3. Pump and valve control box operation specification
4. Transportation, store, unpack and check
5. System accessories list
6. Service guide
7. Installation and wiring drawings
2
High Pressure Water-Based Mist

Fire Fighting System
INSTRUCTION
3
Praface
The marine high pressure water-based mist fire fighting
system is designed according to the requirements for “IMO
MSC / circ. 913 Resolution” and “Installation guide for local
fixed water-based fire fighting system in A class machinery
spaces” which were adopted by 71st MSC annul meeting. The
conspicuous characteristic of the system is that nozzle adopt
high pressure strong vortex flow water mist type in order to
energy saving, environmental protection and high efficiency of
fire fighting.
Water mist nozzle Function test
4
Instruction For Water Mist System In Engine

Room
1. Design Standard
The fixed local water mist fire fight system is designed based
on ship general arrangement plan and engine room arrangement
plan provided by shipyard.
The system technical performance accord with SOLAS
relevant regulation. The complete set satisfies the rule 2001
edition of CCS ( China Classification Society ), amendment
circular 2002 and 2004, and SOLAS 2004 amendment.
1.1 Classification : CCS
1.2 System release method
Local manual release and remote-control release ( to set
up the changeover switch on control panel ).
1.3 Power supply
Main power: AC 380V, 3P, 50Hz;
Control power: AC 220V, 1P, 50Hz and DC 24V.
1.4 Fresh water supply
The system is connected with fresh water tank of ship
by pipe joint DN50 and required static supply. The capacity
of system high pressure pump unit is met the demands of
biggest section.
2. Protected section
In some equipment space shall be set water-based mist fire
fighting system according to requirements for IMO MSC /
CIRC. 913 resolution and installation guide for local fixed
water-based fire fighting system in A class machinery space, so
the protected section is as following:
(1) Main engine;
5
(2) Boiler;
(3) Auxiliary engine;
(4) Oil- exhaust gas fired boiler;
(5) Fuel separator.
The protection class of electrical equipment shall be at least
IP23.
3. Main technical specification
Main power: AC 380V, 3P,50Hz;
Control power: AC 220V, 1P, 50Hz and DC 24V;
Motor of high pressure pump unit: 7.5 kW, F, IP44;
Control panel protection class: IP22;
Design pressure of water mist system: 10 MPa;
Work pressure range of nozzle: 9~11 MPa;
Capacity of high pump unit : 38 l /min.
4. Alarm display
The fire detection and alarm system is set in the water mist
fire fighting system.
4.1 The audible and visual alarm is sent out by local manual
control panel when the smoke and temperature detectors
are activated simultaneous, and fire zone name is
displayed on remote-control release panel in engine
control room and on expand display panel in the
weelhouse.
4.2 The audible and visual alarm is sent out on pump control
panel, remote-control release panel in engine control room
and the release section when water mist system is released.
4.3 The alarm is occurred on remote-control panel in engine
control room and on expand display panel in weelhouse
when the system failure is occurred.
4.4 The alarm is occurred on remote-control panel in engine
control room and on expand display panel in weelhouse
6
when fresh water level is drooped down to alarm level

limited.
5. Working principle of the system
The system is high pressure water-based mist fire fighting
system, the working principle is that when high pressure fresh
water is flowed via dispersive nozzle and fine grain water mist
to be spouted in order to control fire ( oil kind ) A class
machinery space.
The system has automatic and manual control mode. When
the fire signal is sent out from fire detectors in protection point
and after is confirmed via the system control station, water mist
is automatically blown off from nozzle and or manually to press
the button on manual control box to start the pump and valves
automatically then water mist is blown off from nozzle so as to
control the fire and to protect the equipment.
The material of nozzle is stainless steel, for the detail
technical data, refer to attachment. The nozzle type is approval
by CCS ( for the certificate of type approval, refer to
attachment ).
After the system is started, if don’t press the stop button, the
system will continuously blown off water mist until water is
finished.
The system requires motor protection class is lower i.e. IP23
only.
The system component is as following:
(1) High pressure strong vortex flow water mist
nozzle;
(2) Flame and smoke detectors;
(3) Signal receiver and fire control box, manual
operation box and expand display panel etc.;
(4) Pressure water supply unit;
7
(5)
Control electromagnetic valves for atomizing
point;
(6) Audible and visual alarm;
(7) Pipes and fittings.
For high pressure water mist fire fighting system diagram
drawing, refer to attachment.
6. Design for system
Working temperature range is 10 ~ 55o C, other parts are
described respectively as following.
6.1 Nozzle
Type: HTW-1.27-03 high pressure strong vortex flow
water mist nozzle;
Working pressure: 90 ~110 bar;
Water mist grain size: smaller than 150 μm and grain
more than 95% in protected section;
Flow rate: see flow rate curve (Figure 1 );
Dispersive cone angle: 110o;

Horizontal range: less than 2m when nozzle is installed
8
vertically and under maximum working pressure

conditions;
Coverage area: more than 5m (diameter) under installation
height;
Material: 1Cr18Ni9Ti.
The atomizing figure is as following.
6.2 Pressure water supply unit

(1) Water pump
Model: 3DP35;
Type: plunger reciprocating pump;
Plunger diameter: 32 mm;
Rated rotation: 450rpm;
Rated flow: 38 L/min;
Rated pressure: 10 MPa;
Rated power: 22 kW (AC380V,3P,50Hz);
Material of flow parts: Stainless steel.
(2) Store tank
Efficient volume: more than 1000 L.
9
(3) Distribution valve

Type: electrical ball valve;
Diameter: DN10,DN18;
Working pressure: max. 140 bar;
Drive: AC motor (AC220V, 1P, 50Hz);
Material of body: 1Cr18Ni9Ti.
6.3 Electrical equipment
(1) Water mist control panel and pump-valve control
panel
Protection class: IP22;
Function: To display fire space and send out alarm
signal when receiving fire signal from flame and
smoke detectors in atomizing point, then to send out
automatic fire fighting signal to control pump and
electromagnetic valve; or to send out fire fighting
signal by manual mode to control pump and
electromagnetic valve.
Response time: response time of alarm is 5 seconds
to 2 minutes and delay time from receiving fire
signal to send out automatic fire fighting signal is 5
seconds to 2 minutes ( adjustable), but for manual
mode, the delay time is not limited.
(2) Expand display panel
Function: fire space alarm, fire fighting section
display and system failure alarm.
(3) Manual release button box
Function: start / stop fire fighting signal by manual
button; and to display fire fighting status.
7. Installation
10
7.1 Nozzle quantity selection for fire protected section

The maximum design working pressure of system is 11
MPa, and actual protected area of single nozzle is circular area
which radius is R= 1.75.
7.2 Installation conditions of nozzle design
Installation status: nozzle is fixed vertically upper fire
fighting section and nozzle outlet is down. Around
atomizing section of nozzle which can’t be sheltered by
pipe and other objects;
Installation pitch: max. 3.5m between two nozzles;
Installation height of nozzle : min. 1.5m, max. 4.0m is a
distance from the protective target.
7.3 Water supply unit
The unit is fixed on stronger rigidity space of ship, and shall
set vibration absorbers on foundation to avoid vibration in order
to protect equipment.
The pump is installed as near water tank as possible and
under the water tank in order to supply water sufficiently.
7.4 Piping installation
To get balance water pressure in each nozzle and to reduce
pressure losing, it shall adopt the bend technique which radius is
more than 150 mm, and to require smooth, beautiful and
non-deformable.
All pipes shall be fixed reliably by fixtures.
7.5 Electrical equipment
Manual operation box be mounted on wall the each
atomizing section and to set up the eye-catching mark and along
safe walkway as possible for operator leaving safely.
8. Work procedure of system
The system shall be assured to work continuously at least 20
minutes at the biggest atomizing section.
11
The work mode of the system is both automatic and manual.

When flame in protected section is detected by smoke
detector and temperature detector, the fire space is displayed on
control box and fire alarm is sent up .
When automatic control mode is selected , after the fire is
firmed from flame by control panel of the system, the fire
fighting signal will be sent up automatically, and water valve is
opened and water pump is started, then atomizing is processed
automatically.
When manual control mode is selected, the fire fighting
signal is sent up by pressing button manually.
The work procedure of system under running is as following
block drawing.
12
If the fire alarm is not sent up, but while real need of
starting the water mist fire fighting system, the start button on
manual control box of the fire section shall be pressed.
If need of changing the position for atomizing point in the
course of fire fighting, the operation procedure is as following
If need of stopping the fire fighting, the stop button of system

control box or manual control box shall be pressed..
9. Maintenance
9.1 To check control panel and display panel every day.
9.2 To check running status of motor and pump ( about pressure,
noise etc. ) and piping and cable line every month.
13
9.3 To check each valve and nozzle, each alarm and piping filter,
then to test for atomizing per 3 months.
9.4 To overhaul valves and nozzles、change gaskets、clean
piping、repair pump and change filter. After overhauling to
check running status of pump and testing for atomizing per 5
years.
10. Supply scope of system
(1) High pressure plunger pump;
(2) Fire alarm controller (FCU-50000);
(3) Expand display panel;
(4) Water- based atomizing start box;
(5) Monitoring accessories etc. .
( for detail, see the dispatch list. )
14
(CCS 船用产品型式认可证书)
15
(CCS 船用产品型式认可证书)
16
(产品合格证)
17
FCU-5000 Type Fire Alarm Controller
OPERATION SPECIFICATION
Wenzhou Zhenze Electronic Co. Ltd.
18

( Joint Manufacture )
CONTENT
Prefacre
1. Brief
2. Product feature
3. Technical specification
3.1 System disposal
3.2 main function and technical specification
4. Capacity of system
5. Design of system
6. Work principle
7. Installation and wire connection
7.1 Construction feature
7.2 Requirements for wire connection
7.3 Terminal connection drawing
8. Equipment commissioning
8.1 Checking connection
8.2 Checking power on
8.3 External wire connection
19
8.4 Notes
9. Basic function and operation
9.1 Description for indicating lamp and keys
9.2 Starting of system
9.3 Priority of alarm events
9.4 Checking time
10. Maintenance
11. Common failure analysis and elimination methods
WARNING !
WHILE ENTER “PROGRAMING OPERATING”, THE
OPERATION OF “RESTRING TACIT CONSENT”
COMMAND IS STRICTLY PROHIBITED!!!
20
Preface
This specification describes detailed work principle、system
design 、 operation 、 analysis and elimination of failure and
maintenance etc.. The specification is suited to
open-start/maintenance personnel for starting、commissioning
and servicing， and also suited to user for routine maintenance.
Welcome you to use our company’s product. Tanks!
1. Brief
FCU-5000 type signal circuit fire alarm device is newest type
intelligent fire alarm controller put out buy our company. It
has diversified intelligent features, e.g. drift compensating、
smooth processing 、 sensitivity adjustment 、 comprehensive
multiple detector detecting and maintenance alarm etc.，and can
detect accurately initial fire.
The controller is of 500 series intelligent type detector and
necessary modules and 900 series intelligent type detector and
necessary modules.
2. Product features
(1) Liquid crystal display
240 x 64 picture element LCD display panel by
Chinese words, which can detail to display the concrete
alarm position e.g. the layer number、code number、
machine number in order to prepare、timely and overall
grasp the alarm information for operator.
(2) Show consideration and convenient programming
It has multistage early-warning sensitivity and
adjusting sensitivity of each detector according to
21
requirement, and has the function of failure shield

witch can select equipment kind and single address to
shield, this function will convenience the system
commissioning and routine maintenance.
(3) A wealth of control output for matrix
Each codress unit can take parting logical
programming many times. The control output object
may be appointive single output module and also may
be all output module of appointive area.
(4) Accurate and detailed event record
Newest occurred fire alarm、linkage between failure
and control module 、 monitoring feedback event of
module can be recorded and saved as classify for easy
inquiring. Each event can be saved to 200 articles at
most.
(5) Perfect automatic compensation function
The influence of slow variety for non-fire factor
outside on the system is compensated in order to keep
detectable ability to avoid wrong alarm.
(6) Reliable self-diagnostic and protective function
The detectors and modules and self-diagnosed timed.
When elements are failed or duct is gathered on detector
to or over allowable limit, the failure alarm is sent up,
so the reliability of system has risen greatly.
(7) Automatic account function
The amount of work for open/start and
commissioning is reduced efficiently.
3.1 System disposal
(1) Intelligent linkage type fire alarm controller
(2) Fire detectors
22
Intelligent type ion smoke detectors(JTY-LM-ZM991);

Intelligent type temperature detectors(JTY-BD-ZM995.
(3) Input/output modules
Intelligent type monitoring modules(JSM-M900M);
Intelligent type monitoring control modules
(JKM-M900M);
Intelligent type monitoring buttons (J-SAP-M-M500K).
3.2 Main function and technical specification
Main functions :
(1) The controller design meet the standard GB4717-93
“General technical condition of fire alarm controller”.
(2) Automatic compensation for sensitivity drift caused by
variety of outside non-fire factor.
(3) History event records can be inquire as classify, each
event record may amount to 200 articles.
(4) Control matrix can finish to set multiform composite
logical programming which maximum capacity is 200 articles.
(5) Real-time clock.
Service conditions and main technical specification :

Environment temperature : 0 ~ 40oC;
Relative humidity : ≤95 % (40oC) ;
Main power : AC 220V±10%, 50Hz±10% ;
Output current and voltage : 3A / 24V, 3A / 5V;
Static power consumption : 300 mA, 220V;
Single circuit control unit;
One fire alarm output relay : contact rating is DC24V, 1A, no
delay;
One fire alarm delay output relay: contact rating is DC24V,
1A, 2 minutes delay;
One linkage output relay: contact rating is DC24V, 1A, no
23
delay;
One failure output relay: contact rating is DC24V, 1A, no
delay.
4. System capacity
The controller’s standard disposal is single circuit control
unit.
Each circuit control unit can connect 99 intelligent
detectors and 99 intelligent input / output modules, the single
machine maximum capacity is 198 codress units.
5. System design
If the more codress units in circuit bus, it shall add to set the
short circuit isolator in front of circuit bus. Codress unit
number between neighboring two isolators is not exceed 25
units.
6. Work principle
The controller is of central control unit、display keyboard、
programming delay control electric circuit、return circuit、
return circuit control unit、stabilivolt power and equipment
unit，the controller is a real-time work system， the data is
transmitted between interface units by adopted IC2 bus serial
communication mode. After central processing unit processes
and judges collected data from circuit interface units, the states
of codress units on each circuit bus of circuit control unit are
determined. Same time the result is transmitted to display
interface unit to display and send out audible and visual alarm
signal, and to save necessary data on FLASH. Besides the
central processing unit is also responsible for monitoring
internal DC power. The sound unit is responsible for fire and
failure alarm.
7. Installation and wire connection
7.1 Construction features
24
(1) Size (height x width x thickness)

Wall hanging type : 595 x 400 x 160 mm ;
Inlaying type : 320 x 360 x 210.
(2) Succinct outline, convenient for installation ;
(3) Adopted thin film soft face plate is beautiful and useful.
(4) Modularized construction inside is tidy and compact, so
easy to disassemble.
7.2 Requirement for wire connection
All external wire shall be leaded-in from top of controller,
and to be pressed on terminal, this moment to turn off the
power.
Maximum length of wire is not exceeded 1200 m, and
communication baud rate is 2400 BPS.
Serial port data cable is CEF80 / NA-2x1 shielded cable.
VDR communication cable is CEF80 / NA-2x1 shilded
cable.
7.3 Terminal connection drawing
For terminal connection drawing, see attachment 2.
7.4 Description of terminal connection in display part inside
face plate :
No. Terminal Description Terminal Description
D1 485A VDR communication terminal A
D2 485 B VDR communication terminal B
D3 CAN-H Expand display panel
communication terminal
D4 CAN-L Expand display panel
communication terminal
D5 Relay 1 middle Fire alarm relay
D6 Relay 1 open Fire alarm relay
D7 Relay 1 close Fire alarm relay
D8 Relay 1 middle Linkage relay
25
D9 Relay 1 open Linkage relay

D10 Relay 1 close Linkage relay
D11 Relay 1 middle Fire alarm delay relay
D12 Relay 1 open Fire alarm delay relay
D13 Relay 1 close Fire alarm delay relay
D14 Relay 1 middle Failure relay
D15 Relay 1 open Failure relay
D16 Relay 1 close Failure relay
D17 24VR Can reset 24V
D18 GND Ground
D19 24V Can’t reset 24V
D20 GND Ground
D21 ZX+ Circuit bus +
D22 ZX+ Circuit bus +
D23 ZX- Circuit bus -
D24 ZX- Circuit bus -
D25 +28V AC 28V
D26 +28V AC 28V
D27 -28V AC 28V
D28 -28V AC 28V
8. Equipment commissioning
8.1 Checking connection
(1) To decide the controller is normal and has not external
connection on interface of bus.
(2) To open the door of controller to check connection
whether normal or not； and whether loose、shorting and
broken circuit or not；and each plug-and-socket whether loose
or not；and power whether normal and shorting or not inside
alarm controller.
(3) To check dialing code of circuit controller interface unit
26
whether normal and repetition code or not.

8.2 Checking power on
(1) After checking connection and normal, to switch on
stand-by power and to send out audible and visual alarm signal
displayed by liquid crystal. And after controller works
normally it shall send out audible and visual signal for main
power failure.
(2) To turn–off stand-by power and to connect main power
and to turn-on main power and display by liquid crystal. And
after controller works normally it shall send out audible and
visual signal for stand-by power failure, this moment to
turn-on stand-by power, the alarm controller shall return to
normal work status.
(3) To turn-on main and stand-by power and to work
normally, the main power running lamp on main face plate of
controller shall be lighted and stand-by power running lamp
and power failure lamp shall be darkened.
(4) There are main power, stand-by power and power
failure three statuses indicating lamps on face plate of
controller. When power failure e.g. main power-off or bad
contact、 over voltage or out enough of 5V, 24V、 or shorting
with ground of machine cover, the power failure lamp on face
plate of controller shall be lighted and send out audible and
visual alarm signal， this moment main power running lamp is
darkened and stand-by power running lamp is lighted. The
cocrete failure kind etc. information are displayed on
controller liquid crystal panel.
8.3 External connection
Only after to check each external connecting whether
shorting and broken circuit or not and to work normally, the
external cable can be connected to controller.
27
We suggest that to adopt the method of batch installation

and commissioning i.e. 10 ~ 20 detectors orinput / output
modules for controller are connected each time, and until
connecting into circuit bus and switch on, then to check
rightness of cycle monitoring detectors and input / output
modules for controller, if failure alarm signal is sent out shall
check line and alarm codress unit to eliminate then to go on
installation and commissioning for next batch until whole
work is normal.
After this, can go on the testing of simulation alarm, fire
alarm and linkage events, to check the rightness of alarm for
controller and to link equipment at site. If some problems are
occurred shall be processed and eliminated immediately, until
controller has entered normal monitoring status.
8.4 Notes
(1) To avoid to contact the chip of integrated circuit on
circuit board when installation.
(2) To note polarity when wiring.
(3) To check shorting、 broken circuit、 reversed polarity
before power-on.
(4) The joints between conductors shall be welded and the
insulation between conductors shall be ensured.
Additional :
The diode measurement function of multimeter is used for
checking connection directivity for circuit codress unit.
When reversed polarity connection, this moment the
multimeter shall indicate bias voltage value of several diodes.
Then the multimeter is connected normally ( i.e. correct
direction) and to get a low resistance value, and to rise along
with changing of circuit capacitance. If the multimeter is still
indicate bias voltage value of diode, that is to say one or more
28
circuit maybe reversely connected on circuit.

9. Basic function and operation
9.1 Description for indicating lamps and keys
(1) Indicating lamps :
Fire alarm indicating lamp: when detector alarm or
manual alarm button is pressed, the lamp is
lighting;
Running indicating lamp: when main CPU works
normally, the lamp is flashing (0.5 seconds);
Shield indicating lamp: when codress unit is shielded
in system, the lamp is lighting;
Silence indicating lamp: when pressing silencing key,
the lamp is lighting; when event is occurred , the
lamp is darkened;
Linkage indicating lamp: when monitoring module or
control module alarm, the lamp is lighting;
Automatic indicating lamp: when using automatic
control mode, the lamp is lighting;
Delay indicating lamp: when control output is delayed,
the lamp is lighting;
Control indicating lamp: when control output, the lamp
is lighting;
Failure indicating lamp: when system or codress unit
failure, the lamp is lighting;
Main power running indicating lamp: when normal
main power work status, the lamp is lighting;
Stand-by power running indicating lamp: when normal
stand-by power work status, the lamp is lighting;
Power failure indicating lamp: when main power or
stand-by power failure, the lamp is lighting;
Self-diagnosis indicating lamp: when system
29
self-diagnostic status, the lamp is lighting;

Transmission indicating lamp: when transmitting event
to expand display panel, the lamp is lighting;
(2) Operation keys :
Reset key: for eliminating present system status, and
whole system works again;
Silence key: for eliminating alarm sound of controller;
Self-test key: for instantaneously lighting all
indicating lamps of face plate of controller and
checking sound.
(3) Function keys :
F1 ~ F5 keys : for programming operation of
controller;
0 ~ 9 keys : for programming operation of controller;
“ Enter”、 “Esc”and direction keys ：for programming
operation of controller.
9.2 Start of system
After to switch in 220V AC power, first to switch on
main power switch, then to switch on stand-by power switch,
and controller enters work status.
This moment displaying is as following:
09:20:45
** Welcome using this product **
Under normal status, to display by liquid crystal on face

plate of controller for normal work of alarm system and linkage
system、running lamps are flashing、main power running lamp is
30
lighting、power failure lamp is dark.

The alarm system’s normal interface is as following:
09:20:45
** Alarm system running **

VER : 2.00BUILD0028
Programming Check time
Note: VER2.00 is software edition number, BUILD0028 is

amendment time of the edition.
9.3 Priority of alarm events
Priority of alarm event for controller:
Alarm system: event、failure、feedback、linkage、fire alarm
（ from high to low ）.
The failure alarm interface is as following:
09:20:45
Failure: 01machine No. 1 01/02 08/12
001》 01machine No. 1 01/02 08/12
Intelligent Ion Oil Separator
Fire alarm :000 Failure:001 Shield:002 Detector
If alarm kind is more than one, the display is transformed by

left or right key; if present alarm quantity is more than one, the
display is transformed by up or down key.
If not press the key for checking, next alarm event will be
displayed automatically per 5 seconds.
When failure alarm is occurred, its signal is sent up
immediately by failure relay.
Note: All failure events are displayed on this interface
which include detectors、 modules、 power failure and expand
31
display panel failure etc. , and they are counted into total failure
quantity. The quantity of detector fire event and detector shield
is displayed in this interface.
The feedback alarm interface is as following :
09:20:45
Feedback: 01machine No. 122 01/02 08/12
001》 01machine No. 122 01/02 08/12
Intelligent Monitoring Oil Separator
Linkage :000 Feedback:001 Shield:002 Module

Note: All feedback events are displayed on this interface
which include monitoring modules , and they are counted into
total feedback quantity. The quantity of detector shield is
displayed in this interface.
The linkage alarm interface is as following:
09:20:45
Linkage: 01machine No. 123 01/02 08/12
001》 01machine No. 123 01/02 08/12
Intelligent Control Oil Separator
Linkage :001 Feedback:000 Shield:002 Module

32
When linkage alarm is occurred, its signal is sent up
immediately by linkage relay.
Note: All linkage events are displayed on this interface
which include control modules , and they are counted into total
linkage quantity. The quantity of monitoring module event and
detector shield is displayed.
The fire alarm interface is as following :
09:20:45
Fire alarm: 01machine No. 123 01/02 08/12
001》 01machine No. 123 01/02 08/12
Intelligent Ion Oil Separator
Fire alarm :001 Failure:000 Shield:002 Detector

When fire alarm is occurred, its signal is sent up
immediately by fire alarm relay, but for fire delay relay alarm
will be sent up after to delay 2 minutes. If press the silence key
the fire alarm and fire alarm delay relay is canceled. If press the
silence key within alarm2 minutes and fire alarm signal will not
be sent out by fire alarm delay relay.
Note: All detector fire events are displayed on this interface
which include smoke ion detector 、 photoelectric smoke
detectors、temperature detectors、laser detectors and manual
buttons etc. , and they are counted into total fire alarm quantity.
33
The quantity of failure event and detector shield is displayed.

9.4 Checking time
When press the “Programming” key and input the checking
time cipher “111111”, the checking time interface can be
entered.
The controller has 24 hours system clock with power-off
protection, and present time is displayed real-time at upper right
of liquid crystal face plate.
The clock’s feathers are high accuracy, automatically
adjusting leap year、leap month and manual adjusting. The
clock’s display form is “ (hour) : (minute) : (second)”. When
press “checking time” key, controller points out user to input the
cipher ( six-figure number, acquiesce in “111111” ) as following:
Please input checking time cipher: ******
Programming Checking time
After input checking time cipher, the controller displays

following interface, user through to move cursor ”-“ and input
relative digits for revision of day and time.
(day) – (month) – (year) (hour) : (minute)
Programming Checking time
If input time is error form e.g. month is bigger than 12 or

date is bigger 31 etc., it will be not saved.
34
To press “Return” key as soon as to save the new set; to

press “Esc” key as soon as to cancel the operation.
10. Use and maintenance

User shall notes as follows in the course of running to
ensure equipment running reliability.
(1) The controller shall be installed and commissioning by
technical personnel of fire fighting specialty;
(2) Person on duty shall familiar the building construction
and grasp various state and operation;
(3) To note observing controller state and to eliminate
various failure in time;
(4) Manual release button on controller is manual mist
operation key of system, can not will operate.
(5) Manual / automatic changeover switch on control face
plate is set specially for manual / automatic
changeover, when need at manual state for system
running and it shall be turn to manual position, this
moment if fire is occurred the controller only alarm
and not release mist and need to start release key.
When need at automatic state for system running and
it shall be turn to automatic position, this moment if
fire is occurred, and temperature detector and smoke
detector sends out signal or the protection section is
under operation state of automatic release key, then the
controller automatically control pump starting box and
release water mist.
(6) If power cut time is exceeded 8 hours, the stand-by
power shall be cut to avoid damage because of over
release.
(7) When basis construction is carried out, the power of
35
fire fighting equipment shall be cut off and equipment

shall be protected.
Note : Under non-working state (transport, store etc.)
stand-by power shall be switched off with controller.
11. Common failure analysis and elimination
methods
Because advanced technology of single chip processor is
adopted for the controller, which has rich function of
self-diagnose and self-protection for quite convenience of
use and maintenance. Common failures are as following.
No. Failure name Reason analysis Elimination method
1 Main power Fuse tube is lacked or To change fuse tube; to plug
failure damaged; element is AC 220V power again.
damaged; bad contact of
AC 220V.
2 Stand-by Bad connection of To check plug-and-socket;
power failure plug-and-socket; to change stand-by power.
stand-by power is
damaged.
3 No display of Bad connection of To check plug-and-socket;
liquid crystal display panel with liquid to adjust liquid crystal
crystal; brightness is not brightness; to plug again.
adjusted;
bad connection of back
lighting plug .
4 Loss efficacy Bad insertion of plug-in To insert again
of unit of soft face plate.
keyboard
5 No sound Bad insertion of horn To insert again
plug
6 Circuit Circuit bus shorting; To eliminate shorting; to
36
shorting codress unit connecting check and revise connection

direction is reversed. for codress unit.
For failure can’t be eliminated by user, please contact
directly with Vendor or manufacture.
Pump and Valve Control Box
OPERATION SPECIFICATION
37
1. General
The control box of pump and valves is accessories of
DHTW-HT-03A high pressure water-based mist fire fighting
system which is linkage mechanism between local fire alarm
controller of the system and sprinkler pump, electrical valves of
piping.
When fire alarm is occurred, the control box receive the
command of local fire alarm controller and to open the valves of
piping relative fire alarm section and to send out audible and
visual for relative section and to start sprinkler pump to go on
local fire fighting.
2. Main Functions
(1) To supply power for high pressure water-based mist
fire fighting system, electric valves of piping, each
local fire alarm.
(2) To receive water mist fire fighting signal by remote
starting from local fire alarm controller, then the
control box send out DC24V power to relative section
automatically and to send out audible and visual alarm,
same time to open electric valves and to delayed-start
pump; if stop the operation, the action will be canceled.
(3) To transmit arrival signal on position of electric valve
via alarm circuit bus back to local fire fighting alarm
controller.
(4) To set up local emergency start / stop buttons of pump,
when the pump can’t be started automatically, manual
38
open relative electric valve, and to turn to manual

position on manual / automatic converter of the
controller, then to start pump manually for fire fighting.
(1) Work environment
Temperature : -10oC ~ +55 oC;
Relative humidity : ≤95%;
Other inside ship environment condition of CCS rule.
(2) Power supply
AC 380V, 3P, 50Hz, for pump;
AC 220V, 1P, 50Hz, for valves and audible and visual
alarm.
(3) Output of audible and visual alarm : DC 24V, 3A.
(4) Power consumption for pump : <10kW, AC 380V, 3P,
50Hz.
(5) Power consumption for electric valve: 1A, AC220V, 1P,
50Hz.
39
Transportation, Store, Unpack and Check
The controller is stored after routine test, the store conditions

are under normal atmospheric conditions, normal temperature
and dry air inside room, store time limit is 6 months.
Packing work shall accord with manufacture’s standard. In
transportation course shall avoid inverting and heavy pressure.
Transport tools may be train, motor vehicle, airplane and ship
etc..
Operation shall be in progress according to the operation
specification after unpack, its result shall accord with the
demands of feathers and functions stipulated of the
specification.
40
Dispatch List for Water Mist

Fire Fighting System of Engine Room
Consign No.________ Consign date:________ Consigner:______
No. Description Material Qty. Unit
1 Fire alarm controller (FCU-5000) 1 piece
2 Expand display panel (FSQM) 1 piece
3 Pump starting box(wall mounting type) 1 piece
4 Smoke detector (JTY-LM-ZM991) piece
5 Temperature detector (JTW-BD-ZM995) piece
(among then 90oC :_______piece)
6 Waterproof foundation piece
7 Manual alarm button (J-SAP-M-M50K) piece
8 Water level monitoring module 1 piece
(JSM-M900M)
9 Audible and visual alarm(SG-3A),24V piece
10 High pressure plunger pump 1 piece
(3DP35,10MPa, 38 L/min)
11 Nozzle (HTW-1.27-03) 1Cr18Ni9Ti piece
41
12 7 ways high pressure selection valve set 1 set
Piping fittings
1 DN 18/10 Varied diameter connection 1Cr18Ni9Ti piece
pipe
2 DN18 connection pipe 1Cr18Ni9Ti piece
3 DN10 straub pipe joint 1Cr18Ni9Ti piece
4 DN18 10 varied diameter 3 ways joint 1Cr18Ni9Ti piece
5 DN18 10 varied diameter 4 ways joint 1Cr18Ni9Ti piece
6 DN18 straub pipe joint 1Cr18Ni9Ti piece
7 DN50 flange （A6050 GB2506-89） 1Cr18Ni9Ti 4 piece
Pipe
1 Φ60 x 3 stainless steel pipe 1Cr18Ni9Ti meter
42
Service Guide
If user install or operate correctly according to the
specification but the quality problem is occurred，our company
is responsible for free maintenance work within 12 months (i.e.
guarantee period ).
The starting and commissioning of engineering shall be
finished by technical personnel of technical service department
or assigned maintenance service place.
The product is occurred quality problem after the guarantee
period or because user not be used properly, our company will
provide service with compensation.
Note: For installation and wiring, see attached

drawings.
Company : Hangzhou Huayan Digital Electronic C0. Ltd.

Address : 318 Qiaonan Hongfa Road, Xiaoshan Economic
Development Zone, Hangzou, China
Post code : 311201
Tel. : 86-571-82697868, or 82697828
43
Fax. : 86-571-82696613
44

Operation Manual: High Pressure Water-Based Mist Fire Fighting System

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Operation Manual: High Pressure Water-Based Mist Fire Fighting System

Uploaded by

Copyright:

Available Formats

Hangzhou Huayan Digital Electronic Co. Ltd.

High pressure water-based mist fire fighting system

High Pressure Water-Based Mist

Hangzhou Huayan Digital Electronic Co. Ltd.

1. High pressure water-based mist fire fight system instruction

High Pressure Water-Based Mist

Water mist nozzle Function test

Instruction For Water Mist System In Engine

when fresh water level is drooped down to alarm level

Dispersive cone angle: 110o;

vertically and under maximum working pressure

6.2 Pressure water supply unit

(3) Distribution valve

7.1 Nozzle quantity selection for fire protected section

The work mode of the system is both automatic and manual.

If need of stopping the fire fighting, the stop button of system

FCU-5000 Type Fire Alarm Controller

Wenzhou Zhenze Electronic Co. Ltd.

Hangzhou Huayan Digital Electronic Co. Ltd.

requirement, and has the function of failure shield

Intelligent type ion smoke detectors(JTY-LM-ZM991);

Service conditions and main technical specification :

(1) Size (height x width x thickness)

D9 Relay 1 open Linkage relay

whether normal and repetition code or not.

We suggest that to adopt the method of batch installation

circuit maybe reversely connected on circuit.

self-diagnostic status, the lamp is lighting;

** Welcome using this product **

Under normal status, to display by liquid crystal on face

lighting、power failure lamp is dark.

** Alarm system running **

Programming Check time

Note: VER2.00 is software edition number, BUILD0028 is

Intelligent Ion Oil Separator

Fire alarm :000 Failure:001 Shield:002 Detector

If alarm kind is more than one, the display is transformed by

Intelligent Monitoring Oil Separator

Linkage :000 Feedback:001 Shield:002 Module

If alarm kind is more than one, the display is transformed by

Intelligent Control Oil Separator

Linkage :001 Feedback:000 Shield:002 Module

If alarm kind is more than one, the display is transformed by

Intelligent Ion Oil Separator

Fire alarm :001 Failure:000 Shield:002 Detector

If alarm kind is more than one, the display is transformed by

The quantity of failure event and detector shield is displayed.

Please input checking time cipher: ******

Programming Checking time

After input checking time cipher, the controller displays

(day) – (month) – (year) (hour) : (minute)

Programming Checking time

If input time is error form e.g. month is bigger than 12 or

To press “Return” key as soon as to save the new set; to

10. Use and maintenance

fire fighting equipment shall be cut off and equipment

shorting codress unit connecting check and revise connection

Pump and Valve Control Box

Hangzhou Huayan Digital Electronic Co. Ltd.

open relative electric valve, and to turn to manual

Transportation, Store, Unpack and Check

The controller is stored after routine test, the store conditions

Dispatch List for Water Mist

Welcome using this product

Alarm system running
