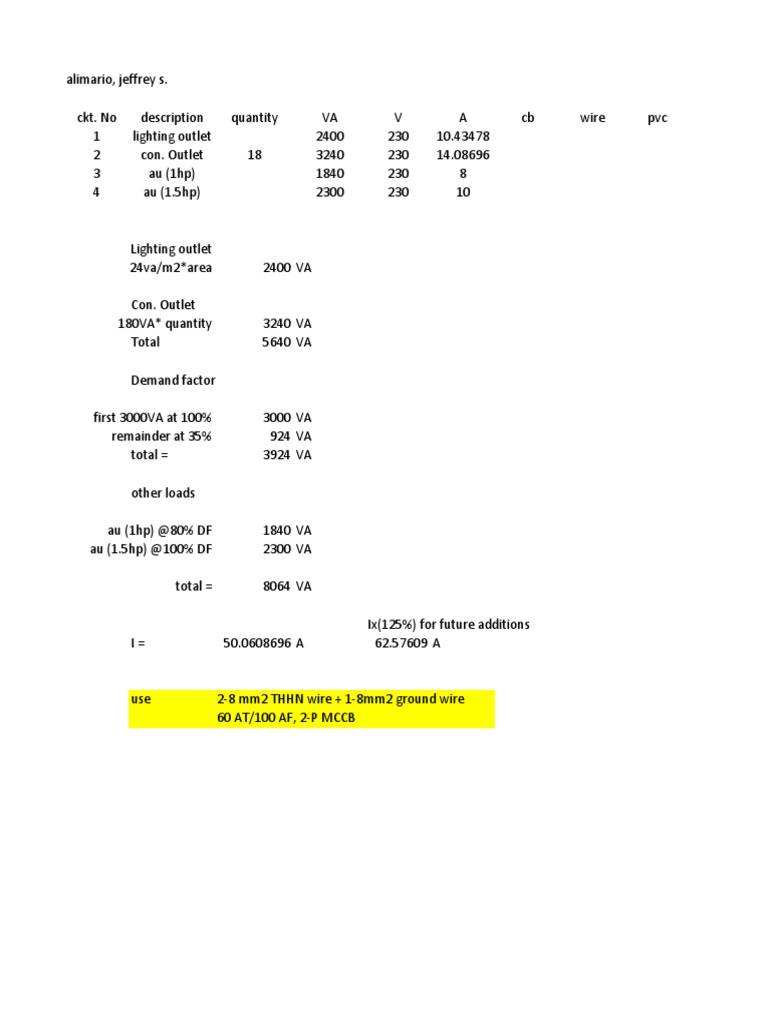

alimario, jeffrey s.

ckt. No description quantity VA V A cb wire pvc

1 lighting outlet 2400 230 10.43478
2 con. Outlet 18 3240 230 14.08696
3 au (1hp) 1840 230 8
4 au (1.5hp) 2300 230 10

Lighting outlet
24va/m2*area 2400 VA

Con. Outlet
180VA* quantity 3240 VA
Total 5640 VA

Demand factor

first 3000VA at 100% 3000 VA

remainder at 35% 924 VA
total = 3924 VA

other loads

au (1hp) @80% DF 1840 VA

au (1.5hp) @100% DF 2300 VA

total = 8064 VA

Ix(125%) for future additions

I= 50.0608696 A 62.57609 A

use 2-8 mm2 THHN wire + 1-8mm2 ground wire

60 AT/100 AF, 2-P MCCB
