Date : 06.07.

2017
Revision :02

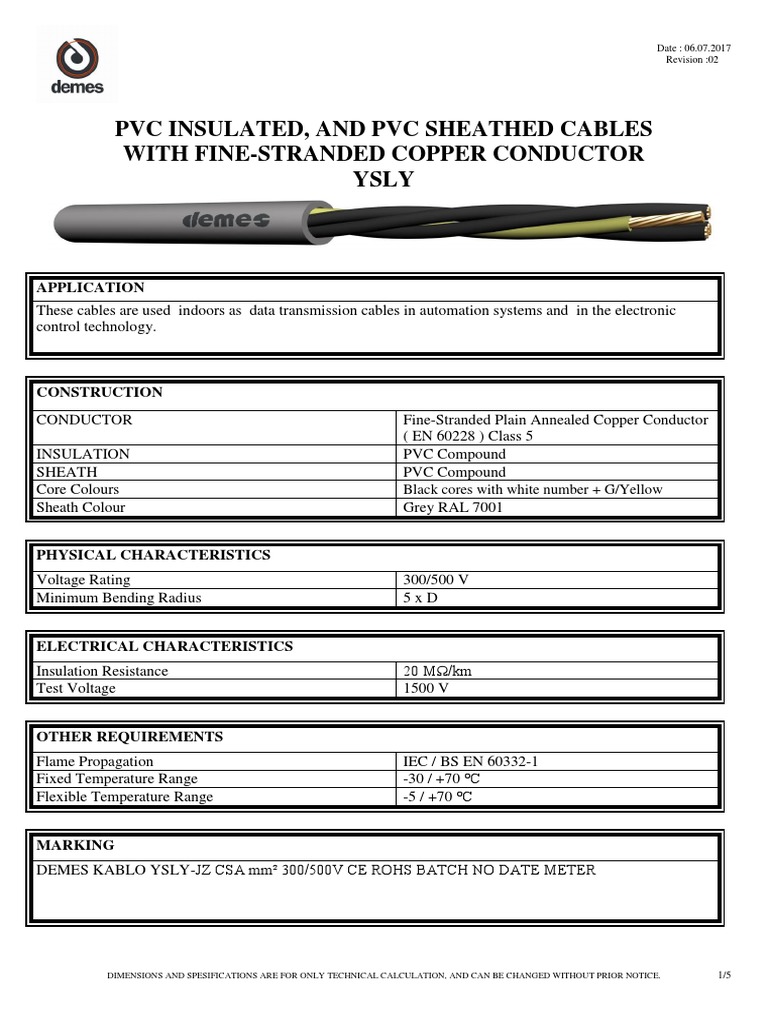

PVC INSULATED, AND PVC SHEATHED CABLES

WITH FINE-STRANDED COPPER CONDUCTOR
YSLY

APPLICATION
These cables are used indoors as data transmission cables in automation systems and in the electronic
control technology.

CONSTRUCTION
CONDUCTOR Fine-Stranded Plain Annealed Copper Conductor
( EN 60228 ) Class 5
INSULATION PVC Compound
SHEATH PVC Compound
Core Colours Black cores with white number + G/Yellow
Sheath Colour Grey RAL 7001

PHYSICAL CHARACTERISTICS
Voltage Rating 300/500 V
Minimum Bending Radius 5xD

ELECTRICAL CHARACTERISTICS
Insulation Resistance 20 MΩ/km
Test Voltage 1500 V

OTHER REQUIREMENTS
Flame Propagation IEC / BS EN 60332-1
Fixed Temperature Range -30 / +70 °C
Flexible Temperature Range -5 / +70 °C

MARKING
DEMES KABLO YSLY-JZ CSA mm² 300/500V CE ROHS BATCH NO DATE METER

DIMENSIONS AND SPESIFICATIONS ARE FOR ONLY TECHNICAL CALCULATION, AND CAN BE CHANGED WITHOUT PRIOR NOTICE. 1/5
 Date : 06.07.2017
Revision :02

NOMINAL CROSS SECTION MAXIMUM CONDUCTOR RESISTANCE AT 20°C

(mm2) (Ω/km)
0,25 76,00
0,34 53,00
0,50 39,00
0,75 26,00
1,00 19,50
1,50 13,30
2,50 7,98
4,00 4,95
6,00 3,30
10,00 1,91
16,00 1,21

Number of Cores / Cross-Section Overall diameter (Approx.) Net weight (Approx.)

mm2 mm Kg/Km
2x0,50 4,60 33
3x0,50 4,90 40
4x0,50 5,60 51
5x0,50 6,00 61
6x0,50 6,70 78
7x0,50 6,70 77
8x0,50 7,50 94
9x0,50 8,10 113
10x0,50 8,40 120
11x0,50 8,40 122
12x0,50 8,70 132
14x0,50 9,10 148
15x0,50 10,00 176
16x0,50 10,00 176
18x0,50 10,50 200
19x0,50 10,50 200
20x0,50 11,10 218
21x0,50 11,10 222
22x0,50 11,70 241
24x0,50 12,20 265
25x0,50 12,50 280
26x0,50 12,20 272
27x0,50 12,50 283

DIMENSIONS AND SPESIFICATIONS ARE FOR ONLY TECHNICAL CALCULATION, AND CAN BE CHANGED WITHOUT PRIOR NOTICE. 2/5
 Date : 06.07.2017
Revision :02

Number of Cores / Cross-Section Overall diameter (Approx.) Net weight (Approx.)

mm2 mm Kg/Km
30x0,50 12,90 307
32x0,50 13,40 335
33x0,50 13,40 338
34x0,50 14,30 373
35x0,50 14,30 373
36x0,50 14,30 380
37x0,50 14,30 379
40x0,50 14,90 410
2x0,75 5,00 41
3x0,75 5,60 53
4x0,75 6,00 64
5x0,75 6,80 81
6x0,75 7,30 98
7x0,75 7,30 99
8x0,75 8,20 120
9x0,75 8,90 144
10x0,75 9,20 153
12x0,75 9,90 179
14x0,75 10,40 202
15x0,75 11,00 226
16x0,75 11,00 227
18x0,75 11,50 257
19x0,75 11,50 258
20x0,75 12,20 281
25x0,75 13,70 362
34x0,75 15,70 482
2x1,00 5,60 53
3x1,00 6,00 64
4x1,00 6,50 78
5x1,00 7,30 99
6x1,00 7,90 121
7x1,00 7,90 122
8x1,00 8,90 149
10x1,00 10,40 200
12x1,00 10,80 222
14x1,00 11,30 250
16x1,00 11,90 282
18x1,00 12,50 321
DIMENSIONS AND SPESIFICATIONS ARE FOR ONLY TECHNICAL CALCULATION, AND CAN BE CHANGED WITHOUT PRIOR NOTICE. 3/5
 Date : 06.07.2017
Revision :02

Number of Cores / Cross-Section Overall diameter (Approx.) Net weight (Approx.)

mm2 mm Kg/Km
19x1,00 12,50 322
20x1,00 13,20 351
25x1,00 15,30 468
34x1,00 17,10 603
2x1,50 6,10 65
3x1,50 6,70 84
4x1,50 7,30 102
5x1,50 7,90 125
6x1,50 8,60 153
7x1,50 8,60 155
8x1,50 10,10 199
9x1,50 10,90 237
10x1,50 11,40 253
12x1,50 11,80 282
14x1,50 12,30 319
16x1,50 13,00 360
18x1,50 13,70 410
19x1,50 13,70 412
20x1,50 14,90 464
2x2,50 7,60 102
3x2,50 8,20 130
4x2,50 9,00 160
5x2,50 10,00 201
6x2,50 11,10 252
7x2,50 11,10 256
12x2,50 15,00 458
18x2,50 17,80 683
3x4,00 9,80 195
4x4,00 10,70 241
7x4,00 13,20 384
12x4,00 17,60 681
3x6,00 11,40 274
4x6,00 12,70 346
5x6,00 14,10 433
4x10,00 16,30 587
5x10,00 17,80 723
4x16,00 19,80 884
5x16,00 22,20 1116
DIMENSIONS AND SPESIFICATIONS ARE FOR ONLY TECHNICAL CALCULATION, AND CAN BE CHANGED WITHOUT PRIOR NOTICE. 4/5
 Date : 06.07.2017
Revision :02

DIMENSIONS AND SPESIFICATIONS ARE FOR ONLY TECHNICAL CALCULATION, AND CAN BE CHANGED WITHOUT PRIOR NOTICE. 5/5
