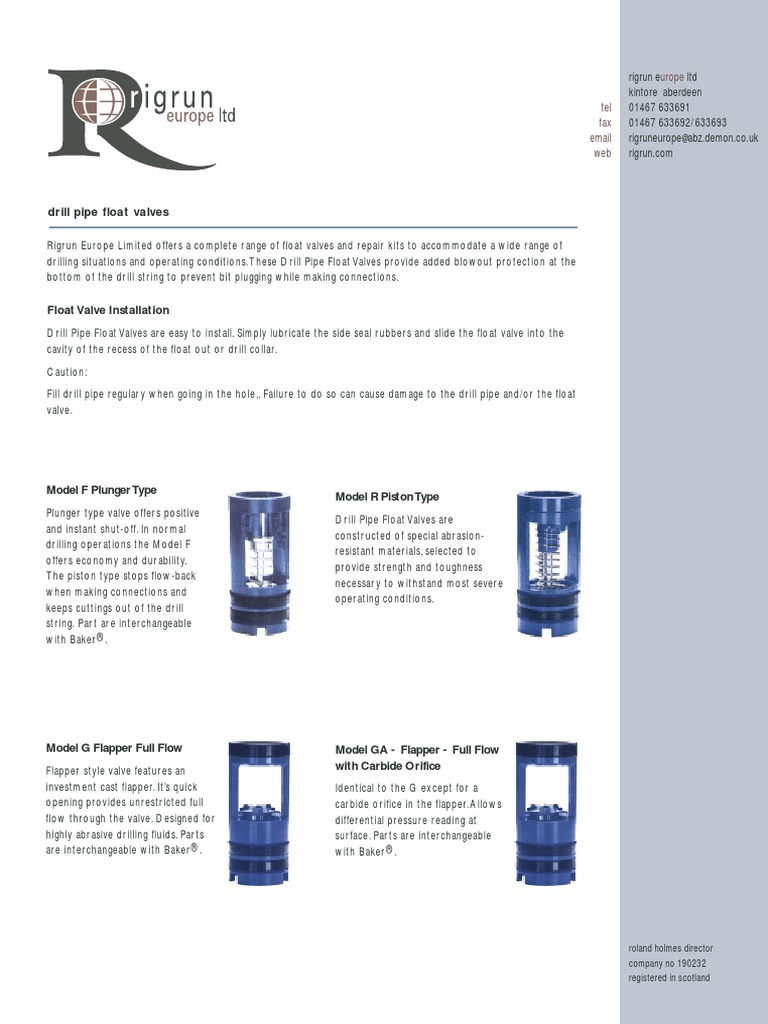

drill pipe float valves

Rigrun Europe Limited offers a complete range of float valves and repair kits to accommodate a wide range of
drilling situations and operating conditions. These Drill Pipe Float Valves provide added blowout protection at the
bottom of the drill string to prevent bit plugging while making connections.

Float Valve Installation

Drill Pipe Float Valves are easy to install. Simply lubricate the side seal rubbers and slide the float valve into the
cavity of the recess of the float out or drill collar.

Caution:

Fill drill pipe regulary when going in the hole,. Failure to do so can cause damage to the drill pipe and/or the float
valve.

Model F Plunger Type

Model R Piston Type
Plunger type valve offers positive
Drill Pipe Float Valves are
and instant shut-off. In normal
constructed of special abrasion-
drilling operations the Model F
resistant materials, selected to
offers economy and durability.
provide strength and toughness
The piston type stops flow-back
necessary to withstand most severe
when making connections and
operating conditions.
keeps cuttings out of the drill
string. Part are interchangeable
with Baker®.

Model G Flapper Full Flow Model GA - Flapper - Full Flow

Flapper style valve features an with Carbide Orifice
investment cast flapper. It’s quick Identical to the G except for a
opening provides unrestricted full carbide orifice in the flapper. Allows
flow through the valve. Designed for differential pressure reading at
highly abrasive drilling fluids. Parts surface. Parts are interchangeable
are interchangeable with Baker®. with Baker®.

roland holmes director

company no 190232
registered in scotland
 rigrun europe ltd
kintore aberdeen
tel 01467 633691
fax 01467 633692/633693
email rigruneurope@abz.demon.co.uk
web rigrun.com

drill pipe float valve - model GA full flow flapper type

Standard Service

SIZE ASSEMBLY WTS RUBBER REPAIR WTS METAL REPAIR WTS

P/N (lbs) KIT - P/N (lbs) KIT - P/N (lbs)
2F RETSCO 162432 013800 13500
= BAKER® 480162432 3.5 016013800 .6 0151988400 .8
3R
RETSCO 163400 013900 136700
3F = BAKER® 480163400 5.0 016013900 1.0 017136700 1.0
31/2 RETSCO 163600 982000 136700
= BAKER® 480163600 5.5 051982000 1.0 017136700 1.0
1F
RETSCO 164200 014000 116000
4R = BAKER® 480164200 7.0 016014000 1.5 017116000 1.1
RETSCO 164400 014100 136800
4F = BAKER® 480164400 8.0 016014100 1.6 017136800 1.4
RETSCO 165200 014200 136900
5R = BAKER® 480165200 9.0 016014200 1.6 017126900 1.6
5F RETSCO 165462 014300 136200
= BAKER® 480165462 12.0 016014300 2.0 017134200 1.8
6R

Repair Kits contain Model GA Metal Kit Repair Kit contain Model GA Rubber Kit
1 ea. - seal retaining ring 8 ea. - side seals
3 ea. - hinge pins 2 ea. - valve seals
3 ea. - spring assembly 1 ea. - shock absorber
1 ea. - flapper valve 1 ea. - seal retaining ring
one kit has parts for three re-dressings. one kit has parts for four re-dressings.

Hi-Temp / NACE Seals Service

SIZE ASSEMBLY WTS RUBBER REPAIR WTS METAL REPAIR WTS

P/N (lbs) KIT - P/N (lbs) KIT - P/N (lbs)
2F/3R 412432 3.5 082701 .6 185901 .8
3F 413400 5.0 0820801 1.0 186001 2.0
31/2 IF 413500 5.5 082851 1.0 186001 2.0
4R 414200 7.0 082901 1.5 186101 2.1
4F 414400 8.0 083001 1.6 186201 3.0
5R 415200 9.0 083101 1.6 186301 4.0
5F/6R 415462 12.0 083201 2.0 186401 5.0

Repair Kits contain Model G Metal Kit Repair Kit contain Model G Rubber Kit
1 ea. - seal retaining ring 8 ea. - side seals
3 ea. - hinge pins 2 ea. - valve seals
3 ea. - spring assembly 1 ea. - shock absorber
1 ea. - flapper valve 1 ea. - seal retaining ring
one kit has parts for three re-dressings. one kit has parts for four re-dressings.
