CLI Syntax

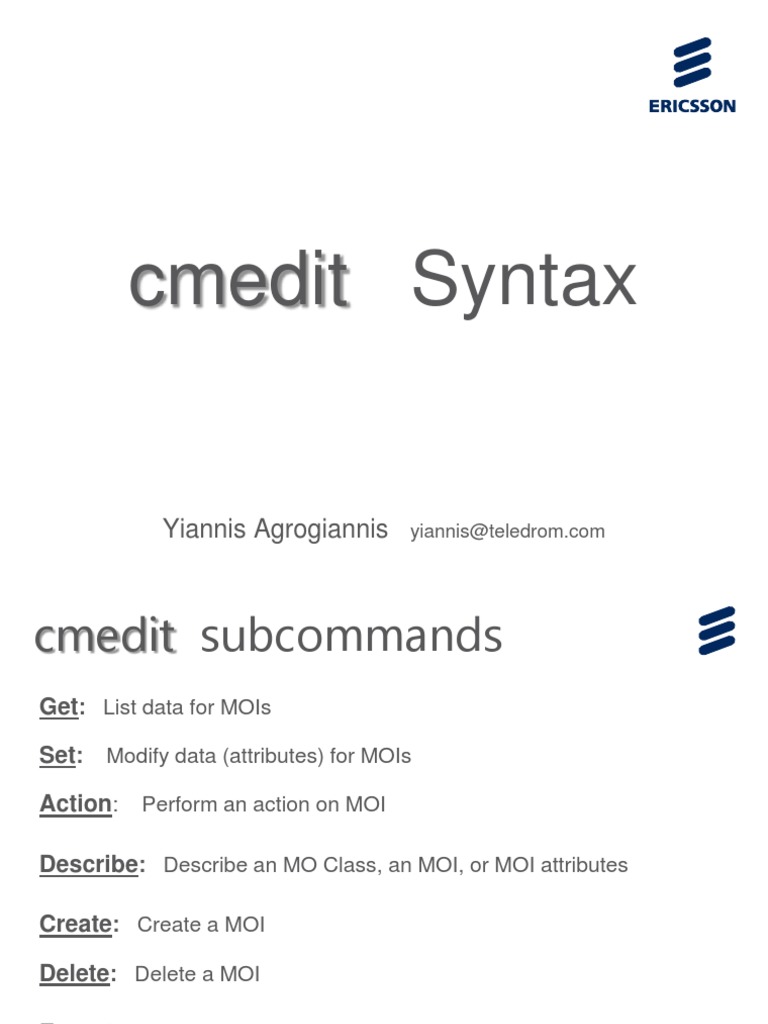

cmedit Syntax
Yiannis Agrogiannis yiannis@teledrom.com

cmedit subcommands
Get: List data for MOIs
Set: Modify data (attributes) for MOIs
Action: Perform an action on MOI
Describe: Describe an MO Class, an MOI, or MOI attributes
Create: Create a MOI
Delete: Delete a MOI
Export: Bulk-export CM data to a file
Import: Bulk-import CM data from a file

ENM CLI Page 1
cmedit subcommands
Get: List data for MOIs
Set: Modify data (attributes) for MOIs
Action: Perform an action on MOI
Describe: Describe an MO Class, an MOI, or MOI attributes
Create: Create a MOI
Delete: Delete a MOI
Export: Bulk-export CM data to a file
Import: Bulk-import CM data from a file

ENM CLI Page 2
cmedit General Syntax
commandset subcommand <node(s)> <MOC>
Target Node(s) Target MOC
ENM CLI Page 3

cmedit General Syntax
commandset subcommand <node(s)> <MOC>
Case Sensitive Non case-sensitive
ENM CLI Page 4

get subcommand
ENM CLI Page 5

cmedit get - syntax
cmedit get <node(s)> <MOC>
cmedit get <node(s)> <MOC>.*
cmedit get <node(s)> <MOC>.attribute
cmedit get <node(s)> <MOC>.(attribute1, attribute2,..)
ENM CLI Page 6

cmedit get - syntax
cmedit get <node(s)> <MOC>.(attribute1,attribute2,..)
ENM CLI Page 7

cmedit get – Example 1
› Print all instances for MO=eutrancellfdd for a specific node

cmedit get ERBS1 EUtranCellFDD
› Print all instances for MO=eutrancellfdd for multiple nodes

cmedit get ERBS1;ERBS2 EUtranCellFDD
› Print all instances for MO=eutrancellfdd in whole network

cmedit get * EUtranCellFDD
(* indicates all nodes)
ENM CLI Page 8

Wildcards for node(s) name(s)
› Print all instances for MO=eutrancellfdd
cmedit get ERB* EUtranCellFDD
cmedit get *01 EUtranCellFDD
cmedit get *RB* EUtranCellFDD
ENM CLI Page 9

Wildcards for MOC=No support
› cmedit get ERBS1 EUtranCell*
› Error 4004 : Command syntax error, unexpected input '*' while

processing get command (object specifications).
› Suggested Solution :
Refer to usage instructions for the cmedit get command
ENM CLI Page 10

cmedit get - syntax

cmedit get <node(s)> <MOC> -t
ENM CLI Page 11

cmedit get - syntax
ENM CLI Page 12

› Print all cell attributes for a specific node
cmedit get ERBS1 EUtranCellFDD.*
› Print all cell attributes for a multiple nodes

cmedit get ERBS1;ERBS2 EUtranCellFDD.*
› Print all cell attributes in network

cmedit get * EUtranCellFDD.*
ENM CLI Page 13

› Use wildcard to identify a node and print All attributes for

MO=eutrancellfdd
cmedit get ERB* EUtranCellFDD.*
cmedit get *005 EUtranCellFDD.*
cmedit get *BS00* EUtranCellFDD.*
ENM CLI Page 14

cmedit get - syntax

cmedit get <node(s)> <MOC>.* -t
ENM CLI Page 15

cmedit get - syntax
cmedit get <node(s)> <MOC>.(attribute1, attribute2,…)
ENM CLI Page 16

› Print for All cells in a Node the operationalState attributes
cmedit get ERBS1 EUtranCellFDD.operationalState
› Print for All cells in multiple Nodes the operationalState attribute

cmedit get ERBS1;ERBS2
EUtranCellFDD.operationalState
› Print for All cells in network both the operationalState attributes

cmedit get * EUtranCellFDD.operationalState
ENM CLI Page 17
› Use wildcard to identify a node and print All attributes for

MO=eutrancellfdd
cmedit get ERB* EUtranCellFDD. operationalState
cmedit get *005 EUtranCellFDD. operationalState
cmedit get *BS00* EUtranCellFDD. operationalState
ENM CLI Page 18

cmedit get – Specific Cell
› Print for a specific cell in a node the operationalState attribute
cmedit getLTE01ERBS00001
EUtranCellFDD.(EUtranCellFDDId==LTE01ERBS00001-1 ,
operationalState)
ENM CLI Page 19

cmedit get - syntax

cmedit get <node(s)> <MOC>.attribute -t
ENM CLI Page 20

cmedit get - syntax
ENM CLI Page 21

› Print for all cells in a Node both the operationalState and
administrativestate attributes
cmedit get ERBS1 EUtranCellFDD.(operationalState,
administrativestate)
› Print for all cells in network both the operationalState and

administrativestate attributes
cmedit get * EUtranCellFDD.(operationalState,
ENM CLI Page 22

› Use wildcard to identify a node and print both the
operationalState and administrativestate attributes
MO=eutrancellfdd
cmedit get ERB* EUtranCellFDD.(operationalState,
cmedit get *005 EUtranCellFDD. (operationalState,

cmedit get *BS00* EUtranCellFDD. (operationalState,

ENM CLI Page 23

Question - cmedit get
› What is the command to list ALL attributes for a

specific cell in a node ??
ENM CLI Page 24

Question - cmedit get
Correct or Wrong ??
cmedit get ERBS1

EUtranCellFDD.(EUtranCellFDDId==cell-1, * )
ENM CLI Page 25

Answer - cmedit get
Wrong
cmedit get ERBS1

EUtranCellFDD.(EUtranCellFDDId==cell-1, * )
ENM CLI Page 26

Answer - cmedit get
Correct
cmedit get FDN
ENM CLI Page 27

› Print all cell attributes for a specific cell (FDN)

cmedit get
ManagedElement=ERBS1,ENodeBFunction=1,EUtranCellFDD=ERBS-1
cmedit get
SubNetwork=RadioNode, ManagedElement=ERBS1, ENodeBFunction=1,
EUtranCellFDD=ERBS-1
(when a node belongs to a subnetwork)
ENM CLI Page 28

cmedit get – Syntax Summary
cmedit get FDN
cmedit get <node(s)> <MOC>.(attribute1,

attribute2,…)
ENM CLI Page 29

cmedit get – Syntax Summary
Single nodes : Node1

Multiple Nodes : Node1;Node2
Collection : Collection name
ENM CLI
Saved Search : Search Page
name30
Hint 1
cmedit get
› Print all children MOs for a specific parent MO
cmedit get <node(s)> <MO>,*
Parent MO comma (not dot)
ENM CLI Page 32

set subcommand
ENM CLI Page 33

cmedit set - syntax
› Modify an attribute for all MOIs for a node(s)

cmedit set <node(s)> <MOC> attribute=new_value
› Modify an attribute for a specific MOI for a node

cmedit set <node> <MOC>.(MOid==id)
attribute=new_value
ENM CLI Page 34

cmedit set – Example 10
› Set an attribute value for All cells in a node
cmedit set ERBS1 EUtranCellFDD administrativeState=LOCKED
› Set an attribute value for a specific cell in a node
cmedit set ERBS1 eutrancellfdd. eutrancellfddid==1

administrativestate=UNLOCKED
ENM CLI Page 35

cmedit set - syntax
› Modify an attribute for all MOIs for a node(s)

cmedit set <node(s)> <MOC> attribute=new_value
› Modify an attribute for a specific MOI for a node

cmedit set <node> <MOC>.(MOid==id)
attribute=new_value
Single nodes : Node1
Multiple Nodes : Node1;Node2
Collection : Collection name
Saved Search : Search name
ENM CLI Page 36
describe subcommand
ENM CLI Page 37

cmedit describe - syntax
(The command doesn’t accept the Node name)
cmedit describe <MOC>
cmedit describe <MOC>.*
cmedit describe <MOC>.attribute1
cmedit describe <MOC>.(attribute1,attribute2)
ENM CLI Page 38

cmedit describe – Example 11
› cmedit describe EUtranCellFDD.*
› cmedit describe EUtranCellFDD.* -t
› cmedit describe EUtranCellFDD.operationalState
› cmedit describe EUtranCellFDD.(operationalState,

administrativeState, availabilityStatus, cellBarred)
ENM CLI Page 39

action subcommand
ENM CLI Page 40

cmedit action - syntax
› Initiate a modeled action by Query
cmedit action <Node> criteria action [options]
› Initiate a modeled action by FDN

cmedit action <FDN> action
› Initiate a modeled action by FDN

cmedit action <FDN> criteria action [options]
ENM CLI Page 41

cmedit action – Example 12
Initiate Node Manual Restart
› Modeled action by Query
cmedit action ERBS1 ManagedElement
manualRestart.(restartRank=RESTART_WARM;
restartReason=PLANNED_RECONFIGURATION; restartInfo=someinfo)
› Modeled action by FDN

cmedit action MeContext=ERBS1,ManagedElement=1
manualRestart.(restartrank=RESTART_WARM,
restartreason=PLANNED_RECONFIGURATION,restartinfo=someInfo)
ENM CLI Page 42
Initiate AuxPlugInUnit Manual Restart

› Modeled action by Query (Node name)
cmedit action ERBS1

AuxPlugInUnit.(AuxPlugInUnitId==RRU-1) restartUnit
cmedit action ERBS1 ManagedElement startHealthCheck
cmedit action * ManagedElement startHealthCheck
ENM CLI Page 43

› Create a Node CV (ERBS node type)
cmedit action ERBS1 configurationversion
create.(configurationVersionName=..., identity=…, operatorName=…,
comment=…)
ENM CLI Page 44

› Create a Node BrmBackup (RadioNode node type)
cmedit action Node1 brmbackupmanager createBackup
ENM CLI Page 45

› Delete a Node CV (ERBS node type)
cmedit action ERBS1 configurationversion
delete.configurationVersionName=...
ENM CLI Page 46

Hint
ENM CLI Page 47

› Find what actions are supported for an MOC

(list all supported actions for an MOI by using any keyword as a
trigger)
cmedit action <Node> <MOC> keyword
ENM CLI Page 48

› Find the supported action types for MOC=ManagedElement
cmedit action Node1 managedelement test
› Error 1016 : An incorrect action name (coffee) has been encountered for
the type ManagedElement possible value(s) are [manualRestart,
startHealthCheck]
› Suggested Solution : Provide a value from this list:

[manualRestart , startHealthCheck]
ENM CLI Page 49

› Find the mandatory attributes for a specific action type
cmedit action Node1 managedelement manualrestart
› Error 1005 : manualRestart requires the following mandatory

attribute(s): (restartRank, restartReason, restartInfo)
› Suggested Solution : Provide the mandatory attribute(s):

(restartRank, restartReason, restartInfo)
ENM CLI Page 50

cmedit action eNB4-304 eutrancellfdd hello
Error 1016 : An incorrect action name (hello) has been encountered for
the type EUtranCellFDD possible value(s) are [changeFrequency,
startAilg, stopAilg]
Suggested Solution :
Provide a value from this list: [changeFrequency, startAilg, stopAilg]
ENM CLI Page 51

cmedit action eNB4-304 enodebfunction bye
Error 1016 : An incorrect action name (icecream) has been encountered

for the type ENodeBFunction possible value(s) are
[updateMMEConnection, collectDynamicCellStatus]
Suggested Solution : Provide a value from this list:

[updateMMEConnection , collectDynamicCellStatus]
ENM CLI Page 52

create subcommand
ENM CLI Page 53

cmedit create - syntax
› Create a Managed Object Instance by FDN
cmedit create <FDN> attributes [options]
ENM CLI Page 54

cmedit create – Example 22
› Create an ENodeBFunction
cmedit create
MeContext=ERBS001,ManagedElement=1,ENodeBFunction=1
ENodeBFunctionId=1; userLabel=”New"; eNodeBPlmnId=(mcc=272,
mnc=7,mncLength=2)
ENM CLI Page 55

› Create an ENodeBFunction
cmedit create
ENodeBFunctionId=1; userLabel=”New"; eNodeBPlmnId=(mcc=272,

mnc=7,mncLength=2)
ENM CLI Page 56

› Create an EUtranCellFDD
› cmedit create
MeContext=ERBS1,ManagedElement=1,ENodeBFunction=1,
EUtranCellFDD=2 physicalLayerSubCellId=2, earfcnul=20900,
cellId=2, physicalLayerCellIdGroup=67, eUtranCellFDDId=2,
tac=100, earfcndl=2900
ENM CLI Page 57

delete subcommand
ENM CLI Page 58

cmedit delete - syntax
› Delete an MOI by specifying the FDN
cmedit delete <FDN> [-ALL]
› Delete an object by specifying the FDN

cmedit delete <FDN> criteria [-ALL] [options]
› Delete an object by query

cmedit delete <node> criteria [filter] [-ALL] [options]
ENM CLI Page 59

cmedit delete – Example 25
› Delete an MOI (by FDN)
cmedit delete
-ALL
› Delete an MOI (by query)

cmedit delete * EUtranCellFDD.(EUtranCellFDDId==3, cellId==1)
ENM CLI Page 60

Additional
Alternative 1
Identify MOI directly by MOid
Alternative 1
› <MO Class>=<MO_Id> <attr name>
› <MO Class>=<MO_Id> <attr name1>, <attr name2>,….
ENM CLI Page 63

Example  find MOid
» cmedit get LTE05ERBS00010 eutrancellfdd
FDN :
SubNetwork=ONRM_ROOT_MO,SubNetwork=Dublin,MeContext=LTE05ERBS00010,ManagedElement=1
,ENodeBFunction=1,EUtranCellFDD=LTE05ERBS00010-1
FDN :
FDN :
FDN :
FDN :
FDN :
6 instance(s)
ENM CLI Page 64
Alternative 1 Example 1/3
› Print MO instance for MO=eutrancellfdd
cmedit get ERBS1 eutrancellfdd=cell-2
Instead of
› cmedit get ERBS1 eutrancellfdd.(EUtranCellFDDId== cell-2)
› Print attr values for MO=eutrancellfdd

cmedit get ERBS1 eutrancellfdd=cell-2 tac,cellbarred
Instead of
› cmedit get ERBS1 eutrancellfdd.(EUtranCellFDDId== cell-2,
tac,cellbarred)
ENM CLI Page 65
Wildcards for MOid
› <MO Class>=<Partial MO_Id>*
*<Partial MO_Id>
*<Partial MO_Id>*
ENM CLI Page 66

› cmedit get ERBS1 eutrancellfdd=LTE05* tac,cellbarred
› cmedit get ERBS1 eutrancellfdd=*-2 tac,cellbarred
› cmedit get ERBS1 eutrancellfdd=*ERBS* tac,cellbarred
ENM CLI Page 67

› Print MOI data based on specific attribute value
cmedit get * eutrancellfdd=LTE05*

administrativestate==UNLOCKED , operationalstate
ENM CLI Page 68

Alternative 2
Identify MOI by FDN
Example  find FDN
» cmedit get LTE05ERBS00010 eutrancellfdd
FDN :
FDN :
SubNetwork=ONRM_ROOT_MO,SubNetwork=Dublin,MeContext=LTE05ERBS00010,ManagedEleme
nt=1,ENodeBFunction=1,EUtranCellFDD=LTE05ERBS00010-2
FDN :
FDN :
FDN :
FDN :
6 instance(s)
ENM CLI Page 70
› cmedit get FDN -attr cellbarred
Instead of
› cmedit get ERBS1 eutrancellfdd.(eutrancellfdd=cell-2 ,cellbarred )
› cmedit get FDN -attr cellbarred,tac

Instead of
› cmedit get ERBS1 eutrancellfdd.(eutrancellfdd=cell-2 ,cellbarred,tac)
ENM CLI Page 71

Hint 2
Criteria for get subcommand
Criteria 1
› Print all CM attributes of the specified MO Class
<MO Class>.<cm>
› Print all PM attributes of the specified MO Class
› Note: Only supported on CPP platform types where node types support reading
of PM counters as MO attributes.
<MO Class>.<pm>
› Print all Persistent attributes of the specified MO Class
<MO Class>.<p>
› Print all Writable Persistent attributes of the specified MO Class
› <MO Class>.<w>
› Print all Mandatory Persistent attributes of the specified MOC
<MO Class>.<m>
ENM CLI Page 73
Criteria 2
› Use a semi-colon to separate multiple MO Classes when
searching for all instances of *either* MOC1 or MOC2
<MO Class1>;<MO Class2>
› Use a comma to separate multiple MO Classes when

searching for all instances of MOC1 which have a child MOC
instance of MOC2
<MO Class1>,<MO Class2>
ENM CLI Page 74

Hint 3
get cmd – Example 1
› Report netype and synch status of particular node
cmedit get <Node(s)> --detailnode
Example
cmedit get eNB4-304 --detailnode
FDN : MeContext=eNB4-304
neType : ERBS
syncStatus : SYNCHRONIZED
1 instance(s)
ENM CLI Page 76

get cmd – Example 2
› cmedit get eNB* --detailnode
› cmedit get *04 --detailnode
› cmedit get *B4* --detailnode
› cmedit get node1;node2;node3 --detailnode
ENM CLI Page 77

Hint 4
action subcommand
› Any action performed by activating a non-live configuration
cannot be undone
› Reason:
action subcommand affects the non-persistent attributes
› All other functions performed by set, create, delete

subcommands can be undone
ENM CLI Page 79

Hint 5
Print multiple MOCs
› Search for all instances of *either* MOC1 or MOC2 or
MOC3
cmedit get <node(s)> MOC1;MOC2;MOC3
Note : Use a semi-colon as separator
ENM CLI Page 81

Hint 6
Print multiple MOCs
› Search for all instances of MO Class1 which have a child
MO Class instance of MO Class2
cmedit get <node(s)> MOC1,MOC2
Note : Use a comma as separator
ENM CLI Page 83

CLI Syntax

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

CLI Syntax

Uploaded by

Copyright:

Available Formats

cmedit Syntax

Yiannis Agrogiannis yiannis@teledrom.com

Set: Modify data (attributes) for MOIs

Action: Perform an action on MOI

Describe: Describe an MO Class, an MOI, or MOI attributes

Create: Create a MOI

Delete: Delete a MOI

Export: Bulk-export CM data to a file

Import: Bulk-import CM data from a file

Set: Modify data (attributes) for MOIs

Action: Perform an action on MOI

Describe: Describe an MO Class, an MOI, or MOI attributes

Create: Create a MOI

Delete: Delete a MOI

Export: Bulk-export CM data to a file

Import: Bulk-import CM data from a file

commandset subcommand <node(s)> <MOC>

Target Node(s) Target MOC

ENM CLI Page 3

commandset subcommand <node(s)> <MOC>

Case Sensitive Non case-sensitive

ENM CLI Page 4

ENM CLI Page 5

cmedit get <node(s)> <MOC>

cmedit get <node(s)> <MOC>.*

cmedit get <node(s)> <MOC>.attribute

cmedit get <node(s)> <MOC>.(attribute1, attribute2,..)

ENM CLI Page 6

cmedit get <node(s)> <MOC>

cmedit get <node(s)> <MOC>.*

cmedit get <node(s)> <MOC>.attribute

cmedit get <node(s)> <MOC>.(attribute1,attribute2,..)

ENM CLI Page 7

› Print all instances for MO=eutrancellfdd for a specific node

› Print all instances for MO=eutrancellfdd for multiple nodes

› Print all instances for MO=eutrancellfdd in whole network

(* indicates all nodes)

ENM CLI Page 8

cmedit get ERB* EUtranCellFDD

cmedit get *01 EUtranCellFDD

cmedit get *RB* EUtranCellFDD

ENM CLI Page 9

› Error 4004 : Command syntax error, unexpected input '*' while

ENM CLI Page 10

cmedit get <node(s)> <MOC>

cmedit get <node(s)> <MOC>.*

cmedit get <node(s)> <MOC>.attribute

cmedit get <node(s)> <MOC>.(attribute1, attribute2,..)

ENM CLI Page 11

cmedit get <node(s)> <MOC>

cmedit get <node(s)> <MOC>.*

cmedit get <node(s)> <MOC>.attribute

cmedit get <node(s)> <MOC>.(attribute1, attribute2,..)

ENM CLI Page 12

› Print all cell attributes for a multiple nodes

› Print all cell attributes in network

ENM CLI Page 13

› Use wildcard to identify a node and print All attributes for

cmedit get ERB* EUtranCellFDD.*

cmedit get *005 EUtranCellFDD.*

cmedit get *BS00* EUtranCellFDD.*

ENM CLI Page 14

cmedit get <node(s)> <MOC>

cmedit get <node(s)> <MOC>.*

cmedit get RB EUtranCellFDD

cmedit get 005 EUtranCellFDD.

cmedit get BS00 EUtranCellFDD.*

cmedit get BS00 EUtranCellFDD. operationalState

cmedit get BS00 EUtranCellFDD. (operationalState,
