5.

Exploded View and Parts List

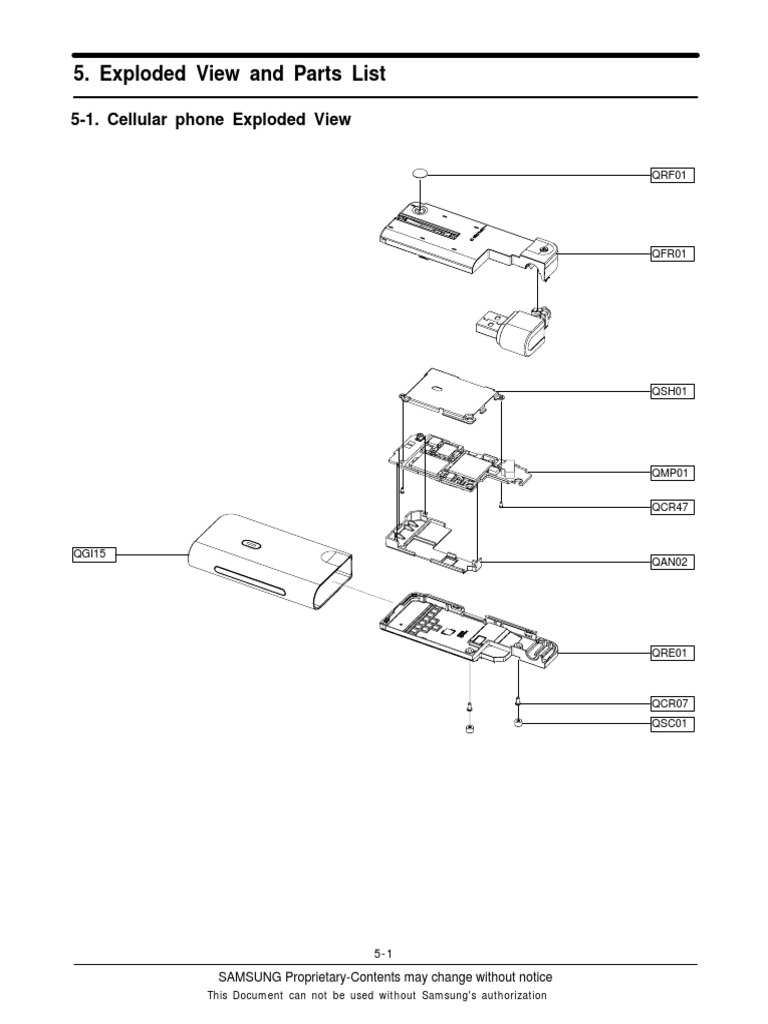

5-1. Cellular phone Exploded View

QRF01

QFR01

QSH01

QMP01

QCR47

QGI15
QAN02

QRE01

QCR07
QSC01

5-1

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization
Exploded View and Parts List

5-2. Cellular phone Parts List

Design LOC Description SEC CODE

QAN02 INTENNA-SGHZ800 GH42-01381A
QCR07 SCREW-MACHINE 6001-001691
QCR47 SCREW-MACHINE 6001-001695
QFR01 ASSY CASE-FRONT GH98-05939A
QGI15 ASSY CASE-MAIN GH98-05940A
QMP01 PBA MAIN-SGHZ800(EU) GH92-04036A
QRE01 ASSY CASE-REAR GH98-07153A
QRF01 TAPE-SHEET(RF-SWITCH) GH74-34151A
QSC01 RMO DECO-SCREW CAP GH73-10765A
QSH01 ASSY BRACKET-SHIELD GH98-07220A

5-2

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization
 Exploded View and Parts List

Description SEC CODE

BAG PE 6902-000634
CBF INTERFACE-SGHZ800 DATA LIN GH39-01030A
S/W CD-SGHZ800 PC CONNECTION M GH46-00538A
UNIT-USB CON ASSY,BLK GH59-04925B
LABEL(P)-UNIT SEAL GH68-00518B
LABEL(P)-IMEI GH68-01335D
LABEL(R)-WATER SOAK GH68-09361A
MANUAL USERS-EU ENGLISH GH68-16306A
LABEL(R)-MAIN(EU) GH68-16410B
BOX-UNIT(EU) GH69-06064B

5-3
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Exploded View and Parts List
