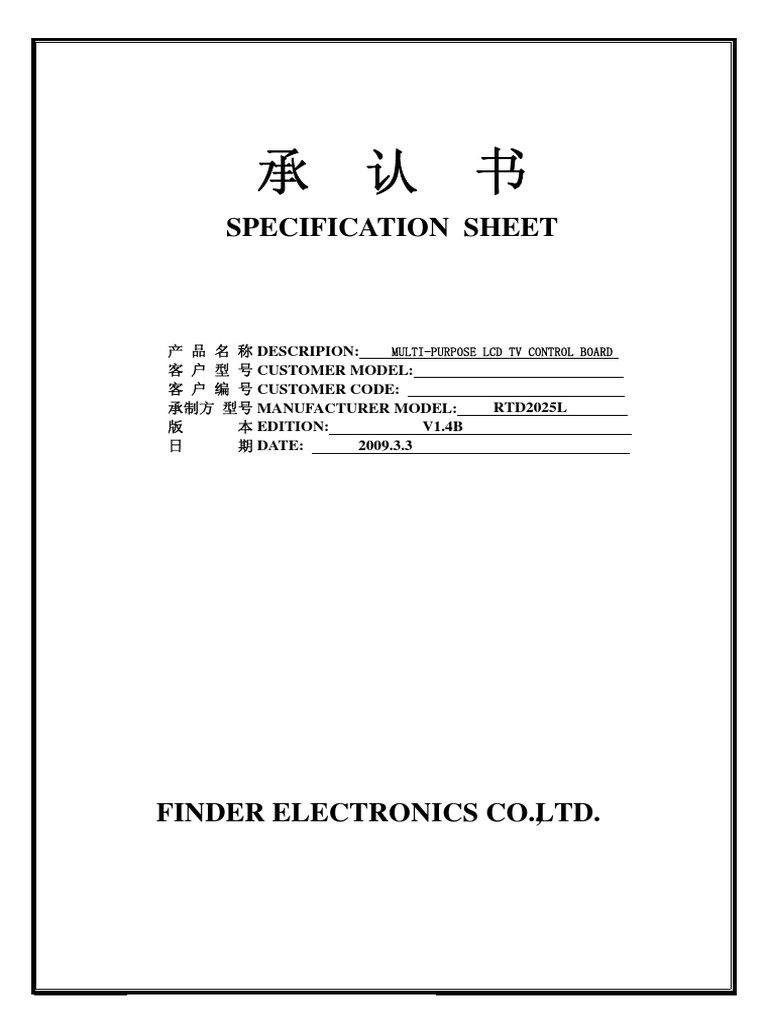

承 认 书

SPECIFICATION SHEET

产 品 名 称 DESCRIPION: MULTI-PURPOSE LCD TV CONTROL BOARD

客 户 型 号 CUSTOMER MODEL:
客 户 编 号 CUSTOMER CODE:
承制方 型号 MANUFACTURER MODEL: RTD2025 L
版 本 EDITION: V1.4B
日 期 DATE: 2009.3 .3

FINDER ELECTRONICS CO.,LTD.

 CONTENTS
PAGE TITLE
1 COVER
2 CONTENS
2 RECORD OF REVISIONS
3 GENERAL DESCRIPTION
3 FEATURES
4 FUNCTION LAYOUT
8 CONTROLLER DIMENSIONS
9 KEY BOARD SYSTEM SCHEMATIC
9 IR BOARD SYSTEM SCHEMATIC
9 OPERATION REQUIREMENT

RECORD OF REVISIONS
VERSION NO DATE PAGE DESCRIPTION
1．GENERAL DESCRIPTION

2025L V1.4 is a multi-purpose LCD controller, It is designed to support dual/single

LVDS which 15-19 inch LCD panel.

The main feature of 2025L V1.4can support VGA, S-VIDEO, AV, TV input

Special jumper design supports multi-resolution option, to change the resolution,

no need rewrite the program.

2 FEATURES

Below you will find the detailed feature

VIDEO SYSTEM PAL、SECAM
TV SOUND SYSTEM BG ,DK ,I
RECEIVE CHANNEL 133
S-Video S-Y:1.0V Vp-p +/-5% S-C:0.3Vp-p +/-5%
CVBS 1.0Vp-p +/-5%
Video Input
YPbPr/YCbCr /
Format Up to 1440*900@60HZ
PC-RGB
Color 16bit, 24bit, 32bit
HDMI /
SCART /
Expansion Card reader/USB /
function Inbuilt DVD /
S-Video/CVBS Left and right audio input
Audio input
PC-RGB and YUV Pc:Earphone input
Power Requirement 12V
Power To panel 3.3V,5V,12V
Manage Low power consumable mode: standby<3W
OSD Language English,French,Spanish,Italian,German,Portuguese,Chinese,Russion,
Korean, Arabic(Option )
Key Functions CH-,CH+,MENU,VOL-,VOL+,AUTO,ON/OFF (Control by remote control)
Audio Output 2*2w (8 Ω)
Comb Filter De-interlace
Weak signal enhancement /
Nosier reduction /
PIP No
EPG NO
NICAM/A2, TELETEXT /
Panel Resolutions Up to 1440*900@60HZ
TV Input 1 IEC 75 Ω
PC-RGB Input 1D-SUB 15PIN terminal blue color
S-Video Input 1S-Video terminal black color
CVBS Input 1RCA terminal yellow color
YPbPr Input /
Input
Terminals HDMI Input /
SCART /
CVBS Audio Input 2RCA terminal white color,red color
YPbPr Audio Input /
PC-RGB Audio Input 1 earphone terminal black color
Output To Panel LVDS 30PIN/2.0 jack

3 FUNCTION LAYOUT
PICTURE OF LCD CONTROLLER

1 2 3 4 5
JUMPER

15 16 17
 6 7 8 9 10 11 12 13 14

INTERFACE FUNCTION DESCRIPTION

NO DESCRIPTION NO DESCRIPTION
1 INVERTER PORT 9 AV IN
2 REMOTE RECEIVER 10 AUDIO IN(R)
3 KEY BOARD+LED 11 AUDIO IN(L)
4 ATV DEBUGGING 12 PC AUDIO IN
5 LVDS PANEL INTERFACE 13 EARPHONE
6 DC IN 14 TV SIGNAL IN
7 VGA IN 15 YC &CVBS SIGNAL
8 S-VIDEO IN 16 AV AUDIO&PC AUDIO
17 SPEAKER

INTERFACE DEFINITION
Below ,please see the symbol and description from left to right pin

CN11 ( 6PIN/2.0 ) INVERTER INTERFACE

NO SYMBOL DESCRIPTION
1 GND Ground
2 GND Ground
3 ADJ Brightness adjustment
4 BKON Black-light ON/OFF control
5 12V +12V DC Power supply
6 12V +12V DC Power supply

CN9(4PIN/2.0) ATV DEBUGGING INTERFACE

NO SYMBOL DESCRIPTION
1 GND Ground
2 TXD Transmit data
3 RXD Receive data
4 5V +5V Power supply

CN7（3PIN/2.0）REMOTE RECEIVER
NO SYMBOL DESCRIPTION
1 IR_IN Infrared receive
2 GND Ground
3 IR/VCC 5V Power supply
CN4（6PIN/2.0）YC&CVBS SIGNAL
NO SYMBOL DESCRIPTION
1 GND Ground
2 C S-video C signal
3 Y S-video Y signal
4 GND Ground
5 AV AV SVBS signal
6 GND Ground

CN19（6PIN/2.0）AV AUDIO&PC AUDIO

NO SYMBOL DESCRIPTION
1 AVR AV audio (right)
2 GND Ground
3 AVL AV audio (left)
4 PCR PC audio (right)
5 GND Ground
6 PCL PC audio (left)

CN15（4PIN/2.0）SPEAKER
NO SYMBOL DESCRIPTION
1 SPKR Speaker(right)
2 GND Ground
3 GND Ground
4 SPKL Speaker (light)

CN8(13PIN/2.0)KEY BOARD+ LED

NO SYMBOL DESCRIPTION
1 CH- CH- Key
2 CH+ CH+ Key
3 MENU MENU Key
4 PC/AV PC/AV Key
5 VOL- VOL- Key
6 VOL+ VOL+ Key
7 GND Ground
8 G_LED Green indicator
9 R_LED Red indicator
10 ON/OFF ON/OFF key
11 GND Ground
12 IR_IN Remote receiver
13 IR_VCC DC power supply
CN3(2*15PIN/2.0)LVDS PANEL INTERFACE
NO SYMBOL DESCRIPTION
1 LCDPWR Power for panel
2 LCDPWR Power for panel
3 LCDPWR Power for panel
4 GND Ground
5 GND Ground
6 GND Ground
7 BTX0- LVDS EVEN 0- Signal
8 BTX0+ LVDS EVEN 0+ Signal
9 BTX1- LVDS EVEN 1- Signal
10 BTX1+ LVDS EVEN 1+ Signal
11 BTX2- LVDS EVEN 2- Signal
12 BTX2+ LVDS EVEN 2+ Signal
13 GND Ground
14 GND Ground
15 ATCK- LVDS 0DD Clock- Signal
16 ATCK+ LVDS 0DD Clock+ Signal
17 BTX3- LVDS 0DD 3- Signal
18 BTX3+ LVDS 0DD 3+ Signal
19 ATX0- LVDS 0DD 0- Signal
20 ATX0+ LVDS 0DD 0+ Signal
21 ATX1- LVDS 0DD 1- Signal
22 ATX1+ LVDS 0DD 1+ Signal
23 ATX2- LVDS 0DD 2- Signal
24 ATX2+ LVDS 0DD 2-+ Signal
25 GND Ground
26 GND Ground
27 ATCK- LVDS EVEN Clock- Signal
28 ATCK+ LVDS EVEN Clock+ Signal
29 ATX3- LVDS EVEN 3- Signal
30 ATX3+ LVDS EVEN 3+ Signal

4. CONTROLLER DIMENSIONS
5.KEY BOARD SYSTEM SCHEMATIC 6.IR BOARD SYSTEM SCHEMATIC

7.JUMPER DEFINE TABLE

8.OPERTION REQUIREMENT

Do not pressed and distorted.

Keep away from static and water.
Relative humidity :≤80%
Storage temperature:-10~+60℃
Operation temperature:0~+40℃
