    Main Assembly

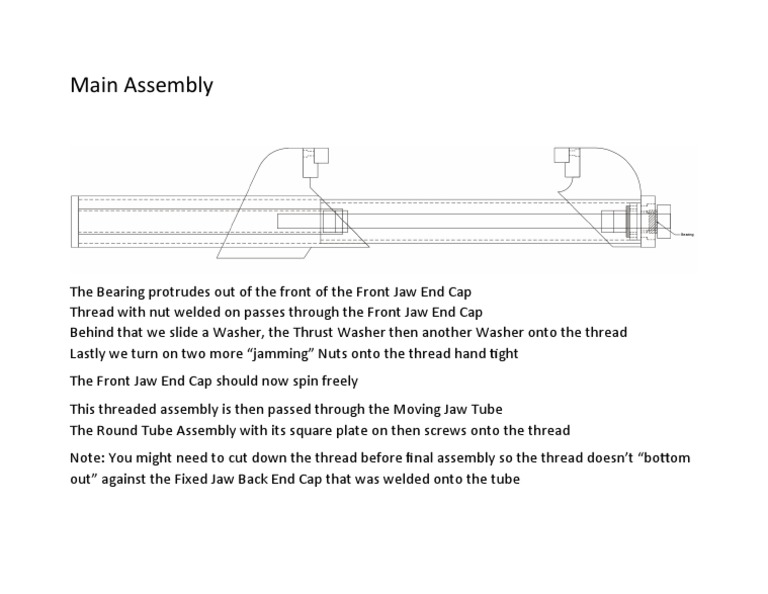

    The Bearing protrudes out of the front of the Front Jaw End Cap
    Thread with nut welded on passes through the Front Jaw End Cap
    Behind that we slide a Washer, the Thrust Washer then another Washer onto the thread
    Lastly we turn on two more “jamming” Nuts onto the thread hand tight
    The Front Jaw End Cap should now spin freely
    This threaded assembly is then passed through the Moving Jaw Tube
    The Round Tube Assembly with its square plate on then screws onto the thread
    Note: You might need to cut down the thread before final assembly so the thread doesn’t “bottom
    out” against the Fixed Jaw Back End Cap that was welded onto the tube
