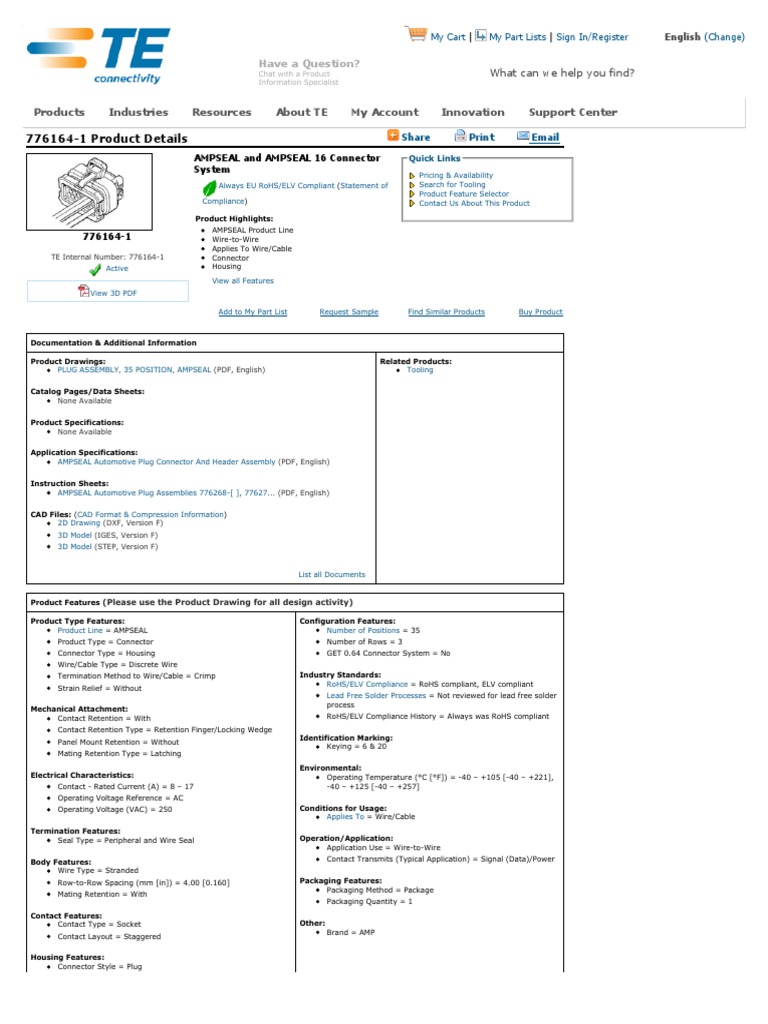

776164-1 Product Details Share Print Email

AMPSEAL and AMPSEAL 16 Connector Quick Links

System
Pricing & Availability
Always EU RoHS/ELV Compliant (Statement of Search for Tooling
Product Feature Selector
Compliance) Contact Us About This Product

Product Highlights:
AMPSEAL Product Line
776164-1 Wire-to-Wire
Applies To Wire/Cable
TE Internal Number: 776164-1 Connector
Active Housing
View all Features
View 3D PDF

Add to My Part List Request Sample Find Similar Products Buy Product

Documentation & Additional Information

Product Drawings: Related Products:

PLUG ASSEMBLY, 35 POSITION, AMPSEAL (PDF, English) Tooling

Catalog Pages/Data Sheets:

None Available

Product Specifications:
None Available

Application Specifications:
AMPSEAL Automotive Plug Connector And Header Assembly (PDF, English)

Instruction Sheets:
AMPSEAL Automotive Plug Assemblies 776268-[ ], 77627... (PDF, English)

CAD Files: (CAD Format & Compression Information)

2D Drawing (DXF, Version F)
3D Model (IGES, Version F)
3D Model (STEP, Version F)

List all Documents

Product Features (Please use the Product Drawing for all design activity)

Product Type Features: Configuration Features:

Product Line = AMPSEAL Number of Positions = 35
Product Type = Connector Number of Rows = 3
Connector Type = Housing GET 0.64 Connector System = No
Wire/Cable Type = Discrete Wire
Termination Method to Wire/Cable = Crimp Industry Standards:
RoHS/ELV Compliance = RoHS compliant, ELV compliant
Strain Relief = Without
Lead Free Solder Processes = Not reviewed for lead free solder
process
Mechanical Attachment:
Contact Retention = With RoHS/ELV Compliance History = Always was RoHS compliant
Contact Retention Type = Retention Finger/Locking Wedge
Identification Marking:
Panel Mount Retention = Without
Keying = 6 & 20
Mating Retention Type = Latching
Environmental:
Electrical Characteristics: Operating Temperature (°C [°F]) = -40 – +105 [-40 – +221],
Contact - Rated Current (A) = 8 – 17 -40 – +125 [-40 – +257]
Operating Voltage Reference = AC
Operating Voltage (VAC) = 250 Conditions for Usage:
Applies To = Wire/Cable
Termination Features:
Seal Type = Peripheral and Wire Seal Operation/Application:
Application Use = Wire-to-Wire
Body Features: Contact Transmits (Typical Application) = Signal (Data)/Power
Wire Type = Stranded
Row-to-Row Spacing (mm [in]) = 4.00 [0.160] Packaging Features:
Packaging Method = Package
Mating Retention = With
Packaging Quantity = 1
Contact Features:
Contact Type = Socket Other:
Brand = AMP
Contact Layout = Staggered

Housing Features:
Connector Style = Plug
Centerline (mm [in]) = 4.00 [0.157]
Housing Material = PBT
Housing Color = Black
UL Flammability Rating = UL 94V-0
Mating Alignment = With
Mating Alignment Type = Keyed
 8 7 6 5 4 3 2 1
THIS DRAWING IS UNPUBLISHED. RELEASED FOR PUBLICATION LOC DIST REVISIONS
ALL RIGHTS RESERVED.
C COPYRIGHT
P LTR DESCRIPTION DATE DWN APVD

ASSEMBLY WILL PASS THRU 66 OPENING

WIRE SEAL

7.0

LOCKING WEDGE
D D
(13.1)

8.0 27.6

9.8

HOUSING
COVER
MATING SEAL 63.4

C C

33.60
32.10

KEY SLOT 7 KEY SLOT 6

OPTIONAL VOID CORING
4 PLACES KEY SLOT 9 KEY SLOT 5
KEY SLOT 10

B B

BOTTOM VIEW WITH LOCKING WEDGE KEY SLOT 22 KEY SLOT 17

SCALE 3:1
KEY SLOT 21
KEY SLOT 20

KEY SLOT LOCATIONS PBT, ORANGE 776164-6

SCALE 3:1
PBT, BLUE 776164-5
GLASS SILICONE SILICONE
FILLED RUBBER, RUBBER, PBT, RED PBT, GRAY 776164-4
PBT, BLACK RED RED
7 & 22 776164-6 PBT, NATURAL 776164-2
5, 10 & 22 776164-5 PBT, BLACK 776164-1
A A
9 & 21 776164-4 COVER WIRE SEAL MATING SEAL LOCKING WEDGE HOUSING PART NUMBER
DWN
THIS DRAWING IS A CONTROLLED DOCUMENT.

7 & 17 776164-2 CHK TE Connectivity

DIMENSIONS: TOLERANCES UNLESS
OTHERWISE SPECIFIED: APVD NAME

6 & 20 776164-1 0 PLC PRODUCT SPEC

1 PLC

KEY SLOT 2 PLC

3 PLC APPLICATION SPEC
LOCATION PART NUMBER 4 PLC SIZE CAGE CODE DRAWING NO RESTRICTED TO

(SEE VIEW ABOVE) ANGLES

MATERIAL FINISH WEIGHT
A1 SCALE SHEET OF REV
