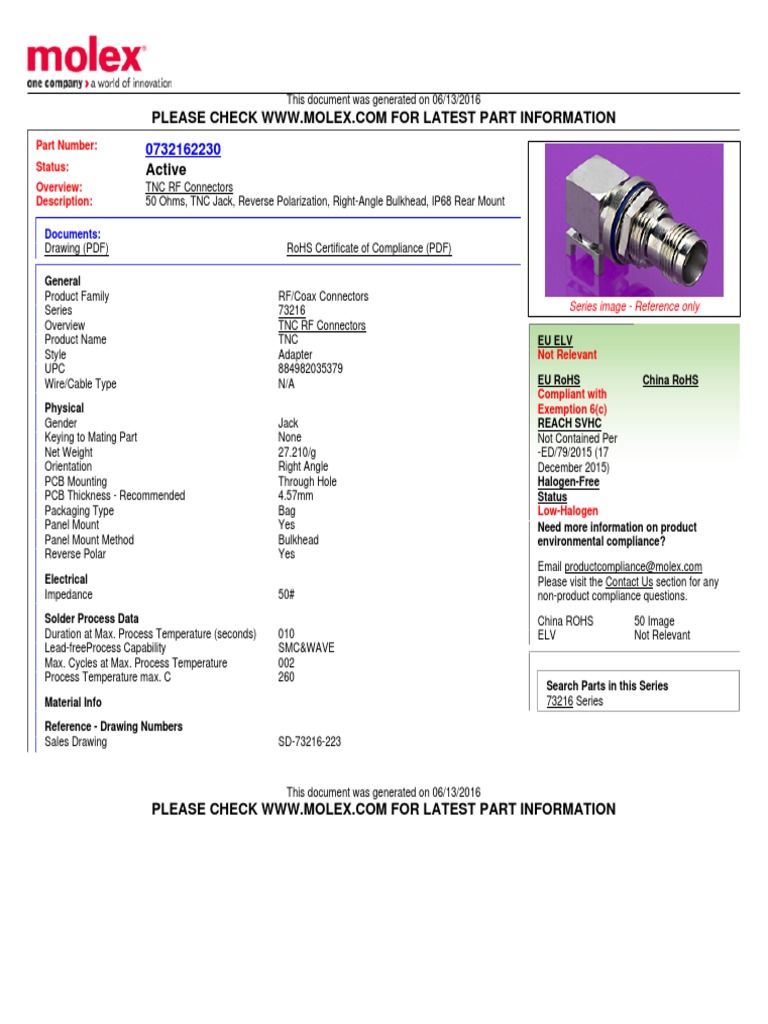

This document was generated on 06/13/2016

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number: 0732162230
Status: Active
Overview: TNC RF Connectors
Description: 50 Ohms, TNC Jack, Reverse Polarization, Right-Angle Bulkhead, IP68 Rear Mount

Documents:
Drawing (PDF) RoHS Certificate of Compliance (PDF)

General
Product Family RF/Coax Connectors
Series 73216 Series image - Reference only
Overview TNC RF Connectors
Product Name TNC EU ELV
Style Adapter Not Relevant
UPC 884982035379
Wire/Cable Type N/A EU RoHS China RoHS
Compliant with
Physical Exemption 6(c)
Gender Jack REACH SVHC
Keying to Mating Part None Not Contained Per
Net Weight 27.210/g -ED/79/2015 (17
Orientation Right Angle December 2015)
PCB Mounting Through Hole Halogen-Free
PCB Thickness - Recommended 4.57mm Status
Packaging Type Bag Low-Halogen
Panel Mount Yes Need more information on product
Panel Mount Method Bulkhead environmental compliance?
Reverse Polar Yes
Email productcompliance@molex.com
Electrical Please visit the Contact Us section for any
Impedance 50# non-product compliance questions.
Solder Process Data China ROHS 50 Image
Duration at Max. Process Temperature (seconds) 010 ELV Not Relevant
Lead-freeProcess Capability SMC&WAVE
Max. Cycles at Max. Process Temperature 002
Process Temperature max. C 260
Search Parts in this Series
Material Info 73216 Series

Reference - Drawing Numbers

Sales Drawing SD-73216-223
