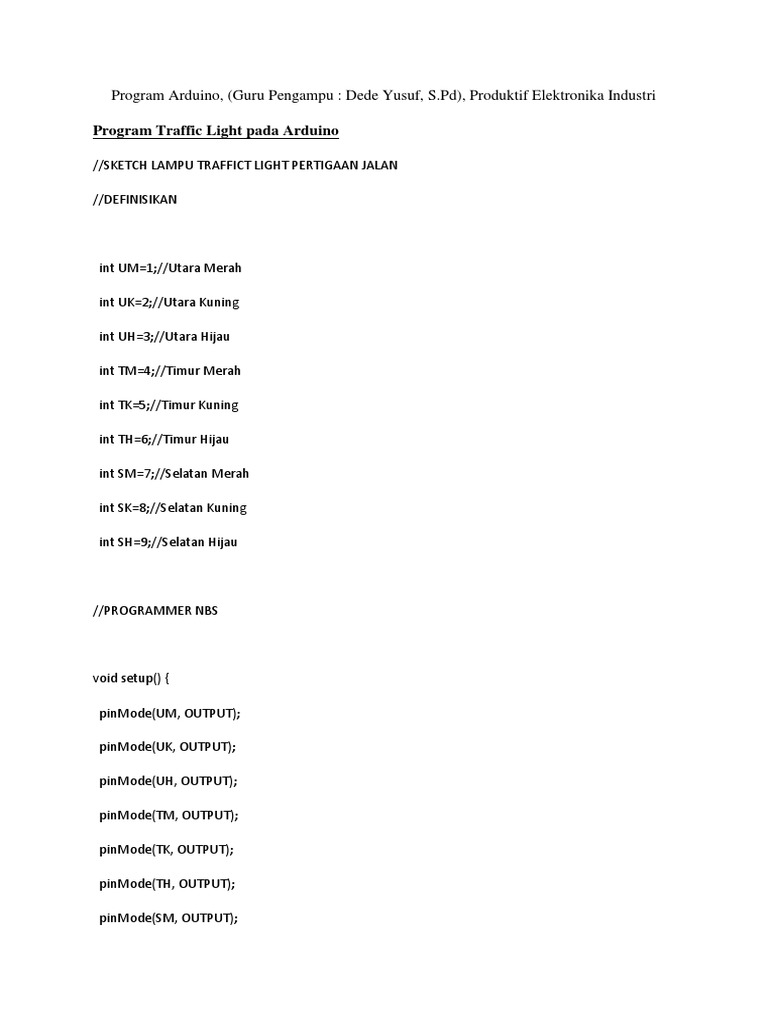

Program Arduino, (Guru Pengampu : Dede Yusuf, S.

Pd), Produktif Elektronika Industri

Program Traffic Light pada Arduino

//SKETCH LAMPU TRAFFICT LIGHT PERTIGAAN JALAN

//DEFINISIKAN

int UM=1;//Utara Merah

int UK=2;//Utara Kuning

int UH=3;//Utara Hijau

int TM=4;//Timur Merah

int TK=5;//Timur Kuning

int TH=6;//Timur Hijau

int SM=7;//Selatan Merah

int SK=8;//Selatan Kuning

int SH=9;//Selatan Hijau

//PROGRAMMER NBS

void setup() {

pinMode(UM, OUTPUT);

pinMode(UK, OUTPUT);

pinMode(UH, OUTPUT);

pinMode(TM, OUTPUT);

pinMode(TK, OUTPUT);

pinMode(TH, OUTPUT);

pinMode(SM, OUTPUT);
 pinMode(SK, OUTPUT);

pinMode(SH, OUTPUT);

//RANCANGAN NBS

void loop() {

//ARAH DARI UTARA JALAN

digitalWrite(UM,LOW);

digitalWrite(UK,LOW);

digitalWrite(UH,HIGH);

digitalWrite(TM,HIGH);

digitalWrite(TK,LOW);

digitalWrite(TH,LOW);

digitalWrite(SM,HIGH);

digitalWrite(SK,LOW);

digitalWrite(SH,LOW);

delay(6000);

digitalWrite(UM,LOW);

digitalWrite(UK,HIGH);

digitalWrite(UH,LOW);

digitalWrite(TM,HIGH);

digitalWrite(TK,LOW);
digitalWrite(TH,LOW);

digitalWrite(SM,HIGH);

digitalWrite(SK,LOW);

digitalWrite(SH,LOW);

delay(1000);

//ARAH DARI TIMUR JALAN

digitalWrite(UM,HIGH);

digitalWrite(UK,LOW);

digitalWrite(UH,LOW);

digitalWrite(TM,LOW);

digitalWrite(TK,LOW);

digitalWrite(TH,HIGH);

digitalWrite(SM,HIGH);

digitalWrite(SK,LOW);

digitalWrite(SH,LOW);

delay(6000);

digitalWrite(UM,HIGH);

digitalWrite(UK,LOW);

digitalWrite(UH,LOW);

digitalWrite(TM,LOW);

digitalWrite(TK,HIGH);

digitalWrite(TH,LOW);

digitalWrite(SM,HIGH);
digitalWrite(SK,LOW);

digitalWrite(SH,LOW);

delay(1000);

//ARAH DARI SELATAN JALAN

digitalWrite(UM,HIGH);

digitalWrite(UK,LOW);

digitalWrite(UH,LOW);

digitalWrite(TM,HIGH);

digitalWrite(TK,LOW);

digitalWrite(TH,LOW);

digitalWrite(SM,LOW);

digitalWrite(SK,LOW);

digitalWrite(SH,HIGH);

delay(6000);

digitalWrite(UM,HIGH);

digitalWrite(UK,LOW);

digitalWrite(UH,LOW);

digitalWrite(TM,HIGH);

digitalWrite(TK,LOW);

digitalWrite(TH,LOW);

digitalWrite(SM,LOW);

digitalWrite(SK,HIGH);

digitalWrite(SH,LOW);
 delay(1000);

}
Gambar rangkaian skema rangkaian arduino Traffic Light :
