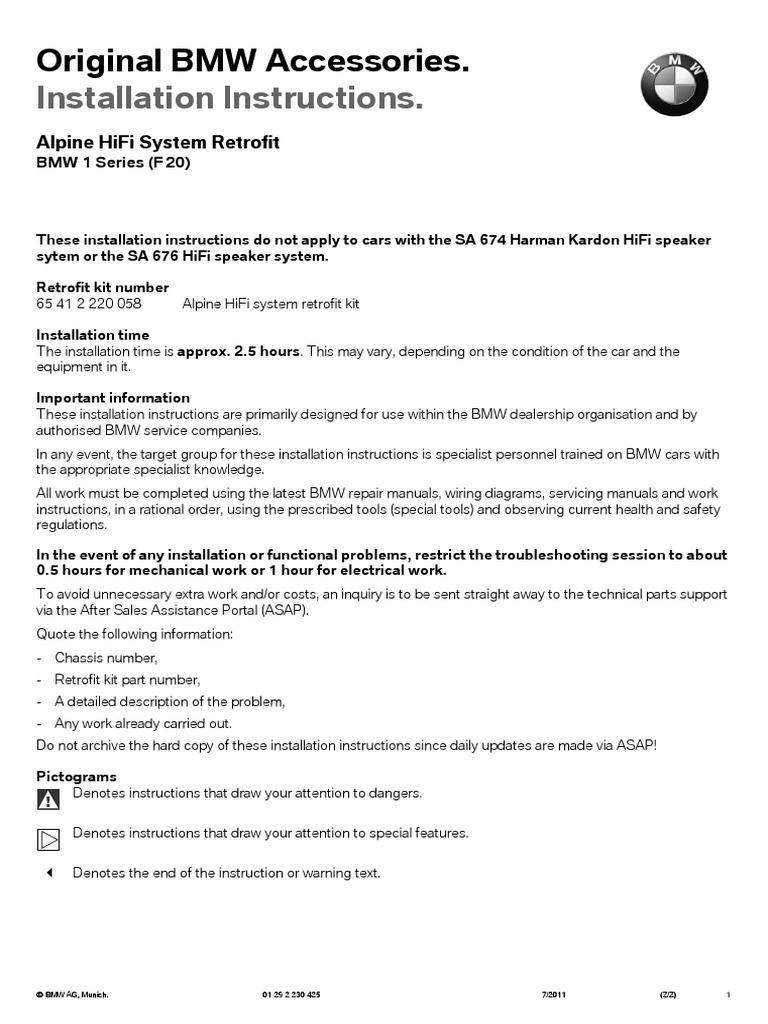

Original BMW Accessories.

Installation Instructions.
Alpine HiFi System Retrofit
BMW 1 Series (F 20)

These installation instructions do not apply to cars with the SA 674 Harman Kardon HiFi speaker
sytem or the SA 676 HiFi speaker system.

Retrofit kit number

65 41 2 220 058 Alpine HiFi system retrofit kit

Installation time
The installation time is approx. 2.5 hours. This may vary, depending on the condition of the car and the
equipment in it.

Important information
These installation instructions are primarily designed for use within the BMW dealership organisation and by
authorised BMW service companies.
In any event, the target group for these installation instructions is specialist personnel trained on BMW cars with
the appropriate specialist knowledge.
All work must be completed using the latest BMW repair manuals, wiring diagrams, servicing manuals and work
instructions, in a rational order, using the prescribed tools (special tools) and observing current health and safety
regulations.

In the event of any installation or functional problems, restrict the troubleshooting session to about
0.5 hours for mechanical work or 1 hour for electrical work.
To avoid unnecessary extra work and/or costs, an inquiry is to be sent straight away to the technical parts support
via the After Sales Assistance Portal (ASAP).
Quote the following information:
- Chassis number,
- Retrofit kit part number,
- A detailed description of the problem,
- Any work already carried out.
Do not archive the hard copy of these installation instructions since daily updates are made via ASAP!

Pictograms
Denotes instructions that draw your attention to dangers.
!

Denotes instructions that draw your attention to special features.

 Denotes the end of the instruction or warning text.

© BMW AG, Munich. 01 29 2 230 425 7/2011 (Z/Z) 1

Information for the customer
Print out the "Customer information" section at the end of the installation instructions and give it to the customer.

Installation information
Ensure that the cables and/or lines are not kinked or damaged as you install them in the car. Costs arising from this
will not be reimbursed by BMW AG.
Additional cables/lines that you install must be secured with cable ties.
If the specified PIN chambers are occupied, bridges, double crimps or twin-lead terminals must be used.
All pictures show LHD cars; proceed accordingly on RHD cars.

Ordering instructions
The left window frame cover N and right window frame cover O are not included in the retrofit kit and must be
ordered separately (for part number and instructions, see EPC).

List of special equipment

The following special equipment must be taken into consideration during installation:
SA 606 BMW Business navigation system
SA 609 BMW Professional navigation system
SA 663 Professional radio

Special tools required

00 9 325, Trim wedge
64 1 020, Unlocking hooks

© BMW AG, Munich. 01 29 2 230 425 7/2011 (Z/Z) 2

Table of contents

Section Page
1 Parts list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2 Preparatory work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

3 Retrofit wiring harness connection diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

4 Diplexer connection diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

5 Installation and cabling diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

6 Installing and connecting the retrofit kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

7 Concluding work and programming / coding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

8 Wiring diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

9 Customer information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

© BMW AG, Munich. 01 29 2 230 425 7/2011 (Z/Z) 3

1. Parts list

A B C D

2
SA66
9
.60
06
3.6
66
SA
E F G H I J K L M

N O

F20 0116 Z

Legend

A Retrofit wiring harness

B Diplexer (2 x)
C Audio amplifier
D Audio ampllifier holder
E Tweeter (2x)
F Mid-range speaker (2x)
G Emblem (2x)
H Prestol cage
I Hexagon screw with M6 washer
J Hexagon nut M6
K Sheet metal nut M5
L Hexagon screw M5
M Cable tie (15 x)
N Left window frame cover (not supplied with the retrofit kit)
O Right window frame cover (not supplied with the retrofit kit)

© BMW AG, Munich. 01 29 2 230 425 7/2011 (Z/Z) 4

2. Preparatory work

ISTA No.
Conduct a brief test
Information about disconnecting the battery 12 00 ...
Disconnect the negative pole of the battery 61 20 900

The following components must be removed first of all

Front door trim, left and right 51 41 000
Cover on door window frame interior left and right 51 32 160
Mid-range speaker 65 13 070
Rear seat 52 26 005
Front door sill strip (interior) on both sides 51 47 000
Rear door sill strip (interior) on both sides 51 47 030
Right and left front seat 52 13 001
Remove the bass speaker cover 65 12 050
Luggage compartment floor trim 51 47 101
Luggage compartment wheel arch trim, left 51 47 151

© BMW AG, Munich. 01 29 2 230 425 7/2011 (Z/Z) 5

3. Retrofit wiring harness connection diagram

A5

A4

A3 A6

A2 A7

A1 A A8
F20 0101 Z

Item Designation Signal Cable colour/ Connection location in the car Abbreviation/
cross-section Slot
A Retrofit wiring harness --- --- --- ---
A1 WS 10-pin socket casing --- --- To audio amplifier C ---
A2 WS 14-pin socket casing --- --- To audio amplifier C ---
A3 Eyelet Terminal 31 BR To ground support point in left luggage Z10*11B
4.0 mm² compartment
A4 Eyelet Terminal 30 RT To the backup battery terminal in the luggage B73
4.0 mm² compartment
A5 SW 4-pin pin housing --- --- To the car plug on the right bass speaker B64*1B
A6 SW 4-pin socket casing --- --- To right bass speaker B64
A7 SW 4-pin pin housing --- --- To the car plug on the left bass speaker B63*1B
A8 SW 4-pin socket casing --- --- To left bass speaker B63

© BMW AG, Munich. 01 29 2 230 425 7/2011 (Z/Z) 6

4. Diplexer connection diagram

62
SA6
B2
B1 B3
B4

9
.60
06
3.6
66
B

SA
F20 0082 Z

Item Designation Signal Cable colour/ Connection location in the car Abbreviation/
cross-section Slot
B Diplexer --- BL/WS --- ---
BL/SW
B1 BL 2-pin socket casing --- GE/RT To mid-range speaker F ---
GE
B2 BL 2-pin pin housing --- BL/WS Cars with Business radio only ---
BL/SW To tweeter E
B3 BL 2-pin pin housing --- GE/RT On original socket casing to door speaker ---
GE
B4 BL 2-pin pin housing --- BL/WS Only cars with SA 606, SA 609, SA 663 ---
BL/SW To tweeter E

© BMW AG, Munich. 01 29 2 230 425 7/2011 (Z/Z) 7

5. Installation and cabling diagram

B F

E 3
A

C
E

B F 2

F20 0103 Z

A Retrofit wiring harness

B Diplexer
C Audio amplifier
E Tweeter
F Mid-range speaker

1 Left and right bass speaker B63, B64

2 Ground support point Z10*11B
3 Backup battery terminal B73

© BMW AG, Munich. 01 29 2 230 425 7/2011 (Z/Z) 8

6. Installing and connecting the retrofit kit

Before installing audio amplifier C, set switch (1). 

1 C
Set the switch (1) to position 2.

2 1 2 1

F20 0108 Z

Insert sheet metal nut K in audio amplifier holder D.

D C L K Insert audio amplifier C in audio amplifier holder D and
secure in place with hexagon screw L.

F20 0104 Z

Insert Presto cage H in the hole provided (1).

1 H

F20 0105 Z

Place audio amplifier holder D in support (1) and secure

using hexagon nut J and hexagon screw with washer I.
J I

F20 0106 Z

© BMW AG, Munich. 01 29 2 230 425 7/2011 (Z/Z) 9

6. Installing and connecting the retrofit kit

Connect branches A1 and A2 to audio amplifier C.

C
A1 A2 F20 0107 Z

Route retrofit wiring harness A to the C pillar and secure

with cable ties M.
Route branch A4 to the installation point of the backup
battery terminal.
A A4
M

F20 0109 Z

Screw branch A3 to ground support point Z10*11B.

Z10*11B

A3
F20 0110 Z

Screw branch A4 to backup battery terminal B73.

Secure branch A4 using cable ties M to the standard
wiring harness.

A4
M

B73
F20 0111 Z

© BMW AG, Munich. 01 29 2 230 425 7/2011 (Z/Z) 10

6. Installing and connecting the retrofit kit

Route branches A5-A8 of retrofit wiring harness A as

B64 follows:
A5-A6
- Branches A5 and A6 to the installation point of right
bass speaker B64
A - Branches A7 and A8 to the installation point of left
bass speaker B63

B63 A7-A8
F20 0112 Z

Disconnect plug B64*1B from left bass speaker B64

B64 A5 and connect to branch A5.
A6
Connect branch A6 to left bass speaker B64.
B64*1B

F20 0113 Z

Disconnect plug B63*1B from right bass speaker B63

A7 B63 and connect to branch A7.
A8
Connect branch A8 to right bass speaker B63.
B63*1B

F20 0114 Z

Place tweeter E in window frame cover N and O.

N O

F20 0117 Z

© BMW AG, Munich. 01 29 2 230 425 7/2011 (Z/Z) 11

6. Installing and connecting the retrofit kit

The installation of diplexer B, tweeter E and mid-

N/E range speaker F is shown only on the left-hand side
of the car. Proceed in a similar fashion on the right-hand
1 side of the car. 
G Install window frame cover N with tweeter E and attach
B emblem G.
2
66
SA

Install diplexer B and mid-range speaker F using the

SA
66

existing screws (1).

3.6
06
.60
9

F F20 0115 Z

The connection of the diplexer B is shown only on

B2 SA
66
2
the left-hand side of the car. Proceed in a similar
B fashion on the right-hand side of the car. 
B3
SA

Connect diplexer B as follows:

66

B4
3.6
06

- Connect branch B1 to mid-range speaker F

.60
9

- Connect branch B3 to the original socket casing for

F the door speaker

Cars with Business radio only

Connect branch B2 to the tweeter.
B1 F20 0119 Z
Only cars with SA 606, SA 609 or SA 663
Connect branch B4 to the tweeter.

© BMW AG, Munich. 01 29 2 230 425 7/2011 (Z/Z) 12

7. Concluding work and programming / coding

The retrofit system does not require programming / coding.

- Connect the battery
- Carry out a vehicle test using the ISTA system and note or work through any entered error memory.
- Delete the fault memory
- Carry out a functional test of the HiFi system
- Re-fit the car components as required

© BMW AG, Munich. 01 29 2 230 425 7/2011 (Z/Z) 13

14 (Z/Z) 7/2011 01 29 2 230 425 © BMW AG, Munich.
A1*

MT R+ 0,5 RT/BR MT R+
1
4

F*

MT R- 0,5 RT/SW MT R-
4
3

B2*

0,5 BL/BR In R+
9

B1*
VB* In R+

In R+ 0,5 BL/BR 0,5 BL/BR In R+

2
2

B4*

In R- 0,5 BL/SW 0,5 BL/SW In R-

B*
3
6

B3*
E*

0,5 BL/SW In R-
VB* In R-

A5*
10

0,5 BL/BR In L+
1

A7*
VB* In L+

In L+ 0,5 BL/BR 0,5 BL/BR In L+

2
7

F*
In L- 0,5 BL/WS 0,5 BL/WS In L-
8

B2*

MT L+ 0,75 RT/BR 0,5 BL/WS In L-

VB* In L-

1
5

B1*
MT L- 0,75 RT/WS
4
C*

MT L+
B4*

B*
7

MT L-

B3*
E*
1

A6*

Bass R+ 0,75 GN/BR Bass R+

2
3

Bass R- 0,75 GN/SW Bass R-

3
9

Bass L+ 0,75 GN/BR Bass L+

2
8

Bass L- 0,75 GN/WS Bass L-

2
2

0,75 BR Kl. 31
4

A8*
Kl. 31 4,0 BR 0,75 BR Kl. 31

A3*
5

0,75 BR Kl. 31

VB* 31
12

0,75 RT Kl. 30
6

Kl. 30 20 A 4,0 RT 0,75 RT Kl. 30

A4*
13

1*
0,75 RT Kl. 30

VB* 30
14
A2*

F20 0120 Z
Wiring diagram 8.
8. Wiring diagram

Legend

A1* WS 10-pin socket casing, to audio amplifier C

A2* WS 14-pin socket casing, to audio amplifier C
A3* Screw eyelet M8 to ground support point Z10*11B
A4* Screw eyelet M8 to backup battery terminal
A5* SW 4-pin pin housing, to the standard plug of the right bass speaker
A6* SW 4-pin socket casing, to right bass speaker
A7* SW 4-pin pin housing, to the standard plug of the left bass speaker
A8* SW 4-pin socket casing, to left bass speaker

B* Diplexer

B1* BL 2-pin socket casing, to mid range speaker F

B2* BL 2-pin pin housing, to tweeter E (only cars with Business radio)
B3* BL 2-pin pin housing, to the original socket casing of the speaker
B4* BL 2-pin pin housing, to tweeter E (only cars with SA 606, SA 609, SA 663)

C* Audio amplifier

E* Tweeter

F* Mid-range speaker

1* Fuse holder with fuse (20 A)

All the designations marked with an asterisk (*) apply only to these installation instructions or this wiring diagram.

Cable colours

BL Blue GR Grey RT Red

BO Bordeaux L-GN Light green SW Black
BR Brown NT Natural TR Transparent
GE Yellow OR Orange VI Violet
GN Green RO Pink WS White

© BMW AG, Munich. 01 29 2 230 425 7/2011 (Z/Z) 15

9. Customer information

In the event of a system failure, check the power supply as follows:

- Remove the luggage compartment floor trim

- Check the fuse (1) on the fuse holder
- If necessary, replace with a new 20 Amp fuse
1

F20 0126 Z

- Open the luggage compartment side trim on the left

- Check the fuse (1) on audio amplifier (2)
- If necessary, replace with a new 7.5 Amp fuse

2
1

F20 0127 Z

© BMW AG, Munich. 01 29 2 230 425 7/2011 (Z/Z) 16
