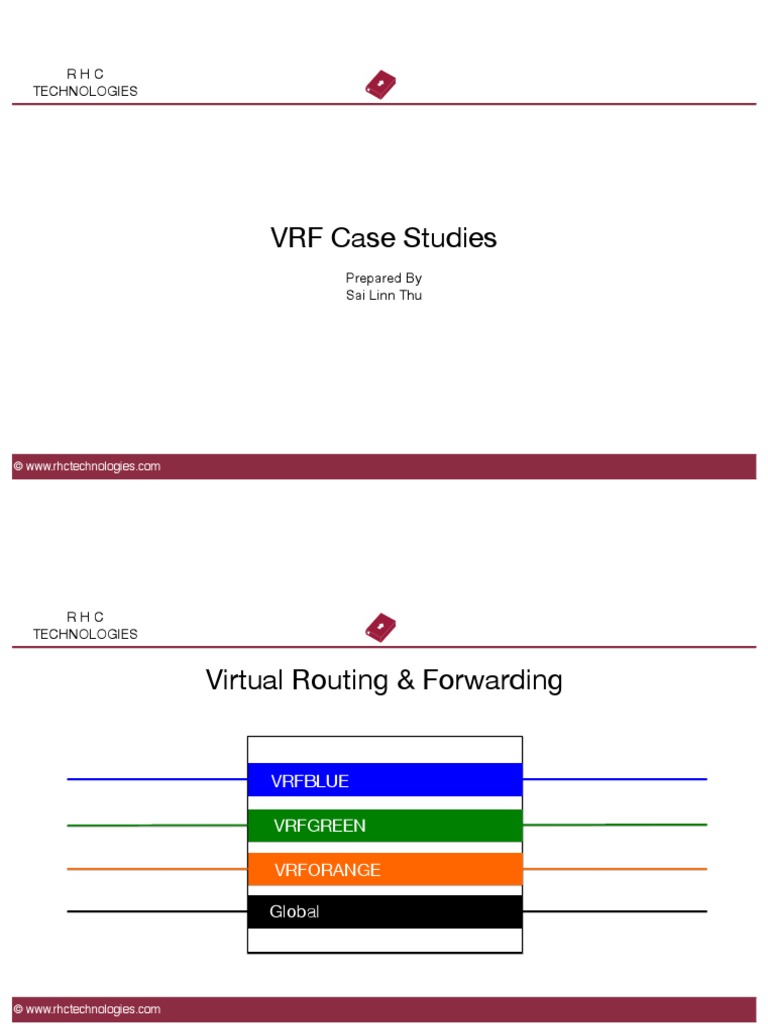

VRF Case Studies

Prepared By
Sai Linn Thu

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

Virtual Routing & Forwarding

VRFBLUE

VRFGREEN

VRFORANGE

Global

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

Virtual Routing & Forwarding

1.1.1.0/24 10.10.10.0/24
VRFBLUE
2.2.2.0/24 172.16.10.0/24
VRFGREEN
3.3.3.0/24 192.168.30.0/24
VRFORANGE
4.4.4.0/24 203.81.40.0/24
Global

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

Create VRF Configuration

configure terminal
ip vrf blue
ip vrf green
ip vrf orange

1.1.1.0/24 10.10.10.0/24
VRFBLUE
2.2.2.0/24 172.16.10.0/24
VRFGREEN
3.3.3.0/24 192.168.30.0/24
VRFORANGE
4.4.4.0/24 203.81.40.0/24
Global

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

VRF aware RIP Configuration

1.1.1.0/24 10.10.10.0/24
VRFBLUE
2.2.2.0/24 172.16.10.0/24
VRFGREEN
3.3.3.0/24 192.168.30.0/24
VRFORANGE
4.4.4.0/24 203.81.40.0/24
Global

router rip
!
router rip address-family ipv4 vrf blue
version 2 version 2
network 4.4.4.0 network 1.1.1.0
network 203.81.40.0 network 10.10.10.0
no auto-summary no auto-summary
! exit-address-family
!

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

VRF aware EIGRP Configuration

1.1.1.0/24 10.10.10.0/24
VRFBLUE
2.2.2.0/24 172.16.10.0/24
VRFGREEN
3.3.3.0/24 192.168.30.0/24
VRFORANGE
4.4.4.0/24 203.81.40.0/24
Global

router eigrp 10
!
router eigrp 10 address-family ipv4 vrf green autonomous-system 10
network 4.4.4.0 0.0.0.255 network 2.2.2.0 0.0.0.255
network 203.81.40.0 0.0.0.255 network 172.16.10.0 0.0.0.255
no auto-summary no auto-summary
! exit-address-family
!

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

VRF aware OSPF Configuration

1.1.1.0/24 10.10.10.0/24
VRFBLUE
2.2.2.0/24 172.16.10.0/24
VRFGREEN
3.3.3.0/24 192.168.30.0/24
VRFORANGE
4.4.4.0/24 203.81.40.0/24
Global

router ospf 2 vrf orange

router ospf 1 network 3.3.3.0 0.0.0.255 area 1
network 4.4.4.0 0.0.0.255 area 1 network 192.168.30.0 0.0.0.255 area 0
network 203.81.40.0 0.0.0.255 area 0 exit-address-family
! !

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

VRF aware Static Route

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

VRF aware Static Route Configuration

R1 R2
1.1.1.1/24 f1/0 10.10.10.0/24 f1/0 100.100.100.100/24
lo0 VRF VRF lo0

2.2.2.2/24 f2/0 172.16.10.0/24 f2/0 200.200.200.200/24

lo1 VRF VRF lo1
3.3.3.3/24 f3/0 192.168.30.0/24 f3/0 30.30.30.30/24
lo2 VRF VRF lo2
4.4.4.4/24 f4/0 203.81.40.0/24 f4/0 40.40.40.40/24
lo3 Global Global lo3

Step 1 - Create VRF ( blue )

R1 R2

configure terminal configure terminal

ip vrf blue ip vrf blue
! !

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

VRF aware Static Route Configuration

R1 R2
1.1.1.0/24 f1/0 10.10.10.0/24 f1/0 100.100.100.0/24
lo0 VRF VRF lo0

2.2.2.0/24 f2/0 172.16.10.0/24 f2/0 200.200.200.0/24

lo1 VRF VRF lo1
3.3.3.0/24 f3/0 192.168.30.0/24 f3/0 30.30.30.0/24
lo2 VRF VRF lo2
4.4.4.0/24 f4/0 203.81.40.0/24 f4/0 40.40.40.0/24
lo3 Global Global lo3

Step 2 – Associate Interfaces into VRF ( blue )

R1 R2
int f1/0 int f1/0
ip vrf forwarding blue ip vrf forwarding blue
ip address 10.10.10.1 255.255.255.0 ip address 10.10.10.2 255.255.255.0
! !
int lo0 int lo0
ip vrf forwarding blue ip vrf forwarding blue
ip address 1.1.1.1 255.255.255.0 ip address 100.100.100.100 255.255.255.0
! !

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

VRF aware Static Route Configuration

R1 R2
1.1.1.0/24 f1/0 10.10.10.0/24 f1/0 100.100.100.0/24
lo0 VRF VRF lo0

2.2.2.0/24 f2/0 172.16.10.0/24 f2/0 200.200.200.0/24

lo1 VRF VRF lo1
3.3.3.0/24 f3/0 192.168.30.0/24 f3/0 30.30.30.0/24
lo2 VRF VRF lo2
4.4.4.0/24 f4/0 203.81.40.0/24 f4/0 40.40.40.0/24
lo3 Global Global lo3

Step 3 – Configure Static Route aware VRF ( blue )

R1 R2

ip route vrf blue 100.100.100.0 255.255.255.0 10.10.10.2 ip route vrf blue 1.1.1.0 255.255.255.0 10.10.10.1

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

Global Routing ( BGP )

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

R1 R2
1.1.1.1/24 f1/0 10.10.10.0/24 f1/0 100.100.100.100/24
lo0 VRF VRF lo0

2.2.2.2/24 f2/0 172.16.10.0/24 f2/0 200.200.200.200/24

lo1 VRF VRF lo1
3.3.3.3/24 f3/0 192.168.30.0/24 f3/0 30.30.30.30/24
lo2 VRF VRF lo2
4.4.4.4/24 f4/0 203.81.40.0/24 f4/0 40.40.40.40/24
lo3 Global Global lo3

Step 1 – NO VRF Creation required

R1 R2

configure terminal configure terminal

hostname R1 hostname R2
! !

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

R1 R2
1.1.1.1/24 f1/0 10.10.10.0/24 f1/0 100.100.100.100/24
lo0 VRF VRF lo0

2.2.2.2/24 f2/0 172.16.10.0/24 f2/0 200.200.200.200/24

lo1 VRF VRF lo1
3.3.3.3/24 f3/0 192.168.30.0/24 f3/0 30.30.30.30/24
lo2 VRF VRF lo2
4.4.4.4/24 f4/0 203.81.40.0/24 f4/0 40.40.40.40/24
lo3 Global Global lo3

Step 2 – Interface IP Configuration

R1 R2

int f4/0 int f4/0

ip address 203.81.40.1 255.255.255.0 ip address 203.81.40.2 255.255.255.0
! !
int lo3 int lo3
ip address 4.4.4.4 255.255.255.0 ip address 40.40.40.40 255.255.255.0
! !

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

R1 R2
1.1.1.1/24 f1/0 10.10.10.0/24 f1/0 100.100.100.100/24
lo0 VRF VRF lo0

2.2.2.2/24 f2/0 172.16.10.0/24 f2/0 200.200.200.200/24

lo1 VRF VRF lo1
3.3.3.3/24 f3/0 192.168.30.0/24 f3/0 30.30.30.30/24
lo2 VRF VRF lo2
4.4.4.4/24 f4/0 203.81.40.0/24 f4/0 40.40.40.40/24
lo3 Global Global lo3

Step 3 – Configure BGP

R1 R2

router bgp 12 router bgp 12

neighbor 203.81.40.2 remote-as 12 neighbor 203.81.40.1 remote-as 12
network 4.4.4.0 mask 255.255.255.0 network 40.40.40.0 mask 255.255.255.0
! !

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

VRF aware BGP

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

VRF aware BGP Route Configuration

R1 R2
1.1.1.1/24 f1/0 10.10.10.0/24 f1/0 100.100.100.100/24
lo0 VRF VRF lo0

2.2.2.2/24 f2/0 172.16.10.0/24 f2/0 200.200.200.200/24

lo1 VRF VRF lo1
3.3.3.3/24 f3/0 192.168.30.0/24 f3/0 30.30.30.30/24
lo2 VRF VRF lo2
4.4.4.4/24 f4/0 203.81.40.0/24 f4/0 40.40.40.40/24
lo3 Global Global lo3

Step 1 - Create VRF ( green )

R1 R2

configure terminal configure terminal

ip vrf green ip vrf green
! !

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

VRF aware BGP Route Configuration

R1 R2
1.1.1.1/24 f1/0 10.10.10.0/24 f1/0 100.100.100.100/24
lo0 VRF VRF lo0

2.2.2.2/24 f2/0 172.16.10.0/24 f2/0 200.200.200.200/24

lo1 VRF VRF lo1
3.3.3.3/24 f3/0 192.168.30.0/24 f3/0 30.30.30.30/24
lo2 VRF VRF lo2
4.4.4.4/24 f4/0 203.81.40.0/24 f4/0 40.40.40.40/24
lo3 Global Global lo3

Step 2 - Associate Interfaces into VRF ( green )

R1 R2
int f2/0 int f2/0
ip vrf forwarding green ip vrf forwarding green
ip address 172.16.10.1 255.255.255.0 ip address 172.16.10.2 255.255.255.0
! !
int lo1 int lo1
ip vrf forwarding green ip vrf forwarding green
ip address 2.2.2.2 255.255.255.0 ip address 200.200.200.200 255.255.255.0
! !

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

VRF aware BGP Route Configuration

R1 R2
1.1.1.1/24 f1/0 10.10.10.0/24 f1/0 100.100.100.100/24
lo0 VRF VRF lo0

2.2.2.2/24 f2/0 172.16.10.0/24 f2/0 200.200.200.200/24

lo1 VRF VRF lo1
3.3.3.3/24 f3/0 192.168.30.0/24 f3/0 30.30.30.30/24
lo2 VRF VRF lo2
4.4.4.4/24 f4/0 203.81.40.0/24 f4/0 40.40.40.40/24
lo3 Global Global lo3

Step 3 – Configure BGP aware VRF ( green )

R1 R2
router bgp 12 router bgp 12
address-family ipv4 vrf green address-family ipv4 vrf green
neighbor 172.16.10.2 remote-as 12 neighbor 172.16.10.1 remote-as 12
neighbor 172.16.10.2 activate neighbor 172.16.10.1 activate
network 2.2.2.0 mask 255.255.255.0 network 200.200.200.0 mask 255.255.255.0
exit-address-family exit-address-family
! !

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

VRF-Lite Tunnel + VRF aware BGP/OSPF

Case Study

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

R1 R2
Tunnel 12
1.1.1.1/24 150.1.1.0/24 2.2.2.2/24
lo1 RHCYGN RHCYGN lo1

lo0 Global Global lo0

4.4.4.4/24 f1/0 203.81.40.0/24 f1/0 40.40.40.40/24
lo2 RHCSG RHCSG lo2
11.11.11.11/24 Tunnel 85 22.22.22.22/24
200.1.1.0/24

R1 R2

int f1/0 int f1/0

ip address 203.81.40.1 255.255.255.0 ip address 203.81.40.2 255.255.255.0
! !
int lo0 int lo0
ip address 4.4.4.4 255.255.255.0 ip address 40.40.40.40 255.255.255.0
! !

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

R1 R2
Tunnel 12
1.1.1.1/24 150.1.1.0/24 2.2.2.2/24
lo1 RHCYGN RHCYGN lo1

lo0 Global Global lo0

4.4.4.4/24 f1/0 203.81.40.0/24 f1/0 40.40.40.40/24
lo2 RHCSG RHCSG lo2
11.11.11.11/24 Tunnel 85 22.22.22.22/24
200.1.1.0/24

R1 R2

router bgp 12 router bgp 12

neighbor 203.81.40.2 remote-as 12 neighbor 203.81.40.1 remote-as 12
network 4.4.4.0 mask 255.255.255.0 network 40.40.40.0 mask 255.255.255.0
! !

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

R1 R2
Tunnel 12
1.1.1.1/24 150.1.1.0/24 2.2.2.2/24
lo1 RHCYGN RHCYGN lo1

lo0 Global Global lo0

4.4.4.4/24 f1/0 203.81.40.0/24 f1/0 40.40.40.40/24
lo2 RHCSG RHCSG lo2
11.11.11.11/24 Tunnel 85 22.22.22.22/24
200.1.1.0/24

R1 R2

configure terminal configure terminal

ip vrf RHCYGN ip vrf RHCYGN
! !

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

R1 R2
Tunnel 12
1.1.1.1/24 150.1.1.0/24 2.2.2.2/24
lo1 RHCYGN RHCYGN lo1

lo0 Global Global lo0

4.4.4.4/24 f1/0 203.81.40.0/24 f1/0 40.40.40.40/24
lo2 RHCSG RHCSG lo2
11.11.11.11/24 Tunnel 85 22.22.22.22/24
200.1.1.0/24

R1 R2
interface tunnel 12 interface tunnel 12
ip vrf forwarding RHCYGN
 ip vrf forwarding RHCYGN

ip address 150.1.1.1 255.255.255.0 ip address 150.1.1.2 255.255.255.0
tunnel source 203.81.40.1 tunnel source 203.81.40.2
tunnel destination 203.81.40.2 tunnel destination 203.81.40.1
! !
int lo1 int lo1
ip vrf forwarding RHCYGN ip vrf forwarding RHCYGN
ip address 1.1.1.1 255.255.255.0 ip address 2.2.2.2 255.255.255.0
! !
© www.rhctechnologies.com
 R H C
TECHNOLOGIES

R1 R2
Tunnel 12
1.1.1.1/24 150.1.1.0/24 2.2.2.2/24
lo1 RHCYGN RHCYGN lo1

lo0 Global Global lo0

4.4.4.4/24 f1/0 203.81.40.0/24 f1/0 40.40.40.40/24
lo2 RHCSG RHCSG lo2
11.11.11.11/24 Tunnel 85 22.22.22.22/24
200.1.1.0/24

R1 R2
router bgp 12 router bgp 12
address-family ipv4 vrf RHCYGN address-family ipv4 vrf RHCYGN
neighbor 150.1.1.2 remote-as 12 neighbor 150.1.1.1 remote-as 12
neighbor 150.1.1.2 activate neighbor 150.1.1.1 activate
network 1.1.1.0 mask 255.255.255.0 network 2.2.2.0 mask 255.255.255.0
exit-address-family exit-address-family
! !

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

R1 R2
Tunnel 12
1.1.1.1/24 150.1.1.0/24 2.2.2.2/24
lo1 RHCYGN RHCYGN lo1

lo0 Global Global lo0

4.4.4.4/24 f1/0 203.81.40.0/24 f1/0 40.40.40.40/24
lo2 RHCSG RHCSG lo2
11.11.11.11/24 Tunnel 85 22.22.22.22/24
200.1.1.0/24

R1 R2

configure terminal configure terminal

ip vrf RHCSG ip vrf RHCSG
! !

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

R1 R2
Tunnel 12
1.1.1.1/24 150.1.1.0/24 2.2.2.2/24
lo1 RHCYGN RHCYGN lo1

lo0 Global Global lo0

4.4.4.4/24 f1/0 203.81.40.0/24 f1/0 40.40.40.40/24
lo2 RHCSG RHCSG lo2
11.11.11.11/24 Tunnel 85 22.22.22.22/24
200.1.1.0/24

R1 R2
interface tunnel 85 interface tunnel 85
ip vrf forwarding RHCSG ip vrf forwarding RHCSG
ip address 200.1.1.1 255.255.255.0 ip address 200.1.1.2 255.255.255.0
tunnel source 203.81.40.1 tunnel source 203.81.40.2
tunnel destination 203.81.40.2 tunnel destination 203.81.40.1
! !
int lo2 int lo2
ip vrf forwarding RHCSG ip vrf forwarding RHCSG
ip address 11.11.11.11 255.255.255.0 ip address 22.22.22.22 255.255.255.0
! !

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

R1 R2
Tunnel 12
1.1.1.1/24 150.1.1.0/24 2.2.2.2/24
lo1 RHCYGN RHCYGN lo1

lo0 Global Global lo0

4.4.4.4/24 f1/0 203.81.40.0/24 f1/0 40.40.40.40/24
lo2 RHCSG RHCSG lo2
11.11.11.11/24 Tunnel 85 22.22.22.22/24
200.1.1.0/24

R1 R2

router ospf 1 vrf RHCSG router ospf 1 vrf RHCSG

network 200.1.1.0 0.0.0.255 area 0 network 200.1.1.0 0.0.0.255 area 0
network 11.11.11.0 0.0.0.255 area 0 network 22.22.22.0 0.0.0.255 area 0
exit-address-family exit-address-family
! !

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

VRF-Lite 802.1Q Sub-Interface

Case Study

© www.rhctechnologies.com
 R H C
TECHNOLOGIES
encapsulation dot1Q <1-4094>

R1 R2
encapsulation
dot1Q 10
1.1.1.1/24 f1/0.10 150.1.1.0/24 f1/0.10 2.2.2.2/24
lo1 RHCYGN RHCYGN lo1

Global Global
f1/0 f1/0
lo2 RHCSG RHCSG lo2
11.11.11.11/24 f1/0.20 200.1.1.0/24 f1/0.20 22.22.22.22/24
encapsulation dot1Q 20

R1 R2

configure terminal configure terminal

ip vrf RHCYGN ip vrf RHCYGN
! !

© www.rhctechnologies.com
 R H C
TECHNOLOGIES
encapsulation dot1Q <1-4094>

R1 R2
encapsulation
dot1Q 10
1.1.1.1/24 f1/0.10 150.1.1.0/24 F1/0.10 2.2.2.2/24
lo1 RHCYGN RHCYGN lo1

Global Global
f1/0 F1/0
lo2 RHCSG RHCSG lo2
11.11.11.11/24 f1/0.20 200.1.1.0/24 F1/0.20 22.22.22.22/24
encapsulation dot1Q 20

R1 R2
interface f1/0 interface f1/0
no shutdown no shutdown
! !
Interface 1/0.10 Interface 1/1.10
encapsulation dot1Q 10 encapsulation dot1Q 10
ip vrf forwarding RHCYGN ip vrf forwarding RHCYGN
ip address 150.1.1.1 255.255.255.0 ip address 150.1.1.2 255.255.255.0
! !
int lo1 int lo1
ip vrf forwarding RHCYGN ip vrf forwarding RHCYGN
ip address 1.1.1.1 255.255.255.0 ip address 2.2.2.2 255.255.255.0
! !
© www.rhctechnologies.com
 R H C
TECHNOLOGIES
encapsulation dot1Q <1-4094>

R1 R2
encapsulation
dot1Q 10
1.1.1.1/24 F1/0.10 150.1.1.0/24 F1/0.10 2.2.2.2/24
lo1 RHCYGN RHCYGN lo1

Global Global
f1/0 F1/0
lo2 RHCSG RHCSG lo2
11.11.11.11/24 f1/0.20 200.1.1.0/24 F1/0.20 22.22.22.22/24
encapsulation dot1Q 20

R1 R2
router bgp 12 router bgp 12
bgp router-id 100.100.100.100 bgp router-id 200.200.200.200
address-family ipv4 vrf RHCYGN address-family ipv4 vrf RHCYGN
neighbor 150.1.1.2 remote-as 12 neighbor 150.1.1.1 remote-as 12
neighbor 150.1.1.2 activate neighbor 150.1.1.1 activate
network 1.1.1.0 mask 255.255.255.0 network 2.2.2.0 mask 255.255.255.0
exit-address-family exit-address-family
! !

© www.rhctechnologies.com
 R H C
TECHNOLOGIES
encapsulation dot1Q <1-4094>

R1 R2
encapsulation
dot1Q 10
1.1.1.1/24 f1/0.10 150.1.1.0/24 f1/0.10 2.2.2.2/24
lo1 RHCYGN RHCYGN lo1

Global Global
f1/0 F1/0
lo2 RHCSG RHCSG lo2
11.11.11.11/24 f1/0.20 200.1.1.0/24 F1/0.20 22.22.22.22/24
encapsulation dot1Q 20

R1 R2

configure terminal configure terminal

ip vrf RHCSG ip vrf RHCSG
! !

© www.rhctechnologies.com
 R H C
TECHNOLOGIES
encapsulation dot1Q <1-4094>

R1 R2
encapsulation
dot1Q 10
1.1.1.1/24 f1/0.10 150.1.1.0/24 F1/0.10 2.2.2.2/24
lo1 RHCYGN RHCYGN lo1

Global Global
f1/0 f1/0
lo2 RHCSG RHCSG lo2
11.11.11.11/24 f1/0.20 200.1.1.0/24 f1/0.20 22.22.22.22/24
encapsulation dot1Q 20

R1 R2
interface f1/0 interface f1/0
no shutdown no shutdown
! !
interface 1/0.20 interface 1/0.20
encapsulation dot1Q 20 encapsulation dot1Q 20
ip vrf forwarding RHCSG ip vrf forwarding RHCSG
ip address 200.1.1.1 255.255.255.0 ip address 200.1.1.2 255.255.255.0
! !
int lo2 int lo2
ip vrf forwarding RHCSG ip vrf forwarding RHCSG
ip address 11.11.11.11 255.255.255.0 ip address 22.22.22.22 255.255.255.0
! !
© www.rhctechnologies.com
 R H C
TECHNOLOGIES
encapsulation dot1Q <1-4094>

R1 R2
encapsulation
dot1Q 10
1.1.1.1/24 f3/0.10 150.1.1.0/24 f3/1.10 2.2.2.2/24
lo1 RHCYGN RHCYGN lo1

Global Global
f3/0 f3/1
lo2 RHCSG RHCSG lo2
11.11.11.11/24 f3/0.20 200.1.1.0/24 f3/1.20 22.22.22.22/24
encapsulation dot1Q 20

R1 R2

router ospf 1 vrf RHCSG router ospf 1 vrf RHCSG

network 200.1.1.0 0.0.0.255 area 0 network 200.1.1.0 0.0.0.255 area 0
network 11.11.11.0 0.0.0.255 area 0 network 22.22.22.0 0.0.0.255 area 0
exit-address-family exit-address-family
! !

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

VRF Case Study 01

Prepared By
Sai Linn Thu

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

lo0 - 4.4.4.4/24 lo1 - 44.44.44.44/24

R4

f0/0 f1/0

172.16.14.x/29 172.16.14.x/29

f0/0 f0/1
lo1 - 22.22.22.22/24 f0/0 10.1.12.x/30 f1/0 f2/0 192.1.13.x/29 f0/0 lo1 - 33.33.33.33/24
R2 R1 R3
lo0 - 2.2.2.2/24 f1/0 10.1.12.x/30 f1/1 f2/1 192.1.13.x/29 f1/0 lo0 - 3.3.3.3/24

f3/0 f3/1

150.15.15.x/29 150.15.15.x/29

f0/0 f1/0

R5
VRF Blue EIGRP 10
VRF Green OSPF 8
lo0 - 5.5.5.5/24 lo1 - 55.55.55.55/24

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

Step 1 – Create VRF

R1 R4
configure terminal configure terminal
ip vrf green ip vrf green
ip vrf blue ip vrf blue
! !
R2 R5
configure terminal configure terminal
ip vrf green ip vrf green
ip vrf blue ip vrf blue
! !
R3
configure terminal
ip vrf green
ip vrf blue
!

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

Step 2 – Associates interface into VRF (R1)

R1 R1
configure terminal configure terminal
interface f0/0 interface f0/1
ip vrf forwarding green ip vrf forwarding blue
ip address 172.16.14.1 255.255.255.248 ip address 172.16.14.1 255.255.255.248
! !
interface 1/1 interface 1/0
ip vrf forwarding green ip vrf forwarding blue
ip address 10.1.12.1 255.255.255.252 ip address 10.1.12.1 255.255.255.252
! !
interface 2/1 interface 2/0
ip vrf forwarding green ip vrf forwarding blue
ip address 192.1.13.1 255.255.255.248 ip address 192.1.13.1 255.255.255.248
! !
interface 3/0 interface 3/1
ip vrf forwarding green ip vrf forwarding blue
ip address 150.15.15.1 255.255.255.248 ip address 150.15.15.1 255.255.255.248
! !

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

Step 2 – Associates interface into VRF (R2)

R2 R2
configure terminal configure terminal
interface f1/0 interface f0/0
ip vrf forwarding green ip vrf forwarding blue
ip address 10.1.12.2 255.255.255.252 ip address 10.1.12.2 255.255.255.252
! !
interface loopback 0 interface loopback 1
ip vrf forwarding green ip vrf forwarding blue
ip address 2.2.2.2 255.255.255.0 ip address 22.22.22.22 255.255.255.0
! !

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

Step 2 – Associates interface into VRF (R3)

R3 R3
configure terminal configure terminal
interface f1/0 interface f0/0
ip vrf forwarding green ip vrf forwarding blue
ip address 192.1.13.2 255.255.255.248 ip address 192.1.13.2 255.255.255.248
! !
interface loopback 0 interface loopback 1
ip vrf forwarding green ip vrf forwarding blue
ip address 3.3.3.3 255.255.255.0 ip address 33.33.33.33 255.255.255.0
! !

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

Step 2 – Associates interface into VRF (R4)

R4 R4
configure terminal configure terminal
interface f0/0 interface f1/0
ip vrf forwarding green ip vrf forwarding blue
ip address 172.16.14.2 255.255.255.248 ip address 172.16.14.2 255.255.255.248
! !
interface loopback 0 interface loopback 1
ip vrf forwarding green ip vrf forwarding blue
ip address 4.4.4.4 255.255.255.0 ip address 44.44.44.44 255.255.255.0
! !

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

Step 2 – Associates interface into VRF (R5)

R5 R5
configure terminal configure terminal
interface f0/0 interface f1/0
ip vrf forwarding green ip vrf forwarding blue
ip address 150.15.15.2 255.255.255.248 ip address 150.15.15.2 255.255.255.248
! !
interface loopback 0 interface loopback 1
ip vrf forwarding green ip vrf forwarding blue
ip address 5.5.5.5 255.255.255.0 ip address 55.55.55.55 255.255.255.0
! !

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

Step 3 – Configure OSPF aware VRF ( vrf green )

R1 R4
configure terminal configure terminal
router ospf 8 vrf green router ospf 8 vrf green
network 10.1.12.0 0.0.0.3 area 0 network 172.16.14.0 0.0.0.7 area 0
network 172.16.14.0 0.0.0.7 area 0 network 4.4.4.0 0.0.0.255 area 0
network 192.1.13.0 0.0.0.7 area 0 !
network 150.15.15.0 0.0.0.7 area 0 R5
! configure terminal
R2 router ospf 8 vrf green
configure terminal network 150.15.15.0 0.0.0.7 area 0
router ospf 8 vrf green network 5.5.5.0 0.0.0.255 area 0
network 10.1.12.0 0.0.0.3 area 0 !
network 2.2.2.0 0.0.0.255 area 0
!
R3
configure terminal
router ospf 8 vrf green
network 192.1.13.0 0.0.0.7 area 0
network 3.3.3.0 0.0.0.255 area 0
!

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

Step 3 – Configure EIGRP aware VRF ( vrf blue )

R1 R3
router eigrp 10 router eigrp 10
address-family ipv4 vrf blue address-family ipv4 vrf blue autonomous-system 10
network 10.1.12.0 0.0.0.3 network 172.16.14.0 0.0.0.7
network 172.16.14.0 0.0.0.7 network 33.33.33.0 0.0.0.255
network 192.1.13.0 0.0.0.7 no auto-summary
network 150.15.15.0 0.0.0.7 !
autonomous-system 10 R4
no auto-summary router eigrp 10
! address-family ipv4 vrf blue autonomous-system 10
R2 network 172.16.14.0 0.0.0.7
router eigrp 10 network 44.44.44.0 0.0.0.255
address-family ipv4 vrf blue no auto-summary
network 10.1.12.0 0.0.0.3 !
network 22.22.22.0 0.0.0.255 R5
autonomous-system 10 router eigrp 10
no auto-summary address-family ipv4 vrf blue autonomous-system 10
! network 150.15.15.0 0.0.0.7
network 55.55.55.0 0.0.0.255
no auto-summary
!

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

Verification

#show ip vrf
#show ip route vrf *
#show ip route vrf green
#show ip route vrf blue
#ping vrf green x.x.x.x
#ping vrf blue x.x.x.x

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

VRF Case Study 02

Prepared By
Sai Linn Thu

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

VRFBlue EIGRP 10
CR01 CR02 VRFRed OSPF 8

DS01 DS02 DS01 DS02

Access 01 Access 02 Access 03 Access 04

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

VRF Case Study 03

Prepared By
Sai Linn Thu

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

ASW ASW
CSW 01 CSW 03
01 03

ASW ASW
CSW 02 CSW 04
02 04

© www.rhctechnologies.com
 R H C
TECHNOLOGIES

RHC Technologies
#LIKE #FOLLOW #WATCH

© www.rhctechnologies.com
