Engine Parameters

www.thecartech.com 1

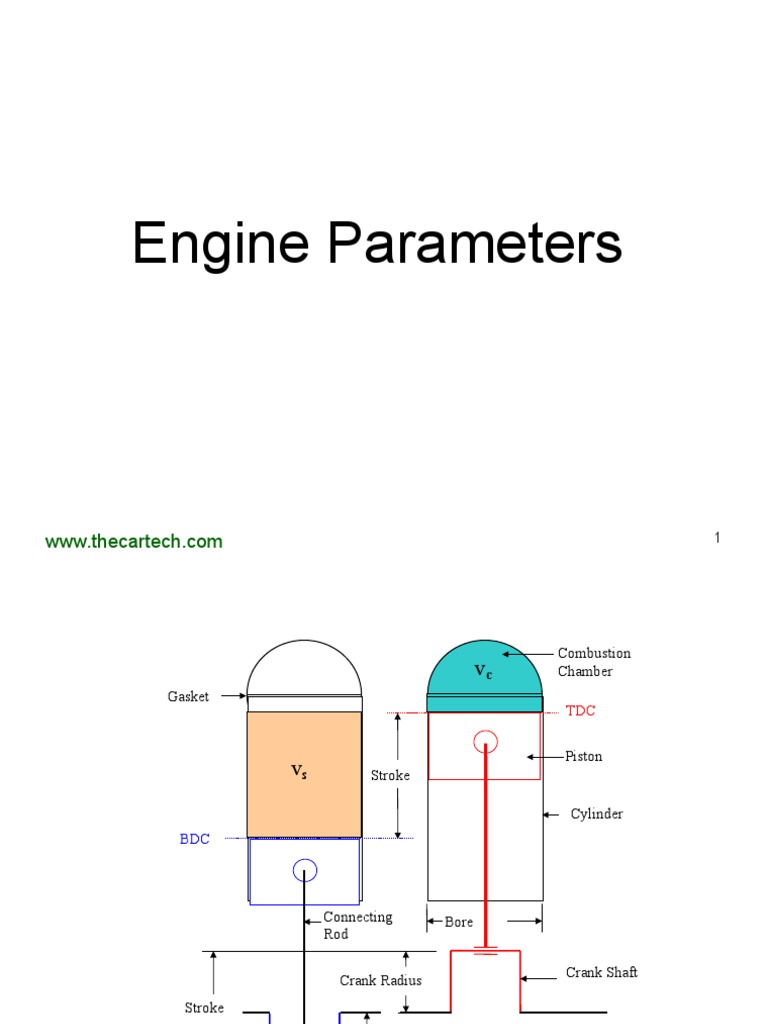

 Combustion
VC Chamber
Gasket
TDC

Piston
VS Stroke

Cylinder
BDC

Connecting Bore
Rod

Crank Shaft
Crank Radius
Stroke

Crank Radius (crank throw)

www.thecartech.com 2
 Compression ratio (r)
Volume above piston at BDC
r
Volume above piston at TDC
VC  VS
r
VC
VS
r 1
VC
• VC = Clearance volume
• VS = Swept volume = /4 D2 L

where: L (stroke) = 2 ρ, ρ is the crankshaft radius

- Increasing the compression ration increases the thermal
efficiency, compression is limited by the knock limit. 3
www.thecartech.com
Engine Displacement, Swept
Volume or Engine Capacity (Ve):
TDC

Stroke VS VS VS VS

BDC

Bore

• Ve = VS n
• Ve = (/4) D2 L n
Where:
Ve = engine capacity, Vs = cylinder swept volume
n = number of cylinders, L = stroke, D = bore diameter
www.thecartech.com 4
Volumetric Efficiency V
Air Entering the Engine
ηV 
Engine Displacement

www.thecartech.com 5
Volumetric Efficiency V (cont.)
• Engines are only capable of 80% to 90%
volumetric efficiency.
• Volumetric efficiency depends upon throttle
opening and engine speed as well as induction
and exhaust system layout, port size and valve
timing and opening duration.
• High volumetric efficiency increases engine
power.
• Turbo charging is capable of increasing
volumetric efficiency up to 50%.
www.thecartech.com 6
 Indicated mean effective pressure
(imep)
Factors affecting imep:

• Compression ratio
• Air/fuel ratio
• Volumetric efficiency
• Ignition timing
• Valve timing and lift
• Air pressure and
temperature

www.thecartech.com 7
 Factors affecting (imep)
- Retarded ignition - Weak mixture
- Compression ratio - Super charged

www.thecartech.com 8
Pressure, Force, Work & Power
F (N)
a A (m2) c
p = imep (N/m2)

L (m)

F= P.A (N)
b

Work (W) = F.L (N m)

Time (t) = 60 / (Ne /k) (s)

Indicated power (Pi) cylinder = W/t = F.L .Ne/(k*60) (W)

(Pi) cylinder = (imep.A.L.Ne) / (k . 60) k = 2 (four stroke)

k = 1 (two stoke)
(Pi) engine = imep. (A.L.n) Ne / (k . 60)

www.thecartech.com 9
(Pi) engine = [imep. Ve . Ne/ (k . 60)] (W)
 Engine Indicated Power (Pi)
Engine power factors: Pi = imep.Ve.Ne / (60. k)
• Engine capacity (Ve)
• Engine Speed (rpm) (Ne)
• Number of strokes “k”
k=2, four stroke engine
k=1, two stoke engine
• (imep):
volumetric efficiency, compression ratio, ignition quality,
mixture strength, temperature …

www.thecartech.com 10
 Engine friction
Three types of friction-
bearing surfaces in
automobile engines:
• Journal
• Guide
• Thrust

www.thecartech.com 11
 Engine Brake Power (Pb)
-This is the power developed at the
crankshaft or flywheel.
-The term brake originated from the method
used to determine an engine’s power
output by measuring the torque using
some form of friction dynamometer.

www.thecartech.com 12
 Engine Mechanical Efficiency m
• Pb = Pi - Pf
Where:
Pi = indicated power
Pb= brake power
Pf = friction power

• m = Pb / Pi

www.thecartech.com 13
 Engine Brake Power (Pb)
• Pb = Pi m
• Pb = (imep Ve Ne / 60 k) m
• Pb = (imep m)Ve Ne / 60 k
• Pb = bemp Ve Ne / 60 k
Where:
bmep = brake mean effective pressure
bmep = imep m

* bmep is indication of engine efficiency regardless

of capacity or engine speed, 1000 kPa represent
high efficiency.
www.thecartech.com 14
 Gross & Net Brake Power
• Gross brake power is
measured without the
following items:
Cooling fan, coolant
pump, radiator, alternator,
exhaust system. (SAE)
• Net brake power is
measured with all the
above items. (DIN)
• Gross power is 10-15%
more than net power.

www.thecartech.com 15
 Engine Torque Te
Torque and crankshaft angle:
Work is also accomplished
when the torque is applied
through an angle.
• Distance xy = rθ
• W = F . xy = F r θ = T θ
• W per one revolution = T (2)
• P = W/t = T (2)/t = Tω/1000
Where: ω = 2 Ne/60
www.thecartech.com 16
 Engine Torque Te (Cont.)
• Pb = T ω = Te (2 Ne/60) = Te Ne / 9550 (kW)
• bmep . Ve . Ne / k 60 = Te (2 Ne/60)
• Te = bmep . Ve / 2 . K
Where:
Pe = Engine power (kW)
Ne = Engine speed (rpm)
Te = Engine torque (N m)
bemp = brake mean effective pressure (Pa)
Ve = engine capacity (m3)
k = 2, for 4-stroke engines
1, for 2-stroke engines
www.thecartech.com 17
 Engine Torque Te (Cont.)
- There is a direct
relationship between
BMEP and torque
output.
- The torque curve with
engine rpm is identical to
the bmep curve, with
different values.

www.thecartech.com 18
 Engine Fuel consumption (FC)
The amount of fuel an engine consumes can
be measured by:
• volume (cm3 or liter) per (sec. or mint, or hr)
or
• mass (kg) per (sec, or mint, or hr).

www.thecartech.com 19
 Engine Specific Fuel Consumption
(SFC)
• Specific fuel consumption represents the
mass or volume of fuel an engine
consumes per hour while it produces 1 kW
of power.
• Typical gasoline engines will have an SFC
of about 0.3 kg/(kW.h).
• SFC is an indication of the engine’s
thermal or heat efficiency.
.

• SFC  m (kg/h)/kW or kg/(kW h)

Pb
www.thecartech.com 20
 Engine Thermal Efficiency (th)
• The efficiency of an engine in converting the
heat energy contained in the liquid fuel into
mechanical energy is termed its thermal
efficiency.
• The petrol engine is particularly inefficient and
at its best may reach 25% efficiency.
• The thermal efficiency of a diesel engine can
reach 35% due to its higher compression
ratio.

www.thecartech.com 21
 Thermal Efficiency (Cont.)

www.thecartech.com 22
 Thermal Efficiency (th) (Cont.)
Pb . 60 .60
brake thermal efficiency (η th )  .

m . CV
3600 Pb
brake thermal efficiency (η th )  .

V . ρ . CV
where:
.

m is the fuel consumption (kg/h)

.

V is the fuel consumption (L/h)

CV is the calorific or heat value of 1 kg of the fuel
(kJ/kg or MJ/kg). (CV for gasoline is 40000 kJ/kg)
ρ is the relative density (kg/L) of the fuel.

www.thecartech.com 23
 Specific Fuel Consumption (SFC)
& Thermal efficiency (th)

3600 Pb 3600 3600

η th  .  . 
m . CV (m /Pb ) . CV SFC. CV

Where:
th = thermal efficiency
.

m = fuel consumption (kg/h)

Pb = brake power (kW)
CV = calorific value (kJ)
SFC = specific fuel consumption (kg/(kW.h))
www.thecartech.com 24
 Specific Fuel Consumption (SFC)
& Thermal efficiency (th)
• A mirror reflection of
the SFC curve shows
the shape of the
engine’s thermal
efficiency curve.
• The lowest point on
the SFC curve
becomes the highest
point on the thermal
efficiency curve.
www.thecartech.com 25
 Power Units
• BHP (bhp) = 550 ft lb/s
• PS = 75 kg m/s
• kW = 1000 (N m/s)

BHP = British and American “horse power”

PS ="PferdeStärke“ is "horse power“ in
German
• PS = 0.986 bhp, BHP = 1.0142 PS
• kW = 1.36 PS, PS = 0.73529 kW
• kW = 1.341 bhp, BHP = 0.7457 kW

www.thecartech.com 26
 Engine Performance Curves
1. Imep
2. Bemp and torque
3. Indicated power
4. Brake power
5. Indicated thermal
efficiency
6. Brake thermal
efficiency
7. Specific fuel
consumption
www.thecartech.com 27
