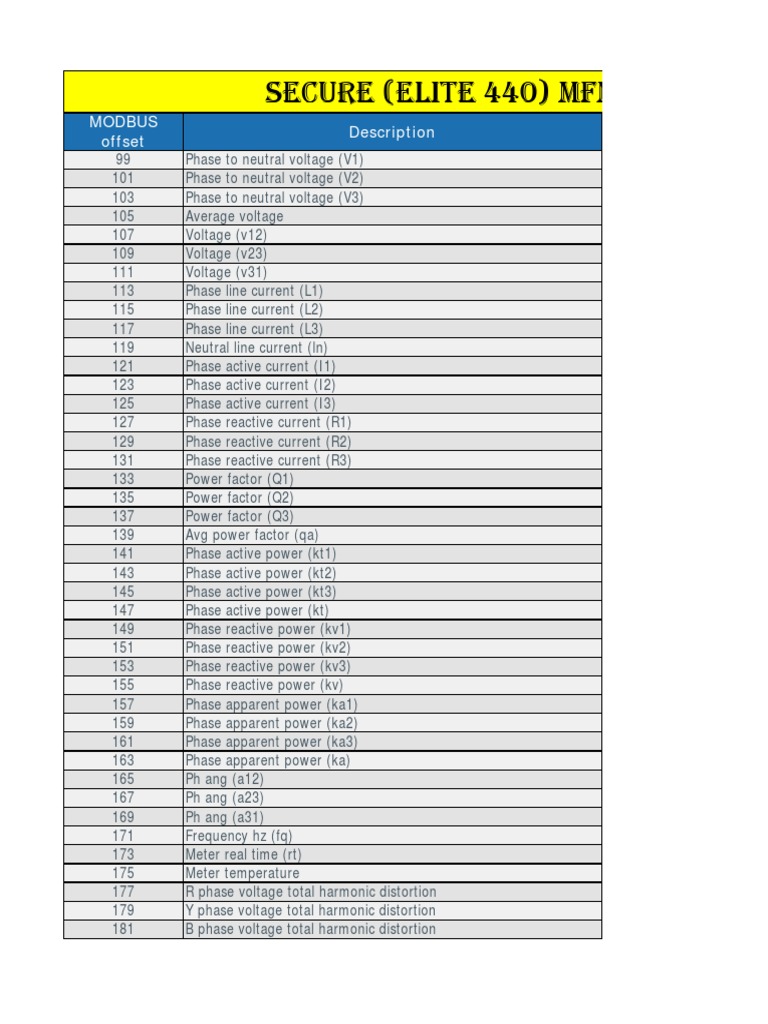

Secure (Elite 440) MFM

MODBUS
Description
offset
99 Phase to neutral voltage (V1)
101 Phase to neutral voltage (V2)
103 Phase to neutral voltage (V3)
105 Average voltage
107 Voltage (v12)
109 Voltage (v23)
111 Voltage (v31)
113 Phase line current (L1)
115 Phase line current (L2)
117 Phase line current (L3)
119 Neutral line current (ln)
121 Phase active current (I1)
123 Phase active current (I2)
125 Phase active current (I3)
127 Phase reactive current (R1)
129 Phase reactive current (R2)
131 Phase reactive current (R3)
133 Power factor (Q1)
135 Power factor (Q2)
137 Power factor (Q3)
139 Avg power factor (qa)
141 Phase active power (kt1)
143 Phase active power (kt2)
145 Phase active power (kt3)
147 Phase active power (kt)
149 Phase reactive power (kv1)
151 Phase reactive power (kv2)
153 Phase reactive power (kv3)
155 Phase reactive power (kv)
157 Phase apparent power (ka1)
159 Phase apparent power (ka2)
161 Phase apparent power (ka3)
163 Phase apparent power (ka)
165 Ph ang (a12)
167 Ph ang (a23)
169 Ph ang (a31)
171 Frequency hz (fq)
173 Meter real time (rt)
175 Meter temperature
177 R phase voltage total harmonic distortion
179 Y phase voltage total harmonic distortion
181 B phase voltage total harmonic distortion
183 R phase current total harmonic distortion
185 Y phase current total harmonic distortion
187 B phase current total harmonic distortion
189 R phase power total harmonic distortion
191 Y phase power total harmonic distortion
193 B phase power total harmonic distortion
199 Active total import
201 Active total export
203 Active fundamental import
205 Active fundamental export
207 Reactive import while active import
209 Reactive export while active import
211 Reactive import while active export
213 Reactive export while active export
215 Apparent import
217 Apparent export
219 Reactive import (q1+q2)
221 Reactive export (q3+q4)
223 Active forwarded
225 Apparent forwarded
227 Reactive lag forwarded
229 Reactive lead forwarded
239 Active total import
241 24h md date and time stamp
243 Active total export
245 24h md date and time stamp
247 Active fun import
249 24h md date and time stamp
251 Active funl export
253 24h md date and time stamp
255 Reactive import while active import
257 24h md date and time stamp
259 Reactive export while active import
261 24h md date and time stamp
263 Reactive import while active export
265 24h md date and time stamp
267 Reactive export while active export
269 24h md date and time stamp
271 Apparent import
273 24h md date and time stamp
275 Apparent export
277 24h md date and time stamp
279 Reactive import
281 24h md date and time stamp
283 Reactive export
285 24h md date and time stamp
287 Active forwarded
289 24h md date and time stamp
291 Apparent forwarded
293 24h md date and time stamp
295 Reactive lag forwarded
297 24h md date and time stamp
299 Reactive lead forwarded
301 24h md date and time stamp
319 Cumulative power on minutes
321 Cumulative power off minutes
323 Cumulative load on minutes
325 Cumulative load off minutes
M
Data type
Units
Volt single
Volt single
Volt single
Volt single
Volt single
Volt single
Volt single
Ampere single
Ampere single
Ampere single
Ampere single
Ampere single
Ampere single
Ampere single
Ampere single
Ampere single
Ampere single
single
single
single
single
kW single
kW single
kW single
KW single
kVAr single
kVAr single
kVAr single
kVAr single
kVA single
kVA single
kVA single
kVA single
Degree single
Degree single
Degree single
Hz single
Seconds dword
Degree Centi single
% single
% single
% single
% single
% single
% single
% single
% single
% single
single
single
single
single
single
single
single
single
single
single
single
single
single
single
single
single
single
dword
single
dword
single
dword
single
dword
single
dword
single
dword
single
dword
single
dword
single
dword
single
dword
single
dword
single
dword
single
dword
single
dword
single
dword
single
dword
dword
dword
dword
dword
