7/8/2021 Component Inspection (ALL Diagnostic Trouble Codes ( DTC )) - ALLDATA Repair

2020 Hyundai Truck Kona FWD L4-1.6L Turbo

Vehicle > ALL Diagnostic Trouble Codes ( DTC ) > Testing and Inspection > P Code Charts > P090B > P090B71 > Dual
Clutch Transmission > Clutch 2 System Actuator Stuck

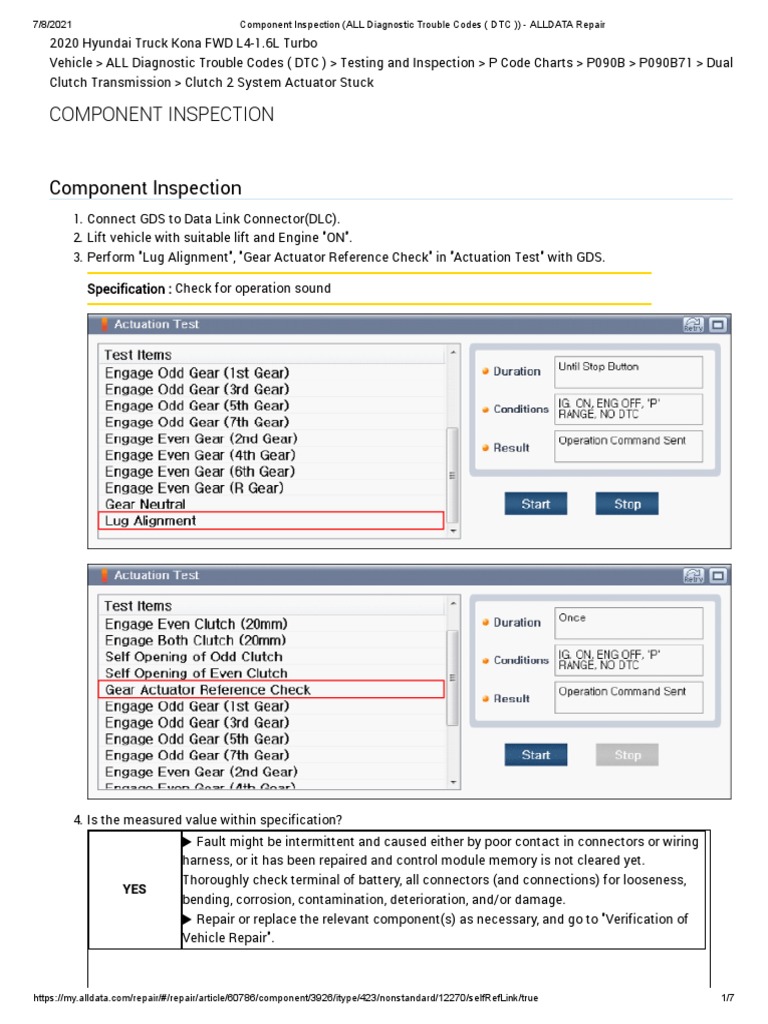

COMPONENT INSPECTION

Component Inspection
1. Connect GDS to Data Link Connector(DLC).
2. Lift vehicle with suitable lift and Engine "ON".
3. Perform "Lug Alignment", "Gear Actuator Reference Check" in "Actuation Test" with GDS.

Specification : Check for operation sound

4. Is the measured value within specification?

▶ Fault might be intermittent and caused either by poor contact in connectors or wiring
harness, or it has been repaired and control module memory is not cleared yet.
Thoroughly check terminal of battery, all connectors (and connections) for looseness,
YES

bending, corrosion, contamination, deterioration, and/or damage.

▶ Repair or replace the relevant component(s) as necessary, and go to "Verification of

Vehicle Repair".

https://my.alldata.com/repair/#/repair/article/60786/component/3926/itype/423/nonstandard/12270/selfRefLink/true 1/7
7/8/2021 Component Inspection (ALL Diagnostic Trouble Codes ( DTC )) - ALLDATA Repair

▶ If problem still occurs, repair or replace Gear select assembly and then go to
"Verification of Vehicle Repair" procedure.(Perform "DCT Learning" in "Vehicle S/W
Management" with GDS.)

NO

▶ Replace "DCT" and then go to "Verification of Vehicle Repair" procedure. (Perform

"DCT Manual Input Function(Transmission Exchange)" in "Vehicle S/W Management"
with GDS.)

Vehicle S/W Management



In case of replacing TCM or Clutch pack perform following procedures
1. Perform "DCT Learning" in "Vehicle S/W Management" with GDS.

https://my.alldata.com/repair/#/repair/article/60786/component/3926/itype/423/nonstandard/12270/selfRefLink/true 2/7
7/8/2021 Component Inspection (ALL Diagnostic Trouble Codes ( DTC )) - ALLDATA Repair

https://my.alldata.com/repair/#/repair/article/60786/component/3926/itype/423/nonstandard/12270/selfRefLink/true 3/7
7/8/2021 Component Inspection (ALL Diagnostic Trouble Codes ( DTC )) - ALLDATA Repair

https://my.alldata.com/repair/#/repair/article/60786/component/3926/itype/423/nonstandard/12270/selfRefLink/true 4/7
7/8/2021 Component Inspection (ALL Diagnostic Trouble Codes ( DTC )) - ALLDATA Repair



In case of replacing DCT perform following procedures;
1. Perform "DCT Manual Input Function(Transmission Exchange)" in "Vehicle S/W Management" with GDS.
