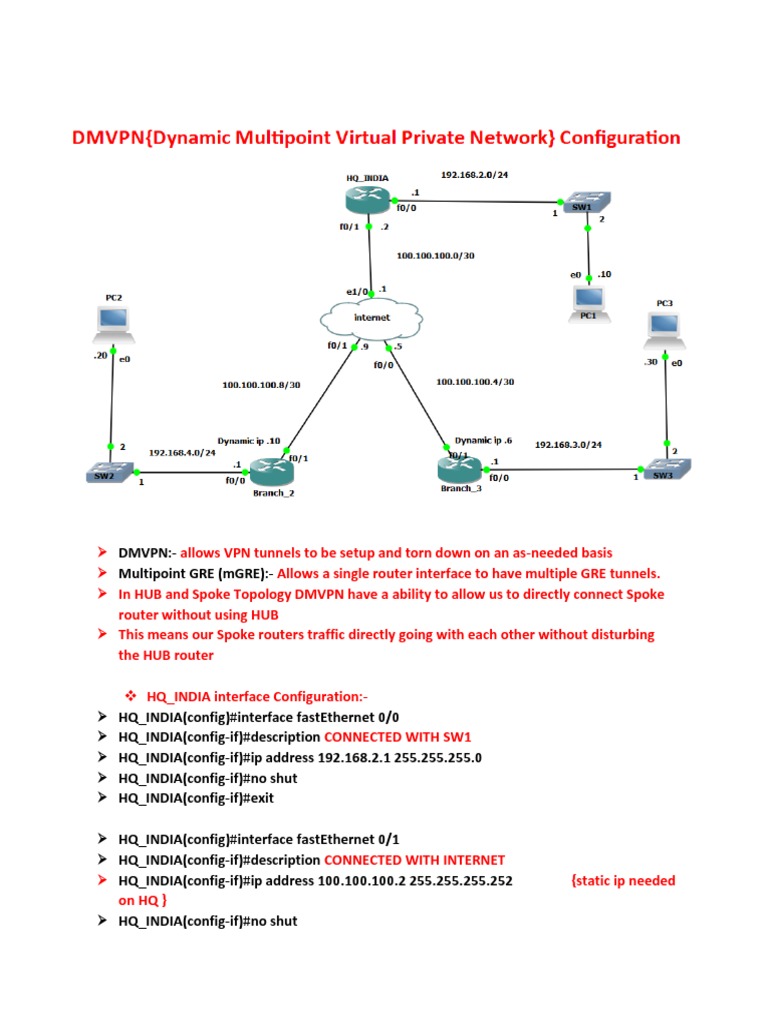

 DMVPN:- allows VPN tunnels to be setup and torn down on an as-needed basis

 Multipoint GRE (mGRE):- Allows a single router interface to have multiple GRE tunnels.
 In HUB and Spoke Topology DMVPN have a ability to allow us to directly connect Spoke
router without using HUB
 This means our Spoke routers traffic directly going with each other without disturbing
the HUB router

 HQ_INDIA interface Configuration:-

 HQ_INDIA(config)#interface fastEthernet 0/0
 HQ_INDIA(config-if)#description CONNECTED WITH SW1
 HQ_INDIA(config-if)#ip address 192.168.2.1 255.255.255.0
 HQ_INDIA(config-if)#no shut
 HQ_INDIA(config-if)#exit

 HQ_INDIA(config)#interface fastEthernet 0/1

 HQ_INDIA(config-if)#description CONNECTED WITH INTERNET
 HQ_INDIA(config-if)#ip address 100.100.100.2 255.255.255.252 {static ip needed
on HQ }
 HQ_INDIA(config-if)#no shut
 HQ_INDIA(config-if)#exit

 Internet Router interfaces Configuration:-

 internet(config)#interface Ethernet 1/0
 internet(config-if)#description CONNECTED WITH HQ_INDIA
 internet(config-if)#ip address 100.100.100.1 255.255.255.252
 internet(config-if)#no shut
 internet(config-if)#exit

 internet(config)#interface fastEthernet 0/1

 internet(config-if)#description CONNECTED WITH BRANCH2
 internet(config-if)#ip address 100.100.100.9 255.255.255.252
 internet(config-if)#no shut
 internet(config-if)#exit

 internet(config)#interface fastEthernet 0/0

 internet(config-if)#description CONNECTED WITH BRANCH3
 internet(config-if)#ip address 100.100.100.5 255.255.255.252
 internet(config-if)#no shut
 internet(config-if)#exit

 DHCP Server Configuration for Branch1 and Branch2 Routers for Dynamic ip address
 We Suppose that these Connection are Cable modem or DSL or any

 internet(config)#ip dhcp pool BRANCH2

 internet(dhcp-config)#default-router 100.100.100.9
 internet(dhcp-config)#network 100.100.100.8 255.255.255.252
 internet(dhcp-config)#exit

 internet(config)#ip dhcp pool BRANCH3

 internet(dhcp-config)#default-router 100.100.100.5
 internet(dhcp-config)#network 100.100.100.4 255.255.255.252
 internet(dhcp-config)#exit

 Branch_2 Router interfaces Configuration:-

 Branch_2(config)#interface fastEthernet 0/1
 Branch_2(config-if)#description CONNECTED WITH INTERNET
 Branch_2(config-if)#ip address dhcp
 Branch_2(config-if)#no shut
 Branch_2(config-if)#exit
 Branch_2(config-if)#interface fastEthernet 0/0
 Branch_2(config-if)#description CONNECTED WITH SW2
 Branch_2(config-if)#ip address 192.168.4.1 255.255.255.0
 Branch_2(config-if)#no shut
 Branch_2(config-if)#exit

 Branch_3(config)#interface fastEthernet 0/1

 Branch_3(config-if)#description CONNECTED WITH INTERNET
 Branch_3(config-if)#ip address dhcp
 Branch_3(config-if)#no shut
 Branch_3(config-if)#exit

 Branch_3(config)#interface fastEthernet 0/0

 Branch_3(config-if)#description CONNECTED WITH SW3
 Branch_3(config-if)#ip address 192.168.3.1 255.255.255.0
 Branch_3(config-if)#no shut
 Branch_3(config-if)#exit
Terms:-
 DEMVPN:- allows VPN tunnels to be setup and torn down on an as-needed basis
 Multipoint GRE (mGRE):- Allows a single router interface to have multiple GRE
tunnels.
 NHRP {Next Hop Resolution Protocol}:- Allows an interface configured for mGRE to
discover the IP address of the devices at the far end of a tunnel.

 Tunnel interface Configuration

 HQ_INDIA(config)#interface Tunnel 1
 HQ_INDIA(config-if)# ip address 10.250.250.1 255.255.255.0 {tunnel ip address}
 HQ_INDIA(config-if)# ip mtu 1400
 HQ_INDIA(config-if)# ip nhrp authentication cisco {Authentication key}
 HQ_INDIA(config-if)# ip nhrp map multicast dynamic {dynamically resolve next hop}
 HQ_INDIA(config-if)# ip nhrp network-id 1 {all router have same network id}
 HQ_INDIA(config-if)# ip tcp adjust-mss 1360 {mss:- maximum segment size
maximum TCP packets size}
 HQ_INDIA(config-if)# no ip split-horizon {Disable the Split-horizon}
 HQ_INDIA(config-if)# tunnel source FastEthernet0/1 {source interface}
 HQ_INDIA(config-if)# tunnel mode gre multipoint
 HQ_INDIA(config-if)#end

 HQ_INDIA(config)#ip route 0.0.0.0 0.0.0.0 f0/1

  Routing Protocol Configuration to advertise and form neighbor relationship
 HQ_INDIA(config)#router rip
 HQ_INDIA(config-router)#version 2
 HQ_INDIA(config-router)#network 192.168.2.0 {Advertise Lan networks}
 HQ_INDIA(config-router)#network 10.250.250.0 {advertise Tunnel networks}
 HQ_INDIA(config-router)#no auto-summary
 HQ_INDIA(config-router)#exit

 Branch_2 Router interfaces Configuration

 Branch_2(config)#interface Tunnel 1
 Branch_2(config-if)# ip address 10.250.250.2 255.255.255.0
 Branch_2(config-if)# ip mtu 1400
 Branch_2(config-if)# ip nhrp authentication cisco
 Branch_2(config-if)# ip nhrp map multicast dynamic
 Branch_2(config-if)# ip nhrp map 10.250.250.1 100.100.100.2 {map the HQ router of
first tunnel interface and second public ip address}
 Branch_2(config-if)# ip nhrp map multicast 100.100.100.2 {multicast traffic allowed for
HQ router Public address}
 Branch_2(config-if)# ip nhrp network-id 1
 Branch_2(config-if)# ip nhrp nhs 10.250.250.1 {nhs:-next-hop-server private
ip address of HQ tunnel interface}
 Branch_2(config-if)# ip tcp adjust-mss 1360
 Branch_2(config-if)# tunnel source FastEthernet0/1
 Branch_2(config-if)# tunnel mode gre multipoint
 Branch_2(config-if)#end

 Routing Protocol Configuration to advertise and form neighbor relationship

 Branch_2(config)#router rip
 Branch_2(config-router)#version 2
 Branch_2(config-router)#network 192.168.4.0 {Advertise Lan networks}
 Branch_2(config-router)#network 10.250.250.0 {advertise Tunnel networks}
 Branch_2(config-router)#no auto-summary
 Branch_2(config-router)#exit

 Branch_2(config)#ip route 0.0.0.0 0.0.0.0 f0/1

 Branch_3 Router Tunnel interface Configuration:-

 Branch_3(config)#interface Tunnel1
 Branch_3(config-if)# ip address 10.250.250.3 255.255.255.0
 Branch_3(config-if)# ip mtu 1400
 Branch_3(config-if)# ip nhrp authentication cisco
 Branch_3(config-if)# ip nhrp map multicast dynamic
 Branch_3(config-if)# ip nhrp map 10.250.250.1 100.100.100.2 {map the HQ router of
first tunnel interface and second public ip address}
 Branch_3(config-if)# ip nhrp map multicast 100.100.100.2 {multicast traffic allowed
for HQ router Public address}
 Branch_3(config-if)# ip nhrp network-id 1
 Branch_3(config-if)# ip nhrp nhs 10.250.250.1 {nhs:-next-hop-server
private ip address of HQ tunnel interface}
 Branch_3(config-if)# ip tcp adjust-mss 1360
 Branch_3(config-if)# tunnel source FastEthernet0/1
 Branch_3(config-if)# tunnel mode gre multipoint
 Branch_3(config-if)#end

 Routing Protocol Configuration to advertise and form neighbor relationship

 Branch_3(config)#router rip
 Branch_3(config-router)#version 2
 Branch_3(config-router)#network 192.168.3.0 {Advertise Lan networks}
 Branch_3(config-router)#network 10.250.250.0 {advertise Tunnel networks}
 Branch_3(config-router)#no auto-summary
 Branch_3(config-router)#exit

 Branch_3(config)#ip route 0.0.0.0 0.0.0.0 f0/1

 Troubleshooting & Verification Commands

 Show ip route
 Show ip interface brief
 Show ip protocols
 Show ip nhrp
 Show ip nhrp brief

 Now test
“Ping and traceroute” PC2 to PC3
PC3 to PC2
PC1 to PC2
PC1 to PC3

 What we will see Traffic from PC2 to PC3 will directly going from Branch2 to Branch3
 And PC3 to PC2 will directly going from Branch3 to Branch2
 And will bypass the HQ to reach these destination
 And if we ping from internet router to our routers for these 10.250.250.0/24 or
192.168.x.x. networks
 internet router will fail that’s mean our all traffic is going through multiple tunnels
