    Product Catalog\BACKHOE LOADER 1CX, 208\1CX 00751600-00752999,00806000-00807552 9802/6220\B BODYWORK, CAB,


    LOADER END\B02 CAB\B2-2-3 CAB, GLAZED

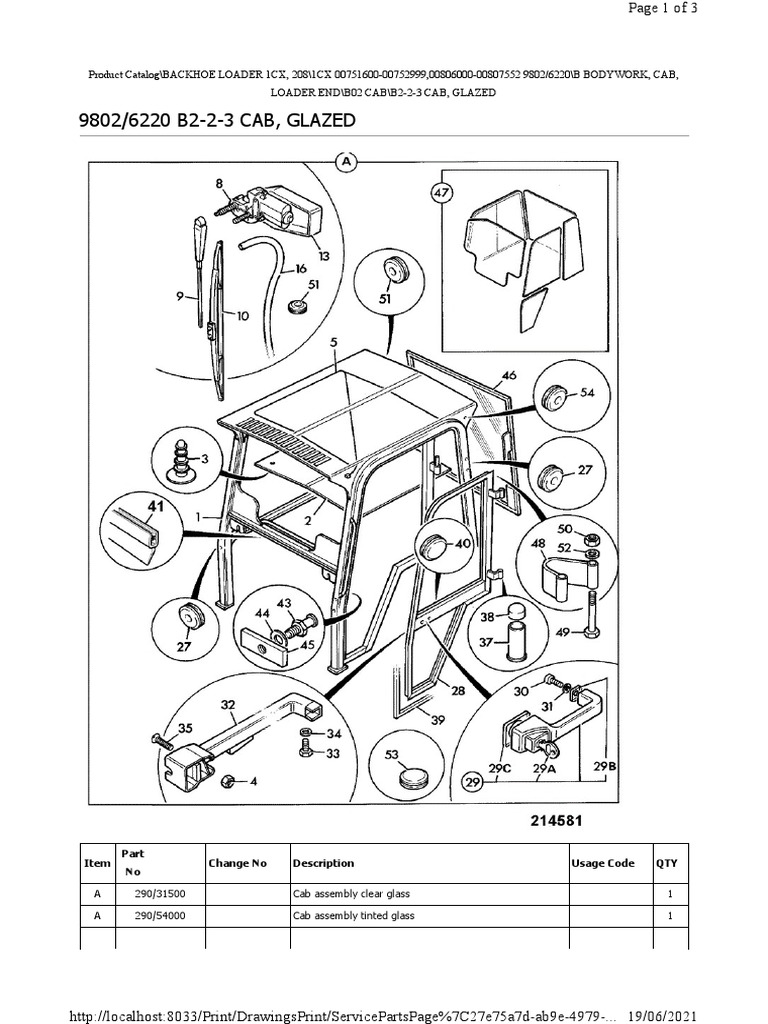

    9802/6220 B2-2-3 CAB, GLAZED

    Part
    Item Change No Description Usage Code QTY
    No

    A 290/31500 Cab assembly clear glass 1

    A 290/54000 Cab assembly tinted glass 1

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C27e75a7d-ab9e-4979-... 19/06/2021
    Page 2 of 3

    1 :290/03800 Frame cab 1

    Seal Self Adhesive 13mm Diameter


    1A :926/17000 0
    To seal sliding window to cab frame

    2 :290/00704 <M807859 Liner roof 1

    2 :331/25671 Liner roof 1

    3 :140/00719 Buffer 2

    Button Fastener
    3 :826/01308 8
    for use with 331/25671

    4 :1370/0103Z Nut Self Lock M6 2

    5 :719/75800 Harness cab roof 1

    6 :714/07700 Blade wiper 600mm long 1

    7 :714/09500 Cover 1

    8 714/09400 Motor wiper 1

    9 714/22300 Arm wiper 1

    10 714/07700 Blade wiper 600mm long 1

    13 714/09500 Cover 1

    14 :719/75800 Harness cab roof 1

    15 :2410/0205 Grommet Hole Diameter 12.7mm 1

    Tube 5 metres long


    16 647/02025 0
    647/02025 is a 5 metre length

    17 :828/00246 Grommet 4

    18 :2410/0211 Grommet 25.4 x 19 x 6.5 2

    27 :2410/1105 Grommet Blind, 6.35 x 3.5 mm 8

    28 :290/30800 Door 1

    Door Black cab


    28 290/67500 1
    Black cab

    29 :266/35400 <DEC 02 Handle push button A 1

    29 :331/34734 >JAN 03 Handle locking B 1

    Key Door/Ignition
    29 ::701/45501 B 2
    Ignition and Door

    Key
    29A :263/05501 A 1
    Key marked WA5

    Key
    29A :994/00236 A 1
    Key marked WA9

    30 :826/00792 Screw 2

    31 :1425/0006Z Washer Spring (M6) 3

    Lock Door Left Hand


    32 :123/02450 1
    Requires mounting hole centres of 558mm

    Lock door, left hand


    32 290/50300 1
    Requires mounting hole centres of 445mm

    33 :1315/0201Z Setscrew M6 x 12mm 1

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C27e75a7d-ab9e-4979-... 19/06/2021
    Page 3 of 3

    34 :1420/0006Z Washer (M6) 1

    35 :826/01077 Screw 3

    37 :120/92808 Bush Hinge 2

    38 :122/22001 Cap Hinge 2

    39 :926/07800 Seal Rubber, Window/Door 0

    40 :2410/1008 Grommet 1

    Seal
    41 926/16500 0
    between cab front rail & chassis

    43 :120/77505 Superseded Bolt closing 1

    43 :826/10374 Bolt closing 1

    44 :1420/0009Z Washer (M12) 1

    45 :826/00622 Superseded Nut 1

    45 :15/106700 Nut lock M12 2

    'See Remark'
    46 **** 1
    Rear window, see index B2

    'See Remark'
    47 **** 1
    Cab glazing, see index B2

    48 :290/00701 Strap door 1

    49 :1315/3316Z Bolt (M8 x 70) 2

    50 :1370/0203Z Nut Nut M8 2

    51 :2410/0205 Grommet Hole Diameter 12.7mm 1

    52 :1420/0007Z Washer (M8) 2

    53 :2410/1113 Grommet 31.8 2

    54 :2410/1312 Grommet 4

    57 2410/0313 Grommet 31.8 panel hole x 5 thkness 1

    Rail hand
    60 290/00769 Superseded 1
    Bolt on

    60 274/00989 Rail hand 1

    61 140/00618 Guard 1

    Grommet Flexiform
    70 926/00600 0
    1050mm approx.

    Note 1: All cab assemblies and asociated parts will be Black from April 1998.
    Note 2: This item and items 9,10,13 and 16 are not supplied with item 0A

    Applicability Date Ranges:


    From: , To: M1299633

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C27e75a7d-ab9e-4979-... 19/06/2021
