    Product Catalog\BACKHOE LOADER 1CX, 208\.1CX 00807553-00808999,01050000-01051999,01298000-01299999 9802/6220\E


    HYDRAULICS & AIR INCLUDING STEERING\E04 RAMS\E4-10-1 HYDRACLAMP SIDESHIFT

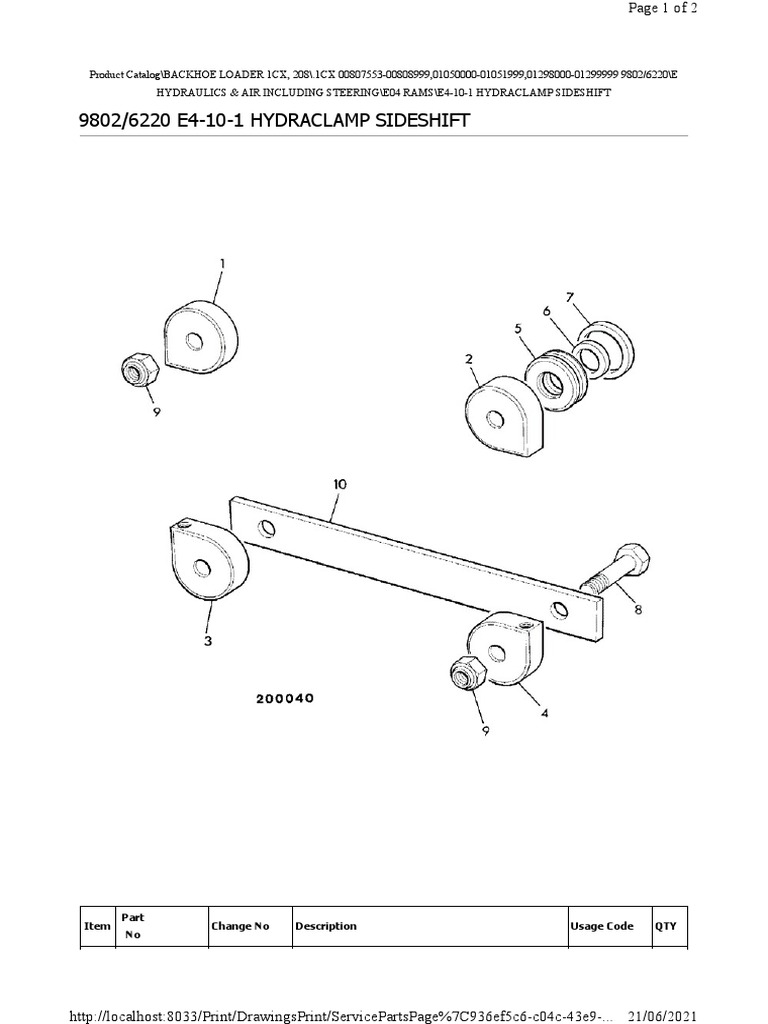

    9802/6220 E4-10-1 HYDRACLAMP SIDESHIFT

    Part
    Item Change No Description Usage Code QTY
    No

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C936ef5c6-c04c-43e9-... 21/06/2021
    Page 2 of 2

    1 290/01161 <M808234 Cylinder hydraclamp 1

    1 290/72082 Superseded Cylinder hydraclamp upper left 1

    1 331/59248 Cylinder hydraclamp upper left 1

    2 290/01108 <M808234 Cylinder hydraclamp 1

    2 290/72081 Superseded Cylinder hydraclamp lower L / upper R 1

    2 331/59246 Cylinder hydraclamp lower L/upper R 1

    3 290/01108 <M808234 Cylinder hydraclamp 1

    3 290/72081 Superseded Cylinder hydraclamp lower L / upper R 1

    3 331/59246 Cylinder hydraclamp lower L/upper R 1

    4 290/01107 <M808234 Cylinder hydraclamp 1

    4 290/72080 Superseded Cylinder hydraclamp lower right 1

    Cylinder hydraclamp
    4 331/59245 1
    lower right

    5 290/00361 Piston NLA see TI 1/024 4

    6 2411/0503 Seal square section 4

    7 2411/1135 Seal piston 4

    8 1315/4020Z <M751505 Bolt 3

    8 1315/4021Z >M751506 Bolt M24x110 3

    Bolt
    8A 826/01686 1
    105mm long

    9 1370/0903Z Nut Lock M24 4

    10 290/00548 Bar clamping 2

    Applicability Date Ranges:


    From: , To: M1299418
