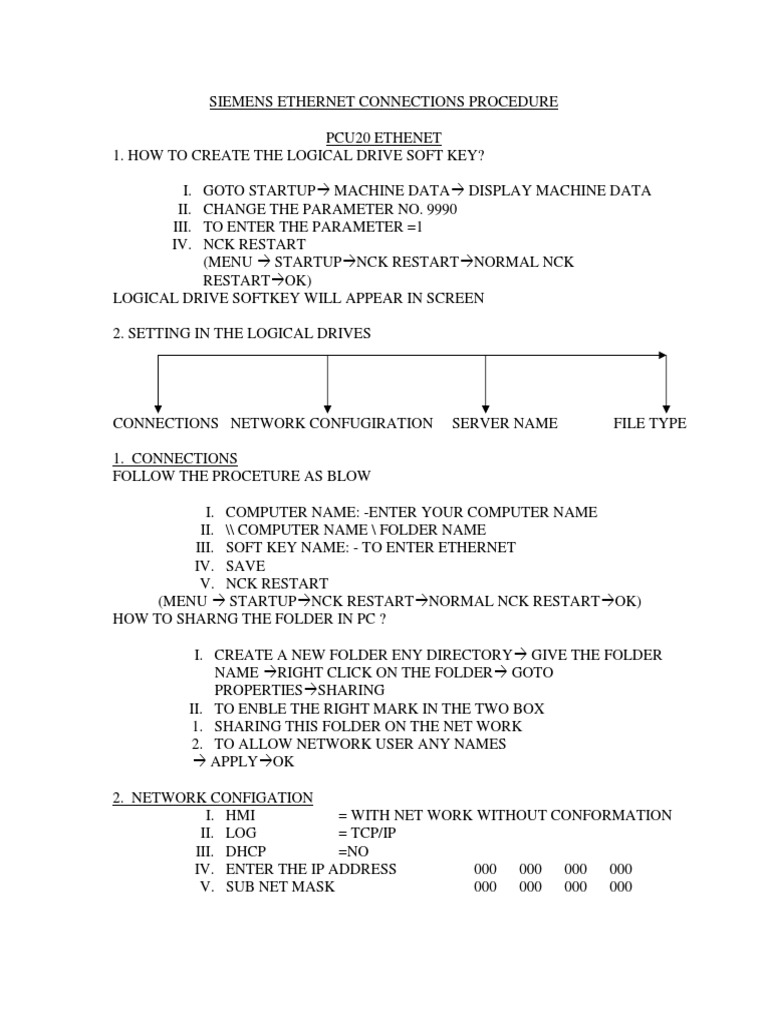

SIEMENS ETHERNET CONNECTIONS PROCEDURE

PCU20 ETHENET
1. HOW TO CREATE THE LOGICAL DRIVE SOFT KEY?

I.
GOTO STARTUP MACHINE DATA DISPLAY MACHINE DATA
II.
CHANGE THE PARAMETER NO. 9990
III.
TO ENTER THE PARAMETER =1
[Link] RESTART
(MENU  STARTUPNCK RESTARTNORMAL NCK
RESTARTOK)
LOGICAL DRIVE SOFTKEY WILL APPEAR IN SCREEN

2. SETTING IN THE LOGICAL DRIVES

CONNECTIONS NETWORK CONFUGIRATION SERVER NAME FILE TYPE

1. CONNECTIONS
FOLLOW THE PROCETURE AS BLOW

I. COMPUTER NAME: -ENTER YOUR COMPUTER NAME


II. \\ COMPUTER NAME \ FOLDER NAME
III. SOFT KEY NAME: - TO ENTER ETHERNET
IV. SAVE
V. NCK RESTART
(MENU  STARTUPNCK RESTARTNORMAL NCK RESTARTOK)
HOW TO SHARNG THE FOLDER IN PC ?

I. CREATE A NEW FOLDER ENY DIRECTORY GIVE THE FOLDER


NAME RIGHT CLICK ON THE FOLDER GOTO
PROPERTIESSHARING
II. TO ENBLE THE RIGHT MARK IN THE TWO BOX
1. SHARING THIS FOLDER ON THE NET WORK
2. TO ALLOW NETWORK USER ANY NAMES
 APPLYOK

2. NETWORK CONFIGATION
I. HMI = WITH NET WORK WITHOUT CONFORMATION
II. LOG = TCP/IP
III. DHCP =NO
IV. ENTER THE IP ADDRESS 000 000 000 000
V. SUB NET MASK 000 000 000 000
EX: -
A. SIEMENS SYSTEM IP ADDRESS 192 168 0 22
B. SUB NET MASK 255 255 255 0

I. COMPUTER NAME = ENTER THE COMPUTER


NAME
II. USER =PCU20_USER
III. PASSWORD =SUNRISE
IV. CONFORM PASSWORD =SUNRISE
V. SAVE
VI. NCK RESTART
(MENU  STARTUPNCK RESTARTNORMAL NCK
RESTARTOK)
3. SERVER NAME
I. NEWENTER THE IP ADDRESS AND COMPUTER NAME
II. SAVE
III. NCK RESTART
(MENU  STARTUPNCK RESTARTNORMAL NCK RESTARTOK)

HOW TO GET THE IP ADDRESS AND SUBNET MASK VALUES IN PC?


I. GO TO PC NET WORK CONNECTION ICON
II. RIGHT CLICK
III. STATUS
IV. LOCAL AREA NET WORK CONNECTION STATUS
V. PROPERTIES
VI. USE THE FOLLOWING IP ADDRESS
EX:-
A. IP ADDRESS =192 168 0 20
B. SUB NET MASK =255 255 255 0
OKCLOSE

4. FILE TYPES

I. SELECT NC SPIC FILES


II. SAVE
GO TO PC
HMI EMBERDER MANAGER SYMBLE WILL APPEAR.
------------------------------------------------------------------------------------------------------------------
IF ANY CHANGE IN THE USER NAME FOLLOW THE PROCEDURE
OPEN THE HMI EMBEDED MANAGER
EDIT
SET USER NAME
PASSWORD
COMFORM PASSWORD
OK
