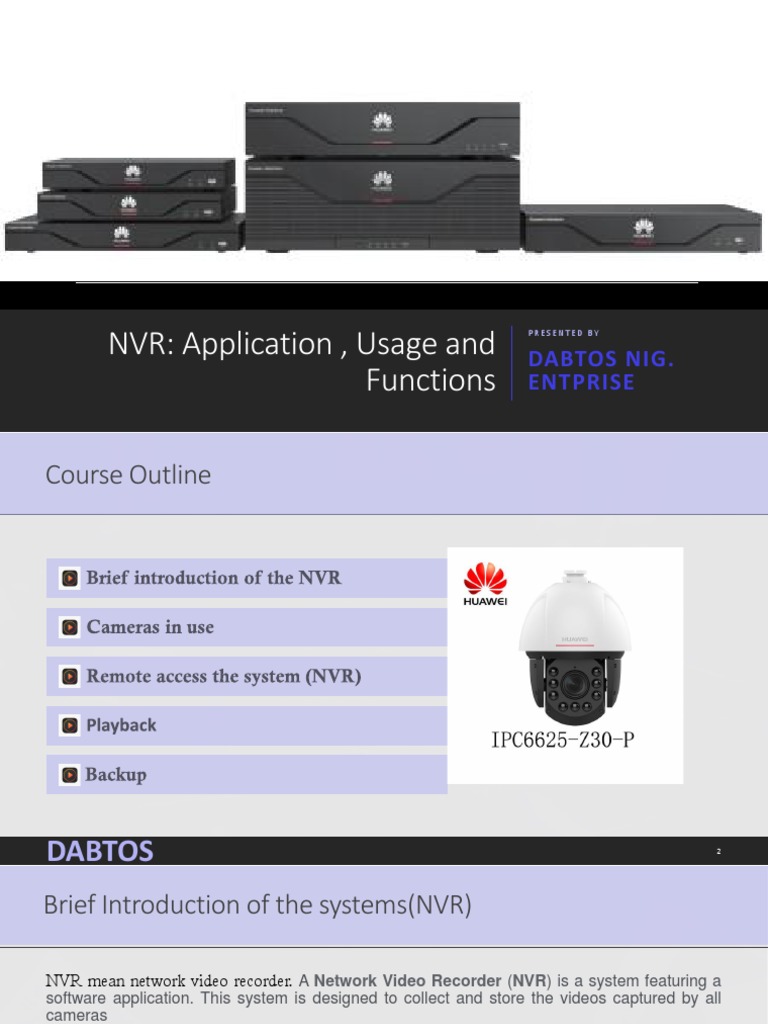

NVR: Application , Usage and

PRESENTED BY

DABTOS NIG.
Functions ENTPRISE
Course Outline

DABTOS 2
Brief Introduction of the systems(NVR)

NVR mean network video recorder. A Network Video Recorder (NVR) is a system featuring a
software application. This system is designed to collect and store the videos captured by all
cameras
The NVR deployed for this project include:
1. 64 channel for the general
2. 16 channel for the DG.
The 64 channel NVR has 29 cameras on it while the 16 channels NVR has 9 camera on it which
makes it a total of 38 cameras installed with extra 2 cameras for replacement incase of any issues.
The 64 and 16 NVR devices have the capacity of taking more cameras, the 64 channel NVR has
extra 35 channels and that of 16 channels have extra 7 channels.

DABTOS 3
Brief Introduction of the systems(NVR)

STORAGE
The storage capacity includes 8 terabyte on the 64 channels system while the 16
channels has 3 terabyte on it.
They both have the capacity to record for a month non stop with playback (30
days). The 16 channels system can also be upgraded to up to 8 terabyte for more
storage.

DABTOS 4
Camera in use

The camera use for this project is an IP (internet protocol) camera. IP cameras uses
the Internet Protocol (IP) used by most Local Area Network (LANs) to transmit
video across data networks in digital form. IP can optionally be transmitted across
the public internet, allowing users to view their cameras remotely on a computer or
phone via an internet connection.
This cameras can be accessed remotely using the IP address assign to it.
In this project a series of IP address has been assign to the installed cameras which
can be use to access information and settings on the cameras.
Each camera have their own IP address .
Its in series of 192.168.180.80 -192.168.180.117.

DABTOS 5
Cameras in use

DABTOS 6
Camera in use: Login and Restart

How login into camera

1. Make sure you are the same network with the camera
2. Open the browser (internet explorer)
3. Type in the IP address of the camera to the task bar on the browser and click enter
4. Then follow the process and enter the user name and password of the camera.
5. After this you have complete access to camera.
To restart the camera
1. After login into the camera
2. Click on reset
3. Then click on restart and the camera will restart itself.

DABTOS 7
The network video recorder requires an IP address for remote access.
The steps includes:
1. Connect to the same with the NVR
2. Open your browser (internet explorer)
3. Input the IP address of the NVR then click enter
4. Follow the process and input the user name and password
5. You then have access to the NVR

DABTOS 8
Remote access using smart devices
1. Go to the device
2. Right click on the screen using a mouse
3. Input the login credentials and go to network
4. Scroll down you will see barcode to scan using the application on your smart devices(phones and
tablet)
5. After the scanning process is complete the smart device is giving access for remote monitoring.

DABTOS 9
DABTOS 10
DABTOS 11
Playback

Playback is a review of a recorded event from the nvr device

PROCEDURE
1.Right-click the screen.
2.Choose Playback > Common Playback.
3.View the recording from a camera,

DABTOS 12
Playback

DABTOS 13
Backup

Backups means coping of the recorded video from the NVR from a particular date and time.
Procedure
1.Prepare a USB flash drive with more than 1 GB available space and insert it into the USB port on
the NVR800.
2.Log in to the NVR as the admin user.
3.Right-click the screen.
4.Choose Backup > Common Backup.
5.Set Channel, Start Time, End Time, Search Type, and Stream, and click Search

DABTOS 14
Backup

DABTOS 15
Backup

The backup device can keep the record as long as you want to have it.
The backup device will coverup for the storage capacity to complete a ninety days recording .

DABTOS 16
Thank You!
Questions?
