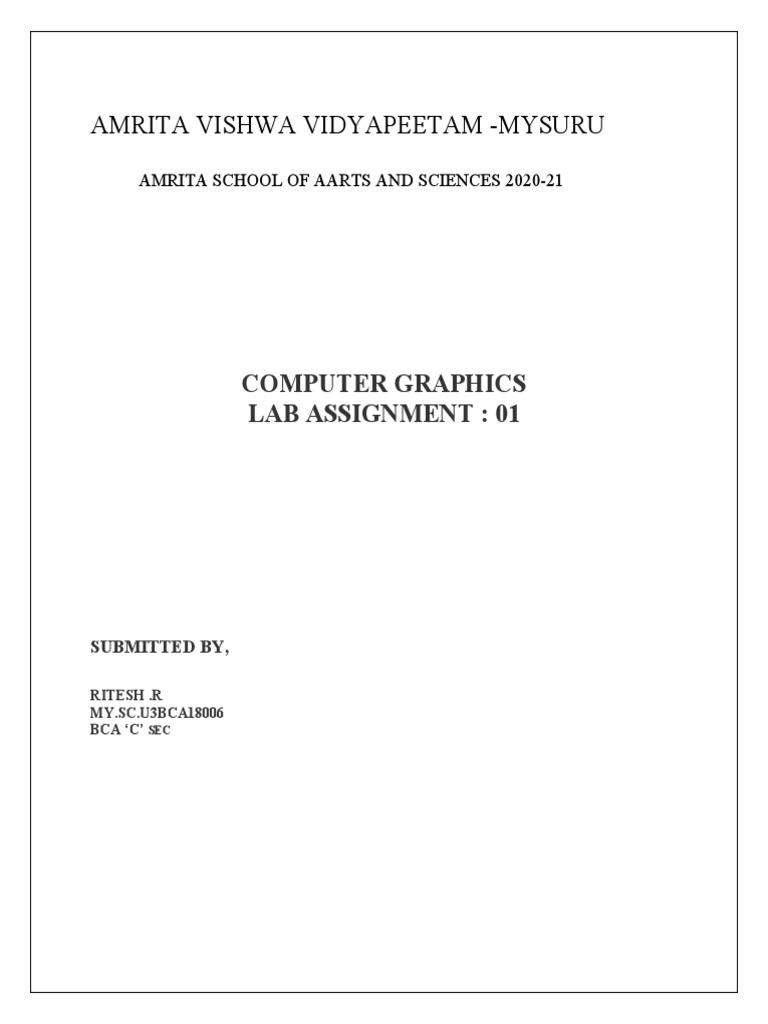

AMRITA VISHWA VIDYAPEETAM -MYSURU

AMRITA SCHOOL OF AARTS AND SCIENCES 2020-21

COMPUTER GRAPHICS
LAB ASSIGNMENT : 01

SUBMITTED BY,

RITESH .R
MY.SC.U3BCA18006
BCA ‘C’ SEC
1.DDA ALGORITHM FOR 3D SHAPES?
#INCLUDE<STDIO.H>
#INCLUDE<GRAPHICS.H>
#INCLUDE<MATH.H>
#INCLUDE<CONIO.H>
VOID DRAW(INT X1, INT Y1, INT X2, INT Y2){
FLOAT XINCR,YINCR,DX,DY,X,Y;
INT STEPS,K;
DX=X2-X1;
DY=Y2-Y1;
IF(ABS(DX)>ABS(DY))
STEPS=ABS(DX);
ELSE
STEPS=ABS(DY);
XINCR=DX/STEPS;
YINCR=DY/STEPS;
X=X1;
Y=Y1;
FOR(K=1;K<=STEPS;K++){
DELAY(100);
X+=XINCR;
Y+=YINCR;
PUTPIXEL(X,Y,WHITE);
}
}

VOID MAIN(){
INT GD=DETECT,GM;
INT X[10],Y[10],SIDES,I;
PRINTF("ENTER THE SIDES OF POLYGUN");
SCANF("%D",&SIDES);
FOR(I=0;I<SIDES;I++){
PRINTF("ENTER X[%D], Y[%D]",I+1,I+1);
SCANF("%D%D",&X[I],&Y[I]);
}
INITGRAPH(&GD,&GM,"C:\\TURBOC3\\BGI");
FOR(I=0;I<SIDES;I++){
IF(I==(SIDES-1)){
DRAW(X[I],Y[I],X[0],Y[0]);
}
ELSE{
DRAW(X[I],Y[I],X[I+1],Y[I+1]);
}
}
GETCH();
CLOSEGRAPH();
}
OUTPUT:

2. BRESENHAMS LINE ALGORITHM FOR 3D IMAGES?


ALGORITHM:-
STEP1: START
STEP2: INPUT THE TWO ENDPOINTS AND STORE THE INITIAL POINT AS
(X_{0}, Y_{0}, Z_{0})
STEP3: PLOT (X_{0}, Y_{0}, Z_{0})
STEP4: CALCULATE CONSTANTS DX, DY, DZ AND DETERMINE THE DRIVING
AXIS BY COMPARING THE ABSOLUTE VALUES OF DX, DY, DZ
STEP5: IF ABS(DX) IS MAXIMUM, THEN X-AXIS IS THE DRIVING AXIS
STEP6: IF ABS(DY) IS MAXIMUM, THEN Y-AXIS IS THE DRIVING AXIS
STEP7 :IF ABS(DZ) IS MAXIMUM, THEN Z-AXIS IS THE DRIVING AXIS
LET’S SUPPOSE THAT X-AXIS IS THE DRIVING AXIS, THEN
STEP 8: PY_{0} = 2DY - DX\\ PZ_{0} = 2DZ - DX

STEP 9: AT EACH X_{K} ALONG THE LINE, STARTING AT K = 0, CHECK THE


FOLLOWING CONDITIONS
AND DETERMINE THE NEXT POINT:-
IF PY_{K} < 0 AND PZ_{K} < 0, THEN
PLOT (X_{K}+1, Y_{K}, Z_{K}) AND
SET PY_{K+1}=PY_{K}+2DY, PZ_{K+1}=PZ_{K}+2DZ
ELSE IF PY_{K} > 0 AND PZ_{K} < 0, THEN
PLOT (X_{K}+1, Y_{K}+1, Z_{K}) AND
SET PY_{K+1}=PY_{K}+2DY-2DX, PZ_{K+1}=PZ_{K}+2DZ
ELSE IF PY_{K} 0, THEN
PLOT (X_{K}+1, Y_{K}, Z_{K}+1) AND
SET PY_{K+1}=PY_{K}+2DY, PZ_{K+1}=PZ_{K}+2DZ-2DX
ELSE THEN
PLOT (X_{K}+1, Y_{K}+1, Z_{K}+1) AND
SET PY_{K+1}=PY_{K}+2DY-2DX, PZ_{K+1}=PZ_{K}+2DZ-2DX>
REPEAT STEP 5 DX-1 TIMES
END:
