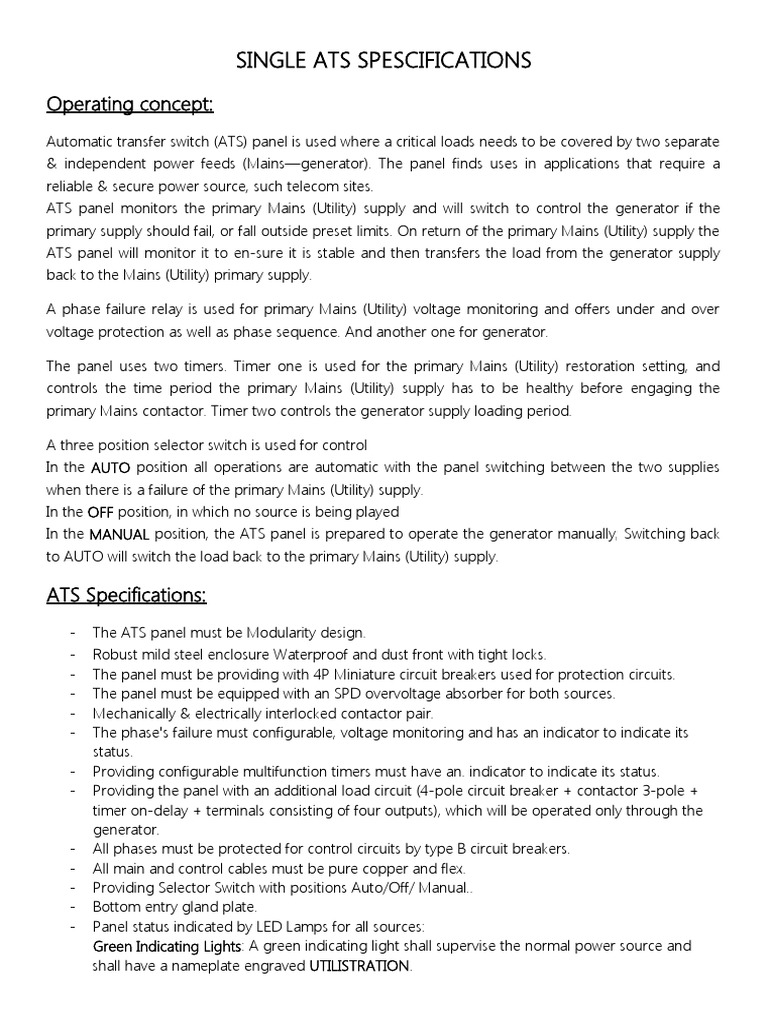

SINGLE ATS SPESCIFICATIONS

Operating concept:
Automatic transfer switch (ATS) panel is used where a critical loads needs to be covered by two separate
& independent power feeds (Mains—generator). The panel finds uses in applications that require a
reliable & secure power source, such telecom sites.
ATS panel monitors the primary Mains (Utility) supply and will switch to control the generator if the
primary supply should fail, or fall outside preset limits. On return of the primary Mains (Utility) supply the
ATS panel will monitor it to en-sure it is stable and then transfers the load from the generator supply
back to the Mains (Utility) primary supply.

A phase failure relay is used for primary Mains (Utility) voltage monitoring and offers under and over
voltage protection as well as phase sequence. And another one for generator.

The panel uses two timers. Timer one is used for the primary Mains (Utility) restoration setting, and
controls the time period the primary Mains (Utility) supply has to be healthy before engaging the
primary Mains contactor. Timer two controls the generator supply loading period.

A three position selector switch is used for control


In the AUTO position all operations are automatic with the panel switching between the two supplies
when there is a failure of the primary Mains (Utility) supply.
In the OFF position, in which no source is being played
In the MANUAL position, the ATS panel is prepared to operate the generator manually; Switching back
to AUTO will switch the load back to the primary Mains (Utility) supply.

ATS Specifications:
- The ATS panel must be Modularity design.
- Robust mild steel enclosure Waterproof and dust front with tight locks.
- The panel must be providing with 4P Miniature circuit breakers used for protection circuits.
- The panel must be equipped with an SPD overvoltage absorber for both sources.
- Mechanically & electrically interlocked contactor pair.
- The phase's failure must configurable, voltage monitoring and has an indicator to indicate its
status.
- Providing configurable multifunction timers must have an. indicator to indicate its status.
- Providing the panel with an additional load circuit (4-pole circuit breaker + contactor 3-pole +
timer on-delay + terminals consisting of four outputs), which will be operated only through the
generator.
- All phases must be protected for control circuits by type B circuit breakers.
- All main and control cables must be pure copper and flex.
- Providing Selector Switch with positions Auto/Off/ Manual..
- Bottom entry gland plate.
- Panel status indicated by LED Lamps for all sources:
Green Indicating Lights: A green indicating light shall supervise the normal power source and
shall have a nameplate engraved UTILISTRATION.
Yellow Indicating Lights: A yellow indicating light shall supervise the presence power source and
shall have a name plate engraved PRESENCE.
Red Indicating Lights: A red indicating light shall supervise the failure power source and shall
have a nameplate engraved FAILURE.
And Easy to read high light LED display.
- All the required accessories for the good operation.
- Providing the panel with alerts for all operating conditions with terminal outputs for each alert.
- The panel must be grounded and a terminal must be made for the grounding
- The full scheme of the department and is subject to approval prior to implementation.
- Labels for cables and all parts used with a label for all terminals and on panel surface must be
made and shown in the diagram.
- All parts, terminals, etc. of the ATS component must be of European origin from Lovato,
ABB,Finder,…etc, including the panel.
