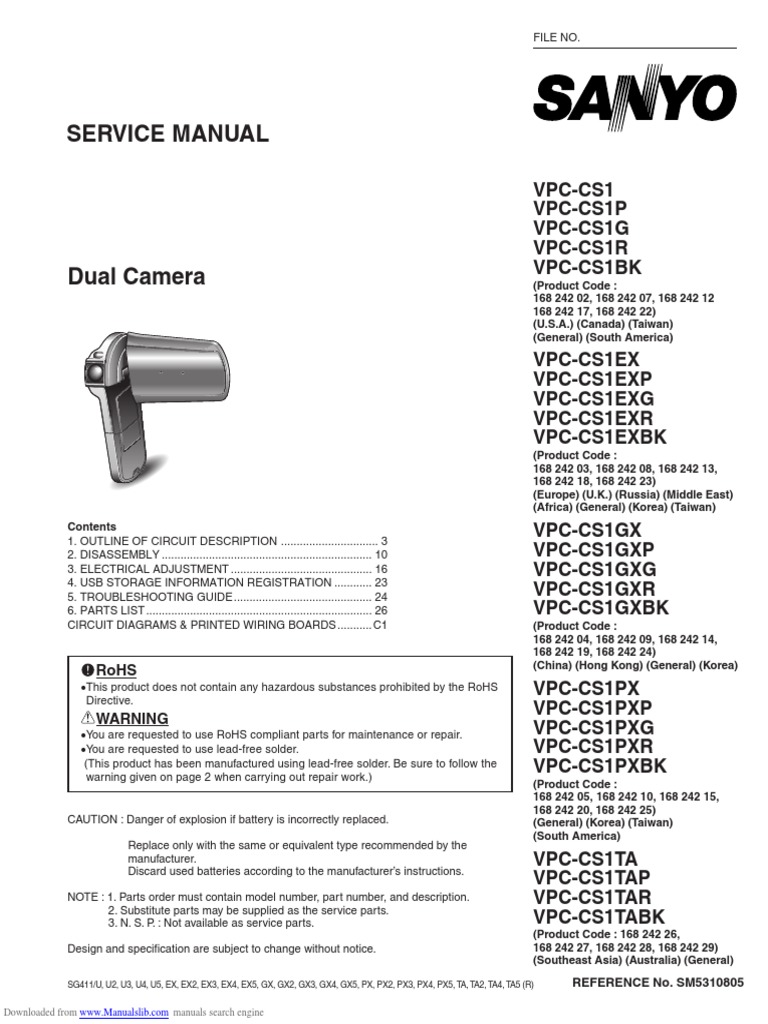

Service Manual: REFERENCE No. SM5310805

FILE NO.
SERVICE MANUAL
VPC-CS1
VPC-CS1P
VPC-CS1G
VPC-CS1R
VPC-CS1BK
Dual Camera (Product Code :
168 242 02, 168 242 07, 168 242 12
168 242 17, 168 242 22)
(U.S.A.) (Canada) (Taiwan)
(General) (South America)
VPC-CS1EX
VPC-CS1EXP
VPC-CS1EXG
VPC-CS1EXR
VPC-CS1EXBK
(Product Code :
168 242 03, 168 242 08, 168 242 13,
168 242 18, 168 242 23)
(Europe) (U.K.) (Russia) (Middle East)
(Africa) (General) (Korea) (Taiwan)
Contents
1. OUTLINE OF CIRCUIT DESCRIPTION ............................... 3
VPC-CS1GX
2. DISASSEMBLY ................................................................... 10 VPC-CS1GXP
3. ELECTRICAL ADJUSTMENT ............................................. 16 VPC-CS1GXG
4. USB STORAGE INFORMATION REGISTRATION ............ 23
5. TROUBLESHOOTING GUIDE ............................................ 24 VPC-CS1GXR
6. PARTS LIST ........................................................................ 26 VPC-CS1GXBK
CIRCUIT DIAGRAMS & PRINTED WIRING BOARDS ........... C1 (Product Code :
168 242 04, 168 242 09, 168 242 14,
168 242 19, 168 242 24)
(China) (Hong Kong) (General) (Korea)
RoHS
•This product does not contain any hazardous substances prohibited by the RoHS VPC-CS1PX
Directive.
WARNING
VPC-CS1PXP
•You are requested to use RoHS compliant parts for maintenance or repair. VPC-CS1PXG
•You are requested to use lead-free solder. VPC-CS1PXR
(This product has been manufactured using lead-free solder. Be sure to follow the VPC-CS1PXBK
warning given on page 2 when carrying out repair work.)
(Product Code :
168 242 05, 168 242 10, 168 242 15,
168 242 20, 168 242 25)
CAUTION : Danger of explosion if battery is incorrectly replaced. (General) (Korea) (Taiwan)
(South America)
Replace only with the same or equivalent type recommended by the
manufacturer. VPC-CS1TA
Discard used batteries according to the manufacturer’s instructions.
VPC-CS1TAP
NOTE : 1. Parts order must contain model number, part number, and description. VPC-CS1TAR
2. Substitute parts may be supplied as the service parts.
3. N. S. P. : Not available as service parts. VPC-CS1TABK
(Product Code : 168 242 26,
Design and specification are subject to change without notice. 168 242 27, 168 242 28, 168 242 29)
(Southeast Asia) (Australia) (General)
SG411/U, U2, U3, U4, U5, EX, EX2, EX3, EX4, EX5, GX, GX2, GX3, GX4, GX5, PX, PX2, PX3, PX4, PX5, TA, TA2, TA4, TA5 (R) REFERENCE No. SM5310805
Downloaded from www.Manualslib.com manuals search engine

PRODUCT SAFETY NOTICE
The components designated by a symbol ( ! ) in this schematic diagram designates components whose value are of
special significance to product safety. Should any component designated by a symbol need to be replaced, use only the part
designated in the Parts List. Do not deviate from the resistance, wattage, and voltage ratings shown.
WARNING
Do not use solder containing lead. Note:
This product has been manufactured using lead-free solder in If replacing existing solder containing lead with lead-free sol-
order to help preserve the environment. der in the soldered parts of products that have been manufac-
Because of this, be sure to use lead-free solder when carrying tured up until now, remove all of the existing solder at those
out repair work, and never use solder containing lead. parts before applying the lead-free solder.
Lead-free solder has a melting point that is 30 - 40°C (86 -

104°F) higher than solder containing lead, and moreover it does
not contain lead which attaches easily to other metals. As a
result, it does not melt as easily as solder containing lead, and
soldering will be more difficult even if the temperature of the
soldering iron is increased.
The extra difficulty in soldering means that soldering time will
increase and damage to the components or the circuit board
may easily occur.
Because of this, you should use a soldering iron and solder
that satisfy the following conditions when carrying out repair
work.
Soldering iron
Use a soldering iron which is 70 W or equivalent, and which
lets you adjust the tip temperature up to 450°C (842°F). It
should also have as good temperature recovery characteris-
tics as possible.
Set the temperature to 350°C (662°F) or less for chip compo-
nents, to 380°C (716°F) for lead wires and similar, and to 420°C
(788°F) when installing and removing shield plates.
The tip of the soldering iron should have a C-cut shape or a
driver shape so that it can contact the circuit board as flat or in
a line as much as possible.
Solder
Use solder with the metal content and composition ratio by
weight given in the table below. Do not use solders which do
not meet these conditions.
Metal content Tin (Sn) Silver (Ag) Copper (Cu)
Composition
96.5 % 3.0 % 0.5 %
ratio by weight
Lead-free solder is available for purchase as a service tool.

Use the following part number when ordering:
Part name: Lead-free solder with resin (0.5 mm dia., 500 g)
Part number: VJ8-0270
–2–
1. OUTLINE OF CIRCUIT DESCRIPTION
1-1. CMOS CIRCUIT DESCRIPTION
1. IC Configuration
The CMOS peripheral circuit block basically consists of the
CMOS sensor module.
CMOS imager
CDS, PGA, ADC built-in
H driver, V driver, serial communication circuit built-in
The electric charges which are generated when each pixel is

optically converted are in turn converted into signal voltages
by the FD amplifier, and they are then transmitted by the built-
in H driver and V driver. The signals are sampled and ampli-
fied by the CDS and PGA circuits at the point they are output,
and then they are AD converted and output. The output uses
the 12 bit LVDS interface.
1/2.3-inch positive pixel array CMOS-type fixed imaging

element
Effective pixels 2304 (H) X 1583 (V)
–3–
1-2. CP1 and VF1 CIRCUIT DESCRIPTION
1. Circuit Description 2. Outline of Operation
1-1. Digital clamp When the shutter opens, the shutter signal is input and opera-
The optical black section extracts averaged values from the tion starts. When the TG/SG drives the image sensor, picture
subsequent data to make the black level of the sensor output data is converted internally into a small-amplitude actuating
data uniform for each line. The optical black section averaged signal, and is then input to ASIC. The data that is input to the
value for each line is taken as the sum of the value for the ASIC is input to the SDRAM through digital clamp.
previous line multiplied by the coefficient k and the value for The AF, AE, AWB, shutter, and AGC value are computed from
the current line multiplied by the coefficient k-1. this data, and obtain the optimum picture. The data which has
already been stored in the SDRAM is read by the CPU and
1-2. Signal processor color generation is carried out. Each pixel is interpolated from
1. γ correction circuit the surrounding data as being either R, G, and B primary color
This circuit performs (gamma) correction in order to maintain data to produce R, G and B data. At this time, correction of the
a linear relationship between the light input to the camera and lens distortion which is a characteristic of wide-angle lenses is
the light output from the picture screen. carried out. After AWB and γ processing are carried out, a matrix
is generated and aperture correction is carried out for the Y
2. Color generation circuit signal, and the data is then compressed by JPEG and is then
This circuit converts the image sensor into RGB signals. written to card memory (SD card).
When played back on the LCD and monitor, data is transferred
3. Matrix circuit from memery to the SDRAM, and the image is then elongated
This circuit generates the Y signals, R-Y signals and B-Y sig- so that it is displayed over the SDRAM display area.
nals from the RGB signals.
3. LCD Block
4. Horizontal and vertical aperture circuit The LCD display circuit is located on the CP1 board, and
This circuit is used gemerate the aperture signal. consists of components such as a power circuit.
The signals from the ASIC are 8-bit digital signals, that is
1-3. AE/AWB and AF computing circuit input to the LCD directly. The 8-bit digital signals are con-
The AE/AWB carries out computation based on a 64-segment verted to RGB signals inside the LCD driver circuit . This LCD
screen, and the AF carries out computations based on a 6- has a 3-wire serial, and functions such as the brightness and
segment screen. image quality are controlled.
Because the LCD closes more as the difference in potential
1-4. SDRAM controller between the VCOM (common polar voltage: AC) and the R,
This circuit outputs address, RAS, CAS and CLOCK data for G and B signals becomes greater, the display becomes darker;
controlling the SDRAM. It also refreshes the SDRAM. if the difference in potential is smaller, the element opens and
the LCD become brighter.
1-5. PIO/PWM/SIO for LCD In addition, the timing pulses for signals other than the video
It possible to switch between individual input/output and PWM signals are also input from the ASIC directory to the LCD.
input/output.
1-6. TG/SG
Timing generated for image sensor control.
1-7. Digital encoder

It generates chroma signal from color difference signal.
–4–
4. Lens drive block
4-1. Focus drive
The 16-bit serial data signals (LENS_SDI) and (LENS_SCLK
and LENS_EN) which are output from the ASIC (IC101) are
used to drive (FOCUS A +, FOCUS A -, FOCUS B + and FO-
CUS B -) by the motor driver IC (IC951), and are then used to
microstep-drive the stepping motor for focusing operation.
Detection of the standard focusing positions is carried out by
the ASIC (IC101) detecting the signal (FOCUS_PI_E) from
the photointerruptor inside the lens block.
4-2. Zoom drive

used to drive (ZOOM A +, ZOOM A -, ZOOM B + and ZOOM B
-) by the motor driver IC (IC951), and are then used to
microstep-drive the stepping motor for zooming operation.
Detection of the standard zooming positions is carried out by
means of signal (ZOOM_PI_E) from the photointerruptor by
ASIC (IC101) is detecting inside the lens block.
4-3. ND filter
used to drive (ND + and ND –) by the motor driver IC (IC951),
and then the ND filter is inserted into and removed from the
beam path.
4-4. Iris drive

The drive method is a galvanometer type without braking coil.
The output from the Hall sensor inside the lens is amplified by
the Hall amplifier circuit inside the IC971 lens drive IC, and the
difference between the current and target aperture determined
by the resulting output and the exposure amout output from
the ASIC (IC101) is input to the servo amplifier circuit (IC971)
to keep the aperture automatically controlled to the target ap-
erture. The lens aperture control signal is output from IC971
and is input to lens drive IN5A of IC951. IC951 functions as
the driver for driving the lens.
4-5. Shutter drive

Reverse voltage is applied to the above aperture drive coil to
operate the shutter. When the shutter operates, the OC_EN
and OC_CONT signals are maintained at a high level, it is
input to IN5A of IC951 with low level.
At the same time the SHUTTER + signal that is output from
the ASIC (IC101) becomes high (input to IN5B of IC951) and
the shutter operates. IC951 functions as the driver for driving
the lens.
–5–
5. Power Sequencer Description
For the overall configuration of the power sequenser, refer to the block diagram. This circuit block consists primarily of the power
sequencer block inside the ASIC.
The power sequencer have functions for receiving user operations which signify that the camera has been turned on and power
ON/OFF function.
Pin Signal I/O Outline

zSYRSTI BSRST I Boot system reset signal
SYCKI CLK32K I 32 kHz clock input
BATI BAT_OFF I Battery OFF detection
SYTEST GND I -
PON[1] - O -
PON[0] PON O VDD1.1, VDD1.8, VDD3, VDD5, ON/OFF signal
GPIOS[9] SDDET O ZCARD: when L SDDET: L → H
GPIOS[8] VBDET O ZUSB_DET: when L VBDET: L → H
GPIOS[7] SW3.2ON O SW3.2 ON/OFF signal
GPIOS[6] - O -
GPIOS[5] PANEL_OPEN I LCD panel open/close detection
GPIOS[4] ZCARD I SD card detection
GPIOS[3] KEY_1ST I Key input 1st shutter
GPIOS[2] KEY_2ND I Key input 2nd shutter
GPIOS[1] ZUSB_DET I USB detection
GPIOS[0] GREEN_LED O Green LED lighting
KSO[4] RED_LED O Red LED lighting
KSO[3] CL O -
KSO[2] SCAN OUT2 O SY CL308 φ 0.8 (Test mode)
KSO[1] SCAN OUT1 O SY CL306 φ 0.8 (PWR test)
KSO[0] POWER_KEY O Power key (CL307 φ 0.8)
KSI[4] CL I -
KSI[3] CL I -
KSI[2] SCAN_IN2 I CL303 φ 0.8 PU (Test mode)
KSI[1] SCAN_IN1 I CL302 φ 0.8 PU (PWR test)
KSI[0] SCAN_IN0 I Power key (CL305 φ 0.8)
Table 2-1. Power Sequencer Port Specification
–6–
6. Receiving user operations showing that the camera has been turned on
When the battery is installed, the 3.2V power supply which is output from IC501 is constantly being input to the power sequencer
of the ASIC, and it monitors user operations that generate a P-ON request (such as POWER key input and panel opening).
7. Power control
When a power on request is generated by the user, the PON signal is set to High and the DC/DC converter turns on. In addition,
the resetting of the CPU inside the ASIC is canceled. This causes all blocks and memories other than the power sequencer of the
ASIC to start operating.
ON/OFF control for the 1.8V, 2.8V and 3.3V power supplies for the CMOS sensor is carried out by the ASIC setting PAON1 and
PAON2 to High or Low, and also by I2C signal sent to IC501.
ASIC/memory/LCD CMOS
1.1V, 1.8V, 3.3V 1.8V, 2.8V, 3.3V
Power OFF OFF OFF
Shooting mode ON ON
Play mode ON OFF
Table 2-2. Power Control
8. Clock backup
The clock backup is carried out by IC501.
The ASIC gets clock information via I2C when necessary.
9. Light emission control circuit

When the LIGHT_ON signal from the ASIC is High, it turns Q6101 on and the LED illuminates.
9-1. Light emission for still picture shooting

If the menu settings for the camera unit are used to set the LED light to 'AUTO' or 'FORCED', the LED illuminates.
(Note) For AUTO, the LED will illuminate according to the ambient brightness. The LED will illuminate when the shutter button is
pressed to the first step and shooting will stop, and when S2 is pressed, the LED will stay illuminated until shooting is complete.
9-2. Light emission for moving picture shooting

If the menu settings for the camera unit are used to set the LED light to 'AUTO' or 'FORCED', the LED illuminates.
(Note) For AUTO, the LED will illuminate according to the ambient brightness. The LED will illuminate during shooting of moving
pictures.
–7–
1-3. PWA POWER CIRCUIT DESCRIPTION 3. (CH1) Motor System 5.0 V Output
1. Outline +5.0 V is output. BOOST 5.0 V output is so that PWM control
This is the main power circuit, and is comprised of the follow- can be carried out at the internal circuit of the switching con-
ing blocks. troller (IC501).
Switching power controller (IC501)
Digital VDD3 output system (L5021) 4. (CH2) Digital 3.25 V Output
Digital VDD1.8 output system (L5031) +3.25 V is output. VDD3 is so that PWM control can be car-
CMOS analog +2.8 V (A) output system (L5061) ried out at the internal circuit of the switching controller (IC501).
LCD backlight output system (L5071, D5071)
Motor system BOOST 5.3 V output system (L5301, D5301) 5. (CH3) Digital 1.8 V Output
Digital VDD1.1 output system (IC502, L5101) +1.8 V is output. VDD 1.8 output is so that PWM control can
be carried out at the internal circuit of the switching controller
2. Switching Power Controller (IC501) (IC501).
This is the basic circuit which is necessary for controlling the
power supply for a PWM-type switching regulator, and is pro- 6. (CH6) Analog +2.8 V Output
vided with seven channels and two channels (LDO). +2.8 V is output. Feedback for the +2.8 V (A) output is pro-
Only CH1 (motor system), CH2, CH3 (digital system), CH6 vided to switching controller (Pin (G2) of IC501) so that PWM
(analog system) and CH7 (LCD backlight system) are used. control can be carried out.
Feedback from motor system (CH1), digital system (CH2,
CH3), analog system (CH6) are received, and the PWM duty 7. (CH7) LCD Backlight Output
is varied so that each one is maintained at the correct volt- Regular current is being transmitted to LED for LCD back-
age setting level. light. Detecting for the switching controller (Pin (C3) of IC501)
Feedback for the LCD backlight power output (CH7) is so that current flowing along connecting registance so that PWM can
regular current can be controlled to be current that was set- be controlled.
ting.
8. Digital 1.1 V Output
2-1. Short-circuit protection circuit +1.1 V is output. Feedback for the VDD1.1 is provided to
If output is short-circuited for the length of time determined switching controller (Pin (1) of IC502) so that PWM control
by the IC501 register setting, all output is turned off. To reset can be carried out.
output, it is necessary to reset the controller IC to reset the
power.
–8–
MEMO
–9–
2. DISASSEMBLY
2-1. REMOVAL OF CABINET, TB2 BOARD AND CP2 BOARD
When assembling,
When assembling, tighten the screws order.
tighten the screws order. A→B
12 a→b→c 3
4 5
11 6
b B
2
a A
14 16 4 2
15 c
9 10
A 17
13 1
B When assembling,
A
tighten the screws order.
A→B
8
C
19
41 B
37
B
40 32
38 7
C
31
30 D
18
27 D 33 39
A
25
28
34
35 36 26
23
29
24
20
22
NOTE: Discharge a strobe capacitor with the

21
discharge jig (VJ8-0188) for electric shock prevention.
– 10 –
1. Cover USB
2. Two screws 1.7 x 3.5
3. Dec right
4. Two screws 1.7 x 3
5. Shield tape
6. Cover right
7. Dec lens
8. Adhesive dec lens
9. Two screws 1.7 x 4.5
10. Screw 1.7 x 4
11. Two screws 1.7 x 5
12. Cover card
13. Assy, cabi right SV
14. Adhesive card A
15. Adhesive card B
16. Cover battery
17. Cover batt inner
18. Dec front
19. Dec back
20. Screw 1.7 x 3.5
21. Screw 1.7 x 4.5
22. Cabinet left
23. Screw 1.7 x 3
24. Holder battery
25. Spacer HL batt A
26. Spacer HL batt B
27. Spacer CMOS
28. Screw 1.7 x 3
29. Screw 1.7 x 4
30. Heat sink top
31. Earth USB
32. Spacer earth USB
33. Connector (CN602)
34. Screw 1.7 x 3
35. Holder lens top
37. TB2 board
39. CP2 board
40. Remove the solder.
– 11 –
2-2. REMOVAL OF TB3 BOARD AND CP1 BOARD
1. Two screws 1.7 x 4.5 12. TB3 board

2. Holder lens 13. CP1 board
3. Holder lens base 14. Remove the solder.
4. Unit button main 15. Remove the solder.
5. Dec LED 16. Spacer joint base
6. Adhesive dec LED 17. Two screws 1.7 x 2.5
7. Spacer LCD cable D 18. Assy, holder chassis
8. Spacer LCD cable C 19. Spacer LCD cable A
9. Connector (CN105) 20. Spacer LCD cable B
10. Speaker, 8 21. Spacer batt
11. Adhesive speaker 22. Spacer chassis
4
6
10
5
19 11
8 20
A
16 17
9
22
17
When assembling,
A
18
A→B 15
13 14 21
A
1 3
2 12
B
– 12 –
2-3. REMOVAL OF TB1 BOARD, VF1 BOARD AND LCD
1. Screw 1.7 x 2 16. Screw 1.7 x 2.5

2. Two screws 1.7 x 4 17. TB1 board
3. Assy, cover LCD back 18. Connector (CN173)
4. Spacer earth LCD 19. Connector (CN171)
5. Remove the solder. 20. Two screws 1.7 x 3.5
6. Spacer VF1 21. Erath LCD
7. Connector (CN172) 22. Spacer erath LCD
8. Two screws 1.7 x 3 23. VF1 board
9. Assy, joint 24. Spacer MIC
10. Spacer MR 25. Holder LCD
11. Holder joint 26. Spacer LCD
12. Spacer joint (removed after assembly) 27. LCD
13. Dec joint 28. Unit cover LCD fron
14. Assy, wire VF1 & CP1 29. Magnet
15. Assy, magnet
28
B
27
25
C
8 A
29 18
23
24
22
9 14
12 15
10 21
7 C 3
19
1 D 26
16 D
A 4 B
5 20
A
17 When assembling,
11 tighten the screws order. B
13
A→B 20 6
When assembling 13 9
12 12
14 12
– 13 –
2-4. REMOVAL OF LENS (ASSY)
1. Spacer CA 6. Two screws 1.4 x 3.5

2. Pad lens 7. Assy, unit CCD
3. Spacer lens FPC 8. Spacer lens
4. Screw 1.4 x 3.5 9. Lens (assy)
5. Spacer CMOS
When assembling,
A→B
6 B 7
2
8
A
9
1 3
5 2
– 14 –
2-5. BOARD LOCATION
VF1 board
TB2 board
TB1 board
CP1 board
CP2 board
TB3 board
– 15 –
3. ELECTRICAL ADJUSTMENT
3-1. Table for Servicing Tools 3-3. Adjustment Items and Order
1. Lens Adjustment (Barcode input)
Ref. No. Name Number Part code 2. Optical Axis Adjustment
J-1 Pattern box 1 VJ8-0190 3. Lens Adjustment (Infinity)
4. Lens Adjustment (80 cm)
J-2 Calibration software 1
5. AWB Adjustment
J-3 Chroma meter 1 VJ8-0192 6. CMOS White Point Defect Detect Adjustment
J-4 Spare lump (pattern box) 1 VJ8-0191 7. CMOS Black Point And White Point Defect Detect Adjust-
J-5 Discharge jig 1 VJ8-0188 ment In Lighted
J-6 Collimator 1 VJ8-0260 8. LED Light AWB Adjustment
Note: If the lens, board and changing the part, it is necessary
J-7 Spare lump (collimator) 1 VJ8-0282
to adjust again. Item 1-8 adjustments should be carried out in
J-8 Siemens star chart 1 sequence.
J-9 LED light AWB adustment jig 1 VJ8-0330 *Adjustment environment
Temperature: 25 ± 10 degrees
Download the calibration software and the firmware Humidity: 55 ± 25 %
from the following URL.
http://www.overseas.sanyo.com/dcamera service/ 3-4. Setup
Place the DscCalDi.exe file, camapi32.dll file and 1. System requirements
QrCodeInfo.dll file together into a folder of your Windows 2000 or XP or Vista
choice. IBM R -compatible PC with pentium processor
USB port
40 MB RAM
J-1 J-3 Hard disk drive with at least 15 MB available
VGA or SVGA monitor with at least 256-color display
2. Pattern box
Turn on the switch and wait for 30 minutes for aging to take
place before using Color Pure. It is used after adjusting the
chroma meter (VJ8-0192) adjust color temperature to 3100 ±
20 K and luminosity to 900 ± 20 cd/m2. Be careful of handling
the lump and its circumference are high temperature during
J-4 J-5 use and after power off for a while.
3. Computer screen during adjustment
Calibration Upload LCD

AWB R Bright B Bright VCOMDC
Firmware
Focus RGB Offset Gain VCOMPP
QrCode
UV Matrix
J-8 J-9 Cal Mode Initialize
Tint Phase
OK Hall Cal.
EVF VCO H AFC Test
Cal Data LCD Type
OK
Setting
Language
USB storage
Get VID Set Serial Set Video Mode
Set PID Set Rev. Set
Backrush pulse : Get Set Factory Code
3-2. Equipment
1. AC adaptor 3-5. Connecting the camera to the computer
2. PC (IBM R -compatible PC, Windows 2000 or XP or Vista) 1. Use the supplied dedicated USB interface cable to connect
the camera to the computer.
2. Turn on the camera.
3. Choose the “COMPUTER”, and press the SET button.
Next, choose the “CARD READER”, and press the SET
button.
– 16 –
3-6. The adjustment item which in necessary in part exchange
Lens Optical Lens Lens CMOS CMOS Black LED

Adjust- AWB White Point Point And Light Factory USB
Axis Adjust- Adjust- White Point Language storage Reset
ment Adjust- Defect AWB Cord
Adjust- ment ment Defect Detect Setting information Setting
(Barcode ment Detect Adjustment Adjust- Setting
input) ment (Infinity) (80 cm) Adjustment In Lighted ment registration
COMPL PWB CP1
COMPL PWB CP2
COMPL PWB VF1
COMPL PWB TB1
COMPL PWB TB2
COMPL PWB TB3
ASSY, UNIT CCD
LENS
: Be sure to carry out the necessary adjustments after replacing the unit.
: Adjustment is possible from the menu setting screen of the camera and by using the calibration software.
3-7. Updating the firmware

Check the firmware version immediately after the CP1 board has been replaced. If an old version is being used, interfer-
ence and errors in operation may also occur. If an old version is being used, update it with a newer version.
Refer to 3-13. Firmware uploading procedure. (Page 22)
3-8. Adjust Specifications 4. Deselect Bar code Input.

1. Lens Adjustment (Barcode Input)
Adjustment method:
1. Double-click on the DscCalDi.exe.
2. Click the “QrCode”.
3. QrCode Input Dialog display will be displayed.
5. Enter the numeric character which are rightmost one

figure the bar code which is included with the lens.
Example:
Enter “2”
6. Click the Execute.
7. Click the OK.
Note: The input box have the following limits on input.
Only contain numerical input from 0 to 2.
– 17 –
2. Optical Axis Adjustment Note:
Do not vibrate during the adjustment.
If readjusting after it has already been adjusted, wait for 15
minutes or more for the unit to cool down first.
Adjustment method:
1. Set the camera so that it becomes center of the siemens
star chart in the collimator (zoom wide and tele).
(Set a distance of 0.5-1.0 cm between camera lens and
collimator lens. Do not touch the each lens.)
3. Select “Infinity Cal.” on the LCD “Test”, and click the “Yes”.
4. Lens infinity adjustment value will appear on the screen.
5. Click the OK.
Pattern box
Camera 4. Lens Adjustment (80 cm) is carried out after this
(color viewer)
adjustment.
1.0~3.0 cm Dsc Calibration x
OK
Preparation: Copy
POWER switch: ON Infinity calibration :
Note: AF_TEMP_AD_I: 474
Do not vibrate during the adjustment. PZ_BR: 1
AF_BR: 1
Adjustment method:
AF_I_WIDE: -47
1. Set a distance of 1.0-3.0 cm between the camera lens and
AF_I_MID1: -45
the pattern box. AF_I_MID2: -47
(Do not enter any light.) AF_I_MID3: -46
2. Double-click on the DscCalDi.exe. AF_I_MID4: -48
3. Input “251” to the “CalMode”, and click the OK. AF_I_MID5: -42
4. Adjustment value will appear on the screen. AF_I_MID6: -49
5. Click the OK. AF_I_TELE: 10
PZ_ADJ_INDEX: 0
3. Lens Adjustment (Infinity) IRIS_GAIN: 48
IRIS_OFFSET: 156
Adjustment value determination is effectuated using below val-

ues.
The adjustment values fulfill the conditions below, they are de-
termined as within specifications.
Adjustment value determination
AF_TEMP_AD_I: ATADI
ATADI: adjustment value of focus temperature A/D
(250<=ATADI<=893)
PZ_BR: PBR
Camera
PBR: adjustment value of zoom backrush pulse
(0<=PBR<=10)
Collimator AF_BR: ABR
ABR: adjustment value of focus backrush pulse
(0<=ABR<=10)
AF_I_WIDE: ZIW
Preparation: ZIW: infinity adjustment value of focus at zoom position
POWER switch: ON wide (–102<=ZIW<=102)
If using a ready-made collimator, set to infinity. AF_I_MID1: ZIM1
ZIM1: infinity adjustment value of focus at zoom position
middle1 (–110<=ZIM1<=86)
– 18 –
AF_I_MID2: ZIM2 Adjustment method:
ZIM2: infinity adjustment value of focus at zoom position 1. Set the siemens star chart 80 ± 0.5 cm from lens surface
middle2 (–930<=ZIM2<=64) so that it becomes center of the screen (zoom wide and
AF_I_MID3: ZIM3 tele). Set the camera and the chart in a straight, and do
ZIM3: infinity adjustment value of focus at zoom position not put optical systems (mirror and conversion lens etc.)
middle3 (–876<=ZIM3<=70) 2. Double-click on the DscCalDi.exe.
AF_I_MID4: ZIM4 3. Click the “Focus”, and Click the “Yes”.
ZIM4: infinity adjustment value of focus at zoom position 4. Lens adjustment value will appear on the screen.
middle4 (–772<=ZIM4<=142) 5. Click the OK.
AF_I_MID5: ZIM5
DscCalDi x
ZIM5: infinity adjustment value of focus at zoom position
middle5 (–568<=ZIM5<=100) Focus Result
AF_I_MID6: ZIM6 !
ZIM6: infinity adjustment value of focus at zoom position AF_TEMP_AD: 421
middle6 (–390<=ZIM6<=126) AF_WIDE: -38
AF_I_TELE: ZIT AF_MID1: -34
ZIT: infinity adjustment value of focus at zoom position AF_MID2: -16
tele (–96<=ZIT<=204) AF_MID3: -2
PZ_ADJ_INDEX: PZI AF_MID4: 16
PZI: index of zoom barcode adjustment (0<=PZI<=2) AF_MID5: 42
AF_MID6: 61
IRIS_GAIN: g
AF_TELE: 91
g: adjustment value of gain (0<=g<=255)
IRIS_OFFSET: o
o: adjustment value of offset (0<=o<=255)
OK
4. Lens Adjustment (80 cm)
Adjustment value determination is effectuated using below val-

ues.
The adjustment values fulfill the conditions below, they are
determined as within specifications.
Adjustment value determination
AF_TEMP_AD: ATAD
ATAD: adjustment value of focus temperature A/D
(250<=ATAD<=893)
AF_WIDE: ZW
ZW: adjustment value of focus at zoom position wide
(–102<=ZW<=102)
AF_MID1: ZM1
Camera 80 0.5 cm ZM1: adjustment value of focus at zoom position middle1
(–110<=ZM1<=86)
Siemens AF_MID2: ZM2
star chart ZM2: adjustment value of focus at zoom position middle2
(–930<=ZM2<=64)
AF_MID3: ZM3
Preparation: ZM3: adjustment value of focus at zoom position middle3
POWER switch: ON (–876<=ZM3<=70)
Adjustment condition: AF_MID4: ZM4
Siemens star chart (A3) ZM4: adjustment value of focus at zoom position middle4
Fluorescent light illumination with no flicker (–772<=ZM4<=142)
Illumination above the subject should be 700 lux ± 10%. AF_MID5: ZM5
Note: ZM5: adjustment value of focus at zoom position middle5
Do not vibrate during the adjustment. (–568<=ZM5<=100)
If readjusting after it has already been adjusted, wait for 15 AF_MID6: ZM6
minutes or more for the unit to cool down first. ZM6: adjustment value of focus at zoom position middle6
(–390<=ZM6<=126)
AF_TELE: ZT
ZT: adjustment value of focus at zoom position tele
(–96<=ZT<=204)
– 19 –
5. AWB Adjustment AWB adjustment value determination is effectuated using the
“CHECK", “CHECK_ND”, "MS", “MS_M”, “MS_C”, “MS_C2”,
“IRIS_PWM1”, “IRIS_PWM2”, “IRIS_PWM3”, “IRIS_PWM4”
and “IR_TEMP_AD” values. If
CHECK = wc0, wc1, wc2
CHECK_ND = wnc0, wnc1, wnc2
MS = ms1, ms2
MS_M = ms3, ms4
MS_C = ms5, ms6
MS_C2 = ms7
IRIS_PWM1 = s1, s2
IRIS_PWM2 = s3, s4
IRIS_PWM3 = s5, s6
IRIS_PWM4 = s7
Camera IR_TEMP_AD = itad
the adjustment values fulfill the conditions below, they are
Pattern box determined as within specifications.
(color viewer) Adjustment value determination
wc0=128 ± 2, wc1=128 ± 2, wc3=130 ± 40
wnc0=128 ± 2, wnc1=128 ± 2, wnc3=130 ± 40
Preparation: 840<=ms1<=1140, 420<=ms2<=560,
POWER switch: ON 660<=ms3<=900, 600<=ms4<=820,
Setting of pattern box: 540<=ms5<=740, 490<=ms6<=670,
Color temperature: 3100 ± 20 (K) 460<=ms7<=620
Luminance: 900 ± 20 (cd/m2) 0<=s1<=255, 0<=s2<=255, 0<=s3<=255, 0<=s4<=255,
Adjusting method: 0<=s5<=255, 0<=s6<=255, 0<=s7<=255
1. Set a distance of 0.5-1.0 cm between the pattern box and ms2<ms7<ms6<ms5<ms4<ms3<ms1
the camera. (Do not enter any light.) s1>s2>s3>s4>s5>s6>s7
2. Double-click on the DscCalDi.exe. 250<=itad<=893
3. Click the AWB, and click the Yes. Adjustment values other than the above are irrelevant.
4. AWB adjustment value will appear on the screen.
5. Click the OK. 6. CMOS White Point Defect Detect Adjustment
Preparation:
Dsc Calibration x POWER switch: ON
Adjustment method:
OK
Copy 2. Select “CCD Defect” on the LCD “Test”, and click the “Yes”.
AWB Results: 3. After the adjustment is completed, OK will display.
1: 4. Click the OK.
WB=256,434,474
CHECK=128,128,116
WB_ND=254,438,485
CHECK_ND=128,128,117
IR_TEMP_AD=397
IRIS_PWM1=217,187
IRIS_PWM2=174,162
IRIS_PWM3=152,143
IRIS_PWM4=138
MS=963,528
MS_M=770,709
MS_C=646,593
MS_C2=552
Fno_FOR_ISO=-1
SS_FOR_ISO=-1
– 20 –
7. CMOS Black Point And White Point Defect Detect 8. LED Light AWB Adjustment
Adjustment In Lighted
Gray sheet
Camera
Lens LED light AWB

LED adjustment
Camera 5cm
jig
Seen from above
Pattern box
(color viewer) Place the camera so that the surface of the lens is
parallel to the gray sheet.
The LED should be in the middle of the jig.
Preparation:
POWER switch: ON Seen from above
Setting of pattern box:
Color temperature: 3100 ± 20 (K)
Luminance: 900 ± 20 (cd/m2)
Adjusting method:
1. Set a distance of 0.5-1.0 cm between the pattern box and
the camera.
3. Select “CCD Black” on the LCD “Test”, and click the “Yes”.
4. After the adjustment is completed, the number of defect
will appear.
5. Click the OK.
Preparation:
Turn on the power supply for the camera, and then con-
nect it to the USB port.
Adjustment method:
1. Set so that the distance from the edge of the camera lens
to the gray sheet which is attached to the far end of the
LED light AWB adjustment jig is 5 cm.
(Do not enter any light.)
– 21 –
2. Double-click on the DscCalDi.exe. 3-13. Firmware uploading procedure
3. Input “241” to the “CalMode”, and click the OK. 1. Uploading the firmware should be carried out if the version
4. Adjustment value will appear on the screen. number (COMPL PWB XX-X) on the replacement circuit
5. Click the OK. board is lower than the version of the distributed firmware.
LED light AWB adjustment value determination is effectuated For XX-X, enter the name of the circuit board containing the
using the “LCHECK" value. If firmware.
LCHECK = lwc0, lwc1, lwc2 2. The firmware is distributed by e-mail in self-extracting archive
the adjustment values fulfill the conditions below, they are format. Change the extension of the distributed file to .EXE
determined as within specifications. and save it in your preferred folder.
Adjustment value determination 3. When you double-click the saved file, the firmware (binary
lwc0=128 ± 10, lwc1=128 ± 10, lwc2=130 ± 60 file) will be saved in the same folder.
4. The firmware must not be distributed without permission.
1. Overwriting firmware from the SD card

3-9. Factory Code Setting Preparation:
1. Check the "Factory Code" display within the Setting group. SD card: SD card with firmware rewritten into the root direc-
2. For U.S.A., Canada and NTSC general area tory
If "FC_SANYO_U" does not appear, click on the " " mark Data: S411Nxxx.BIN (xxx: version)
located on the right of the "Factory Code" display BOX and Overwriting method:
select "FC_SANYO_U". 1. Insert the above SD card.
3. For Europe and PAL general area 2. Turn on the camera.
If "FC_SANYO_EX" does not appear, click on the " " mark 3. Set the NORMAL mode.
located on the right of the "Factory Code" display BOX and 4. Press the MENU button.
select "FC_SANYO_EX". 5. Choose the OPTION MENU 3.
6. Choose the FORMAT.
3-10. Language Setting 7. Toggle the arrow button to the left for 2 seconds.
1. Click on the " " mark located on the right of the FIRMWARE UPDATE will display.
"Language" display BOX. 8. Choose YES.
2. Select language. (Default is English.) 9. Press the SET button. Update is starting.
3. End "DscCal" and remove the camera before turning the Note:
camera power OFF. Do not turn off the camera’s power or remove the SD card
while the firmware is being updated.
Calibration Upload LCD The power will turn off after the update is complete.
Firmware
Focus
2. Overwriting firmware from the calibration software
QrCode RGB Offset Gain VCOMPP
Preparation:
UV Matrix
Cal Mode Tint Phase PC with overwriting firmware copied to the preferred folder in
Initialize
OK Hall Cal. the HD.
EVF VCO H AFC Test
Cal Data LCD Type Data: S411Nxxx.BIN (xxx: version)
OK Overwriting method:
Setting 1. Connect the camera’s USB/AV terminal to the computer’
Language
USB storage USB connector.
Get VID Set Serial Set Video Mode 2. The USB Connection screen appears on the camera’s LCD
Factory Code
monitor. Choose the “COMPUTER”, and press the SET
Backrush pulse : Get Set
button. Next, choose the “CARD READER”, and press the
SET button.
3-11. Reset Setting 4. Click the Firmware.
Carry out reset settings after replacing CP1 board. 5. Choose the fimware file to use for overwriting, and click
1. Turn on the camera. the Yes.
2. Set the NORMAL mode, and press the MENU button. 6. Update is starting. The message will appear, and choose
3. Choose the OPTION MENU 3. OK.
4. Choose the RESET SETTINGS, and press the SET button. 7. After the update is complete, disconnect the USB cable
5. Select YES, and press the SET button. and turn the camera’s power off.
Note:
3-12. The Compulsive boot starting method Do not turn off the camera’s power while the firmware is be-
1. Keep SHUTTER button, and the power button depressed ing updated.
while switching on the power.
2. Connect the camera and the computer with USB cable.
– 22 –
4. USB STORAGE INFORMATION
REGISTRATION
USB storage data is important for when the camera is con-
nected to a computer via a USB connection.
If there are any errors in the USB storage data, or if it has not
been saved, the USB specification conditions will not be sat-
isfied, so always check and save the USB storage data.
Preparation:
POWER switch: ON
Adjustment method:
1. Connect the camera to a computer. (Refer to 3-5. Con-
necting the camera to the computer on the page 16.)
3. Click on the Get button in the USB storage window and
check the USB storage data.
VID: SANYO
PID: CS1
Serial:
Rev. : 1.00
4. Check the “Serial” in the above USB storage data. If the
displayed value is different from the serial number printed
on the base of the camera, enter the number on the base
of the camera. Then click the Set button.
5. Next, check VID, PID and Rev. entries in the USB storage
data. If any of them are different from the values in 3. above,
make the changes and then click the corresponding Set
button.
Calibration Upload LCD

Firmware
Focus RGB Offset Gain VCOMPP
QrCode
UV Matrix
Cal Mode Tint Phase
Initialize
OK Hall Cal.
EVF VCO H AFC Test
Cal Data LCD Type
OK
Setting
Language
USB storage
Get VID Set Serial Set Video Mode
Backrush pulse : Get Set Factory Code
– 23 –
5. TROUBLESHOOTING GUIDE
POWER LOSS INOPERATIVE TAKING INOPERATIVE
PUSH THE POWER PUSH SHUTTER

SW FOR A WHILE BUTTON
CL305/CL307 NO KEY_1ST, KEY_2ND NO

CHECK POWER SW CHECK UNIT SW
SAME WAVEFORM INPUT
YES YES
CL305/CL307 NO PAON1, PAON2, LOW CHECK IC101,
WAVEFORM CHECK IC101 VAA2.8 IC501, I2C
“L” PERIODICALLY
YES HIGH
LOW NG CHECK
PON SIGNAL LVDS, I2C
CHECK IC101 CMOS MODULE,
(CL532) COMMUNICATION CAA BLOCK, IC101
HIGH OK
VDD3 NO
VDD1.8 CHECK IC501, IC502 CHECK IC101
VDD1.1
YES
CHECK IC102, IC121
NO PICTURE
IC101-A3 (XOUT) NG
CHECK CHECK IC101, X1102
OSCILLATION
OK
CHECK IC102, IC121
– 24 –
MEMO
– 25 –
6. PARTS LIST
PACKING MATERIALS ACCESSORIES
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
636 136 4041 CARTON INNER-SG411/EX Note: Refer to the table of accessories.
EXCEPT VPC-CS1, VPC-CS1P, VPC-CS1G,
VPC-CS1R, VPC-CS1BK 1 645 102 1823 BATTERY CHARGER
636 136 4102 CARTON INNER-SG411/U 2 645 098 8721 CORD,POWER-1.2MK
VPC-CS1, VPC-CS1P, VPC-CS1G, VPC-CS1R, VPC-CS1EX, VPC-CS1EXP, VPC-CS1EXG,
VPC-CS1BK VPC-CS1EXR, VPC-CS1EXBK, VPC-CS1TA,
636 131 9386 CUSHION BAG-SG455/BXO VPC-CS1TAP, VPC-CS1TAR, VPC-CS1TABK
636 139 0965 LABEL BLACK TEXT-SG411/U5 OR 645 076 0235 CORD,POWER-1.5MK
VPC-CS1BK, VPC-CS1EXBK, VPC-CS1GXBK, VPC-CS1EX, VPC-CS1EXP, VPC-CS1EXG,
VPC-CS1EXBK, VPC-CS1GXBK, VPC-CS1PXBK, VPC-CS1EXR, VPC-CS1EXBK, VPC-CS1TA,
VPC-CS1TABK VPC-CS1TAP, VPC-CS1TAR, VPC-CS1TABK
636 139 4987 LABEL GREEN TEXT-SG411/U3 2 645 084 0104 CORD,POWER-1.8MK
VPC-CS1G, VPC-CS1EXG, VPC-CS1GXG, VPC-CS1, VPC-CS1PX, VPC-CS1P, VPC-CS1PXP,
VPC-CS1PXG VPC-CS1G, VPC-CS1PXG, VPC-CS1R,
636 138 6876 LABEL PINK TEXT-SG411/U2 VPC-CS1PXR, VPC-CS1BK, VPC-CS1PXBK
VPC-CS1P, VPC-CS1EXP, VPC-CS1GXP, OR 645 098 8714 CORD,POWER-1.9MK
VPC-CS1PXP, VPC-CS1TAP VPC-CS1, VPC-CS1PX, VPC-CS1P, VPC-CS1PXP,
636 138 6883 LABEL RED TEXT-SG412/U2 VPC-CS1G, VPC-CS1PXG, VPC-CS1R,
VPC-CS1R, VPC-CS1EXR, VPC-CS1GXR, VPC-CS1PXR, VPC-CS1BK, VPC-CS1PXBK
VPC-CS1PXR, VPC-CS1TAR 3 645 102 3230 CABLE,DSC USB
636 139 6691 LABEL YOU TUBE -SG411/J 4 645 102 3247 CABLE,DSC A/V
VPC-CS1, VPC-CS1P, VPC-CS1G, VPC-CS1R 5 636 138 6838 STRAP-SG411
6 636 126 9513 STRAP CAP LENS-SG315/J
7 636 132 3635 CAP LENS-SG411/J
8 645 102 5180 BATTERY,RECHARGE,LI-ION
9 636 133 2323 DISC,CD-ROM XSC G411 EX
Xacti Software CD
Instruction manual: Dutch, English, French,
German, Italian, Russian, Spanish, Portuguese,
Chinese(Simplified), Chinese(Traditional), Korean
9051 636 132 9071 INSTRUCTION MANUAL(QUICK GUIDE 8)
Dutch, English, French, German, Italian, Russian,
Spanish, Portuguese
9052 636 132 9088 INSTRUCTION MANUAL(QUICK GUIDE 4)
Chinese(Simplified), Chinese(Traditional), Korean,
Turkish
9053 636 132 9095 INSTRUCTION MANUAL(CAMERA,SOFTWARE)
English
9056 636 132 9132 INSTRUCTION MANUAL(SAFETY) English
9060 636 116 9318 INSERTION(HD CAUTION 11)
Dutch, English, French, German, Italian, Russian,
Spanish, Portuguese, Chinese(Simplified),
Chinese(Traditional), Korean
26
Table of accessories
1 2 3
4 5
6 7 8
27
CABINET AND CHASSIS PARTS 1
LOCATION PARTSNO. DESCRIPTION LOCATION PARTSNO. DESCRIPTION
1 636 131 8624 CABINET LEFT-SG411/J 26 636 132 4595 EARTH USB-SG411/J
VPC-CS1, VPC-CS1EX, VPC-CS1GX, 27 636 133 8899 SPACER EARTH USB-SG411/J
VPC-CS1PX, VPC-CS1TA 28 636 135 8293 SPACER JOINT BASE-SG411/J
1 636 133 2583 CABINET LEFT-SG411/J2 29 636 132 3628 DEC BACK-SG411/J
VPC-CS1P, VPC-CS1EXP, VPC-CS1GXP, 30 636 134 9321 SPACER LCD CABLE B-SG411
VPC-CS1PXP, VPC-CS1TAP 31 636 135 8309 SPACER LCD CABLE C-SG411
1 636 134 6740 CABINET LEFT-SG411/J3 32 636 137 7041 SPACER LCD CABLE D-SG411
VPC-CS1G, VPC-CS1EXG, VPC-CS1GXG, 33 636 134 9307 SPACER LCD CABLE A-SG411
VPC-CS1PXG 34 636 134 9246 ADHESIVE SPEAKER-SG411/J
1 636 139 1061 CABINET LEFT-SG411/J4 35 645 101 6591 SPEAKER,8
VPC-CS1R, VPC-CS1EXR, VPC-CS1GXR, 36 636 131 9805 COMPL PWB,TB-2
VPC-CS1PXR, VPC-CS1TAR 37 636 132 3567 DEC LED-SG411/J
1 636 139 1078 CABINET LEFT-SG411/J5 38 636 132 3772 ADHESIVE DEC LED-SG411/J
VPC-CS1BK, VPC-CS1EXBK, VPC-CS1GXBK, 39 645 102 3414 UNIT,BUTTON MAIN-SG411/J
VPC-CS1PXBK, VPC-CS1TABK 40 636 132 3512 COVER RIGHT-SG411/J
2 636 132 3536 COVER CARD-SG411/J VPC-CS1,VPC-CS1EX, VPC-CS1GX,
3 636 138 1376 ADHESIVE CARD A-SG411 VPC-CS1PX, VPC-CS1TA
4 636 138 1383 ADHESIVE CARD B-SG411 40 636 133 2545 COVER RIGHT-SG411/J2
5 636 138 2748 ASSY,CABI RIGHT SV-SG411 VPC-CS1P, VPC-CS1EXP, VPC-CS1GXP,
6 636 140 0718 COVER USB-SG411/J VPC-CS1PXP, VPC-CS1TAP
7 636 134 0908 COVER BATT INNER-SG411/J 40 636 134 6757 COVER RIGHT-SG411/J3
8 636 132 3482 COVER BATTERY-SG411/J VPC-CS1G, VPC-CS1EXG, VPC-CS1GXG,
9 636 125 8289 LABEL CAUTION-SG217/U VPC-CS1PXG
10 636 132 3642 HEAT SINK TOP-SG411/J 40 636 139 1085 COVER RIGHT-SG411/J4
11 636 132 3598 HOLDER LENS TOP-SG411/J VPC-CS1R, VPC-CS1EXR, VPC-CS1GXR,
12 636 133 8967 HOLDER LENS-SG411/J VPC-CS1PXR, VPC-CS1TAR
13 636 134 8720 ADHESIVE DEC LENS-SG411/J 40 636 139 1092 COVER RIGHT-SG411/J5
14 636 132 4700 DEC LENS-SG411/J VPC-CS1BK, VPC-CS1EXBK, VPC-CS1GXBK,
15 636 131 9799 COMPL PWB,CP-2 VPC-CS1PXBK, VPC-CS1TABK
16 636 132 4557 HOLDER LENS BASE-SG411/J 41 636 137 9441 SHIELD TAPE SG411
17 636 133 2354 COMPL PWB,CP-1 F/W 42 636 131 8631 DEC RIGHT-SG411/J
18 636 134 2520 SPACER CHASSIS-SG411/J 101 411 182 4609 SCR PAN PCS 1.7X4.5
19 636 134 9253 SPACER BATT-SG411/J 102 411 177 0906 SCR S-TPG PAN PCS 1.7X3.5
20 636 131 9812 COMPL PWB,TB-3 103 411 192 4101 SCR PAN PCS 1.7X4.0
21 636 132 4601 HOLDER BATTERY -SG411/J 104 411 189 2707 SCR S-TPG PAN PCS 1.7X5
22 636 138 7002 SPACER HL BATT A-SG411 105 411 178 9403 SCR S-TPG PAN PCS 1.7X4.0
23 636 138 7019 SPACER HL BATT B-SG411 106 411 175 5705 SCR PAN PCS 1.7X3
24 636 132 4625 DEC FRONT-SG411/J 107 411 176 1003 SCR PAN PCS 1.7X2.5
25 636 132 4649 ASSY,HOLDER CHASSIS-SG411
28
106
42
41
40
102
39
106
38
102
D A
B
36 35
33 34 37
32
31
29
30
A
107
28
17
107
13 27
B
16
26
18
11 24
19
10
D 25
106
22 C
101
20 23
12 15
106 14 106
13 21 9
8
104
105 2
4
1 101 7
C
103
102 6
101
5
101
SG411/J PARTS LIST 1

Cabinet 1
29
43 636 133 0183 SPACER CMOS-SG411/J 66 636 132 4588 EARTH LCD-SG411/J
44 636 132 4564 PAD LENS-SG411/J 67 636 132 3826 SPACER VF1-SG411/J
45 636 134 9338 SPACER LENS FPC-SG411/J 68 636 133 2606 ASSY,COVER LCD B-SG411/J2
46 645 102 1755 LENS(ASSY) VPC-CS1P, VPC-CS1EXP, VPC-CS1GXP,
47 636 132 9361 SPACER,LENS,SG411 VPC-CS1PXP, VPC-CS1TAP
48 636 137 7089 SPACER CA-SG411/J 68 636 134 6726 ASSY,COVER LCD B-SG411/J3
49 636 132 9255 ASSY,UNIT CCD-SG411 VPC-CS1G, VPC-CS1EXG, VPC-CS1GXG,
50 636 131 8693 DEC JOINT-SG411/J VPC-CS1PXG
51 636 139 1337 SPACER JOINT-SG411/J 68 636 139 1047 ASSY,COVER LCD B-SG411/J4
52 636 131 9287 ASSY,WIRE VF1&CP1-SG411 VPC-CS1R, VPC-CS1EXR, VPC-CS1GXR,
53 636 132 7879 ASSY,JOINT -SG411/J VPC-CS1PXR, VPC-CS1TAR
54 636 132 4540 HOLDER JOINT-SG411/J 68 636 139 1054 ASSY,COVER LCD B-SG411/J5
55 636 131 9782 COMPL PWB,TB-1 VPC-CS1BK, VPC-CS1EXBK, VPC-CS1GXBK,
56 636 139 4932 SPACER MR-SG411 VPC-CS1PXBK, VPC-CS1TABK
57 645 102 2899 ASSY,MAGNET-SG411/J 68 636 132 4632 ASSY,COVER LCD BACK-SG411
58 645 102 3421 UNIT,COVER LCD FRON-SG411 VPC-CS1, VPC-CS1EX, VPC-CS1GX,
59 645 099 8713 MAGNET-SG3F2/USE VPC-CS1PX, VPC-CS1TA
60 645 102 1212 LCD(A027DW01V1) 102 411 177 0906 SCR S-TPG PAN PCS 1.7X3.5
61 636 132 4618 HOLDER LCD-SG411/J 105 411 178 9403 SCR S-TPG PAN PCS 1.7X4.0
62 636 137 7096 SPACER LCD-SG411/J 106 411 175 5705 SCR PAN PCS 1.7X3
63 636 131 9829 COMPL PWB,VF-1 107 411 176 1003 SCR PAN PCS 1.7X2.5
64 636 133 8981 SPACER MIC-SG411 108 411 181 8707 SCR S-TPG PAN PCS 1.4X3.5
65 636 139 5571 SPACER EARTH LCD-SG411/J 109 411 199 0700 SCR TIN 1.7X2
30
58
F 60
61
106 E
59
63
57
56 64
53 65
51 66
109 62
107 65
F
55
E 54 102
50 52 102
67
108 105 68
44
47
108
46
49
48
45
108
44
43
SG411/J PARTS LIST 2

Cabinet 2
31
ELECTRICAL PARTS
Note:
1. Materials of Capacitors and Resistors are abbreviated as follows ;
Resistors Capacitors
MT-FILM Metallized Film Resistor MT-POLYEST Metallized Polyester Capacitor
MT-GLAZE Metallized Glaze Resistor MT-COMPO Metallized Composite Capacitor
OXIDE-MT Oxide Metallized Film Resistor TA-SOLID Tantalum Solid Capacitor
AL-SOLID Aluminum Solid Capacitor
NP-ELECT Non-Polarized Electrolytic Capacitor
OS-SOLID Aluminum Solid Capacitors with Organic
Semiconductive Electrolytic Capacitor
DL-ELECT Double Layered Electrolytic Capacitor
POS-SOLID Polymerized Organic Semiconductor Capacitor
2. Tolerance of Capacitor (10pF over) and Resistor are noted with follow symboles.
F ............1% G ............2% J ............5% K ............10%
M ..........20% N ..........30% Z ..........+80% ~ -20%
3. Capacitors
U : µF P : pF
4. Inductors
UH : µH MH : mH
5. N.S.P. : Not available as service parts.
COMPL PWB,CP-1 F/W (INDUCTORS)

636 133 2354 L1001 945 020 1869 INDUCTOR,750 OHM
L1002 645 094 0521 IMPEDANCE,33 OHM P
(VARISTORS) L1003 645 072 0567 IMPEDANCE,470 OHM P
VA102 308 050 0507 VARISTOR AVR-M1005C080MT L1004 645 094 0521 IMPEDANCE,33 OHM P
(SEMICONDUCTORS) L1008 645 053 5451 IMPEDANCE,600 OHM P
Q1001 305 168 3703 TR DTC144EM L1009 645 053 5451 IMPEDANCE,600 OHM P
OR 305 216 1200 TR RN1104MFV L1010 945 066 4725 IMPEDANCE,600 OHM P
OR 305 172 4703 TR UNR32A3 L1301 645 095 6522 FILTER,EMI 90 OHM
Q1005 305 208 9702 TR SSM3J16TE L1303 945 053 5414 IMPEDANCE,1000 OHM P
Q1006 305 181 4909 TR 2SK3541 L1304 945 053 5414 IMPEDANCE,1000 OHM P
Q1301 305 168 3703 TR DTC144EM L1901 645 090 9719 IMPEDANCE,90 OHM M
OR 305 216 1200 TR RN1104MFV L1902 645 090 9719 IMPEDANCE,90 OHM M
OR 305 172 4703 TR UNR32A3 L5021 645 098 2118 INDUCTOR,4.7U M
Q3001 305 168 4007 TR DTA114EM L5031 645 084 8384 INDUCTOR,4.7U M
OR 305 216 1408 TR RN2102MFV L5061 645 084 8384 INDUCTOR,4.7U M
OR 305 172 4802 TR UNR31A1 L5071 645 093 8153 INDUCTOR,2.2U
Q5003 405 218 4701 TR SSM3J120TU L5101 645 102 3056 INDUCTOR,0.47U N
Q5004 305 181 4909 TR 2SK3541 L5301 645 098 2095 INDUCTOR,2.2U M
Q5019 405 223 2303 TR EM6M1 (CAPACITORS)
Q9001 405 220 5604 TR RUM003N02 C1001 303 381 8109 CERAMIC 1U K 6.3V
Q9002 405 220 5604 TR RUM003N02 C1002 303 384 6508 CERAMIC 10U K 6.3V
(INTEGRATEDCIRCUITS) C1003 303 338 0309 CERAMIC 0.1U K 10V
IC101 409 702 4406 IC EV4X1 BGA (N.S.P.) C1004 303 338 0309 CERAMIC 0.1U K 10V
IC102 410 700 7702 IC K5W121GLCM-AK50 BGA (N.S.P.) C1005 303 384 6409 CERAMIC 4.7U K 6.3V
IC103 409 690 7403 IC TC7SG126FE C1007 303 381 8109 CERAMIC 1U K 6.3V
IC104 409 690 7403 IC TC7SG126FE C1008 303 381 8109 CERAMIC 1U K 6.3V
IC111 409 680 0704 IC AK8113L C1009 303 381 8109 CERAMIC 1U K 6.3V
IC121 410 698 3502 IC M29W640GT60ZA6E BGA (N.S.P.) C1010 303 276 1307 CERAMIC 1000P K 50V
IC151 409 679 4003 IC NJM2561F1A C1011 303 338 0309 CERAMIC 0.1U K 10V
IC181 409 697 3101 IC AK4649ECB-L BGA (N.S.P.) C1012 303 381 8109 CERAMIC 1U K 6.3V
IC182 409 677 2803 IC NJM2877F3-03 C1016 303 381 8109 CERAMIC 1U K 6.3V
IC191 410 671 2508 IC TDA9989ET/C1,518 BGA (N.S.P.) C1017 303 381 8109 CERAMIC 1U K 6.3V
IC302 409 696 2501 IC TCS10NPU C1018 303 276 1000 CERAMIC 0.01U K 16V
IC304 409 684 6801 IC XC61GN2502H- C1020 303 338 0309 CERAMIC 0.1U K 10V
IC501 410 699 0203 IC ADP50260006ACBZ BGA (N.S.P.) C1021 303 338 0309 CERAMIC 0.1U K 10V
IC502 409 701 1901 IC MP38115DQ-LF C1022 303 338 0309 CERAMIC 0.1U K 10V
IC901 409 696 6202 IC XC6221B082G C1024 303 384 6508 CERAMIC 10U K 6.3V
IC902 409 690 0909 IC TK70628HC-G C1025 303 338 0309 CERAMIC 0.1U K 10V
IC903 409 690 0909 IC TK70628HC-G C1026 303 338 0309 CERAMIC 0.1U K 10V
(DIODES) C1028 303 338 0309 CERAMIC 0.1U K 10V
D1901 407 261 8903 DIODE RB520S-30FJ C1030 303 338 0309 CERAMIC 0.1U K 10V
D5071 408 069 2308 DIODE PEMG4005EJ/DG-115 C1032 403 473 7604 CERAMIC 10U M 6.3V
D5101 408 069 2100 DIODE PMEG3010CEJ/DG-115 C1033 403 473 7604 CERAMIC 10U M 6.3V
D5301 408 069 2100 DIODE PMEG3010CEJ/DG-115 C1039 303 338 0309 CERAMIC 0.1U K 10V
(CRYSTAL DEVICES) C1041 303 381 8109 CERAMIC 1U K 6.3V
X1102 645 091 5208 OSC,CRYSTAL 48.00000MHZ C1044 303 381 8109 CERAMIC 1U K 6.3V
X5001 645 080 8708 OSC,CRYSTAL 32.768KHZ C1051 303 381 8109 CERAMIC 1U K 6.3V
32
C1053 303 338 0309 CERAMIC 0.1U K 10V C5302 403 458 4307 CERAMIC 22U M 6.3V
C1058 303 338 0309 CERAMIC 0.1U K 10V C9001 303 381 8109 CERAMIC 1U K 6.3V
C1059 303 381 8109 CERAMIC 1U K 6.3V C9002 303 380 6601 CERAMIC 0.22U K 6.3V
C1064 303 381 8109 CERAMIC 1U K 6.3V C9004 303 381 8109 CERAMIC 1U K 6.3V
C1121 303 279 2905 CERAMIC 6P D 50V C9008 303 276 1307 CERAMIC 1000P K 50V
C1122 303 314 6400 CERAMIC 7P D 50V C9009 303 380 6601 CERAMIC 0.22U K 6.3V
C1201 303 381 8109 CERAMIC 1U K 6.3V C9010 403 473 7604 CERAMIC 10U M 6.3V
C1204 303 338 0309 CERAMIC 0.1U K 10V C9012 303 384 6409 CERAMIC 4.7U K 6.3V
C1206 303 338 0309 CERAMIC 0.1U K 10V C9015 303 276 1307 CERAMIC 1000P K 50V
C1209 303 375 0300 CERAMIC 4.7U K 4V C9018 303 276 1307 CERAMIC 1000P K 50V
C1210 303 338 0309 CERAMIC 0.1U K 10V (RESISTOR PACKS)
C1304 303 433 1102 CERAMIC 1U K 10V RB101 945 037 0817 R-NETWORK 0X4 1/16W
C1401 303 338 0309 CERAMIC 0.1U K 10V RB102 945 037 0817 R-NETWORK 0X4 1/16W
C1501 303 338 0309 CERAMIC 0.1U K 10V RB103 945 037 0817 R-NETWORK 0X4 1/16W
C1503 303 384 6409 CERAMIC 4.7U K 6.3V RB104 945 037 0817 R-NETWORK 0X4 1/16W
C1801 303 338 0309 CERAMIC 0.1U K 10V RB105 645 078 4279 R-NETWORK 100X2 0.063W
C1802 303 384 6409 CERAMIC 4.7U K 6.3V RB106 645 078 5719 R-NETWORK 10KX2 0.063W
C1803 303 381 8109 CERAMIC 1U K 6.3V RB107 645 078 5719 R-NETWORK 10KX2 0.063W
C1804 303 338 0309 CERAMIC 0.1U K 10V RB108 945 028 0703 R-NETWORK 1KX4 1/16W
C1806 303 381 8109 CERAMIC 1U K 6.3V RB110 945 028 0710 R-NETWORK 10KX4 1/16W
C1807 303 381 8109 CERAMIC 1U K 6.3V RB111 645 078 4941 R-NETWORK 4.7KX2 0.063W
C1811 303 279 5005 CERAMIC 4700P K 25V RB116 645 068 6405 R-NETWORK 150KX2 1/16W
C1813 303 381 8109 CERAMIC 1U K 6.3V RB123 645 078 4279 R-NETWORK 100X2 0.063W
C1814 303 381 8109 CERAMIC 1U K 6.3V RB124 945 028 0697 R-NETWORK 100X4 1/16W
C1907 303 381 8109 CERAMIC 1U K 6.3V RB143 945 028 0710 R-NETWORK 10KX4 1/16W
C1908 303 338 0309 CERAMIC 0.1U K 10V RB181 645 091 5420 R-NETWORK 20KX2 0.063W
C1909 303 381 8109 CERAMIC 1U K 6.3V RB183 645 091 5451 R-NETWORK 200X2 0.063W
C1910 303 276 1000 CERAMIC 0.01U K 16V RB184 645 078 4309 R-NETWORK 100KX2 0.063W
C1911 303 338 0309 CERAMIC 0.1U K 10V RB191 645 078 4576 R-NETWORK 1.8KX2 0.063W
C3001 303 338 0309 CERAMIC 0.1U K 10V (RESISTORS)
C5001 303 305 8505 CERAMIC 15P J 50V R1001 301 224 9405 MT-GLAZE 1.0M JA 1/16W
C5002 303 305 8505 CERAMIC 15P J 50V R1002 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
C5003 303 384 6300 CERAMIC 2.2U K 6.3V R1003 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
C5004 303 391 0506 CERAMIC 10U K 6.3V R1004 301 310 0606 MT-GLAZE 51 DD 1/16W
C5005 303 384 6300 CERAMIC 2.2U K 6.3V R1005 301 224 9405 MT-GLAZE 1.0M JA 1/16W
C5009 303 381 8109 CERAMIC 1U K 6.3V R1007 301 225 1804 MT-GLAZE 47 JA 1/16W
C5010 403 461 5407 CERAMIC 4.7U K 10V R1008 301 224 9702 MT-GLAZE 22 JA 1/16W
C5017 303 381 8109 CERAMIC 1U K 6.3V R1009 301 224 9306 MT-GLAZE 1K JA 1/16W
C5018 303 433 1102 CERAMIC 1U K 10V R1010 301 225 1408 MT-GLAZE 47K JA 1/16W
C5021 403 458 4307 CERAMIC 22U M 6.3V R1011 301 224 9108 MT-GLAZE 150 JA 1/16W
C5031 403 458 4307 CERAMIC 22U M 6.3V R1012 301 302 2700 MT-GLAZE 47 DD 1/16W
C5032 303 376 9401 CERAMIC 1U K 6.3V R1014 301 312 0703 MT-GLAZE 20 JA 1/16W
C5033 303 420 6905 CERAMIC 0.22U K 6.3V R1015 301 225 1804 MT-GLAZE 47 JA 1/16W
C5063 303 433 1102 CERAMIC 1U K 10V R1018 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
C5064 303 276 1901 CERAMIC 22P J 50V R1019 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
C5072 303 408 5500 CERAMIC 2.2U K 16V R1020 301 224 9009 MT-GLAZE 10K JA 1/16W
C5073 303 380 6601 CERAMIC 0.22U K 6.3V R1021 301 224 8804 MT-GLAZE 100 JA 1/16W
C5103 303 381 8109 CERAMIC 1U K 6.3V R1024 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
C5104 303 338 0309 CERAMIC 0.1U K 10V R1026 301 302 4407 MT-GLAZE 1.6K DD 1/16W
C5105 303 393 2607 CERAMIC 22U M 6.3V R1027 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
C5107 303 277 1207 CERAMIC 220P K 50V R1029 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
33
R1032 301 224 9009 MT-GLAZE 10K JA 1/16W R5106 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1033 301 226 1506 MT-GLAZE 0.000 ZA 1/16W R5190 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1035 301 262 0600 MT-GLAZE 22K DC 1/16W R5194 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1036 301 224 9306 MT-GLAZE 1K JA 1/16W R9001 301 225 1200 MT-GLAZE 4.7K JA 1/16W
R1037 301 258 6609 MT-GLAZE 10K DC 1/16W R9002 301 225 1200 MT-GLAZE 4.7K JA 1/16W
R1039 301 224 9306 MT-GLAZE 1K JA 1/16W R9005 301 224 9504 MT-GLAZE 2.2K JA 1/16W
R1040 301 226 1506 MT-GLAZE 0.000 ZA 1/16W R9006 301 261 1509 MT-GLAZE 4.3K JA 1/16W
R1041 301 226 1506 MT-GLAZE 0.000 ZA 1/16W R9008 301 224 9009 MT-GLAZE 10K JA 1/16W
R1042 301 224 9009 MT-GLAZE 10K JA 1/16W R9013 301 224 9702 MT-GLAZE 22 JA 1/16W
R1043 301 226 1506 MT-GLAZE 0.000 ZA 1/16W R9014 301 224 9702 MT-GLAZE 22 JA 1/16W
R1046 301 224 9405 MT-GLAZE 1.0M JA 1/16W (THERMISTOR)
R1048 301 224 8804 MT-GLAZE 100 JA 1/16W TH101 308 054 7700 TH NCP15WF104F03-RC
R1049 301 224 8903 MT-GLAZE 100K JA 1/16W (SWITCH)
R1050 301 226 1506 MT-GLAZE 0.000 ZA 1/16W S3001 645 098 9094 SWITCH,PUSH 1P-1T
R1051 301 224 8903 MT-GLAZE 100K JA 1/16W (FUSES)
R1052 301 226 1506 MT-GLAZE 0.000 ZA 1/16W F5001 323 031 1700 FUSE 32V 2A
R1054 301 224 9306 MT-GLAZE 1K JA 1/16W F5002 323 031 1700 FUSE 32V 2A
R1056 301 224 8804 MT-GLAZE 100 JA 1/16W F5006 423 034 0509 FUSE 32V 1A
R1121 301 263 1705 MT-GLAZE 1.2K DC 1/16W (CONNECTORS)
R1122 301 224 9405 MT-GLAZE 1.0M JA 1/16W CN105 645 101 7017 SOCKET,PWB-WIRE 30P (N.S.P)
R1201 301 226 1506 MT-GLAZE 0.000 ZA 1/16W CN106 645 091 5772 SOCKET,PWB-PWB 40P (N.S.P)
R1210 301 225 8100 MT-GLAZE 10 JA 1/16W CN110 645 097 2287 SOCKET,8P (N.S.P)
R1401 301 224 8804 MT-GLAZE 100 JA 1/16W CN141 645 098 7236 SOCKET,CARD(SD) 12P (N.S.P)
R1501 301 277 5409 MT-GLAZE 75 DD 1/16W CN141 645 100 1238 SOCKET,CARD(SD) 12P (N.S.P)
R1801 301 225 8100 MT-GLAZE 10 JA 1/16W CN191 645 097 3888 SOCKET,IF(HDMI) 19P (N.S.P)
R1803 301 226 1506 MT-GLAZE 0.000 ZA 1/16W CN901 645 092 7836 PLUG,PWB-PWB 44P (N.S.P)
R1804 301 224 8903 MT-GLAZE 100K JA 1/16W
R1805 301 224 8903 MT-GLAZE 100K JA 1/16W
R1814 301 224 9009 MT-GLAZE 10K JA 1/16W COMPL PWB,CP-2
R1815 301 224 9009 MT-GLAZE 10K JA 1/16W 636 131 9799
R1902 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R1911 301 225 1200 MT-GLAZE 4.7K JA 1/16W (SEMICONDUCTORS)
R1918 301 226 1506 MT-GLAZE 0.000 ZA 1/16W Q3501 305 186 7301 TR UP04213 00
R1919 301 226 1506 MT-GLAZE 0.000 ZA 1/16W OR 305 181 1205 TR NSBC144EDXV6T5
R1921 301 224 9009 MT-GLAZE 10K JA 1/16W OR 305 173 4009 TR PEMH2
R1922 301 258 6609 MT-GLAZE 10K DC 1/16W OR 305 166 9509 TR EMH2
R1924 301 226 1506 MT-GLAZE 0.000 ZA 1/16W Q6101 305 183 4006 TR 3LN01S-TL-E
R1925 301 226 1506 MT-GLAZE 0.000 ZA 1/16W Q9701 305 184 6009 TR UP03396
R1934 301 225 0104 MT-GLAZE 27K JA 1/16W (INTEGRATEDCIRCUITS)
R1937 301 225 0203 MT-GLAZE 3.3K JA 1/16W IC951 409 701 6401 IC BU24025MWV
R3001 301 224 9009 MT-GLAZE 10K JA 1/16W IC971 409 702 3013 IC AK7331S-L
R5001 301 224 9306 MT-GLAZE 1K JA 1/16W (CAPACITORS)
R5004 301 259 2105 MT-GLAZE 1 JA 1/16W CB971 403 467 3704 CERAMIC 1U K 6.3V
R5030 301 224 8903 MT-GLAZE 100K JA 1/16W C6102 303 381 8109 CERAMIC 1U K 6.3V
R5031 301 224 8804 MT-GLAZE 100 JA 1/16W C9502 303 338 0309 CERAMIC 0.1U K 10V
R5032 301 224 9207 MT-GLAZE 15K JA 1/16W C9503 303 338 0309 CERAMIC 0.1U K 10V
R5035 301 226 1506 MT-GLAZE 0.000 ZA 1/16W C9507 303 338 0309 CERAMIC 0.1U K 10V
R5058 301 240 9601 MT-GLAZE 680K JA 1/16W C9511 303 276 1307 CERAMIC 1000P K 50V
R5059 301 224 8903 MT-GLAZE 100K JA 1/16W C9512 303 276 1307 CERAMIC 1000P K 50V
R5061 301 262 0808 MT-GLAZE 18K DC 1/16W C9551 303 381 8109 CERAMIC 1U K 6.3V
R5062 301 258 0706 MT-GLAZE 3.9K DC 1/16W C9701 303 433 1102 CERAMIC 1U K 10V
R5066 301 226 1506 MT-GLAZE 0.000 ZA 1/16W C9704 303 279 5005 CERAMIC 4700P K 25V
R5071 301 258 6609 MT-GLAZE 10K DC 1/16W C9705 303 282 5108 CERAMIC 470P K 50V
R5072 301 258 6708 MT-GLAZE 12K DC 1/16W C9706 303 276 1307 CERAMIC 1000P K 50V
R5073 301 257 4002 MT-GLAZE 68K DC 1/16W C9707 303 338 0309 CERAMIC 0.1U K 10V
R5095 301 105 7902 MT-GLAZE 0.000 ZA 1/16W C9710 303 381 8109 CERAMIC 1U K 6.3V
R5096 301 226 1506 MT-GLAZE 0.000 ZA 1/16W C9712 303 294 6100 CERAMIC 100P J 50V
R5097 301 105 7902 MT-GLAZE 0.000 ZA 1/16W (RESISTOR PACKS)
R5098 301 226 1506 MT-GLAZE 0.000 ZA 1/16W RB951 645 078 4606 R-NETWORK 220X2 0.063W
R5099 301 226 1506 MT-GLAZE 0.000 ZA 1/16W RB952 645 078 4903 R-NETWORK 39KX2 0.063W
R5101 301 225 8100 MT-GLAZE 10 JA 1/16W RB972 945 042 8204 R-NETWORK 33KX4 1/16W
R5102 301 258 6609 MT-GLAZE 10K DC 1/16W (RESISTORS)
R5103 301 274 9707 MT-GLAZE 24K DC 1/16W R3501 301 263 2306 MT-GLAZE 750 JA 1/16W
R5104 301 278 3305 MT-GLAZE 160K DC 1/16W R3502 301 225 7905 MT-GLAZE 220 JA 1/16W
34
R3503 301 225 0203 MT-GLAZE 3.3K JA 1/16W C1708 303 314 6400 CERAMIC 7P D 50V
R3504 301 234 9907 MT-GLAZE 6.8K JA 1/16W C1709 303 397 7608 CERAMIC 1U K 25V
R3505 301 224 9009 MT-GLAZE 10K JA 1/16W C1710 303 397 7608 CERAMIC 1U K 25V
R6101 301 267 6904 MT-GLAZE 130 JA 1/16W C1711 303 397 7608 CERAMIC 1U K 25V
R9501 301 340 7101 MT-GLAZE 1 FE 1/10W C1715 403 470 1209 CERAMIC 1U K 16V
R9506 301 341 9203 MT-GLAZE 6.2 FE 1/10W C1717 403 461 5407 CERAMIC 4.7U K 10V
R9507 301 341 9203 MT-GLAZE 6.2 FE 1/10W C1718 303 382 7804 CERAMIC 2.2U K 10V
R9509 301 257 4101 MT-GLAZE 100K DC 1/16W C1719 303 433 1102 CERAMIC 1U K 10V
R9708 301 224 9504 MT-GLAZE 2.2K JA 1/16W C3701 303 381 8109 CERAMIC 1U K 6.3V
R9709 301 225 0500 MT-GLAZE 33K JA 1/16W (RESISTOR PACKS)
(CONNECTORS) RB170 945 037 4372 R-NETWORK 220X4 1/16W
CN601 645 091 5789 PLUG,PWB-PWB 40P (N.S.P) RB177 645 078 4224 R-NETWORK 0X2 0.063W
CN602 645 101 9554 SOCKET,FPC 9P (N.S.P) RB179 945 037 4372 R-NETWORK 220X4 1/16W
CN951 645 095 5433 SOCKET,FPC 27P (N.S.P) (RESISTORS)
(RECHARGEABL BATTERY) R1701 301 226 5504 MT-GLAZE 120 JA 1/16W
Z3001 645 098 9551 BATTERY,RECHARGE (LITHIUM) R1713 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
(MISCELLANEOUS) R1853 301 224 8804 MT-GLAZE 100 JA 1/16W
636 134 9352 SPACER CARD-SG411/J R1854 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R3701 301 229 7208 MT-GLAZE 18K JA 1/16W
R3702 301 234 9907 MT-GLAZE 6.8K JA 1/16W
COMPL PWB,TB-1 R3703 301 234 9907 MT-GLAZE 6.8K JA 1/16W
636 131 9782 R3704 301 225 0203 MT-GLAZE 3.3K JA 1/16W
R3705 301 225 0203 MT-GLAZE 3.3K JA 1/16W
(INTEGRATEDCIRCUIT) R3706 301 224 9009 MT-GLAZE 10K JA 1/16W
IC361 409 694 9304 IC TCS10SPU R3707 301 224 9009 MT-GLAZE 10K JA 1/16W
(WIRES) (MICROPHONES)
636 099 7332 ASSY,WIRE LCD&VF1-SG111 (N.S.P) MIC01 645 101 9141 MICROPHONE (N.S.P)
636 105 3655 ASSY,WIRE LCD&CP1-SG256 (N.S.P) MIC02 645 101 9141 MICROPHONE (N.S.P)
636 131 9294 ASSY,WIRE VF1&TB1-SG411 (N.S.P) (CONNECTORS)
CN171 645 101 9615 SOCKET,FPC 41P (N.S.P)
CN172 645 101 7017 SOCKET,PWB-WIRE 30P (N.S.P)
COMPL PWB,TB-2 CN173 645 101 9905 SOCKET,FPC 8P (N.S.P)
636 131 9805
(DIODE)
D6201 407 269 7502 LED SW1305A-14
(WIRES)
636 131 9324 ASSY,WIRE TB2&CP2-SG411 (N.S.P)
636 131 9331 ASSY,WIRE CP2&TB2-SG411 (N.S.P)
COMPL PWB,TB-3
636 131 9812
(WIRES)
636 132 8128 ASSY,WIRE BATT+ SG411 (N.S.P)
636 140 4204 ASSY,WIRE BATT- SG411 (N.S.P)
636 132 8142 ASSY,WIRE BAT_T SG411 (N.S.P)
(TERMINAL)
CN651 645 102 3759 TERMINAL,3P-SG411
COMPL PWB,VF-1
636 131 9829
(VARISTORS)
VA301 308 050 0507 VARISTOR AVR-M1005C080MT
VA302 308 050 0507 VARISTOR AVR-M1005C080MT
(SEMICONDUCTOR)
Q5571 305 200 6006 TR UP03397
(INDUCTORS)
L1701 645 072 0567 IMPEDANCE,470 OHM P
L1702 645 072 0567 IMPEDANCE,470 OHM P
L1703 645 053 2238 IMPEDANCE,470 OHM P
(CAPACITORS)
C1701 403 461 5407 CERAMIC 4.7U K 10V
35

CIRCUIT DIAGRAMS & PRINTED WIRING BOARDS
TABLE OF CONTENTS

OVERALL WIRING & BLOCK DIAGRAMS Page
OVERALL WIRING..............................................................................................................................................C3
OVERALL CIRCUIT.............................................................................................................................................C4
MAIN CIRCUIT .................................................................................................................................................. C5
LENS CIRCUIT . ................................................................................................................................................ C6
POWER CIRCUIT...............................................................................................................................................C6

CIRCUIT DIAGRAMS
MAIN CIRCUIT WAVEFORMS............................................................................................................................c7
LCD CIRCUIT WAVEFORMS . .......................................................................................................................... C7
CP1 BOARD (DMA) MAIN ............................................................................................................................... C8
CP1 BOARD (PWA) POWER.......................................................................................................................... C13
CP1 BOARD (CAA) SENSOR POWER.......................................................................................................... C14
CP2 BOARD (TCA) LENS . ............................................................................................................................ C15
CP2 BOARD (DMB) BACKUP BATTERY & TERMINAL ................................................................................. C16
TB1 BOARD HINGE . ..................................................................................................................................... C16
TB2 BOARD LED LIGHT . .............................................................................................................................. C16
TB3 BOARD BATTERY TERMINAL ............................................................................................................... C16
VF1 BOARD LCD CONNECTOR & MIC ........................................................................................................ C17

PRINTED WIRING BOARDS (P.W.B.)
CP1 P.W.B. (SIDE A & B) ................................................................................................................................ C18
CP2 P.W.B. (SIDE A & B) ................................................................................................................................ C19
TB1 P.W.B. (SIDE A & B) ................................................................................................................................. C19
TB2 P.W.B. (SIDE A & B) ................................................................................................................................. C19
TB3 P.W.B. (SIDE A & B) ................................................................................................................................. C19
VF1 P.W.B. (SIDE A & B) ................................................................................................................................. C19
C1
NOTES:
1. All resistance values in "OHMS" unless otherwise noted.
(K=1,000 ; M=1,000,000)
2. All capacitance values in "µF" unless otherwise noted.
p=pico farad ; n=nano farad ; µ ,u or U=micro farad
3. All inductance values in "µH" unless otherwise noted.
µ ,u or U=micro henry ; m=milli henry
Figure of printed wiring boards
Multilayer board:
"Side A" means the view from A side of the board.
"Side B" means the view from B side of the board.
Singlelayer board:
View from the copper-foil side of the board, otherwise noted.
PRODUCT SAFETY NOTICE

THE COMPONENTS DESIGNATED BY A SYMBOL ( ) IN THIS
SCHEMATIC DIAGRAM DESIGNATES COMPONENTS WHOSE VAL-
UE ARE OF SPECIAL SIGNIFICANCE TO PRODUCT SAFETY.
SHOULD ANY COMPONENT DESIGNATED BY A SYMBOL NEED TO
BE REPLACED, USE ONLY THE PART DESIGNATED IN THE PARTS
LIST.
DO NOT DEVIATE FROM THE RESISTANCE, WATTAGE AND VOLT-
AGE RATINGS SHOWN.
EXPLANATORY NOTES (EXAMPLES)

Resistor 10K:1/16J means 10kilo ohm ±5%, 1/16watt max.
1M:1/10D means 1mega ohm ±0.5%, 1/10watt max.
(Tolerance K:±10%, J:±5%, G:±2%, F:±1%, D:±0.5%)
Capacitor 0.047:F means 0.047micro farad, Ftype.
Electrolytic capacitor
10:16 means 10micro farad, 16volt max.
Inductor 330:J means 330micro henry ±5%
470:K means 470micro henry ±10%
No description J or K means ±5%
The number of "H=##" written in slant character, shows the voltage.

The number of "H=##" written in upright character, shows the height of the parts.
PAL-H-EX
C2

OVERALL WIRING & BLOCK DIAGRAMS
K OVERALL WIRING
K
LCD
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
JW363
GND GND
GMA_H
BK
TB2
HSYSC
1 1 VSYSC
VCOM
VCOM
DATA0
DATA1
DATA2
DATA3
DATA4
DATA5
DATA6
DATA7
VLED+
Z1
CN171
PVDD
C1AM
C1BM
VCAC
DCLK
VLED-
C1AP
C1BP
VINT1
VINT2
GND
GND
VGH
VCC
DRV
C2M
C3M
SDA
V_10
J
FRP
VGL
SCL
C2P
C3P
J
V_5
VIO
JW173
TB1 CS
JW362
Z2
RD VDD3 1 1 VDD3
JW172
JW361
RED
BLACK
WT HINGE 1 1 HINGE
JW171 DIGITAL DIGITAL
VF1
CN173
LIGHT_DRV
BOOST5.0V
MIC R MIC L
JW621
JW622
UNIT SW
SET 1
RIGHT 2
UP 3
Z4
I DOWN 4
I
MIC_GND
MIC_GND
MIC_VDD
AD_KEY2
AD_KEY1
LEFT
DMDAT
DMCLK
LCDHD
5
LCDVD
LCDEN
LCDCK
LCDSD
LCDCA
LCDAN
LMCLK
LCDD0
LCDD1
LCDD2
LCDD3
LCDD4
LCDD5
LCDD6
LCDD7
Z3
HINGE
1
VDD3
CN172
GND
GND
GND
GND
GND
MENU 6
PLAY 7
Z2
GND 8
Z1
Z2 Z1
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
LIGHT_DRV
BOOST5.0V
JW601
JW602
H H
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
2
3
4
5
6
7
8
9
Z1
CN602
UNIT SW
CN106 CN601 BOOST5.0V 1
MIC_GND
MIC_GND
DMCDAT
MIC_VDD
AD_KEY2
AD_KEY1
DMCLK
LCDEN
LCDCK
LCDSD
LCDCA
LCDAN
LMCLK
LCDHD
LCDVD
LCDD0
LCDD1
LCDD2
LCDD3
LCDD4
LCDD5
LCDD6
LCDD7
CN105
Z2
HINGE
AD_KEY3 AD_KEY3 GREEN_LED

VDD3
GND
GND
GND
GND
GND
1 1 2
RD
BK
CN901 KEY_2ND 2 2 KEY_2ND RED_LED 3
Z3
44 VDDC KEY_1ST 3 3 KEY_1ST DMB KEY_1ST 4

43 VDDC GND 4 4 GND DMB KEY_2ND 5
Z4
42 GND BUCK_UP_BAT 5 5 BUCK_UP_BAT KEY_TELE 6

41 SLVS3P DMA GND 6 6 GND KEY_WIDE 7
40 SLVS3N LED_GREEN 7 7 LED_GREEN KEY_VREC 8
G 39
38
GND
SLVS2P
LED_RED
LIGHT_ON
8
9
8
9
LED_RED
LIGHT_ON
GND 9
G
Z2 Z1
37 SLVS2N GND 10 10 GND
36 GND G_EN 11 11 G_EN
35 SLVSCP LENS_SDI 12 12 LENS_SDI CN951
CP2
34 SLVSCN LENS_SCLK 13 13 LENS_SCLK FOCUS_PI_K 1
33 GND LENS_EN 14 14 LENS_EN FOCUS_PI_E 2
32 SLVS1P SHUTTER+ 15 15 SHUTTER+ FOCUS_PI_AC 3
31 SLVS1N OC_EN 16 16 OC_EN THERMISTOR+ 4
F
30
29
GND
SLVS0P
OC_CONT 17
P_ON 18
17
18
OC_CONT
P_ON (DMB) THERMISTOR-
ZOOM_A-
5
6
F
(TCA)
28 SLVS0N GND 19 19 GND DMB ZOOM_B+ 7
DMA
27 GND CLK12M 20 20 CLK12M ZOOM_A+ 8
26 GND HALL_OUT 21 21 HALL_OUT ZOOM_B- 9
LENS
CP1
AGND GND GND ZOOM_PI_AC
MODULE
25 22 22 10
24 VAA FOCUS_PI_E 23 23 FOCUS_PI_E ZOOM_PI_K 11
CMOS
23 VAA ZOOM_PI_E 24 24 ZOOM_PI_E TCA ZOOM_PI_E 12

22 VAAPIX GND 25 25 GND NC 13
21 VAAPIX LENS_TEMP 26 26 LENS_TEMP DRIVE+ 14
CAA
(DMA)
20 AGND VDD3 27 27 VDD3 DRIVE- 15
19 GND VDD3 28 28 VDD3 NC 16
E 18 VDD_SLVS_TX STATE_F 29 29 STATE_F HALL_IN+ 17 E
17 VDDPLL STATE_Z 30 30 STATE_Z HALL_OUT- 18
(CAA)
16 VDDPLL G_RESETN 31 31 G_RESETN HALL_OUT+ 19
15 GND GND 32 32 GND HALL_IN- 20
14 ADCK IRISPWM 33 33 IRISPWM NC 21
13 GND IAMPPWM 34 34 IAMPPWM ND- 22
(PWA)
12 SDA HALL_OFFSET 35 35 HALL_OFFSET ND+ 23
11 SCL GND 36 36 GND FOCUS_B- 24
10 RESETN BOOST5 37 37 BOOST5 FOCUS_A+ 25
9 GND BOOST5 38 38 BOOST5 FOCUS_B+ 26
D 8
7
GND
GND
BOOST5
BOOST5
39
40
39
40
BOOST5
BOOST5
FOCUS_A- 27
D
Z2 Z1
6 TGVD
5 GND
4 GND
3 GND W1-24200/SG411-U
VDDIO
TB3
2
1 VDDIO
SPEAKER
Z1 Z2 Z3 Z4
JW186
C SP+ 1 C
JW651 JW501
BAT+ 1 1 BAT+ JW185
CN651 RD
RD SP- 1
1 + JW652 JW503 DMA DMA DMA DMA

2 T T 1 1 T PWA
TMDS CLK SHD
DDC/CEC GND
TMDS DATA1+
-
TMDS DATA2+
TMDS DATA0+
HOTPLUG DET
Z4
TMDS DATA1-
3
TMDS DATA2-
GY
TMDS DATA0-
TMDS SHLD2
TMDS SHLD0
TMDS SHLD1
TMDS CLK+
GY
Z4
TMDS CLK-
COMMAND
RESERVED
VIDEO_OUT
Z4
COMMON
TO BATTERY
DDC SDA
ZAVJACK
USBVDD
AUDIO_R
DDC SCL
AUDIO_L
DDC+5V
USB_D+
CLOCK
USB_D-
CN191
DATA3
DATA0
DATA1
DATA2
JW653
Z3
Z3
CARD
CN110
JW502
CN141
GND
CEC
VDD
VSS
VSS
Z3
WP
B BAT- 1 1 BAT-
B
Z2
Z2
Z2
BL BL
Z1
Z1
Z1
10
11
12
13
14
15
16
17
18
19
10
11
12
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
mini HDMI USB & AV SD

A A
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
C3

K OVERALL CIRCUIT
K
X1102
48.00000MHz CP1 BOARD
CP2 BOARD
TCA BLOCK
12MHz
IC951 LENS UNIT
27MHz
J
CN951
IC111 LENS DRIVER
FPC x9 J
B to B
B to B
CLOCK GEN 74.175824MHz LENS,IRIS CONTROL
IC971
IRIS CONTROL
BACK UP
CAA BLOCK LED LIGHT CONTROL
CMOS MODULE PAON1,PAON2 R MATRIX AD-PORTX R
CN106
CN601
REG
I 1ST,2ND I
BtoB
BtoB
MATRIX BACKUP TB2 BOARD

BATTERY
CMOS_[SDA,SCL] LED LIGHT
14M SLVSD[0:3]N,SLVSD[0:3]P, DMB BLOCK
CMOS
SLVSC[N,P]
CN602 FPC
ADCK IC101
CN911
CN901
SYSTEM ASIC
UNIT SW
H RESET_N H
[GREEN, RED]_LED
SDCLK 1ST/2ND,VREC,TELE/WIDE
BOARD TEMP
IC141 SDWP BATTERY
SD CARD SDCMD,SDDAT[3:0] ARM
SOCKET CPU
DDR
266MHz LCD[EN,CK,SD],LCDD[0:7],LCD[HD,VD],LMCLK VF1 BOARD
CN172 B to W
CN105 B to W
G 1.8V FPC G
IC102 HINGE
POWER LCD
ONENAND FLASH ONE NAND SEQUENCER R MATRIX AD-PORT×2 DIGITAL DIGITAL 2.7inch
CN171
MEMORY: 512Mbit 3.3V MIC MIC 16:9
DDR SDRAM: 1GByte L R
PANEL OPEN/CLOSE HALL
SENSOR MAGNET
IC121 PON,PAON[1,2],BACKLIGHT
PANEL
F NOR FLASH CLK32K OPEN/CLOSE DETECT TB1 BOARD F
MEMORY NOR
PWA BLOCK R
DM[DAT,CLK]
8MByte 3.3V POWER MANAGEMENT

MATRIX
VPIXCLK,UV[0:7],Y[0:7]
HINGE
X5001
32.768KHz
RTC CN173 FPC
HDMI_INT
CEC,HOTPLUG DET
E IC151 IC181
AUDIO CODEC
E
VIDEO DRIVER
I2C
I2S
TB3
IC501
AUDIO_[L,R]OUT
BOARD NS60 UNIT SW

SWITCHING BATTERY
IC191 TEMP BATTERY LITIUM ION
CONTROL UP,DOWN,LEFT,RIGHT,
VIDEOOUT
BATTERY
DDC
HDMI TRANSMITTER
USBD[+,-]
TERMINAL SET,PLAY,MENU
700mAh min
SP+
SP-
TMDS
+, -, TEMP SG411_ALL_BLOCK
D D
SPEAKER
CN191 mini HDMI CN110 USB & AV
C C
B B
A A
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
C4

K MAIN CIRCUIT
K
XO X1102
CMOS_SDA
XI 48.00000MHz
CMOS_SCL
ADCK 27MHz
CMOS CN901 IC111
J MODULE BtoB SLVSD[0:3]N,SLVSD[0:3]P,SLVSC[N,P] CLOCK J
74.175824MHz
GENERATOR
HINGE TB1
VF1 BOARD
AD_KEY1 , AD_KEY2 BOARD
I SHUTTER+
I
LENS_[EN,SCLK,SDI]
IC951 STATE_[F,Z] CN105 DIGITAL DIGITAL UNIT
LCDEN,LCDCK,LCDSD
LENS BtoW MIC MIC SW
LMCLK L R
DRIVER CLK12M LCDD[0:7]
LENS CN951 LCDHD,LCDVD
H UNIT FPC [ZOOM,FOCUS]_PI_E,LENS_TEMP DM[DAT,CLK] H
OC_[CONT,EN]
IC971 IRISPWM CN106
IAMPPWM BtoB
IRIS SDCLK
HALL OFFSET CN601
CONTROL SDCMD
G_[RESETN,EN],LENS[SCLK,SDI]
SDDAT[0:3] CN141
HALL_OUT
G SDWP SD G
TB2 LIGHT ON
JUMPER
LED
VPIXCLK
KEY_[WIDE,VREC],KEY_[2ND,1ST]
CN602
IC101 Y[0:7]
TxC[+,-]
UNIT SW [RED,GREEN]_DRV UV[0:7]
Tx0[+,-]
SYSTEM ASIC I2C_SDA Tx1[+,-]
BACKUP IC191
F BATTERY
I2C_SDL TX2[+,-] CN191 F
CP2 BOARD HDMI_INT HDMI TRANSMITTER CEC mini
HDMI
BACK_UP_BAT
PWA BLOCK I2C_[SDA,SCL] HPD
TB3 PON , PAON1
E JUMPER POWER SUPPLY BSRST E
BATTERY
TERMINAL
POWER MANAGEMENT BAT_TEMP SP+
SPEAKER
SP-
BCLK IC181
ZFWR , ZFRD , ZCS0 LRCLK
D IC121 DACDAT D
X5001 D[0:15] AUDIO CODEC
NOR FLASH ADCDAT
32.768KHz A[1:22] AUDIO_LOUT
MEMORY
AUDEN,AUDSD,AUDCK AUDIO_ROUT
8MByte
ONENAND_RESET
DQ[0:31],DQS[0:3]DQM[0:3]
C IC102 C
DBA[0:1]
DSC[KP,KN,KE]
USB & AV
CN110
ZRAS,ZCAS IC151
ONENAND FLASH YOUT VIDEOOUT
MEMORY: 512Mbit ZCS1 VIDEO DRIVER
DDR SDRAM: 1GByte ZFRD,ZFWR
A[1:16] ZVMUTE
B D[0:15] B
USBD+
USBD-
INT_TENP
TH101
SG411_MAIN_BLOCK
A A
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
C5

K LENS CIRCUIT POWER CIRCUIT K
IC951 BAT+ IC502 L5101 VDD1.1 TO DMA
LENS DRIVER STEPDOWN
TO TB3 REG CIRCUIT
CN951
13,40,6,24,30
10
LENS BLOCK EN/SYNC
BOOST5.0V MVCC12,MVCC34,MVCC5, ZOOM_PI_AC
VDDAMP67,RNF7 VDD3
CH1
L5301 BOOST5.0V
J 26,23
RNF6,SENSE6
ZOOM_PI
SW1A,SW1B,SW1C,SW1D
STEPUP CIRCUIT Q5019 J
11
VOUT1A,VOUT1B
VDD5 TO DMA
TO CP1(DMA)IC101
ZOOM_PI_E 12 VDD
ZOOM_PI_E
11 SWA2A,SWA2B
VDD3 DVDD L5021
FOCUS_PI_AC 3
VDD3 SWB2A,SWB2B STEPDOWN
CIRCUIT
VDDIO,VOUT2A,VOUT2B CH2
VDD3 TO CAA, DMA
FOCUS_PI
I SW3 CH3 I
4 PILED 1 L5031 VDD1.8 TO DMA
PIOUT1 STEPDOWN
FOCUS_PI_E CIRCUIT Q5003
FOCUS_PI_E 2
FB3
TO CP1(DMA) CMOS1.8
XIN
IC101 32.768KHz
X5001 PAON1 TO CAA, DMA
39 ZOOM_A+ 8 IC501 XOUT
OUT3A CH6
SW6 L5061
35 41 ZOOM_A- 6 STEPDOWN VAA2.8 TO CAA
H STATE_F STATE11 OUT3B
ZOOM
SWITCHING
CONTROL CIRCUIT H
37 42 ZOOM_B+ 7 FB6
STATE_Z STATE21 OUT4A MOTOR
EN PON
OUT4B 44 ZOOM_B- 9
CH7
10 FCLK
L5071 LCDAN
CLK12M 12 25
SW7
FOCUS_A+ STEPUP CIRCUIT
OUT1A
1
LENS_EN CSB OVP7
14 FOCUS_A- 27
OUT1B ISET7
G LENS_SCLK
2 SCLK 15 FOCUS_B+ 26
FOCUS LCDPWM G
OUT2A MOTOR
3 VREGO AL3.2V
LENS_SDI SDATA 17 FOCUS_B- 24 LSTR7
OUT2B LCDCA
SCL
I2C_SCL
SDA
I2C_SDA TO DMA
25 ND+ 23 SG411_PW_BLOCK
OUT6A
F ND FILTER
F
ND-
OUT6B 27 22
IRIS SHUTTER
20 5 DRIVE+ 14
SHUTTER+ IN5B OUT5A
TO CP1(DMA)
E
S
IC101 N
HALL_ELEMENT
E
19 8 DRIVE- 15
IN5A OUT5B
VDD3
BOOST5.0V LENS_TEMP THERMISTOR+ 4

6
Q9701 VDD TO CP1(DMA)
D PON
IC101 THERMISTOR- 5
THERMISTOR
D
16
OC_CONT O/C_CONT
17 8
OC_EN O/C_EN PWM OUT
5 HALL IN+ 17
15 HIREG_OUT
HALL_OFFSET HALL_OFFSET 4 HALL IN- 20
13 HIREG_IN
C IAMPPWM IAMPPWM C
22 3 HALL OUT+ 19
HALL OUT1 HIN-
2 HALL OUT- 18
HALL_OUT 21 HIN+
HALL OUT2
IRISPWM 14
IRISPWM SG411_LENS_BLOCK
B 9 B
G_RESETN RESETN
G_EN 12
ENABLE
11
LENS_SCLK CLOCK
IC971
10
LENS_SDI DATA IRIS CONTROL
TO CP1(DMA)
A IC101 A
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
C6

K CIRCUIT DIAGRAMS K
MAIN CIRCUIT WAVEFORMS LCD CIRCUIT WAVEFORMS
TEST POINT TEST POINT TEST POINT TEST POINT TEST POINT
WAVEFORM WAVEFORM WAVEFORM WAVEFORM WAVEFORM
LOCATION LOCATION LOCATION LOCATION LOCATION
J IC101 IC101 IC101 CN105 CN105 J

PIN A3 PIN D4 PIN AD19 PIN 3 PIN 9
XOUT A_D4CKIN CLK32K LCDD0 LCDD6
1V/div 1V/div 1V/div 1V/div 1V/div
20ns/div 20ns/div 10µs/div 100ns/div 100ns/div
I I
IC101 IC101 IC103 CN105 CN105

PIN A6 PIN D5 PIN 4 PIN 4 PIN 10
CLK12M A_D4CKOUT ADCK LCDD1 LCDD7
H 1V/div 1V/div 1V/div 1V/div 1V/div H
40ns/div 10ns/div 20ns/div 100ns/div 100ns/div
IC101 IC101 IC104 CN105 CN105

G PIN D10 PIN 4 G
PIN A10 PIN 5 PIN 12
DACDAT BCLK TGVD LCDD2 LMCLK
2µs/div 200ns/div 10ms/div 100ns/div 20ns/div
F F
IC101 IC101 IC181 CN105 CN105
PIN B10 PIN D11 PIN D1 PIN 6 PIN 14
ADCDAT AMCLK DMDAT LCDD3 LCDHD
E E
1µs/div 40ns/div 1µs/div 100ns/div 10µs/div
IC101 IC101 IC181 CN105 CN105

PIN C10 PIN G15 PIN C1 PIN 7 PIN 15
D D
LRCLK VPIXCLK DMCLK LCDD4 LCDVD
10µs/div 20ns/div 100ns/div 100ns/div 4ms/div
C WF-SG411-MAIN
C
CN105
PIN 8
LCDD5
1V/div
B 100ns/div B
WF-SG411-LCD
A A
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
C7

K CP1 BOARD (DMA) MAIN
K
DMA (MAIN)
ZFWR
ZFRD
D9
D3
D2
D10
D11
C1205
0.1;B
D1-24200/SG411-U
VOLTAGE: VIEW MODE, LCD ON
DQM0
DQM2
DSCKN
DSCKP
DQS0
DQS2
DQ2
DQ0
DQ3
DQ5
DQ4
DQ7
DQ6
DQ23
DQ17
DQ19
DQ16
DQ21
DQ18
DQ22
DQ20
DBA1
DBA0
DA0
DA1
DA3
DA10
R1201
0;1/16Z
VDD1.8
C1209
1608
4.7;B
D4 DA12
D5 DQS3
J
D13
J
DQ1
ZDCS
ZRAS
DA2 ZCAS
ZDSWE
DQM3
AL3.2V
D1 DQ24
VDD3
A_VDD1.8
R1002 VDD3
A_VDD1.8 C1007
A_VDD1.1
0;1/16Z 1;B
VDD1.8
VDD3
D12
C1201
R1003 A_VDD1.1
1;B
0;1/16Z
VDD1.1 D6 DQ9
IC102
1608
R1121
C1121
6P;CH
D14 DQ8
C1033
C1002
1608
10;B
C1063 1;B
10;B
C1051 1;B 1.2K;1/16D

2125
C1057 DQ25
K5W121GLCM-AK50
0.1;B C1064 1;B
C1005
1AV4V10B8610G
DQ26
4.7;B
1608
VA102
1M;1/16J
4
3
C1058
R1122
C1065 1;B C1053 AVR-M1005C080MTAAB Z1 Z2 Z3 Z4

48.00000MHz
0.1;B VDD3 ZCS1
C1204
0.1;B
0.1;B
X1102
C1030
0.1;B
AD_KEY1
AD_KEY1
QXXAGB085---M
C1066 30
10K;1/16J
RB106
R1020
0.1;B
10K
AD_KEY2
29 AD_KEY2
1
2
C1067 HINGE VA103

C1122
7P;CH
ZMRST D8 AVR-M1005C080MTAAB
0.1;B
28 HINGE
H=1.0
DQ10
GND
C1207
XIN
27
0.1;B
DQ15
XOUT
26 MIC_GND
13.0X8.0
DQ30
MIC_VDD 25 MIC_VDD
I I
IC111
AK8113L DQ28
R1012
47;1/16D
24 MIC_GND
D4CKFSEL A_D4CKIN D7 DQ31 DMCLK C1059
4 3 1;B
23 DMCLK
D4CKOE D15 DQ27 DMDAT
5 2 22 DMCDAT
A_D4CKOUT DQM1
GND
R1018
6 1
0;1/16Z
VDD3 21
ONENAND FLASH MEMORY

R1008 DQS1
LCDAN
R1019
22;1/16J LCDAN 20
0;1/16Z
QAK8113L----G
C1017
DQ11
LCDCA
C1018
0.01;B
CLOCK 19
1;B
LCDCA
GENERATOR LCDSD
DDR SDRAM
TO PWA 18 LCDSD
D0 LCDCK
L1004
17 LCDCK
A12 LCDEN
CLK12M
BLM15BA330SN1
R1023
16 LCDEN
D4CKOE 100;1/16J LCDVD
15 LCDVD
D4CKFSEL A1 LCDHD
14 LCDHD
DQ29
R1039 L1010
13 GND
C1001
1K;1/16J FBMH1608HL601
1;B
BSRST DA6 LMCLK
1608 12 LMCLK
CLK32K R1041 DSCKE
0.1;B 11 GND
BAT_OFF C1025 0;1/16Z LCDD7
R1045
10 LCDD7
DQ13 LCDD6
0.1;B
0;1/10Z
9 LCDD6
HALL SENSOR PON C1028
2125
DQ12 LCDD5
8 LCDD5
LCDD4
IC302
7 LCDD4
C1044
C1032
TCS10NPU C1022
10;B
1;B
1608
GREEN_LED 0.1;B LCDD3
QTCS10NPU---P
6 LCDD3
ZUSB_DET RB108 A16 LCDD2
AL3.2V 5 1 1K ONENAND_RESET
5 LCDD2
KEY_2ND USBD+ LCDD1
2 A_KEY_2ND 4 LCDD1
R1054 USBD- A8 LCDD0
LCDD0
C3001
KEY_1ST
4 3 3
0.1;B
1K;1/16J
H H
L1008 VBDET
ZCARD
BK1005HM601
R1038
0;1/16Z
2 GND
PANEL_OPEN
VDD3 1 VDD3
C1010
L1009
SW3.2V SW3.2ON R1026
BK1005HM601 CN105
C1024
TO VF1 CN172
2125
10;B
1.6K;1/16D
C1026
VBDET
0.1;B
RREF
AL3.2V
Q3001 SDDET
C1208
C1206
DQ14
DA11
DTA114EM
0.1;B
0.1;B
DA9
DA5
DA4
DA8
DA7
C1008
S3001
1;B
SKRMAGE010 SCAN_IN1
SCAN_IN2
A10
A14
A13
A11
A15
A5
A3
A6
A2
A4
A7
A9
RB109
10K
SCAN_OUT1
SCAN_OUT2
H=1.42
0.500000
TRST
TMS
1K;1/16J
RED_LED R1009 TDO
TDI
1M;1/16J
1M;1/16J
1M;1/16J
R1001
R1005
R1046
12.7X12.7
A1 TCK
A2 RTCK
C1009
A3
A4 1;B R1027
0;1/16Z
QEV4X1------N
A5 C1011 YOUT
0.1;B AVREF
A6
G
C1012 VDD3
G
1;B R1028
A7
VDD3
A8 0;1/16Z IC121
M29W640GT60ZA6E
R1040
EV4X1
A9 AD_KEY1 QXXAGB077---N
A10 0;1/16Z AD_KEY2 A2 R1210 A1

D1 E1 10;1/16J
A11 R1043 INT_TEMP A3 ZCS0
0;1/16Z C1 F1
A12 HALL_OUT A4
A1 H1
A13 LENS_TEMP A5 ZFRD
IC101
R1031
B1 G1
10K;1/16J A14 FOCUS_PI_E A6 D0
D2 E2
VDD3 A15 ZOOM_PI_E A7 D8
R1044
R1032 0;1/16Z
C2 F2
A16 AD_KEY3 A8 D1
10K;1/16J A2 H2
BAT_TMP A18 D9
B2 G2
BATTERY A19 D2
C3 E3
ZCS1 D10
A3 F3
D3
B3 H3
ONENAND_RESET R1004 A22 D11
A_VDD1.8 C4 G3
51;1/16D
ZCS0 ONENAND_RESET
B4 G4
ZFRD ZDSWE ZFWR D4
A4 H4
C1202
ZDCS
0.1;B
ZFWR A21 D12
D3 F4
D0 ZCAS A20 D5
D4 E4
D1 ZRAS A9 D13
C1210
B5 G5
0.1;B
D2 A10 D6
A5 H5
D3 R1029 A11 D14
0;1/16Z
C5 F5
F F
D4 A12 D7 SW3.2V
D5 E5
D5 A13 D15 VDD3
B6 G6
D6 A14
SYSTEM ASIC
A6 H6
RB142
D7 A15
C6 F6
10K
D8 A16 A17
D6 E6
D9 DQS3
DQS2
NOR FLASH MEMORY
RB143
D10
10K
D11 DQS1
CN106 DQS0
CN141
AD_KEY3 D12
AD_KEY3 1 VDD3
DQM3
R1401
100;1/16J
1 DATA3
KEY_2ND D13 SDCMD
KEY_2ND
C1401
2
DQM2 0.1;B
2 COMMAND
RB111
KEY_1ST D14
KEY_1ST 3 3 VSS
4.7K
D15 DQM1
GND 4
DQM0
4 VDD
BACK_UP_BAT SDCLK
BUCK_UP_BAT 5 DQ31
RB141
100 5 CLOCK
SDDAT3
GND 6
DQ30
6 VSS
GREEN_LED SDDAT0
LED_GREEN 7 DQ29
7 DATA0
RED_LED SDDAT1
LED_RED 8
DQ28
8 DATA1
LIGHT_ON SDDAT2
LIGHT_ON 9
DQ27
9 DATA2
I2C_SDA ZCARD
GND 10 R1017 R1050 0;1/16Z DQ26
10 CARD
G_EN I2C_SCL
G_EN 11
VDD3
10K;1/16J
R1052 DQ25
11 COMMON
LENS_SDI SDWP
LENS_SDI 12 RXD1 0;1/16Z
DQ24
12 WP
LENS_SCLK TXD1
LENS_SCLK 13 DQ23 Z1 Z2 Z3 Z4
LENS_EN SDDAT0
LENS_EN 14
DQ22
SHUTTER+ SDDAT1
SHUTTER+ 15
E E
OC_EN SDDAT2 DQ21
OC_EN 16
DQ20
OC_CONT
OC_CONT 17
SDDAT3
TO SD
PON SDCMD DQ19
P_ON 18 C1039 DQ18
SDDET
GND 19 0.1;B
DQ17
CLK12M SDWP
CLK12M 20
L1002 DQ16
HALL_OUT SDCLK R1007
HALL_OUT 21 BLM15BA330SN1 47;1/16J DQ15
GND 22
DQ14
FOCUS_PI_E
FOCUS_PI_E 23 DQ13
ZOOM_PI_E A_KEY_2ND
ZOOM_PI_E 24 DQ12
GND 25
DQ11
LENS_TEMP
LENS_TEMP 26 DQ10
STATE_Z
VDD3 27
DQ9
STATE_F
VDD3 28 VDD3
DQ8
STATE_F
STATE_F 29 C1041 RB110 DQ7
1;B STATE_Z
STATE_Z 30 RB107
10K
DQ6
CN110
G_RESETN
G_RESETN 31 A17 10K
DQ5
L1001
BK1608LM751
1 GND
VIDEOOUT L1303
GND 32 A18
DQ4
1608 R1016 BK1005HM102
2 VIDEO_OUT
IRISPWM AUDIO_LOUT
IRISPWM 33 A19
DQ3 VDD3
10K;1/16J
3 AUDIO_L
IAMPPWM ZAVJACK
IAMPPWM 34 A20
DQ2
4 ZAVJACK
HALL_OFFSET USBD+ USB_D+
HALL_OFFSET 35 A21
DQ1
5 USB_D+
GND 36 A22
DQ0
EXC24CF900
L1301
6 AUDIO_R
USBD- L1304
BOOST5 37 BOOST5.0V
USB_D-
7 USB_D-
D
BK1005HM102
D
C1016
AUDIO_ROUT
BOOST5 38 1;B
R1010
8 USBVDD
BOOST5 39
AL3.2V
47K;1/16J
Z1 Z2 Z3 Z4
BOOST5 40 Q1301
DTC144EM
150;1/16J
RB127
ZUSB_DET
20;1/16J
TO CP2 (DMB)
RB129
R1014
R1011
220
RB112
100
CN601
100
RB123
100
C1304
TO USB & AV
DA10
DA11
DA12
1AV4L3CD050PG
1;B
DA0
DA1
DA2
DA3
DA4
DA5
DA6
DA7
DA8
DA9
BLM15BB050SN1
RB105
100;1/16J
R1056
BLA2ABD471SN4D
1AV4L3CK471PG
100
RB104
DSCKN
DSCKE
DSCKP
L1006
DBA0
DBA1
L1007
RB120
100
R1034
R1030
R1033
0;1/16Z
0;1/16Z
0;1/16Z
RB124
R1015
47;1/16J
RB128
100
220
BLM15BD471SN1
RB102
1AV4L3CC471PG
BLA2ABD471SN4D
0
1AV4L3CK471PG
A_RESET_P
L1005
CMOS_SDA
CMOS_SCL
RB103
RB101
L1003
SLVSD0N
SLVSD1N
SLVSD2N
SLVSD3N
SLVSD0P
SLVSD1P
SLVSD2P
SLVSD3P
0
A_TGVD
A_ADCK
SLVSCN
SLVSCP
0
HALL_OFFSET
G_RESETN
D4CKFSEL
SHUTTER+
ZAVJACK
HDMI_INT
LENS_SCLK
LENS_SDI
OC_CONT
IAMPPWM
LIGHT_ON
LCDPWM
ZVMUTE
LENS_EN
AUDPDN
D4CKOE
IRISPWM
OC_EN
VPIXCLK
PAON1
PAON2
ADCDAT
DACDAT
HINGE
G_EN
AUDCK
LMCLK
AUDSD
AUDEN
AMCLK
LCDHD
LCDCK
LCDSD
LCDEN
LCDVD
LCDD0
LCDD1
LCDD2
LCDD3
LCDD4
LCDD5
LCDD6
LCDD7
LRCLK
BCLK
UV0
UV1
UV2
UV3
UV4
UV5
UV6
UV7
Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
R1902
0;1/16Z
VDD1.8
1608
C1912
2125
10;B
I2C_SDA
C
I2C_SCL
UV0
Y7
Y6
Y5
Y4
Y3
Y2
Y1
Y0
VPIXCLK
C
R1925
R1924
0;1/16Z
0;1/16Z
0;1/16Z
C1907
R1919
0;1/16Z
1;B
R1918
RB192
CN191
C1901
0
1608
1;B
C1908 L1901
1 TMDS SHLD2
0.1;B
2 TMDS DATA2+
VCLK
VSSD
CSDA
CSCL
VSSD
VDDD0(IO)(1V8)
UV1 DLP2ADN900HL4
UV2 VDDA(SHR)(1V8) 3 TMDS DATA2-

VSSA
CMOS1.8 UV3
VDDA(SHR)(1V8)
TX2+
4 TMDS SHLD1
UV4
TX2-
5 TMDS DATA1+
UV5 6 TMDS DATA1-
C1003
IC103
0.1;B
VDDA(TMDS)(1V8)
TC7SG126FE
UV6 7 TMDS SHLD0
QTC7SG126FE-P
JW186
ZVMUTE
Tx1+
VIDEOOUT
AMCLK
YOUT
AWG32/AWG30 UV7
L1902 8 TMDS DATA0+
5 1 IC191 Tx1- DLP2ADN900HL4
CMOS_SDA A_ADCK VDD3 SP+ TDA9989ET/C1,518 9 TMDS DATA0-
R1021
2 1 SP+ VDDDC0(1V2) QXXAGB057---P NC
CMOS_SCL ADCK
100;1/16J
4 3 Tx0+
10 TMDS CLK SHD
VA181
C1801
SLVSCN
JW185 11 TMDS CLK+
0.1;B
AVR-M1005C080MTABB
TO PWA BACK_UP_BAT HDMI TRANSMITTER
Tx0-
AWG32/AWG30 TMDS CLK-
C1902
SLVSCP C1503 H=1.0 12

1;B
TO PWA,CAA PAON1 SP-

IC151 4.7;B 1608 VDDA(TMDS)(1V8)
SLVSD0N 1 SP- NJM2561F1A
QNJM2561F1A-P
RB193
13 DDC/CEC GND
TO CAA PAON2 TxC+ 0
SLVSD0P C1812 4.7;B 1608 TO SPEAKER 14 CEC
RB181
VA182 C1906
1 6
20K
VDD3 TxC-
SLVSD1N CMOS1.8
AVR-M1005C080MTABB
R1801 0.1;B
15 DDC SCL
C1806 10;1/16J R1501
2 5 C1501
VDDD(OSC_CEC)
BSRST NC
DDC SDA
VDDA(PLL_SRL)
1;B 75;1/16D 0.1;B

SLVSD1P VDD3 16
B
AUDIO_ROUT
B
3 4 F30K1R0D3SGFD
HSYNC/HREF
LCDPWM
VSYNC/VREF
JTAG
OSC_OUT
INT_HDMI
SLVSD2N F5006
17 RESERVED
OSC_IN
AUDIO_LOUT
C1004
IC104 R1804 1A32V

0.1;B
DSDA
DSCL
ACLK
BCLK
TC7SG126FE 100K;1/16J
DDC+5V
HPD
CEC
SLVSD2P 18
AP0
AP1
VDD5
CLK32K
QTC7SG126FE-P RB116
150K
200 C1807
1;B LRCLK VIDEO DRIVER DE/FREF VSSA R1922
10K;1/16D 1608
SLVSD3N UNREGSY 1AV4R1LB1542G
RB183
IC181
RB191
1.8K 19 HOTPLUG DET
I2C_SDA 5 1 AK4649ECB ADCDAT
C1905
C1913
SLVSD3P UNREGSY QAK4649ECB-LJ

1;B
1;B
A_TGVD BATTERY
I2C_SCL R1022
2 R3001 R1805
Z1 Z2 Z3 Z4
3.3K;1/16J
100K;1/16J DACDAT
R1937
C1910
C1911
100;1/16J
3 10K;1/16J
0.01;B
ADCK
0.1;B
TGVD DMCLK
4 3
Q1005
SSM3J16TE
AL3.2V AUDSD
C1020
100K;1/16J
TGVD
0.1;B
R1049
BAT_OFF BAT_OFF DMDAT

PON
RESET_N
1 2 AUDCK TO mini HDMI
TO CAA
C1909
1;B
D1901 R1934
QXC61GN2502HP RB520S-30FJ 27K;1/16J
RB184
C1903
AUDIO CODEC
100K
XC61GN2502HR R1048 VDD3

1;B
TO PWA UNREGSY UNREGSY

IC304 100;1/16J
AVREF
10K;1/16J
CMOS1.8
VOLTAGE DET Q1006
R1814
2SK3541
100K;1/16J
CMOS1.8 CMOS1.8
TO PWA,CAA
R1051
22K;1/16D
3.3
VDD3 VDD3
R1035
10K;1/16J
R1042
MIC_VDD R1911
VDD1.8 1.8 VDD1.8 4.7K;1/16J
AUDEN
1.1 INT_TEMP VDD3
VDD1.1 VDD1.1
10K;1/16J
AUDPDN
R1921
R1024 Q1001
AL3.2V AL3.2V VDD3
NCP15WF104F03-RC
C1810
0;1/16Z DTC144EM
2.2;B
5.0 RESET_N
C1021
BOOST5.0V BOOST5.0V IC182

C1813
0.1;B
A_RESET_P
TH101
1;B
10K;1/16J
R1815
NJM2877F3-03
BAT_TEMP BAT_TEMP QNJM2877F303P
TO PWA VDD5 VDD5

1 5 R1803
HDMI_INT
DACDAT
0;1/16Z
4700P;B
LRCLK
C1804
C1805
C1802
C1811
REG
R1037
2
BCLK
0.1;B
0.1;B
1608 4.7;B
10K;1/16D 3.0V
R1036 3 4
1K;1/16J C1803
BAT_TMP 1;B
BAT_TEMP
C1814
1;B
A A
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
C8

I
J
A
B
E
K
C
D
H
1
A_VDD1.8
0.1;B
0.1;B
0.1;B
0.1;B
C1067
C1066
C1058
C1057
GND
GND
GND
GND
GND
GND
GND
GND
VDD3
VDD3
P_ON
G_EN
CN601
CN106
OC_EN
2
CLK12M
BOOST5
BOOST5
BOOST5
BOOST5
IRISPWM
STATE_Z
STATE_F
KEY_1ST
AD_KEY3
LENS_SDI
LENS_EN
KEY_2ND
LED_RED
LIGHT_ON
A_VDD1.1
TO CP2 (DMB)
9
8
LED_GREEN 7
6
BUCK_UP_BAT 5
4
3
2
1
40
39
38
37
36
HALL_OFFSET 35
IAMPPWM 34
33
32
G_RESETN 31
30
29
28
27
LENS_TEMP 26
25
ZOOM_PI_E 24
FOCUS_PI_E 23
22
HALL_OUT 21
20
19
18
OC_CONT 17
16
SHUTTER+ 15
14
LENS_SCLK 13
12
11
10
C1065
C1064
C1063
1;B
1;B
1;B
D1-24200/SG411-U
0.1;B
C1039
TO PWA,CAA PAON1
TO PWA BACK_UP_BAT
VDD3
1;B
1;B
C1016
C1053
C1051
C1041
VOLTAGE: VIEW MODE, LCD ON
3
1;B
0.1;B
VDD3
DMA (MAIN)
OC_EN
BOOST5.0V
PON
G_EN
IRISPWM
KEY_1ST
G_RESETN
KEY_2ND
HALL_OFFSET
IAMPPWM
OC_CONT
CLK12M
LENS_SDI
STATE_Z
STATE_F
LIGHT_ON
FOCUS_PI_E
AD_KEY3
ZOOM_PI_E
LENS_EN
HALL_OUT
LENS_SCLK
RED_LED
SHUTTER+
LENS_TEMP
BACK_UP_BAT
GREEN_LED
4
SLVSCP
SLVSCN
CMOS_SCL
CMOS_SDA
VDD1.1
VDD1.8
VDD3
1608
0;1/16Z
R1002
0;1/16Z
R1003
5
R1008
22;1/16J
R1122
D4CKOE
D4CKFSEL
1M;1/16J
C1122
XOUT
AL3.2V
7P;CH
A_D4CKOUT
R1121
1.2K;1/16D
6
5
4
AL3.2V
1 4
OE
C1008
FSEL
1;B 2 3
CLKIN
C1121
XIN
0.1;B
IC111
VSS
CLKOUT
VDD
C3001
A_VDD1.1
A_VDD1.8
AK8113L
48.00000MHz 6P;CH
CLOCK
QAK8113L----G
1
2
3
4
5
X1102
GENERATOR
1AV4V10B8610G
VCC
GND2
VDD3
IC302
C1018 C1002
VOUT
NC
GND1
ADCK
SW3.2V
10;B
TCS10NPU
0.01;B
3
2
1
QTCS10NPU---P
2125
S3001
R1012
47;1/16D
HALL SENSOR
C1017
SKRMAGE010
1;B C1005
4.7;B
VDD3
VDD3
1608
R1021
R1017
100;1/16J
10K;1/16J
Q3001
C1033
10;B
DTA114EM
VDD3
D4CKFSEL
D4CKOE
A_D4CKIN
1608
R1001
4
5
TXD1
RXD1
PON
1M;1/16J
SDWP
SDCLK
VBDET
BSRST
SDDET
SDDET
ZMRST
SDCMD
ZCARD
CLK32K
RB111
SDDAT3
SDDAT2
SDDAT1
SDDAT0
R1005
I2C_SCL
I2C_SDA
CLK12M
STATE_F
STATE_Z
KEY_1ST
1M;1/16J
SCAN_IN1
4.7K
BAT_OFF
KEY_2ND
SW3.2ON
ZUSB_DET
SCAN_IN2
IC103
A_KEY_2ND
3 4
A_KEY_2ND
GREEN_LED
R1046
1M;1/16J

PANEL_OPEN
TC7SG126FE
1 2
R1031
3
2
1
R1018
10K;1/16J
QTC7SG126FE-P
0;1/16Z
L1004
10K;1/16J
VDD3
R1032
L1002
R1050
R1019
BLM15BA330SN1
RED_LED
R1020
BLM15BA330SN1
10K;1/16J
1
3
SCAN_OUT2
SCAN_OUT1
0.1;B
0.1;B
0.1;B
0;1/16Z
C1022
C1028
C1025
A_ADCK
A19
A21
A20
ZCS0
ZCS1
A22
A18
ZFRD
ZFWR
A17 10K
RB106
RB107
7
1
3
5
0;1/16Z
0;1/16Z
2
4
0.1;B 10K
C1003 1 2
3
5
7
1
1K
R1052
RB108
R1023
100;1/16J
8
2
4
6
A9
A8
A7
A6
A5
A4
A3
A2
A1
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
A16
A15
A14
A13
A12
A11
A10
D15
D14
D13
D12
D11
D10
3 4
R1039
1K;1/16J
R1007
ONENAND_RESET
0;1/16Z
10K
47;1/16J
RB110
R1041
4
6
8
2
C1030
0.1;B
AC13 AD13 AA14 AB14 AC14 AD14 AA15 AB15 AC15 AD15 AA16 AB16 AC16 AD16 AA17 AB17 AC17 AD17 AA18 AB18 AC18 AD18 AA19 AB19 V11 V12 V13 V14 U22 U21 V24 V23 V22 AD7 AC3 AB4 AD4 AC6 AB6 AA5 AC4 AD5 AB7 AB8 AD6 AA6 AB9 AC5 AC8 AD3 AB5 AC9
8
V7 AA4 AA7 AD9 AB10 AC7 AD10 AC10 AD8 AA10 AB11 AA8 AA11 AA9 AA12 AB12 AC12 AA13 AB13 AC11 AD11 AD12 AA21 AA22 AA23 Y21 Y22 Y24 W21 W23 W24 V21 AD22 AC19 AC20 AC21 AB20 AB21 AB22 AB23 AB24 AA20 AD20 AD21 AC22 Y23 AD19 AA24 B7 B6 B4 C4 B3 B5 A5 W22 C6 C5 A6 D5 D4 A3 A4 D6
XI
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
XO
SDI
D15
D14
D13
D12
D11
D10
ZRE
ZCS
SCK
SDO
ZWE
BATI
KSI[4]
KSI[3]
KSI[2]
KSI[1]
KSI[0]
SYMD
D4CKI
SYCKI
PLLEN
KSO[4]
KSO[3]
KSO[2]
KSO[1]
KSO[0]
PTEST
PON[1]
PON[0]
ZSREQ
D4CKO
ZMRST
CMOS1.8
MCLKO
TEST[1]
TEST[0]
SYTEST
ZSYRSTI
GPIOB[3]
GPIOB[2]
GPIOB[1]
GPIOB[0]
GPIOA[9]
GPIOA[8]
GPIOA[7]
GPIOA[6]
GPIOA[5]
GPIOA[4]
GPIOA[3]
GPIOA[2]
GPIOA[1]
GPIOA[0]
GPIOS[9]
GPIOS[8]
GPIOS[7]
GPIOS[6]
GPIOS[5]
GPIOS[4]
GPIOS[3]
GPIOS[2]
GPIOS[1]
GPIOS[0]
GPIOC[9]
GPIOC[8]
GPIOC[7]
GPIOC[6]
GPIOC[5]
GPIOC[4]
GPIOC[3]
GPIOC[2]
GPIOC[1]
GPIOC[0]
COMREQ
GPIOA[21]
GPIOA[20]
GPIOA[19]
GPIOA[18]
GPIOA[17]
GPIOA[16]
GPIOA[15]
GPIOA[14]
GPIOA[13]
GPIOA[12]
GPIOA[11]
GPIOA[10]
GPIOC[23]
GPIOC[22]
GPIOC[21]
GPIOC[20]
GPIOC[19]
GPIOC[18]
GPIOC[17]
GPIOC[16]
GPIOC[15]
GPIOC[14]
GPIOC[13]
GPIOC[12]
GPIOC[11]
GPIOC[10]
CLKSEL[1]
CLKSEL[0]
R1015
CKTEST[2]
CKTEST[1]
CKTEST[0]
47;1/16J GND M13
AMCLK
D11 GPIOD[0]
BCLK GND N13
D10 GPIOD[1]
LRCLK GND N12
C10 GPIOD[2]
ADCDAT GND M12
B10 GPIOD[3]
DACDAT GND L12
L1006
R1014 A10 GPIOD[4]
1AV4L3CC471PG 1AV4L3CD050PG
VPIXCLK 20;1/16J GND L13
BLM15BD471SN1 G15 LCDCK[0]
BLM15BB050SN1 R1011 GND L14
LMCLK L1005 150;1/16J
G16 LCDCK[1]
UV0 GND M14
1 2
A11 GPIOE[0]
9
1 2
UV1 GND N14
3 4 RB104 RB112
B11 GPIOE[1]
3 4 0 100
UV2 GND P14
5 6
C11 GPIOE[2]
5 6
UV3 GND P13
7 8
A12 GPIOE[3]
7 8
UV4 GND P12
7 8
B12 GPIOE[4]
7 8
UV5 GND P11
5 6
C12 GPIOE[5]
5 6
UV6 0 RB124 GND N11
3 4
RB103 100 D12 GPIOE[6]
3 4
UV7 GND M11
1 2
G12 GPIOE[7]
1 2
LCDCK GND L11
A13 GPIOE[8]
LCDSD GND N10
B13 GPIOE[9]
LCDEN RB102 GND M10
RB129
C13 GPIOE[10]
0 100
10
Y0 GND N9
1 2
D13 GPIOE[11]
1 2
Y1 GND M9
3 4
G13 GPIOE[12]
3 4
Y2 GND H9
5 6
A14 GPIOE[13]
5 6
Y3 RB101 GND H10
RB120 7 8
B14 GPIOE[14]
C9
0 7 8 100
Y4 GND H11
1 2
C14 GPIOE[15]
1 2
Y5 GND H12
3 4
D14 GPIOE[16]
3 4
Y6 GND H13
5 6
G14 GPIOE[17]
5 6
Y7 GND H14
7 8 RB123
A15 GPIOE[18]
7 8 100
LCDHD GND H15
1 2
B15 GPIOE[19]
L1007 GND H16
LCDVD 1AV4L3CK471PG 3 4
C15 GPIOE[20]
1AV4L3CK471PG BLA2ABD471SN4D
11
LCDD0 BLA2ABD471SN4D GND H17
1 2 7 8
D15 GPIOE[21]
L1003
LCDD1 GND J17
1 2 7 8
A16 GPIOE[22]
LCDD2 GND K17
5 6 3 4
B16 GPIOE[23]
LCDD3 GND L17
3 4 5 6
C16 GPIOE[24]
LCDD4 GND M17
7 8 1 2
D16 GPIOE[25]
LCDD5 RB128 GND N17
3 4 5 6
B17 GPIOE[26]
220
LCDD6 GND P17
5 6 3 4
C17 GPIOE[27]
LCDD7 GND U16
7 8 1 2 RB127
D17 GPIOE[28]
220 GND U15
1 2
J18 TGHD
A_TGVD GND U14
3 4
H18 TGVD
CP1 BOARD (DMA) MAIN [UPPER-LEFT]
GND U13
12
LIGHT_ON RB105
C24 GPIOF[0]
100
GND U12
C23 GPIOF[1]
GND U11
ZVMUTE
C22 GPIOF[2]
AUDPDN GND U8
D24 GPIOF[3]
G_EN GND N8
D23 GPIOF[4]
GND M8
G_RESETN
D22 GPIOF[5]
OC_CONT GND H8
D21 GPIOF[6]
OC_EN GND G11
E24 GPIOF[7]
GND G17
E23 GPIOF[8]
HALL_OFFSET GND G18
E22 GPIOF[9]
GND V16
13
SHUTTER+
E21 GPIOF[10]
IAMPPWM GND V15
F24 GPIOF[11]
IRISPWM GND U7
F23 GPIOF[12]
GND N7
F22 GPIOF[13]
GND M7
F21 GPIOF[14]
LENS_EN GND H7
G24 GPIOF[15]
LENS_SCLK GND AB3
G23 GPIOF[16]
LENS_SDI GND N3
G22 GPIOF[17]
GND C3
D4CKFSEL
G21 GPIOF[18]
D4CKOE GND A7
H24 GPIOF[19]
LCDPWM VDD33F J16
14
H23 GPIOF[20]
AUDCK VDD33F K16
H22 GPIOF[21]
AUDSD VDD33F L16
H21 GPIOF[22]
AUDEN VDD33C1 T14
R1034 J22 GPIOF[23]
A_RESET_P 0;1/16Z VDD33C1 T13
J21 GPIOF[24]
VDD33C0 R15
R1030 K21 GPIOF[25]
EV4X1
0;1/16Z VDD33C0 T15
H=1.42
CMOS_SDA
L21 GPIOF[26]
CMOS_SCL VDD33B1 T11
M22 GPIOF[27]
0.500000
HINGE R1033 VDD33B0 T12
12.7X12.7
M21 GPIOF[28]
IC101
0;1/16Z
VDD33A R10
K18 GPIOF[29]
VDD33A T10
15
L18 GPIOF[30]
VDD33A T9
N22 GPIOF[31]
QEV4X1------N
SYSTEM ASIC
VDD33A R9
N21 GPIOF[32]
VDD33 K15
VDD3
P22 GPIOF[33]
ZAVJACK VDD33 K10
C1801 P21 GPIOF[34]
0.1;B VDD33 J10
HDMI_INT
R22 GPIOF[35]
VDD33 J11
PAON1 R21 GPIOF[36]
VDD33 J12
PAON2 T22 GPIOF[37]
VDD33 J13
T21 GPIOF[38]
A_ADCK VDD33 J14
L22 ADCK
AMCLK VDD33 J15
R1056
16
100;1/16J K22 CKIN
SLVSCN VDD33 M16
J24 SCKIN
SLVSCP VDD33 N16
K24 SCKIP
SLVSD0N VDD33 P16
L24 SDIN[0]
SLVSD0P VDD33 K9
M24 SDIP[0]
SLVSD1N VDD33 J9
N24 SDIN[1]
VA181
SLVSD1P VDD30 R16
P24 SDIP[1]
SP-
SP+
SLVSD2N VDD30 T16
R24 SDIN[2]
SLVSD2P VDD18M T8
T24 SDIP[2]
1
SLVSD3N VDD18M R8
U23 SDIN[3]
AVR-M1005C080MTABB
SLVSD3P VDD18M K8
17
U24 SDIP[3]
AL3.2V
VDD18M J8
J23 SDIN[4]
VDD18M R7
K23 SDIP[4]
SP+
VDD18M K7
JW186
L23 SDIN[5]
JW185
VDD18M AA3
M23 SDIP[5]
VDD18M M3
AWG32/AWG30
N23 SDIN[6]
AWG32/AWG30
VDD18M D3
P23 SDIP[6]
VDD18L M18
R23 SDIN[7]
VDD18L N18
T23 SDIP[7]
DA0 VDD11 K11
N1 DA0
1;B
DA1 VDD11 K12

C1007
18
N2 DA1
DA2 VDD11 K13
M1 DA2
DA3 VDD11 K14
L1 DA3
DA4 VDD11 L15
VIDEOOUT L3 DA4
DA5 VDD11 M15
M2 DA5
ZVMUTE DA6 VDD11 N15
K1 DA6
DA7 VDD11 P15
L4 DA7
DA8 VDD11 R14
L2 DA8
DA9 VDD11 R13
J1 DA9
DA10 VDD11 R12
P2 DA10
DA11 VDD11 R11
19
H2 DA11
IC151
DA12 VDD11 P10
K2 DA12
NJM2561F1A
VDD11 L10
J2 DA13
DBA0 VDD11 P9
R1 DBA0
DBA1 VDD11 L9
P1 DBA1
4.7;B
DSCKE NC E5
C1503
U1 DCKE
DSCKN NC B23
N4 DCKN
1608
NC AC23
H=1.0
DSCKP
M4 DCKP
NC AC2
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQM0
DQM1
DQM2
DQM3
DQS0
DQS1
DQS2
DQS3
DQSB0
DQSB1
DQSB2
DQSB3
DSRON
DVREF0
DVREF1
ZRAS
ZCAS
ZDCS
ZDWE
ODT
RQ
AVREFM
AVREFP
AIN0
AIN1
AIN2
AIN3
AIN4
AIN5
AIN6
AIN7
AIN8
AIN9
AVDD
AGND
VCBP
YOUT
AV33
AG33
RTCK
TCK
TDI
TDO
TMS
TRST
TSEL0
TSEL1
TSEL2
NEC_TEST0
NEC_TEST1
TMC1
TMC2
SMC
RREF
AVDDUSB
AVSSUSB
VSSUSB
VBUS
DM
DP
VD33USB
GND1USB
GND2USB
VDD11_PHY
VDD11_PHY
GND11_PHY
GND11_PHY
VDD11P2
GNDP2
VDD11P3
GNDP3
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
K3 J4 J3 H4 F3 F4 E3 E4 H1 G1 G2 F2 D1 D2 C1 C2 Y4 Y3 W4 W3 U4 T3 T4 R4 AB2 AB1 AA2 AA1 W2 V2 V1 U2 G4 E2 V4 Y2 G3 E1 U3 W1 H3 F1 V3 Y1 R3 J7 T7 T1 P4 T2 P3 R2 K4 A22 B21 C20 A21 D20 A20 C19 B20 D19 B19 D18 A19 C21 B22 A18 A17 C18 B18 U18 R18 T18 P18 V18 V17 U17 T17 R17 V8 V9 U9 U10 V10 D8 C8 D7 C7 D9 A9 A8 C9 B8 B9 P7 P8 L7 L8 G10 G9 G8 G7 A1 B1 AC1 AD1 AD2 AD23 AD24 AC24 B24 A24 A23 A2 B2
I
F
J
A
B
E
K
C
D
H
YOUT
RREF
0.1;B
C1011
8
2
6
4
R1004
51;1/16D
C1044 C1001
10K
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
ZRAS
ZCAS
DQS0
DQS1
DQS2
DQS3
ZDCS
1;B
RB109
DQM0
DQM1
DQM2
DQM3
1;B
ZDSWE
7
1
5
3
1;B
C1032
R1054
C1012
1K;1/16J
R1026
10;B
0;1/16Z
R1043
0;1/16Z
R1044
0;1/16Z
R1040
1608
1.6K;1/16D
0;1/16Z
R1029
1;B
1608
2125
0;1/10Z
L1010
C1009
R1045
R100
1K;1/16
FBMH1608H
K CP1 BOARD (DMA) MAIN [UPPER-RIGHT]
K
ZFWR
ZFRD
D9
D3
D2
D10
D11
C1205
0.1;B
DSCKN
DQM0
DQM2
DSCKP
DQS0
DQS2
DQ2
DQ0
DQ3
DQ5
DQ4
DQ7
DQ6
DQ23
DQ17
DQ19
DQ16
DQ21
DQ18
DQ22
DQ20
DBA1
DBA0
DA0
DA1
DA3
DA10
J VDD1.8
R1201
0;1/16Z J
C1209
1608
4.7;B
R7 R6 R5 R4 R3 R2 R1 P12 P11 P10 P9 P8 P7 P6 P5 P4 P3 P2 P1 N12 N11 N10 N9 N4 N3 N2 N1 M12 M11 M10 M9 M4 M3 M2 M1 L12 L11 L10 L9 L4 L3 L2 L1 K12 K11 K10 K9
DQM0
VDDQ
DQM2
VDDQ
VDDQ
VDDQ
WEBo
VSSQ
VSSQ
VSSQ
VSSQ
DQS0
DQS2
RDYo
OEBo
DQ2
DQ1
DQ3
DQ5
DQ4
DQ7
DQ6
NC
NC
DQ21
DQ20
DQ17
DQ16
DQ22
DQ23
DQ19
DQ18
CK
SA0
SA1
SA3
BA1
BA0
VSSd
SA10
/CK
IO9
IO3
IO2
IO10
INTo
IO11
D4 DA12
R8 IO4 SA12 K4
D5 DQS3
R9 IO5 DQS3 K3
D13
R10 IO13 VDD K2
DQ1
R11 DQ0 VSSd K1
ZDCS
R12 NC /CS J12
I DA2
T1 NC
T2 SA2
/RAS J11
/CAS J10
ZRAS
ZCAS I
ZDSWE
T3 CLKo /WE J9
DQM3
AL3.2V T4 AVDBo DQM3 J4
D1 DQ24
T5 IO1 DQ24 J3
VDD3 T6 VCCQo VSSQ J2

C1007
1;B T7 VCCQo VDDQ J1
D12
T8 IO12 VSSQ H12
C1201
1;B
T9 VCCQo VDDQ H11

D6 DQ9
IC102
T10 IO6 DQ8 H10
D14 DQ8
T11 IO14 DQ9 H9
DQ25
H H
T12 VDD DQ25 H4
K5W121GLCM-AK50
DQ26
U1 VDD DQ26 H3 VA102
ZCS1 AVR-M1005C080MTAAB Z1 Z2 Z3 Z4
C1204
0.1;B
U2 CEBo VDDQ H2
NC AC23
VDD33 M16
VDD18L M18
VDD11 M15
NC AC2
GND G11
GND G17
GND G18
GND AB3
VDD18M AA3
VDD33C0 R15
VDD33A R10
VDD33 N16
VDD30 R16
VDD18L N18
VDD11 N15
VDD11 R14
VDD11 R13
VDD11 R12
VDD11 R11
GND V16
GND V15
VDD33F K16
VDD33 K15
VDD33 K10
VDD33 P16
VDD11 K11
VDD11 K12
VDD11 K13
VDD11 K14
VDD11 P15
VDD11 P10
NC B23
VDD33C1 T14
VDD33C1 T13
VDD33C0 T15
VDD33B1 T11
VDD33B0 T12
VDD33A T10
VDD30 T16
GND M8
GND M7
VDD18M M3
VDD33F L16
VDD11 L15
VDD11 L10
VDD33F J16
VDD33 J10
VDD33 J11
VDD33 J12
VDD33 J13
VDD33 J14
VDD33 J15
GND U8
GND N8
GND H8
GND U7
GND N7
GND H7
GND N3
GND C3
VDD33A R9
VDD18M R8
VDD18M R7
VDD18M D3
GND A7
VDD33 K9
VDD18M K8
VDD18M K7
VDD11 P9
NC E5
VDD33A T9
VDD18M T8
AD_KEY1
VDD11 L9
AD_KEY1
VDD33 J9
VDD18M J8
QXXAGB085---M
U3 NC VSSQ H1 30
AD_KEY2
U4 NC VDDQ G12
HINGE VA103 29 AD_KEY2
D8 AVR-M1005C080MTAAB
NC U5 IO8 VSSQ G11 28 HINGE
B2
H=1.0
DQ10
GND
C1207
27
0.1;B
NC U6 VSSQo DQ10 G10
A2
DQ15
NC U7 VSSQo DQ11 G9 26 MIC_GND
AC1 AD1 AD2 AD23 AD24 AC24 B24 A24 A23
13.0X8.0
DQ30
NC U8 NC DQ27 G4 MIC_VDD 25 MIC_VDD
DQ28
NC U9 VCCQo DQ28 G3 24 MIC_GND
D7 DQ31 DMCLK C1059
NC U10 IO7 DQ31 G2
1;B
MIC_GND
23 DMCLK
D15 DQ27 DMDAT
NC U11 IO15 DQ30 G1 22 DMCDAT
G
DQM1
GND
G
NC U12 VSSd DQM1 F12 21
ONENAND FLASH MEMORY

DQS1
NC V1 VSSo DQS1 F11 LCDAN 20 LCDAN
DQ11
NC V2 VCCo DQ12 F10 LCDCA 19 LCDCA
LCDSD
DDR SDRAM
NC V3 NC NC F9 TO PWA 18 LCDSD
D0 LCDCK
NC V4 IO0 NC F8 17 LCDCK
B1
A12 LCDEN
NC V5 NC A11 F7 16 LCDEN
A1
LCDVD
GNDP3 V6 NC NC F6 15 LCDVD
G7
A1 LCDHD
VDD11P3 V7 NC A0 F5 14 LCDHD
G8
DQ29
GNDP2
L1010
V8 NC DQ29 F4 13 GND
G9
C1001
FBMH1608HL601
1;B
DA6 LMCLK
VDD11P2 1608 V9 VSSQo SA6 F3 12 LMCLK
G10
DSCKE
GND11_PHY V10 VSSQo CKE F2 11 GND
L8
LCDD7
GND11_PHY V11 VCCo NC F1 10 LCDD7
L7
R1045
F F
DQ13 LCDD6
VDD11_PHY 0;1/10Z V12 VSSo DQ13 E12 9 LCDD6
P8
DQ12 LCDD5
VDD11_PHY 2125 W1 DNU DQ14 E11 8 LCDD5
P7
LCDD4
GND2USB W2 DNU NC E10 7 LCDD4
C1044
C1032
B9
10;B
1;B
1608
LCDD3
GND1USB W3 DNU NC E9 6 LCDD3
B8
A16 LCDD2
VD33USB W10 DNU A15 E8 5 LCDD2
C9
USBD+ ONENAND_RESET LCDD1

DP W11 DNU RPBo E7 4 LCDD1
A8
R1054 USBD- A8 LCDD0

DM W12 DNU A7 E6 3 LCDD0
A9
1K;1/16J
VCCo
DQ15
VSSo
VSSd
SA11
DNU
DNU
DNU
DNU
DNU
DNU
VDD
SA9
SA5
SA4
SA8
SA7
A13
A12
A10
A14
L1008 VBDET
GND
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
R1038
A9
A1
A3
A6
A8
A2
A5
A4
VBUS 2
D9
BK1005HM601 A1 A2 A3 A10 A11 A12 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 C1 C2 C3 C4 C5 C6 C7 C8 C9 C10 C11 C12 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 E1 E2 E3 E4 E5 0;1/16Z
VSSUSB VDD3 1 VDD3
C7
C1010
1000P;B
L1009
AVSSUSB
CN105
D7
BK1005HM601
R1026
C1024
TO VF1 CN172
2125
10;B
AVDDUSB
C8
1.6K;1/16D
C1026
0.1;B
RREF
RREF
D8
E SMC
E
U10 V10
C1208
C1206
DQ14
DA11
0.1;B
0.1;B
DA9
DA5
DA4
DA8
DA7
TMC2
TMC1
U9
A10
A14
A13
A11
A15
A5
A3
A6
A2
A4
A7
A9
NEC_TEST1
V9
RB109
NEC_TEST0 10K
V8
H=1.42
TSEL2
A22 B21 C20 A21 D20 A20 C19 B20 D19 B19 D18 A19 C21 B22 A18 A17 C18 B18 U18 R18 T18 P18 V18 V17 U17 T17 R17
4 3
TSEL1
6 5
TSEL0
2 1
0.500000
TRST TRST
TMS
TMS 1K;1/16J
R1009 TDO
TDO
TDI
D
TDI
D
12.7X12.7
8 7 TCK
TCK
RTCK
RTCK
C1009
AG33
1;B R1027
AV33 0;1/16Z
QEV4X1------N
C1011 YOUT
YOUT
0.1;B AVREF
VCBP C1012 VDD3
1;B R1028
AGND VDD3
0;1/16Z IC121
AVDD M29W640GT60ZA6E
R1040
EV4X1
AD_KEY1 QXXAGB077---N
AIN9
0;1/16Z AD_KEY2 A2 R1210 A1
AIN8 D1 A1 A0 E1 10;1/16J
R1043 INT_TEMP A3 ZCS0
AIN7 0;1/16Z C1 A2 E F1
HALL_OUT A4
C C
AIN6 A1 A3 VSS H1
LENS_TEMP A5 ZFRD
IC101
AIN5 B1 A4 G G1
FOCUS_PI_E A6 D0
AIN4 D2 A5 DQ0 E2
R1044 ZOOM_PI_E A7 D8
AIN3
0;1/16Z
C2 A6 DQ8 F2
AD_KEY3 A8 D1
AIN2 A2 A7 DQ1 H2
BAT_TMP A18 D9
AIN1 B2 A17 DQ9 G2
BATTERY A19 D2
AIN0 C3 A18 DQ2 E3
D10
AVREFP A3 R/B DQ10 F3
D3
AVREFM B3 VPPWP DQ3 H3
R1004 A22 D11
RQ A_VDD1.8 C4 A21 DQ11 G3
K4
51;1/16D
ONENAND_RESET
ODT B4 RP VCC G4
R2
ZDSWE ZFWR D4
ZDWE A4 W DQ4 H4
P3
C1202
B
ZDCS
0.1;B
B
A21 D12
ZDCS D3 A20 DQ12 F4
T2
ZCAS A20 D5
ZCAS D4 A19 DQ5 E4
P4
ZRAS A9 D13
C1210
B5 G5
0.1;B
ZRAS A8 DQ13
T1
A10 D6
DVREF1 A5 A9 DQ6 H5
T7
R1029 A11 D14

DVREF0 C5 A10 DQ14 F5
J7
0;1/16Z SW3.2V
A12 D7
DSRON D5 A11 DQ7 E5
R3
A13 D15 VDD3

DQSB3 B6 A12 DQ15A-1 G6
Y1
A14
SYSTEM ASIC
DQSB2 A6 A13 VSS H6
V3
4
RB142
A15
C6 F6
10K
DQSB1 A14 BYTE

F1
A16 A17
DQSB0 D6 A15 A16 E6
H3
DQS3
DQS3
W1
NOR FLASH MEMORY

2
DQS2
RB143
10K
DQS2
U3
A A
DQS1
DQS1 CN141
1
5
E1
DQS0
DQS0 R1401
1 DATA3
G3
DQM3 100;1/16J
SDCMD C1401
DQM3 2 COMMAND
Y2
DQM2 0.1;B
DQM2 3 VSS
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 CLOCK
V4
DQM1
DQM1 4 VDD
E2
DQM0 SDCLK RB141

DQM0 5
G4
DQ31 100
C10
SDDAT3
DQ31
1 2
6 VSS
U2
DQ30 SDDAT0
DQ30
3 4
7 DATA0
V1
DQ29 SDDAT1
DQ29
5 6
8 DATA1
V2
DQ28 SDDAT2
DQ28
7 8
9 DATA2
W2
DQ27 ZCARD
DQ27 10 CARD
AB2 AB1 AA2 AA1
DQ26
DQ26
DQ25
11 COMMON
SDWP
DQ25
DQ24
12 WP
DQ24
DQ23 Z1 Z2 Z3 Z4
DQ23
R4
DQ22
DQ22
T4
DQ21
DQ21
T3
DQ20
DQ20 TO SD
U4
DQ19
DQ19
W3
DQ18
DQ18
W4
DQ17
DQ17
Y3
DQ16
DQ16
Y4
DQ15
DQ15
C2
DQ14
DQ14
C1
DQ13
DQ13
D2
DQ12
DQ12
D1
DQ11
DQ11
F2
DQ10
DQ10
G2
DQ9
DQ9
G1
DQ8
DQ8
H1
DQ7
DQ7 CN110
E4
DQ6
DQ6 L1001
1 GND
E3
DQ5 BK1608LM751
VIDEOOUT L1303
DQ5 2 VIDEO_OUT
F4
1608 R1016
DQ4 AUDIO_LOUT BK1005HM102
DQ4 10K;1/16J
3 AUDIO_L
F3
DQ3 ZAVJACK VDD3

DQ3 4 ZAVJACK
H4
DQ2 USBD+ USB_D+

DQ2 5 USB_D+
J3
DQ1
DQ1 EXC24CF900 6 AUDIO_R
J4
DQ0 L1301
USBD- L1304
DQ0
USB_D-
7 USB_D-
1
K3
BK1005HM102
AUDIO_ROUT
E21 GPIOF[10]
F24 GPIOF[11]
F23 GPIOF[12]
F22 GPIOF[13]
F21 GPIOF[14]
G24 GPIOF[15]
G23 GPIOF[16]
G22 GPIOF[17]
G21 GPIOF[18]
H24 GPIOF[19]
H23 GPIOF[20]
H22 GPIOF[21]
H21 GPIOF[22]
J22 GPIOF[23]
J21 GPIOF[24]
K21 GPIOF[25]
L21 GPIOF[26]
M22 GPIOF[27]
M21 GPIOF[28]
K18 GPIOF[29]
L18 GPIOF[30]
N22 GPIOF[31]
N21 GPIOF[32]
P22 GPIOF[33]
P21 GPIOF[34]
R22 GPIOF[35]
R21 GPIOF[36]
T22 GPIOF[37]
T21 GPIOF[38]
USBVDD
D24 GPIOF[3]
D23 GPIOF[4]
D22 GPIOF[5]
D21 GPIOF[6]
E24 GPIOF[7]
E23 GPIOF[8]
E22 GPIOF[9]
8
L24 SDIN[0]
N24 SDIN[1]
R24 SDIN[2]
U23 SDIN[3]
J23 SDIN[4]
L23 SDIN[5]
N23 SDIN[6]
R23 SDIN[7]
M24 SDIP[0]
P24 SDIP[1]
T24 SDIP[2]
U24 SDIP[3]
K23 SDIP[4]
M23 SDIP[5]
P23 SDIP[6]
T23 SDIP[7]
J24 SCKIN
K24 SCKIP
R1010
N4 DCKN
L22 ADCK
U1 DCKE
M4 DCKP
R1 DBA0
P1 DBA1
P2 DA10
H2 DA11
K2 DA12
DA13
K22 CKIN
N1 DA0
N2 DA1
M1 DA2
L1 DA3
L3 DA4
M2 DA5
K1 DA6
L4 DA7
L2 DA8
DA9
47K;1/16J
AL3.2V Z1 Z2 Z3 Z4
J1
J2
Q1301
DTC144EM
ZUSB_DET
C1304
TO USB & AV
DA10
DA11
DA12
1;B
DA0
DA1
DA2
DA3
DA4
DA5
DA6
DA7
DA8
DA9
100;1/16J
R1056
DSCKN
DSCKE
DSCKP
DBA0
DBA1
R1034
R1030
R1033
0;1/16Z
0;1/16Z
0;1/16Z
A_RESET_P
CMOS_SDA
CMOS_SCL
SLVSD0N
SLVSD1N
SLVSD2N
SLVSD3N
SLVSD0P
SLVSD1P
SLVSD2P
SLVSD3P
A_ADCK
SLVSCN
SLVSCP
HALL_OFFSET
G_RESETN
D4CKFSEL
SHUTTER+
ZAVJACK
HDMI_INT
LENS_SCLK
LENS_SDI
OC_CONT
IAMPPWM
LCDPWM
LENS_EN
AUDPDN
D4CKOE
IRISPWM
OC_EN
PAON1
PAON2
HINGE
G_EN
AUDCK
AUDSD
AUDEN
R1902
0;1/16Z
VDD1.8
1608
C1912
2125
10;B
I2C_SDA
I2C_SCL
UV0
Y7
Y6
Y5
Y4
Y3
Y2
Y1
Y0
VPIXCLK
R1925
R1924
0;1/16Z
0;1/16Z
0;1/16Z
C1907
R1919
0;1/16Z
1;B
R1918
RB192
CN191
C1901
0
1608
1;B
E3 C4 E4 A4 B4 A3 B3 A2 B2 B1 C1 D4 C5 A5 B5 G7
C1908
1 2
1 TMDS SHLD2
4
L1901
0.1;B
2 TMDS DATA2+
VSSD
CSDA
CSCL
VCLK
VSSD
VDDD0(IO)(1V8)
UV1 DLP2ADN900HL4
E2 H8
TMDS DATA2-
3 4
UV2 VDDA(SHR)(1V8) 3
3
E1 VSSA D7
TMDS SHLD1
VDDA(SHR)(1V8) 5 6
UV3 4
2
D1 TX2+ A6
UV4
D2 TX2- A7
5 TMDS DATA1+
7 8
6 TMDS DATA1-
1
UV5
D3 VDDA(TMDS)(1V8) A8
UV6
1 2
7 TMDS SHLD0
JW186
4
8
ZVMUTE
C2 Tx1+ B8
VIDEOOUT
AMCLK
YOUT
AWG32/AWG30 UV7
C3 IC191 Tx1- C8
L1902
DLP2ADN900HL4
8 TMDS DATA0+
TMDS DATA0-
3 4
VDD3 SP+ TDA9989ET/C1,518 9
SP+
3
1 D5 VDDDC0(1V2) QXXAGB057---P NC A1
Downloaded from www.Manualslib.com manuals search engine 5 6

10 TMDS CLK SHD
2
VA181 H3 Tx0+ D8
C1801
JW185 11 TMDS CLK+

0.1;B
AVR-M1005C080MTABB
H2 Tx0- E8
AWG32/AWG30 HDMI TRANSMITTER TMDS CLK-
C1902
C1503 7 8
H=1.0 12
1;B
IC151 4.7;B
SP- 1608 G3 VDDA(TMDS)(1V8) C7
NJM2561F1A RB193
A_VDD1.8 C1007
0;1/16Z 1;B
A_VDD1
A_V
VDD1.8
VDD3
R1003 A_VDD1.1
0;1/16Z
VDD1.1
1608
R1121
C1121
6P;CH
C1033
C1002
1608
10;B
C1063 1;B
10;B
C1051 1;B 1.2K;1/16D
2125
C1057
0.1;B C1064 1;B
C1005
1AV4V10B8610G
4.7;B
1608
1M;1/16J
4
3
C1058
R1122
C1065 1;B C1053
48.00000MHz
0.1;B VDD3
0.1;B
X1102
C1030
NC AC23
0.1;B
GND M13
GND M12
GND M14
GND M11
GND M10
GND M17
VDD33 M16
VDD18L M18
VDD11 M15
NC AC2
GND G11
GND G17
GND G18
GND AB3
VDD18M AA3
GND N13
GND N12
GND N14
GND N11
GND N10
GND H10
GND H11
GND H12
GND H13
GND H14
GND H15
GND H16
GND H17
GND N17
GND U16
GND U15
GND U14
GND U13
GND U12
GND U11
VDD33C0 R15
VDD33A R10
VDD33 N16
VDD30 R16
VDD18L N18
VDD11 N15
VDD11 R14
VDD11 R13
VDD11 R12
VDD11 R11
GND P14
GND P13
GND P12
GND P11
GND K17
GND P17
GND V16
GND V15
VDD33F K16
VDD33 K15
VDD33 K10
VDD33 P16
VDD11 K11
VDD11 K12
VDD11 K13
VDD11 K14
VDD11 P15
VDD11 P10
NC B23
VDD33C1 T14
VDD33C1 T13
VDD33C0 T15
VDD33B1 T11
VDD33B0 T12
VDD33A T10
VDD30 T16
GND M9
GND M8
GND M7
VDD18M M3
GND L12
GND L13
GND L14
GND L11
GND L17
VDD33F L16
VDD11 L15
VDD11 L10
GND J17
VDD33F J16
VDD33 J10
VDD33 J11
VDD33 J12
VDD33 J13
VDD33 J14
VDD33 J15
GND N9
GND H9
GND U8
GND N8
GND H8
GND U7
GND N7
GND H7
GND N3
GND C3
VDD33A R9
VDD18M R8
VDD18M R7
VDD18M D3
GND A7
VDD33 K9
VDD18M K8
VDD18M K7
VDD11 P9
NC E5
VDD33A T9
VDD18M T8
VDD11 L9
VDD33 J9
VDD18M J8
C1066
4
10K;1/16J
RB106
R1020
0.1;B
10K
1
2
C1067
C1122
7P;CH
3
0.1;B ZMRST
ZMRST NC
D6
B2
XIN
XI NC
A4
A2
XOUT
XO NC
AC1 AD1 AD2 AD23 AD24 AC24 B24 A24 A23

A3
D4CKI NC
D4
IC111
AK8113L R1012 D4CKO NC
D5
OE 47;1/16D
D4CKFSEL A_D4CKIN
4 CLKOUT 3 MCLKO NC
A6
D4CKOE FSEL
5 VSS 2 CLKSEL[0] NC
C5
A_D4CKOUT
R1018
6 1
0;1/16Z
CLKIN VDD3 CLKSEL[1] NC
W22 C6
VDD
R1008
R1019
22;1/16J SYMD NC
0;1/16Z
QAK8113L----G
C1017
C1018
0.01;B
CLOCK
1;B
PLLEN NC
A5
GENERATOR PTEST NC
B5
CKTEST[0] NC
B3
B1
L1004
CLK12M R1023
CKTEST[1] NC
C4
A1
BLM15BA330SN1
D4CKOE 100;1/16J
CKTEST[2] GNDP3
G7
B4
D4CKFSEL
TEST[0] VDD11P3
G8
B6
R1039 L1010
TEST[1] GNDP2
G9
AA4 AA7 AD9 AB10 AC7 AD10 AC10 AD8 AA10 AB11 AA8 AA11 AA9 AA12 AB12 AC12 AA13 AB13 AC11 AD11 AD12 AA21 AA22 AA23 Y21 Y22 Y24 W21 W23 W24 V21 AD22 AC19 AC20 AC21 AB20 AB21 AB22 AB23 AB24 AA20 AD20 AD21 AC22 Y23 AD19 AA24 B7
C1001
1K;1/16J FBMH1608H
1;B
BSRST 1608
ZSYRSTI VDD11P2
G10
CLK32K R1041
0.1;B SYCKI GND11_PHY
L8
BAT_OFF C1025 0;1/16Z
BATI GND11_PHY
L7
R1045
SYTEST VDD11_PHY 0;1/10Z
P8
0.1;B
HALL SENSOR PON C1028
PON[0] VDD11_PHY 2125
P7
IC302
PON[1] GND2USB
C1044
C1032
B9
TCS10NPU C1022
10;B
1;B
1608
QTCS10NPU---P GREEN_LED 0.1;B
GPIOS[0] GND1USB
B8
VOUT ZUSB_DET RB108
AL3.2V 5 1 GPIOS[1] VD33USB
C9
VCC 1K
KEY_2ND 5 6
GND1 2 GPIOS[2] DP
A8
A_KEY_2ND
R1054
C3001
NC KEY_1ST 3 4
4 3
0.1;B
GPIOS[3] DM
A9
GND2 1K;1/16J
ZCARD 1 2
GPIOS[4] VBUS
D9
PANEL_OPEN
GPIOS[5] VSSUSB
C7
GPIOS[6] AVSSUSB
D7
SW3.2V SW3.2ON R1026
GPIOS[7] AVDDUSB
C8
1.6K;1/16D
VBDET RREF
AL3.2V GPIOS[8] RREF
D8
Q3001 SDDET
GPIOS[9] SMC
U10 V10
DTA114EM
C1008
7 8
S3001 KSI[0] TMC2
1;B
SKRMAGE010 SCAN_IN1
KSI[1] TMC1
U9
SCAN_IN2
KSI[2] NEC_TEST1
V9
RB109
KSI[3] NEC_TEST0 10K
V8
H=1.42
KSI[4] TSEL2
A22 B21 C20 A21 D20 A20 C19 B20 D19 B19 D18 A19 C21 B22 A18 A17 C18 B18 U18 R18 T18 P18 V18 V17 U17 T17 R17
4 3
KSO[0] TSEL1
6 5
SCAN_OUT1
KSO[1] TSEL0
2 1
SCAN_OUT2
0.500000
KSO[2] TRST
KSO[3] TMS 1K;1/16

RED_LED R100
KSO[4] TDO
1M;1/16J
1M;1/16J
1M;1/16J
R1001
R1005
R1046
GPIOA[0] TDI
12.7X12.7
A1 8 7
GPIOA[1] TCK
A2
GPIOA[2] RTCK
C1009
A3
GPIOA[3] AG33
A4 1;B
GPIOA[4] AV33
QEV4X1------N
A5 C1011
GPIOA[5] YOUT
0.1;B
A6 C1012
GPIOA[6] VCBP
1;B
A7
GPIOA[7] AGND
A8
GPIOA[8] AVDD
R1040
EV4X1
A9
GPIOA[9] AIN9
A10 0;1/16Z
GPIOA[10] AIN8
A11 R1043
GPIOA[11] AIN7 0;1/16Z
A12
GPIOA[12] AIN6
A13
IC101
GPIOA[13] AIN5
R1031
10K;1/16J A14
GPIOA[14] AIN4
VDD3 A15
GPIOA[15] AIN3 R1044
R1032 0;1/16Z
A16
10K;1/16J GPIOA[16] AIN2
GPIOA[17] AIN1
GPIOA[18] AIN0
ZCS1
GPIOA[19] AVREFP
GPIOA[20] AVREFM
ONENAND_RESET R1004
GPIOA[21] RQ
V7
K4
51;1/16D
ZCS0
ZCS ODT
AC13 AD13 AA14 AB14 AC14 AD14 AA15 AB15 AC15 AD15 AA16 AB16 AC16 AD16 AA17 AB17 AC17 AD17 AA18 AB18 AC18 AD18 AA19 AB19 V11 V12 V13 V14 U22 U21 V24 V23 V22 AD7 AC3 AB4 AD4 AC6 AB6 AA5 AC4 AD5 AB7 AB8 AD6 AA6 AB9 AC5 AC8 AD3 AB5 AC9
R2
ZFRD ZDSWE
ZRE ZDWE
P3
ZFWR ZDCS
ZWE ZDCS
T2
ZCAS
CP1 BOARD (DMA) MAIN [LOWER-LEFT]

D0
D0 ZCAS
P4
ZRAS
K
D1
K
D1 ZRAS
T1
D2
D2 DVREF1
T7
D3 R1029
D3 DVREF0
J7
0;1/16Z
D4
D4 DSRON
R3
D5
D5 DQSB3
Y1
D6
SYSTEM ASIC
D6 DQSB2
V3
D7
D7 DQSB1
F1
D8
D8 DQSB0
H3
D9 DQS3
D9 DQS3
W1
D10 DQS2
D10 DQS2
U3
D11 DQS1
CN106 D11 DQS1
E1
AD_KEY3 D12 DQS0
AD_KEY3 1 VDD3 D12 DQS0
G3
J J
KEY_2ND D13 DQM3
KEY_2ND 2 D13 DQM3
Y2
4
DQM2
RB111
KEY_1ST D14
KEY_1ST 3
4.7K
D14 DQM2
V4
D15 DQM1
GND 4 D15 DQM1
3
E2
BACK_UP_BAT DQM0
BUCK_UP_BAT 5 ZSREQ DQM0
G4
DQ31
GND 6 COMREQ DQ31
U2
GREEN_LED DQ30
LED_GREEN 7 SCK DQ30
V1
RED_LED DQ29
LED_RED 8 SDI DQ29
V2
LIGHT_ON DQ28
LIGHT_ON 9 SDO DQ28
W2
I2C_SDA DQ27
GND 10 GPIOB[0] DQ27
AB2 AB1 AA2 AA1

R1017 R1050 0;1/16Z DQ26
G_EN I2C_SCL
G_EN 11
VDD3
10K;1/16J
R1052
GPIOB[1] DQ26
DQ25
LENS_SDI
LENS_SDI 12 RXD1 0;1/16Z
GPIOB[2] DQ25
DQ24
LENS_SCLK TXD1
LENS_SCLK 13 GPIOB[3] DQ24
I I
LENS_EN SDDAT0 DQ23
LENS_EN 14 GPIOC[0] DQ23
R4
SHUTTER+ SDDAT1 DQ22
SHUTTER+ 15 GPIOC[1] DQ22
T4
OC_EN SDDAT2 DQ21
OC_EN 16 GPIOC[2] DQ21
T3
OC_CONT SDDAT3 DQ20
OC_CONT 17 GPIOC[3] DQ20
U4
PON SDCMD DQ19
P_ON 18 GPIOC[4] DQ19
W3
C1039 DQ18
SDDET
GND 19 0.1;B GPIOC[5] DQ18
W4
CLK12M SDWP DQ17
CLK12M 20 GPIOC[6] DQ17
Y3
HALL_OUT SDCLK L1002 R1007 DQ16
HALL_OUT 21 GPIOC[7] DQ16
Y4
BLM15BA330SN1 47;1/16J DQ15
GND 22 GPIOC[8] DQ15
C2
FOCUS_PI_E DQ14
FOCUS_PI_E 23 GPIOC[9] DQ14
C1
ZOOM_PI_E A_KEY_2ND DQ13
ZOOM_PI_E 24 GPIOC[10] DQ13
D2
DQ12
GND
H
25
H
GPIOC[11] DQ12
D1
LENS_TEMP DQ11
LENS_TEMP 26 GPIOC[12] DQ11
F2
STATE_Z DQ10
VDD3 27 GPIOC[13] DQ10
G2
STATE_F DQ9
VDD3 28 VDD3 GPIOC[14] DQ9
G1
STATE_F DQ8
STATE_F 29 GPIOC[15] DQ8
H1
C1041 RB110
1;B STATE_Z DQ7
STATE_Z 30 10K
GPIOC[16] DQ7
E4
RB107 1 2
DQ6
G_RESETN
G_RESETN 31 A17 10K GPIOC[17] DQ6
E3
3 4
DQ5
GND 32 GPIOC[18] DQ5
F4
A18 7 8
IRISPWM DQ4
IRISPWM 33 A19 GPIOC[19] DQ4
F3
5 6
IAMPPWM DQ3
IAMPPWM 34 A20
GPIOC[20] DQ3
H4
3 4
HALL_OFFSET DQ2
HALL_OFFSET 35 A21
GPIOC[21] DQ2
J3
1 2 DQ1
GND 36 A22 GPIOC[22] DQ1
J4
DQ0
G
BOOST5
G
37 BOOST5.0V GPIOC[23] DQ0
K3
C1016
C13 GPIOE[10]
D13 GPIOE[11]
G13 GPIOE[12]
A14 GPIOE[13]
B14 GPIOE[14]
C14 GPIOE[15]
D14 GPIOE[16]
G14 GPIOE[17]
A15 GPIOE[18]
B15 GPIOE[19]
C15 GPIOE[20]
D15 GPIOE[21]
A16 GPIOE[22]
B16 GPIOE[23]
C16 GPIOE[24]
D16 GPIOE[25]
B17 GPIOE[26]
C17 GPIOE[27]
D17 GPIOE[28]
E21 GPIOF[10]
F24 GPIOF[11]
F23 GPIOF[12]
F22 GPIOF[13]
F21 GPIOF[14]
G24 GPIOF[15]
G23 GPIOF[16]
G22 GPIOF[17]
G21 GPIOF[18]
H24 GPIOF[19]
H23 GPIOF[20]
H22 GPIOF[21]
H21 GPIOF[22]
J22 GPIOF[23]
J21 GPIOF[24]
K21 GPIOF[25]
L21 GPIOF[26]
M22 GPIOF[27]
M21 GPIOF[28]
K18 GPIOF[29]
L18 GPIOF[30]
N22 GPIOF[31]
N21 GPIOF[32]
P22 GPIOF[33]
P21 GPIOF[34]
R22 GPIOF[35]
R21 GPIOF[36]
T22 GPIOF[37]
T21 GPIOF[38]
BOOST5
G15 LCDCK[0]
G16 LCDCK[1]
D11 GPIOD[0]
D10 GPIOD[1]
C10 GPIOD[2]
B10 GPIOD[3]
A10 GPIOD[4]
A11 GPIOE[0]
B11 GPIOE[1]
C11 GPIOE[2]
A12 GPIOE[3]
B12 GPIOE[4]
C12 GPIOE[5]
D12 GPIOE[6]
G12 GPIOE[7]
A13 GPIOE[8]
B13 GPIOE[9]
1;B
C24 GPIOF[0]
C23 GPIOF[1]
C22 GPIOF[2]
D24 GPIOF[3]
D23 GPIOF[4]
D22 GPIOF[5]
D21 GPIOF[6]
E24 GPIOF[7]
E23 GPIOF[8]
E22 GPIOF[9]
38
L24 SDIN[0]
N24 SDIN[1]
R24 SDIN[2]
U23 SDIN[3]
J23 SDIN[4]
L23 SDIN[5]
N23 SDIN[6]
R23 SDIN[7]
M24 SDIP[0]
P24 SDIP[1]
T24 SDIP[2]
U24 SDIP[3]
K23 SDIP[4]
M23 SDIP[5]
P23 SDIP[6]
T23 SDIP[7]
J24 SCKIN
K24 SCKIP
J18 TGHD
N4 DCKN
H18 TGVD
L22 ADCK
U1 DCKE
M4 DCKP
R1 DBA0
P1 DBA1
P2 DA10
H2 DA11
K2 DA12
DA13
K22 CKIN
N1 DA0
N2 DA1
M1 DA2
L1 DA3
L3 DA4
M2 DA5
K1 DA6
L4 DA7
L2 DA8
DA9
BOOST5 39
BOOST5
J1
J2
40
150;1/16J
2 RB127
20;1/16J
TO CP2 (DMB)
2
8
RB129
R1014
R1011
220
6
2
RB112
100
CN601
100
4
RB123
4
100
1
7
5
DA10
DA11
DA12
1AV4L3CD050PG
DA0
DA1
DA2
DA3
DA4
DA5
DA6
DA7
DA8
DA9
1
1AV4L3CK471PG 3
4
BLM15BB050SN1
RB105
100;1/16J
2 7
R1056
BLA2ABD471SN4D
100
6
2
RB104
DSCKN
DSCKE
DSCKP
L1006
DBA0
DBA1
2
L1007
3
RB120
100
5
R1034
R1030
R1033
0;1/16Z
0;1/16Z
0;1/16Z
1
7
1
7
2
2
RB124
R1015
47;1/16J
RB128
2
8
100
220
BLM15BD471SN1
RB102
F
1AV4L3CC471PG
F
BLA2ABD471SN4D
0
1AV4L3CK471PG
1
2 7
A_RESET_P
L1005
CMOS_SDA
6
8
2
CMOS_SCL
RB103
RB101
L1003
SLVSD0N
SLVSD1N
SLVSD2N
SLVSD3N
SLVSD0P
SLVSD1P
SLVSD2P
SLVSD3P
0
A_TGVD
A_ADCK
SLVSCN
SLVSCP
0
1
HALL_OFFSET
G_RESETN
D4CKFSEL
SHUTTER+
ZAVJACK
HDMI_INT
LENS_SCLK
LENS_SDI
OC_CONT
IAMPPWM
LIGHT_ON
LCDPWM
ZVMUTE
LENS_EN
AUDPDN
D4CKOE
IRISPWM
OC_EN
VPIXCLK
PAON1
PAON2
ADCDAT
DACDAT
HINGE
G_EN
AUDCK
LMCLK
AUDSD
AUDEN
AMCLK
LCDHD
LCDCK
LCDSD
LCDEN
LCDVD
LCDD0
LCDD1
LCDD2
LCDD3
LCDD4
LCDD5
LCDD6
LCDD7
LRCLK
BCLK
UV0
UV1
UV2
UV3
UV4
UV5
UV6
UV7
Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
E E
CMOS1.8
D D
C1003
IC103
0.1;B
TC7SG126FE
QTC7SG126FE-P
JW186
ZVMUTE
VIDEOOUT
AMCLK
YOUT
5 1 AWG32/AWG30
CMOS_SDA A_ADCK VDD3 SP+
CMOS_SCL
R1021
100;1/16J 2 1 SP+
ADCK
4 3 VA181
C1801
SLVSCN
JW185
0.1;B
AVR-M1005C080MTABB
TO PWA BACK_UP_BAT SLVSCP AWG32/AWG30 C1503 H=1.0
TO PWA,CAA PAON1 SP-
IC151 4.7;B 1608
SLVSD0N 1 SP- NJM2561F1A
QNJM2561F1A-P
TO CAA PAON2 MIC_GND
C1812 4.7;B 1608 TO SPEAKER

4
SLVSD0P
RB181
VA182 PS
1 6
20K
C3 E6 E5 D4 E4 D6 B5 VDD3
SLVSD1N AVR-M1005C080MTABB VCC
CMOS1.8 R1801
OUT
C1806 MCKI R1501
2 5 C1501
I2C
VSS3
SVDD
SPP
SPN
MCKO
BSRST 10;1/16J
3
SLVSD1P 1;B 75;1/16D GND 0.1;B

AUDIO_ROUT VSS2 A6 VDD3
SAG
LCDPWM
SLVSD2N 3 4
D3 ROUT 3 IN 4
AUDIO_LOUT DVDD A5
C1004
IC104 R1804
0.1;B
E3 LOUT BCLK
C
TC7SG126FE 1 2 100K;1/16J
C
SLVSD2P BICK C5
CLK32K
QTC7SG126FE-P RB116
150K
200
RB183
C1807
1;B E2 MIN LRCLK VIDEO DRIVER
SLVSD3N UNREGSY IC181 LRCK B6
1AV4R1LB1542G
I2C_SDA
SLVSD3P
5 1 1 2
E1 RIN2 AK4649ECB ADCDAT
A_TGVD BATTERY UNREGSY QAK4649ECB-LJ SDTO D5
I2C_SCL R1022
2 R3001 D2 LIN2 R1805
100K;1/16J DACDAT
ADCK TGVD
100;1/16J
3 10K;1/16J
3 4 DMCLK
SDTI C6
4 3
Q1005
SSM3J16TE
AL3.2V C1 RIN1/DMCLK AUDSD

C1020
VIN
100K;1/16J
TGVD
0.1;B
CDTIO/CAD0 A4
R1049
BAT_OFF BAT_OFF DMDAT

PON
RESET_N
1 VSS VOUT 2 D1 LIN1/DMDAT CCLK/SCL AUDCK
TO CAA B4
VCOM
VCOC
AVDD
VSS1
PDN
MPWR/DMP CSN/SDA
2
QXC61GN2502HP C2 A1 B2 B1 A2 B3 C4
RB184
AUDIO CODEC
100K
XC61GN2502HR R1048
TO PWA UNREGSY UNREGSY
IC304 100;1/16J
AVREF
10K;1/16J
1
CMOS1.8
VOLTAGE DET Q1006
MIC_GND
R1814
2SK3541
100K;1/16J
CMOS1.8 CMOS1.8
TO PWA,CAA
R1051
22K;1/16D
3.3
VDD3 VDD3
R1035
10K;1/16J
R1042
1.8 MIC_VDD
VDD1.8 VDD1.8
B B
AUDEN
1.1 INT_TEMP
VDD1.1 VDD1.1
R1024 Q1001 AUDPDN
AL3.2V AL3.2V VDD3
NCP15WF104F03-RC
C1810
0;1/16Z DTC144EM
2.2;B
5.0 RESET_N
C1021
IC182
C1813
BOOST5.0V BOOST5.0V
0.1;B
A_RESET_P
TH101
10K;1/16J
1;B
R1815
NJM2877F3-03
BAT_TEMP BAT_TEMP QNJM2877F303P
TO PWA VDD5 VDD5

1 5 R1803
0;1/16Z
4700P;B
C1804
C1805
C1802
C1811
REG
R1037
2
0.1;B
0.1;B
1608 4.7;B
MIC_GND
10K;1/16D 3.0V
R1036 3 4 MIC_GND
1K;1/16J C1803
BAT_TMP 1;B
BAT_TEMP
C1814
1;B
MIC_GND
A A
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
C11

C1007
1;B T7 VCCQo VDDQ J1
D12
T8 IO12 VSSQ H12
C1201
1;B
T9 VCCQo VDDQ H11
D6 DQ9
IC102
T10 IO6 DQ8 H10
D14 DQ8
T11 IO14 DQ9 H9
DQ25
T12 VDD DQ25 H4
K5W121GLCM-AK50
DQ26
U1 VDD DQ26 H3 VA102
ZCS1 AVR-M1005C080MTAAB Z1 Z2 Z3 Z4
C1204
0.1;B
U2 CEBo VDDQ H2
NC AC23
VDD33 M16
VDD18L M18
VDD11 M15
NC AC2
GND G11
GND G17
GND G18
GND AB3
VDD18M AA3
VDD33C0 R15
VDD33A R10
VDD33 N16
VDD30 R16
VDD18L N18
VDD11 N15
VDD11 R14
VDD11 R13
VDD11 R12
VDD11 R11
GND V16
GND V15
VDD33F K16
VDD33 K15
VDD33 K10
VDD33 P16
VDD11 K11
VDD11 K12
VDD11 K13
VDD11 K14
VDD11 P15
VDD11 P10
NC B23
VDD33C1 T14
VDD33C1 T13
VDD33C0 T15
VDD33B1 T11
VDD33B0 T12
VDD33A T10
VDD30 T16
GND M8
GND M7
VDD18M M3
VDD33F L16
VDD11 L15
VDD11 L10
VDD33F J16
VDD33 J10
VDD33 J11
VDD33 J12
VDD33 J13
VDD33 J14
VDD33 J15
GND U8
GND N8
GND H8
GND U7
GND N7
GND H7
GND N3
GND C3
VDD33A R9
VDD18M R8
VDD18M R7
VDD18M D3
GND A7
VDD33 K9
VDD18M K8
VDD18M K7
VDD11 P9
NC E5
VDD33A T9
VDD18M T8

Service Manual: REFERENCE No. SM5310805

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Service Manual: REFERENCE No. SM5310805

Uploaded by

Copyright:

Available Formats

FILE NO.

Downloaded from www.Manualslib.com manuals search engine

Lead-free solder has a melting point that is 30 - 40°C (86 -

Metal content Tin (Sn) Silver (Ag) Copper (Cu)

Lead-free solder is available for purchase as a service tool.

The electric charges which are generated when each pixel is

1/2.3-inch positive pixel array CMOS-type fixed imaging

1-7. Digital encoder

4-2. Zoom drive

4-4. Iris drive

4-5. Shutter drive

Pin Signal I/O Outline

Table 2-1. Power Sequencer Port Specification

1.1V, 1.8V, 3.3V 1.8V, 2.8V, 3.3V

Power OFF OFF OFF

Play mode ON OFF

Table 2-2. Power Control

9. Light emission control circuit

9-1. Light emission for still picture shooting

9-2. Light emission for moving picture shooting

NOTE: Discharge a strobe capacitor with the

1. Two screws 1.7 x 4.5 12. TB3 board

1. Screw 1.7 x 2 16. Screw 1.7 x 2.5

1. Spacer CA 6. Two screws 1.4 x 3.5

3. Computer screen during adjustment

Calibration Upload LCD

Lens Optical Lens Lens CMOS CMOS Black LED

COMPL PWB CP1

COMPL PWB CP2

COMPL PWB VF1

COMPL PWB TB1

COMPL PWB TB2

COMPL PWB TB3

ASSY, UNIT CCD

3-7. Updating the firmware

3-8. Adjust Specifications 4. Deselect Bar code Input.

5. Enter the numeric character which are rightmost one

1.0~3.0 cm Dsc Calibration x

Adjustment value determination is effectuated using below val-

Adjustment value determination is effectuated using below val-

Lens LED light AWB

1. Overwriting firmware from the SD card

Calibration Upload LCD

POWER LOSS INOPERATIVE TAKING INOPERATIVE

PUSH THE POWER PUSH SHUTTER

CL305/CL307 NO KEY_1ST, KEY_2ND NO

CHECK IC102, IC121

CHECK IC102, IC121

SG411/J PARTS LIST 1

SG411/J PARTS LIST 2

LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION

COMPL PWB,CP-1 F/W (INDUCTORS)

Figure of printed wiring boards

PRODUCT SAFETY NOTICE

EXPLANATORY NOTES (EXAMPLES)

The number of "H=##" written in slant character, shows the voltage.

Downloaded from www.Manualslib.com manuals search engine

AD_KEY3 AD_KEY3 GREEN_LED

44 VDDC KEY_1ST 3 3 KEY_1ST DMB KEY_1ST 4

42 GND BUCK_UP_BAT 5 5 BUCK_UP_BAT KEY_TELE 6

23 VAA ZOOM_PI_E 24 24 ZOOM_PI_E TCA ZOOM_PI_E 12

1 + JW652 JW503 DMA DMA DMA DMA

mini HDMI USB & AV SD
