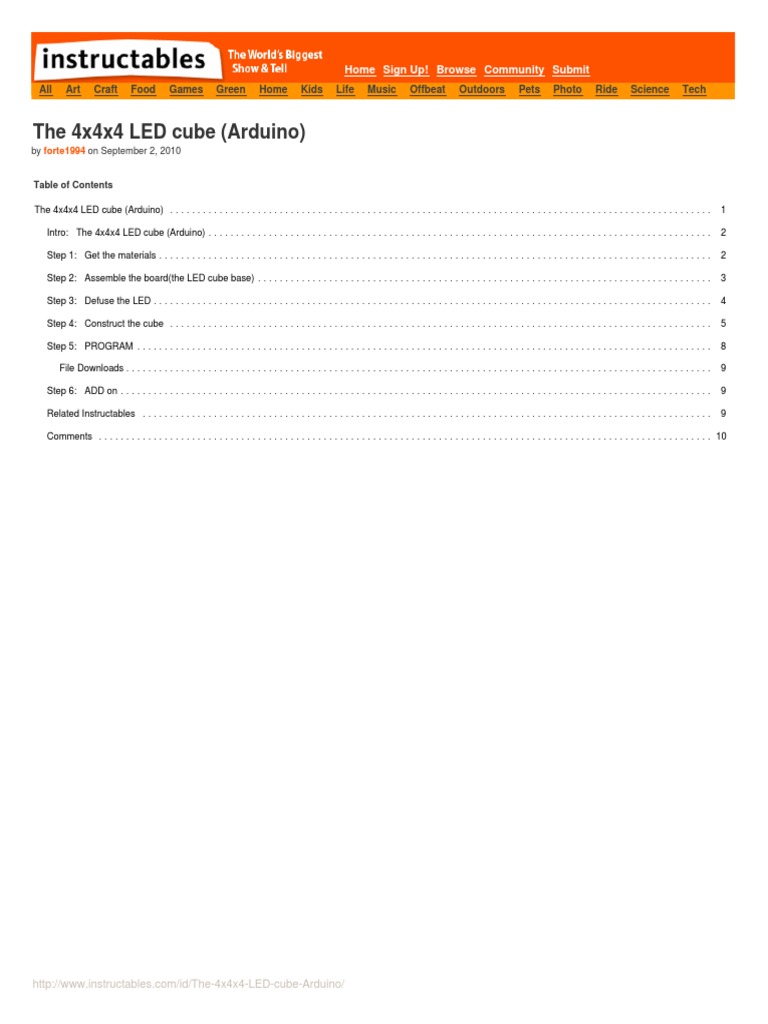

The 4x4x4 LED cube (Arduino)

by forte1994 on September 2, 2010

Table of Contents

The 4x4x4 LED cube (Arduino) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Intro: The 4x4x4 LED cube (Arduino) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Step 1: Get the materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Step 2: Assemble the board(the LED cube base) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Step 3: Defuse the LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Step 4: Construct the cube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Step 5: PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

File Downloads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Step 6: ADD on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Related Instructables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Comments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

http://www.instructables.com/id/The-4x4x4-LED-cube-Arduino/
Intro: The 4x4x4 LED cube (Arduino)
In this instructable I will show you how to make a 4x4x4 LED cube that will be controlled by an Arduino Demulionove. now yes you might say" that Arduino has only 14
I/O pins well also the 6 analog pins can be used as pins 15,16,17,18,19,20. that way giving us enough pins (16 columns + 4layers = 20 I/O pins)

This instructable is made for those who know how to solder (well) and how to program the Arduino. Also I will be providing detours to skip sum steps so if you see
(Detour available skip to __ Step) you can follow if you are to lazy to do that.

Step 1: Get the materials

To start of you will need these materials:

Mandatory
-- 64 LED (color optional) **
-- Arduino Demulionove
-- Wire

Optional
--32 male pin strip
--PCB prototype board
--Fine Grit (400 +) sand paper

Your choice
-- 64 resistors or 16
you can get 64 resistors which will help by keeping all the lights at the same light out put regardless of how many are on but it will be considerably more work.

Tools:
--Computer
--Soldering Iron
--Solder
--thin nose pliers

**Color is optional but use this website to find the right resistor for your leds http://led.linear1.org/led.wiz (I got Green so I used 100 ohm resistors)

http://www.instructables.com/id/The-4x4x4-LED-cube-Arduino/
 Image Notes Image Notes
1. 64 LED your choice in this case its green 1. supper Bright
2. PCB but I didn't end up using this one because it was too small so I used a 2. clear
bigger one
3. broken off peace off the 32 male pin header
4. Arduino
5. 64-100 ohm resistors
6. 400 G sand paper
7. My keyboard

Image Notes
1. now Defused LED

Step 2: Assemble the board(the LED cube base)

(Detour available skip to next step)

In this step you will need the board and the wiring. First you will want to map out were all the wires will go and then feed the wires through the board. Don't mind the LED
and resistor note on the picture for now.

NOTE: I recommend you use Different color wire just because you won't get confused which wire is which.

http://www.instructables.com/id/The-4x4x4-LED-cube-Arduino/
 Image Notes
1. 100 ohm resistor
2. coloms(+) 1 - 8
3. coloms(+) 9 - 14
4. coloms(+) 15 ,16
5. levels(-) 1 - 4
6. defused LED using sand paper

Step 3: Defuse the LED

DETOUR if you don't want to do this then go to next step

So to defuse the LED I took normal 400 grit sand paper and sanded all the LEDs which made them look pretty good.

Image Notes Image Notes

1. 400 GRIT sand paper 1. now Defused LED
2. clear LED

http://www.instructables.com/id/The-4x4x4-LED-cube-Arduino/
 Image Notes Image Notes
1. normal 1. with flash you can still see the defused one but not the normal
2. after sanding

Image Notes
1. this = lighting up the LED above it
2. this = dispersing light

Step 4: Construct the cube

Now there is the Easy way to do this and that is to connect all the (--) in one layer and then the columns (+) to the resistor and then board. (Look at picture diagram
below) what happens is when you turn it on (all of them) the lights are dimmer then when one is on.

My solution to this was to solder a 100 ohm resistor to each LED. (Follow picture instruction on how to do it.) Everything is done in the same way only now you solder all
the resistors to the column which is a piece of Ethernet wire. (See picture)

Image Notes
1. the resistor
2. LED
3. resistor plased in between the (-) bent down and the (+) bent up.
http://www.instructables.com/id/The-4x4x4-LED-cube-Arduino/
 4. start wraping the resistor around the (+) leed.
5. when done solder and snip off the end of the LED that is after the solder.

Image Notes
1. LAYER(--)
2. COLOMN (+)
3. LED
4. 100 ohm resistor
5. connections to arduino pins (+)
6. conections to arduino (--)

http://www.instructables.com/id/The-4x4x4-LED-cube-Arduino/
http://www.instructables.com/id/The-4x4x4-LED-cube-Arduino/
 Image Notes
1. resistor rining from the (+) on the LED to the (+) colom
2. (+) colom runing to the arduino
3. the (--) layer conected to the (--) of the LED

Step 5: PROGRAM
Good job on making it too this step now all you need to do is upload this code and you are done.

the code did not fit the line so here it is

http://www.instructables.com/id/The-4x4x4-LED-cube-Arduino/
 Image Notes
1. All finished YAY took me about 4 days 2-5 hours a day to finish and program.

File Downloads

LED_cube_4x4x4.zip (2 KB)
[NOTE: When saving, if you see .tmp as the file ext, rename it to 'LED_cube_4x4x4.zip']
Step 6: ADD on
so to program the cube all you need to do is change the

B1111, B1111, B1111, B1111, B1111, B1111, B1111, B1111, B1111, B1111, B1111, B1111, B1111, B1111, B1111, B1111, 80,

code
each B1111 corresponds to a line of LEDs in your cube 0 being off and 1 being on. The last number is the time it will display that part in milliseconds.

so get programing and enjoy.
