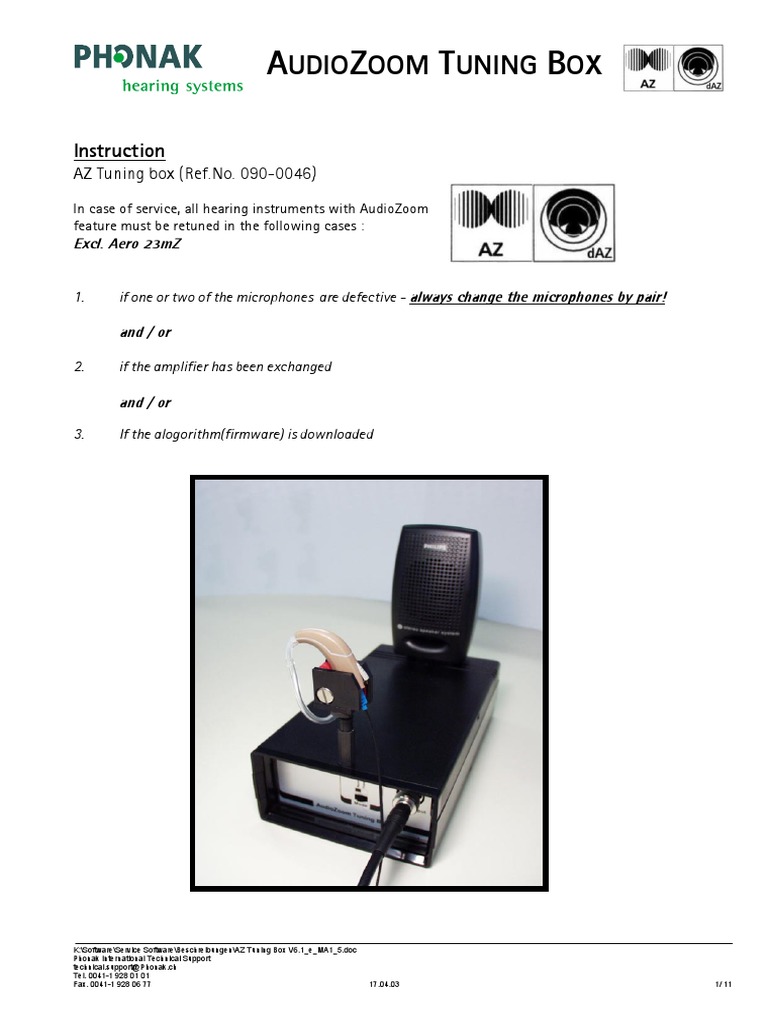

AUDIOZOOM TUNING BOX

Instruction
AZ Tuning box (Ref.No. 090-0046)

In case of service, all hearing instruments with AudioZoom

feature must be retuned in the following cases :
Excl. Aero 23mZ

1. if one or two of the microphones are defective - always change the microphones by pair!

and / or

2. if the amplifier has been exchanged

and / or

3. If the alogorithm(firmware) is downloaded

K:\Software\Service Software\Beschreibungen\AZ Tuning Box V6.1_e_MA1_5.doc

Phonak International Technical Support
technical.support@Phonak.ch
Tel. 0041-1 928 01 01
Fax. 0041-1 928 06 77 17.04.03 1/ 11
 AUDIOZOOM TUNING BOX

The AudioZoom Tuning Box packet

Tuning box

Power adapter

EU-Plug Adapter BTE

Powercable

Libby –horn,
4mm to
substitute HF Cable RG 59

Connector

Parts list
Partnumber Description Quantity
090-0058 Service tuning adapter BTE 1
090-0059 Tuning box 1
090-0060 Power adapter 90...260VAC/9VDC 1
090-0061 Standard-Plug (EU) 1
090-0062 Connector 1
090-0063 Cable HF (RG 59) 1
095-0060 Libby-Horn, 4mm 2
Power cable 1

Options
Partnumber Description
090-0055 Service tuning adapter ITE Perseo 23dAZ
090-0051 Service tuning adapter ITE MicroZoom P2 AZ
090-0053 Service tuning adapter ITE Claro 21dAZ
026-0204 Digital multimeter fluke 75
058-0019 HI-Pro Interface
058-0026 Programcabel Pics/Pics2 50cm left
058-0025 Programcabel Pics/Pics2 50cm right
058-0016 Programcabel MicroZoom/Claro 50cm left
058-0015 Programcabel MicroZoom/Claro 50cm right

K:\Software\Service Software\Beschreibungen\AZ Tuning Box V6.1_e_MA1_5.doc

Phonak International Technical Support
technical.support@Phonak.ch
Tel. 0041-1 928 01 01
Fax. 0041-1 928 06 77 17.04.03 2/ 11
 AUDIOZOOM TUNING BOX

Installation Tuning Box

For the AudioZoom tuning you need a quiet environment! (Less than 50dB)
A placement as follow is recommend.

Connect the equipment according to the illustrations below

MicAdjustment Software 1.5 or higher

Please find the latest version on the actual PFG CD – CD drive:\Support\Service\GMic

Install the software on your computer

1. Install VBRun60.exe (double click on the file)

2. Install MicAdj1.X.exe (double click on the file)
3. Follow the instructions

K:\Software\Service Software\Beschreibungen\AZ Tuning Box V6.1_e_MA1_5.doc

Phonak International Technical Support
technical.support@Phonak.ch
Tel. 0041-1 928 01 01
Fax. 0041-1 928 06 77 17.04.03 3/ 11
 AUDIOZOOM TUNING BOX

Installation for ITE AudioZoom tuning

1. Unsolder all litzwires
2. Clean the soldering pads
Claro 21dAZ MircoZoom P2 Perseo 23dAZ

3. Remove the battery door

4. Mount the ITE adapter on the tuning box

5. Insert the module in to the correct adapter

Notch
Position !

Lock the module

Claro 21dAZ Adapter Art. 090-0053 (Option - order it separate)
MicroZoom P2 AZ Adapter Art. 090-0051 (Option - order it separate)
Perseo 23dAZ Adapter Art. 090-0055 (Option - order it separate)

K:\Software\Service Software\Beschreibungen\AZ Tuning Box V6.1_e_MA1_5.doc

Phonak International Technical Support
technical.support@Phonak.ch
Tel. 0041-1 928 01 01
Fax. 0041-1 928 06 77 17.04.03 4/ 11
 AUDIOZOOM TUNING BOX

6. Mount the adapter on the tuning box, plug the libby-horn and connect the programming cable

7. Check the the switch on the front side of the Audiozoom Tuning Box

Position ;
„Normal“ for low gain instruments

„Power“ for high gain instruments

8. Switch „ON „ on the rear side of the Audiozoom Tuning Box and start the multimeter

Multimeter
AC-Range mV
ON/OFF
Switch

Whistling sound
audible?

9. Start up the tuning software (see page 7)

K:\Software\Service Software\Beschreibungen\AZ Tuning Box V6.1_e_MA1_5.doc

Phonak International Technical Support
technical.support@Phonak.ch
Tel. 0041-1 928 01 01
Fax. 0041-1 928 06 77 17.04.03 5/ 11
 AUDIOZOOM TUNING BOX

Installation for BTE AudioZoom tuning

Connect the equipment according to page 3

Attention ! 2 different ways to mount the instrument onto Tuning Box

Position for BTE types Position for BTE types

0°
Piconet 232X AZ 90° Claro 111/211/311dAZ
SonoForte 332X AZ Perseo111/211/311dAZ Forte
Piconet2 P2 AZ Aero 211AZ
SonoForte2 P3 AZ Aero 311 AZ Forte
PowerZoom P4 AZ Supero 413 AZ
(Power Mode !)
ATTENTION !!
For this measurments ;
Turn the BTE adapter to 90° !

Insert a battery into the H.I. (Pics/Pics2) Remove the battery door and connect the
and connect the programming cable programming cable

Pics/Pics2 Claro211/311

1. Mount the hearing instrument onto BTE tuning adapter (part no. 090-0058)

2. Attach the libby-horn tube (part no. 095-0060)

3. Check the connection between the computer and the HiPro Interface

4. Switch „ON „ on the rear side of the Audiozoom Tuning Box and start the multimeter

5. Start up the tuning software (see Page 7)

K:\Software\Service Software\Beschreibungen\AZ Tuning Box V6.1_e_MA1_5.doc

Phonak International Technical Support
technical.support@Phonak.ch
Tel. 0041-1 928 01 01
Fax. 0041-1 928 06 77 17.04.03 6/ 11
 AUDIOZOOM TUNING BOX

MicAdjustment Calibration (check; do you use the latest version ?)

Mount the instrument onto the AudioZoom Tuning Box (see page 4-6)
Start MicAdjustment Software and...

Main screen ...follow the instructions

Claro/Perseo/Supero screen Follow the instructions

K:\Software\Service Software\Beschreibungen\AZ Tuning Box V6.1_e_MA1_5.doc

Phonak International Technical Support
technical.support@Phonak.ch
Tel. 0041-1 928 01 01
Fax. 0041-1 928 06 77 17.04.03 7/ 11
 AUDIOZOOM TUNING BOX

PICS screen
Follow the instructions

1. Start the MicAdjustment software

AERO screen MicAdjustment

Instrument in „ON„ position
Follow the instructions

Note :

Aeros have a self calibration system

ð no voltage measurement necessary

Attention ! Calibration time up to 2 Minute

If you use a dspIP programmer we recommend to use it for mic calibration instead of the Hi-Pro .
Calibration time 12-15 seconds.

AERO screen DspIP Software

1. Select instrument type
2. Press „Calibrate Directional Mic“
3. Follow the Information screen in top of
the dspIP-Software screen.

Note :
In case of disconnection (H.I. from the Program
cabel) during the calibration
ð Turn the instrument OFF and ON
ð start calibration procedure again.
K:\Software\Service Software\Beschreibungen\AZ Tuning Box V6.1_e_MA1_5.doc
Phonak International Technical Support
technical.support@Phonak.ch
Tel. 0041-1 928 01 01
Fax. 0041-1 928 06 77 17.04.03 8/ 11
 AUDIOZOOM TUNING BOX

How to check the BTE AudioZoom

Program the instrument with the Max Gain and MPO measurement settings
Use the service SoundPilot ; Program 1 and 2 or
Change program with the program switch .
Mount the instrument on stethosclip and listen carefully to the test signal (voice)

Program 1 Omnidirectional/Wide-angle

Turn the instrument !

Front side Rear and beside

The instrument should sounds clear The instrument should sounds clear

K:\Software\Service Software\Beschreibungen\AZ Tuning Box V6.1_e_MA1_5.doc

Phonak International Technical Support
technical.support@Phonak.ch
Tel. 0041-1 928 01 01
Fax. 0041-1 928 06 77 17.04.03 9/ 11
 AUDIOZOOM TUNING BOX

Program 2 Directional/Zoom

Turn the instrument !

Front side Rear and beside

The instrument sounds clear The instrument sounds dump

K:\Software\Service Software\Beschreibungen\AZ Tuning Box V6.1_e_MA1_5.doc

Phonak International Technical Support
technical.support@Phonak.ch
Tel. 0041-1 928 01 01
Fax. 0041-1 928 06 77 17.04.03 10/ 11
 AUDIOZOOM TUNING BOX

How to check the ITE AudioZoom

Program the instrument with the 2ccm measurement setting
Use the service SoundPilot ; Program 1 and 2
Mount the adapter with the instrument on stethoskope and listen carefully to the test signal (voice)

Switch between Program 1 and 2 and listen carefully.

Program 1 Omnidirektional/Wide-angle;
The instrument sounds clear in each position

Program 2 Directional/Zoom;
The instrument sounds dump and clear (the side depends on the side coding with PFG)

In case of technical problems regarding AudioZoom Tuning Box , calibration or listening test
please contact ;

International Technical Support

Laubisrütistrasse 28
8712 Stäfa

Phone +41 1 928 01 01

Fax +41 1 928 06 77
E-mail technical.support@Phonak.ch
