VIN: WBSKG91010E686777 REP-REP-RAE9021-2152510 V - 6

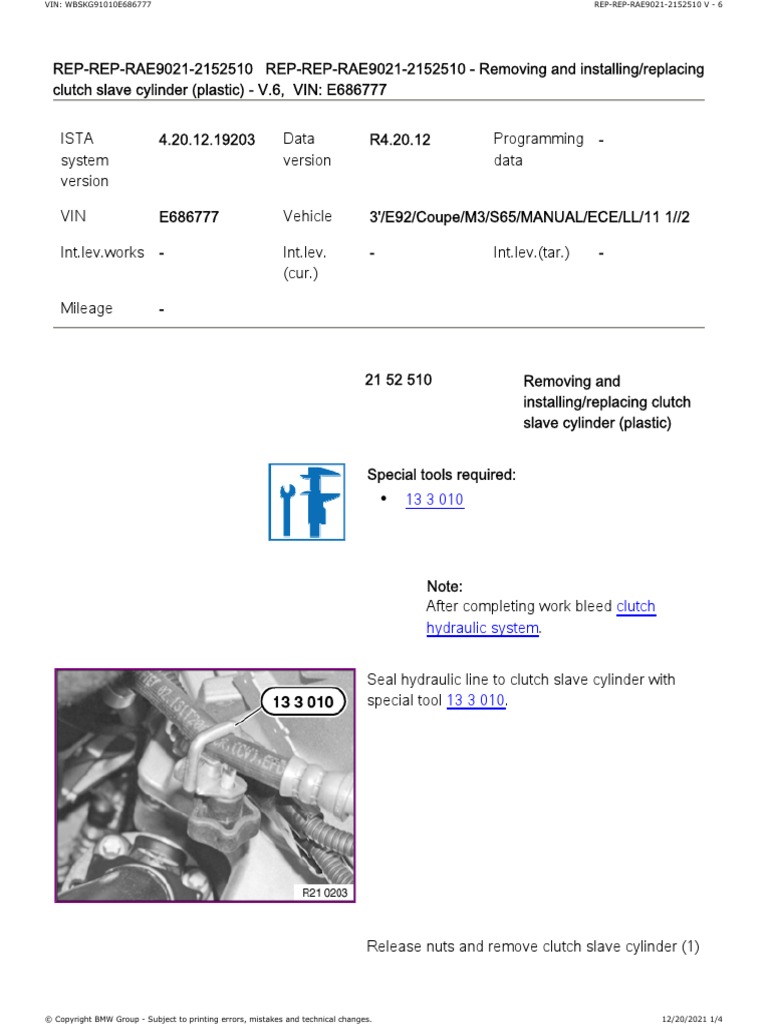

REP-REP-RAE9021-2152510 REP-REP-RAE9021-2152510 - Removing and installing/replacing
clutch slave cylinder (plastic) - V.6, VIN: E686777
ISTA 4.20.12.19203 Data R4.20.12 Programming -
system version data
version
VIN E686777 Vehicle 3'/E92/Coupe/M3/S65/MANUAL/ECE/LL/11 1//2
Int.lev.works - Int.lev. - Int.lev.(tar.) -
(cur.)
Mileage -
21 52 510 Removing and
installing/replacing clutch
slave cylinder (plastic)
Special tools required:
13 3 010
Note:
After completing work bleed clutch
hydraulic system.
Seal hydraulic line to clutch slave cylinder with
special tool 13 3 010.
Release nuts and remove clutch slave cylinder (1)
© Copyright BMW Group - Subject to printing errors, mistakes and technical changes. 12/20/2021 1/4
VIN: WBSKG91010E686777 REP-REP-RAE9021-2152510 V - 6
with holder (2).
Installation:
Replace self-locking nuts.
Tightening torque 21 52 5AZ.
Important!
N47 with H-transmission only
Clutch slave cylinder must not rest at the
side on the transmission.
Failure to comply with this instruction may
result in leaks at the clutch slave cylinder.
Unlock spring retainer (1).
Disconnect hydraulic line (2).
Press cylinder together by hand.
Connect hydraulic line with cylinder pressed.
Remove special tool 13 3 010.
Hold cylinder piston vertically downwards.
© Copyright BMW Group - Subject to printing errors, mistakes and technical changes. 12/20/2021 2/4
VIN: WBSKG91010E686777 REP-REP-RAE9021-2152510 V - 6
Press piston 5 times into cylinder.
Important!
All-wheel drive vehicles only
Installation:
Check pressure hose for traces of abrasion.
If no traces of abrasion by the propeller shaft can
be detected on the pressure hose:
The pressure hose must be bent approx. 30 mm
away from the propeller shaft.
If traces of abrasion by the propeller shaft can be
detected on the pressure hose:
The pressure hose must be replaced.
After replacement, the clutch hydraulics must be
bled.
Press in piston until it engages.
Install clutch slave cylinder.
Bleed clutch hydraulics.
Installation:
Clean thrust member (1) and contact face on
release lever.
Lightly grease thrust member (1) on contact
face (2).
Grease, refer to BMW Service Operating
Fluids.
© Copyright BMW Group - Subject to printing errors, mistakes and technical changes. 12/20/2021 3/4
