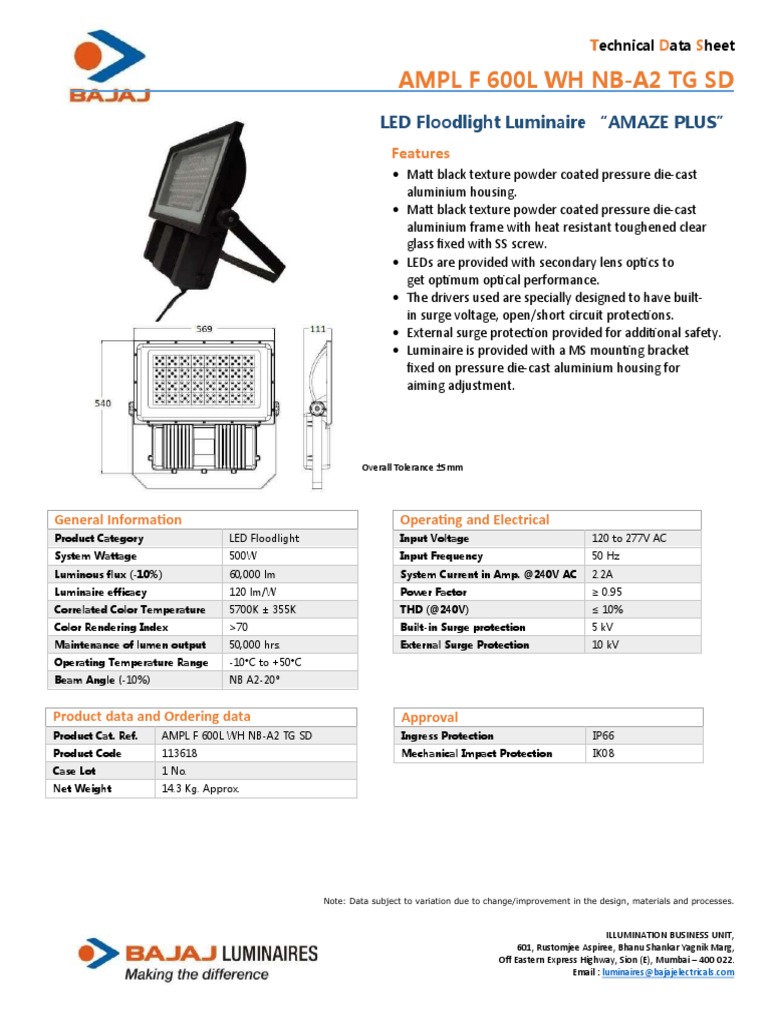

Technical Data Sheet

AMPL F 600L WH NB-A2 TG SD

LED Floodlight Luminaire “AMAZE PLUS”
Features
 Matt black texture powder coated pressure die-cast
aluminium housing.
 Matt black texture powder coated pressure die-cast
aluminium frame with heat resistant toughened clear
glass fixed with SS screw.
 LEDs are provided with secondary lens optics to
get optimum optical performance.
 The drivers used are specially designed to have built-
in surge voltage, open/short circuit protections.
 External surge protection provided for additional safety.
 Luminaire is provided with a MS mounting bracket
fixed on pressure die-cast aluminium housing for
aiming adjustment.

Overall Tolerance ±5mm

General Information Operating and Electrical

Product Category LED Floodlight Input Voltage 120 to 277V AC
System Wattage 500W Input Frequency 50 Hz
Luminous flux (-10%) 60,000 lm System Current in Amp. @240V AC 2.2A
Luminaire efficacy 120 lm/W Power Factor ≥ 0.95
Correlated Color Temperature 5700K ± 355K THD (@240V) ≤ 10%
Color Rendering Index >70 Built-in Surge protection 5 kV
Maintenance of lumen output 50,000 hrs. External Surge Protection 10 kV
Operating Temperature Range -10C to +50C
Beam Angle (-10%) NB A2-20°

Product data and Ordering data Approval

Product Cat. Ref. AMPL F 600L WH NB-A2 TG SD Ingress Protection IP66
Product Code 113618 Mechanical Impact Protection IK08
Case Lot 1 No.
Net Weight 14.3 Kg. Approx.

Note: Data subject to variation due to change/improvement in the design, materials and processes.

ILLUMINATION BUSINESS UNIT,

601, Rustomjee Aspiree, Bhanu Shankar Yagnik Marg,
Off Eastern Express Highway, Sion (E), Mumbai – 400 022.
Email : luminaires@bajajelectricals.com
 Advance Technical Data Sheet

AMPL F 560L WH NB-A2 TG SD

LED Floodlight Luminaire “AMAZE PLUS”
Features
 Matt black texture powder coated pressure die-cast
aluminium housing.
 Matt black texture powder coated pressure die-cast
aluminium frame with heat resistant toughened clear
glass fixed with SS screw.
 LEDs are provided with secondary lens optics to
get optimum optical performance.
 The drivers used are specially designed to have built-
in surge voltage, open/short circuit protections.
 External surge protection provided for additional safety.
 Luminaire is provided with a MS mounting bracket
fixed on pressure die-cast aluminium housing for
aiming adjustment.

Overall Tolerance ±5mm

General Information Operating and Electrical

Product Category LED Floodlight Input Voltage 110 to 270V AC
System Wattage ≥400W Input Frequency 50 Hz
Luminous flux ≥56,000 lm System Current in Amp. @240V AC 1.75A
Luminaire efficacy 140 lm/W Power Factor ≥ 0.95
Correlated Color Temperature 5700K ± 355K THD (@240V) ≤ 10%
Color Rendering Index >70 Built-in Surge protection 5 kV
Maintenance of lumen output 50,000 hrs. External Surge Protection 10 kV
Operating Temperature Range -10C to +50C
Beam Angle NB A2-17°

Product data and Ordering data Approval

Product Cat. Ref. AMPL F 560L WH NB-A2 TG SD Ingress Protection IP66
Product Code - Mechanical Impact Protection IK08
Case Lot 1 No.
Net Weight 14.3 Kg. Approx.

Note: Data subject to variation due to change/improvement in the design, materials and processes.

ILLUMINATION BUSINESS UNIT,

601, Rustomjee Aspiree, Bhanu Shankar Yagnik Marg,
Off Eastern Express Highway, Sion (E), Mumbai – 400 022.
Email : luminaires@bajajelectricals.com
 ILLUM/TDS/2021/AL/030 Rev-01, Dated. - 16/10/2020
Note: Data subject to variation due to change/improvement in the design, materials and processes.

ILLUMINATION BUSINESS UNIT,

601, Rustomjee Aspiree, Bhanu Shankar Yagnik Marg,
Off Eastern Express Highway, Sion (E), Mumbai – 400 022.
Email : luminaires@bajajelectricals.com
 Technical Data Sheet
BJFL 300W LED WH NB

LED Floodlight Luminaire “AMAZE”

Features
 Matt black polyester powder coated pressure die-cast
aluminium housing.
 Matt black polyester powder coated pressure die-cast
aluminium frame with heat resistant toughened clear
glass fixed with SS screw.
 LEDs are provided with secondary lens optics to
480 get optimum optical performance.
 The driver used is specially designed to have built-
in surge voltage, open/short circuit protections.
 External surge protection provided for additional
safety.
 Luminaire is provided with a MS mounting
bracket fixed on pressure die-cast aluminium
housing for aiming adjustment.

Overall Tolerance ±2mm

General Information Operating and Electrical

Product Category LED Floodlight Input Voltage 120 to 277V AC
System Wattage 300W Input Frequency 50 Hz
Luminous flux (±10%) 36,000 lm System Current in Amp. @240V AC 1.3A
Luminaire efficacy 120 lm/W Power Factor ≥ 0.95
Correlated Color Temperature 5700K ±355K THD (@240V) <10%
Color Rendering Index 70 Built-in Surge protection 4 kV
Maintenance of lumen output 50,000 hrs. External Surge Protection 10 kV
Operating Temperature Range -10C to +45C
Beam Angle (±10%) 10°

Product data and Ordering data

Product Cat. Ref. BJFL 300W LED WH NB
Approval
Ingress Protection IP66
Product Code 113221
Mechanical impact protection IK08
Case Lot 1 No.
Net Weight 11.2 Kg. Approx.

Note: Data subject to variation due to change/improvement in the design, materials and processes.

ILLUMINATION BUSINESS UNIT,

601, Rustomjee Aspiree, Bhanu Shankar Yagnik Marg,
Off Eastern Express Highway, Sion (E), Mumbai – 400 022.
Email : luminaires@bajajelectricals.com
`

Advance Technical Data Sheet

ENXT P 210W WH HW TG SD P
Edge Next LED Street Light 210W 757
Features
 Epoxy powder coated pressure die-cast aluminium
housing and LED driver cover.
 Clear Toughened glass with decorative metal Frame.
 Silicon gaskets provided for LEDs and control
gear compartments.
 LEDs are provided with non-yellowing superior
quality performance optics.
 The driver used is specially designed to have built-in
surge voltage, open/short circuit protections.
 External surge protection provided for additional safety.
 Side entry mounting for 60 to 65mm OD pipe bracket.
 Top maintenance: Access to driver is from the top.

Overall Tolerance ±3mm

General Information
Product Category LED Streetlight
System Wattage 210W
Luminous flux (±10%) 28,350 lm Operating and Electrical
Luminaire efficacy 135 lm/W Input Voltage 140 to 270V AC
Correlated Color Temperature 5665K ±355K Input Frequency 50 Hz
Color Rendering Index >70 System Current in Amp. @240V AC 0.88A
Maintenance of lumen output 50,000 hrs. Power Factor ≥ 0.95
Operating Temperature Range -10C to 50C THD <10%
Built-in Surge protection 4 kV
External Surge Protection 10 kV
Product data and Ordering data
Product Cat. Ref. ENXT P 210W WH HW TG SD P
Product code -
Case Lot 01 No.
Approval
Net weight 5.6 Kg. Approx.
Ingress Protection IP66
Mechanical impact protection IK07
 Advance Technical Data Sheet

ENXT P 252L WH HW TG SD
Edge Next LED Street Light 210W 757
Features
 Epoxy powder coated pressure die-cast aluminium housing
and LED driver cover.
 Powder coated decorative front frame.
 Silicon gaskets provided for LEDs and control gear
compartments.
 LEDs are provided with non-yellowing secondary lens optics.
 The driver used is specially designed to have built-in surge
voltage, open/short circuit protections.
 External surge protection provided for additional safety.
 Side entry mounting for 60 to 65mm OD pipe bracket.
 Top maintenance: Access to driver is from the top.

Overall Tolerance ±3mm

General Information Operating and Electrical

Product Category LED Streetlight Input Voltage 140 to 270V AC
System Wattage** 210W Input Frequency 50 Hz
Luminous flux** 25,200 lm System Current in Amp. @240V AC 0.9A
Luminaire efficacy* 120 lm/W Power Factor ≥ 0.95
Correlated Color Temperature 5665K ±355K THD (@240V AC) <10%
Color Rendering Index >70 Built-in Surge protection 4 kV
Maintenance of lumen output 50,000 hrs. External Surge Protection 10 kV
Operating Temperature Range -10C to 50C

Product data and Ordering data Approval

Product Cat. Ref. ENXT P 252L WH HW TG SD Ingress Protection IP66
Product code - Mechanical impact protection IK07
Case Lot 01 No.
Net weight 5.6 Kg. Approx.

* As per the IS 16107 part 2- sec1 clause no. 8.3, measured luminaire efficacy shall not be less than 90% of rated value.
**As per the IS 16107 part 2- sec1 and 16103 part 2, clause no. 7 and 8.1 respectively, measured luminaire wattage shall not vary by more than +10% of rated
value and luminaire lumen shall not vary by more than -10% of rated value.
 Advance Technical Data Sheet

ENXT P 252L WH HW TG SD
