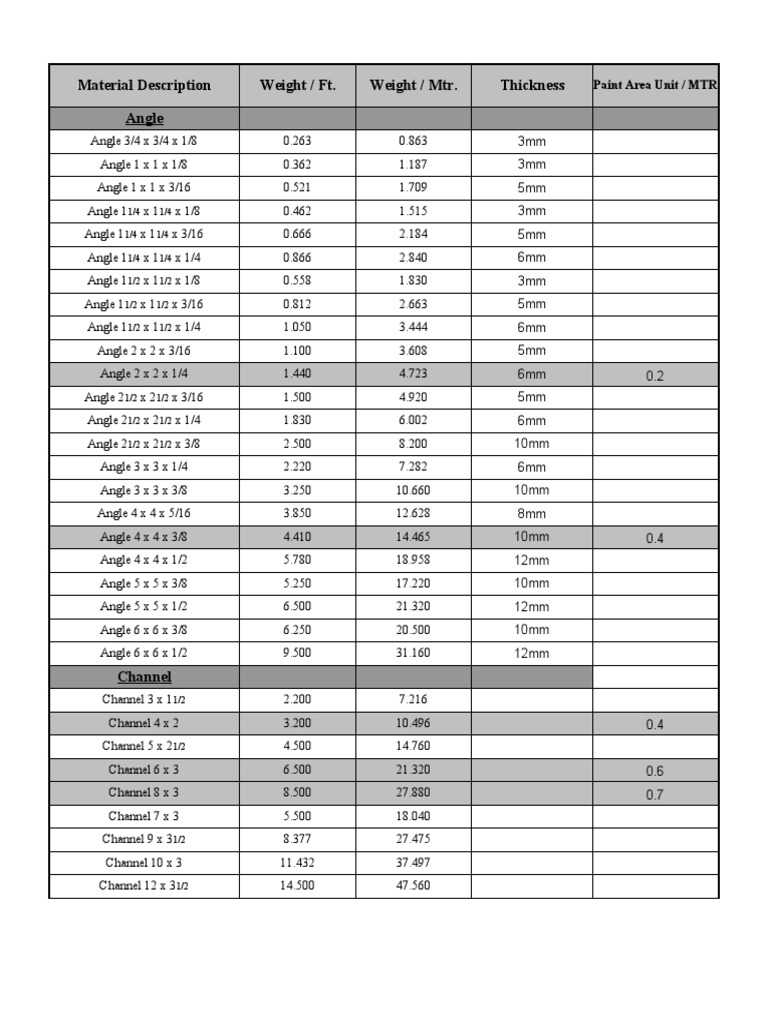

    Material Description Weight / Ft. Weight / Mtr.

    Thickness Paint Area Unit / MTR

    Angle
    Angle 3/4 x 3/4 x 1/8 0.263 0.863 3mm
    Angle 1 x 1 x 1/8 0.362 1.187 3mm
    Angle 1 x 1 x 3/16 0.521 1.709 5mm
    Angle 11/4 x 11/4 x 1/8 0.462 1.515 3mm
    Angle 11/4 x 11/4 x 3/16 0.666 2.184 5mm
    Angle 11/4 x 11/4 x 1/4 0.866 2.840 6mm
    Angle 11/2 x 11/2 x 1/8 0.558 1.830 3mm
    Angle 11/2 x 11/2 x 3/16 0.812 2.663 5mm
    Angle 11/2 x 11/2 x 1/4 1.050 3.444 6mm
    Angle 2 x 2 x 3/16 1.100 3.608 5mm
    Angle 2 x 2 x 1/4 1.440 4.723 6mm 0.2
    Angle 21/2 x 21/2 x 3/16 1.500 4.920 5mm
    Angle 21/2 x 21/2 x 1/4 1.830 6.002 6mm
    Angle 21/2 x 21/2 x 3/8 2.500 8.200 10mm
    Angle 3 x 3 x 1/4 2.220 7.282 6mm
    Angle 3 x 3 x 3/8 3.250 10.660 10mm
    Angle 4 x 4 x 5/16 3.850 12.628 8mm
    Angle 4 x 4 x 3/8 4.410 14.465 10mm 0.4
    Angle 4 x 4 x 1/2 5.780 18.958 12mm
    Angle 5 x 5 x 3/8 5.250 17.220 10mm
    Angle 5 x 5 x 1/2 6.500 21.320 12mm
    Angle 6 x 6 x 3/8 6.250 20.500 10mm
    Angle 6 x 6 x 1/2 9.500 31.160 12mm
    Channel
    Channel 3 x 11/2 2.200 7.216
    Channel 4 x 2 3.200 10.496 0.4
    Channel 5 x 21/2 4.500 14.760
    Channel 6 x 3 6.500 21.320 0.6
    Channel 8 x 3 8.500 27.880 0.7
    Channel 7 x 3 5.500 18.040
    Channel 9 x 31/2 8.377 27.475
    Channel 10 x 3 11.432 37.497
    Channel 12 x 31/2 14.500 47.560
    Material Description Weight / Ft. Weight / Mtr. Thickness Paint Area Unit / MTR

    Flat Bar
    F.B. 3/4 x 1/8 0.145 0.476 3mm
    F.B. 3/4 x 5/32 0.180 0.590 4mm
    F.B. 3/4 x 3/16 0.214 0.702 5mm
    F.B. 3/4 x 1/4 0.289 0.948 6mm
    F.B. 1 x 1/8 0.213 0.699 3mm
    F.B. 1 x 3/16 0.289 0.948 5mm
    F.B. 1 x 1/4 0.385 1.263 6mm
    F.B. 1 x 3/4 0.558 1.830 19mm
    F.B. 11/4 x 1/8 0.253 0.830 3mm
    F.B. 11/4 x 3/16 0.352 1.155 5mm
    F.B. 11/4 x 1/4 0.480 1.574 6mm 0.8
    F.B. 11/4 x 1/8 0.321 1.053 3mm
    F.B. 11/2 x 1/8 0.289 0.948 3mm
    F.B. 11/2 x 3/16 0.390 1.279 5mm
    F.B. 11/2 x 1/4 0.589 1.932 6mm
    F.B. 11/2 x 3/8 0.771 2.529 9mm
    F.B. 11/2 x 1/2 1.156 3.792 13mm
    F.B. 2 x 3/16 0.576 1.889 5mm
    F.B. 2 x 1/4 0.771 2.529 6mm
    F.B. 2 x 3/8 1.150 3.772 9mm
    F.B. 2 x 1/2 1.540 5.051 13mm
    F.B. 21/2 x 1/4 0.916 3.004 6mm
    F.B. 21/2 x 5/16 1.200 3.936 8mm
    F.B. 21/2 x 3/8 1.440 4.723 9mm
    F.B. 21/2 x 1/2 1.920 6.298 13mm
    F.B. 21/2 x 3/4 3.110 10.201 19mm
    F.B. 21/2 x 1 3.850 12.628 25mm
    F.B. 3 x 3/8 1.730 5.674 9mm
    F.B. 3 x 5/16 1.440 4.723 8mm
    F.B. 3 x 1/2 2.310 7.577 13mm
    F.B. 3 x 5/8 2.890 9.479 16mm
    F.B. 3 x 3/4 3.470 11.382 19mm
    F.B. 4 x 1/4 1.546 5.071 6mm 0.8
    F.B. 4 x 3/8 2.310 7.577 9mm
    F.B. 4 x 1/2 3.080 10.102 13mm
    Material Description Weight / Ft. Weight / Mtr. Thickness Paint Area Unit / MTR

    H-Beam
    UC - 4 x 4 6.500 21.320 0.6
    UC - 5 x 5 7.500 24.600
    UC - 6 x 6 10.000 32.800 0.9
    UC - 8 x 8 16.000 52.480 1.218
    UC - 10 x 10 23.000 75.440 1.524
    UC - 12 x 12 28.000 91.840 1.8288
    I-Beam
    UB - 4 x 2 2.500 8.200
    UB - 6 x 3 5.000 16.400 0.6
    UB - 8 x 4 8.000 26.240 0.8
    UB - 10 x 5 12.500 41.000
    UB - 12 x 5 17.000 55.760
    UB - 14 x 51/2 24.000 78.720
    UB - 16 x 6 27.000 88.560
    UB - 18 x 61/2 34.000 111.520
    Steel Rod
    Steel Rod 20mm 0.753 2.470
    Steel Rod 12mm 0.320 1.050
    Steel Rod 6mm 0.116 0.380

    Weight / Sq.
    Material Description Weight / Sq. Ft.
    Mtr.
    Plate
    MS Plate ( 8' x 4' ) 1.500 16.140 2mm
    MS Plate ( 8' x 4' ) 2.438 26.228 3.25mm
    MS Plate ( 8' x 4' ) 2.969 31.944 4mm
    MS Plate ( 8' x 4' ) 3.438 36.988 4.5mm
    MS Plate ( 8' x 4' ) 3.688 39.678 5mm
    MS Plate ( 8' x 4' ) 4.531 48.756 6mm
    MS Plate ( 8' x 4' ) 5.781 62.206 8mm
    MS Plate ( 8' x 4' ) 7.188 77.338 10mm
    MS Plate ( 8' x 4' ) 9.375 100.875 12mm
    MS Plate ( 8' x 4' ) 11.875 127.775 16mm
    MS Plate ( 8' x 4' ) 14.852 159.804 20mm
    MS Plate ( 8' x 4' ) 18.750 201.750 25mm
