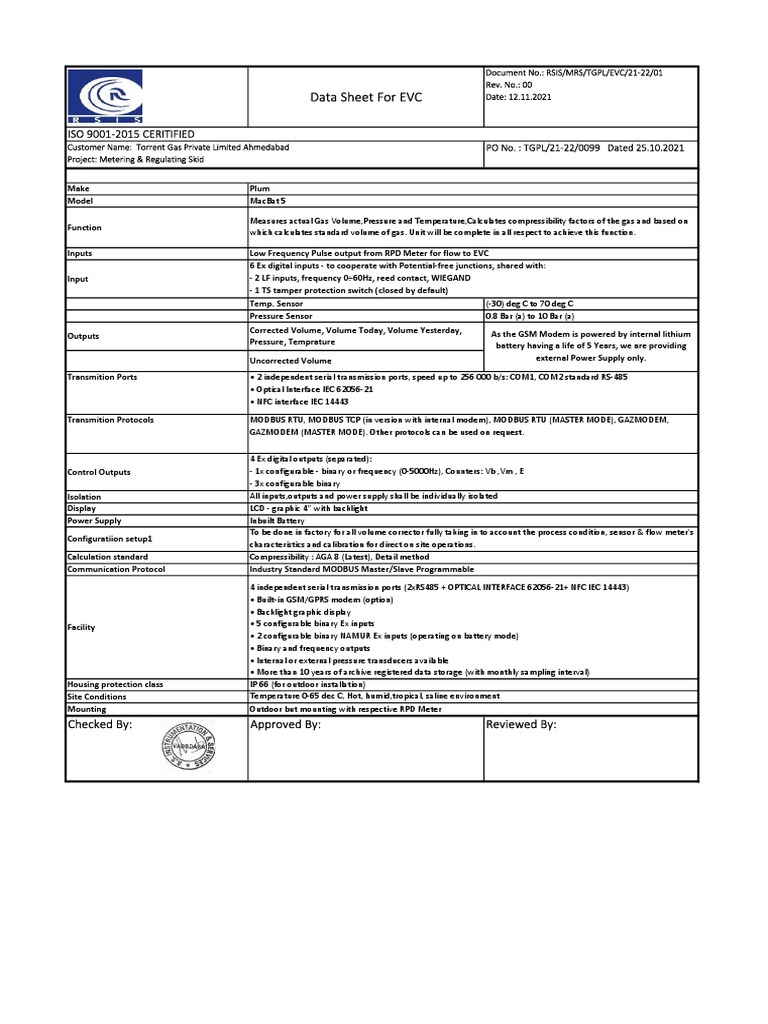

Document No.

: RSIS/MRS/TGPL/EVC/21-22/01
Rev. No.: 00
Data Sheet For EVC Date: 12.11.2021

ISO 9001-2015 CERITIFIED

Customer Name: Torrent Gas Private Limited Ahmedabad PO No. : TGPL/21-22/0099 Dated 25.10.2021
Project: Metering & Regulating Skid

Make Plum
Model MacBat 5

Measures actual Gas Volume,Pressure and Temperature,Calculates compressibility factors of the gas and based on
Function
which calculates standard volume of gas. Unit will be complete in all respect to achieve this function.

Inputs Low Frequency Pulse output from RPD Meter for flow to EVC
6 Ex digital inputs - to cooperate with Potential-free junctions, shared with:
Input - 2 LF inputs, frequency 0÷60Hz, reed contact, WIEGAND
- 1 TS tamper protection switch (closed by default)
Temp. Sensor (-30) deg C to 70 deg C
Pressure Sensor 0.8 Bar (a) to 10 Bar (a)
Corrected Volume, Volume Today, Volume Yesterday, As the GSM Modem is powered by internal lithium
Outputs
Pressure, Temprature battery having a life of 5 Years, we are providing
Uncorrected Volume external Power Supply only.

Transmition Ports • 2 independent serial transmission ports, speed up to 256 000 b/s: COM1, COM2 standard RS-485
• Optical Interface IEC 62056-21
• NFC interface IEC 14443

Transmition Protocols MODBUS RTU, MODBUS TCP (in version with internal modem), MODBUS RTU (MASTER MODE), GAZMODEM,
GAZMODEM (MASTER MODE). Other protocols can be used on request.

4 Ex digital outputs (separated):

Control Outputs - 1x configurable - binary or frequency (0-5000Hz), Counters: Vb ,Vm , E
- 3x configurable binary
Isolation All inputs,outputs and power supply shall be individually isolated
Display LCD - graphic 4” with backlight
Power Supply Inbuilt Battery
To be done in factory for all volume corrector fully taking in to account the process condition, sensor & flow meter's
Configuratiion setup1
characteristics and calibration for direct on site operations.
Calculation standard Compressibility : AGA 8 (Latest), Detail method
Communication Protocol Industry Standard MODBUS Master/Slave Programmable

4 independent serial transmission ports (2xRS485 + OPTICAL INTERFACE 62056-21+ NFC IEC 14443)
• Built-in GSM/GPRS modem (option)
• Backlight graphic display
Facility • 5 configurable binary Ex inputs
• 2 configurable binary NAMUR Ex inputs (operating on battery mode)
• Binary and frequency outputs
• Internal or external pressure transducers available
• More than 10 years of archive registered data storage (with monthly sampling interval)
Housing protection class IP 66 (for outdoor installation)
Site Conditions Temperature 0-65 dec C, Hot, humid,tropical, saline environment
Mounting Outdoor but mounting with respective RPD Meter
Checked By: Approved By: Reviewed By:
