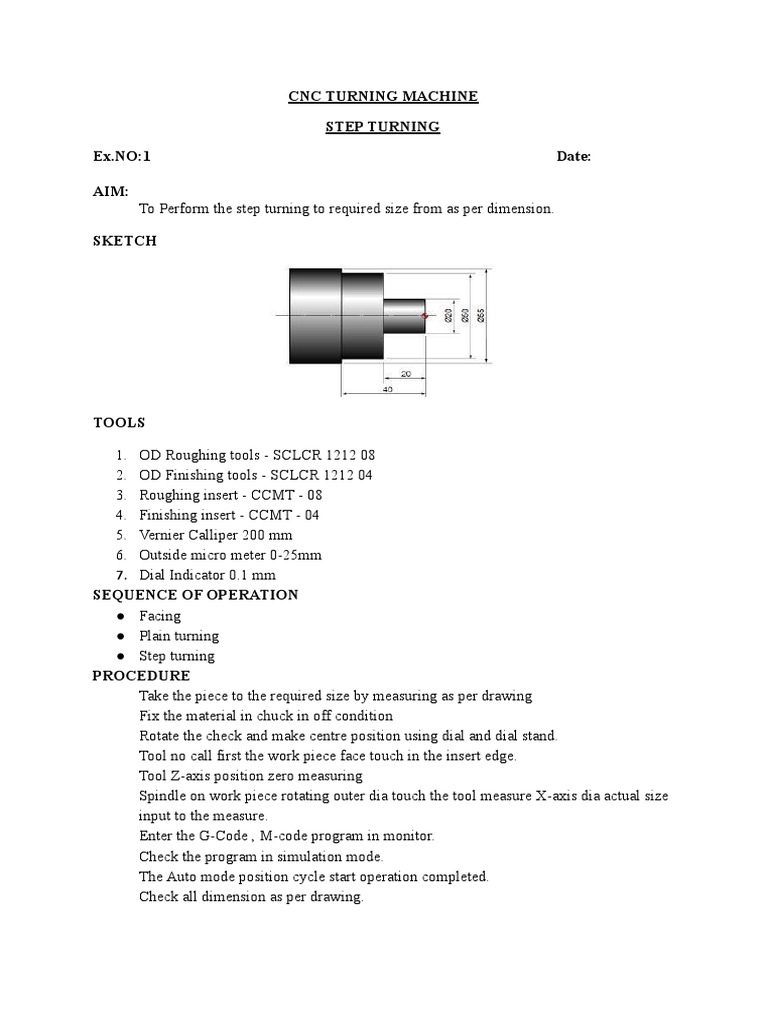

CNC TURNING MACHINE

STEP TURNING

[Link] Date:

AIM:
To Perform the step turning to required size from as per dimension.

SKETCH

TOOLS

1. OD Roughing tools - SCLCR 1212 08


2. OD Finishing tools - SCLCR 1212 04
3. Roughing insert - CCMT - 08
4. Finishing insert - CCMT - 04
5. Vernier Calliper 200 mm
6. Outside micro meter 0-25mm
7. Dial Indicator 0.1 mm
SEQUENCE OF OPERATION
● Facing
● Plain turning
● Step turning
PROCEDURE
⮚ Take the piece to the required size by measuring as per drawing
⮚ Fix the material in chuck in off condition
⮚ Rotate the check and make centre position using dial and dial stand.
⮚ Tool no call first the work piece face touch in the insert edge.
⮚ Tool Z-axis position zero measuring
⮚ Spindle on work piece rotating outer dia touch the tool measure X-axis dia actual size
input to the measure.
⮚ Enter the G-Code , M-code program in monitor.
⮚ Check the program in simulation mode.
⮚ The Auto mode position cycle start operation completed.
⮚ Check all dimension as per drawing.
RESULT
Thus the step turning is performed as per program, given dimension and diagram.

CNC MILLING MACHINE

FACE MILLING AND DRILLING

[Link] Date:

AIM:
To perform the milling and drilling to require size as per dimension.
SKETCH

TOOLS
1. Face milling cutter dia 80mm
2. H.S.S drill dia 10mm
3. Vernier Calliper 200 mm
4. Dial Indicator 0.1 mm
PROCEDURE
⮚ Take the piece to the required size by measuring as per drawing
⮚ Fix the material in chuck in off condition
⮚ Work piece centre position on spindle
⮚ Tool no call first X,Y axis centre position zero offset.
⮚ Next tool height offset in Z position
⮚ Enter the G-code M-code program in monitor.
⮚ Check the program in simulation mode.
⮚ The Auto mode position cycle start operation completed.

RESULT
Thus the face milling and drilling is performed as per program, given dimension and
diagram.
