Genuine bajaj spares ensure optimum performance

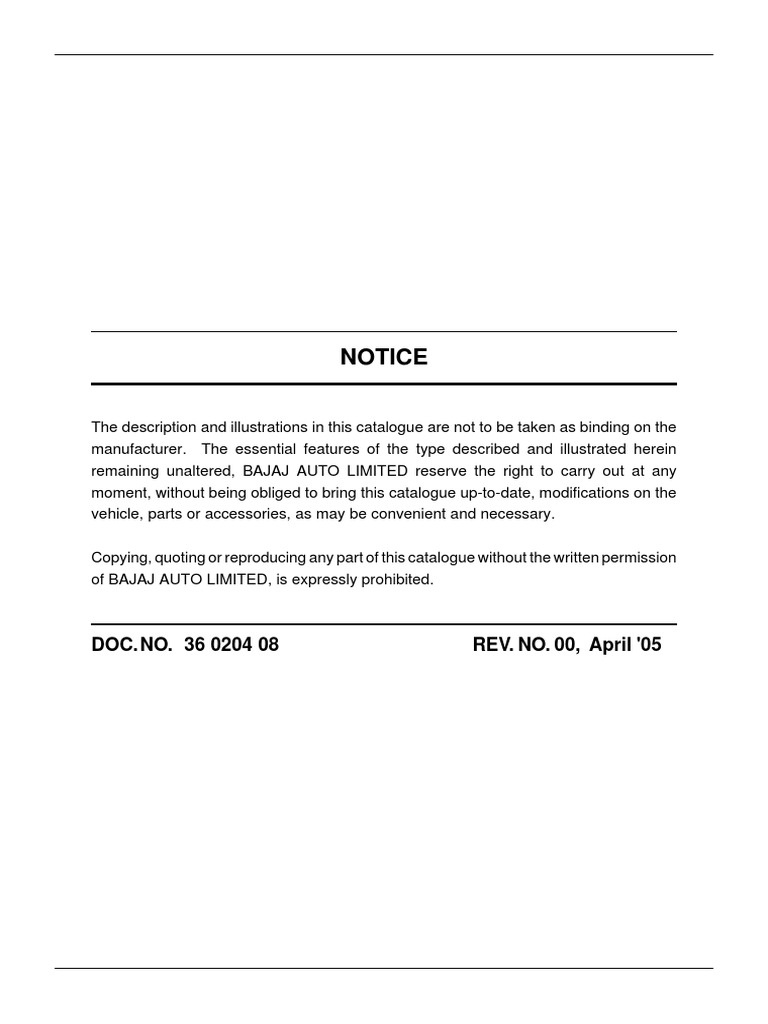

NOTICE
The description and illustrations in this catalogue are not to be taken as binding on the
manufacturer. The essential features of the type described and illustrated herein
remaining unaltered, BAJAJ AUTO LIMITED reserve the right to carry out at any
moment, without being obliged to bring this catalogue up-to-date, modifications on the
vehicle, parts or accessories, as may be convenient and necessary.
Copying, quoting or reproducing any part of this catalogue without the written permission
of BAJAJ AUTO LIMITED, is expressly prohibited.
DOC. NO. 36 0204 08 REV. NO. 00, April '05

FOREWORD
We have pleasure in presenting the spare parts catalogue for 3WH R.E.(4 Stroke).
This catalogue has been specially designed to assist you in selecting the correct part to
maintain your vehicle in the best running condition.
The bajaj spares are subjected to the stringent quality control standards to ensure longer
life of the vehicle. It is therefore necessary that only the genuine bajaj spares are used.
In a continual effort to improve performance and efficiency of the vehicle, specifications,

diagrams, illustrations and part numbers can change without notice. Consequently, the
description in this Spare Parts Catalogue cannot therefore be final and binding on us.
The modifications/alterations which are carried out after the issue of this catalogue, will
be conveyed to you through our service circulars. You are requested to make necessary
corrections in the parts catalogue as per the circulars so as to keep your catalogue up-
to-date. This will ensure the appropriate and speedy delivery of the spare parts as the
order placed will bear the latest part numbers.
In case, if you need any technical assistance contact our nearest authorised dealer or
write to us on the following address :
Bajaj Auto Limited

International Mktg. Dept.
Akurdi, Pune - 411 035.
www.bajajauto.com
INSTRUCTIONS FOR USING THE CATALOGUE :-
1. How to read the catalogue : Open the catalogue and from the pictorial index locate
the group in which the part you want to find is present. Turn over to the concerned
page number (as given by pictorial index). Now find out the figure of the part you
wish to order. Jot down the part number against that particular figure number from
the text.
In case, if you have the part number and you need the other details, the part index
can be used. The part index (at the end of the catalogue) will give you the figure
and page number of the part you wish to order.
2. How to order spare parts : The part number and the description of the part required
should be invariably mentioned in the order as per the catalogue text.
The latest part number as conveyed through our service circulars should only
appear on the order. In case of ordering coloured components, colour code of the
components should be mentioned.
The quantity shown against the part number is the quantity per vehicle for that group
so that particular quantity should be multiplied by the number of sets required.
3. Part number system:

We have used 8 digit system for part numbers. The model or hardware item is
indicated by first two digits or alphanumeric, the next two or four digits indicate main
group and the last four or two digits indicate serial number in main group or serial
number or subgroup of fastener respectively. Thus the part numbers will be
indicated by 2-2-4 or 2-4-2 digit system. Understanding this system will enable you
to identify the spare parts easily.
4. Abbreviations : The following abbreviations are used in this catalogue.
assly. Assembly V Volts

N.I. Not illustrated W Watts
C'case Crankcase accl. Accelerator
Cyl Cylinder Comp. Complete
o/s. Over size Fr Front
Std. Standard L Length
A/t. Alternate Rr Rear
R.H. Right hand Hex. Hexagonal
L.H. Left hand AR As required
INDEX
PLATE DESCRIPTION PAGE PLATE DESCRIPTION PAGE

NO. NO. NO. NO.
1 Engine & C'case Clutch Side 1& 2 41 Front Mudguard / Head Light Hsg. 62
2 Crankcase Magneto Side 3 41A Front Mudguard / Head Lamp Hsg. 63
3 Clutch Cover 4&5 (Antidive)
4 Cylinder / Piston Assembly 6 42 Front Wheel Hub/Axle Assly. 64&65
5 Crank Shaft Assembly 7 42A Fr. Wheel Hub/ Axle assly.(Antidive) 66&67
6 Cylinder Head 8 43 Front Suspension 68
7 Valve 9 44 Front Shock Absorber 69
8 Camshaft and Chain Tensioner 10 44A Front Shock Absorber (Antidive) 70&71
9 Clutch Plate Assembly 11 45 Rear Shock Absorber 72
10 Clutch Housing Complete 12 46 Steering Column 73&74
11 Clutch Lever Assembly 13 46A Steering Column (Antidive) 75
12 Main Shaft 14 47 Handle Bar 76
13 Gear Transmission 15 48 Handle Bar Sleeves 77&78
14 Sector Assembly 16 49 Reverse Gear Control Lever Assly. 79
15 Sector Gear Assly./Starting mech. 17&18 50 Chock Lever Assly. 80
16 Sector Gear Assly./Starting mech. 19&20 51 Control Cables 81
(Decompression) 52 Speedometer & Indicator 82
17 Differential Assembly 21 53 Wiring Harness & Head lamp assly. 83
18 Differential cover 22 53A Wiring Harness & Head lamp assly 84
19 Sector Comp.- Reverse Gear 23 (Antidive)
20 Cowling 24 54 Front, Reverse Indicator & Tail Lamp 85
21 Silencer assembly 25 Assembly.
22 Engine mounting 26 54A Front Light Assly. (CMVR) 86
23 Magneto assembly 27 54B Tail Lamp Assly. (CMVR) 87
24 Spark Plug & H.T. Coil 28 55 Switches / Horn & Cabin Light 88&89
25 Carburettor 29&30 56 Electrical Equipments 90
25A Carburettor (For CNG Vehicle only) 31&32 57 Battery& Fuse Box Assembly. 91&92
26 Air Cleaner Complete 33&34 58 Starter Motor 93-95
27 Pump Assly.Oil & Oil Strainer 35 59 Passenger Body & rear Door 96
28 Fuel Tank Assembly 36&37 60 Rear Mudguard,Bumper & Mud Flap 97
29 Front brake Linkage 38 61 Hood & Frame Assly./Packing 98&99
29A Front brake Shoe (Antidive) 39 62 Windshield & Wiper Motor 100
29B Wheel Cylinder 40 63 Seat Assly. 101
30 Rear Brake Assembly 41 64 Tool Kit & Mirror 102
31 Triangle Arm Assembly 42 65 CNG Cylinder(For CNG Vehcle only) 103
32 Propeller Shaft / Flanges 43 66 Valve Of CNG Cylinder 104
33 Faremeter Drive Unit 44 67 Fuel Tank Assly.& Fuel Cock(CNG) 105&106
34 Wheel Assembly 45 68 Mixer Unit & Hose (CNG) 107
35 Master Cylinder assembly 46&47 69 Relay,Solenoid-Petrol & gas(CNG) 108
35A Tandem Master Cylinder (Antidive) 48&49 70 2nd Stage CNG Regulator-I 109
36 Brake Pedal 50 71 2nd Stage CNG Regulator-II 110-111
36A Brake Pedal (Antidive) 51 72 1st Stage Reduction Unit(CNG) 112-113
36B R.P.Valves & Brake Pipe(Antidive) 52 73 Petrol Tank Plastic(CNG) 114
37 Wheel Cylinder /Brake Pipe 53 74 Dashboard & Speedometer 115
37A Brake Pipe(Antidive) 54 75 Front Light 116-117
37B Wheel Cylinder(rear) 55 76 Front Mudguard & Grill 118
38 Hand Brake Comp. 56&57
39 Chassis/Steering Cover/Grommet 58&59 Part index 119
40 Tool Box 60&61
"Genuine bajaj spares ensure
Optimum performance and longer life of the
vehicle . "
Bajaj Auto Limited

Akurdi Pune 411 035 India
Tel +91 20 27472851
Fax +91 20 27407385
www.bajajauto.com
PLATE NO. 1 : ENGINE & CRANKCASE CLUTCH SIDE RE4S
25
15 14
20
9
8
21
18
19 6
12
24 4
5 11
2 3
27
13
23 7
26 18
17
17 22
10 16
Fig. Part No. Description Qty/ Veh. Remark

No. AA AF AM
1 AA 1014 97 Engine Assly. comp. 1 -- --

AA 101494 Noise Emission Label 1 -- -- For USA Market (N.I.)
AA 101495 Emission Control Label 1 -- --
2 AA 1011 23 Spring plate upper 1 1 1
3 AA 1012 49 Spacer pad - hand start 1 1 1
4 AA 1011 24 Spring plate lower 1 1 1
5 39 0508 09 Rivet 2 2 2
6 39 1013 21 'O' ring 1 1 1

7 AA 1011 45 Bush starter gear 1 1 1
8 39 1719 05 Stud (Long) 4 4 4
9 39 0682 05 Stud (Short) 2 2 2
10 AA 1011 43 Rubber pad 1 1 1
11 39 1214 20 Ball bearing 1 1 1

12 21 1704 19 Circlip 1 1 1
13 03 1003 35 Needle roller bearing 1 1 1
14 AA 1010 04 Guide chain metallic 1 1 1
15 39 1062 04 Screw pan cross 2 2 2
16 AB 1010 14 Guide starter gear 1 1 1
1
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 1 : ENGINE & CRANKCASE CLUTCH SIDE RE4S
25
15 14
20
9
8
21
18
19 6
12
24 4
5 11
2 3
27
13
23 7
26 18
17
22
17
10 16

No. AA AF AM
17 39 1062 04 Screw pan cross 2 2 2

18 39 1000 06 Hollow dowel pin 2 2 2
19 39 1075 04 Bolt flanged small (35 Long) 6 6 6
20 39 1676 04 Bolt flanged small ( 50 Long ) 6 6 6
21 AA 1013 28 Gasket (Crankcase) 1 1 1

22 28 1011 41 Oil plug 1 1 1
23 39 1796 11 Plain washer 1 1 1
24 AA 1010 03 Crank case clutch side 1 1 1
25 39 1630 15 Nut flange 2 2 2
26 AA 1012 21 Tube assly. 1 1 1

27 28 1010 80 Rubber bush 1 1 1
2
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 2 : CRANK CASE MAGNETO SIDE RE4S
5 10
6
12
13
13a
11 3
8
9 7

No. AA AF AM
1 39 1719 05 Stud 2 2 2
2 39 2528 20 Needle roller bearing 1 1 1 From April.03
30 1010 10 Needle bearing 1 1 1 Upt March.03
3 39 1324 20 Ball bearing 1 1 1
5 39 1715 19 Oil seal 1 1 1
6 39 1716 19 Oil seal 1 1 1

7 24 1301 05 Ball bearing 1 1 1
8 39 1917 19 Oil seal 1 1 1 For starting handle sector gear
9 39 1870 19 Oil seal 1 1 1
10 39 0427 06 Spring type straight pin 1 1 1
11 39 1075 04 Flanged bolt 1 1 1

12 39 0747 01 Screw 1 1 1
13a AA 1013 70 Crankcase magneto side 1 1 1 For Mitsuba starter motor
13 AA 1010 05 Crankcase magneto side 1 1 1
14 AB 1010 85 Rubber grommet 1 1 1
3
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 3 : CLUTCH COVER RE4S
1a
18
1716 15
9
10
11 14 6
2
12
24
7
4
21 22
3 20
13
23
12
10
9 8

No. AA AF AM
1a AA 1014 66 Clutch cover 1 1 -- From Dec.03 For improved Clutch
1 AA 1010 74 Clutch cover 1 1 1 Upto Nov.03
2 AA 1013 96 Spring clip 1 1 1 From Oct.02
3 39 1000 06 Hollow dowel pin 2 2 2
4 AB 1010 84 Breather pipe 1 1 1
5 AB 1010 38 Grommet breather 1 1 1
6 AA 1010 76 Dip stick clutch cover 1 1 1

7 39 1537 21 'O' ring 1 1 1
8 AA 1010 77 Gasket clutch cover 1 1 1
9 39 1065 04 Bolt flanged small( 40long ) 5 5 5
10 39 1963 04 Bolt(65 long) 4 4 4
11 39 1721 04 Flanged bolt (88 long ) 3 3 3

12 AA 1013 37 Bracket for clutch cable 1 1 1 From Aug 01
AA 1011 93 Bracket clutch cable 1 1 1 Upto July.01
13 39 1062 04 Bolt flanged small 2 2 2
14 AA 1013 91 Tube - XII (C'case Breather to T Joint) 1 -- -- For USA Market
AA 1014 85 Spring Band Clip (17) 2 -- -- For USA Market
AA 1013 87 T Joint 1 -- -- For USA Market
4 BA 2010 06 Cable Clip 1 -- -- For USA Market
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 3 : CLUTCH COVER RE4S
1a
18
1716 15
9
10
11 14 6
2
12
24
7
4
21 22
3 20
13
23
12
10
9 8

No. AA AF AM
15 39 2361 05 Stud 1 1 1 From March. 01
16 39 0198 11 Plain washer 1 1 1

17 39 0263 12 Spring washer 2 1 1 For 39 2361 05
18 39 0292 15 Hex nut 2 1 1
19 39 0200 11 Plain washer 2 2 2 N.I From Aug.01
20 AA 1014 68 Pipe complete banjo 1 1 1
21 31 1210 06 Gasket 1 1 1
22 DD 1210 07 Bolt-banjo 1 1 1
23 39 1721 11 Gasket 1 1 1
24 AA 1014 75 Bolt-banjo 1 1 1
5
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 4 : CYLINDER / PISTON ASSLY RE4S
5 4
6 3
8
7

No. AA AF AM
1 AA 1013 71 Cylinder block with liner(std) 1 1 1 From Sept.03

AA 1011 15 Cylinder comp(std) 1 1 1 Upto Aug.03
2 39 1543 21 'O' ring 1 1 1 Upto Aug.03
4 AA 1014 47 Piston assly(std) 1 1 1 From Sept.03
AA 1013 33 Piston assly 1 1 1 Upto Aug.03
5 AA 1014 48 Piston ring set(std) 1 1 1 From Sept.03
AA 1013 34 Piston ring set 1 1 1 Upto Aug.03
6 AA 1014 46 Cylinder block & piston assly(std) 1 1 1 From Sept.03 Slipper type piston
AA 1013 35 Cylinder block & piston assly 1 1 1 Upto Aug.03
7 39 1478 17 Wire circlip 2 2 2
8 AA 1010 25 Pin piston 1 1 1
9 AA 1010 13 Block gasket 1 1 1
6
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 5 : CRANK SHAFT ASSLY RE4S
8
6
4
7 4
9
2
12 10
11

No. AA AF AM
1 AA 1010 33 Crank shaft assly 1 1 1

2 AA 1010 31 Primary pinion 1 1 1
3 AA 1014 24 Oil pump drive gear 1 1 1 For Sintering route
4 31 1011 73 Key woodruff 2 2 2
5 39 1927 07 Roller pin 1 1 1
6 AA 1011 38 Plunger oil 1 1 1

7 AA 1011 39 Spring plunger 1 1 1
8 39 1885 15 Nut 1 1 1
9 AA 1013 45 Woodruff key 1 1 1
10 01 1006 12 Fan disc washer 1 1 1
11 39 1053 15 Nut 1 1 1
12 28 1011 10 Damper spring 1 1 1
7
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 6 : CYLINDER HEAD RE4S
4
15
14
5
9 10
8 7
11
6
11
10
2
16
1
13
3
18
19
13
12 17

No. AA AF AM
1 28 1011 23 Cylinder head assly 1 1 --
AA 1012 42 Cylinder head assly 1 1 1 For Decompression Mechanism
2 39 1660 05 Stud 2 1 1 For silencer
3 AA 1011 62 Head gasket 1 1 1
4 28 1011 19 Cam shaft cover 1 1 1
5 39 1264 21 'O' ring 1 1 1
6 39 1871 05 Stud 2 2 2 For camshaft cover
7 39 0219 11 Plain washer 2 2 2
8 39 1826 12 Spring washer 2 2 2
9 39 0834 15 Hex nut 2 2 2
10 13 1010 31 Cap 2 2 2
11 39 1263 21 'O' ring 2 2 2

12 AB 1010 59 Insulator 1 1 -- For PB 18 carburettor
13 39 1283 21 'O' ring 2 2 --
14 39 1612 11 Plain Washer 4 4 4
15 39 1651 15 Domed cap nut 4 4 4
16 AJ 1210 02 Inlet Manifold 1 -- -- For USA Market

17 39 1674 04 Flanged bolt 3 3 --
18 39 1000 06 Hollow dowel 2 2 2
19 28 1011 18 Bush (Cylinder head gasket) 1 1 1
20 AA 1015 01 Hook Engine Assly. 1 -- -- To be fitted on Cyl.Head(N.I.)
For USA Market
8
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 7 : VALVE RE4S
10
8
12
14
9
13 5
10 6
8
11 4
1/2

No. AA AF AM
1 13 1010 22 Valve Intake 1 1 1

2 13 1010 23 Valve exhaust 1 1 1
3 39 1035 19 Seal oil 2 2 2
4 31 1010 22 Spring engine valve 2 2 2
5 31 1010 19 Collet 4 4 4
6 31 1010 18 Retainer valve spring 2 2 2

7 28 1011 29 Seat spring 2 2 2
8 31 1010 20 Arm rocker 2 2 2
9 39 1024 01 Screw 2 2 2
10 39 0973 15 Nut 2 2 2
11 AA 1011 37 Rocker Arm shaft 1 2 2 For Intake

12 13 1010 24 Rocker Arm shaft 1 2 2 For exhaust
13 28 1010 57 Stopper 1 1 1
14 39 0702 01 Screw pan cross 1 1 1
15 AA 1013 49 Valve guide 2 2 2 From Sept.01 N.I
9
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 8 : CAMSHAFT AND CHAIN TENSIONER RE4S
3
8
2
4
14
1
15
17
9
19
16
13
6
7 12
5
10

No. AA AF AM
1 AA 101490 Camshaft assly 1 -- -- For USA Market

2 28 1011 67 Sprocket camshaft 1 1 1
3 39 1079 01 Hex.head screw 2 2 2
4 13 1010 34 Lock plate 1 1 1
5 AA 1010 15 Guide chain (N.T.Side) 1 1 1
6 AA 1011 34 Guide chain - T.S. 1 1 1

7 AA 1011 35 Pin guide chain* 1 1 1
8 AA 1013 65 Tensioner assly 1 1 1 From June.03
28 1012 20 Tensioner assly 1 1 -- Upto May.03
9 28 1012 19 Tensioner body 1 1 -- For 28 1012 20
10 31 1010 28 Push rod 1 1 --
11 31 1010 29 Collar 1 1 -- N.I.

12 31 1010 30 Spring 1 1 --
13 31 1011 20 Retainer 1 1 -- Upto May.03 For 28 1012 20
14 39 1049 04 Bolt 1 1 --
15 30 1011 41 Washer 1 1 --
16 39 1014 21 Ring 'O' 1 1 1 For 28 1012 20 & AA 1013 65

17 39 1674 04 Flange bolt 2 2 2
18 28 1011 62 Thread sealent (L222) 1 1 1 N.I.
19 AA 1010 17 Timing chain 1 1 1
10
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 9 : CLUTCH PLATE ASSLY RE4S
10 9
6
8 4
7 5
4 4 5
5
2
4
3

No. AA AF AM
1 AA 1014 69 Clutch comp 1 1 1 From Dec.03

AA 1010 62 Clutch comp 1 1 1 Upto Nov.03
2 AA 1014 70 Clutch plate assly 1 1 1 For AA 1014 69
AA 1010 66 Clutch plate assly 1 1 1 For AA 1010 62
3 AA 1014 71 Wheel clutch 1 1 1 For AA 1014 69
AA 1012 05 Wheel clutch 1 1 1 For AA 1010 62
4 AA 1014 78 Plate friction 7 7 7 For AA 1014 69
AA 1012 10 Plate friction 7 7 7 For AA 1010 62
5 AA 1014 72 Plate clutch 6 6 6 For AA 1014 69
AA 1012 11 Plate clutch 6 6 6 For AA 1010 62
6 AA 1014 73 Hub clutch 1 1 1 For AA 1014 69

AA 1012 06 Hub clutch 1 1 1 For AA 1010 62
7 AA 1013 64 Spring clutch 6 6 6 For AA 1014 69
8 39 0980 04 Hex bolt 6 6 6 For AA 1010 62
9 AA 1014 74 Holder clutch 1 1 1 For AA 1014 69
AA 1011 57 Holder clutch 1 1 1 For AA 1010 62
10 39 1938 15 Nut 1 1 1
11
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 10 : CLUTCH HOUSING COMP RE4S
10
2
9 3
8
1 7 5
12
11

No. AA AF AM
1 AA 1010 63 Clutch housing assly 1 1 1

2 AA 1010 65 Gear primary helical 1 1 1
3 AA 1010 09 Bush gear primary 1 1 1 Not to service only for reference
4 AA 1012 07 Housing clutch 1 1 1
5 AA 1011 42 Holder 1 1 1
6 39 1033 09 Rivet 3 3 3
7 AA 1014 00 Spring damper A 3 3 3
8 AA 1014 01 Spring damper B 2 2 2
9 31 1011 41 Spring (Beleville washer) 1 1 1
10 39 1057 11 Plain washer 1 1 1
11 39 2008 11 Plain washer 1 1 1

12 AA 1012 13 Collar 1 1 1
12
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 11 : CLUTCH LEVER ASSLY RE4S
11 19
10 3 4
7
16
18
5
12
15
14
2
13
17
9
3a
4a
2a 1

No. AA AF AM
1 AA 1010 73 Rod push 1 1 1

2a AA 1014 79 Release clutch outer 1 1 1 From Dec.03
2 30 1011 21 Release clutch outer 1 1 1 Upto Nov.03
3a AA 1014 81 Inner clutch release assly. 1 1 1 From Dec.03
3 AA 1013 40 Inner clutch release assly. 1 1 1 Upto Nov.03
4a AA 1014 84 Bellow 1 1 1 From Dec.03
4 AB 1010 58 Bellow 1 1 1 Upto Nov.03
5a AA 1014 91 Gasket release 1 1 1 N.I
5 30 1011 15 Gasket release 1 1 1
6 39 0198 11 Plain washer 2 1 1 For mounting release clutch outer

7 39 1672 04 Screw pan cross 2 1 1 For mounting release clutch outer
8 AA 1011 68 Dowel pin (Clutch release) 1 1 1
9 30 1011 97 Ball steel 1 1 1
10 39 1441 01 Screw set 1 1 1
11 39 0793 15 Hex. lock nut 1 1 1

12 39 1744 19 Oil seal 1 1 1
13 01 1501 09 Front brake link 1 1 1
14 05 1510 13 Front brake link 1 1 1
15 03 1501 11 Pin 1 1 1
Upto Aug.01( For integral cable)
16 39 01510 08 Split pin 1 1 1
17 01 1501 12 Bolt 1 1 1
18 39 0299 15 Hex.nut 1 1 1
19 AB1011 00 Arrestor pin 1 1 1
20 39 2038 04 Hex. head bolt 2 2 2 For new clutch release outer N.I 13
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 12 : MAIN SHAFT RE4S

No. AA AF AM
1 AA 1010 48 Main shaft 1 1 1

2 AA 1012 95 Drive bush 1 1 1
3 AB 1010 67 Cross 1 1 1
4 AA 1010 54 Guide stem 1 1 1
5 AA 1011 08 Gear selecter 1 1 1
6 39 0213 11 Plain washer 1 1 1

7 28 1010 38 Spring 2 2 2
8 01 1801 23 Steel ball 2 2 2
9 AA 1010 61 Cup gear shifter 1 1 1
14
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 13 : GEAR TRANSMISSION RE4S
9 11
10
12
8
6
5
1
6
3
4

No. AA AF AM
1 AA 1010 50 1st speed gear 1 1 1

2 AA 1010 51 2nd speed gear 1 1 1
3 AA 1010 52 3rd speed gear 1 1 1
4 AA 1010 53 4th speed gear 1 1 1
5 15 1011 71 Spacer ring 1 1 1
6 21 1007 11 Circlip 2 2 2
7 01 1007 11 Shoulder ring No. 1 1 1 1
01 1007 12 Shoulder ring No. 2 1 1 1
01 1007 13 Shoulder ring No. 3 1 1 1 Selective
01 1007 14 Shoulder ring No. 4 1 1 1
01 1007 15 Shoulder ring No. 5 1 1 1
8 AA 1010 56 Differential control gear 1 1 1
9 AA 1010 55 Thrust washer 1 1 1
10 AA 1013 92 Multiple gear shaft 1 1 1 From April.03
AA 1012 08 Multiple gear shaft 1 1 1 Upto March.03
11 AA 1010 46 Multiple gear 1 1 1

12 AA 1011 56 Thrust washer (M.G.Shaft) 1 1 1
15
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 14 : SECTOR ASSLY RE4S
13
8
5
6
10
7 16
9
15
3
11
14

No. AA AF AM
1 AA 1012 61 Sector with lever 1 1 1

2 39 0550 11 Plain washer* 1 1 1
3 BA 1321 41 Slider block 1 1 1
4 05 1010 83 Adjuster with nut* 2 2 2
5 39 1046 19 Seal oil 1 1 1

7 AA 1012 60 Flange ( Gear shifter ) 1 1 1
8 39 1197 04 Bolt socket 2 2 2
9 39 0219 11 Plain washer 2 2 2
10 39 1826 12 Spring washer 2 2 2
11 AA 1010 84 Gasket sector flange 1 1 1

12 39 0804 11 Plain washer 2 2 2
13 AA 2010 41 Switch neutral 1 1 1 From Oct. 01 N.I
06 1112 66 Switch neutral 1 1 1 Upto Sept. 01
14 AA 1012 58 Cover (Gear shifter) 1 1 1
15 39 0197 11 Plain washer 2 2 2
16 39 0758 01 Screw pan cross 2 2 2

16
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 15 : SECTOR GEAR ASSLY / STARTING MECHANISM RE4S
25
20
21
22 26
23 27
23
24
22
18 1
8
19 16 6
17 2
5
30
15
14 4
3
10
11 9
7
14
16
28
29
15
13 12

No. AA AF AM
1 AA 1011 22 Starter gear 1 1 --

2 AA 1011 18 Sector gear assly 1 1 -- Upto Jan.00
3 AA 1012 15 Guide spring 1 1 --
4 AA 1012 09 Torsional spring 1 1 --
5 30 1010 53 Circlip 1 1 --
6 AA 1011 56 Thrust washer 1 1 --

7 AA 1011 28 Lever engine side (H.S.) 1 1 -- Upto Jan.00
8 39 0525 17 Circlip 1 1 -- Upto Jan.00
9 AA 1011 32 Connecting tube 1 1 -- Upto Jan.00
10 24 1011 21 Eye bolt /Bush assly LH 1 1 --
11 24 1014 19 Hex nut LH thread 1 1 --

12 24 1011 22 Eye bolt / Bush assly RH 1 1 --
13 39 0296 15 Hex nut 1 1 --
14 24 1014 22 Pin 2 1 --
15 39 0215 11 Plain washer 2 2 --
17
AA = Petrol
AF = CNG
AM = LPG
PLATE NO.15 : SECTOR GEAR ASSLY / STARTING MECHANISM ( DECOMP. ) RE4S
25
20
21
22 26
23 27
23
24
22
18 1
19 16 6
17 2
5
30
15
14 4
3
10
11 9
7
14
16
28
29
15
13 12

No. AA AF AM
16 39 0146 08 Split pin 2 2 --

17 AA 1011 27 Lever driver side 1 1 -- Upto Jan.00
18 AA 1011 30 Starting Handle assly 1 1 -- Upto Jan.00
19 22 1011 15 Starting Handle grip 1 1 -- Upto Jan.00
20 AA 1610 62 Support assly.starting handle 1 1 --
21 AA 1610 63 Support starting handle 1 1 --

22 01 1701 19 Nut 2 1 -- Upto Jan.00
23 39 0714 11 Plain washer 2 1 -- Upto Jan.00
24 39 1827 12 Spring washer 1 1 -- Upto Jan.00
25 AA 1610 50 Bush sintered bronze 1 1 -- Upto Jan.00
26 AA 1012 24 Spacer(Starting handle) 1 1 -- Upto Jan.00

27 39 2171 11 Plain washer 1 1 -- Upto Jan.00
28 39 2175 11 Plain washer 1 1 --
29 39 2176 17 Wire circlip 1 1 --
30 39 0799 08 Pin cotter 1 1 --
18
AA = Petrol
AF = CNG
AM = LPG
PLATE NO.16 : SECTOR GEAR ASSLYEMBLY / STARTING MECHANISM (DECOMP.) RE4S
33 14
16
34 15 11
32 35
10
1
39
12 6
22
24 13
23
20
21 38 5
4
36 3
25
24 22 2
19
18
27 20
31 23
30 21 19
8
26 37 17
7
28
10
18
24 11 9 22
29
24
23

No. AA AF AM
1 AA 1011 22 Starter gear 1 1 1
2 AA 1012 86 Sector gear assly. 1 1 1 From Feb.01
3 AA 1012 15 Guide spring 1 1 1
4 AA 1012 09 Torsional spring 1 1 1
5 30 1010 53 Circlip 1 1 1
6 AA 1011 56 Thrust washer 1 1 1

7 AA 1012 88 Lever engine side (H.S.) 1 1 1
8 39 2175 11 Plain washer 1 1 1
9 39 2176 17 Wire circlip 1 1 1
10 39 0240 11 Plain washer 2 2 2
11 39 0799 08 Pin cotter 2 2 2

12 AA 1012 97 Support assly.comp.(H.S.) 1 1 1
13 AA 1012 89 Spindle assly. 1 1 1
14 39 0435 01 Screw hex.head 4 4 4
15 39 0200 11 Plain washer 4 4 4
16 39 1828 12 Spring washer 4 4 4

17 AA 1012 93 Connecting tube - I 1 1 1
18 24 1011 21 Eye bolt / bush assly. LH 2 2 2
19 24 1014 19 Hex.nut LH thread 2 2 2
20 24 1011 22 Eye bolt / bush assly. RH 2 2 2 19
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 16 : SECTOR GEAR ASSEMBLY / STARTING MECHANISM (Decompression) RE4S
33 14
16
34 15 11
32 35
10
1
39
12 6
22
24 13
23
20
21 38 5
4
36 3
25
24 22 2
19
18
27 20
31 23
30 21 19
8
26 37 17 7
28
10
18
24 11 9 22
29
24
23

No. AA AF AM
21 39 0296 15 Hex.nut 2 2 2
22 24 1014 22 Pin 3 3 3
23 39 0215 11 Plain washer 2 2 2
24 39 0146 08 Split pin 4 4 4
25 AA 1012 91 Starting tube assly. 1 1 1
26 22 1014 23 Plug 1 1 1
27 23 1613 05 Grease nipple 1 1 1
28 21 1014 27 Spring 1 1 1
29 AA 1012 77 Pin for lever support 1 1 1
30 03 1801 16 'O' ring 1 1 1
31 21 1014 29 Spring clip 1 1 1

32 24 1011 78 Starting handle/pin 1 1 1
33 22 1011 15 Starting handle grip 1 1 1
34 AA 1013 29 Lever driver side 1 1 1
35 39 1389 04 'D' bolt 1 1 1
36 AA 1013 46 Connecting tube - II with eye pin 1 1 1

37 24 1014 21 Pin 1 1 1
38 AA 1013 30 Lever 1 1 1
39 24 1014 14 Washer 1 1 1
20
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 17 : DIFFERENTIAL ASSEMBLY RE4S
11
11
10
5
7
9 1
13 8
12
6
8 3
4 2

No. AA AF AM
1 AA 1310 02 Differential gear 1 1 1

2 AA 1310 33 Satellite gear Hsg. assly 1 1 1
3 24 1301 11 Bush bevel gear housing 1 1 1
4 22 1310 18 Satellite gear 2 2 2
5 22 1310 14 Spacer 2 2 2
6 24 1310 32 Bevel gear pin 1 1 1

7 24 1301 13 Pin 1 1 1
8 24 1310 09 Bevel gear 2 2 2
9 39 0435 01 Screw hexagon head 6 6 6 Alt.AE 1310 06
10 AA 1010 57 Idler gear 1 1 1
11 AA 1010 58 Thrust washer (Idler gear) 2 2 2

12 39 0265 12 Spring washer 6 6 6
13 22 1703 45 Lock plate 3 3 3
21
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 18 : DIFFERENTIAL COVER RE4S
8
2
13
12 7
10
3
14
1 5
11
16
9 15

No. AA AF AM
1 AA 1310 14 Differential cover 1 1 1
2 30 1510 39 Bearing ball 1 1 1
4 24 1301 05 Ball bearing 1 1 1
5 39 1870 19 Oil seal 1 1 1
6 39 1869 19 Oil seal 1 1 1

7 05 1010 51 Breather assly 1 1 1
8 05 1510 12 Adjuster with nut 1 1 1
9 39 1075 04 Bolt flanged 7 7 7
10 39 1759 04 Bolt flanged 1 1 1
11 39 1000 06 Hollow dowel pin 2 2 2

12 AA 1310 16 Gasket - Diferential cover 1 1 1
13 AA 1310 17 Dipstick - Differential 1 1 1
14 39 1537 21 'O' ring 1 1 1
15 35 1010 60 Oil plug 1 1 1
16 39 1585 11 Washer oil plug 1 1 1
22
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 19 : SECTOR COMPLETE-REVERE GEAR RE4S
6
3
8
7
5
2

No. AA AF AM
1 AA 1310 37 Sector assly-reverse. 1 1 1 From Dec.01

AA 1310 06 Sector assly-reverse 1 1 1 Upto Nov.01
2 AB 1310 15 Lever(Reverse control) 1 1 1
4 01 1009 05 'O'ring 1 1 1
5 24 1301 29 Tension spring 1 1 1
6 AA 1310 31 Pin for tension spring 1 1 1 Alt.AA 1012 12

7 39 0219 11 Plain washer 1 1 1
8 39 1826 12 Spring washer 1 1 1
23
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 20 : COWLING RE4S
3
2
4 7
4 5
3
10
7
19

No. AA AF AM
1 AB 1010 45 Cowling clutch side 1 1 1

2 39 0834 15 Hex. nut 2 2 2
3 39 0219 11 Plain washer 2 2 2
4 39 1826 12 Spring washer 2 2 2
5 AA 1013 85 Fancover complete 1 1 1 From Sept.03
AB 1010 47 Fan cover complete 1 1 1 Upto July.03
6 AB 1010 46 Central cover 1 1 1

AA 1012 62 Central cover 1 1 1 For Decompression Mechanism
7 39 0747 01 Screw pan cross 1 1 1 Fan cover comp.& inter. cowling
8 39 0756 01 Screw pan cross 1 1 1
9 39 0751 01 Screw 1 1 1
10 AA 1013 24 Duct 1 1 1
11 AB 1010 51 Band cowling 1 1 1

12 AA 1013 22 Elbow for fan cover 1 1 1 From June.01
13 39 0209 11 Plain washer 3 3 3 For elbow
14 39 1027 02 Screw 3 3 3 For elbow
15 03 1013 03 Rivetting bush 1 1 1
N.I
16 03 1013 04 Plain washer 1 1 1 Fitment of fan cover.
17 03 1013 05 Washer asbestos 2 1 1 Fitment of fan cover.
18 AA 1013 94 Grommet 1 1 1 For internal cowling.
24 19 AA 1013 73 Internal cowling 1 1 1 For Mitsuba starter motor
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 21 : SILENCER ASSLEMBLY RE4S
2
4 16
3 15
1
14
13
12
19
18
17
9
8
6
9
4
7
7 10
5 8
17
11

No. AA AF AM
1 AA 1014 92 Silencer assly. comp. 1 -- -- For USA Market

2 13 1011 65 Gasket 1 1 1
3 DB 1010 52 Nut flanged 2 2 2
4 39 1829 12 Spring washer 2 2 2
5 39 0080 04 Hexagoan head bolt 1 1 1
6 39 0312 15 Hex. nut 2 2 2

7 39 0201 11 Plain washer 4 4 4
8 AA 1012 83 Gasket 2 2 2
9 AA 1012 79 CAT Converter assly. 1 -- -- For USA Market
10 AA 1013 61 Exhaust tube assly. 1 1 1 From Jan.02
11 39 1552 04 Flanged bolt 3 3 3

12 AA 1013 80 Muffler Bush assly.comp. 1 -- -- For USA Market
13 AA 1013 60 Silencer shield comp. 1 1 1 From Jan.02
14 39 0711 11 Plain washer 2 2 2
15 39 0263 12 Spring washer 2 2 2
16 39 0897 04 Bolt 2 2 2 From Jan.02

17 39 0711 11 Plain washer 6 6 6
18 39 1826 12 Spring washer 3 3 3
19 39 0834 15 Hex.nut 3 3 3
20 39 0530 15 Hex Nut 2 2 2 N.I For AA 1013 61
21 39 1856 04 Hexnut/ Flange 2 2 2 N.I
25
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 22 : ENGINE MOUNTING RE4S
2 9
13 4 2 8
11 9
7
7
15 10 6
14 8
16
18 5
20
18
19 2
4 9 2
9 4
20
19 13
12 17
1 15
12 14
16

No. AA AF AM
1 39 2393 04 Hexagon bolt 2 2 2

2 39 0296 15 Hex nut 6 6 6
3 39 0201 11 Plain wahser 2 2 2
4 39 1829 12 Spring washer 2 2 2
5 24 1610 03 Hex bolt 1 1 1
6 39 0251 11 Plain washer 1 1 1

7 21 1604 17 Reinforcement plate 2 2 2
8 24 1609 24 Rubber plug 2 2 2
9 39 0248 11 Plain washer 6 6 6
10 AA 1011 94 Bracket front mounting 1 1 1
11 39 0083 04 Bolt 2 2 2
12 BA 1021 60 Rubber isolator (GB) 2 2 2
13 39 1079 01 Hex screw 4 4 4 For rubber isolator
14 39 0198 11 Plain washer 4 4 4 For rubber isolator
15 39 0263 12 Spring washer 4 4 4 For rubber isolator
16 39 0834 15 Hex nut 4 4 4 For rubber isolator

17 AA 1610 73 Engine mounting member rear 1 1 1
18 30 1010 82 Bolt 2 2 2 For engine mounting member
19 39 1180 11 Plain washer 2 2 2 For engine mounting member
26 20 39 0265 12 Spring washer 2 2 2 For engine mounting member
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 23 : MAGNETO ASSLY RE4S
9a
5
6
4
8
12
6
5 3
7 2
1 10
11

No. AA AF AM
1 AA 1110 88 Magneto assly 1 -- -- For USA Market

2 AA 1110 72 Rotor assly 1 1 -- For Mitsuba motor
AA 1110 57 Rotor assly 1 1 1 AGL make
AB 1110 03 Rotor assly 1 1 1 Denso make
AA 1110 53 Rotor assly 1 1 1 INEL make
AA 1110 50 Rotor assly 1 1 1 AEL make
3 AB 1110 47 Stator assly 1 1 1 Denso make
AA 1110 33 Stator assly 1 1 1 INEL make
AA 1110 51 Stator assly 1 1 1 AEL make
4 01 1103 67 Screw 3 3 1 Stator Mounting
5 39 0197 11 Plain wahser 5 5 1 Stator plate & pulser coil mtg.
6 39 0262 12 Spring washer 5 5 1 Stator plate & pulser coil mtg.

7 39 0761 01 Screw pan cross 2 2 2 Pulser coil mounting.
8 AA 1110 35 Pulser coil assly. 1 1 1 Denso make
AA 1110 54 Pulser coil assly. 1 1 1 INEL make
AA 1110 52 Pulser coil assly. 1 1 1 AEL make
9a AA 1013 84 Fan 1 1 1 For Mitsubha motor
9 AA 1010 35 Fan 1 1 1
10 39 1075 04 Bolt Flange small 3 3 3
11 39 1826 12 Spring washer 3 3 3

12 AA 1012 20 Grommet for pickup 1 1 1
27
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 24 : SPARK PLUG AND H. T. COIL RE4S
10
5
4 2
7
3
8
9
1

No. AA AF AM
1 AF 1110 12 H. T. Coil assly C-Core -- 1 -- From April.03

AF 1110 09 H. T. Coil -- 1 -- Upto March.03
AA 1110 30 H. T. Coil 1 -- --
2 AA 1110 74 Spark plug cap with 1k resistive 1 1 1
AB 1110 13 Spark plug cap 1 1 1
AA 1110 60 Spark plug cap (NR) 1 1 -- For AA 1110 58
3 AA 1110 76 Grommet spark plug cap 1 1 -- From Dec.03
31 1110 14 Grommet 1 1 1
07 1105 03 Grommet 1 1 -- For AA 1110 58
4 39 0197 11 Plain washer 2 1 1
5 39 0262 12 Spring washer 2 1 1
For H. T. Coil mounting
6 39 0408 04 Bolt 2 2 2
7 AA 1110 77 Cap ( H.T.Cable) 1 1 1 From Dec.03
24 1110 80 Cap (H.T.Cable) 1 1 1 Upto Nov.03
8 AA 1110 58 Spark plug (Mico) 1 -- -- For USA Market
9 39 0897 04 Bolt hex head 1 1 1 For H.T.Coil earthing
10 AA 1110 61 Grommet( Spark plug cap) 1 1 1
11 AA 1110 59 Spark plug cap/ grommet 1 1 1 For AF 1110 10

28
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 25 : CARBURETTOR RE4S
7
24
2 23 25
10 26
28 9
11
32 8
31
3 29 27
18
13
14
5 15
12
6 20
16
31
17
22
30 21
6

No. AA AF AM
1 AA 1210 82 Carburettor 1 -- -- Alt.AA121051

AF 1211 89 Carburettor -- 1 1 Alt.AF121014
2 28 1210 28 Spring compression 1 1 1
3 AB 1210 22 Valve throttle 1 1 1
4 28 1210 30 Plate needle clip 1 1 1
5 AB 1210 23 Needle jet 1 1 1
6 28 1210 32 Clip bar 1 1 1

7 28 1210 33 Top complete 1 1 1
8 28 1210 37 Spring compression(idle screw) 1 1 1
9 AB 1210 24 Screw adjust(idle screw) 1 1 1
10 AB 1210 25 Screw stop(air screw) 1 1 1
11 28 1210 34 Spring compression 1 1 1

12 AB 1210 26 Jet comp.slow 1 1 1
13 28 1210 39 Float complete 1 1 1
14 28 1210 40 Pin arm 1 1 1
15 AB 1210 27 Holder needle jet 1 1 1
29
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 25 : CARBURETTOR RE4S
7
24
2 23 25
10 26
28 9
11
32 8
31
3 29 27
18
13
14
5 15
12
6 20
16
31
17
22
30 21
6

No. AA AF AM
16 AB 1210 28 Jet main 1 -- --
DD 1210 28 Jet main -- 1 1
17 28 1210 43 Screw washer 2 2 2
18 28 1210 44 Valve complete float 1 1 1
19 28 1210 45 Jet needle 1 1 1 N.I.
20 28 1210 46 Gasket float chamber 1 1 1
21 28 1210 47 Drain screw 1 1 1

22 28 1210 48 'O' ring - drain screw 1 1 1
23 28 1210 49 Adjuster 1 1 1
24 28 1210 50 Hex.nut 1 1 1
25 AB 1210 29 Plate assly. 1 1 1
26 AB 1210 30 Screw 1 1 1
27 28 1210 51 Choke cap 1 1 1
28 28 1210 52 Dust cap, choke 1 1 1
29 AB 1210 32 Rubber pipe, air vent 1 1 1
30 AB 1210 31 Rubber pipe, over flow 1 1 1
31 28 1210 55 Clip, rubber pipe 2 2 2

32 28 1210 56 'O' ring, mounting face 1 1 1
33 39 1674 04 Flange bolt 2 2 2 N.I
34 30 1210 04 Ring snap 1 1 1 N.I Holding acc. cable
30
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 25A : CARBURETTOR( FOR CNG VEHICLE ONLY) RE4S
36
35 2
34
3
4
5
33 6
32
31 7
8
9
30
10
12 11
13
1 14
29
15
28
27 16
26
17
18
19
25
20
20
21
22
23

No. AA AF AM
1 AF 1211 85 Carburettor ( Spaco ) -- 1 -- For Clean air intake.

2 CR 1210 53 Cap -- 1 --
3 AF 1212 93 M.C.Cover assly -- 1 --
4 AF 1213 11 Spring -- 1 --
5 AF 1213 10 Needle clip plate -- 1 --
6 AF 1213 14 Bracket -- 1 --
7 AF 1212 92 Screw assembly -- 1 --
8 AF 1213 05 "O" ring for flange -- 1 -- NBR hardness 70
9 AF 1212 85 Air adjuster -- 1 --
10 CR 1210 52 Spring -- 1 --
11 CR 1210 28 Washer -- 1 -- Cr.st.strip

12 CR 1210 29 "O" ring -- 1 -- Nitrile rubber
13 AF 1212 99 Spring -- 1 --
14 AF 1213 00 Throttle valve -- 1 --
15 AF 1212 91 Choke dust cap -- 1 --
16 AF 1213 06 Slow Jet -- 1 -- No.32

17 AF 1212 97 Main jet -- 1 -- No.68
18 AF 1213 03 Float -- 1 --
19 AF 1213 04 Gasket for FCC -- 1 --
20 AF 1212 89 Screw assembly -- 2 -- 31
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 25A : CARBURETTOR( FOR CNG VEHICLE ONLY) RE4S
36
35 2
34
3
4
5
33 6
32
31 7
8
9
30
10
12 11
13
1 14
29
15
28
27 16
26
17
18
19
25
20
20
21
22
23

No. AA AF AM
21 33 1210 36 Drain plug -- 1 --

22 AF 1212 88 "O" ring for drain plug -- 1 --
23 AF 1212 86 Rubber pipe O.F -- 1 --
24 AF 1212 87 Tube clip -- 1 -- N.I
25 AF 1213 02 F.C.Cover assly -- 1 --
26 AF 1213 01 Needle Jet holder -- 1 --

27 AF 1213 07 Needle Jet -- 1 -- Type 261
28 AF 1212 95 Float valve -- 1 --
29 AF 1212 96 Arm pin float -- 1 --
30 AF 1212 98 Plug -- 1 --
31 AF 1212 94 Throttle valve -- 1 -- Type 40

32 AF 1213 09 Conical Needle P 43 -- 1 -- Aluminium N.I
33 AF 1213 08 Circlip -- 1 --
34 AF 1213 13 Nut -- 1 --
35 CR 1210 26 Clip -- 1 --
36 AF 1213 12 Housing -- 1 --
37 AF 1212 90 Screw assembly -- 1 -- N.I
32
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 26 : AIR FILTER COMPLETE RE4S
27
15
23 14
18
24 13
11
19
21 20
17 16
25
2
5
26
7a
3
13
12
6
7
7b
9
10
1 8
4

No. AA AF AM
1 AA 1210 88 Air filter comp 1 -- -- For USA Market

2 AA 1210 54 Air filter housing 1 1 1
3 AA 1210 56 Element filter 1 1 1
4 AA 1210 55 Cover 1 1 1
5 AA 1210 57 Separator 1 1 1
6 39 1687 02 Cross rec.pan head screw 5 5 5

7a AA 1210 35 Hose pipe 1 -- -- For USA Market
7b AF 1211 88 Hose pipe -- 1 -- From Sept.03
7 AA 1210 35 Duct (Entry) 1 1 1 Upto Aug.03
8 39 0748 01 Screw pan cross 6 6 6
9 39 1826 12 Spring washer 6 6 6
10 39 0219 11 Plain washer 6 6 6
11 39 1941 04 Hex. bolt with flange 1 1 1

12 39 1940 04 Hex. bolt with flange 1 1 1
13 39 1180 11 Plain washer 3 3 3
14 AA 1210 73 Bellow (Intake) 1 1 1 Upto Aug.03
15 AA 1210 43 Clamp (bellow) 1 1 1
16 AA 1210 44 Duct (Carburettor) 1 1 -- Upto March.02

AF 1210 13 Duct -- 1 1 Upto Aug.03 33
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 26 : AIR FILTER COMPLETE RE4S
27
15
23 14
18
24 13
11
19
21 20
17 16
25
2
5
26
7a
3
13
12
6
7
7b
9
10
1 8
4

No. AA AF AM
17 AA 1210 50 Rubber bush 1 1 1 Upto March.02

18 AA 1210 71 Clamp (Duct Carburettor) 1 1 1 Upto March.02
19 AB 1210 17 Clamp (Intake Duct) 1 1 1 Upto Aug.03
20 28 1210 25 Sleeve(carburettor) 1 -- --
AF 1210 22 Sleeve (carburettor) -- 1 1 Upto March.02
21 28 1210 09 Clamp (Duct carburettor) 1 1 1 Upto March.02

22 AA 1210 61 Flame arrester 1 1 1
23 39 1941 04 Hex bolt with flange 1 1 1
24 AA 1210 65 Spacer (Air filter mounting) 1 1 1
25 AA 1210 87 Clamp for restriction valve 1 -- -- For USA Market
26 AA 1910 19 Hook for fuel pipe 1 1 1

27 AF 1211 48 Integral duct assly comp. -- 1 --
28 39 1860 02 Cr. rec. pan head screw 4 6 --
29 AA 1210 71 Clamp carb. duct 1 1 --
30 AA 1013 96 Spring clip 1 1 -- From Sept.03 N.I
31 BA 1220 62 Pipe band -- 1 -- For clamping hose

32 AF 1211 94 Clamp -- 1 -- pipe on starter motor cutout
34
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 27 : PUMP ASSLY OIL AND OIL STRAINER RE4S
5 7
6
3 4
17
18 2
14 7 8
1
16
10
12
11
13
15

No. AA AF AM
1 AA 1210 60 Pump assly oil 1 1 1

2 AA 1210 59 Gear oil pump 1 1 1
3 39 1575 11 Plain washer 1 1 1
4 39 0855 17 Circlip 1 1 1
5 39 0730 01 Screw pan cross 1 1 1
6 39 0748 01 Screw pan cross 2 2 2

7 39 1013 21 'O' ring 2 2 2
9 AA 1011 54 Oil strainer 1 1 1
10 28 1010 22 Cap strainer 1 1 1
11 39 1574 21 'O' ring, Strainer 1 1 1

12 39 1657 21 'O' ring, Cap 1 1 1
13 AA 1210 06 Oil filter with gasket 1 1 1
14 AA 1210 07 Spring oil filter 1 1 1
15 39 1738 21 'O' ring , Oil filter 1 1 1
16 AA 1210 09 Oil filter cover 1 1 1

17 AA 1210 10 Gasket, Oil filter 1 1 1
18 39 1673 04 Flange bolt 3 3 3
35
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 28 : FUEL TANK ASSEMBLY RE4S
5
13
8 18 12
1
2 11
19
6/15
9
8
25
2
7 26
27
14
28 20
9
8 23
24
21

No. AA AF AM
1 AA 1410 20 Fuel tank assy. 1 -- -- For USA Market
2 28 1410 15 Fuel cock assly 1 -- -- With auto fuel cock arrangement
AA 1410 14 Petrol cock assly. 1 -- -- With mann. fuel cock arrangement
3 AA 1410 24 Cap Assly.fuel tank 1 -- -- For USA Market
4 24 1401 15 'O' ring 1 -- --
5 28 1410 21 Label - Fuel tank 1 -- --
6 AA 1410 05 Fuel pipe (carburettor side) 1 -- -- For auto fuel cock
7 AA 1410 06 Vaccum pipe 1 -- -- For auto fuel cock
8 33 1410 07 Clamp cock outlet 2 -- --
9 30 1210 18 Ring snap 2 -- --
10 BA 2010 40 Cable assly (fuel tank unit) 1 -- -- N.I.
11 39 1505 01 Hex head screw 3 -- -- Fixing fuel tank complete
12 39 1828 12 Spring washer 3 -- -- Fixing fuel tank complete
13 39 1180 11 Plain washer 3 -- -- Fixing fuel tank complete
14 DD 1210 13 Filter Fuel 1 -- -- For USA Market
15 AA 1410 04 Fuel pipe (Tank side) 1 -- -- For mann.fuel cock
16 BA 2010 45 Float switch (Tank unit fuel) 1 -- -- N.I.
17 AA 1910 19 Hook 1 -- -- For holding fuel & vacuum pipe
18 24 1401 10 Adaptor nut 1 -- --
19 24 1401 11 Gasket 1 -- --
36 20 24 1410 55 Petrol cock lever 1 -- --
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 28 : FUEL TANK ASSEMBLY RE4S
5
13
8 18 12
1
2 11
19
6/15
9
8
25
2
7 26
27
14
28 20
9
8 23
24
21

No. AA AF AM
21 01 1402 29 Grommet 1 -- --
22 01 1402 27 Tube 1 -- -- N.I.
23 01 1402 28 Spring clip 1 -- --
24 AA 1410 16 Fuel pipe - short 1 -- --
25 01 1402 20 Gasket 1 -- --
26 07 1402 03 Control valve 1 -- --
27 01 1402 22 Pressure plate 1 -- --
28 39 0005 01 Screw 2 -- --
29 39 0294 15 Hex nut 3 -- -- From Dec. 01 Fixing fuel tank
30 AA 1410 25 Tube I (fuel tank to restriction valve) 1 -- --
31 AA 1410 26 Tube II (restriction valve to fitting) 1 -- --
32 AA 1410 31 Tube III (fitting to fitting) 1 -- --
33 AA 1410 28 Tube IV(fitting to canister) 1 -- --
34 AA 1410 36 Tube V (Fuel tank to fuel filter) 1 -- --
35 AA 1410 37 Tube VI (fuel filter to carburettor) 1 -- --
36 AA 1410 27 Tube X (Inlet manifold to canister) 1 -- -- For USA Market (N.I.)
37 AA 1410 29 Tube XI (T joint to canister purge) 1 -- --
38 AA 1410 32 Tube XIV (canister breather) 1 -- --
39 AA 1410 33 Tube XV (canister drain) 1 -- --
40 28 1410 40 Valve Restriction 1 -- --
41 28 1410 41 Canister 1 -- -- 37
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 29 : FRONT BRAKE LINKAGE RE4S
18
17 4 3
15
7 6
16 2 1
8
11
14
12
9
10
13

No. AA AF AM
1 22 1510 36 Front brake shoe assly. 1 1 -- Upto July.01

2 22 1510 39 Wear pad 2 1 --
3 22 1510 40 Extension spring 2 1 --
4 01 1502 09 Spring lock 1 1 --
5 22 1510 66 Brake cam assly 1 1 --
6 05 1510 17 Front brake actuating lever 1 1 --

7 39 0775 04 Bolt 1 1 --
8 39 0798 15 Nut 1 1 --
9 01 1501 09 Front brake link 1 1 --
10 05 1510 13 Front brake link 1 1 --
11 03 1501 11 Pin 1 1 --
12 39 0151 08 Split pin 1 1 --
13 01 1501 12 Bolt 1 1 --
14 39 0299 15 Nut 1 1 --
15 22 1510 41 Front brake drum assly 1 1 --
16 39 1140 04 Bolt brake drum 4 4 --

17 39 0694 15 Hex.nut 4 4 --
38 18 39 0265 12 Spring washer 4 4 --
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 29A : FRONT BRAKE SHOE(ANTIDIVE) RE4S

No. AA AF AM
1 AB 151035 Shoe hold disc complete 1 1 1 From Aug.01

2 22 1502 35 Rear brake shoe assly.comp 2 2 2
3 22 1502 39 Liner 2 2 2
4 39 0182 09 Rivet-flat head 16 16 16
5 22 1502 40 Return Spring 2 2 2
6 22 1502 41 Plain washer 2 2 2

7 22 1502 42 Spring 2 2 2
8 22 1502 43 Special washer 2 2 2
9 AB1710 05 Bearing bush-bimetal 1 1 1
10 AB 1710 30 Grease seal 2 2 2 From Sept.02
AB 1710 06 Grease seal 2 2 2 Upto Aug.02
11 23 1613 05 Grease nipple 2 2 2 From Sept.02 N.I
39
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 29B : WHEEL CYLINDER (FRONT) RE4S
5
3 1 2 4
1A
Fig.no Description Qty Fig.no Description Qty

1 Piston 2 2 Wheel cylinder seal 2
2 Wheel cylinder seal 2 3 Spring 1
3 Spring 1
4 Wheel cylinder boot 2
4 Wheel cylinder boot 2
5 Bleeder Screw 1
6 Bleeder cap 1
2B
2A

No. AA AF AM
1A AB 1510 90 Wheel cylinder assly(dia.22.22) 1 1 1

2A AB 1510 92 Major kit 1 1 1 From May.02
2B AB 1510 93 Minor kit 1 1 1
40
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 30 : REAR BRAKE ASSEMBLY RE4S
3
7 6 5
4
13
12
14
17
18
15
16
9 10 11 8
1/2 19
7
6

No. AA AF AM
1 22 1510 86 Disc complete right 1 1 1 From May.02

2 22 1510 81 Disc complete left 1 1 1 From May.02
3 22 1710 80 Lock plate 4 4 4
4 39 0119 04 Bolt 8 8 8
5 22 1502 35 Rear brake shoe assly comp. 2 2 2 With Liners/Rivets
6 22 1502 39 Liner 4 4 4
7 39 0182 09 Rivet 32 32 32
8 22 1502 40 Return spring 4 4 4
9 22 1502 41 Plain wahser 4 4 4
10 22 1502 42 Spring 4 4 4
11 22 1502 43 Special washer 4 4 4

12 AA 1510 21 Brake drum 2 -- -- For USA Market
13 39 0001 01 Screw 4 4 4
14 24 1710 79 Rear wheel axle assly comp 2 2 2
15 24 1710 82 Distance piece 2 2 2
16 22 1704 34 Bolt for rear axle 8 8 8

17 39 0265 12 Spring washer 8 8 8
18 39 0694 15 Hex lock nut 8 8 8
19 24 1710 75 Grease nipple 2 2 2 41
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 31 : TRAILING ARM ASSEMBLY RE4S
10
3
1/2
8 7
6
5
9
11
12

No. AA AF AM
1 AA 1710 04 Trailing arm assly. RH 1 1 1

2 AA 1710 02 Trailing arm assly. LH 1 1 1
3 AA 1710 06 Silent bush - Trailing arm 4 4 4
4 AA 1710 07 Distance piece assly. 2 2 2
5 01 1003 42 Ball bearing 2 2 2
6 39 0342 17 Circlip 2 2 2
7 24 1710 24 Oil seal 2 2 2
8 39 0269 12 Spring washer 2 2 2
9 39 0303 15 Nut 2 2 2
10 AA 1710 11 Pivot pin assly 2 2 2 From March.02
11 22 1704 38 Needle bush 2 2 2

12 22 1710 07 Oil seal 2 2 2
42
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 32 : PROPELLER SHAFT / FLANGES RE4S
1/2 3
5
10
4/16
6
10
8 15
10
12
7/9
11 13
8
10
4/16
14

No. AA AF AM
1 BA 1321 72 Flange assly (Differential gear) 1 1 1 From July.01

2 BA 1321 71 Flange assly (Satellite Gear) 1 1 1 From July.01
3 24 1710 14 Lock washer assly 4 4 4
4 24 1704 27 Rubber buffer 2 2 2
5 39 0119 04 Bolt 4 4 4
6 AA 1310 24 Bellow (Differential flange) 2 2 2

7 BA 1321 12 Propeller shaft assly (LH) 1 1 1
8 24 1704 25 Pin 4 4 4
9 BA 1321 11 Propeller shaft assly (RH) 1 1 1
10 24 1710 68 Slider block 8 8 8
11 39 1182 15 Nut 2 2 2
12 24 1710 66 Spring clip 2 2 2
13 BA 1321 73 Flange assly. (Wheel side) 2 2 2 From July.01
14 01 1902 56 Clip 4 4 4
15 24 1710 76 Bellow (Propeller shaft) 2 2 2
16 BA 1321 10 Rubber buffer 2 2 2 For Propeller shft assly.LH
43
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 33 : FARE METER DRIVE UNIT RE4S
12
6
13 5
11
7 4
10
8
15
14

No. AA AF AM
1 39 1587 21 'O' ring 1 1 1

2 AA 1310 25 Fare meter housing assly 1 1 1 Includes item 3, 4 & 5
3 AE 1310 03 Plastic bush 1 1 1 Alt.24 1310 07
4 24 1310 08 Plug 1 1 1 Alt. 24 1010 73
5 03 1701 09 Pin 1 1 1
6 24 1310 01 Faremeter pinion assly 1 1 1

7 24 1302 09 Faremeter gear 1 1 1
8 24 1302 14 Bush 1 1 1
9 23 1613 05 Grease nipple 1 1 1
10 39 0062 04 Hex screw 1 1 1
11 39 0292 15 Hex nut 1 1 1

12 39 1773 04 Hex bolt flange type 3 3 3
13 AA 1310 04 Gasket 1 1 1
14 AA 2510 01 Faremeter cable comp. 1 1 1
15 AA 2510 03 Inner cable (Faremeter) 1 1 1
44
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 34 : WHEEL ASSEMBLY. RE4S
2
3
1
7
4 6
5

No. AA AF AM
1 AA 1510 15 Ring assly of wheel rim 4 -- -- For USA Market

2 21 1503 07 Tyre 4.00 x 8" 4 4 4 Not to service
3 21 1503 06 Tube for tyre 4 4 4
4 AA 1510 17 Closing ring 4 -- -- For USA Market
5 39 1828 12 Spring washer 16 16 16

6 39 0694 15 Hex lock nut 16 16 16
7 AA 1510 18 Central part assly 4 -- --
8 22 1510 90 Wheel rim complete 4 4 4
45
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 35 : MASTER CYLINDER ASSLY. RE4S
14
1 13
24
15
3
5
7
22
21 2
4
6
8
9
10
11
16 12
18 17
19
20
23

No. AA AF AM
1 22 1510 96 Master cylinder assly 1 1 -- Upto July.01

2 22 1510 55 Master cylinder 1 1 --
3 21 1504 04 Inner valve packing 1 1 --
4 21 1504 05 Outer valve packing 1 1 --
5 21 1504 06 Valve body 1 1 --
6 22 1504 55 Spring 1 1 --
7 22 1504 56 Spacer 1 1 --
8 22 1504 57 Oil seal 1 1 --
9 22 1504 58 Piston for brake pump 1 1 -- Alt. 24 1510 50
10 24 1510 51 Packing 1 1 --
11 39 0203 11 Plain washer 1 1 --

12 39 0336 17 Circlip 1 1 --
13 22 1510 97 Brake fluid bottle/cap 1 1 --
14 22 1510 99 Brake fluid bottle cap 1 1 --
15 22 1510 70 Packing oil container 1 1 --
46
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 35 : MASTER CYLINDER ASSLY RE4S
14
1 13
24
15
3
5
7
22
21 2
4
6
8
9
10
11
16 12
18 17
19
20
23

No. AA AF AM
16 21 1504 16 Dust cover 1 1 --

17 21 1504 18 Connecting rod 1 1 --
18 39 0312 15 Nut 1 1 --
19 24 1510 48 Fork rod assly. 1 1 --
20 21 1504 20 Fork pin 1 1 -- Upto July.01
21 39 0199 11 Plain washer 1 1 --

22 39 0146 08 Split pin 1 1 --
23 24 1510 37 Banjo bolt 1 1 --
24 22 1511 00 Packing master cylinder cap 1 1 --
47
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 35A : TANDEM MASTER CYLINDER (ANTIDIVE) RE4S
31
13A
1 11A
26 12A
13 23
22 27
12
25
24
3
4
28
30
14 4 29 16
17 14 18 19 7
6
3
11
20 21
14
18
19
6
20 5 2 15
21
10 11 8 9

No. AA AF AM
1 AA 1510 26 Tmc compl. with oil container 1 1 1 For USA Market

2 AB 1510 64 Tmc master cylinder body 1 1 1
3 AB 1510 65 Primary piston compl. 1 1 1
4 AB 1510 66 Secondary piston comp. 1 1 1
5 AB 1510 67 Stopper secondary compl. 1 1 1
6 AB 1510 68 Gasket 1 1 1
7 AB 1510 69 Push rod complete 1 1 1
8 39 0294 15 Hexagonal nut 1 1 1
9 AB 1510 07 Fork brake actuation 1 1 1
10 39 2360 17 Internal circlip 1 1 1
11A AB 1510 88 Boot 1 1 1 Alt.AB 1510 70 From May.02

11 AB 1510 70 Boot 1 1 1 Upto April.02
12 AA 1510 24 Oil container with cap 1 1 1 For USA Market
13A AB 1511 05 Cap.br.oil reservoir 1 1 1 Alt.AB 1510 72 From May.02
13 AB 1510 72 Cap br.oil reservoir 1 1 1 Upto April.02
14 AB 1510 71 Grommet oil reservoir 2 2 2
15 39 0761 01 Screw pan cross 2 2 2
48
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 35A : TANDEM MASTER CYLINDER (ANTIDIVE) RE4S
31
13A
1 11A
26 12A
13 23
22 27
12
25
24
3
4
28
30
14 4 29 16
17 14 18 19 7
6
3
11
20 21
14
18
19
6
20 5 2 15
21
10 11 8 9

No. AA AF AM
16 AB 1510 73 Major kit 1 1 1 Consist of Fig.No.3&4

Fig.No.6,11,14,18,19,20 & 21
18 Cup secondary piston 1 1 1
19 Seal secondary piston 1 1 1
20 Cup primary piston 1 1 1
21 Seal primary piston 1 1 1

22 39 1224 11 Plain washer 2 2 2
23 39 1582 11 Plain washer 2 2 2
24 39 1389 04 Hexagon bolt 2 2 2 From April.02
39 0866 04 Hexagon bolt 2 2 2 Upto March.02
25 39 0788 12 Spring washer 2 2 2
26 39 0294 15 Hexagon nut 2 2 2

27 AB 1611 73 Bracket master cylinder mounting 2 2 2
28 39 0200 11 Plain washer 3 3 3 For mounting bracket master
29 39 0265 12 Plain washer 3 3 3 cylinder on chassis
30 39 0310 15 Hex nut 3 3 3
31 AB 1510 89 Boot ring 1 1 1
49
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 36 : BRAKE PEDAL RE4S
1
4
8
2
5
6
6
7
9

No. AA AF AM
1 22 1510 71 Brake pedal assly 1 1 --

2 21 1502 20 Return spring 1 1 --
3 39 0208 11 Plain washer 1 1 -- Upto July.01
4 39 0147 08 Split pin 1 1 --
5 21 1504 21 Ring nut master cylinder 1 1 --
6 21 1504 22 Packing 2 2 2 Upto July.01

7 AB 2010 75 Stop switch 1 1 1 From Sept. 01
BA 2010 33 Stop switch 1 -- -- Upto Aug. 01
BA 2010 60 Stop switch -- 1 -- Upto Aug. 01
8 AF 2010 09 Cable asly (Stop switch) -- 1 -- Upto Aug. 01
9 BA 1220 44 Spring for brake switch 1 1 -- From Sept. 01
24 1510 49 Spring for brake switch 1 1 -- Upto Aug. 01
50
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 36A : BRAKE PEDAL( ANTIDIVE) RE4S
12

No. AA AF AM
1 AB 1511 06 Brake pedal assly 1 1 1 For USA Market

2 BA 1910 29 Pad- Clutch pedal 1 1 1
3 AB 1510 14 Spring brake pedal retainer 1 1 1
4 39 0208 11 Plain washer 2 2 2
5 39 0147 08 Split pin 1 1 1
6 39 1702 07 Clevis pin with head 1 1 1

7 39 0199 11 Plain washer 1 1 1
8 39 0146 08 Split pin 1 1 1
9 AB 1611 71 Pad rivet black 1 1 1 From March.02 (N.I)
10 19 1611 51 Push rivet black 3 3 3 N.I For Pad heel .
11 AB 1611 17 Pad heel rest 1 1 1 N.I

12 BA 1510 05 Return spring 1 1 1
51
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 36B : R.P.VALVES & BRAKE PIPE ( ANTIDIVE) RE4S

No. AA AF AM
1 AA 1510 30 Brake pipe rear-I 1 -- -- For USA market
2 AB 1510 49 Banjo bolt 1 1 1
3 21 1504 22 Packing 1 1 1
4 AB 1510 55 Residual pressure valve assly. 1 1 --
5 AB 1611 84 Clamp 1 1 --
6 AB 1611 85 Sleeve 1 1 --
7 39 0737 12 Washer spring 1 1 --
8 39 0450 04 Flange bolt 1 1 --
52
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 37 : WHEEL CYLINDER / BRAKE PIPE RE4S
17
6 6
10
4
3 16 19
8 5
18
9
7
15
11
14
13
12
13
14
15

No. AA AF AM
1 AF 1510 01 Hydraulic brake pipe assly -- 1 -- Upto July. 01
BA 1510 03 Hydraulic brake pipe assly 1 -- -- Upto July. 01
2 21 1504 33 Clamp 2 2 --
3 24 1504 05 Clamp 4 4 --
4 24 1504 06 Clamp for sleeve 2 2 --
5 24 1504 07 Sleeve 2 2 --
6 22 1504 35 Bolt 8 8 --
7 39 0291 15 Hex nut 2 2 --
8 39 0197 11 Plain washer 2 2 --
9 39 0262 12 Spring washer 2 2 --
10 01 1902 56 Clip 2 2 --
11 AB 1510 60 Wheel cylinder 2 2 -- Upto July. 01

24 1510 45 Wheel cylinder 2 2 -- Upto Aug. 01
12 21 1504 37 Spring 2 2 --
13 22 1510 14 Packing wheel cylinder 4 4 --
14 22 1504 39 Piston 4 4 --
15 22 1504 41 Packing 4 4 --
16 22 1504 42 Air outlet screw 2 2 --

17 22 1504 49 Cap 2 2 --
18 39 0849 14 Toothed washer 4 4 --
19 22 1504 51 Screw 4 4 --
53
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 37A : BRAKE PIPE( ANTIDIVE) RE4S
ab151055
AB161184
39045004
13
8
10
9 1
6 2
4
7 5
6
3
12 12
16 16
17 17
18 18
14 14
15 15

No. AA AF AM
1 AA 1510 13 Brake pipe Rear-II 1 -- -- For USA market

AA 1510 10 Brake pipe Rear-II 1 1 -- Upto April.02
BA 1510 04 Brake pipe Rear-II 1 1 -- Upto March.02
AM 1510 02 Brake pipe Rear-II -- -- 1
2 21 1504 22 Packing 2 2 2
3 AB 1510 48 Flexible brake tube 1 1 1
4 AB 1510 49 Banjo bolt 1 1 1
5 AB 1510 51 Lock clip banjo bolt 1 1 1
6 39 1663 11 Plain washer 2 2 2

7 39 1753 15 Hexagon nut 1 1 1
8 AB1510 52 Brake pipe assly. front 1 1 1 From May.02
9 AB1610 93 Guide flexible hose 1 1 1
10 21 1504 22 Packing 2 2 2
11 AB 1510 86 Brake pipe assly.front-II 1 -- -- For USA market

12 22 1504 35 Hex bolt 8 8 8
13 AB 1510 45 Two way connector 1 1 1 From May.02
14 21 1504 33 Clamp 2 1 1 Fixing of br. pipe on RH memeber
24 1504 05 Clamp 4 4 4 Fixing of br. pipe on trailling arm
15 24 1504 07 Sleeve 2 2 2 Fixing of br. pipe on crub tube
24 1504 06 Sleeve for sleeve 2 2 2 Fixing of br. pipe on crub tube
16 39 0291 15 Hexagon nut 4 4 4

17 39 0197 11 Plain washer 4 4 4 Fixing of brak pipe
18 39 0262 12 Spring washer 4 4 4
54
AA = Petrol
AF = CNG
AM = LPG
PLATE NO. 37B : WHEEL CYLINDER ( REAR) RE4S
5
3 1 2 4
1A
Fig.no Description Qty

Fig.no Description Qty
1 Piston 2
2 Wheel cylinder seal 2 2 Wheel cylinder seal 2
3 Spring 1 3 Spring 1
4 Wheel cylinder boot 2 4 Wheel cylinder boot 2

5 Bleeder Screw 1
6 Bleeder cap 1
2B
2A

No. AA AF AM
1 AB 1510 91 Wheel cylinder assly.(dia.25.4) 2 1 1
2 AB 1510 94 Major kit 2 2 2 From May.02
3 AB 1510 95 Minor kit 2 2 2
55
AA = Petrol
AF = CNG
AM = LPG
38
PLATE NO. : HAND BRAKE COMP. RE4S
7
22
6
23 4
3
5
14/15 2
1 (Includes Fig.
5 19 20 No. 2 to 5)
5
13
16
21
10
17/18
8
11/12
9
24 25

No. AA AF AM
1 22 1505 02 Hand Brake control lever Assly 1 1 1
2 22 1505 24 Spring 1 1 1
3 22 1510 32 Pulley - nylon 1 1 1
4 21 1504 20 Fork pin 1 1 1
5 39 0146 08 Split pin 5 5 5
6 22 1505 07 Rachet 1 1 1
7 39 0200 11 Plain wahser 1 1 1
8 39 0265 12 Spring washer 4 4 4
9 39 0294 15 Nut 4 4 4
10 24 1505 15 Hand Brake strut 2 2 2
11 24 1505 04 Hand brake lever RH 1 1 1

12 24 1505 05 Hand Brake lever LH 1 1 1
13 24 1505 08 Pin 2 2 2
14 24 1505 06 Return spring RH 1 1 1
15 24 1505 07 Return spring LH 1 1 1
AA = Petrol
AF = CNG 56
AM = LPG
PLATE NO. 39 : HAND BRAKE COMP. RE4S
7
22
6
23 4
3
5
14/15 2
1 (Includes Fig.
5 19 20 No. 2 to 5)
5
13
16
21
10
17/18
8
11/12
9
24 25

No. AA AF AM
16 22 1505 20 Link 2 2 2
17 22 1510 63 Plate LH 1 1 1
18 22 1510 64 Plate RH 1 1 1
19 22 1505 25 Pin 2 2 2
20 39 0106 04 Bolt 2 2 2
21 22 1502 22 Distance piece 2 2 2

23 22 1510 77 Rubber cap 2 2 2
24 22 1504 52 Packing 2 2 2
25 22 1502 53 Plate 2 2 2
AA = Petrol
AF = CNG 57
AM = LPG
PLATE NO.
39 : CHASSIS / STEERING COVER/GROMMET RE4S
5
4 6a
2
3
7
8 17
6
1
11
9
10
12
13
13
16

No. AA AF AM
1 AA 1611 10 Bare Chassis Comp. 1 -- -- For USA market
AL 1611 83 Dashboard Plastic 1 -- -- For USA market
2 AB 1611 75 Steering cover 1 1 1 For Anti dive
22 1611 96 Steering cover 1 1 --
3 AB 1611 87 Bajaj name plate 1 1 1 From Aug.01
22 1611 97 Bajaj name plate 1 1 Upto July.01
4 03 1601 30 Bajaj Monogram 1 1 1
5 01 1601 26 Rivet 7 7 7
6 AA 1610 86 RE 4 Stroke lable 1 -- --

6a AF 1610 23 RE CNG lable -- 1 --
7 22 1602 35 Rubber beading 1 1 1
8 22 1602 36 Bolt /Plate assly 2 2 2
9 39 0219 11 Plain washer 2 2 2
10 39 0263 12 Spring washer 2 2 2
11 39 0292 15 Hex nut 2 2 2

12 39 1416 23 Cut grommet 2 2 2
13 24 1610 61 Grommet 2 2 2
14 39 1415 23 Grommet 3 3 3
15 22 2001 61 Grommet 1 1 -- Upto Aug. 01
AA = Petrol
AF = CNG 58
AM = LPG
PLATE NO. 39 : CHASSIS / STEERING COVER/GROMMET RE4S
5
4 6a
2
3
7
8 17
6
1
11
9
10
12
13
13
16

No. AA AF AM
16 22 1902 37 Grommet 1 1 1 Front cross member

17 AF 1610 40 CNG lable -- 1 --
18 39 2071 23 Grommet for Battery harness -- 1 --
19 39 2422 23 Grommet -- 1 -- For breather tube
20 CB 1611 05 Clip nut 4 4 4 N.I
21 24 1612 56 Rubber buffer 4 4 4

22 39 2373 23 Grommet 1 1 1 For upper part
23 15 1410 13 Grommet 1 1 1 For dash board
AA = Petrol
AF = CNG 59
AM = LPG
PLATE NO.
40 : TOOL BOX RE4S
OPERATING INSTRUCTIONS
FOR 4 STROKE 3 WHEELERS
ATTENTION !!!
VEHICLE FITTED WITH CATALYTIC CONVERTOR

DO NOT MIX OIL WITH PETROL.
USE ONLY UNLEADED PETROL.

DURING FIRST 1000 Kms.
DO NOT DRIVE WITH FULL THROTTLE.

DO NOT EXCEED SPEEDS
st nd
10 Kms./hr. - 1 GEAR. 16 Kms./hr. - 2 GEAR.
rd th
USE ONLY RECOMMENDED OILS FOR ENGINE & DIFFERENTIAL
21
INSTRUCTIONS IN HINDI
AS PER ARTWORK
10
12 13
14
11
2 15
5
18
19 20
19
16
7
18 20 17
6
4
4 3
6
7 5
8 9 4

No. AA AF AM
1 AB 1610 54 Tool box 1 1 1 From July.02
AK 1610 10 Tool box -- 1 -- From June.02
22 1611 66 Tool box - Plastic 1 1 -- Upto Aug.02
2 22 1608 05 Tool box Door assly 1 1 1
3 22 1611 93 Foam strip 4 4 4 For Tool box door
4 01 1605 09 Hex bolt 2 2 2
5 22 1401 16 Bracket 1 1 1
6 39 0211 11 Plain washer 3 3 3

7 39 0197 11 Plain washer 2 2 2
8 39 0262 12 Spring washer 2 2 2
9 39 0291 15 Hex nut 2 2 2
10 39 0062 04 Hex bolt 1 1 1
11 39 0263 12 Spring washer 1 1 1

12 06 1607 11 Tool box lock comp. 1 1 1
13 06 1607 12 Holding plate 1 1 1
14 06 1607 13 Spring for lock 1 1 1
15 39 0156 08 Split pin 1 1 1
AA = Petrol
AF = CNG 60
AM = LPG
PLATE NO. 40 : TOOL BOX RE4S
OPERATING INSTRUCTIONS
FOR 4 STROKE 3 WHEELERS
ATTENTION !!!
VEHICLE FITTED WITH CATALYTIC CONVERTOR

DO NOT MIX OIL WITH PETROL.
USE ONLY UNLEADED PETROL.
DURING FIRST 1000 Kms.
DO NOT DRIVE WITH FULL THROTTLE.
DO NOT EXCEED SPEEDS

st nd
rd th
USE ONLY RECOMMENDED OILS FOR ENGINE & DIFFERENTIAL
21
INSTRUCTIONS IN HINDI
AS PER ARTWORK
10
12 13
14
11
2 15
5
18
19 20
19
16
7
18 20 17
6
4
4 3
6
7 5
8 9 4

No. AA AF AM
16 AF 1610 41 Bracket ignition switch 1 1 1 From July.02 ( For coupler type
switches )
17 AF 1610 73 Selector switch bracket 1 1 -- From Jan.03
AM 2010 36 Bracket for selector switch -- -- 1
18 39 0702 01 Screw pan cross 2 2 2 For fixing Bracket ignition switch
19 39 0814 11 Plain washer 2 2 2 & Selector switch bracket
20 39 0263 12 Spring washer 2 2 2
21 AB 1611 44 Running in label 1 -- -- Fixed on dashboard

22 39 2508 23 Cut grommet 1 1 1 For AK 1610 10 & AB 1610 54
N.I
23 39 2373 23 Grommet 1 1 1 From Sept. 01 N.I
AA = Petrol
AF = CNG 61
AM = LPG
PLATE NO.
41 : FRONT MUDGUARD / HEAD LAMP HSG. RE4S
3
16 2
3
19 7
5
17 6 4
5
6
11
18 12 9 10 8
20
1
14
6 5 4 15
13

No. AA AF AM
1 24 1611 84 Front Mudguard assly 1 1 --
2 22 1610 51 Reinforcement plate 1 1 --
3 39 0085 04 Bolt 2 2 --
4 39 0197 11 Plain washer 3 3 --
5 39 0262 12 Spring washer 4 4 --
6 39 0291 15 Hex nut 4 4 --

7 21 1611 10 Cable clip 1 1 --
8 39 0062 04 Bolt 2 2 --
9 39 0219 11 Plain washer 2 2 --
10 39 0211 11 Plain washer 2 2 --
Upto July. 01
11 39 0263 12 Spring washer 2 2 --
12 39 0292 15 Nut 2 2 --
13 BA 2310 52 Mud flap 1 1 --
14 24 1611 76 Strip front mudguard flap 1 1 --
15 39 0071 04 Hex screw 2 2 --
16 22 2010 86 Head lamp housing 1 1 --

17 22 2010 87 Upper check plate 1 1 --
18 39 0198 11 Plain washer 2 2 --
19 39 0062 04 Hex head screw 2 2 --
20 39 1353 15 Nyloc nut 2 2 --
AA = Petrol
AF = CNG 62
AM = LPG
PLATE NO. 41A : FRONT MUDGUARD / HEAD LAMP HSG.(ANTIDIVE) RE4S
7 3
13
2
5 4
12
6
1
10 8 9
11
14
15

No. AA AF AM
1 AB 1611 88 Front mudguard assly. 1 1 1
2 AB 1611 82 Check plate fr. mudguard 1 1 1
3 39 1993 04 Bolt hexagon head 3 3 3
4 39 0198 11 Plain washer 2 2 2
5 39 0263 12 Spring washer 3 3 3
6 39 0292 15 Hexagon nut 3 3 3

7 AB 1611 59 Clip 1 1 1
8 AB 1611 86 Spacer 1 1 1
9 39 0412 04 Hexagon bolt 1 1 1 From Aug.01
10 39 1211 11 Plain washer 1 1 1
11 39 0263 12 Spring washer 2 2 2

12 AB 2010 65 Housing head light 1 1 1
13 AB 1611 83 Chk. plate assly. H.L. hsg. 1 1 1
14 39 0198 11 Plain washer 2 2 2
15 39 1353 15 Nyloc nut 2 2 2
16 15 1410 13 Grommet 1 1 1 (N.I)
AA = Petrol
AF = CNG 63
AM = LPG
PLATE NO.42 : FRONT WHEEL HUB / AXLE ASSLY RE4S
21
18 19
2 1 22
13
11
12
17 5
20 8
10
9 3
4
14 6
16 7
15

No. AA AF AM
1 22 1710 46 Front wheel hub 1 1 --
2 03 1701 09 Pin 1 1 --
3 22 1510 43 Dust cover 1 1 --
4 01 1003 42 Ball bearing 1 1 --
5 01 1010 09 Bearing 1 1 --
6 39 0342 17 Circlip 1 1 --
7 22 1701 15 Oil seal 1 1 --
8 22 1701 17 Spacer 1 1 -- Upto July.01
9 22 1710 39 Front wheel axle assly 1 1 --
10 03 1007 18 Bolt 4 4 --
11 01 1701 19 Nut 1 1 --
12 22 1701 18 Spacer 1 1 --
13 22 1701 19 Grease cup nut 1 1 --
14 39 0201 11 Plain washer 4 4 --
15 39 0267 12 Spring washer 4 4 --
AA = Petrol
AF = CNG 64
AM = LPG
PLATE NO. 42 : FRONT WHEEL HUB / AXLE ASSLY RE4S
21
18 19
2 1 22
13
11
12
17 5
20 8
10
9 3
4
14 6
16 7
15

No. AA AF AM
16 39 0296 15 Hex nut 4 4 --
17 03 1701 21 Hub pin 1 1 --
18 03 1701 29 Brake plate 1 1 --
19 39 0062 04 Hex head screw 1 1 -- Upto July.01
20 05 1010 83 Adjuster with nut 1 1 --
21 22 1701 23 Plug 1 1 -- When speedo cable not fitted

22 24 1710 60 Front wheel hub cover 1 1 --
AA = Petrol
AF = CNG 65
AM = LPG
PLATE NO.
42A : FRONT WHEEL HUB / AXLE ASSLY(ANTIDIVE) RE4S
14
23
21
22
8A

No. AA AF AM
1 AB 1710 03 Front wheel hub assly 1 1 1 From Aug.01 Consist of figur
no. 2 & 18
2 AB 1710 04 Front wheel hub 1 1 1
3 39 2550 20 Ball bearing 1 1 1 From Oct.02.
4 39 2362 20 Ball Bearing 1 1 1 From Oct.02.
6 22 1701 15 Oil seal 1 1 1

7 22 1701 17 Spacer 1 1 1
8 AB 1710 32 Belleville washer 1 1 1 From Sept.02
8A AB 1710 33 Spacer - Brake panel 1 1 1 From Sept.02
9 39 2444 17 External circlip 1 1 1
10 AB 1710 02 Fr. wheel axle assly. 1 1 1
11 01 1701 19 Nut 1 1 1
12 22 1701 18 Spacer 1 1 1
13 AB 1710 22 Grease cup nut 1 1 1
14 AB 1710 23 Cap fr. wheel hub 1 1 1
15 AB 1710 20 Needle bush 2 2 2

17 AB 1710 21 Pivot pin front wheel hub 1 1 1
18 03 1701 09 Pin 1 1 1 N.I
19 39 1831 12 Spring washer 1 1 1
20 39 0694 15 Hex nut 4 4 4
AA = Petrol
AF = CNG 66
AM = LPG
PLATE NO. 42A : FRONT WHEEL HUB / AXLE ASSLY(ANTIDIVE) RE4S
14
23
21
22
8A

No. AA AF AM
21 39 0261 12 Spring washer 1 1 1
22 39 0842 11 Plain washer 1 1 1 Cap mounting
23 39 0840 01 Screw 1 1 1
AA = Petrol
AF = CNG 67
AM = LPG
PLATE NO.
43 : FRONT SUSPENSION RE4S
12
6
4
11
7
7
10 10 8
8 9

No. AA AF AM
1 39 0265 12 Spring washer 2 2 --
2 BA 1710 02 Plate assly sp.mounting upper 1 1 --
3 24 1702 05 Front suspension spring 1 1 --
4 22 1710 19 Trunion 1 1 --
5 39 0119 04 Bolt 1 1 --
6 24 1702 08 Lower Plate 1 1 -- Upto July. 01

7 01 1701 22 'O' ring 2 2 --
8 39 0217 11 Plain washer 2 2 --
9 23 1613 05 Grease nipple 1 1 --
10 01 1010 08 Roller 36 36 --
11 21 1701 08 Distance piece 1 1 --

12 39 0294 15 Hex nut 1 1 --
AA = Petrol
AF = CNG 68
AM = LPG
PLATE NO. 44 : FRONT SHOCK ABSORBER RE4S
1 2
3 4
10 8 7
11 12
6
9 5

No. AA AF AM
1 01 1702 55 Bolt 1 1 --
2 39 0268 12 Spring washer 1 1 --
3 05 1710 08 Inner bush upper 1 1 --
4 01 1702 54 Rubber bush upper 1 1 --
5 22 1710 51 Front shock absorber assly/bush 1 1 --
6 24 1710 69 Bolt 1 1 -- Upto July. 01

7 05 1710 12 Rubber bush lower 1 1 --
8 01 1702 51 Inner bush lower 1 1 --
9 39 0201 11 Plain washer 1 1 --
10 39 0251 11 Plain washer 1 1 --
11 39 0267 12 Spring washer 1 1 --

12 39 0296 15 Hex nut 1 1 --
AA = Petrol
AF = CNG 69
AM = LPG
PLATE NO.
44A : FRONT SHOCK ABSORBER(ANTIDIVE) RE4S
24

No. AA AF AM
1 AA 1510 21 Brake drum 1 -- -- For USA Market
2 39 0001 01 Slot.csk.head screw 2 2 2
3 AB 1710 19 Fr. shock assly. comp. 1 1 1
4 39 0422 15 Nyloc nut 1 1 1
5 AB 1710 13 Top rubber bush 2 2 2
6 AB 1710 14 Locating cup rubber bush 2 2 2

7 AB 1710 15 Spacer nut spring cup 1 1 1
8 39 0295 15 Hexagon nut 1 1 1
9 39 0310 15 Hexagon nut 1 1 1
10 39 0543 11 Plain washer 1 1 1
11 39 1054 11 Plain washer 1 1 1 For shock absorber lower

12 39 1455 04 Shoulder bolt 1 1 1 mounting
13 39 0789 12 Washer spring 1 1 1
14 39 0296 15 Hexagon nut 1 1 1
15 AB 1710 16 Bush 1 1 1
16 35 1710 13 Cup washer 4 4 4 N.I

17 AB 1510 82 Spacer 1 1 1
18 AB 1710 09 Antidive link assly. 1 1 1
19 AB 1710 29 Bush(Inner) 2 2 2 From Dec.01
20 39 1823 21 "O" ring 4 4 4
AA = Petrol
AF = CNG 70
AM = LPG
PLATE NO. 44A : FRONT SHOCK ABSORBER(ANTIDIVE) RE4S
24

No. AA AF AM
21 39 0981 15 Hexagoan slot nut 1 1 1

22 39 0630 08 Split pin 1 1 1 Upto Aug.02
23 39 1770 04 Flange bolt 1 1 1
24 AB 1710 17 Front suspension spring 1 1 1 From Dec.01
AA = Petrol
AF = CNG 71
AM = LPG
PLATE NO.
45 : REAR SHOCK ABSORBER RE4S
8 9
10
7
1
2 4

No. AA AF AM
1 24 1710 63 Rear Shock absorber assly 2 2 2
24 1710 87 Rear shock absorber assly 2 2 2 For spare parts
2 24 1710 49 Mounting rubber with sleeve 1 1 1
3 39 1336 15 Hex nut 2 2 2
4 24 1705 07 Bolt for Shock absorber 2 2 2
5 39 0466 12 Spring washer 2 2 2
6 39 0467 15 Nut 2 2 2
7 24 1705 08 Rear suspension spring 2 2 2
8 24 1705 05 Cup washer top side 4 4 4
9 24 1710 55 Rubber bush 4 4 4
10 24 1710 56 Sleeve 2 2 2
AA = Petrol
AF = CNG 72
AM = LPG
PLATE NO. 46 : STEERING COLUMN RE4S
22
23 5 3
20 19
21 4
9
8
10
1
11
12
17
15 13 14
13 18
17 14
16

No. AA AF AM
1 BA 1810 04 Steering column assly 1 1 --
2 01 1801 30 Lock ring 1 1 --
3 01 1801 29 Spacer washer 1 1 --
4 01 1801 28 Bearing race 1 1 --
5 05 1810 11 Steel ball with nylon cage upper 1 1 -- Alt. 07 1810 07
6 21 1801 07 Bearing race 1 1 --

7 01 1801 25 Dust cover 1 1 --
8 01 1801 24 Lower bearing race 1 1 -- Upto July. 01
9 0 71810 09 Steel ball with nylon cage lower 1 1 --
10 07 1810 04 Bearing race 1 1 --
11 07 1810 06 Dust cover 1 1 --

12 03 1801 14 Shoulder washer 2 2 --
13 39 1772 20 Shell bearing 2 2 --
14 06 1810 48 Bush 2 2 --
15 01 1701 30 Grease nipple 1 1 --
AA = Petrol
AF = CNG 73
AM = LPG
PLATE NO.
46 : STEERING COLUMN RE4S
22
23 5 3
20 19
21 4
9
8
10
1
11
12
17
15 13 14
13 18
17 14
16

No. AA AF AM
16 21 1801 08 Rubber Buffer 1 1 --
17 03 1801 16 'O' ring 2 2 --
18 03 1801 11 Hub pin 1 1 -- Alt. 03 1801 21 Upto July. 01
19 06 1803 02 Steering lock barrel 1 1 --
20 06 1803 03 Spring 1 1 --
21 15 1810 32 Cover plate 1 1 --

22 15 1810 33 Spring washer 1 1 --
23 15 1810 34 Hammer drive screw 1 1 --
AA = Petrol
AF = CNG 74
AM = LPG
PLATE NO. 46A : STEERING COLUMN(ANTIDIVE) RE4S
11
10
8
9
7
1
4
5

No. AA AF AM
1 AB 1810 28 Steering column assly. 1 -- -- For USA market
2 AB 1810 10 Dust cover bottom 1 1 1
3 AB 1810 11 Bearing race - low inner 1 1 1
4 AB 1810 12 Steel ball with cage lower 1 1 1
5 AB 1810 33 Bearing race lower outer 1 1 1 Alt.AB 1810 14
AB 1810 14 Bearing race lower outer 1 1 1
6 AB 1810 34 Top Dust cover(Mod) 1 1 1 Alt.AB 181015

AB 1810 15 Dust cover top bearing 1 1 1
7 AB 1810 16 Bearing race upper inner 1 1 1

8 AB 1810 17 Steel ball with nylon cage upper 1 1 1
9 AB 1810 19 Bearing race-upper inner 1 1 1
10 AB 1810 20 Spacer washer bearing 1 1 1
11 AB 1810 21 Lock ring upper race 1 1 1
AA = Petrol
AF = CNG 75
AM = LPG
PLATE NO.
47 : HANDLE BAR RE4S
18
9
7 10
14 12
15 13
2
6 16
17
5
3
11
4

No. AA AF AM
1 AA 1810 02 Handle bar / Sleeve 1 -- -- For USA market

2 22 1802 19 Steering lock plate 1 1 1
3 39 0262 12 Spring washer 2 2 2
4 39 0071 04 Hex head screw 2 2 2
5 21 1802 07 Lining 2 2 2
6 39 0192 10 Eyelet rivet 2 2 2

7 39 1377 04 Hex Bolt with collar 1 1 1
8 39 0201 11 Plain washer 2 2 2
9 39 0267 12 Spring washer 1 1 1
10 39 0296 15 Hex nut 1 1 1
11 AB 1810 22 Lower plate assly 1 1 1 From Aug.01( For Antidive )

22 1810 53 Lower plate assly 1 1 -- Upto July.01
12 39 1379 04 Bolt 2 2 2
13 39 0265 12 Spring washer 2 2 2
14 21 1803 07 Knob 1 1 1
15 39 0198 11 Plain washer 1 1 1 For 22 1802 16
16 21 1803 08 Spring 1 1 1
17 AB 1810 23 Upper plate 1 1 1 From Aug.01( For Antidive )
22 1810 54 Upper plate 1 1 -- Upto July.01
18 22 1802 25 Cover Plastic 1 1 --
AA = Petrol
AF = CNG 76
AM = LPG
PLATE NO. 48 : HANDLE BAR SLEEVES RE4S
19
20
17 21
22
4
12 2
19
18 6 20
8 21
1
17
13 5 7
3
22
15 18
16 14
6 10
8 9
7
12
11

No. AA AF AM
1 AA 1910 52 Gear control tube / Sleeve 1 -- -- For USA market
2 22 1910 80 Special washer ( Cork) 1 1 1
3 01 1901 07 Plain washer 1 1 1
4 01 1901 08 Spring washer 1 1 1
5 22 1910 12 Gear control lever assly 1 1 1
6 39 0219 11 Plain washer 2 2 2

7 39 0263 12 Spring washer 2 2 2
8 39 0078 04 Hex bolt 2 2 2
9 BA 1910 46 Gas control tube comp. 1 1 1 From Aug. 01
22 1910 67 Gas control tube comp. 1 1 -- Upto July. 01
10 22 1910 69 Spacer 1 1 1
11 22 1901 12 Gas control lever assly 1 1 1

12 06 1910 89 Hand grip 2 2 2
13 22 1910 72 Sheath control bracket 1 1 1
14 39 0262 12 Spring washer 2 2 2
15 22 1504 35 Bolt 2 2 2
AA = Petrol
AF = CNG 77
AM = LPG
PLATE NO.
48 : HANDLE BAR SLEEVES RE4S
19
20
17 21
22
4
12 2
19
18 6 20
8 21
1
17
13 5 7
3
22
15 18
16 14
6 10
8 9
7
12
11

No. AA AF AM
17 AA 1910 32 Lever clutch 1 1 1 From Aug. 01
22 1910 73 Clutch lever 1 1 -- Upto July.01
18 39 0326 15 Self locking nut 2 2 --
19 39 1606 01 Screw sp. cross rec. 2 2 --
20 01 1902 05 Spring washer 2 2 -- Upto July.01
21 03 1902 06 Plain washer 2 2 --

22 03 1902 04 Spacer washer 2 2 --
AA = Petrol
AF = CNG 78
AM = LPG
PLATE NO. 49 : REVERSE GEAR CONTROL LEVER ASSLY RE4S
14
3
1 13
4
5 2
7 12
6/15
10
11
9
8

No. AA AF AM
1 AA 1910 54 Reverse gear control lever/knob 1 -- -- For USA Market
2 24 1902 23 Knob 1 1 -- For 24 1910 30
3 39 0251 11 Plain washer 1 1 1
4 39 0147 08 Split pin 1 1 1
5 24 1902 24 Grommet 1 1 1
6 BA 1910 40 Sleeve protection 1 1 1

7 24 1902 26 Wire clip 1 1 1
8 AA 1910 56 Reverse gear cable comp 1 -- -- For USA Market
9 AA 1910 12 Inner cable rev.gear 1 1 1
10 AB 1910 24 Screw terminal assly 1 1 1
11 22 1505 13 Terminal 1 1 1
13 24 1910 19 Spring 1 1 1
14 22 1502 42 Spring 1 1 1
15 BA 1910 41 Sleeve protection 1 1 1
16 30 1910 69 Dust seal 1 1 --
AA = Petrol
AF = CNG 79
AM = LPG
PLATE NO.
50 : CHOKE LEVER ASSLY RE4S
4
3
2
1
8
4
6
7

No. AA AF AM
1 22 1910 88 Choke lever assly 1 1 1
2 22 1610 62 Distance piece 1 1 1
3 21 1902 12 Spring washer 1 1 1
4 39 0248 11 Plain washer 2 2 2 For AA191018
5 39 1063 01 Hex screw 1 1 1
6 39 0263 12 Spring washer 1 1 1

7 39 0292 15 Hex nut 1 1 1
8 AA 1910 55 Choke cable assly comp. 1 -- -- For USA Market
9 01 1160 17 Clip lock 1 1 1 For AM 1910 01 N.I
AA = Petrol
AF = CNG 80
AM = LPG
PLATE NO. 51 : CONTROL CABLES RE4S
1 4
3
7 4
8
5
9/10
12 11
5
13 14
15
2
6 6

No. AA AF AM
1 AA 1910 41 Accelerator control cable comp 1 -- -- For USA Market
AA 1910 22 Accelerator control cable comp 1 1 -- Upto Aug. 01
2 24 1505 02 Inner cable hand brake 1 1 1
3 22 1910 87 Guide for cable 1 1 1
4 30 1910 69 Dust seal 3 3 3
5 22 1910 93 Screw terminal assly. 3 3 3
6 22 1505 13 Terminal 2 2 2
7 AA 1910 42 Clutch cable comp. 1 1 1 For USA Market
AA 1910 02 Clutch cable comp. 1 1 -- Upto July.01
8 AA 1910 26 Inner cable clutch 1 1 1 From Aug.01

AA 1910 03 Inner cable clutch 1 1 -- Upto July.01
9 AA 1910 44 Gear cable comp white comp. 1 1 1 For USA Market
AA 1910 20 Gear cable comp white 1 1 -- Upto Aug. 01
10 AA 1910 46 Gear cable comp black comp. 1 1 1 For USA Market
AA 1910 21 Gear cable comp black 1 1 -- Upto Aug. 01
11 BA 1910 11 Inner cable gear 2 2 2
12 03 1902 28 Guide for cable 3 3 3
13 22 1910 48 Front brake cable comp 1 1 -- Upto Aug. 01
14 22 1902 35 Inner cable front brake 1 1 -- Upto Aug. 01
15 24 1505 01 Hand brake cable assly. 1 1 1
16 AA 1910 48 Protection sleeve 1 1 1 From June 02 For AA 1910 31

17 22 2001 60 Grommet 1 1 1 (N.I) Upto May 02
18 DD 1610 13 Grommet 1 1 1 From June.02 For AA 1910 31
19 AA 1210 68 Bellow for acc.cable 1 1 1
AA = Petrol
AF = CNG 81
AM = LPG
PLATE NO.
52 : SPEEDOMETER AND INDICATOR RE4S
13
3 8
9
12
11 11a 7
6
5
10 4
GAS
OPERATIOPN

No. AA AF AM
1 24 1910 89 Speedometer comp with lamp 1 1 1 From Jan.03 ( For CMVR )
22 1910 65 Speedometer comp 1 1 -- Upto Dec.02
2 39 0262 12 Spring washer 2 2 2
3 39 1350 01 Hex. screw 2 2 2
4 01 1903 18 Speedo drive support 1 1 1
5 06 1910 61 Lubricator assly 1 1 1
6 39 0235 11 Plain washer 1 1 1

7 05 1903 02 Nylon gear assly 1 1 1
8 05 1903 01 Speedometer drive comp 1 1 1
9 AA 1910 39 Speedometer cable comp 1 1 1 For USA Market
AA 1910 36 Speedometer cable comp 1 1 1 From Sept. 01(Antidive)
22 1910 90 Speedometer cable comp 1 1 -- Upto Aug. 01
10 22 1910 97 Speedometer cable inner 1 1 1 For 22 1910 96
AA 1910 51 Speedometer cable inner 1 1 1 For AA 1910 36
06 1902 27 Speedometer cable inner 1 1 --
11 AA 2011 08 Assly light indicator / lamp 1 -- 1 For CMVR

11a AF 2010 57 Assly light indicator / lamp -- 1 -- For CMVR
12 30 2010 84 Lamp 12 V - 2 W 4 4 Qty.2 For AA 2011 08 &
AC 2010 15
13 25 1910 54 Lamp 12 V - 2 W 1 1 1 For 24 1910 89
AA = Petrol
AF = CNG 82
AM = LPG
PLATE NO. 53 : WIRING HARNESS AND HEAD LAMP ASSLY RE4S
6 3
4
5

No. AA AF AM
1 20 2010 02 Head light rim 1 1 -- Upto June.01
2 06 2013 34 Head light assly with lamp 1 1 -- Upto June.01
3 25 2010 09 Lamp 12 V - 35/35W 1 1 --
4 01 2002 13 Cup washer 2 2 --
5 39 0006 01 Slotted raised c'cunk head screw 2 2 --
6 06 2011 57 Lamp holder assly 1 1 --

7 AA 2010 77 Wiring harness (Front) 1 -- -- From July.02
AF 2010 52 Wiring harness (Front) -- 1 -- From Oct.02
8 AA 2010 78 Wiring harness (Chassis) 1 -- -- From July.02 For coupler type
switches ) N.I
AF 2010 38 Wiring harness (Chassis) -- 1 --
9 AF 2010 40 Wiring harness (Body) 1 1 --
AA = Petrol
AF = CNG 83
AM = LPG
PLATE NO.
53A : WIRING HARNESS AND HEAD LAMP ASSLY( ANTIDIVE) RE4S
5 8
9
6
4
7 3
10
2

No. AA AF AM
1 AJ 2010 13 Cable assly red 1 1 1 From Sept. 01(Antidive)
AB 2010 16 Cable assly red 1 1 -- Upto Aug. 01
2 AB 2010 72 Head light comp with lamp 1 1 1 From Aug.01
3 AB 2010 73 Head light assly. 1 1 1
4 06 2013 95 Reflector assly. 1 1 1
5 06 2013 96 Lamp holder assly. 1 1 1
6 AB 2010 68 Head light rim 1 1 1 From Aug.01

7 25 2010 09 Lamp 12V 35/35 W 2 2 2
8 01 2002 13 Cup washer 2 2 2
9 39 0006 01 CSK / Round head screw 2 2 2
10 AA 2011 06 Rear brake switch 1 -- --
11 AA 2010 79 Wiring harness (Front) 1 -- --
12 AA 2011 23 Wiring harness (Chassis) 1 -- -- N.I. (FOR USA MARKET)
13 AA 2011 44 Cable assly.(Pressure switch) 1 -- --
AA = Petrol
AF = CNG 84
AM = LPG
PLATE NO. 54 : FRONT REVERSE INDICATOR AND TAIL LAMP ASSLY RE4S
1
5
4
18 16 17
14
15
13
9
10
6 11
11
12 7

No. AA AF AM
1 BA 2010 47 Front light comp with lamp 2 2 -- Upto Dec.03
2 22 2005 21 Glass 2 2 --
3 39 0472 01 Screw 4 4 --
4 39 0473 01 Screw 2 2 --
5 06 2010 82 Lamp 12 V - 5 W 2 2 -- Parking
6 06 2010 83 Lamp 12 V - 10 W 6 6 -- Blinker and lamp

7 31 2010 28 Lamp 12 V - 10/5W 2 2 -- Tail and stop lamp
8 BA 2010 48 Tail light comp with lamp 2 2 --
9 BA 2010 29 Lens (tail & light) 2 2 --
10 22 2004 12 Rubber packing 2 2 --
11 39 0436 01 Screw round head 8 8 --

12 22 2004 17 Rubber packing 2 2 --
13 BA 2010 44 Tail light bracket 2 2 --
14 39 1611 01 Cross rec.Hex.screw 4 4 --
15 39 1325 24 Rubber washer 4 4 --
AA = Petrol
AF = CNG 85
AM = LPG
PLATE NO.
54A : FRONT LIGHT ASSEMBLY(CMVR) RE4S
5
8/9
6
7
1 4
3

No. AA AF AM
1 AA 2010 91 Front light assly.LH with lamp 1 1 1 From Jan.03
AA 2010 93 Front light assly.RH with lamp 1 1 1
2 AC 2010 22 Gasket for front indicator LH 1 1 1
AC 2010 22 Gasket for front indicator LH 1 1 1
3 06 2010 83 Lamp 12v 10w 2 2 2 For side indicator
4 06 2010 82 Lamp 12v 5w 2 2 2 For positon light
5 AA 2011 16 Screw 10 2 2 For mounting front blinker on
sudo & cover to blinker housing
6 AA 2011 14 Washer 8 8 8
7 AA 2010 96 Spacer 8 8 8
8 AA 2010 97 Cover LH 1 1 1
9 AA 2010 98 Cover RH 1 1 1
10 AA 2010 79 Wiring harness (Front) 1 -- -- For USA Market
AF 2010 55 Wiring harness (Front) -- 1 --
AM 2010 06 Wiring harness ( Front ) -- -- 1
11 BA 2010 87 Wiring harness (Body) 1 -- -- For USA Market
AA = Petrol
AF = CNG 86
AM = LPG
PLATE NO. 54B : TAIL LAMP ASSLY(CMVR) RE4S
8 3
6
2
4
9 10
5 7

No. AA AF AM
1 AC 2010 12 Tail light LH with lamp 1 -- -- For USA Market
AC 2010 73 Tail light RH with lamp 1 -- -- For USA Market
2 AC 2010 20 Lens tail light LH 1 1 1
AA 2010 70 Lens tail light RH 1 1 1
3 AC 2010 21 Packing for tail light LH & RH 2 2 2
4 06 2010 83 Lamp 12v 5w 4 4 4 For side & reverse lamp
5 31 2010 28 Lamp 12v 10/5w 2 2 2 For stop tail
6 AA 2011 12 Bkt for tail lamp 4 4 4

7 AA 2011 13 Screw 8 8 8 For stop light lens fitment on
housing
8 39 0798 15 Flange nut 8 8 8
9 AA 2011 14 Washer 8 8 8 For tail light lens mounting
10 AA 2011 16 Retaining washer 8 8 8
AA = Petrol
AF = CNG 87
AM = LPG
PLATE NO. 55 : SWITCHES / HORN& CABIN LIGHT RE4S
1 3
2
2 6
G B
D
R 1 2 3 4
I
TIME E
+
GAS
14
13
REG. LG
N
+
EA
P G
TS
-
1 2 3 4
15
9
8
19
7
12

No. AA AF AM
1 AA 2010 84 Control switch RH 1 -- -- For USA Market
BA 2010 76 Control switch RH 1 1 -- Upto Nov.02( For coupler type
switch )
2 39 1295 01 Cr.Res.Raised C'sunk head screw 6 -- -- For USA Market
3 AA 2010 83 Control switch LH 1 -- -- For USA Market
24 2011 64 Switch assly comp LH 1 1 -- Upto May.02
4 AA 1610 68 Lock set / key 5 in 1 1 1 -- N.I.
5 AA 2010 85 Switch assly Ignition (ON-OFF) 1 -- -- For USA Market

AB 2010 06 Switch assly Ign./ start 1 1 -- Upto April 02
6 AA 1110 31 Switch 1
7 AF 2010 39 Label ignition switch 1 1 1 From May.02 For RE(4S)
AB 2010 15 Label starter switch 1 1 -- Upto March.02
8 AA 2011 24 Horn 1 -- -- For USA Market
AB 2010 28 Horn (3 point Mtg.) 1 1 -- Upto June.01
9 39 1557 04 Flange Bolt 1 -- -- For mounting horn(USA Market)
10 Plain washer -- -- --
11 Spring washer -- -- -
12 AF 2010 35 Start button 1 1 1 From July.02 ( For coupler type
switches )
13 AM 2010 09 Fuel switch assly -- -- 1
14 AM 2010 10 Car safety -- -- 1
15 AF 2010 61 Light Assly ( Engine compartment) 1 -- -- For USA Market
AA = Petrol
AF = CNG 88
AM = LPG
PLATE NO. 55 : SWITCHES / HORN & CABIN LIGHT RE4S
1 3
2
2 6
G B
D
R 1 2 3 4
I
TIME E
+
GAS
14
13
REG. LG
N
+
EA
P G
TS
-
1 2 3 4
15
9
8
19
7
12

No. AA AF AM
16 39 2245 01 Chesse head screw 2 -- --

17 39 0375 11 Plain washer 2 -- -- Mounting of engine cabin light.
18 39 1831 12 Spring washer 2 -- -- (N.I) For USA Market
19 AF 2010 15 Micro switch -- 1 --
20 39 0262 12 Spring washer -- 1 --
N.I For micro switch.
21 39 0375 11 Plain washer -- 1 --
22 39 1241 01 Screw pan cross -- 1 --
23 AA 2010 88 Switch (Stereo) 1 -- -- For USA Market
24 AA 2010 88 Switch (Wiper) 1 -- -- For USA Market
AA = Petrol
AF = CNG 89
AM = LPG
PLATE NO. 56 : ELECTRICAL EQUIPMENTS RE4S
2
8
3 11
4
10
9
7
12
3 2
6
1
5 3
2 14
4 13
16
17
15
3
2
4
18
19
20

No. AA AF AM
1 AF 2010 36 Assly. regulator 1 1 1 From Sept. 01 (Antidive)
AA 2010 07 Assly regulator 1 -- -- Upto Aug. 01
AF 2010 08 Assly regulator -- 1 -- Upto For CNG vehicle
2 39 0198 11 Plain washer 8 8 8 For Mounting regulator, starter
relay and Electrical units
3 39 0263 12 Spring washer 8 8 8 mounting plate
4 39 0291 15 Hex nut 5 5 5
5 AA 2011 36 Assembly Flasher 1 -- -- For USA Market
31 2010 03 Relay assly 1 1 1 Upto Sept.03( For CMVR )
6 AA 2010 12 Starter relay 1 1 1

7 BA 2010 23 Box (couplers joint) 1 1 -- Upto March 02
8 39 0071 04 Hex head screw 1 1 1
9 AA 1110 32 DC igniter with sealed coupler 1 1 1
AF 1110 06 DC igniter with sealed coupler 1 1 --
10 AB 1110 11 Damper 1 1
11 AA 1610 60 Plate assly.mtg. electrical units 1 1 1

12 39 0944 04 Bolt 3 3 3 For Plate assly mounting on
chassis
13 06 2013 25 Fuse box 1 1 --
14 06 2013 26 Damper 1 1 -- Upto Aug. 01
15 AB 2010 26 Fuse 20 Amp. 2 1 --
16 AA 1610 80 Cover - plate electrical unit 1 1 1

17 AA 1610 81 Packing - cover 1 1 1
18 39 0239 11 Plain washer 2 2 2
19 39 0732 12 Spring washer 2 2 2
20 39 0696 01 Slotted ch.hd.screw 2 2 2
AA = Petrol
AF = CNG 90
AM = LPG
PLATE NO. 57 : BATTERY AND FUSE BOX ASSLY. RE4S
17
4 5 21
3
10
11 12/14
16
6
13
20
9
19
16
22 18
7
15
8

No. AA AF AM
1 AA 2010 86 Fuse box assly 1 -- -- For USA Market
AA 2010 26 Fuse box assly 1 -- -- Upto March.03
AK 2010 11 Fuse box assly -- 1 -- From April.03
AF 2010 21 Fuse box assly -- 1 -- Upto March.03
AK 2010 09 Fuse box assly -- -- 1
2 AK 2010 12 Fuse 10A(blade type) 8 8 8 From April.03 Spare fuse Qty.2
06 2012 84 Fuse 10 Amp. 8 8 -- Upto May.02
DG 2010 84 Fuse 30Amp.(blade type) 1 1 1
3 39 2208 04 Hex head bolt flange 2 -- -- For USA Market

4 39 0198 11 Plain washer 2 2 2
5 BA 2010 01 Battery 12 V - 32 Ah 1 1 1 From Sept. 01(Antidive)
AB 2010 33 Battery 12 V - 14 Ah 1 -- -- Upto July.01
BA 2010 67 Battery 12 V - 32 Ah (Dry charged) 1 -- -- For USA Market
6 AF 1610 37 Clamp assly. 1 1 1 For BA 2010 01

AB 1610 41 Clamp assly battery 1 -- -- For AB 2010 33
7 AB 1610 49 Tie rod 1 -- -- For AB 2010 33
8 AB 1610 50 Packing battery base 1 -- -- For AB 2010 33
9 22 2010 93 Packing battery clamp 1 -- -- For AB 2010 33
10 AB 2010 17 Cap (Battery) 1 1 -
11 01 1401 17 Knob 1 -- -- For AB 2010 33

12 AA 2010 06 Cable assly red 1 -- --
13 AJ 2010 12 Cable assly black 1 1 1 For BA 2010 01
AA 2010 08 Cable assly black 1 -- -- Battery to earth
AA = Petrol
AF = CNG 91
AM = LPG
PLATE NO. 57 : BATTERY AND FUSE BOX ASSLY. RE4S
17
4 5 21
3
10
11 12/14
16
6
13
20
9
19 16
22 18
7
15
8

No. AA AF AM
14 AF 2010 27 Cable assly -- 1 --
15 AF 1610 36 Tray -- 1 --
16 AF 1610 38 Tie rod 1 1 1

17 AF 1610 39 Lock battery 1 1 1
18 39 0265 12 Spring washer 1 2 2
19 39 0119 04 Bolt 1 2 2
20 BA 1610 29 Packing for battery clamp 1 1 1

21 22 2010 06 Packing for clamp 2 2 2
22 39 0897 04 Bolt hex. head 1 1 1 For Battery negative earth on
engine
AA = Petrol
AF = CNG 92
AM = LPG
PLATE NO. 58 : STARTER MOTOR RE4S
7 11
13
5
10
6
2
4
3
8
12

No. AA AF AM
1 AA 1110 70 Starter motor 1 1 1 From Sept.03 For Mlitsuba starter
motor
AB 1110 01 Starter motor 1 1 1 Upto Aug.03
2 39 1791 04 Flange bolt 1 1 1
3 AA 1110 67 Support bracket assly. 1 1 1 For Mitsubh starter motor
AA 1110 55 Support bracket assly. 1 1 1 For Varroc starter motor
AA 1110 48 Support bracket assly. 1 1 1
4 39 2234 04 Hex flange bolt 3 3 3 For Mounting
5 39 0198 11 Plain washer 2 2 2 starter motor
6 39 1826 12 Spring washer 2 2 2

7 AB 1110 42 Drive end bracket 1 1 1 Lucas
AB 1110 26 Drive end bracket 1 1 1 Auto Gallon
AB 1110 34 Drive end bracket 1 1 1 JHS
AB 1111 03 Drive end bracket 1 1 1 From April.03 Varroc
AB 1110 50 Drive end bracket 1 1 1 Upto March.03 Varroc
8 AB 1110 43 Comutor end bracket 1 1 1 Lucas
AB 1110 27 Comutor end bracket 1 1 1 Auto Gallon
AB 1110 35 Comutor end bracket 1 1 1 JHS
AB 1110 51 Comutor end bracket 1 1 1 Varroc
9 AB 1110 44 Intermediate bracket 1 1 1 Lucas
AB 1110 28 Intermediate bracket 1 1 1 Auto Gallon
AB 1110 36 Intermediate bracket 1 1 1 JHS
AB 1111 04 Intermediate bracket 1 1 1 From April.03 Varroc
AB 1110 52 Intermediate bracket 1 1 1 Upto March.03 Varroc
AA = Petrol
AF = CNG 93
AM = LPG
PLATE NO. 58 : STARTER MOTOR RE4S
7 11
13
5
10
6
2
4
3
8
12

No. AA AF AM
10 AB 1110 45 Armature assly. 1 1 1 Lucas
AB 1110 29 Armature assly. 1 1 1 Auto Gallon
AB 1110 37 Armature assly. 1 1 1 JHS
AB 1111 05 Armature assly. 1 1 1 From April.03 Varroc
AB 1110 53 Armature assly. 1 1 1 Upto March.03 Varroc
11 AB 1110 46 Driver assly. 1 1 1 Lucas
AB 1110 30 Driver assly. 1 1 1 Auto Gallon
AB 1110 38 Driver assly. 1 1 1 JHS
AB 1111 06 Driver assly. 1 1 1 From April.03 Varroc
AB 1110 54 Driver assly. 1 1 1 Upto March.03 Varroc
12 AB 1110 47 Brush box assly. 1 1 1 Lucas
AB 1110 81 Brush box assly. 1 1 1 Auto Gallon
AB 1110 39 Brush box assly. 1 1 1 JHS
AB 1110 55 Brush box assly. 1 1 1 Varroc
13 AB 1110 49 Circlip/JMP ring 1 1 1 Lucas
AB 1110 33 Circlip/JMP ring 1 1 1 Auto Gallon
AB 1110 41 Circlip/JMP ring 1 1 1 JHS
AB 1110 57 Circlip/JMP ring 1 1 1 Varroc
14 AA 1110 49 Grommet starter motor bracket 1 1 1 N.I
AA = Petrol
AF = CNG 94
AM = LPG
PLATE NO. 59 : PASSENGER BODY AND REAR DOOR RE4S
32 16
30
14 15
16
33 17
34 31 7
10 8
3
16 9
11 2
27
26 12 19
29 25
28 24
4
18 5
6
23 23
28a
28b
13
22
21
26
1 20
13

No. AA AF AM
1 AA 2310 28 Body assly 1 -- -- For USA Market
AA 2310 02 Body assly 1 1 -- Upto.Dec.03
AF 2310 32 Body assly -- 1 -- From Jan.03(For CMVR)
AF 2310 02 Body assly -- 1 -- Upto.Dec.03
2 AA 2310 11 Rear door assly 1 1 1
BA 2310 58 Rear door assly 1 1 --
3 39 0096 04 Bolt 2 2 2
4 39 0199 11 Plain washer 2 2 2
5 39 0264 12 Spring washer 2 2 2
6 39 0293 15 Hex nut 2 6 6

7 01 1401 16 Tie rod 2 2 2
8 39 0147 08 Split pin 2 2 2
9 22 2301 40 Handle 2 2 2
10 39 0044 01 Screw 4 4 4
11 39 0262 12 Spring washer 4 4 4

12 39 0291 15 Hex nut 4 4 4
13 24 2301 98 Rubber pad 8 8 8 Rear and fuel door
14 24 2312 45 Knob for rear door 2 2 2
15 24 2301 76 Knob comp 1 1 1
AA = Petrol
AF = CNG 95
AM = LPG
PLATE NO. 59 : PASSENGER BODY AND REAR DOOR RE4S
32 16
30
14 15
16
33 17
34 31 7
10 8
3
16 9
11 2
27
26 12 19
29 25
28 24
4
18 5
6
23 23
28a
28b
13
22
21
26
1 20
13

No. AA AF AM
16 AA 1610 86 Name plate RE 4 Stroke 1 -- -- From Dec.01
AF 1610 23 RE CNG lable -- 1 --
17 01 1601 26 Rivet 3 3 --
18 39 0784 08 Split pin 2 2 --
19 24 2312 72 Lock for door/clip 1 1 1
20 BA 2310 29 Lock for fuel fill door 1 1 1
21 BA 2310 25 Door assly fuel filling 1 1 1

22 39 0156 08 Split pin 1 1 --
23 BA 2310 45 Insulation rear door 2 2 --
24 BA 2310 44 Heat insulation sheet 1 1 -- Upto.Nov.02
25 39 1542 11 Plain washer 12 12 Upto.Nov.02
26 39 0553 02 Self tapping screw 12 12 -- Upto.Nov.02

27 BA 2310 51 Cover assly battery cutout 1 1 --
28a AA 2310 46 Cover assly starter motor cutout 1 -- -- From Sept.03
28b AF 2310 34 Cover assly starter motor cutout -- 1 -- From Sept.03
28 BA 2310 50 Cover assly starter motor cutout 1 1 1 Upto Aug.03
29 06 1803 03 Spring 2 2 --
30 AF 1610 40 CNG label -- 1 --
31 BA 2310 10 Cup assly.air suction 1 1 --

32 BA 2310 13 Grill air suction hole 1 1 -- Upto Feb. 02
33 39 1348 01 Cross. rec.pan head screw 3 3 -- Upto Feb. 02
34 39 0197 11 Plain washer 3 3 -- Upto Feb. 02
AA = Petrol
AF = CNG 96
AM = LPG
PLATE NO. 60 : REAR MUDGUARD BUMPER AND MUDFLAP RE4S
15
3
4
12
12
13 11
14
8
8
6/7 10
2
9
3
4
4
3
2

No. AA AF AM
1 25 2310 62 Rear mudguard assly 2 2 2
2 39 0197 11 Plain washer 12 12 12
3 39 0262 12 Spring washer 20 20 20
4 39 0291 15 Hex nut 20 20 20
5 25 2310 64 Beading for rear mudguard 2 2 2
6 24 2310 90 Angle RH 1 1 1
7 24 2310 91 Angle LH 1 1 1
8 39 0071 04 Hex.screw 10 10 10
9 BA 2310 52 Mud flap 2 2 2
10 24 2311 57 Strip rear mudguard flap 2 2 2
11 24 2310 63 Bumper assly 1 1 1

12 39 0230 11 Plain washer 6 6 6
13 39 0265 12 Spring washer 3 3 3
14 39 0294 15 Nut 3 3 3
15 28 2010 38 Reflex Reflector Assly. 2 -- -- For USA MArket
16 AA 2011 03 Side Reflex reflector rear (RED) 2 -- -- For USA MArket
AA = Petrol
AF = CNG 97
AM = LPG
PLATE NO. 61 : HOOD AND FRAME ASSLY / PACKING RE4S
13
14
22
11 23 20
12
10 21
17
12 19
15
24
12 16
17 25
1
2
7 6
4
9 8 3
5

No. AA AF AM
1 24 2304 01 Hood frame assly 1 1 1
2 24 2304 09 Hood pipe assly 1 1 1
3 24 2304 11 Support assly top 1 1 1
4 39 0044 01 Screw 4 4 4
5 39 1379 04 Bolt 2 2 2
6 39 0265 12 Spring washer 2 2 2

7 39 0694 15 Hex lock nut 2 2 2
8 39 0262 12 Spring washer 2 2 2
9 39 0291 15 Hex nut 2 2 2
10 22 2311 55 Hood stick assly 1 1 1
11 39 0360 03 Wood screw 7 7 7

12 39 0365 13 Cup washer 34 34 34
13 AA 2310 65 Hood comp-Brown 1 -- -- For USA Market
14 39 0371 18 Tekas 8 8 8
15 BA 2310 37 Strip Hood fixing rear 1 1 1
AA = Petrol
AF = CNG 98
AM = LPG
PLATE NO. 61 : HOOD AND FRAME ASSLY / PACKING RE4S
13
14
22
11 23 20
12
10 21
17
12 19
15
24
12 16
17 25
1
2
7 6
4
9 8 3
5

No. AA AF AM
16 BA 2310 38 Strip Hood fixing 2 2 2
17 39 0364 02 Slotted pan head screw 27 27 27
18 39 0372 16 Red button 19 19 19 N.I.
19 24 2311 71 Packing - I 2 2 2
20 24 2302 02 Packing - II 2 2 2
21 BA 2310 76 Packing rear body mtg. 1 1 1 From Dec.01

BA 2310 48 Packing rear body mtg. 1 1 1 Upto Nov.01
22 39 0390 04 Hex screw 8 8 8 For mounting body
23 39 0230 11 Plain washer 8 8 8 on chassis
24 39 0265 12 Spring washer 8 8 8
25 39 0294 15 Nut 8 8 8
AA = Petrol
AF = CNG 99
AM = LPG
PLATE NO. 62 : WINDSHIELD AND WIPER MOTOR RE4S
2
1
8
9
13 12
3
16 4/5
7
13 9
6
10
11 10
13
15 11
8
14

No. AA AF AM
1 AA 2310 62 Windshield assly/top 1 -- -- For USA Market
2 AA 2310 22 One Piece glass 1 1 --
3 AA 2310 26 Beading Windshield Glass 1 1 --
4 AB 2310 09 Joint Plate LH 1 1 --
5 AB 2310 08 Joint Plate RH 1 1 --
6 AL 2410 23 Wiper Arm Blade assly 1 1 --

7 AL 2410 33 Packing Shield 1 1 --
8 39 0085 04 Bolt 10 10 --
9 39 0258 11 Plain washer 18 18 --
10 39 0262 12 Spring washer 9 9 --
11 39 0291 15 Hex nut 9 9 --

12 39 0071 04 Bolt 6 6 --
13 39 0197 11 Plain washer 14 14 --
14 AA 2011 43 Wiper motor - 12 V 1 1 --
15 39 1830 12 Spring Washer 2 2 --
16 AL 2410 29 Bracket Assly. Wiper Motor 1 1 --

17 AL 1612 01 Cover Wiper Motor 1 1 -- N.I.
AA = Petrol
AF = CNG 100
AM = LPG
PLATE NO. 63 : SEAT ASSEMBLY RE4S
16
15
14
12 13
15
5
4 14
3
11 13
19
1
20
2
6
17/18
10
4
8 13
3
5 7 15
9
14

No. AA AF AM
1 AA 2310 50 Driver seat assly 1 -- -- For USA Market
2 BA 1610 46 Frame assly driver seat 1 1 --
3 39 0197 11 Plain washer 8 8 --
4 39 0262 12 Spring washer 8 8 --
5 39 0291 15 Hex nut 8 8 --
6 24 23 1146 Clip 2 2 --
7 39 0100 04 Bolt 2 2 --
8 39 0230 11 Plain washer 2 2 --
9 39 0265 12 Spring washer 2 2 --
10 39 0294 15 Nut 2 2 --
11 AA 2310 51 Driver back rest assly 1 -- -- For USA Market

12 AA 2310 56 Passenger seat assly 1 -- -- For USA Market
13 39 0211 11 Plain washer 5 5 --
14 39 0263 12 Spring washer 5 5 --
15 39 0292 15 Hex nut 5 5 --
16 AA 2310 59 Passenger back rest 1 -- -- For USA Market

17 24 2303 21 Side panel cover RH 1 1 --
18 24 2303 22 Side panel cover LH 1 1 --
19 39 1542 11 Plain washer 12 12 --
20 39 1348 01 Cross res. pan Hd. screw 12 12 --
AA = Petrol
AF = CNG 101
AM = LPG
PLATE NO. 64 : TOOL KIT AND MIRROR RE4S
1
2/3
4
4
5
6

No. AA AF AM
1 AA 2210 14 Tool kit complete 1 -- -- For USA Market
* AA 2210 19 Tool bag 1 -- --
* AA 2210 18 Tubular spanner 1 -- --
* AA 2210 17 Box spanner 10 x 12 1 -- --
* AA 2210 15 Tommy bar 1 -- --
Not to service only
* AA 2210 16 Screw Driver 1 -- -- for reference
* AL 2210 11 Flat spanner 7 x 8 1 -- --
* 01 2212 05 Flat spanner 10 x 11 1 -- --
* 05 2210 12 Flat spanner 13 x 14 1 -- --
* CL 2210 28 Tool Pliers 6" 1 -- --
2 AA 2210 09 Mirror assly LH 1 -- -- For USA Market

22 2210 09 Mirror assly LH 1 1 -- Upto Feb.03
3 AA 2210 10 Mirror assly RH 1 -- -- For USA Market
22 2210 10 Mirror assly RH 1 1 -- Upto Feb.03
4 21 1704 16 Plain washer 4 -- --
5 39 1829 12 Spring washer 2 -- --
For USA Market
6 39 0302 15 Hex nut 2 -- --
7 39 2672 15 Dome Nut 2 -- --
AA = Petrol
AF = CNG 102
AM = LPG
PLATE NO. 65 : CNG CYLINDER (FOR CNG VEHICLE ONLY) RE4S
21 17
1
22
2
8
10
9
7
5
10 9
10
9
1
18 8
14
20
11
12
13 6
3
15 4
16

No. AA AF AM
1 AF 1610 18 Cylinder strap -- 2 --
2 AF 1610 19 Rubber packing cylinder -- 1 --
3 AF 1610 20 Rubber packing neck -- 1 --
4 AF 1610 21 Rubber packing cylinder end -- 1 --
5 AF 1610 22 Rubber bush with sleeve -- 2 --
6 AF 1410 32 CNG cylinder -- 1 --

AF 1410 21 CNG cylinder(Dia.267) -- 1 --
7 39 0083 04 Hex.bolt -- 2 --
8 39 0940 01 Screw -- 4 --
9 39 0201 11 Plain washer -- 6 --
10 39 0862 12 Spring washer double coil -- 6 --
11 AF 2310 06 Strip lock -- 1 --

12 AF 2310 07 Cover assly. -- 1 --
13 AF 2310 08 Cover CNG filling -- 1 --
14 AF 2310 09 Foam strip -- 4 --
15 AF 2310 10 Lock CNG fill cover -- 1
16 01 1607 17 Lock clip -- 1 --

17 AF 1610 29 CNG valve label -- 1 --
18 AF 1610 17 Neck Strap -- 1 --
19 AF 1810 01 Lock assly. 6 in 1 -- 1 -- N.I.
20 39 0156 08 Split pin -- 1 -- For Cover CNG filling
21 AF 2310 11 Identification plate -- 1 --

22 01 1601 26 Rivet -- 4 --
AA = Petrol
AF = CNG 103
AM = LPG
PLATE NO. 66 : VALVE OF CNG CYLINDER (FOR CNG VEHICLE ONLY) RE4S
1 13
12
11
9
8
7
6
14 2
10

No. AA AF AM
1 AF 1410 08 Hand wheel -- 1 --
2 AF 1410 09 Disc-CNG Cylinder valve -- 1 --
3 AF 1410 10 Washer-CNG cylinder valve -- 1 --
4 AF 1410 33 Valve body -- 1 --
5 AF 1410 34 Spindle with seat -- 1 --
6 AF 1410 35 Washer-small -- 1 --
7 AF 1410 36 Packing washer -- 1 -- From April .03
8 AF 1410 37 Washer-Big -- 1 --
9 AF 1410 38 Gland nut -- 1 --
10 AF 1410 39 Disc retainer with fusible alloy -- 1 --
11 AF 1410 40 Washer -- 1 --
12 AF 1410 41 Spring washer -- 1 --
13 AF 1410 42 Hex nut -- 1 --
14 AF 1410 30 Valve for CNG -- 1 -- From Aug.02 Alt.AF 1410 28
15 AF 1410 31 Burst disc retainer -- 1 -- For AF 1410 30 N.I
AA = Petrol
AF = CNG 104
AM = LPG
PLATE NO. 67 : FUEL TANK ASSLY. & FUEL COCK (FOR CNG VEHICLE ONLY) RE4S
22 15
24 13
18
19
20 4 23
21
3
12
16 17 17
2 11
16
14
5
6
7
9 10

No. AA AF AM
1 AF 1410 15 Fuel cock assly. -- 1 -- From Sept.01
AF 1410 05 Petrol cock assly. -- 1 -- Upto July.01
2 24 1401 11 Gasket -- 1 --
3 24 1401 10 Adapter nut -- 1 --
4 39 0206 11 Plain washer -- 1 --
5 01 1402 20 Gasket -- 1 --
6 22 1410 21 Fuel cock lever -- 1 --

7 01 1402 22 Pressure plate -- 1 --
8 39 0005 01 Screw -- 2 --
9 22 1410 22 Knob for fuel cock lever -- 1 --
10 39 0546 01 Screw -- 1 --
11 AB 1410 01 Fuel pipe l -- 1 --

12 AF 1410 06 Fuel pipe I -- 1 --
13 AF 1410 07 Fuel pipe II -- 1 --
14 AF 1211 33 Filter fuel -- 1 --
AB 1210 19 Filter fuel -- 1 --
15 AF 1410 13 Fuel tank assly. -- 1 -- From Sept.01
AF 1410 03 Fuel tank assly. -- 1 -- Upto July.01
AA = Petrol
AF = CNG 105
AM = LPG
PLATE NO. 67 : FUEL TANK ASSLY. & FUEL COCK (FOR CNG VEHICLE ONLY) RE4S
22 15
24 13
18
19
20 4 23
21
3
12
16 17 17
2 11
16
14
5
6
7
9 10

No. AA AF AM
16 33 1410 07 Clamp -- 2 -- For AB 1410 01
17 BA 1220 03 Pipe clip -- 2 -- For AF 1410 06
18 39 0265 12 Spring washer -- 3 --
19 39 1180 11 Plain washer -- 3 -- Mounting fuel tank
20 AA 1410 08 Cap fuel tank -- 1 -- Mounting fuel tank
21 24 1401 15 'O' ring -- 1 --

22 28 1410 21 Label fuel tank -- 1 --
23 30 1210 18 Ring snap -- 2 -- For AF 1410 07
24 39 1515 01 Hex. head screw -- 3 -- From March.03
AA = Petrol
AF = CNG 106
AM = LPG
PLATE NO. 68 : MIXER UNIT & HOSE (FOR CNG VEHICLE ONLY) RE4S
9
7 9
4 9
7
9
1
8
14 2 3
10
12 14
5 11
14
14

No. AA AF AM
1 01 1108 09 Plain washer -- 2 --
2 39 1180 11 Plain washer -- 2 --
3 22 1504 35 Bolt -- 2 --
4 AF 1211 20 Mixer assly. -- 1 --
5 AF 1210 09 Flexible hose assly. 1 -- 1 --
6 AF 1210 10 Flexible hose assly. 2 -- 1 --

7 AF 1211 97 Low pressure hose pipe -- 2 --
8 39 0262 12 Spring washer -- 2 --
9 BA 1011 66 Hose clip -- 4 -- From Dec.01
10 AF 1610 25 Bracket second stage regulator mtg. -- 1 --
11 39 0119 04 Bolt -- 2 --
12 39 0265 12 Spring washer -- 2 --
13 AB 1210 17 Clamp for mixer assly. -- 1 -- N.I.
14 AF 1210 12 Washer -- 4 --
AA = Petrol
AF = CNG 107
AM = LPG
PLATE NO. 69 : RELAY & SOLENOID-PETROL & GAS (FOR CNG VEHICLE ONLY) RE4S
5
1
6
2
7
5
6 8
9
10

No. AA AF AM
1 AF 2010 01 Relay -- 1 --
2 AF 2010 12 Solenoid - gas -- 1 --
3 AF 2010 13 Solenoid - petrol -- 1 --
4 39 0672 01 Hex.screw -- 4 --
5 39 0263 12 Spring washer -- 4 --
6 39 0198 11 Plain washer -- 4 --

7 AF 1110 02 Controller unit (Vanaz) -- 1 -- Upto Oct.02
8 39 0197 11 Plain washer -- 2 -- Upto Oct.02
9 39 0886 01 Screw -- 2 -- Upto Oct.02
10 AF 2010 53 Selector switch -- 1 -- From Nov.02
AF 2010 18 Selector switch -- 1 -- Upto Sept.02
AA = Petrol
AF = CNG 108
AM = LPG
PLATE NO. 70 : 2nd STAGE CNG REGULATOR - I (FOR CNG VEHICLE ONLY) RE4S
22
20
16
2 17
15 18
12
14 19
11
10 13
8
9
7
5
3
4

No. AA AF AM
1 AF 1210 47 Body -- 1 --
2 AF 1210 48 Bonnet -- 1 --
3 AF 1210 49 Spring Washer -- 8 --
4 AF 1210 50 Hex. Screw -- 8 --
5 AF 1210 57 Nut -- 8 --
6 AF 1211 30 Big Diaphragm sub assembly -- 1 --

7 AF 1210 60 Lever -- 1 --
8 AF 1210 62 Pad -- 1 --
9 AF 1210 61 Lever Rod -- 1 --
10 AF 1210 63 Seat -- 1 --
11 AF 1210 64 Washer -- 1 --
12 AF 1210 70 Cheese head screw -- 2 --
13 AF 1210 71 Clamping washer -- 2 --
14 AF 1210 65 Plug -- 1 --
15 AF 1210 66 Washer -- 1 --
16 AF 1210 89 Spring -- 1 --
17 AF 1211 12 Spring retainer -- 1 --
18 AF 1210 88 'O' ring -- 1 --
19 AF 1210 87 Spring retainer-CNG -- 1 --
20 AF 1211 31 Filter assly. -- 1 --
21 AF 1211 87 Spring guide -- 1 -- From April.03 N.I

22 AF 1210 06 2nd stage CNG regulator -- 1 --
AA = Petrol
AF = CNG 109
AM = LPG
PLATE NO. 71 : 2nd STAGE CNG REGULATOR - II (FOR CNG VEHICLE ONLY) RE4S
10 25
24
9 11 31
8
22
3 6
12 21
4 13 20
19
7
5 14 23
1
27
17 18
16
2
15

No. AA AF AM
1 AF 1211 29 S.R.V. Body sub assly. -- 1 --
2 AF 1210 69 Washer -- 1 --
3 AF 1210 86 Seat -- 1 --
4 AF 1210 85 Washer -- 1 --
5 AF 1211 24 Pad holder -- 1 --
6 AF 1210 91 'O' ring -- 1 --

7 AF 1210 93 'O' ring -- 1 --
8 AF 1210 92 Clamping washer -- 1 --
9 AF 1210 94 Cheese head screw -- 1 --
10 AF 1210 95 Flow adjusting screw -- 1 --
11 AF 1210 96 Lock nut -- 1 --

12 AF 1210 90 Flow control body -- 1 --
13 AF 1211 28 Lever assly. -- 1 --
14 AF 1210 82 Lever Pin -- 1 --
15 AF 1210 77 Diaphragm support -- 1 --
16 AF 1210 79 'O' ring -- 1 --

17 AF 1210 73 Top disc -- 1 --
18 AF 1210 72 Diaphragm -- 1 --
AA = Petrol
AF = CNG 110
AM = LPG
PLATE NO. 71 : 2nd STAGE CNG REGULATOR - II (FOR CNG VEHICLE ONLY) RE4S
10 25
24
9 11 31
8
22
3 6
12 21
4 13 20
19
7
5 14 23
1
27
17 18
16
2
15

No. AA AF AM
19 AF 1210 76 Bottom disc -- 1 --
20 AF 1210 74 Washer -- 1 --
21 AF 1210 78 Nut -- 1 --
22 AF 1210 80 Spring -- 1 --
23 AF 1210 75 Cover -- 1 --
24 AF 1211 16 Spring washer -- 4 --
25 AF 1211 14 Hex. Screw -- 4 --
26 AF 1211 87 Spring guide -- 1 -- From April.03

27 AF 1610 63 Support II stage regulator -- 1 --
28 39 2116 01 Hex. head screw -- 2 --
29 39 1839 11 Plain washer -- 2 -- For support IInd stage regulator
30 39 0263 12 Spring washer -- 2 -- N.I
31 AF 1210 07 Flow control unit -- 1 --
AA = Petrol
AF = CNG 111
AM = LPG
PLATE NO. 72 : 1st STAGE REDUCTION UNIT(FOR CNG VEHICLE ONLY) RE4S
9
3
8
5
10 6 4
2 24
15 13
7 2
29
28 22
20 21
25
30
16
31 11
23
27 12
17
26
14
18
18
32
34
19
33

No. AA AF AM
1 AF 1210 04 Refueling Adptor -- 1 --
2 AF 1210 23 'O' ring -- 2 --
3 AF 1210 24 String -- 1 --
4 AF 1210 18 Dust plug -- 1 --
5 AF 1210 25 Washer -- 1 --
6 AF 1210 26 'O' ring -- 1 --

7 AF 1211 09 1st stage Seat (NRV) sub assly. -- 1 --
8 AF 1210 28 Spring -- 1 --
9 AF 1210 03 Pressure Gauge -- 1 --
10 AF 1210 29 Washer -- 1 --
11 AF 1210 30 Washer -- 1 --
12 AF 1210 01 Connector -- 1 --
13 AF 1210 31 Coupling screw -- 1 --
14 AF 1210 32 'O' ring -- 2 --
15 AF 1211 01 Junction Block -- 1 --
AA = Petrol
AF = CNG 112
AM = LPG
PLATE NO. 72 : 1st STAGE REDUCTION UNIT(FOR CNG VEHICLE ONLY) RE4S
1
9
3
8
5
10 6 4
2 24
15 13
7 2
29
28 22
20 21
25
30
16
31 11
23
27 12
17
26 14
18
18
32
34
19
33

No. AA AF AM
16 AF 1210 34 Spring -- 1 --
17 AF 1211 26 Piston assly. -- 1 --
18 AF 1210 36 'O' ring -- 2 --
19 AF 1211 25 1st stage Cylinder(SRV) sub assly. -- 1 --
20 AF 1210 38 Lock nut -- 1 --
21 AF 1210 44 Mounting plate -- 1 --

22 AF 1210 45 Philips screw -- 2 --
23 AF 2010 10 Microswitch -- 1 --
24 AF 1210 46 Philips screw -- 2 --
25 AF 1211 04 'O' ring -- 1 --
26 AF 1211 05 Retainer -- 1 --
27 AF 1211 06 'O' ring -- 1 --
28 AF 1211 07 Filter -- 1 --
29 AF 1211 08 Washer -- 1 --
30 AF 1210 84 Pad -- 1 --
31 AF 1210 05 First stage reduction unit -- 1 --

32 AF 1211 27 Pad holder -- 1 --
33 AF 1210 39 Relief valve spring -- 1 --
34 AF 1210 40 Adjusting screw -- 1 --
AA = Petrol
AF = CNG 113
AM = LPG
PLATE NO. 73 : PETROL TANK PLASTIC (FOR CNG VEHICLE ONLY) RE4S
13
8 14
10 11
9
7
1
12
6
12
2 2
12 7 11
11
3 11 11
11 16
15

No. AA AF AM
1 AJ 1410 01 Petrol tank comp. -- 1 --
2 AA 1410 16 Fuel pipe tank cock -- 2 -- Tank to cock
3 AJ 1410 06 Fuel pipe cock Filter -- 1 -- Cock to Filter
4 AF 1410 45 Rubber Cap -- 1 -- N.I.
5 DD 1410 13 Clamp -- 1 -- N.I.
6 AF 2010 23 Solenoid ( Petrol ) -- 1 --

7 AJ 1410 04 Fuel pipe -- 2 -- Filter to solenoid to carb.
8 39 0078 04 Hexagon head bolt -- 4 --
9 39 0211 11 Plain washer -- 4 --
10 39 0263 12 Spring washer -- 4 --
11 34 1410 16 Clamp ( Cock ) Outlet -- 6 --

12 34 1410 17 Clamp ( TANK) Outlet -- 4 --
13 AA 1410 08 Cap for tank -- 1 --
14 24 1401 15 'O' Ring -- 1 --
15 AB 1210 19 Fuel filter -- 1 --
16 AM 2010 03 Gas Sol & Gas Res Guage -- 1 --
AA = Petrol
AF = CNG 114
AM = LPG
PLATE NO. 74 : DASHBOARD AND SPEEDOMETER RE4S
1 18
8
5
15
2 16
6 17
4
7
10 11/12
14
13 9

No. AA AF AM
1 AA 1910 49 Instr. Cluster /Lamp 1 -- For USA market
2 AL 1910 28 screw 5 5
3 30 2010 84 Lamp 12V 2W 9 --
4 AA 1910 39 Speedo cable 1 1
5 AA 1910 40 Speedo cable inner 1 1
6 CE 1810 15 Clip nut 5 5 For speedometer mtg- dash board
7 AL 1611 83 Dashboard assly comp. 1 1
8 AL 1611 55 Upper trim 1 1
9 AL 1611 60 Switch cover 1 1
10 AL 1611 61 Steering cover 1 1
11 AL 1611 71 Lock tool box 1 1
11A AA 1810 05 Lock Set with common key 1 1 Except Ignition
12 AL 1611 72 Lock stero ltd 1 1
13 39 0663 01 Sloted ch head screw 4 4 For mounting of steering cover
14 39 0291 15 Hexagon nut 4 4 For mounting of steering cover
15 39 0012 01 Cheese head screw 16 16
16 39 0242 11 Plain washer 26 26 For mounting of DashBoard
17 35 1610 60 Clip nut 8 8
18 AL 1910 29 Sealing ring 1 1 For speedometer
AA = Petrol
AF = CNG 115
AM = LPG
PLATE NO. 75 : FRONT LIGHT RE4S
20/21
13 15
16 14
17
6/7
12 10
11
2
9
3
5

No. AA AF AM
1 AA 2011 32 H/L Assly.LH / Lamp 1 -- For USA market
AA 2011 33 H/L Assly.RH Lamp 1 -- For USA market
2 CL 2010 23 Lamp 12V-35/35w-HS1 2 2
3 AL 2010 32 Spring -Head lamp Mtg 6 6
4 39 0758 01 Screw pan cross-M5 6 6 For head lamp mounting
5 39 1839 11 Plain washer 6 6
6 AL 2010 43 Cable assly.-Front Light LH 1 1

7 AL 2010 44 Cable assly.-Front Light RH 1 1
8 CL 1010 21 Rubber cap 2 2
9 CL 2010 22 Cable assly. 2 2
10 AL 2010 15 Ind assly. Front LH/ Lamp 1 1 include fig.6,7,11 &12
AL 2010 17 Ind assly. Front RH/ Lamp 1 1
11 06 2010 82 Lamp 12V 5W 2 2 Parking

12 06 2010 83 Lamp 12V 10W 2 2 Blinker
13 39 0921 01 Screw pan cross 8 8 Ind.LH&RH
14 39 1839 11 Plain washer 8 8 Ind.LH&RH
15 56 AL09 75 HLamp-Blinker Hsg LH 1 1 Bright Red
56 AL09 H6 HLamp-Blinker Hsg LH 1 1 Casablanca White
56 AL09 V7 HLamp-Blinker Hsg LH 1 1 Ferrari Red
56 AL09 B3 HLamp-Blinker Hsg LH 1 1 Golden Yellow
AA = Petrol
AF = CNG 116
AM = LPG
PLATE NO. 75 : FRONT LIGHT RE4S
20/21
13 15
16 14
17
6/7
12 10
11
2
9
3
5

No. AA AF AM
56 Al09 29 HLamp-Blinker Hsg LH 1 1 Neptune Blue
56 Al09 V8 HLamp-Blinker Hsg LH 1 1 Oxford White
56 AA01 72 HLamp-Blinker Hsg LH 1 1 Eco Green
56 AL10 75 HLamp-Blinker Hsg RH 1 1 Bright Red

56 Al10 H6 HLamp-Blinker HsgRH 1 1 Casablanca White
56 AL10 V7 HLamp-Blinker Hsg RH 1 1 Ferrari Red
56 AL10 B3 HLamp-Blinker Hsg RH 1 1 Golden Yellow
56 Al10 29 HLamp-Blinker Hsg RH 1 1 Neptune Blue
56 AL10 V8 HLamp-Blinker Hsg RH 1 1 Oxford White
56 AA01 73 HLamp-Blinker Hsg RH 1 1 Eco Green
16 39 1698 01 Screw pan 4 4 Fitment of H/L blinker housing
17 39 0242 11 Plain washer 8 8
18 AL 1611 91 spacer 4 4 ( N.I )
19 39 0830 01 Screw Pan-M5 4 4 Fitment of AL161114/15 with
scudo ( N.I )
20 35 1610 60 Clip Nut 12 12
21 AL 1611 80 Clip Nut 8 8 For Mounting of Blinker on Blinker

Housing
AA = Petrol
AF = CNG 117
AM = LPG
PLATE NO. 76 : FRONT MUDGUARD AND GRILL RE4S
2 3 1
4
7
5
6

No. AA AF AM
1 56 AL11 75 Front mudguard 1 1 Bright Red
56 AL11 H6 Front mudguard 1 1 Casablanca White
56 AL11 V7 Front mudguard 1 1 Ferrari Red
56 AL11 B3 Front mudguard 1 1 Golden Yellow
56 AL11 29 Front mudguard 1 1 Neptune Blue
56 AL11 V8 Front mudguard 1 1 Oxford White
56 AL01 70 Front mudguard 1 1 Eco Green
2 39 0505 04 Hexagon head Bolt 8 8 For AL 1611 12
3 39 0219 11 Plain Washer 8 8 For AL 1611 12
4 05 1612 56 Clip Nut-M6 8 8 For AL 1611 12
5 56 AL12 75 Grill Central 1 1 Bright Red
56 AL12 H6 Grill Central 1 1 Casablanca White
56 AL12 V7 Grill Central 1 1 Ferrari Red
56 AL12 B3 Grill Central 1 1 Golden Yellow
56 AL12 29 Grill Central 1 1 Neptune Blue
56 AL12 V8 Grill Cental 1 1 Oxford White
56 AL01 71 Grill Central 1 1 Eco Green
6 30 1611 69 Grommet 4 4 For Grill
7 AL 1611 73 B Monogram 1 1
AA = Petrol
AF = CNG 118
AM = LPG
PART INDEX RE4S
PART FIG. PAGE PART FIG. PAGE PART FIG. PAGE

NO. NO. NO. NO. NO. NO. NO. NO. NO.
01 1003 42 5 42 03 1007 18 10 64 06 2013 26 14 90

01 1003 42 4 64 03 1013 03 15 24 06 2013 34 2 83
01 1006 12 10 7 03 1013 04 16 24 06 2013 95 4 84
01 1007 11 7 15 03 1013 05 17 24 06 2013 96 5 84
01 1007 12 7 15 03 1501 11 15 13 07 1105 03 3 28
01 1007 13 7 15 03 1501 11 11 38 07 1402 03 26 37
01 1007 14 7 15 03 1601 30 4 58 07 1810 04 10 73
01 1007 15 7 15 03 1701 29 18 65 07 1810 06 11 73
01 1009 05 4 23 03 1701 09 5 44 071810 09 9 73
01 1010 08 10 68 03 1701 09 2 64 13 1010 22 1 9
01 1010 09 5 64 03 1701 09 18 66 13 1010 23 2 9
01 1103 67 4 27 03 1701 21 17 65 13 1010 24 12 9
01 1108 09 1 107 03 1801 11 18 74 13 1010 31 10 8
01 1160 17 9 80 03 1801 14 12 73 13 1010 34 4 10
01 1401 16 7 95 03 1801 16 30 20 13 1011 65 2 25
01 1401 17 11 91 03 1801 16 17 74 15 1011 71 5 15
01 1402 20 25 37 03 1902 04 22 78 15 1410 13 23 59
01 1402 20 5 105 03 1902 06 21 78 15 1410 13 16 63
01 1402 22 27 37 03 1902 28 12 81 15 1810 32 21 74
01 1402 22 7 105 05 1010 51 7 22 15 1810 33 22 74
01 1402 27 22 37 05 1010 83 4 16 15 1810 34 23 74
01 1402 28 23 37 05 1010 83 20 65 19 1611 51 10 51
01 1402 29 21 37 05 1010 83 16 78 20 2010 02 1 83
01 1501 09 13 13 05 1510 12 8 22 21 1007 11 6 15
01 1501 09 9 38 05 1510 12 22 57 21 1014 27 28 20
01 1501 12 17 13 05 1510 12 12 79 21 1014 29 31 20
01 1501 12 13 38 05 1510 13 14 13 21 1502 20 2 50
01 1502 09 4 38 05 1510 13 10 38 21 1503 06 3 45
01 1601 26 5 58 05 1510 17 6 38 21 1503 07 2 45
01 1601 26 17 96 05 1612 56 4 118 21 1504 04 3 46
01 1601 26 22 103 05 1710 08 3 69 21 1504 05 4 46
01 1605 09 4 60 05 1710 12 7 69 21 1504 06 5 46
01 1607 17 16 103 05 1810 11 5 73 21 1504 16 16 47
01 1701 19 22 18 05 1903 01 8 82 21 1504 18 17 47
01 1701 19 11 64 05 1903 02 7 82 21 1504 20 20 47
01 1701 19 11 66 05 2210 12 1 102 21 1504 20 4 56
01 1701 22 7 68 06 1112 66 13 16 21 1504 21 5 50
01 1701 30 15 73 06 1607 11 12 60 21 1504 22 6 50
01 1702 51 8 69 06 1607 12 13 60 21 1504 22 3 52
01 1702 54 4 69 06 1607 13 14 60 21 1504 22 2 54
01 1702 55 1 69 06 1803 02 19 74 21 1504 22 10 54
01 1801 23 8 14 06 1803 03 20 74 21 1504 33 2 53
01 1801 24 8 73 06 1803 03 29 96 21 1504 33 14 54
01 1801 25 7 73 06 1810 48 14 73 21 1504 37 12 53
01 1801 28 4 73 06 1902 27 10 82 21 1604 17 7 26
01 1801 29 3 73 06 1910 61 5 82 21 1611 10 7 62
01 1801 30 2 73 06 1910 89 12 77 21 1701 08 11 68
01 1901 07 3 77 06 2010 82 5 85 21 1704 16 4 102
01 1901 08 4 77 06 2010 82 4 86 21 1704 19 12 1
01 1902 05 20 78 06 2010 82 11 116 21 1801 07 6 73
01 1902 56 14 43 06 2010 83 6 85 21 1801 08 16 74
01 1902 56 10 53 06 2010 83 3 86 21 1802 07 5 76
01 1903 18 4 82 06 2010 83 4 87 21 1803 07 14 76
01 2002 13 4 83 06 2010 83 12 116 21 1803 08 16 76
01 2002 13 8 84 06 2011 57 6 83 21 1902 12 3 80
01 2212 05 1 102 06 2012 84 2 91 22 1011 15 19 18
03 1003 35 13 1 06 2013 25 13 90 22 1011 15 33 20
119
PART INDEX RE4S

22 1014 23 26 20 22 1510 86 1 41 22 2010 06 21 92

22 1310 14 5 21 22 1510 90 8 45 22 2010 86 16 62
22 1310 18 4 21 22 1510 96 1 46 22 2010 87 17 62
22 1401 16 5 60 22 1510 97 13 46 22 2010 93 9 91
22 1410 21 6 105 22 1510 99 14 46 22 2210 09 2 102
22 1410 22 9 105 22 1511 00 24 47 22 2210 10 3 102
22 1502 22 21 57 22 1602 35 7 58 22 2301 40 9 95
22 1502 35 2 39 22 1602 36 8 58 22 2311 55 10 98
22 1502 35 5 41 22 1608 05 2 60 23 1613 05 27 20
22 1502 39 3 39 22 1610 51 2 62 23 1613 05 11 39
22 1502 39 6 41 22 1610 62 2 80 23 1613 05 9 44
22 1502 40 5 39 22 1611 66 1 60 23 1613 05 9 68
22 1502 40 8 41 22 1611 93 3 60 24 1902 24 5 79
22 1502 41 6 39 22 1611 96 2 58 24 1011 21 10 17
22 1502 41 9 41 22 1611 97 3 58 24 1011 21 18 19
22 1502 42 7 39 22 1701 15 7 64 24 1011 22 12 17
22 1502 42 10 41 22 1701 15 6 66 24 1011 22 20 19
22 1502 42 14 79 22 1701 17 8 64 24 1011 78 32 20
22 1502 43 8 39 22 1701 17 7 66 24 1014 14 39 20
22 1502 43 11 41 22 1701 18 12 64 24 1014 19 11 17
22 1502 53 25 57 22 1701 18 12 66 24 1014 19 19 19
22 1504 35 6 53 22 1701 19 13 64 24 1014 21 37 20
22 1504 35 12 54 22 1701 23 21 65 24 1014 22 14 17
22 1504 35 15 77 22 1703 45 13 21 24 1014 22 22 20
22 1504 35 3 107 22 1704 34 16 41 24 1110 80 7 28
22 1504 39 14 53 22 1704 38 11 42 24 1301 05 7 3
22 1504 41 15 53 22 1710 07 12 42 24 1301 05 4 22
22 1504 42 16 53 22 1710 19 4 68 24 1301 11 3 21
22 1504 49 17 53 22 1710 39 9 64 24 1301 13 7 21
22 1504 51 19 53 22 1710 46 1 64 24 1301 29 5 23
22 1504 52 24 57 22 1710 51 5 69 24 1302 09 7 44
22 1504 55 6 46 22 1710 80 3 41 24 1302 14 8 44
22 1504 56 7 46 22 1802 19 2 76 24 1310 01 6 44
22 1504 57 8 46 22 1802 25 18 76 24 1310 08 4 44
22 1504 58 9 46 22 1810 53 11 76 24 1310 09 8 21
22 1505 02 1 56 22 1810 54 17 76 24 1310 32 6 21
22 1505 07 6 56 22 1901 12 11 77 24 1401 10 3 105
22 1505 13 11 79 22 1902 35 14 81 24 1401 11 19 37
22 1505 13 6 81 22 1902 37 16 59 24 1401 11 2 105
22 1505 20 16 57 22 1910 12 5 77 24 1401 15 4 36
22 1505 24 2 56 22 1910 48 13 81 24 1401 15 21 106
22 1505 25 19 57 22 1910 65 1 82 24 1401 15 14 114
22 1510 14 13 53 22 1910 67 9 77 24 1410 55 20 37
22 1510 32 3 56 22 1910 69 10 77 24 1504 05 3 53
22 1510 36 1 38 22 1910 72 13 77 24 1504 05 14 54
22 1510 39 2 38 22 1910 73 17 78 24 1504 06 4 53
22 1510 40 3 38 22 1910 80 2 77 24 1504 06 15 54
22 1510 41 15 38 22 1910 87 3 81 24 1504 07 5 53
22 1510 43 3 64 22 1910 88 1 80 24 1504 07 15 54
22 1510 55 2 46 22 1910 90 9 82 24 1505 01 15 81
22 1510 63 17 57 22 1910 93 5 81 24 1505 02 2 81
22 1510 64 18 57 22 1910 97 10 82 24 1505 04 11 56
22 1510 66 5 38 22 2001 60 17 81 24 1505 05 12 56
22 1510 70 15 46 22 2001 61 15 58 24 1505 06 14 56
22 1510 71 1 50 22 2004 12 10 85 24 1505 07 15 56
22 1510 77 23 57 22 2004 17 12 85 24 1505 08 13 56
22 1510 81 2 41 22 2005 21 2 85 24 1505 15 10 56
120
PART INDEX RE4S

24 1510 37 23 47 28 1010 22 10 35 30 2010 84 12 82

24 1510 45 11 53 28 1010 38 7 14 30 2010 84 3 115
24 1510 48 19 47 28 1010 57 13 9 31 1010 18 6 9
24 1510 49 9 50 28 1010 80 27 2 31 1010 19 5 9
24 1510 51 10 46 28 1011 10 12 7 31 1010 20 8 9
24 1609 24 8 26 28 1011 18 19 8 31 1010 22 4 9
24 1610 03 5 26 28 1011 19 4 8 31 1010 28 10 10
24 1610 61 13 58 28 1011 23 1 8 31 1010 29 11 10
24 1611 76 14 62 28 1011 29 7 9 31 1010 30 12 10
24 1611 84 1 62 28 1011 41 22 2 31 1011 20 13 10
24 1612 56 21 59 28 1011 62 18 10 31 1011 41 9 12
24 1702 05 3 68 28 1011 67 2 10 31 1011 73 4 7
24 1702 08 6 68 28 1012 19 9 10 31 1110 14 3 28
24 1704 25 8 43 28 1012 20 8 10 31 1210 06 21 5
24 1704 27 4 43 28 1210 09 21 34 31 2010 03 5 90
24 1705 05 8 72 28 1210 25 20 34 31 2010 28 7 85
24 1705 07 4 72 28 1210 28 2 29 31 2010 28 5 87
24 1705 08 7 72 28 1210 30 4 29 33 1210 36 21 32
24 1710 14 3 43 28 1210 32 6 29 33 1410 07 8 36
24 1710 24 7 42 28 1210 33 7 29 33 1410 07 16 106
24 1710 49 2 72 28 1210 34 11 29 34 1410 16 11 114
24 1710 55 9 72 28 1210 37 8 29 34 1410 17 12 114
24 1710 56 10 72 28 1210 39 13 29 35 1010 60 15 22
24 1710 60 22 65 28 1210 40 14 29 35 1610 60 17 115
24 1710 63 1 72 28 1210 43 17 30 35 1610 60 20 117
24 1710 66 12 43 28 1210 44 18 30 35 1710 13 16 71
24 1710 68 10 43 28 1210 45 19 30 39 0001 01 13 41
24 1710 69 6 69 28 1210 46 20 30 39 0001 01 2 70
24 1710 75 19 41 28 1210 47 21 30 39 0005 01 28 37
24 1710 76 15 43 28 1210 48 22 30 39 0005 01 8 105
24 1710 79 14 41 28 1210 49 23 30 39 0006 01 5 83
24 1710 82 15 41 28 1210 50 24 30 39 0006 01 9 84
24 1710 87 1 72 28 1210 51 27 30 39 0012 01 15 115
24 1902 23 2 79 28 1210 52 28 30 39 0044 01 10 95
24 1902 26 7 79 28 1210 55 31 30 39 0044 01 4 98
24 1910 19 13 79 28 1210 56 32 30 39 0062 04 10 44
24 23 1146 6 101 28 1410 15 2 36 39 0062 04 10 60
24 2301 76 15 95 28 1410 21 5 36 39 0062 04 8 62
24 2301 98 13 95 28 1410 21 22 106 39 0062 04 19 62
24 2302 02 20 99 28 1410 40 40 37 39 0062 04 19 65
24 2303 21 17 101 28 1410 41 41 37 39 0071 04 15 62
24 2303 22 18 101 28 2010 38 15 97 39 0071 04 4 76
24 2304 01 1 98 30 1010 10 2 3 39 0071 04 8 90
24 2304 09 2 98 30 1010 53 5 17 39 0071 04 8 97
24 2304 11 3 98 30 1010 53 5 19 39 0071 04 12 100
24 2310 63 11 97 30 1010 82 18 26 39 0078 04 8 114
24 2310 90 6 97 30 1011 15 5 13 39 0078 04 8 77
24 2310 91 7 97 30 1011 21 2 13 39 0080 04 5 25
24 2311 57 10 97 30 1011 41 15 10 39 0083 04 11 26
24 2311 71 19 99 30 1011 97 9 13 39 0083 04 7 103
24 2312 45 14 95 30 1210 04 34 30 39 0085 04 3 62
24 2312 72 19 96 30 1210 18 9 36 39 0085 04 8 100
25 1910 54 13 82 30 1210 18 23 106 39 0096 04 3 95
25 2010 09 3 83 30 1510 39 2 22 39 0100 04 7 101
25 2010 09 7 84 30 1611 69 6 118 39 0106 04 20 57
25 2310 62 1 97 30 1910 69 16 79 39 0119 04 4 41
25 2310 64 5 97 30 1910 69 4 81 39 0119 04 5 43
121
PART INDEX RE4S

39 0119 04 5 68 39 0208 11 3 50 39 0263 12 11 62

39 0119 04 19 92 39 0208 11 4 51 39 0263 12 5 63
39 0119 04 11 107 39 0209 11 13 24 39 0263 12 11 63
39 0146 08 16 18 39 0211 11 6 60 39 0263 12 7 77
39 0146 08 24 20 39 0211 11 10 62 39 0263 12 6 80
39 0146 08 22 47 39 0211 11 13 101 39 0263 12 14 101
39 0146 08 8 51 39 0211 11 9 114 39 0263 12 5 108
39 0146 08 5 56 39 0213 11 6 14 39 0263 12 30 111
39 0147 08 4 50 39 0215 11 15 17 39 0263 12 10 114
39 0147 08 5 51 39 0215 11 23 20 39 0264 12 5 95
39 0147 08 4 79 39 0217 11 8 68 39 0265 12 12 21
39 0147 08 8 95 39 0219 11 9 16 39 0265 12 20 26
39 0151 08 12 38 39 0219 11 7 23 39 0265 12 18 38
39 01510 08 16 13 39 0219 11 3 24 39 0265 12 17 41
39 0156 08 15 60 39 0219 11 10 33 39 0265 12 29 49
39 0156 08 22 96 39 0219 11 9 58 39 0265 12 8 56
39 0156 08 20 103 39 0219 11 9 62 39 0265 12 1 68
39 0182 09 7 41 39 0219 11 6 77 39 0265 12 13 76
39 0192 10 6 76 39 0219 11 3 118 39 0265 12 18 92
39 0197 11 15 16 39 0219 11 7 8 39 0265 12 13 97
39 0197 11 5 27 39 0230 11 12 97 39 0265 12 6 98
39 0197 11 4 28 39 0230 11 23 99 39 0265 12 24 99
39 0197 11 8 53 39 0230 11 8 101 39 0265 12 9 101
39 0197 11 17 54 39 0235 11 6 82 39 0265 12 18 106
39 0197 11 7 60 39 0239 11 18 90 39 0265 12 12 107
39 0197 11 4 62 39 0240 11 10 19 39 0267 12 15 64
39 0197 11 34 96 39 0242 11 16 115 39 0267 12 11 69
39 0197 11 2 97 39 0242 11 17 117 39 0267 12 9 76
39 0197 11 13 100 39 0248 11 9 26 39 0268 12 2 69
39 0197 11 3 101 39 0248 11 4 80 39 0269 12 8 42
39 0197 11 8 108 39 0251 11 6 26 39 0291 15 7 53
39 0198 11 16 5 39 0251 11 10 69 39 0291 15 16 54
39 0198 11 6 13 39 0251 11 3 79 39 0291 15 9 60
39 0198 11 18 62 39 0258 11 9 100 39 0291 15 6 62
39 0198 11 4 63 39 0261 12 21 67 39 0291 15 4 90
39 0198 11 14 63 39 0262 12 6 27 39 0291 15 12 95
39 0198 11 15 76 39 0262 12 5 28 39 0291 15 4 97
39 0198 11 2 90 39 0262 12 9 53 39 0291 15 9 98
39 0198 11 4 91 39 0262 12 18 54 39 0291 15 11 100
39 0198 11 5 93 39 0262 12 8 60 39 0291 15 5 101
39 0198 11 6 108 39 0262 12 5 62 39 0291 15 14 115
39 0198 11 14 26 39 0262 12 3 76 39 0292 15 18 5
39 0199 11 21 47 39 0262 12 14 77 39 0292 15 11 44
39 0199 11 7 51 39 0262 12 2 82 39 0292 15 11 58
39 0199 11 4 95 39 0262 12 20 89 39 0292 15 12 62
39 0200 11 19 5 39 0262 12 11 95 39 0292 15 6 63
39 0200 11 15 19 39 0262 12 3 97 39 0292 15 7 80
39 0200 11 28 49 39 0262 12 8 98 39 0292 15 15 101
39 0200 11 7 56 39 0262 12 10 100 39 0293 15 6 95
39 0201 11 7 25 39 0262 12 4 101 39 0294 15 29 37
39 0201 11 3 26 39 0262 12 8 107 39 0294 15 8 48
39 0201 11 14 64 39 0263 12 17 5 39 0294 15 26 49
39 0201 11 9 69 39 0263 12 15 25 39 0294 15 9 56
39 0201 11 8 76 39 0263 12 15 26 39 0294 15 12 68
39 0201 11 9 103 39 0263 12 10 58 39 0294 15 14 97
39 0203 11 11 46 39 0263 12 11 60 39 0294 15 25 99
39 0206 11 4 105 39 0263 12 20 61 39 0294 15 10 101
122
PART INDEX RE4S

39 0295 15 8 70 39 0694 15 6 45 39 1000 06 3 6

39 0296 15 13 17 39 0694 15 20 66 39 1000 06 18 8
39 0296 15 21 20 39 0694 15 7 98 39 1000 06 11 22
39 0296 15 2 26 39 0696 01 20 90 39 1013 21 6 1
39 0296 15 16 65 39 0702 01 14 9 39 1013 21 7 35
39 0296 15 12 69 39 0702 01 18 61 39 1014 21 16 10
39 0296 15 14 70 39 0711 11 14 25 39 1024 01 9 9
39 0296 15 10 76 39 0711 11 17 25 39 1027 02 14 24
39 0299 15 18 13 39 0714 11 23 18 39 1033 09 6 12
39 0299 15 14 38 39 0730 01 5 35 39 1035 19 3 9
39 0302 15 6 102 39 0732 12 19 90 39 1046 19 5 16
39 0303 15 9 42 39 0737 12 7 52 39 1049 04 14 10
39 0310 15 30 49 39 0747 01 12 3 39 1053 15 11 7
39 0310 15 9 70 39 0747 01 7 24 39 1054 11 11 70
39 0312 15 6 25 39 0748 01 8 33 39 1057 11 10 12
39 0312 15 18 47 39 0748 01 6 35 39 1062 04 15 1
39 0326 15 18 78 39 0751 01 9 24 39 1062 04 17 2
39 0336 17 12 46 39 0756 01 8 24 39 1062 04 13 4
39 0342 17 6 42 39 0758 01 16 16 39 1063 01 5 80
39 0342 17 6 64 39 0758 01 4 116 39 1065 04 9 4
39 0342 17 5 66 39 0761 01 7 27 39 1075 04 19 2
39 0360 03 11 98 39 0761 01 15 49 39 1075 04 11 3
39 0364 02 17 99 39 0775 04 7 38 39 1075 04 9 22
39 0365 13 12 98 39 0784 08 18 96 39 1075 04 10 27
39 0371 18 14 98 39 0788 12 25 49 39 1079 01 3 10
39 0372 16 18 99 39 0789 12 13 70 39 1079 01 13 26
39 0375 11 17 89 39 0793 15 11 13 39 1140 04 16 38
39 0375 11 21 89 39 0798 15 8 38 39 1180 11 19 26
39 0390 04 22 99 39 0798 15 8 87 39 1180 11 13 33
39 0408 04 6 28 39 0799 08 30 18 39 1180 11 13 36
39 0412 04 9 63 39 0799 08 11 19 39 1180 11 19 106
39 0422 15 4 70 39 0804 11 12 16 39 1180 11 2 107
39 0426 06 6 16 39 0814 11 19 61 39 1182 15 11 43
39 0426 06 3 23 39 0830 01 19 117 39 1197 04 8 16
39 0427 06 10 3 39 0834 15 9 8 39 1211 11 10 63
39 0435 01 14 19 39 0834 15 2 24 39 1214 20 11 1
39 0435 01 9 21 39 0834 15 19 25 39 1224 11 22 49
39 0436 01 11 85 39 0834 15 16 26 39 1241 01 22 89
39 0450 04 8 52 39 0840 01 23 67 39 1263 21 11 8
39 0466 12 5 72 39 0842 11 22 67 39 1264 21 5 8
39 0467 15 6 72 39 0849 14 18 53 39 1283 21 13 8
39 0472 01 3 85 39 0855 17 4 35 39 1295 01 2 88
39 0473 01 4 85 39 0862 12 10 103 39 1324 20 3 3
39 0505 04 2 118 39 0866 04 24 49 39 1325 24 15 85
39 0508 09 5 1 39 0886 01 9 108 39 1336 15 3 72
39 0525 17 8 17 39 0897 04 16 25 39 1348 01 33 96
39 0530 15 20 25 39 0897 04 9 28 39 1348 01 20 101
39 0543 11 10 70 39 0897 04 22 92 39 1350 01 3 82
39 0546 01 10 105 39 0921 01 13 116 39 1353 15 20 62
39 0550 11 2 16 39 0940 01 8 103 39 1353 15 15 63
39 0553 02 26 96 39 0944 04 12 90 39 1377 04 7 76
39 0630 08 22 71 39 0973 15 10 9 39 1379 04 12 76
39 0663 01 13 115 39 0980 04 8 11 39 1379 04 5 98
39 0672 01 4 108 39 0981 15 21 71 39 1389 04 35 20
39 0682 05 9 1 39 0999 06 8 35 39 1389 04 24 49
39 0694 15 17 38 39 1000 06 18 2 39 1415 23 14 58
39 0694 15 18 41 39 1000 06 3 4 39 1416 23 12 58
123
PART INDEX RE4S

39 1435 20 4 3 39 1826 12 11 27 56 Al09 V8 15 116

39 1435 20 3 22 39 1826 12 9 33 56 Al10 29 15 116
39 1441 01 10 13 39 1826 12 6 93 56 AA01 72 15 116
39 1455 04 12 70 39 1827 12 24 18 56 AA01 73 15 116
39 1478 17 7 6 39 1828 12 16 19 56 AL01 70 1 118
39 1505 01 11 36 39 1828 12 12 36 56 AL01 71 5 118
39 1515 01 24 106 39 1828 12 5 45 56 AL09 75 15 116
39 1537 21 7 4 39 1829 12 4 25 56 AL09 B3 15 116
39 1537 21 14 22 39 1829 12 4 26 56 AL09 H6 15 116
39 1542 11 25 96 39 1829 12 5 102 56 AL09 V7 15 116
39 1542 11 19 101 39 1830 12 15 100 56 AL10 75 15 116
39 1543 21 2 6 39 1831 12 19 66 56 AL10 B3 15 116
39 1552 04 11 25 39 1831 12 18 89 56 Al10 H6 15 116
39 1557 04 9 88 39 1839 11 29 111 56 AL10 V7 15 116
39 1574 21 11 35 39 1839 11 5 116 56 AL10 V8 15 116
39 1575 11 3 35 39 1839 11 14 116 56 AL11 29 1 118
39 1582 11 23 49 39 1856 04 21 25 56 AL11 75 1 118
39 1585 11 16 22 39 1860 02 28 34 56 AL11 B3 1 118
39 1587 21 1 44 39 1869 19 6 22 56 AL11 H6 1 118
39 1606 01 19 78 39 1870 19 9 3 56 AL11 V7 1 118
39 1611 01 14 85 39 1870 19 5 22 56 AL11 V8 1 118
39 1612 11 14 8 39 1871 05 6 8 56 AL12 29 5 118
39 1630 15 25 2 39 1885 15 8 7 56 AL12 75 5 118
39 1651 15 15 8 39 1917 19 8 3 56 AL12 B3 5 118
39 1657 21 12 35 39 1927 07 5 7 56 AL12 H6 5 118
39 1660 05 2 8 39 1938 15 10 11 56 AL12 V7 5 118
39 1663 11 6 54 39 1940 04 12 33 56 AL12 V8 5 118
39 1672 04 7 13 39 1941 04 11 33 AA 1010 03 24 2
39 1673 04 18 35 39 1941 04 23 34 AA 1010 04 14 1
39 1674 04 17 8 39 1963 04 10 4 AA 1010 05 13 3
39 1674 04 17 10 39 1993 04 3 63 AA 1010 09 3 12
39 1674 04 33 30 39 2008 11 11 12 AA 1010 13 9 6
39 1676 04 20 2 39 2038 04 20 13 AA 1010 15 5 10
39 1687 02 6 33 39 2071 23 18 59 AA 1010 17 19 10
39 1698 01 16 117 39 2116 01 28 111 AA 1010 25 8 6
39 1702 07 6 51 39 2171 11 27 18 AA 1010 31 2 7
39 1715 19 5 3 39 2175 11 28 18 AA 1010 33 1 7
39 1716 19 6 3 39 2175 11 8 19 AA 1010 35 9 27
39 1719 05 8 1 39 2176 17 29 18 AA 1010 46 11 15
39 1719 05 1 3 39 2176 17 9 19 AA 1010 48 1 14
39 1721 04 11 4 39 2208 04 3 91 AA 1010 50 1 15
39 1721 11 23 5 39 2234 04 4 93 AA 1010 51 2 15
39 1738 21 15 35 39 2245 01 16 89 AA 1010 52 3 15
39 1744 19 12 13 39 2357 17 16 66 AA 1010 53 4 15
39 1753 15 7 54 39 2360 17 10 48 AA 1010 54 4 14
39 1759 04 10 22 39 2361 05 15 5 AA 1010 55 9 15
39 1770 04 23 71 39 2362 20 4 66 AA 1010 56 8 15
39 1772 20 13 73 39 2373 23 22 59 AA 1010 57 10 21
39 1773 04 12 44 39 2373 23 23 61 AA 1010 58 11 21
39 1791 04 2 93 39 2393 04 1 26 AA 1010 61 9 14
39 1796 11 23 2 39 2422 23 19 59 AA 1010 62 1 11
39 1823 21 20 71 39 2444 17 9 66 AA 1010 63 1 12
39 1826 12 8 8 39 2508 23 22 61 AA 1010 65 2 12
39 1826 12 10 16 39 2528 20 2 3 AA 1010 66 2 11
39 1826 12 8 23 39 2550 20 3 66 AA 1010 73 1 13
39 1826 12 4 24 39 2672 15 7 102 AA 1010 74 1 4
39 1826 12 18 25 56 Al09 29 15 116 AA 1010 76 6 4
124
PART INDEX RE4S

AA 1010 77 8 4 AA 1012 93 17 19 AA 101495 1 1

AA 1010 84 11 16 AA 1012 95 2 14 AA 1015 01 20 8
AA 1011 08 5 14 AA 1012 97 12 19 AA 1110 30 1 28
AA 1011 15 1 6 AA 1013 22 12 24 AA 1110 31 6 88
AA 1011 18 2 17 AA 1013 24 10 24 AA 1110 32 9 90
AA 1011 22 1 17 AA 1013 28 21 2 AA 1110 33 3 27
AA 1011 22 1 19 AA 1013 29 34 20 AA 1110 35 8 27
AA 1011 23 2 1 AA 1013 30 38 20 AA 1110 48 3 93
AA 1011 24 4 1 AA 1013 33 4 6 AA 1110 49 14 94
AA 1011 27 17 18 AA 1013 34 5 6 AA 1110 50 2 27
AA 1011 28 7 17 AA 1013 35 6 6 AA 1110 51 3 27
AA 1011 30 18 18 AA 1013 37 12 4 AA 1110 52 8 27
AA 1011 32 9 17 AA 1013 40 3 13 AA 1110 53 2 27
AA 1011 34 6 10 AA 1013 45 9 7 AA 1110 54 8 27
AA 1011 35 7 10 AA 1013 46 36 20 AA 1110 55 3 93
AA 1011 37 11 9 AA 1013 49 15 9 AA 1110 57 2 27
AA 1011 38 6 7 AA 1013 60 13 25 AA 1110 58 8 28
AA 1011 39 7 7 AA 1013 61 10 25 AA 1110 59 11 28
AA 1011 42 5 12 AA 1013 64 7 11 AA 1110 60 2 28
AA 1011 43 10 1 AA 1013 65 8 10 AA 1110 61 10 28
AA 1011 45 7 1 AA 1013 70 13a 3 AA 1110 67 3 93
AA 1011 54 9 35 AA 1013 71 1 6 AA 1110 70 1 93
AA 1011 56 12 15 AA 1013 73 19 24 AA 1110 72 2 27
AA 1011 56 6 17 AA 1013 80 12 25 AA 1110 74 2 28
AA 1011 56 6 19 AA 1013 84 9a 27 AA 1110 76 3 28
AA 1011 57 9 11 AA 1013 85 5 24 AA 1110 77 7 28
AA 1011 62 3 8 AA 1013 87 14 4 AA 1110 88 1 27
AA 1011 68 8 13 AA 1013 91 14 4 AA 1210 06 13 35
AA 1011 93 12 4 AA 1013 92 10 15 AA 1210 07 14 35
AA 1011 94 10 26 AA 1013 94 18 24 AA 1210 09 16 35
AA 1012 05 3 11 AA 1013 96 2 4 AA 1210 10 17 35
AA 1012 06 6 11 AA 1013 96 30 34 AA 1210 35 7a 33
AA 1012 07 4 12 AA 1014 00 7 12 AA 1210 35 7 33
AA 1012 08 10 15 AA 1014 01 8 12 AA 1210 43 15 33
AA 1012 09 4 17 AA 1014 24 3 7 AA 1210 44 16 33
AA 1012 09 4 19 AA 1014 46 6 6 AA 1210 50 17 34
AA 1012 10 4 11 AA 1014 47 4 6 AA 1210 54 2 33
AA 1012 11 5 11 AA 1014 48 5 6 AA 1210 55 4 33
AA 1012 13 12 12 AA 1014 66 1a 4 AA 1210 56 3 33
AA 1012 15 3 17 AA 1014 68 20 5 AA 1210 57 5 33
AA 1012 15 3 19 AA 1014 69 1 11 AA 1210 59 2 35
AA 1012 20 12 27 AA 1014 70 2 11 AA 1210 60 1 35
AA 1012 21 26 2 AA 1014 71 3 11 AA 1210 61 22 34
AA 1012 24 26 18 AA 1014 72 5 11 AA 1210 65 24 34
AA 1012 42 1 8 AA 1014 73 6 11 AA 1210 68 19 81
AA 1012 49 3 1 AA 1014 74 9 11 AA 1210 71 18 34
AA 1012 58 14 16 AA 1014 75 24 5 AA 1210 71 29 34
AA 1012 60 7 16 AA 1014 78 4 11 AA 1210 73 14 33
AA 1012 61 1 16 AA 1014 79 2a 13 AA 1210 82 1 29
AA 1012 62 6 24 AA 1014 81 3a 13 AA 1210 87 25 34
AA 1012 77 29 20 AA 1014 84 4a 13 AA 1210 88 1 33
AA 1012 79 9 25 AA 1014 85 14 4 AA 1310 02 1 21
AA 1012 83 8 25 AA 1014 91 5a 13 AA 1310 04 13 44
AA 1012 86 2 19 AA 1014 92 1 25 AA 1310 06 1 23
AA 1012 88 7 19 AA 1014 97 1 1 AA 1310 14 1 22
AA 1012 89 13 19 AA 101490 1 10 AA 1310 16 12 22
AA 1012 91 25 20 AA 101494 1 1 AA 1310 17 13 22
125
PART INDEX RE4S

AA 1310 24 6 43 AA 1910 19 17 37 AA 2210 09 2 102

AA 1310 25 2 44 AA 1910 20 9 81 AA 2210 10 3 102
AA 1310 31 6 23 AA 1910 21 10 81 AA 2210 14 1 102
AA 1310 33 2 21 AA 1910 22 1 81 AA 2210 15 1 102
AA 1310 37 1 23 AA 1910 26 8 81 AA 2210 16 1 102
AA 1410 04 15 36 AA 1910 32 17 78 AA 2210 17 1 102
AA 1410 05 6 36 AA 1910 36 9 82 AA 2210 18 1 102
AA 1410 06 7 36 AA 1910 39 9 82 AA 2210 19 1 102
AA 1410 08 20 106 AA 1910 39 4 115 AA 2310 02 1 95
AA 1410 08 13 114 AA 1910 40 5 115 AA 2310 11 2 95
AA 1410 14 2 36 AA 1910 41 1 81 AA 2310 22 2 100
AA 1410 16 24 37 AA 1910 42 7 81 AA 2310 26 3 100
AA 1410 16 2 114 AA 1910 44 9 81 AA 2310 28 1 95
AA 1410 20 1 36 AA 1910 46 10 81 AA 2310 46 28a 96
AA 1410 24 3 36 AA 1910 48 16 81 AA 2310 50 1 101
AA 1410 25 30 37 AA 1910 49 1 115 AA 2310 51 11 101
AA 1410 26 31 37 AA 1910 51 10 82 AA 2310 56 12 101
AA 1410 27 36 37 AA 1910 52 1 77 AA 2310 59 16 101
AA 1410 28 33 37 AA 1910 54 1 79 AA 2310 62 1 100
AA 1410 29 37 37 AA 1910 55 8 80 AA 2310 65 13 98
AA 1410 31 32 37 AA 1910 56 8 79 AA 2510 01 14 44
AA 1410 32 38 37 AA 2010 06 12 91 AA 2510 03 15 44
AA 1410 33 39 37 AA 2010 07 1 90 AB 1010 14 16 2
AA 1410 36 34 37 AA 2010 08 13 91 AB 1010 38 5 4
AA 1410 37 35 37 AA 2010 12 6 90 AB 1010 45 1 24
AA 1510 10 1 54 AA 2010 41 13 16 AB 1010 46 6 24
AA 1510 13 1 54 AA 2010 70 2 87 AB 1010 47 5 24
AA 1510 15 1 45 AA 2010 77 7 83 AB 1010 51 11 24
AA 1510 17 4 45 AA 2010 79 11 84 AB 1010 58 4 13
AA 1510 18 7 45 AA 2010 79 10 86 AB 1010 59 12 8
AA 1510 21 12 41 AA 2010 83 3 88 AB 1010 67 3 14
AA 1510 21 1 70 AA 2010 84 1 88 AB 1010 84 4 4
AA 1510 24 12 48 AA 2010 85 5 88 AB 1010 85 14 3
AA 1510 26 1 48 AA 2010 86 1 91 AB 1110 01 1 93
AA 1510 30 1 52 AA 2010 88 23 89 AB 1110 03 2 27
AA 1610 50 25 18 AA 2010 88 24 89 AB 1110 11 10 90
AA 1610 60 11 90 AA 2010 91 1 86 AB 1110 13 2 28
AA 1610 62 20 18 AA 2010 93 1 86 AB 1110 26 7 93
AA 1610 63 21 18 AA 2010 96 7 86 AB 1110 27 8 93
AA 1610 68 4 88 AA 2010 97 8 86 AB 1110 28 9 93
AA 1610 73 17 26 AA 2010 98 9 86 AB 1110 29 10 94
AA 1610 80 16 90 AA 2011 03 16 97 AB 1110 30 11 94
AA 1610 81 17 90 AA 2011 06 10 84 AB 1110 33 13 94
AA 1610 86 6 58 AA 2011 08 11 82 AB 1110 34 7 93
AA 1610 86 16 96 AA 2011 12 6 87 AB 1110 35 8 93
AA 1611 10 1 58 AA 2011 13 7 87 AB 1110 36 9 93
AA 1710 02 2 42 AA 2011 14 6 86 AB 1110 37 10 94
AA 1710 04 1 42 AA 2011 14 9 87 AB 1110 38 11 94
AA 1710 06 3 42 AA 2011 16 5 86 AB 1110 39 12 94
AA 1710 07 4 42 AA 2011 16 10 87 AB 1110 41 13 94
AA 1710 11 10 42 AA 2011 23 12 84 AB 1110 42 7 93
AA 1810 02 1 76 AA 2011 24 8 88 AB 1110 43 8 93
AA 1810 05 11A 115 AA 2011 32 1 116 AB 1110 44 9 93
AA 1910 02 7 81 AA 2011 33 1 116 AB 1110 45 10 94
AA 1910 03 8 81 AA 2011 36 5 90 AB 1110 46 11 94
AA 1910 12 9 79 AA 2011 43 14 100 AB 1110 47 3 27
AA 1910 19 26 34 AA 2011 44 13 84 AB 1110 47 12 94
126
PART INDEX RE4S

AB 1110 49 13 94 AB 1510 95 3 55 AB 2010 15 7 88

AB 1110 50 7 93 AB 151035 1 39 AB 2010 16 1 84
AB 1110 51 8 93 AB 1511 05 13A 48 AB 2010 17 10 91
AB 1110 52 9 93 AB 1511 06 1 51 AB 2010 26 15 90
AB 1110 53 10 94 AB 1610 41 6 91 AB 2010 28 8 88
AB 1110 54 11 94 AB 1610 49 7 91 AB 2010 33 5 91
AB 1110 55 12 94 AB 1610 50 8 91 AB 2010 65 12 63
AB 1110 57 13 94 AB 1610 54 1 60 AB 2010 68 6 84
AB 1110 81 12 94 AB 1611 17 11 51 AB 2010 72 2 84
AB 1111 03 7 93 AB 1611 44 21 61 AB 2010 73 3 84
AB 1111 04 9 93 AB 1611 59 7 63 AB 2010 75 7 50
AB 1111 05 10 94 AB 1611 71 9 51 AB 2310 08 5 100
AB 1111 06 11 94 AB 1611 73 27 49 AB 2310 09 4 100
AB 1210 17 19 34 AB 1611 75 2 58 AB1011 00 19 13
AB 1210 17 13 107 AB 1611 82 2 63 AB1510 52 8 54
AB 1210 19 14 105 AB 1611 83 13 63 AB1610 93 9 54
AB 1210 22 3 29 AB 1611 84 5 52 AB1710 05 9 39
AB 1210 23 5 29 AB 1611 85 6 52 AC 2010 12 1 87
AB 1210 24 9 29 AB 1611 86 8 63 AC 2010 20 2 87
AB 1210 25 10 29 AB 1611 87 3 58 AC 2010 21 3 87
AB 1210 26 12 29 AB 1611 88 1 63 AC 2010 22 2 86
AB 1210 27 15 29 AB 1710 02 10 66 AC 2010 22 2 86
AB 1210 28 16 30 AB 1710 03 1 66 AC 2010 73 1 87
AB 1210 29 25 30 AB 1710 04 2 66 AE 1310 03 3 44
AB 1210 30 26 30 AB 1710 06 10 39 AF 1110 02 7 108
AB 1210 31 30 30 AB 1710 09 18 71 AF 1110 06 9 90
AB 1210 32 29 30 AB 1710 13 5 70 AF 1110 09 1 28
AB 1310 15 2 23 AB 1710 14 6 70 AF 1110 12 1 28
AB 1410 01 11 105 AB 1710 15 7 70 AF 1210 01 12 112
AB 1510 07 9 48 AB 1710 16 15 70 AF 1210 03 9 112
AB 1510 14 3 51 AB 1710 17 24 71 AF 1210 04 1 112
AB 1510 45 13 54 AB 1710 19 3 70 AF 1210 05 31 113
AB 1510 48 3 54 AB 1710 20 15 66 AF 1210 06 22 109
AB 1510 49 2 52 AB 1710 21 17 66 AF 1210 07 31 111
AB 1510 49 4 54 AB 1710 22 13 66 AF 1210 09 5 107
AB 1510 51 5 54 AB 1710 23 14 66 AF 1210 10 6 107
AB 1510 55 4 52 AB 1710 29 19 71 AF 1210 12 14 107
AB 1510 60 11 53 AB 1710 30 10 39 AF 1210 13 16 33
AB 1510 64 2 48 AB 1710 32 8 66 AF 1210 18 4 112
AB 1510 65 3 48 AB 1710 33 8A 66 AF 1210 22 20 34
AB 1510 66 4 48 AB 1810 10 2 75 AF 1210 23 2 112
AB 1510 67 5 48 AB 1810 11 3 75 AF 1210 24 3 112
AB 1510 68 6 48 AB 1810 12 4 75 AF 1210 25 5 112
AB 1510 69 7 48 AB 1810 14 5 75 AF 1210 26 6 112
AB 1510 70 11 48 AB 1810 15 6 75 AF 1210 28 8 112
AB 1510 71 14 48 AB 1810 16 7 75 AF 1210 29 10 112
AB 1510 72 13 48 AB 1810 17 8 75 AF 1210 30 11 112
AB 1510 73 16 49 AB 1810 19 9 75 AF 1210 31 13 112
AB 1510 82 17 71 AB 1810 20 10 75 AF 1210 32 14 112
AB 1510 86 11 54 AB 1810 21 11 75 AF 1210 34 16 113
AB 1510 88 11A 48 AB 1810 22 11 76 AF 1210 36 18 113
AB 1510 89 31 49 AB 1810 23 17 76 AF 1210 38 20 113
AB 1510 90 1A 40 AB 1810 28 1 75 AF 1210 39 33 113
AB 1510 91 1 55 AB 1810 33 5 75 AF 1210 40 34 113
AB 1510 92 2A 40 AB 1810 34 6 75 AF 1210 44 21 113
AB 1510 93 2B 40 AB 1910 24 10 79 AF 1210 45 22 113
AB 1510 94 2 55 AB 2010 06 5 88 AF 1210 46 24 113
127
PART INDEX RE4S

AF 1210 47 1 109 AF 1211 33 14 105 AF 1410 38 9 104

AF 1210 48 2 109 AF 1211 48 27 34 AF 1410 39 10 104
AF 1210 49 3 109 AF 1211 85 1 31 AF 1410 40 11 104
AF 1210 50 4 109 AF 1211 87 21 109 AF 1410 41 12 104
AF 1210 57 5 109 AF 1211 87 26 111 AF 1410 42 13 104
AF 1210 60 7 109 AF 1211 88 7b 33 AF 1410 45 4 114
AF 1210 61 9 109 AF 1211 89 1 29 AF 1510 01 1 53
AF 1210 62 8 109 AF 1211 94 32 34 AF 1610 17 18 103
AF 1210 63 10 109 AF 1211 97 7 107 AF 1610 18 1 103
AF 1210 64 11 109 AF 1212 85 9 31 AF 1610 19 2 103
AF 1210 65 14 109 AF 1212 86 23 32 AF 1610 20 3 103
AF 1210 66 15 109 AF 1212 87 24 32 AF 1610 21 4 103
AF 1210 69 2 110 AF 1212 88 22 32 AF 1610 22 5 103
AF 1210 70 12 109 AF 1212 89 20 31 AF 1610 23 6a 58
AF 1210 71 13 109 AF 1212 90 37 32 AF 1610 23 16 96
AF 1210 72 18 110 AF 1212 91 15 31 AF 1610 25 10 107
AF 1210 73 17 110 AF 1212 92 7 31 AF 1610 29 17 103
AF 1210 74 20 111 AF 1212 93 3 31 AF 1610 36 15 92
AF 1210 75 23 111 AF 1212 94 31 32 AF 1610 37 6 91
AF 1210 76 19 110 AF 1212 95 28 32 AF 1610 38 16 92
AF 1210 77 15 110 AF 1212 96 29 32 AF 1610 39 17 92
AF 1210 78 21 111 AF 1212 97 17 31 AF 1610 40 17 59
AF 1210 79 16 110 AF 1212 98 30 32 AF 1610 40 30 96
AF 1210 80 22 111 AF 1212 99 13 31 AF 1610 41 16 61
AF 1210 82 14 110 AF 1213 00 14 31 AF 1610 63 27 111
AF 1210 84 30 113 AF 1213 01 26 32 AF 1610 73 17 61
AF 1210 85 4 110 AF 1213 02 25 32 AF 1810 01 19 103
AF 1210 86 3 110 AF 1213 03 18 31 AF 2010 01 1 108
AF 1210 87 19 109 AF 1213 04 19 31 AF 2010 08 1 90
AF 1210 88 18 109 AF 1213 05 8 31 AF 2010 09 8 50
AF 1210 89 16 109 AF 1213 06 16 31 AF 2010 10 23 113
AF 1210 90 12 110 AF 1213 07 27 32 AF 2010 12 2 108
AF 1210 91 6 110 AF 1213 08 33 32 AF 2010 13 3 108
AF 1210 92 8 110 AF 1213 09 32 32 AF 2010 15 19 89
AF 1210 93 7 110 AF 1213 10 5 31 AF 2010 18 10 108
AF 1210 94 9 110 AF 1213 11 4 31 AF 2010 21 1 91
AF 1210 95 10 110 AF 1213 12 36 32 AF 2010 23 6 114
AF 1210 96 11 110 AF 1213 13 34 32 AF 2010 27 14 92
AF 1211 01 15 112 AF 1213 14 6 31 AF 2010 35 12 88
AF 1211 04 25 113 AF 1410 03 15 105 AF 2010 36 1 90
AF 1211 05 26 113 AF 1410 05 1 105 AF 2010 39 7 88
AF 1211 06 27 113 AF 1410 06 12 105 AF 2010 40 9 83
AF 1211 07 28 113 AF 1410 07 13 105 AF 2010 53 10 108
AF 1211 08 29 113 AF 1410 08 1 104 AF 2010 55 10 86
AF 1211 09 7 112 AF 1410 09 2 104 AF 2010 57 11a 82
AF 1211 12 17 109 AF 1410 10 3 104 AF 2010 61 15 89
AF 1211 14 25 111 AF 1410 13 15 105 AF 2310 02 1 95
AF 1211 16 24 111 AF 1410 15 1 105 AF 2310 06 11 103
AF 1211 20 4 107 AF 1410 21 6 103 AF 2310 07 12 103
AF 1211 24 5 110 AF 1410 30 14 104 AF 2310 08 13 103
AF 1211 25 19 113 AF 1410 31 15 104 AF 2310 09 14 103
AF 1211 26 17 113 AF 1410 32 6 103 AF 2310 10 15 103
AF 1211 27 32 113 AF 1410 33 4 104 AF 2310 11 21 103
AF 1211 28 13 110 AF 1410 34 5 104 AF 2310 32 1 95
AF 1211 29 1 110 AF 1410 35 6 104 AF 2310 34 28b 96
AF 1211 30 6 109 AF 1410 36 7 104 AJ 1410 01 1 114
AF 1211 31 20 109 AF 1410 37 8 104 AJ 1210 02 16 8
128
PART INDEX RE4S

AJ 1410 04 7 114 BA 1910 46 9 77

AJ 1410 06 3 114 BA 2010 01 5 91
AJ 2010 12 13 91 BA 2010 06 14 4
AK 1610 10 1 60 BA 2010 23 7 90
AK 2010 09 1 91 BA 2010 29 9 85
AK 2010 11 1 91 BA 2010 33 7 50
AK 2010 12 2 91 BA 2010 40 10 36
AL 1611 55 8 115 BA 2010 44 13 85
AL 1611 60 9 115 BA 2010 45 16 37
AL 1611 61 10 115 BA 2010 47 1 85
AL 1611 71 11 115 BA 2010 48 8 85
AL 1611 72 12 115 BA 2010 60 7 50
AL 1611 73 7 118 BA 2010 67 5 91
AL 1611 80 21 117 BA 2010 76 1 88
AL 1611 83 1 58 BA 2010 87 11 86
AL 1611 91 18 117 BA 2310 10 31 96
AL 1612 01 17 100 BA 2310 13 32 96
AL 1910 28 2 115 BA 2310 25 21 96
AL 1910 29 18 115 BA 2310 29 20 96
AL 2010 15 10 116 BA 2310 37 15 98
AL 2010 17 10 116 BA 2310 38 16 99
AL 2010 32 3 116 BA 2310 44 24 96
AL 2010 43 6 116 BA 2310 45 23 96
AL 2010 44 7 116 BA 2310 48 21 99
AL 2210 11 1 102 BA 2310 50 28 96
AL 2410 23 6 100 BA 2310 51 27 96
AL 2410 29 16 100 BA 2310 52 13 62
AL 2410 33 7 100 BA 2310 52 9 97
AM 1510 02 1 54 BA 2310 58 2 95
AM 2010 03 16 114 BA 2310 76 21 99
AM 2010 06 10 86 CB 1611 05 20 59
AM 2010 09 13 88 CE 1810 15 6 115
AM 2010 10 14 88 CL 1010 21 8 116
AM 2010 36 17 61 CL 2010 22 9 116
BA 1011 66 9 107 CL 2010 23 2 116
BA 1021 60 12 26 CL 2210 28 1 102
BA 1220 03 17 106 CR 1210 26 35 32
BA 1220 44 9 50 CR 1210 28 11 31
BA 1220 62 31 34 CR 1210 29 12 31
BA 1321 10 16 43 CR 1210 52 10 31
BA 1321 11 9 43 CR 1210 53 2 31
BA 1321 12 7 43 DB 1010 52 3 25
BA 1321 41 3 16 DD 1210 07 22 5
BA 1321 71 2 43 DD 1210 13 14 36
BA 1321 72 1 43 DD 1210 28 16 30
BA 1321 73 13 43 DD 1410 13 5 114
BA 1510 03 1 53 DD 1610 13 18 81
BA 1510 04 1 54 DG 2010 84 2 91
BA 1510 05 12 51
BA 1610 29 20 92
BA 1610 46 2 101
BA 1710 02 2 68
BA 1810 04 1 73
BA 1910 11 11 81
BA 1910 29 2 51
BA 1910 40 6 79
BA 1910 41 15 79
129

Genuine bajaj spares ensure optimum performance

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Genuine bajaj spares ensure optimum performance

Uploaded by

Copyright:

Available Formats

NOTICE

DOC. NO. 36 0204 08 REV. NO. 00, April '05

In a continual effort to improve performance and efficiency of the vehicle, specifications,

Bajaj Auto Limited

3. Part number system:

4. Abbreviations : The following abbreviations are used in this catalogue.

assly. Assembly V Volts

PLATE DESCRIPTION PAGE PLATE DESCRIPTION PAGE

Bajaj Auto Limited

Fig. Part No. Description Qty/ Veh. Remark

1 AA 1014 97 Engine Assly. comp. 1 -- --

6 39 1013 21 'O' ring 1 1 1

11 39 1214 20 Ball bearing 1 1 1

Fig. Part No. Description Qty/ Veh. Remark

17 39 1062 04 Screw pan cross 2 2 2

21 AA 1013 28 Gasket (Crankcase) 1 1 1

26 AA 1012 21 Tube assly. 1 1 1

Fig. Part No. Description Qty/ Veh. Remark

6 39 1716 19 Oil seal 1 1 1

11 39 1075 04 Flanged bolt 1 1 1

Fig. Part No. Description Qty/ Veh. Remark

6 AA 1010 76 Dip stick clutch cover 1 1 1

11 39 1721 04 Flanged bolt (88 long ) 3 3 3

Fig. Part No. Description Qty/ Veh. Remark

15 39 2361 05 Stud 1 1 1 From March. 01

16 39 0198 11 Plain washer 1 1 1

Fig. Part No. Description Qty/ Veh. Remark

1 AA 1013 71 Cylinder block with liner(std) 1 1 1 From Sept.03

Fig. Part No. Description Qty/ Veh. Remark

1 AA 1010 33 Crank shaft assly 1 1 1

6 AA 1011 38 Plunger oil 1 1 1

Fig. Part No. Description Qty/ Veh. Remark

11 39 1263 21 'O' ring 2 2 2

16 AJ 1210 02 Inlet Manifold 1 -- -- For USA Market

Fig. Part No. Description Qty/ Veh. Remark

1 13 1010 22 Valve Intake 1 1 1

6 31 1010 18 Retainer valve spring 2 2 2

11 AA 1011 37 Rocker Arm shaft 1 2 2 For Intake

Fig. Part No. Description Qty/ Veh. Remark

1 AA 101490 Camshaft assly 1 -- -- For USA Market

6 AA 1011 34 Guide chain - T.S. 1 1 1

11 31 1010 29 Collar 1 1 -- N.I.

16 39 1014 21 Ring 'O' 1 1 1 For 28 1012 20 & AA 1013 65

Fig. Part No. Description Qty/ Veh. Remark

1 AA 1014 69 Clutch comp 1 1 1 From Dec.03

6 AA 1014 73 Hub clutch 1 1 1 For AA 1014 69

Fig. Part No. Description Qty/ Veh. Remark

1 AA 1010 63 Clutch housing assly 1 1 1

11 39 2008 11 Plain washer 1 1 1

Fig. Part No. Description Qty/ Veh. Remark

1 AA 1010 73 Rod push 1 1 1

6 39 0198 11 Plain washer 2 1 1 For mounting release clutch outer

11 39 0793 15 Hex. lock nut 1 1 1

Fig. Part No. Description Qty/ Veh. Remark

1 AA 1010 48 Main shaft 1 1 1

6 39 0213 11 Plain washer 1 1 1

Fig. Part No. Description Qty/ Veh. Remark

1 AA 1010 50 1st speed gear 1 1 1

11 AA 1010 46 Multiple gear 1 1 1

Fig. Part No. Description Qty/ Veh. Remark

1 AA 1012 61 Sector with lever 1 1 1

6 39 0426 06 Spring type straight pin 1 1 1
