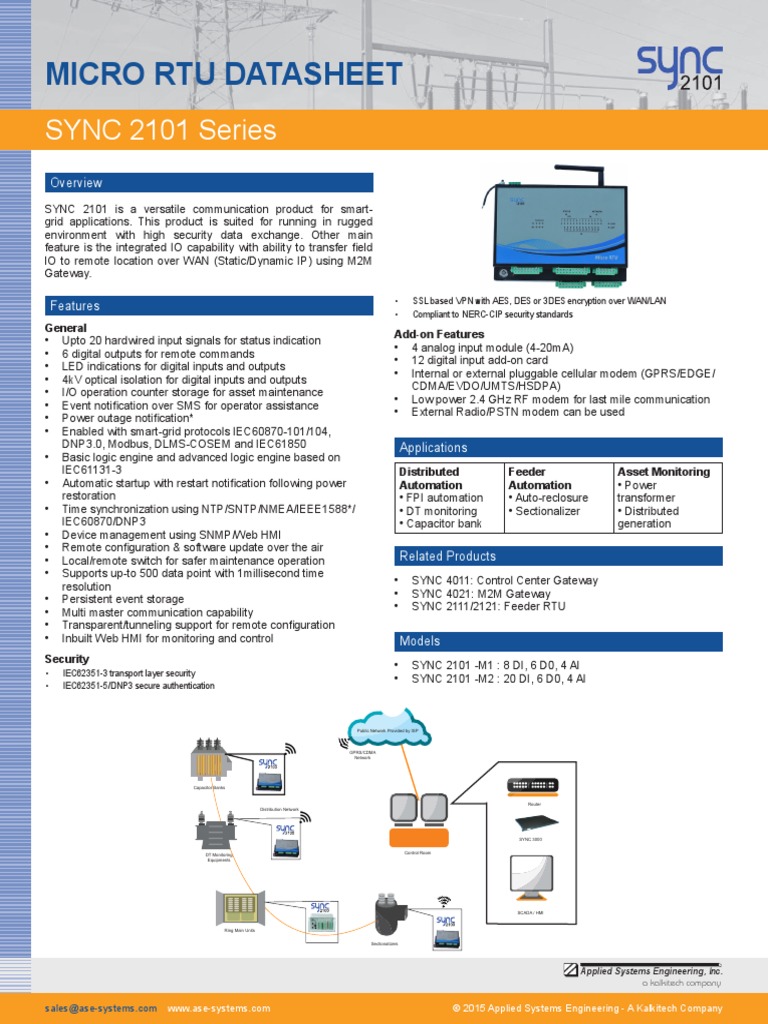

MICRO RTU DATASHEET

SYNC 2101 Series

Overview

SYNC 2101 is a versatile communication product for smart-

grid applications. This product is suited for running in rugged
environment with high security data exchange. Other main
feature is the integrated IO capability with ability to transfer field
IO to remote location over WAN (Static/Dynamic IP) using M2M
Gateway.

• SSL based VPN with AES, DES or 3DES encryption over WAN/LAN
Features
• Compliant to NERC-CIP security standards
General
• Upto 20 hardwired input signals for status indication Add-on Features
• 6 digital outputs for remote commands • 4 analog input module (4-20mA)
• LED indications for digital inputs and outputs • 12 digital input add-on card
• 4kV optical isolation for digital inputs and outputs • Internal or external pluggable cellular modem (GPRS/EDGE/
• I/O operation counter storage for asset maintenance CDMA/EVDO/UMTS/HSDPA)
• Event notification over SMS for operator assistance • Low power 2.4 GHz RF modem for last mile communication
• Power outage notification* • External Radio/PSTN modem can be used
• Enabled with smart-grid protocols IEC60870-101/104,
DNP3.0, Modbus, DLMS-COSEM and IEC61850 Applications
• Basic logic engine and advanced logic engine based on
IEC61131-3 Distributed Feeder Asset Monitoring
• Automatic startup with restart notification following power Automation Automation • Power
restoration • FPI automation • Auto-reclosure transformer
• Time synchronization using NTP/SNTP/NMEA/IEEE1588*/ • DT monitoring • Sectionalizer • Distributed
IEC60870/DNP3 • Capacitor bank generation
• Device management using SNMP/Web HMI
• Remote configuration & software update over the air
• Local/remote switch for safer maintenance operation Related Products
• Supports up-to 500 data point with 1millisecond time
resolution • SYNC 4011: Control Center Gateway
• Persistent event storage • SYNC 4021: M2M Gateway
• Multi master communication capability • SYNC 2111/2121: Feeder RTU
• Transparent/tunneling support for remote configuration
• Inbuilt Web HMI for monitoring and control Models
Security
• SYNC 2101 -M1 : 8 DI, 6 D0, 4 AI
• IEC62351-3 transport layer security
• SYNC 2101 -M2 : 20 DI, 6 D0, 4 AI
• IEC62351-5/DNP3 secure authentication

Capacitor
Public Network Banksby ISP
Provided

GPRS/CDMA
Network

Capacitor Banks

Router
Distribution Network

SYNC 3000

DT Monitoring Control Room

Equipments

SCADA / HMI

Ring Main Units

Sectionalizers

Applied Systems Engineering, Inc.

a kalkitech company

sales@ase-systems.com www.ase-systems.com © 2015 Applied Systems Engineering - A Kalkitech Company

 Micro RTU SPECIFICATION SHEET
General
EasyConnect configuration utility/SNMP and SSH interface over secure network.
Management FOTA support over GPRS/EDGE/CDMA/EVDO/UMTS/HSDPA
Inbuilt Web HMI for monitoring and control
Maintenance Direct over debug port or console port
System Protocols TCP/IP, UDP/IP, SMTP, POP, HTTP, FTP, SNMP, ICMP, DHCP, BOOTP, Telnet, DNS,ARP, PPPoE, DDNS
Application Protocol IEC 60870-5-101/104, DNP3 serial/TCP, Modbus RTU.TCP, DLMS, IEC61850 and many more
LED Indications LAN ready, data transfer, serial port RX/TX status, power, IO point status
NERC/CIP compliant, SSHv2
Security SSL based VPN tunnel using Blowfish/AES/3DES
IEC62351-3, IEC62351-5
Basic logic engine with AND/OR/NOT/Bit SHIFT/Split/Index support for digital and analog data delay operations.
Logic Programming
Advanced logic based on IEC61131-3
Serial
DB9 - 2 connectors 1 RS232, 1 RS232/485
Ports
Combicon terminal block - 1 connector 1 RS485
Data Rate 110 bps - 38.4 kbps
Ethernet
Ports 1 RJ45
Physical Layer 10/100 Base-T auto sensing
Isolation 1500VAC min as per IEEE802.3/ANSI X3.263
I/O Interfaces
8DI 24/48VDC
Default Option
6DO 2.5-5A, 24/48VDC
4AI card, 4-20mA
Add-on Option
12DI card, 24/48VDC
Digital Input Isolation 4kV optical
Digital Output Isolation 4kV optical
Power Requirements
Option 1: PS-ACDC
85-266VAC (50/60Hz), 120-370VDC
Option 2: PS-DC1
Power Supply
19-70VDC
Option 3: PS-DC2
9-34VDC
Main Card 4Watt
Internal Modem 4Watt
Consumption
Details 8DI, 6DO 2Watt
4AI (Option) 2Watt
12DI (Option) 1Watt
Plug-in Modem
Internal GPRS/EDGE/CDMA/EVDO/UMTS/HSDPA
External Radio modem, PSTN modem
Physical
Dimensions (H x W x D) 140mm x 240mm x 60mm
Mounting Wall/din rail
Weight 800 grams
Default Enclosure IP20
Optional Enclosure IP55
Environmental
Operating Temperature -10°C to 70°C (14°F to 158°F)
Storage Temperature -20°C to 80°C (-4°F to 176°F)
Relative Humidity 5% - 95% RH non condensing

<<<
* Need to order separately

Please contact us for pricing details. ASE Version 4.02.052015
