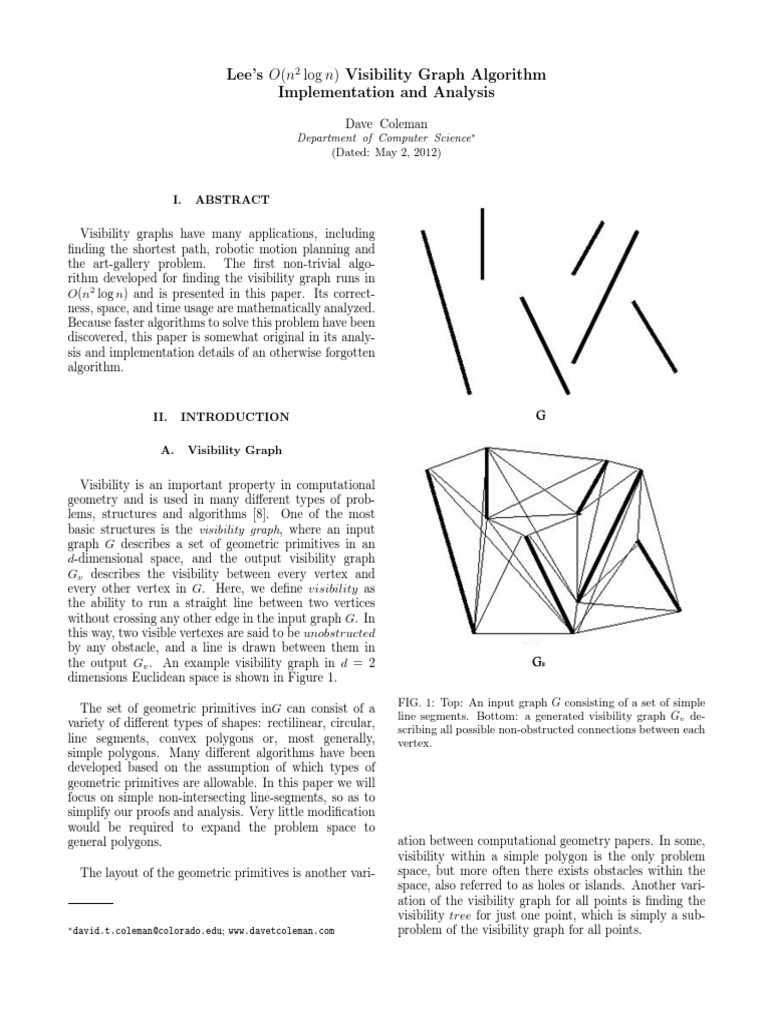

Lee’s O(n2 log n) Visibility Graph Algorithm

Implementation and Analysis

Dave Coleman
Department of Computer Science∗
(Dated: May 2, 2012)

I. ABSTRACT

Visibility graphs have many applications, including

finding the shortest path, robotic motion planning and
the art-gallery problem. The first non-trivial algo-
rithm developed for finding the visibility graph runs in
O(n2 log n) and is presented in this paper. Its correct-
ness, space, and time usage are mathematically analyzed.
Because faster algorithms to solve this problem have been
discovered, this paper is somewhat original in its analy-
sis and implementation details of an otherwise forgotten
algorithm.

II. INTRODUCTION

A. Visibility Graph

Visibility is an important property in computational

geometry and is used in many different types of prob-
lems, structures and algorithms [8]. One of the most
basic structures is the visibility graph, where an input
graph G describes a set of geometric primitives in an
d-dimensional space, and the output visibility graph
Gv describes the visibility between every vertex and
every other vertex in G. Here, we define visibility as
the ability to run a straight line between two vertices
without crossing any other edge in the input graph G. In
this way, two visible vertexes are said to be unobstructed
by any obstacle, and a line is drawn between them in
the output Gv . An example visibility graph in d = 2
dimensions Euclidean space is shown in Figure 1.
FIG. 1: Top: An input graph G consisting of a set of simple
The set of geometric primitives inG can consist of a
line segments. Bottom: a generated visibility graph Gv de-
variety of different types of shapes: rectilinear, circular, scribing all possible non-obstructed connections between each
line segments, convex polygons or, most generally, vertex.
simple polygons. Many different algorithms have been
developed based on the assumption of which types of
geometric primitives are allowable. In this paper we will
focus on simple non-intersecting line-segments, so as to
simplify our proofs and analysis. Very little modification
would be required to expand the problem space to
general polygons. ation between computational geometry papers. In some,
visibility within a simple polygon is the only problem
The layout of the geometric primitives is another vari- space, but more often there exists obstacles within the
space, also referred to as holes or islands. Another vari-
ation of the visibility graph for all points is finding the
visibility tree for just one point, which is simply a sub-
∗ david.t.coleman@colorado.edu; www.davetcoleman.com problem of the visibility graph for all points.

B. Applications
Visibility graphs are most often thought of for use in
Euclidean shortest-path problems, were a start point s
and end point t are given and the task is to find the
optimal continuous path through the obstacle space
without violating physical constraints. This application
exploits the fact that the shortest paths are found on
the arcs of the visibility graph. Once the visibility graph
has been constructed, the shortest path problem can
be trivially solved using well known algorithms such
as Dijkstra’s [6], A* search[5], or Floyd-Warshall [3]
algorithms.
Robotic motion planning is a common sub problem
of the shortest path problem, as demonstrated in
Lozano-Perez and Wesley’s 1979 collision-free paths
algorithm [11]. One of the most famous examples
of visibility graphs used in robotic motion planning
is Shakey the Robot [11]. However, the application
of visibility graphs realistically limits the workspace
to two dimensions and is generally computationally
intractable for modern real-world robotics problems.
Sampling-based approaches are considered the current
state of the art and, although unable to determine
that no path exists, have a probability of failure that
decreases to zero as more computational time is spent [7].
Additional applications of visibility graphs include
finding the minimum dominating set to help solve the art
gallery problem and in solving pursuer-evader problems
[10]. Finally, visibility graphs can be used to optimize ra-
dio antenna placement, urban planning and architectural
design [1].
C. History
The naive approach to computing the visibility of a
graph runs in O(n3 ) times. The first non-trivial solution
to this problem was developed by D.T. Lee in his 1978
Ph.D. dissertation that ran in O(n2 log n) time [9]. The
solution is included at the end of his thesis as somewhat
of a side thought and it has since then received very
little attention in the computational geometry field.
Only available upon email request, the typed report
includes hand-written edits and drawings. This is the
algorithm that will be analyzed in this paper.
In the 1980’s a large number of O(n2 ) visibility graph
papers were published, most of which entailed a topo-
logical sort of the vertex pairs. E. Welzl in particular
described this technique using an arrangement of the
dual of the vertices that required O(n2 ) working space
[13]. The working storage of the topological sweep was
later improved to O(n) by Edelsbrunner and Guibas
[2]. Further improvements included handling dynamic
updates of the workspace, using less running time on
2
average, or handle sparse graphs more efficiently. One of
the last papers published on visibility graphs during this
time period achieved O(|e| + n log n) time bounds, which
are output-sensitive algorithms optimal for graphs of a
certain minimum density threshold [4].
III. METHODS
A. Description of the Algorithm
Lee’s O(n2 log n) algorithm computes the visibility
graph Gv from G(V, E) by computing the visibility
graph of a single vertex n times. For each vertex vi ∈ V ,
the visibility of all other vertices is calculated by 1)
sorting all surrounding vertices in angular order from
some starting scan line, 2) using a rotating plane sweep
technique to visit each vertex in angular order and 3)
keeping track of the distance of each surrounding line
segment on the scan line in a sorted data structure. The
following details these 3 procedures:
For each vi ∈ V a visibility tree is generated describing
the visibility of all other points vj ∈ V − vi with respect
to vi . Each visibility tree is created by setting vi to
be the center vertex c. A starting scan line vector ~s is
initialized for each c, with the origin of the vector at c.
Its direction is irrelevant for the algorithm but in this
paper and implementation ~s will be assumed to be the
horizontal unit vector î pointing straight and to the
right from c, i.e. ~s = î = [1, 0].
From scan line ~s = î we calculate the counter clockwise
angle θi = angle(~sc→vi , î) for every vertex vi ∈ V − c.
The angles are inserted to an optimally sorted data
structure A from smallest to largest.
FIG. 2: Example of an initialized edge list with all edges that
intersect scan line s. Image courtesy of [8]
A second optimally sorted data structure Es is
initialized containing all the line segments li ∈ E that
intersect scan line ~s at the start of the algorithm. This
operation requires |E| checks, calculating if ~s and line
segment li intersect. The line segments that are found

to intersect are inserted into Es with their keys being
the distance from c to the intersection point v[i,i−1]
such that the root of the sorted data structure always
contains the edge closest to c. We can intuitively see
that this root edge is the only edge visible from c at this
scan line instance. Figure 2 depicts an initialized scan
list, though in this example vector ~s is not horizontal.
After the initialization phase the algorithm visits
every vertex vi in order of θi in A. The scan line does
not have to actually visit every angle in the circle, but
only those θi where a vertex vi intersects ~s. For each
vi scanned, the algorithm decides if its corresponding
line segment lvi ,vi +1 is the first or last vertex seen of
its corresponding li . If it is the first vertex seen, then
lvi ,vi +1 is added to Es and is considered open. If it is
the second vertex seen, or if it was initialized as open on
~s0 , then it is removed from Es and is considered closed.
For each visited vi , a check is made to see if vi is
the root of Es , signifying that vi is the closest vertex
to c with respect to ~s. If vi has this property, then
vi is considered visible and is added to the visibility
graph Gv ; otherwise it is obscured by some other edge
appearing before it, with respect to c, and is ignored.
In this way every visible vertex with respect to c is
found and a visibility tree is generated for some vi . This
process is repeated n times to build a complete visibility
graph.
B. Runtime
The asymptotic runtime of Lee’s algorithm is analyzed
in the following. The algorithm has four for-loops as well
as the operations of the optimal sorting data structure.
An outer for-loop iterates once through n = |V | = 2|E|
points, finding the visibility tree for every point.
Within the outer for loop, each end point pair for
every |E| line segments are inserted into the optimal
sorting data structure A. Insert, delete, and find all
take O(log n) time using a probabilistic structure such
as a skip list, or balance binary search tree, such as
an AVL tree. Thus, the insertion time for A takes
2|E| log n = O(n log n).
Next, the sweep line edge list Es is initialized by
checking all |E| edges in G for intersection with ~s = î.
The edge list Es uses the same data structure as A, and
thus all insertions take O(log n) time. In the worse case,
all |E| edges intersect ~s at some θi , so the total runtime
for this step is O(|E| log |E|). There are twice as many
vertices as edges, and so because |E| < |V |, this runtime
is asymptotically overshadowed by the previous step and
can be ignored.
3
Finally, the sweeping for-loop begins its check of every
vi ∈ V − c points. At each vertex a line is either inserted
into or removed from Es once, requiring again O(log n)
time for each operation. Thus the total running time for
this step is also (n − 1) log n = O(n log n).
With these three steps and the outer for-
loop combined, our summed running time is
O(n · (.5n + n + n − 1) · log n), which asymptoti-
cally reduces to simply O(n2 log n).
C. Space Requirements
The space requirements of Lee’s algorithm is analyzed
in the following. The input graph G requires O(V + E)
space, but we will assume that the input graph is not
included in our space requirements.
Two optimum sorting data structures are needed in
the algorithm - A and Es . D.T. Lee’s original paper sug-
gested an AVL tree be used; in our implementation we
have used a skip list. Regardless, both use O(n) space,
totaling 2O(n). Because each θi is inserted into A once,
n = |V | for datastructure A. In the worse case all edges
are intersected by ~s at the same time, making Es have
size n = |E| = .5|V |. No other memory is used in the
algorithm, so the total overall space requirements, not in-
cluding the input graph, is O(1.5|V |), which is equivalent
to simply O(n).
D. Analysis of Correctness
We begin our proof of correctness of Lee’s O(n2 log n)
algorithm by defining the components of the algorithm.
Definition 1. A visibility graph Gv = (V, Ev ) is the set
of all vertices V in input graph G, and the set of edges
Ev which connects two vertices vi , vj ∈ V without inter-
secting any obstacles, for all vi , vj ∈ V . We assume that
two endpoints i and j of the same line are also considered
visible. We restrict our obstacle set to the |E| disjoint
line segments, in any direction.
Definition 2. The line sweep vector ~s is a vector with
its origin at some point c ∈ V that rotates starting from
direction î a full 2π radians.
Definition 3. A line segment li is an obstacle in the
2 dimensional problem space defined between vertices vi
and vi−1 .
Definition 4. The set Es contains all li that intersect
with ~s originating at point c, ordered in decreasing Eu-
clidean distance from c to li .

The above definitions we will now begin to prove the
algorithms’ correctness by observing the existence of
optimal substructure of the visibility graph:
Lemma 1. The visibility tree containing set of all edges
Ei connecting a single point vi to all other visible points
vj ∈ V − vi , with respect to the single point vi , is a sub-
solution to finding the visibility graph of all points vj ∈ V
in G.
Proof. Assume the visibility tree Ei for some vi is gener-
ated correctly every time. For N = 1 points, by the just
stated assumption no other endpoint vj of a line segment
is visible from that N = 1 point that is not already in the
set Ei=1 . For N = 2 points, following the same assump-
tion, no point will be visible to those N = 2 points that
is not already in the combined visibility tree set Ei=[1,2] .
For N = |V | points, it follows that no point in V will be
visible from any other point in V that is not already in
the set Ei=1→N . In this case our above definition of a
visibility graph is satisfied and our N sub-solutions have
resulted in correctly finding the visibility graph Gv for
all points vj ∈ V .
Lemma 1 assumed that the set of edges Ei defining a
visibility tree, for some vertex i, was generated correctly
every time. We now prove our algorithm for this
subproblem. We begin by defining the assumptions of
our scan line method:
Lemma 2. No more than one obstacle is visible at any
time from a center point c with respect to the direction of
a scan line vector ~s at any angle in Euclidean space.
Proof. A Euclidean vector is defined as a geometric ob-
ject that has a direction and length (or magnitude), but
it does not itself have a width, or at least the width could
be considered infinitely narrow. An infinitely narrow seg-
ment of a directional vector could not be obstructed by
more than n = 1 geometric element at a time because
otherwise the combined width of n > 1 geometric ele-
ments would have to be infinitely small. The combined
width of two objects would be greater than infinitely
small. Therefore, because obstacles in our problem space
are assumed to be line segments, our lemma stands.
Corollary 1. The intersection point of ~s and li ∈ Es
with the minimum Euclidean distance to c is the only
line segment visible.
Proof. Although ~s may cross several li ∈ Es , by Lemma
2 we know only one point can have the visible property
for a given ~s, and by the definition of visibility we know
it must be the first line segment it reaches. The first line
segment a vector crosses from some point c is the segment
closest in Euclidean distance.
4
With Lemma 2 and Corollary 1 we have proved
the correctness of the results of scan line ~s at one θi .
We will now expand our proof to all θ ∈ 2π and our
discretization method.
Lemma 3. No change is made in the visibility of any
line segment with respect to ~s except when ~s intersects
an end point of some line segments.
Proof. By contradiction. Assume the set Es correctly
contains all line segments that intersect some vector ~s
and assume ~s is at some θa that does not intersect any
end points ∀vi ∈ V . The only way to change the visibility
of a line segment at ~s would be to remove the first line
segment Es because this is the line segment closest to
c. Suppose we removed this line segment, despite having
no vi in intersection with ~s. Then there exists a li that
intersects ~s and Es violates definition 4 defining what Es
must contain, and by contradiction this lemma is proved.
Corollary 2. In the non-discrete angular space θ be-
tween 0 and 2π, our scan line need only check |V | − 1
discrete steps where θi = angle(~sc→vi , î),.
Proof. Following from Lemma 3, no changes in visibility
occur with respect to the rotation of ~s around c except
when ~s intersects an end point vi , and there are only
|V | − 1 endpoints around c so it follows that only |V | − 1
angles of θi need to be checked.
The utility of a scan line is now sufficiently proven by
Lemma 3 and Corollary 2. The mechanism for tracking
the removal and insertion of lines into Es is now proved:
Lemma 4. A line segment li with an end point vi in
intersection with ~s must be added to the set Es if the op-
posite end point vi−1 of li has not previously been visited
(the line was ”closed”). Otherwise, if it has been previ-
ously visited, li must be removed from the set Es (the line
was ”open”).
Proof. Following the stated assumption that ~s rotates in
a counter clockwise direction, and recalling that at ini-
tialization all li in intersection with ~s are added to Es
and marked as open, it can be observed that Lemma 4 is
required to maintain Definition 4, that Es must contain
all line segments that intersect ~s.
Using Lemmas 1 to 4 and Corollaries 1 and 2 the
following theorem is supported:
Theorem 1. Given a set of n disjoint line segments
in the Euclidean plane, the visibility graph can be con-
structed correctly in O(n2 log n) time using the rotational
sweep method in Lee’s algorithm.

IV. RESULTS
A. Implementation
The O(n2 log n) algorithm was implemented in
C++ and visualized/animated using the open source,
cross-platform CImg graphics library. With the graph-
ics library we were able to visually verify geometric
results such as shown in Figure 3. The full source
code is appended at the end of this paper and is
available as an open source project online at https:
//github.com/davetcoleman/visibility_graph
FIG. 3: Test input graph of 8 line segments (white) and the
generated visibility graph of Ev lines (blue)
B. Skip Lists
D.T. Lee’s original paper suggested an AVL tree
data tree structure be used, but his paper was pub-
lished before the invention of skip lists in 1989 by
W. Pugh [12]. In this implementation we chose to
use a skip list due to its average case performance
and advantage in concurrent access and modifications.
However, a unique property of our algorithm required
special modification to the skip list such that the key
values of data already in the skip list are variable.
That is to say, the value of each element in the skip
list changes as the scan line rotates around some center c.
The need for this property is motivated in Figure 4.
In this example line l1 is the first line segment that scan
5
line ~s would visit and so it would be inserted into the
skip list Es with the distance d1 from its first endpoint
to c. Next, the scan line would visit the first endpoint
of l2 and it would add l2 to Es with distance d2 . Thus,
Es would have as its first ordered line segment l1 , and
for its seconds l2 . But by definition 4, Es should have
as its first line segment the segment closest to c, and at
scan line ~s0 the closest intersecting line segment is now
actually l2 . As it is now clear, in our current example
the ordering of Es would be incorrect at location ~s0
unless there was some way to update the value of l1 to
reflect its distance from c with respect to θi of ~s0 .
FIG. 4: Line l1 originally was the closest point to c, but at
scan line ~s0 line l2 covers l1 . This demonstrates the need for
elements variable values in the skip list.
This might seem like an impossible property of a skip
list, but in fact there is an additional property that
states that the ordering of the items in the skip list
are guaranteed not to change, just the values. In other
words, although l1 at angle θi has an intersection with
~s0 that is a greater distance than that of l2 from c, the
ordering of l1 in Es with respect to all other open line
segments in Es would remain unchanged due to the
assumption that no line segments can intersect in our
problem space.
Therefore, in implementing the actual visibility graph,
each line segment was represented as an object that
could quickly re-calculate its intersection with ~s and
then distance to c. This was accomplished by caching
the slope m and y-intercept b at the initialization of the
 6

line object, as well as caching the resultant distance d

from c for every θi such that d is only calculated once
for every thetai .

C. Precision Errors

Another issue with our implementation was rounding

errors that occurred when calculating the angles between
two close points. This was especially problematic as
we increased the number of line segments added to our
finitely-sized graphics window. Sometimes two unique
points would be added to the angle list A with the same
angle because of rounding errors, and the result was
that some points were mistakenly added as visible.

Particularly problematic were perfectly horizontal and

vertical lines. With vertical lines the slope m would tend
to infinity, but in this implementation it was faked with
some very large number. In the same way, a horizontal
line has a slope with an infinitely small m, and this again
suffered from the limitations of our computer hardware. FIG. 5: An example generated problem space for nx =
(b(10n )1/2 c)2 line segments, with randomly chosen shapes.

D. Numerical Time Usage

run time is both the worst- and average-case for this al-
To calculate the numerical time usage of this algo- gorithm because all points are always added to A and E
rithm, the source code was modified to automatically and all points are always visited to generate their indi-
generate a set of n line segments. To test the runtime vidual visibility tree.
with exponentially increasing problem space it was
instrumented to generate approximately n = 10x line
segments. However, to ensure a useful test set was
generated without intersection, each line segment was
constrained to a grid area. Within each line segment’s
grid, padding was added to allow more visibility between
grids. Additionally, 4 shapes were used inside the grids:
a horizontal, vertical, diagonal increasing and diagonal
decreasing line segment. Which of the 4 was chosen was
decided at random, such that every test was run on a
problem set with a high probability of being unique.
Because of the gridded nature of the problem space,
in reality only nx = (b(10n )1/2 c)2 line segments were
added. An example of an automatically generated
problem space is shown in Figure 5.

With this setup, the numerical time usage was

measured by counting the number of atomic operations
within both the algorithm and the skip lists. The
algorithm was tested for n = 101 → 103.5 . At problem
size n = 104 the algorithm crashed on both our laptop
and on a node on the Janus super computer. This, FIG. 6: Atomic operations of Lee’s visibility graph algorithm
however, is mostly due to some memory leaks that were for increasing number of line segments n.
problematic to patch.

The results of the atomic operations measurements are Further visual results of the algorithm running for
shown in Figure 6. Our data showed performance that n = 100 line segments is shown in Figure 7 and for
was very tightly bound to a run time of O(n2 log n). This n = 1000 line segments in Figure 8.

FIG. 7: Generated visibility graph for n = 100 line segments.
FIG. 8: Generated visibility graph for n = 1000 line seg-
ments.
E. Numerical Space Usage
The numerical space usage of this algorithm was
measured by tracking the maximum number of nodes
from both skip lists combined at any point in the
algorithm. Here, we define a node as a level in the
skip list structure, such that a root with 3 levels is
7
considered to use 3 atomic memory amounts. A memory
counter was incremented for every new node created,
and decremented for every node deleted. A secondary
counter was used to track the maximum amount of
memory used at any point in the algorithm’s progress.
The results are shown in Figure 9. As expected, the
memory usage was on the order of O(n).
FIG. 9: Measured space usage of Lee’s visibility graph algo-
rithm. The upper and lower dotted line bounds are multiplied
by constants of 3 and 7, respectively.
V. CONCLUSIONS
There exists many additional optimization tweaks
that could be applied to this algorithm. One such
optimization is to limit the scan line rotation to only
half the circle, from the observation that visibility
between a pair is mutual. Other optimizations could be
made in the geometric calculations such as studying the
performance advantages between finding the distance
using the line-of-sine method versus the intersection
method and dealing with slopes of negative and positive
infinity. Lastly, the dynamic-valued skip list structure
discussed in section IV. B. requires a large number of
distance calculations at every rotation of the scan line,
and could be reduced by only checking a vertices’ change
in distance immediately around the skip lists’ chosen
insertion point for a new line segment. While simple
in explanation, it would be complicated in required
modification to the skip list algorithm.
In this paper we have explained, analyzed, proved and
implemented D.T. Lee’s 1978 visibility graph algorithm.
As explained in the introduction, faster algorithms
have been developed that run on O(n2 ) time and other

optimizations have been discovered for special case
problems where certain geometric tricks can be utilized.
However, basic applications such as the shortest path
planning problem with no more than order O(n3 ) line
segments has been shown in this paper section to be
feasible with this algorithm and in our experiments have
generated visibility graphs in seconds.
[1] Burcin Cem Arabacioglu. Using fuzzy inference system
for architectural space analysis. Appl. Soft Comput.,
10(3):926–937, June 2010.
[2] Herbert Edelsbrunner and Leonidas J. Guibas. Topolog-
ically sweeping an arrangement. Journal of Computer
and System Sciences, 38(1):165 – 194, 1989.
[3] Robert W. Floyd. Algorithm 97: Shortest path. Com-
mun. ACM, 5(6):345–, June 1962.
[4] Subir Kumar Ghosh and David M. Mount. An output
sensitive algorithm for computing visibility graphs. In
Proceedings of the 28th Annual Symposium on Founda-
tions of Computer Science, SFCS ’87, pages 11–19, Wash-
ington, DC, USA, 1987. IEEE Computer Society.
[5] P.E. Hart, N.J. Nilsson, and B. Raphael. A formal basis
for the heuristic determination of minimum cost paths.
Systems Science and Cybernetics, IEEE Transactions on,
4(2):100 –107, july 1968.
[6] Donald B. Johnson. A note on dijkstra’s shortest path
algorithm. J. ACM, 20(3):385–388, July 1973.
[7] Sertac Karaman and Emilio Frazzoli. Sampling-based al-
gorithms for optimal motion planning. Int. J. Rob. Res.,
30(7):846–894, June 2011.
8
Acknowledgments
This paper was written for Aaron Clauset’s Graduate
Algorithms class at the University of Colorado Boulder.
[8] John Kitzinger and Computer Engineering. The visibil-
ity graph among polygonal obstacles: a comparison of
algorithms, 2003.
[9] Der-Tsai Lee. Proximity and reachability in the plane.
PhD thesis, Champaign, IL, USA, 1978. AAI7913526.
[10] Jae-Ha Lee, Sung Yong Shin, and Kyung-Yong Chwa.
Visibility-based pursuit-evasion in a polygonal room with
a door. In Proceedings of the fifteenth annual symposium
on Computational geometry, SCG ’99, pages 281–290,
New York, NY, USA, 1999. ACM.
[11] Tomás Lozano-Pérez and Michael A. Wesley. An al-
gorithm for planning collision-free paths among polyhe-
dral obstacles. Commun. ACM, 22(10):560–570, October
1979.
[12] William Pugh. Skip lists: a probabilistic alternative to
balanced trees. Commun. ACM, 33(6):668–676, June
1990.
[13] Emo Welzl. Constructing the visibility graph for n-line
segments in o(n2) time. Information Processing Letters,
20(4):167 – 171, 1985.
Dave Coleman CSCI 5454 (Prof. Clauset 4:00 MW): Visibility Graph

C++ Code For Visibility Graph Implementation

Index:
vgraph.cpp
skiplist.h
line.h
line.cpp
point.h
point.cpp
geometry.h
plot.m
data.cvs

vgraph.cpp
#i n c l u d e ”CImg . h” // I n c l u d e CImg l i b r a r y h e a d e r . 1
#i n c l u d e <i o s t r e a m > 2
#i n c l u d e ” l i n e . h” 3
#i n c l u d e ” p o i n t . h” 4
#i n c l u d e ” s k i p l i s t . h” 5
#i n c l u d e <cmath> 6
7
u s i n g namespace c i m g l i b r a r y ; 8
u s i n g namespace s t d ; 9
10
const u n s i g n e d c h a r WHITE [ ] = { 2 5 5 , 2 5 5 , 255 } ; 11
const u n s i g n e d c h a r GREY [ ] = { 1 0 0 , 1 0 0 , 100 } ; 12
const u n s i g n e d c h a r BLACK [ ] = { 0 , 0 , 0 } ; 13
const u n s i g n e d c h a r RED [ ] = { 2 5 5 , 0 , 0 } ; 14
const u n s i g n e d c h a r GREEN [ ] = { 0 , 2 5 5 , 0 } ; 15
const u n s i g n e d c h a r BLUE [ ] = { 0 , 0 , 2 5 5 } ; 16
const int s c r e e n s i z e = 800; 17
18
//−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−− 19
// P r o t o t y p e s 20
//−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−− 21
v o i d vgraph ( d o u b l e o r d e r ) ; 22
d o u b l e v e c t o r s A n g l e ( i n t x , i n t y , i n t basex , i n t b a s e y ) ; 23
double d i s t a n c e ( Point ∗ a , Point ∗ b ) ; 24
25
//−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−− 26
// Main p r o c e d u r e 27
//−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−− 28
i n t main ( ) 29
{ 30
c o u t << e n d l << e n d l << ” V i s i b i l i t y Graph by Dave Coleman −−−−−−−−−−−−−−−−−−−− ” << e n 31
dl
<< e n d l ;
32
f o r ( d o u b l e o r d e r = 2 ; o r d e r < 3 ; o r d e r += 0 . 5 ) 33
{ 34
vgraph ( o r d e r ) ; 35
} 36
37
r e t u r n EXIT SUCCESS ; 38
} 39
40
v o i d vgraph ( d o u b l e o r d e r ) 41
{ 42
// V a r i a b l e s −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−− 43
44
// Atomic o p e r a t i o n c o u n t e r 45
at om i c = 0 ; 46

Page 1 of 22
Dave Coleman CSCI 5454 (Prof. Clauset 4:00 MW): Visibility Graph

47
// G r a p h i c s : 48
bool v i s u a l = true ; 49
bool l i v e = true ; 50
51
CImg<u n s i g n e d char> img ( s c r e e n s i z e , s c r e e n s i z e , 1 , 3 , 2 0 ) ; 52
CImgDisplay d i s p ( img , ” V i s i b i l i t y Graph” ) ; // D i s p l a y t h e m o d i f i e d image on t h e 53
screen
54
// L i n e s e gm e nt s : 55
i n t s i z e = pow ( 1 0 . 0 , o r d e r ) ; 56
int row col = sqrt ( s i z e ) ; 57
int seg = row col ∗ row col ; 58
59
// C o o r d i n a t e s : 60
d o u b l e width = s c r e e n s i z e / r o w c o l ; // s i z e o f each g r i d box 61
d o u b l e margin = 0 . 1 ∗ width ; // padding i n s i d e each box 62
d o u b l e top , bottom , l e f t , r i g h t ; // c o o r d i n a t e s o f box with padding 63
64
// G e n e r a t e s p a c e f o r SEG number o f l i n e s 65
Line ∗ s e g s [ seg ] ; 66
67
// Track what i n d e x we a r e on 68
i n t index = 0 ; 69
70
// Now g e n e r a t e s e g l i n e s e g me n ts 71
f o r ( i n t x = 0 ; x < r o w c o l ; ++x ) 72
{ 73
f o r ( i n t y = 0 ; y < r o w c o l ; ++y ) 74
{ 75
top = y∗ width + margin ; 76
bottom = ( y+1)∗ width − margin ; 77
l e f t = x∗ width + margin ; 78
r i g h t = ( x+1)∗ width − margin ; 79
80
// C r e a t e l i n e segment i n box o f s i z e width ∗ width 81
// x1 , y1 , x2 , y2 82
s w i t c h ( rand ( ) % 4 ) 83
{ 84
c a s e 0 : // v e r t i c l e l i n e 85
s e g s [ i n d e x ] = new L i n e ( l e f t , top , l e f t , bottom ) ; 86
break ; 87
c a s e 1 : // h o r i z o n t a l l i n e 88
s e g s [ i n d e x ] = new L i n e ( l e f t , top , r i g h t , top ) ; 89
break ; 90
c a s e 2 : // d i a g o n a l l e f t t o r i g h t 91
s e g s [ i n d e x ] = new L i n e ( l e f t , top , r i g h t , bottom ) ; 92
break ; 93
case 3: 94
s e g s [ i n d e x ] = new L i n e ( l e f t , bottom , r i g h t , top ) ; 95
break ; 96
} 97
98
i n d e x ++; 99
} 100
} 101
102
// c o u t << ”SEGS ” << s e g << ” INDEX ” << i n d e x << e n d l ; 103
104
/∗ 105
Line s e g s [ ] = 106
{ 107
Line (280 ,300 ,330 ,120) , // 0 first 108
Line (450 ,150 ,280 ,330) , // 1 second 109
Line (400 ,150 ,401 ,190) , // 2 third , l a t e r 110
Line (400 ,400 ,450 ,200) , // 3 far right 111
Line (350 ,350 ,350 ,450) , // 4 112
Line (10 ,200 ,100 ,215) , // 5 113

Page 2 of 22
Dave Coleman CSCI 5454 (Prof. Clauset 4:00 MW): Visibility Graph

Line (50 ,50 ,50 ,100) , // 6 114

Line (200 ,450 ,300 ,450) // 7 115
}; 116
∗/ 117
118
// R e u s a b l e p o i n t e r l o c a t i o n s 119
Line ∗ l ; 120
Point ∗ p ; 121
122
int center id ; 123
bool isPointA ; 124
125
// V i s i t each v e r t e x once and p e r f o r m t h e v i s i b i l i t y a l g o r i t h m 126
f o r ( i n t o u t e r = 0 ; o u t e r < 2∗ s e g ; ++o u t e r ) 127
{ 128
++at om ic ; 129
130
// F i r s t o r s e c o n d number on each l i n e ? 131
center id = outer / 2; 132
133
// Garbage C o l l e c t 134
i f ( outer ) 135
{ 136
delete center ; 137
delete center line ; 138
} 139
140
// c o u t << ”LINE ID : ” << c e n t e r i d << e n d l ; 141
i f ( ! ( o u t e r % 2 ) ) // i s even 142
{ 143
c e n t e r = new P o i n t ( s e g s [ c e n t e r i d ]−>a−>x , s e g s [ c e n t e r i d ]−>a−>y ) ; 144
isPointA = true ; 145
} 146
e l s e // i s even 147
{ 148
c e n t e r = new P o i n t ( s e g s [ c e n t e r i d ]−>b−>x , s e g s [ c e n t e r i d ]−>b−>y ) ; 149
isPointA = f a l s e ; 150
} 151
152
// C en ter L i n e Calc : 153
c e n t e r l i n e = new L i n e ( c e n t e r −>x , c e n t e r −>y , c e n t e r −>x+1 , c e n t e r −>y ) ; 154
155
// Add p o i n t e r s t o a l l p o i n t s back t o p a r e n t l i n e 156
c e n t e r −>p a r e n t L i n e = s e g s [ c e n t e r i d ] ; 157
158
// Draw s w e e p e r : 159
// img . d r a w l i n e ( c e n t e r −>x , c e n t e r −>y , c e n t e r −>x +200 , c e n t e r −>y , RED) ; 160
i f ( visual ) 161
img . d r a w c i r c l e ( c e n t e r −>x , c e n t e r −>y , 6 , RED) ; 162
163
/∗ c o u t << ”LINE ID ” << c e n t e r i d << ” ” ; 164
i f ( isPointA ) 165
c o u t << ”A” << e n d l ; 166
else 167
c o u t << ”B” << e n d l ; 168
∗/ 169
170
// D a t a s t r u c t u r e s : 171
s k i p l i s t <P o i n t∗> a n g l e L i s t ; 172
s k i p l i s t <L i n e∗> e d g e L i s t ; 173
174
// Algorithm −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−− 175
176
// Draw s e g me n ts and i n s e r t POINTS i n t o s k i p l i s t o r d e r e d by ANGLE −−−−−−−−−−−−− 177
f o r ( i n t i = 0 ; i < s e g ; ++i ) 178
{ 179
++at om ic ; 180
l = segs [ i ] ; 181

Page 3 of 22
Dave Coleman CSCI 5454 (Prof. Clauset 4:00 MW): Visibility Graph

182
// Add p o i n t e r s t o a l l p o i n t s back t o p a r e n t l i n e 183
l −>a−>p a r e n t L i n e = l ; 184
l −>b−>p a r e n t L i n e = l ; 185
186
// R e s e t v i s i t e d f l a g s 187
l −>v i s i t e d = f a l s e ; 188
l −>v i s i t e d S t a r t P o i n t = f a l s e ; 189
190
i f ( visual ) 191
img . d r a w l i n e ( l −>a−>x , l −>a−>y , l −>b−>x , l −>b−>y , WHITE) ; 192
193
i f ( ! ( i == c e n t e r i d && i s P o i n t A ) ) // p o i n t i s not l i n e A 194
{ 195
i f ( visual ) 196
img . d r a w c i r c l e ( l −>a−>x , l −>a−>y , 2 , WHITE) ; 197
198
// C a l c u l a t e t h e a n g l e from c e n t e r l i n e : 199
l −>a−>t h e t a = v e c t o r s A n g l e ( l −>a−>x , l −>a−>y , c e n t e r −>x , c e n t e r −>y ) ; 200
201
// S o r t t h e v e r t i c i e s : 202
a n g l e L i s t . add ( l −>a ) ; 203
204
// c o u t << ”Added A f o r l i n e ” << i << ” t h e t a ” << l −>a−>t h e t a << e n d l ; 205
// c o u t << ”POINT ” ; l −>a−>p r i n t ( ) ; c o u t << e n d l ; 206
} 207
208
i f ( ! ( i == c e n t e r i d && i s P o i n t A == f a l s e ) ) // p o i n t i s not l i n e B 209
{ 210
i f ( visual ) 211
img . d r a w c i r c l e ( l −>b−>x , l −>b−>y , 2 , WHITE) ; 212
213
// C a l c u l a t e t h e a n g l e from c e n t e r l i n e : 214
l −>b−>t h e t a = v e c t o r s A n g l e ( l −>b−>x , l −>b−>y , c e n t e r −>x , c e n t e r −>y ) ; 215
216
// S o r t t h e v e r t i c i e s : 217
a n g l e L i s t . add ( l −>b ) ; 218
// c o u t << ”Added B f o r l i n e ” << i << ” t h e t a ” << l −>b−>t h e t a << e n d l ; 219
220
// c o u t << ”POINT ” ; l −>b−>p r i n t ( ) ; c o u t << e n d l ; 221
} 222
223
// c o u t << e n d l ; 224
} 225
226
227
// Test S k i p L i s t 228
// c o u t << ” Angle L i s t − p o i n t s o r d e r e d CC from b a s e l i n e ” ; 229
// a n g l e L i s t . p r i n t A l l ( ) ; 230
231
232
// I n i t i a l i z e Edge L i s t Of L i n e s −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−− 233
f o r ( i n t i = 0 ; i < s e g ; ++i ) 234
{ 235
++at om ic ; 236
237
l = s e g s [ i ] ; // g e t n e x t l i n e t o c h e c k 238
239
// c h e c k i f t h e c u r r e n t l i n e i s c o n n e c t e d t o t h e c e n t e r p o i n t 240
i f ( l −>i d == ( ( L i n e ∗ ) c e n t e r −>p a r e n t L i n e )−>i d ) 241
{ 242
// one c e n t e r ’ s l i n e 243
// c o u t << ”ONE CENTER ’ S LINE ! ! ! ” << e n d l ; 244
} 245
else 246
{ 247
// Check each l i n e and s e e i f i t c r o s s e s s c a n l i n e 248
double xi , y i ; 249

Page 4 of 22
Dave Coleman CSCI 5454 (Prof. Clauset 4:00 MW): Visibility Graph

250
l −>c e n t e r i n t e r c e p t ( x i , y i ) ; // t h e s e a r e r e f e r e n c e p a r a m e t e r s
251
// Now we know t h a t x i , y i i s on c e n t e r l i n e . 252
// Next we c h e c k i f X i s between a & b . We know a . x > b . x , t h u s : 253
i f ( l −>a−>x >= x i && l −>b−>x <= x i ) 254
{ 255
// c h e c k t h a t x i > c e n t e r −>x 256
i f ( x i >= c e n t e r −>x ) 257
{ 258
259
// I t d o e s i n t e r s e c t 260
e d g e L i s t . add ( l ) ; 261
262
// Mark a s opened , somewhere on l i n e 263
l −>v i s i t e d = t r u e ; 264
265
// V i s u a l i z e : 266
i f ( visual ) 267
img . d r a w l i n e ( l −>a−>x , l −>a−>y , l −>b−>x , l −>b−>y , GREEN) ; 268
} 269
} 270
} 271
} 272
273
if ( live ) 274
d i s p . d i s p l a y ( img ) ; 275
276
// c o u t << ” Edge L i s t : ” ; 277
// e d g e L i s t . p r i n t A l l ( ) ; 278
279
// Sweep −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−− 280
281
// s l e e p ( 1 ) ; 282
// u s l e e p ( 5 0 0 ∗ 1 0 0 0 ) ; 283
f o r ( i n t i = 0 ; i < 2∗ s e g − 1 ; ++i ) 284
{ 285
++at om ic ; 286
287
// c o u t << ”\n\n\n −−−−−−−−−−−−−−− STARTING NEW SWEEP −−−−−−−−−−−−−−−−−− \n\n\n ” ; 288
289
// c o u t << ”SWEEP VERTEX ” << i << e n d l ; 290
// i f ( i > 0 ) 291
// b r e a k ; 292
293
// t a k e t h e f i r s t v e r t e x i n a n g u l a r o r d e r 294
p = a n g l e L i s t . pop ( ) ; 295
// c o u t << ” Sweep a t ” ; p−>p r i n t ( ) ; 296
297
// Update t h e c e n t e r l i n e t o t h e sweep l o c a t i o n and update m, b 298
c e n t e r l i n e −>b = p ; 299
c e n t e r l i n e −>u p d a t e C a l c s ( ) ; 300
301
// Update c e n t e r p o i n t t o c o n t a i n t h e t a between b a s e l i n e and 302
// c u r r e n t p o i n t , s o t h a t our l i n e f u n c t i o n can c a c h e 303
c e n t e r −>t h e t a = p−>t h e t a ; 304
305
// d e c i d e what t o do with i t 306
l = ( L i n e ∗ ) p−>p a r e n t L i n e ; // c a s t i t 307
// c o u t << ”\ t ” ; l −>p r i n t ( ) ; 308
309
// c h e c k i f t h e c u r r e n t l i n e i s c o n n e c t e d t o t h e c e n t e r p o i n t 310
i f ( l −>i d == ( ( L i n e ∗ ) c e n t e r −>p a r e n t L i n e )−>i d ) 311
{ 312
// one c e n t e r ’ s l i n e 313
// i g n o r e 314
} 315
e l s e i f ( l −>v i s i t e d ) // remove i t from e d g e L i s t 316
{ 317

Page 5 of 22
Dave Coleman CSCI 5454 (Prof. Clauset 4:00 MW): Visibility Graph

// c o u t << ” remove ” << e n d l ; 318

319
i f ( ! l −>v i s i t e d S t a r t P o i n t ) 320
{ 321
l −>v i s i t e d = f a l s e ; // a l l o w t h i s l i n e t o be v i s i s t e d a g a i n f o r i t s s t a r t 322
point
} 323
324
// c h e c k i f i t s f i r s t i n t h e edge l i s t . if i t is , i t s VISIBLE 325
i f ( e d g e L i s t . i s R o o t ( l −>i d ) ) 326
{ 327
// c o u t << ” Drawing L i n e ” << e n d l ; 328
329
i f ( visual ) 330
img . d r a w l i n e ( c e n t e r −>x , c e n t e r −>y , p−>x , p−>y , BLUE ) ; 331
} 332
333
// remove 334
// c o u t << ” Value : ” << l −>v a l u e ( ) << ” ” << l −>i d << e n d l ; 335
336
e d g e L i s t . remove ( l −>v a l u e ( ) , l −>i d ) ; 337
338
i f ( visual ) 339
img . d r a w l i n e ( l −>a−>x , l −>a−>y , l −>b−>x , l −>b−>y , WHITE) ; 340
} 341
e l s e // add i t t o edge l i s t 342
{ 343
// c o u t << ” add ” << e n d l ; 344
l −>v i s i t e d = t r u e ; // mark i t a s h a v i n g been v i s i t e d somewhere 345
l −>v i s i t e d S t a r t P o i n t = t r u e ; // mark i t a s h a v i n g found t h e f i r s t v e r t e x 346
347
// S t o r e d i s t a n c e o f l i n e from c e n t e r 348
l −>d i s t = d i s t a n c e ( p , c e n t e r ) ; 349
350
e d g e L i s t . add ( l ) ; 351
352
// c h e c k i f i t s f i r s t i n t h e edge l i s t . i f i t i s , i t s VISIBLE 353
i f ( e d g e L i s t . i s R o o t ( l −>i d ) ) 354
{ 355
// c o u t << ” Drawing L i n e ” << e n d l ; 356
i f ( visual ) 357
img . d r a w l i n e ( c e n t e r −>x , c e n t e r −>y , p−>x , p−>y , BLUE ) ; 358
} 359
360
i f ( visual ) 361
img . d r a w l i n e ( l −>a−>x , l −>a−>y , l −>b−>x , l −>b−>y , GREEN) ; 362
} 363
364
i f ( visual ) 365
img . d r a w c i r c l e ( p−>x , p−>y , 5 , GREY) ; 366
367
// debug 368
// c o u t << ” Edge L i s t : ” ; 369
// e d g e L i s t . p r i n t A l l ( ) ; 370
// a n g l e L i s t . p r i n t A l l ( ) ; 371
// c o u t << e n d l << e n d l ; 372
373
if ( live ) 374
{ 375
d i s p . d i s p l a y ( img ) ; 376
// u s l e e p ( 1 ∗ 1 0 0 0 ) ; 377
// s l e e p ( 1 ) ; 378
} 379
} 380
// c o u t << ” b r e a k i n g ” << e n d l ; 381
// b r e a k ; 382
if ( live ) 383
{ 384

Page 6 of 22
Dave Coleman CSCI 5454 (Prof. Clauset 4:00 MW): Visibility Graph

// u s l e e p ( 1 ∗ 1 0 0 0 ) ; 385
d i s p . d i s p l a y ( img ) ; 386
} 387
// b r e a k ; 388
// img . f i l l ( 2 0 ) ; 389
// c o u t << o u t e r << e n d l ; 390
} 391
392
i f ( visual ) 393
{ 394
// Redraw o b s t a c l e l i n e s j u s t f o r f u n : 395
f o r ( i n t i = 0 ; i < s e g ; ++i ) 396
{ 397
l = segs [ i ] ; 398
399
img . d r a w l i n e ( l −>a−>x , l −>a−>y , l −>b−>x , l −>b−>y , WHITE) ; 400
img . d r a w c i r c l e ( l −>a−>x , l −>a−>y , 2 , WHITE) ; 401
img . d r a w c i r c l e ( l −>b−>x , l −>b−>y , 2 , WHITE) ; 402
} 403
d i s p . d i s p l a y ( img ) ; 404
405
406
img . s a v e ( ” r e s u l t . png ” ) ; // s a v e t h e image 407
} 408
409
c o u t << s e g << ” , ” << at om ic << e n d l ; 410
411
i f ( visual ) 412
{ 413
// Show window u n t i l u s e r i n p u t : 414
while ( ! disp . i s c l o s e d () ) { 415
i f ( d i s p . is keyESC ( ) ) 416
break ; 417
disp . wait ( ) ; 418
} 419
} 420
421
// Garabage c o l l e c t 422
// d e l e t e [ ] s e g s ; 423
// f r e e ( s e g s ) ; 424
} 425
426
//−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−− 427
// C a l c u l a t e Angle Btw 2 V e c t o r s 428
//−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−− 429
d o u b l e v e c t o r s A n g l e ( i n t x , i n t y , i n t basex , i n t b a s e y ) 430
{ 431
// Convert i n p u t p o i n t x & y t o be v e c t o r s r e l a t i v e t o b a s e p o i n t 432
d o u b l e x2 = d o u b l e ( x − b a s e x ) ; 433
d o u b l e y2 = d o u b l e ( y − b a s e y ) ; 434
435
// Hard code s c a n l i n e t o p o i n t r i g h t : 436
d o u b l e x1 = s q r t ( x2 ∗ x2 + y2 ∗ y2 ) ; // make i t with r a t i o ? 437
d o u b l e y1 = 0 . 0 ; 438
439
// c o u t << ” x1 : ” << x1 << ” − y1 : ” << y1 << e n d l ; 440
// c o u t << ” x2 : ” << x2 << ” − y2 : ” << y2 << e n d l ; 441
442
d o u b l e s t u f f = ( ( x1 ∗ x2 ) +(y1 ∗ y2 ) ) / ( s q r t ( x1 ∗ x1+y1 ∗ y1 ) ∗ s q r t ( x2 ∗ x2+y2 ∗ y2 ) ) ; 443
// c o u t << ” S t u f f : ” << s t u f f << e n d l ; 444
445
// C a l c u l a t e a n g l e : 446
double r e s u l t = acos ( s t u f f ) ; 447
// c o u t << ” R e s u l t : ” << r e s u l t << e n d l ; 448
449
// Now add PI i f below m id dl e l i n e : 450
i f ( y >= b a s e y ) 451
r e s u l t = 2∗M PI − r e s u l t ; 452

Page 7 of 22
Dave Coleman CSCI 5454 (Prof. Clauset 4:00 MW): Visibility Graph

453
// c o u t << ” R e s u l t : ” << r e s u l t ∗180/ M PI << ” d e g r e e s ” << e n d l ; 454
455
return r e s u l t ; 456
} 457
//−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−− 458
// D i s t a n c e Btw 2 P o i n t s 459
//−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−− 460
double d i s t a n c e ( Point ∗ a , Point ∗ b ) 461
{ 462
r e t u r n s q r t ( pow ( b−>x − a−>x , 2 . 0 ) + pow ( b−>y − a−>y , 2 . 0 ) ) ; 463
} 464
../visibility graph/vgraph.cpp

Page 8 of 22
Dave Coleman CSCI 5454 (Prof. Clauset 4:00 MW): Visibility Graph

skiplist.h
/∗ S k i p L i s t 1
CSCI 5454 A l g o r i t h m s 2
Dave Coleman | d a v i d . t . c o l em a n @ c o l o r a d o . edu 3
4
2/2/2012 5
6
Implementation o f Skip L i s t s 7
∗/ 8
9
#i n c l u d e <math . h> 10
#i n c l u d e <i o s t r e a m > 11
#i n c l u d e <c s t d l i b > 12
#i n c l u d e ” node . h” 13
//#i n c l u d e ” p o i n t . h” 14
u s i n g namespace s t d ; 15
16
// −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−− 17
// S k i p L i s t C l a s s 18
// −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−− 19
t e m p l a t e < c l a s s T> 20
class skiplist { 21
// used f o r t e s t i n g 22
public : 23
i n t maxLevel ; 24
25
private : 26
node<T> ∗ r o o t ; 27
28
// −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−29
// Get Random L e v e l 30
// −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−31
i n t getRandLevel ( ) 32
{ 33
i n t randResult = 1; 34
int level = 0; 35
while ( randResult ) 36
{ 37
38
r a n d R e s u l t = rand ( ) % 2 ; 39
i f ( randResult ) 40
{ 41
++l e v e l ; 42
} 43
44
i f ( l e v e l > maxLevel ) 45
{ 46
r a n d R e s u l t = 0 ; // t o end t h e w h i l e l o o p 47
} 48
} 49
return l e v e l ; 50
51
} 52
// −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−53
// C r e a t e New Node 54
// −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−55
node<T>∗ c r e a t e N o d e ( i n t l e v e l , i n t h e i g h t , T data ) 56
{ 57
// Check i f we a r e below l e v e l 0 58
i f ( l e v e l < 0) 59
{ 60
r e t u r n NULL; 61
} 62
e l s e // make a new node below 63
{ 64
node<T> ∗newNode = new node<T>() ; 65
newNode−>l e v e l = l e v e l ; 66

Page 9 of 22
Dave Coleman CSCI 5454 (Prof. Clauset 4:00 MW): Visibility Graph

newNode−>n e x t = NULL; 67
newNode−>below = c r e a t e N o d e ( l e v e l − 1 , h e i g h t , data ) ; 68
newNode−>h e i g h t = h e i g h t ; 69
newNode−>data = data ; 70
r e t u r n newNode ; 71
} 72
} 73
74
public : 75
76
// C o n s t r u c t o r : 77
s k i p l i s t () 78
{ 79
r o o t = NULL; 80
maxLevel = 0 ; 81
82
s r a n d ( time (NULL) ) ; // s e e d t h e random g e n e r a t o r 83
} 84
// −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−85
// ADD 86
// −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−87
v o i d add ( T data ) 88
{ 89
// c o u t << ”ADD: ” ; 90
// data . p r i n t ( ) ; 91
92
// S p e c i a l Cases −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−− 93
94
i f ( ! r o o t ) // no r o o t has been e s t a b l i s h e d y e t 95
{ 96
r o o t = c r e a t e N o d e ( 0 , 0 , data ) ; 97
return ; 98
} 99
100
i f ( r o o t −>data−>v a l u e ( ) > data−>v a l u e ( ) ) // new v a l u e g o e s b e f o r e r o o t 101
{ 102
T temp data = r o o t −>data ; 103
node<T> ∗n = r o o t ; 104
105
f o r ( i n t l = maxLevel ; l >= 0 ; −−l ) 106
{ 107
at om i c += 1 ; 108
// change t h e r o o t t o t h e new v a l u e 109
n−>data = data ; 110
n = n−>below ; 111
} 112
data = temp data ; 113
} 114
115
// R e g u l a r i n s e r t a f t e r r o o t −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−− 116
117
// Determine what l e v e l t h i s new node w i l l be a t 118
i n t l e v e l = getRandLevel ( ) ; 119
120
// I f new node i s a t whole new l e v e l , go ahead and update r o o t node t o be h i g h e r 121
i f ( l e v e l > maxLevel ) 122
{ 123
maxLevel ++; 124
node<T> ∗ newRoot = new node<T>() ; 125
newRoot−>data = r o o t −>data ; 126
newRoot−>n e x t = NULL; 127
newRoot−>below = r o o t ; 128
newRoot−>l e v e l = maxLevel ; 129
r o o t = newRoot ; 130
} 131
132
// C r e a t e t h e new node 133
node<T> ∗newNode = c r e a t e N o d e ( l e v e l , l e v e l , data ) ; 134

Page 10 of 22
Dave Coleman CSCI 5454 (Prof. Clauset 4:00 MW): Visibility Graph

135
// Now add t h e node t o t h e l i s t 136
node<T> ∗ i = r o o t ; 137
138
// Loop down t h r o u g h a l l l e v e l s 139
f o r ( i n t l = maxLevel ; l >= 0 ; −−l ) 140
{ 141
at om ic += 1 ; 142
// move f o r w a r d u n t i l we h i t a v a l u e g r e a t e r than o u r s 143
w h i l e ( i −>n e x t != NULL ) 144
{ 145
at om i c += 1 ; 146
i f ( i −>next−>data−>v a l u e ( ) > data−>v a l u e ( ) ) // i n s e r t b e f o r e i . n e x t 147
{ 148
break ; 149
} 150
i = i −>n e x t ; 151
} 152
153
// Check i f we s h o u l d add a p o i n t e r a t t h i s l e v e l 154
i f ( l <= l e v e l ) 155
{ 156
newNode−>n e x t = i −>n e x t ; 157
i −>n e x t = newNode ; 158
159
// Now move t h e new node p o i n t e r one l e v e l down : 160
newNode = newNode−>below ; 161
} 162
163
// Always move t h e i node p o i n t e r one l e v e l down : 164
i = i −>below ; 165
} 166
167
} 168
// −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−169
// Find 170
// −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−171
bool f i n d ( double x ) 172
{ 173
node<T> ∗ i = r o o t ; 174
175
// S p e c i a l c a s e : s k i p l i s t i s empty 176
i f ( ! root ) 177
{ 178
return f a l s e ; 179
} 180
181
// S p e c i a l c a s e : c h e c k r o o t 182
i f ( r o o t −>data−>v a l u e ( ) == x ) 183
{ 184
return true ; 185
} 186
187
f o r ( i n t l = maxLevel ; l >= 0 ; −−l ) 188
{ 189
at om ic += 1 ; 190
// move f o r w a r d u n t i l we h i t a v a l u e g r e a t e r than o u r s 191
w h i l e ( i −>n e x t != NULL ) 192
{ 193
at om i c += 1 ; 194
if ( i −>n e x t −>data−>v a l u e ( ) > x ) // x i s not found on t h i s l e v e l 195
{ 196
break ; 197
} 198
else if ( i −>next−>data−>v a l u e ( ) == x ) // b i n g o ! 199
{ 200
return true ; 201
} 202

Page 11 of 22
Dave Coleman CSCI 5454 (Prof. Clauset 4:00 MW): Visibility Graph

203
i = i −>n e x t ; 204
} 205
206
// Always move t h e i node<T> p o i n t e r one l e v e l down : 207
i = i −>below ; 208
} 209
210
return f a l s e ; 211
} 212
// −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−213
// REMOVE 214
// t h e i d i s t o c o n f i r m t h e c o r r e c t node , j u s t i n c a s e x i s not u n i q u e 215
// −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−216
b o o l remove ( d o u b l e x , i n t i d ) 217
{ 218
node<T> ∗ i = r o o t ; 219
220
// S p e c i a l c a s e : remove r o o t −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−− 221
i f ( r o o t −>data−>v a l u e ( ) == x && r o o t −>data−>i d == i d ) 222
{ 223
// Get l e v e l 0 o f r o o t 224
f o r ( i n t l = r o o t −>l e v e l ; l > 0 ; −−l ) 225
{ 226
at om i c += 1 ; 227
// c o u t << ” L e v e l ” << l << e n d l ; 228
i = i −>below ; 229
} 230
231
// Check i f t h e r e a r e any more nodes 232
i f ( ! i −>n e x t ) // t h e s k i p l i s t i s empty 233
{ 234
r o o t = NULL; 235
maxLevel = 0 ; 236
237
return true ; 238
} 239
240
// Change v a l u e o f r o o t t o n e x t node 241
node<T> ∗n = r o o t ; 242
node<T> ∗ nextNode = i −>n e x t ; 243
244
f o r ( i n t l = maxLevel ; l >= 0 ; −−l ) 245
{ 246
at om i c += 1 ; 247
// change t h e r o o t t o t h e new v a l u e 248
n−>data = nextNode−>data ; 249
250
// update n e x t p o i n t e r i f t h e n e x t n e x t e x i s t s 251
i f ( n−>n e x t ) 252
{ 253
n−>n e x t = n−>next−>n e x t ; 254
} 255
256
// Move down t o n e x t l e v e l 257
n = n−>below ; 258
} 259
260
return true ; 261
} 262
263
// Normal c a s e : remove a f t e r r o o t −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−− 264
b o o l found = f a l s e ; 265
266
f o r ( i n t l = maxLevel ; l >= 0 ; −−l ) 267
{ 268
at om ic += 1 ; 269
// move f o r w a r d u n t i l we h i t a v a l u e g r e a t e r than o u r s 270

Page 12 of 22
Dave Coleman CSCI 5454 (Prof. Clauset 4:00 MW): Visibility Graph

w h i l e ( i −>n e x t != NULL ) 271

{ 272
at om i c += 1 ; 273
// remove t h i s one , c o n f i r m e d by i d 274
i f ( i −>next−>data−>v a l u e ( ) == x && i −>next−>data−>i d == i d ) 275
{ 276
found = t r u e ; 277
278
// p a s s t h r o u g h t h e p o i n t e r i f e x i s t s 279
i f ( i −>n e x t ) 280
{ 281
i −>n e x t = i −>next−>n e x t ; 282
} 283
else 284
{ 285
i −>n e x t = NULL; 286
} 287
break ; 288
} 289
e l s e i f ( i −>next−>data−>v a l u e ( ) > x ) // x i s not found on t h i s l e v e l 290
{ 291
break ; 292
} 293
294
i = i −>n e x t ; 295
} 296
297
// Always move t h e i node p o i n t e r one l e v e l down : 298
i = i −>below ; 299
} 300
301
r e t u r n found ; 302
} 303
// −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−304
// POP FROM FRONT 305
// −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−306
T pop ( ) 307
{ 308
node<T> ∗ i = r o o t ; 309
310
// S t o r e t h e f i r s t item on t h e l i s t t h a t we want t o l a t e r r e t u r n 311
T r e s u l t = r o o t −>data ; 312
/∗ 313
c o u t << ”POP WITH VALUE: ” << r o o t −>v a l u e << ” − ” ; 314
result . print () ; 315
c o u t << e n d l ; 316
∗/ 317
318
// Check i f s k i p l i s t i s empty 319
i f ( ! root ) 320
{ 321
c o u t << ”An e r r o r has o c c u r e d : s k i p l i s t i s empty” ; 322
exit (1) ; 323
} 324
325
// Get l e v e l 0 o f r o o t 326
f o r ( i n t l = r o o t −>l e v e l ; l > 0 ; −−l ) 327
{ 328
at om ic += 1 ; 329
i = i −>below ; 330
} 331
332
// Check i f t h e r e a r e any more nodes 333
i f ( ! i −>n e x t ) // t h e s k i p l i s t i s empty 334
{ 335
r o o t = NULL; 336
maxLevel = 0 ; 337
338

Page 13 of 22
Dave Coleman CSCI 5454 (Prof. Clauset 4:00 MW): Visibility Graph

return r e s u l t ; 339
} 340
341
// Change v a l u e o f r o o t t o n e x t node 342
node<T> ∗n = r o o t ; 343
node<T> ∗ nextNode = i −>n e x t ; 344
345
f o r ( i n t l = maxLevel ; l >= 0 ; −−l ) 346
{ 347
at om ic += 1 ; 348
// change t h e r o o t t o t h e new v a l u e 349
n−>data = nextNode−>data ; 350
351
// update n e x t p o i n t e r i f t h e n e x t n e x t e x i s t s 352
i f ( n−>n e x t ) 353
{ 354
n−>n e x t = n−>next−>n e x t ; 355
} 356
357
// Move down t o n e x t l e v e l 358
n = n−>below ; 359
360
} 361
362
return r e s u l t ; 363
} 364
// −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−− 365
// I s Root 366
// −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−367
bool isRoot ( int id ) 368
{ 369
370
i f ( ! r o o t ) // t h e r e i s no r o o t ! 371
{ 372
s t d : : c o u t << ” t h e r e i s no r o o t ! ” << s t d : : e n d l ; 373
return f a l s e ; 374
} 375
r e t u r n ( r o o t −>data−>i d == i d ) ; 376
} 377
// −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−378
// PRINT ALL 379
// −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−380
void p r i n t A l l ( ) 381
{ 382
s t d : : c o u t << s t d : : e n d l << ”LIST −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−” << s t d : : e n d l ; 383
384
// S p e c i a l c a s e : s k i p l i s t i s empty 385
i f ( ! root ) 386
{ 387
s t d : : c o u t << ”−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−” << s t d : : e n d l ; 388
return ; 389
} 390
391
node<T> i = ∗ r o o t ; 392
393
// Get l e v e l 0 o f r o o t 394
f o r ( i n t l = r o o t −>l e v e l ; l > 0 ; −−l ) 395
{ 396
// c o u t << ” L e v e l ” << l << ” − ” ; 397
// i . data . p r i n t ( ) ; 398
// c o u t << e n d l ; 399
i = ∗ ( i . below ) ; 400
} 401
// s t d : : c o u t << ”we a r e on l e v e l ” << i . l e v e l << s t d : : e n d l ; 402
403
// Hack : update r o o t 0 l e v e l with maxLevel count , b e c a u s e we don ’ t update t h i s 404
// when g r o w i n g r o o t l e v e l s i z e 405
i . h e i g h t = maxLevel ; 406

Page 14 of 22
Dave Coleman CSCI 5454 (Prof. Clauset 4:00 MW): Visibility Graph

407
int counter = 0; 408
b o o l done = f a l s e ; 409
410
w h i l e ( ! done ) 411
{ 412
s t d : : c o u t << c o u n t e r ; 413
414
f o r ( i n t l = i . h e i g h t ; l >= 0 ; −−l ) 415
{ 416
s t d : : c o u t << ” | ” ; 417
} 418
s t d : : c o u t << ” ” << i . data−>v a l u e ( ) << ” − ” ; 419
i . data−>p r i n t ( ) ; 420
421
c o u n t e r ++; 422
423
i f ( i . next ) 424
{ 425
node<T> ∗ i i = i . n e x t ; 426
i = ∗ii ; 427
} 428
else 429
{ 430
done = t r u e ; 431
} 432
} 433
434
s t d : : c o u t << ”−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−” << s t d : : e n d l << s t d : : e n d l ; 435
} 436
}; 437
../visibility graph/skiplist.h

Page 15 of 22
Dave Coleman CSCI 5454 (Prof. Clauset 4:00 MW): Visibility Graph

node.h
#i n c l u d e ” l i n e . h” 1
2
// 3
−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−

// Node C l a s s 4
// 5
−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−

t e m p l a t e < c l a s s T> 6
c l a s s node { 7
public : 8
node ∗ below ; // node below i n tower 9
node ∗ n e x t ; // n e x t node i n s k i p l i s t 10
i n t l e v e l ; // l e v e l o f t h i s c u r r e n t node 11
i n t h e i g h t ; // f u l l number o f l e v e l s i n tower 12
T data ; 13
}; 14
../visibility graph/node.h

Page 16 of 22
Dave Coleman CSCI 5454 (Prof. Clauset 4:00 MW): Visibility Graph

line.h
#i f n d e f LINE H INCLUDED 1
#d e f i n e LINE H INCLUDED 2
3
#i n c l u d e <i o s t r e a m > 4
#i n c l u d e ” p o i n t . h” 5
#i n c l u d e ” geometry . h” 6
#i n c l u d e <cmath> 7
8
c l a s s L i n e : p u b l i c Geometry 9
{ 10
public : 11
Point ∗ a ; 12
Point ∗ b ; 13
b o o l v i s i t e d S t a r t P o i n t ; // has t h e b a s e / sweep l i n e c r o s s e d a t l e a s t one o f 14
// t h e v e r t i c i e s ? 15
bool v i s i t e d ; // has t h e sweep l i n e been on t h e l i n e ( a s in , maybe i t was i n i t on i t ) 16
17
int id ; 18
d o u b l e d i s t ; // d i s t a n c e from c e n t e r 19
d o u b l e t h e t a c a c h e ; // used f o r d e c i d i n g i f t h e d i s t c a c h e n e e d s t o be r e f r e s h e d 20
d o u b l e m; // s l o p e o f l i n e 21
d o u b l e y i n t e r c e p t ; // y−i n t e r c e p t o f l i n e 22
23
Line ( ) ; 24
L i n e ( i n t x1 , i n t y1 , i n t x2 , i n t y 2 ) ; 25
˜ Line ( ) ; 26
v i r t u a l void print ( ) ; 27
v i r t u a l double value ( ) ; 28
29
void updateCalcs ( ) ; 30
void distance ( ) ; 31
v o i d c e n t e r i n t e r c e p t ( d o u b l e &x i , d o u b l e &y i ) ; 32
}; 33
34
35
// This g l o b a l n e e d s t o be v i s i b l e t o c l a s s e s : 36
extern Point ∗ c e n t e r ; 37
extern Line ∗ c e n t e r l i n e ; 38
e x t e r n d o u b l e at om ic ; 39
40
#e n d i f 41
../visibility graph/line.h

line.cpp
#i n c l u d e ” l i n e . h” 1
2
Point ∗ c e n t e r ; 3
Line ∗ c e n t e r l i n e ; 4
d o u b l e at om ic ; 5
6
u s i n g namespace s t d ; 7
8
Line : : Line ( ) 9
{ 10
c o u t << ”You a r e c a l l i n g t h e f u n c t i o n wrong ” ; 11
exit (0) ; 12
} 13
L i n e : : L i n e ( i n t x1 , i n t y1 , i n t x2 , i n t y2 ) 14
{ 15
// Order a and b such t h a t a . x > b . x 16
i f ( x1 > x2 ) 17
{ 18
a = new P o i n t ( x1 , y1 ) ; 19
b = new P o i n t ( x2 , y2 ) ; 20
} 21

Page 17 of 22
Dave Coleman CSCI 5454 (Prof. Clauset 4:00 MW): Visibility Graph

else 22
{ 23
b = new P o i n t ( x1 , y1 ) ; 24
a = new P o i n t ( x2 , y2 ) ; 25
} 26
27
// Change ID 28
static int id counter = 0; 29
i d = i d c o u n t e r ++; 30
31
// Keep t r a c k o f i t s v i s i t e d h i s t o r y 32
visited = false ; 33
visitedStartPoint = false ; 34
35
// c o u t << ”LINE” << e n d l ; 36
updateCalcs ( ) ; 37
38
// c o u t << ”LINE” << e n d l ; 39
40
// Used f o r c h e c k i n g i f we need t o r e f r e s h our d i s t a n c e amount 41
t h e t a c a c h e = 3∗M PI ; // some a n g l e b i g g e r than 2PI , aka INF 42
// d i s t a n c e ( ) ; 43
44
// c o u t << ”END LINE \n” << e n d l ; 45
} 46
Line : : ˜ Line ( ) 47
{ 48
// d e l e t e a ; 49
// d e l e t e b ; 50
} 51
void Line : : p r i n t ( ) 52
{ 53
c o u t << ” L i n e : x1 : ” << a−>x << ” y1 : ” << a−>y << ” x2 : ” << b−>x 54
<< ” y2 : ” << b−>y << ” \ t ID : ” << i d << e n d l ; 55
} 56
double Line : : value ( ) 57
{ 58
// c a l c u l a t e d i s t a n c e from m i d p o i n t a t a g i v e n t h e t a , 59
// with r e s e p c t t o t h e b a s e l i n e 60
61
i f ( t h e t a c a c h e != c e n t e r −>t h e t a ) // c h e c k i f our ca ch ed v e r s i o n i s s t i l l f r e s h enough62
{ 63
// c o u t << ” R e c a l c u l a i n g d i s t a n c e f o r l i n e ” << i d << e n d l ; 64
distance () ; 65
} 66
67
return dist ; 68
} 69
void Line : : updateCalcs ( ) 70
{ 71
// Find S l o p e and y−i n t e r c e p t o f t h i s l i n e f o r f u t u r e d i s t a n c e c a l c u l a t i o n s 72
d o u b l e denom = ( b−>x − a−>x ) ; 73
i f ( denom == 0 ) 74
{ 75
// c o u t << ” This program d o e s not s u p p o r t p e r f e c t l y v e r t i c l e l i n e s . ” << e n d l ; 76
// e x i t ( 0 ) ; 77
78
// P e r t u r b : 79
// b−>x = b−>x + 1 ; 80
denom = 0 . 0 0 0 0 0 0 0 0 1 ; // ( b−>x − a−>x ) ; 81
} 82
m = ( b−>y − a−>y ) /denom ; 83
84
// c o u t << m << ” M ” << e n d l ; 85
86
y i n t e r c e p t = a−>y − m∗a−>x ; 87
// c o u t << y i n t e r c e p t << ” m ” << e n d l ; 88
} 89

Page 18 of 22
Dave Coleman CSCI 5454 (Prof. Clauset 4:00 MW): Visibility Graph

void Line : : d i s t a n c e ( ) 90
{ 91
// F i r s t f i n d t h e i n t e s e c t i o n o f t h i s l i n e and t h e sweep l i n e : 92
double xi ; 93
double yi ; 94
c e n t e r i n t e r c e p t ( xi , y i ) ; 95
96
// c o u t << ”The i n t e r c e p t i s x : ” << x i << ” y : ” << y i << e n d l ; 97
// c o u t << ”M: ” << m << ” b : ” << y i n t e r c e p t << e n d l ; 98
99
// Now f i n d t h e d i s t a n c e between t h e s e two l i n e s : 100
d i s t = s q r t ( pow ( c e n t e r −>x − x i , 2 . 0 ) + pow ( c e n t e r −>y − y i , 2 . 0 ) ) ; 101
102
// c o u t << ” D i s t a n c e : ” << d i s t << e n d l << e n d l ; 103
t h e t a c a c h e = c e n t e r −>t h e t a ; 104
} 105
106
v o i d L i n e : : c e n t e r i n t e r c e p t ( d o u b l e &x i , d o u b l e &y i ) 107
{ 108
x i = d o u b l e ( y i n t e r c e p t − c e n t e r l i n e −>y i n t e r c e p t ) / d o u b l e ( c e n t e r l i n e −>m − m ) ; 109
y i = m∗ x i + y i n t e r c e p t ; 110
} 111
../visibility graph/line.cpp

Page 19 of 22
Dave Coleman CSCI 5454 (Prof. Clauset 4:00 MW): Visibility Graph

point.h
#i f n d e f POINT H INCLUDED 1
#d e f i n e POINT H INCLUDED 2
3
#i n c l u d e <i o s t r e a m > 4
#i n c l u d e ” geometry . h” 5
6
c l a s s P o i n t : p u b l i c Geometry 7
{ 8
public : 9
int x ; 10
int y ; 11
void ∗ parentLine ; 12
i n t i d ; // f o r removing , comparing , e t c 13
d o u b l e t h e t a ; // a n g l u l a r amount from b a s e l i n e 14
15
Point ( ) ; 16
Point ( i n t x1 , i n t y1 ) ; 17
18
v i r t u a l void print ( ) ; 19
v i r t u a l double value ( ) ; 20
}; 21
22
#e n d i f 23
../visibility graph/point.h

point.cpp
#i n c l u d e ” p o i n t . h” 1
2
3
Point : : Point ( ) 4
{ 5
static int id counter = 0; 6
i d = i d c o u n t e r ++; 7
} 8
P o i n t : : P o i n t ( i n t x1 , i n t y 1 ) 9
{ 10
x = x1 ; 11
y = y1 ; 12
Point ( ) ; 13
} 14
void Point : : p r i n t ( ) 15
{ 16
s t d : : c o u t << ” P o i n t x : ” << x << ” y : ” << y << ” \ t ID : ” << i d << s t d : : e n d l ; 17
} 18
double Point : : value ( ) 19
{ 20
// t h i s i s t h e a n g u l a r d i s t a n c e from t h e b a s e l i n e 21
// f o r p o i n t . cpp , we j u s t c a c h e t h e i n i t i a l c a l c u l a t i o n 22
return theta ; 23
} 24
../visibility graph/point.cpp

Page 20 of 22
Dave Coleman CSCI 5454 (Prof. Clauset 4:00 MW): Visibility Graph

geometry.h
#i f n d e f GEOMETRY H INCLUDED 1
#d e f i n e GEOMETRY H INCLUDED 2
3
c l a s s Geometry 4
{ 5
public : 6
// i n t i d ; // f o r removing , comparing , e t c 7
8
v i r t u a l void print ( ) = 0 ; 9
v i r t u a l double value ( ) = 0 ; 10
11
}; 12
13
#e n d i f 14
../visibility graph/geometry.h

Page 21 of 22
Dave Coleman CSCI 5454 (Prof. Clauset 4:00 MW): Visibility Graph

Matlab plot.m Used For Generating Plots

clear 1
clc 2
3
data = c s v r e a d ( ’ data . c v s ’ ) 4
5
n = data ( : , 1 ) 6
logger1 = 50.∗(n .ˆ2) .∗ log ( n ) ; 7
logger2 = 25.∗(n .ˆ2) .∗ log ( n ) ; 8
9
l o g l o g ( data ( : , 1 ) , data ( : , 2 ) , ’ bo− ’ , . . . 10
data ( : , 1 ) , l o g g e r 1 , ’ k : ’ , data ( : , 1 ) , l o g g e r 2 , ’ k : ’ ) 11
12
13
s e t ( gca , ’ F o n t S i z e ’ , 1 4 ) 14
15
l e g e n d ( ’ Number o f l o o k u p s ’ , ’O( nˆ2 l o g n ) ’ , ’ L o c a t i o n ’ , ’ NorthWest ’ ) 16
x l a b e l ( ’ Input s i z e , n ’ ) 17
y l a b e l ( ’ Number o f o p e r a t i o n s , T ’ ) 18
t i t l e ( ’ Atomic O p e r a t i o n s o f Lee V i s i b i l i t y Graph Algorithm ’ ) ; 19
../visibility graph/plot.m

Runtime Data Restuls

9 ,6026 1
25 ,62585 2
1 0 0 , 1 . 4 2 3 1 3 e+06 3
2 8 9 , 1 . 4 7 7 5 1 e+07 4
9 6 1 , 2 . 3 4 0 2 7 e+08 5
3 1 3 6 , 2 . 9 1 4 e+09 6
../visibility graph/data.cvs

Page 22 of 22
