Fiat barchetta Electrical equipment

2000 Update Wiring diagrams

55.

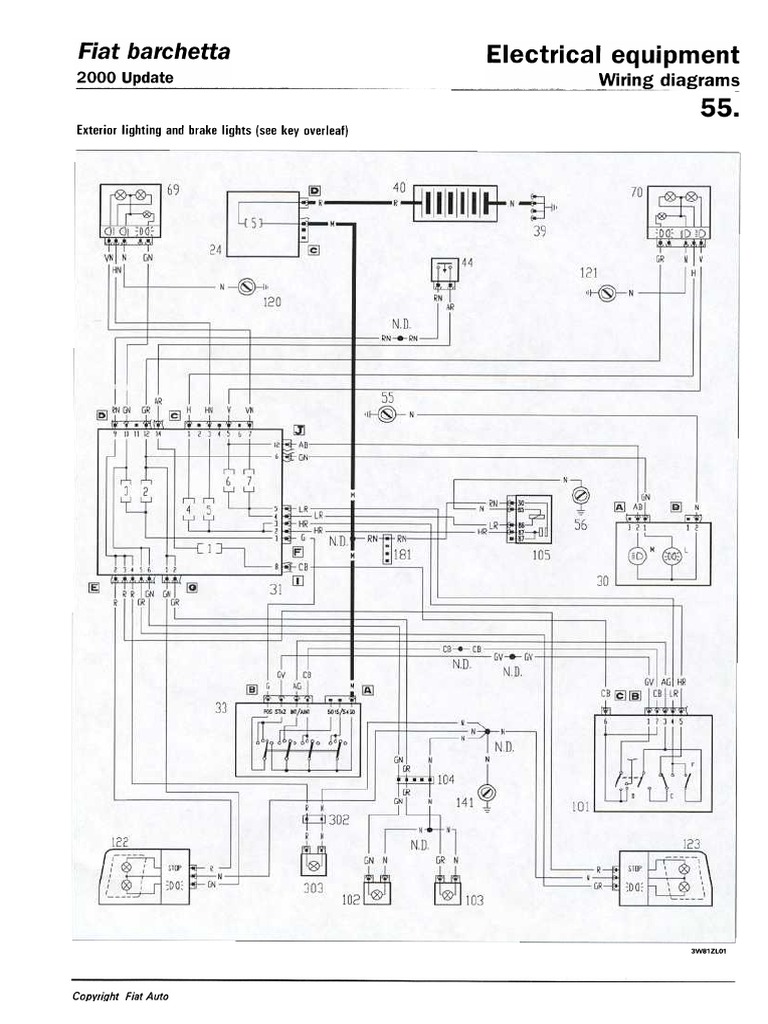

Exterior lighting and brake lights (see key overleaf)

3W81ZLO1

Copyright Fiat Auto

Electrical equipment Fiat barchetta
Componentlocation 2000 Update

3W82ZLO1

Exterior lighting and brake lights

Component key
24 Fuse box 104 Coupling between rear and bumpers ca-
Fuse 3 40A ble
Fuse 5 50A 105 Relay for additional headlamps
30 Instrument panel 120 Left front earth
L Side lights warning light 121 Right front earth
M Main beam head lamps warning light 122 Left rear light cluster
31 Junction unit - Side light
33 Ignition switch - Brake light
39 Battery earth 123 Right rear light cluster
40 Battery - Side light
44 Brake lights signal switch - Brake light
56 Right dashboard earth 141 Rear earth
69 Left front light cluster Coupling between dashboard and front
70 Right front light cluster 181 cables
101 Steering column switch unit 302 Coupling between rear and boot lid ca-
102 Left number plate light bles
103 Right number plate light 303 Rear additional lamp

2 Print n 506586/13
Fiat barchetta Electrical equipment
2000 Update Wiring diagrams
55.
Radio receiver - (see key overleaf)

3W83ZLO1

Copyright Fiat Auto 3

Electrical equipment Fiat barchetta
Componentlocation 2000 Update

55.

3W84ZLO1

Radio receiver wiring

Component key
24 Fuse box 91 Left front speaker
Fuse 4 60A 92 Right front speaker
Fuse 5 50A 93 Left speaker for medium-low frequen-
31 Junction unit cies
33 Ignition switch 94 Right speaker for medium-low frequen-
34 Coupling between front and radio receiver cies
cables 101 Steering column switch unit
39 Battery earth 169 Earth for radio receiver aerial
40 Battery 171 Aerial for radio receiver
Connection between facia lead and left 300 Coupling between radio and sub
41 door lead woofer cables
51 Connection between facia lead and 301 Sub-woofer
right door lead
55 Left facia earth
90 Radio receiver

4 Print n° '1nR'1RR/1.'?
