CONTINENTAL Automotive SAS I,B&S S2

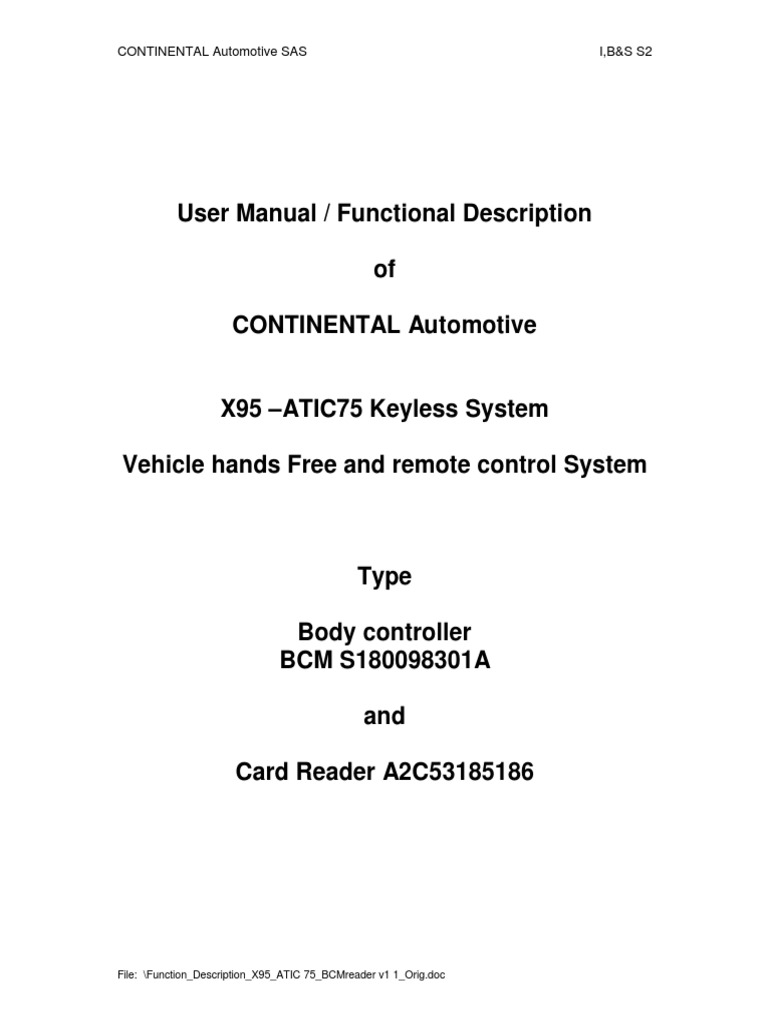

User Manual / Functional Description

of

CONTINENTAL Automotive

X95 –ATIC75 Keyless System

Vehicle hands Free and remote control System

Type

Body controller
BCM S180098301A

and

Card Reader A2C53185186

File: \Function_Description_X95_ATIC 75_BCMreader v1 1_Orig.doc

CONTINENTAL Automotive SAS I,B&S S2

1. SYSTEM OVERVIEW

The Free hands system consists of the following units:

ID card type A2C53258980 which includes a 433.92 MHz transmitter, a 125 kHz
receiver and a 125 kHz transponder

- ID card type A2C53258981 which includes a 433.92 MHz transmitter and

a 125 kHz transponder. The A2C53258981 is a reduced assembly variant of
the A2C53258980.

- Card reader type A2C53185186 which includes a 125 kHz transceiver

- Body controller (BCM) type A2C533 102 40 / S180071301A which

includes a 125 kHz transmitter and a 433.92 MHz receiver. The BCM drives
6 external dedicated coil antennas for the 125 kHz transmission. 2 are
located in the doors handles, 1 in the Trunk, and 3 inside of the car.
A PCB antenna inside BCM is used for the 433.92 MHz reception.

2. CAR ACCESS
There are two ways to lock or unlock the doors of the car:

- The first way is to use the remote control mode by pressing one of the “Lock” or
“Unlock” buttons on the ID card. Data frames are then transmitted at 433.92
MHz from the ID card to the car. The BCM processes the frames received and
when the code is correct, the doors are locked or unlocked automatically.
-
This function is allowed using the ID cards A2C53258980 and the variant
A2C53258981.

- The second way is to use the free hand mode.

Unlocking the vehicle :

When the sensor located in the door detects the hand, the BCM transmits data
frames at 125 kHz . When the ID card receives the data and recognizes the
content of the inquiry, it transmits the code to the car at 433.92 MHz. The BCM
processes the frames received and when the code is correct, the doors are
automatically unlocked.

Locking the vehicle :

As soon as the door is closed the car transmits inquiries at 125 kHz to the ID
card. If the ID card is located in one of the doors antenna field, it transmits the
answer at 433.92 MHz and the vehicle remains in an unlocked state. When the
ID leaves the neighbourhood of the vehicle, the ID sends at 433.92 MHz a
request to lock. The BCM processes the frames received and then the vehicle is
locked.
This function is allowed using the ID card A2C53258980 only.

File: \Function_Description_X95_ATIC 75_BCMreader v1 1_Orig.doc

CONTINENTAL Automotive SAS I,B&S S2

3. ENGINE START

There are two ways to start the engine:

- The first way is to insert the ID card in to the Card reader and to press the
“START” button on the dashboard. Each ID card has a transponder. When the
“START” button is pressed, the BCM sends a ‘transponder” recognition order to
the Card reader. Receiving this order, the Card reader performs a ‘transponder”
authentication using 125 kHz transceiver. The Card reader sends the
authentication result to the BCM. The central unit sends the start order to the
engine control unit.

This function is allowed using the ID cards A2C53258980 and the variant
A2C53258981.

The second way is to use the free hand mode:

- the user does not need to insert the ID card into the Card reader. When the
“START” button is pressed, the BCM sends a recognize order at 125 kHz link via
ferrite coil antennas. Receiving this order, the ID card sends authentication at
433.92 MHz.
This function is allowed using the ID card A2C53258980 only. In this case the card
reader is used as a backup solution. It is used only if the free hand mode does
not work.

4. LOCA PASE FOR TPMS

Stimulation management for LocAI Data LF.

PASE LF antennas are used to perform auto learning and auto localisation of
Wheel Unit

1.1. USE OF THE 2 LF FRAMES.

The two LF Data frames (LF Data LocStatus and LF Data Trig) are used to carry out the
global function:
• To switch the WUs in permanent LF listening mode and to ask the WU for LF status
• To trig the WUs

File: \Function_Description_X95_ATIC 75_BCMreader v1 1_Orig.doc

CONTINENTAL Automotive SAS I,B&S S2

Wake up Status Side1 Status Side2 Status Trunk Status

LF Data
LF trig LF trig LF trig
LocStatus

Time
CALIB_TIME_LOC_2WHEELS CALIB_TIME_LOC_2WHEELS CALIB_TIME_LOC_2WHEELS

CALIB_TIME_WUP_LF CALIB_TIME_STATUS CALIB_TIME_STATUS CALIB_TIME_STATUS CALIB_TIME_STATUS

1.2. LF DRIVER PILOTING

1.2.1. Five LF Areas

1.2.1.1.Wake Up and Status phase

During Wake up and Status phase, the 4 WU mounted on the vehicle have to receive the LF
Data LocStatus frames emitted by the vehicle.
In this way, 2 LF Area are used sequencially.
The vehicle first trig on side 1 and CALIB_INTER_LF_STATUS later on side 2.

WU WU

BCM

LF antenna

LF Trig
125kHz

LF Area 1

File: \Function_Description_X95_ATIC 75_BCMreader v1 1_Orig.doc

CONTINENTAL Automotive SAS I,B&S S2

WU

BC
M
LF antenna

LF
Trig
125k
LF Area 2

1.2.1.2.LF Trig phase

During LF Trig phase, the driver shall trig only the 2 wheels mounted on the side we want to
localize.
3 LF Areas are used.
When a localization is done on side1, the driver send LF Data Trig using the LF Area3 every
CALIB_INTER_LF_TRIG during CALIB_TIME_LOC2WHEELS.
When a localization is done on side2, the driver send LF Data Trig using the LF Area4 every
CALIB_INTER_LF_TRIG during CALIB_TIME_LOC2WHEELS.
When a localization is done on trunk, the driver send LF Data Trig using the LF Area5 every
CALIB_INTER_LF_TRIG during CALIB_TIME_LOC2WHEELS.

File: \Function_Description_X95_ATIC 75_BCMreader v1 1_Orig.doc

CONTINENTAL Automotive SAS I,B&S S2

WU

BCM

LF antenna

LF Data Trig LF Area 3

125kHz

WU

BCM

LF antenna

LF Area 4 LF Data Trig

125kHz

File: \Function_Description_X95_ATIC 75_BCMreader v1 1_Orig.doc

CONTINENTAL Automotive SAS I,B&S S2

WU

BCM

LF antenna

LF Data Trig
125kHz LF Area 5

1.2.2. Antenna configuration of LF emission: LF Area

To localize on one side, an LF data trig is send on this side.
On opposite side, a destroy bit is sent in order to kill the LF Data frame inhibiting a high
transition of a Manchester bit. LF field of the destroy bit signal received at wheel unit level
shall be at least equal to the LF Data trig fiels level received on this side.

Antenna 1 Triggered side Antenna 1 Triggered side

1 0 0 1 0 0 1 0 0 1 0 0

Opposite side Antenna 2 Opposite side

1 0 0 1 ? 0

WITHOUT DESTROY BIT WITH DESTROY BIT

Destroy bit influence

File: \Function_Description_X95_ATIC 75_BCMreader v1 1_Orig.doc

CONTINENTAL Automotive SAS I,B&S S2

1.3. CALIBRATION VALUES

TG_CALIB_INTER_LF_WUP 200ms
TG_CALIB_INTER_LF_STATUS 200ms
TG_CALIB_INTER_LF_TRIG 200ms
TG_CALIB_TIME_LOC2WHEELS 16s
TG_CALIB_TIME_STATUS 6s
TG_CALIB_TIME_WUP 12s

5. TECHNICAL DESCRIPTION

Technical parameters of the BCM LF transmitter:

Carrier frequency: 125 kHz

Frequency shift: ± 20 kHz
Number of channels: 1
Duty cycle: < 0.1%
Type of modulation: Amplitude Shift Keying (ASK)
Baud rate: 4000 bit/s
Field strength: < 40 dBµA/m @ 10m
Antenna: dedicated antennas
Supply voltage: 12V lead acid vehicle battery
Voltage supply range: 9V up to 16V

File: \Function_Description_X95_ATIC 75_BCMreader v1 1_Orig.doc

CONTINENTAL Automotive SAS I,B&S S2

6. TYPICAL USAGE PATTERN

5500 cycles / year=15 cycles / day = 0,625 cycle / hour

A cycle consists of:

Commands sequence of 1 cycle LF frame duration RF frame duration

Ø 1 Hand-free start 67 ms 15ms
Ø 1 Battery measurement 67 ms 26ms
Ø 16 Data pages written in key 79 ms * 16 26ms * 16
Ø 1 Hand-free stop 67ms 15ms
Ø 1 Card presence survey 47 ms 10ms
Ø TPMS localisation (360 1556ms 2400ms
frames)
Ø 1 Walk Away locking (300ms 37 ms * 100 12ms * 100
for 30s)
Ø 1 Hand-free unlocking 45 ms 13ms
Overall cycle durations 6813ms / cycle 4095ms/cycle

LF frame :
Modulation : ASK
Coding : Manchester ⇒ Frame duty cycle = 50%
⇒ LF Ton = 6813ms/2 = 3407 ms / cycle
⇒ LF Ton/h = 3407 *0,625= 2129ms
LF duty cycle = 2129/3 600 000 ~ 0,059 %

RF frames
Modulation : FSK
Coding : Manchester ⇒ Frame duty cycle = 100%
⇒ RF Ton = 4095ms /cycle
⇒ RF Ton/h = 4095*0,625 = 2559ms

RF duty cycle = 2559/3 600 000 ~ 0,071 %

File: \Function_Description_X95_ATIC 75_BCMreader v1 1_Orig.doc

CONTINENTAL Automotive SAS I,B&S S2

7. MECHANICAL DRAWING

a) Reader A2C53185186:

File: \Function_Description_X95_ATIC 75_BCMreader v1 1_Orig.doc

CONTINENTAL Automotive SAS I,B&S S2

b) BCM A2C533 102 40 / S180071301A:

ð LABEL DEFINITION

AREAS PLACEMENT AND DIMENSION

Area size * Position on label in mm

Area num. Description (X;Y) of the top-left corner
(Lxl in mm)
of area
1 "BCM X95" or "BCM L38" (7 digits) 9 X 2.5 2;1.5
2 Version of BCM (L1, L2, L3, L4, L1', L2', L3') (3 digits) 3.5 X 2.5 12.5;1.5
3 Used antenna (INT, EXT) (3 digits) 3.5 X 2.5 17;1.5
4 Date code (YYDDD) 6 X 2.5 22;1.5
5 SIEMENS VDO part number (SXXX XXX XXX) (12 digits) 13.5 X 2.5 2;4.5
6 SIEMENS VDO Indice refrence XX (2 digits) 2.5 X 2.5 16.5;4.5
7 Renault reference (10 digits) 20 X 3 9;8
8 Customer reference barcode (Code 128, mode B, 3 dots) 36 X 6 2;12
9 CE logo 6X6 34;1.5
10 "12V" 4.5 X 2.5 34.5;8
11 SIEMENS VDO logo 25 X 3 46;1.5
12 SIEMENS VDO serial number barcode (given at ICT test and 28 X 6 44;4.5

File: \Function_Description_X95_ATIC 75_BCMreader v1 1_Orig.doc

CONTINENTAL Automotive SAS I,B&S S2

written in EEPROM : 14 digits)

13 SIEMENS VDO Serial number (given at ICT test and written in 18 X 3 52;11
EEPROM : 14 digits)
14 "Made in Fance" 9.5 X 4.5 44;13.5
15 "Homologation see user's manual" 18.5 X 4.5 55.5;13.5
16 Specific marking (black point) for parts that have been 2X2 2;9
reprogrammed

* Origin reference of label (0;0) on top-left of the label

7) BLOCK DIAGRAM OF THE BCM

The block diagram below shows the main electronic units of the BCM:

C:\DATA\Francois\
X95\4 RF\Homologation\BCM 95 Bloc diagram C1.pdf

File: \Function_Description_X95_ATIC 75_BCMreader v1 1_Orig.doc

CONTINENTAL Automotive SAS I,B&S S2

8) BLOCK DIAGRAM OF THE READER

The block diagram below shows the main electronic units of the card reader:

Connector pins

Connector pins allocation

Signal
Pin
1 Not Connected
2 Card_Reader_Led
3 Vbat
4 Data
5 GND
6 Clock
7 Key_In_Switch
8 Not Connected

File: \Function_Description_X95_ATIC 75_BCMreader v1 1_Orig.doc

CONTINENTAL Automotive SAS I,B&S S2

9) PHOTOGRAPHY OF THE BCM

Photo of the BCM A2C533 102 40 / S180071301A: Housing top view

File: \Function_Description_X95_ATIC 75_BCMreader v1 1_Orig.doc

CONTINENTAL Automotive SAS I,B&S S2

Photo of the BCM A2C533 102 40 / S180071301A: Housing bottom view

File: \Function_Description_X95_ATIC 75_BCMreader v1 1_Orig.doc

CONTINENTAL Automotive SAS I,B&S S2

10) PHOTOGRAPHY OF THE READER

Photo of the reader A2C53185186 : Housing top view

Photo of the reader A2C53185186 : Housing bottom view

File: \Function_Description_X95_ATIC 75_BCMreader v1 1_Orig.doc

CONTINENTAL Automotive SAS I,B&S S2

Photo of the reader A2C53185186: Housing top view

Photo of the reader A2C53185186: Housing bottom view
