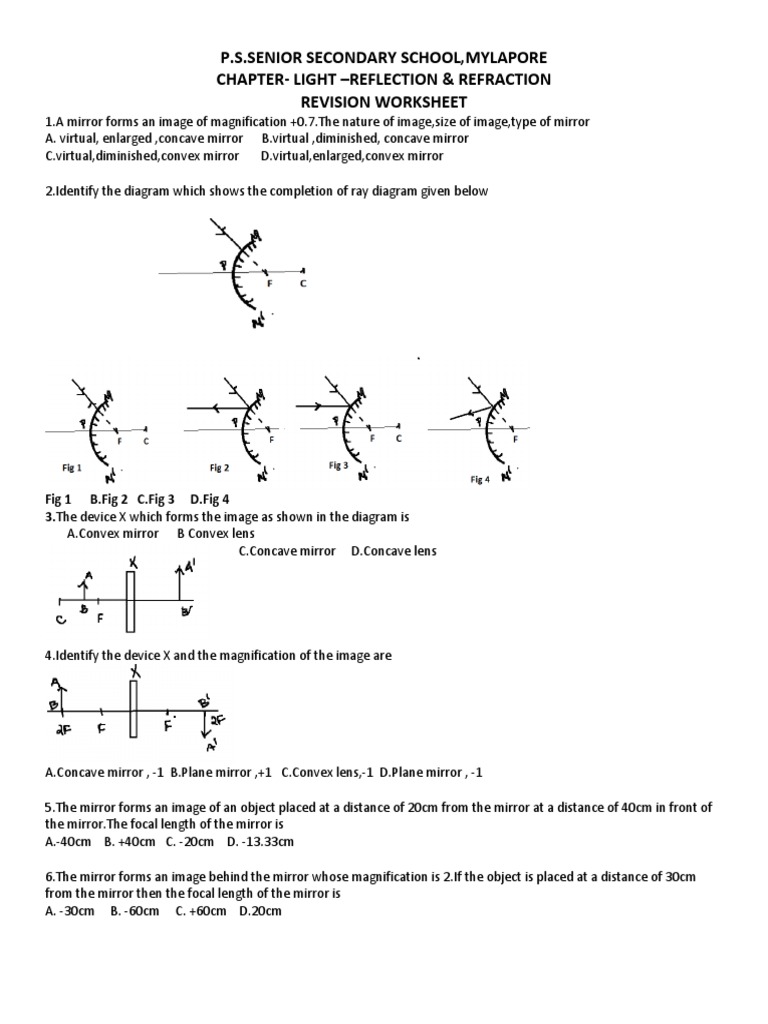

P.S.
SENIOR SECONDARY SCHOOL,MYLAPORE
CHAPTER- LIGHT –REFLECTION & REFRACTION
REVISION WORKSHEET
1.A mirror forms an image of magnification +[Link] nature of image,size of image,type of mirror
A. virtual, enlarged ,concave mirror [Link] ,diminished, concave mirror
[Link],diminished,convex mirror [Link],enlarged,convex mirror
[Link] the diagram which shows the completion of ray diagram given below
Fig 1 [Link] 2 [Link] 3 [Link] 4
[Link] device X which forms the image as shown in the diagram is
[Link] mirror B Convex lens
[Link] mirror [Link] lens
[Link] the device X and the magnification of the image are
[Link] mirror , -1 [Link] mirror ,+1 [Link] lens,-1 [Link] mirror , -1
[Link] mirror forms an image of an object placed at a distance of 20cm from the mirror at a distance of 40cm in front of
the [Link] focal length of the mirror is
A.-40cm B. +40cm C. -20cm D. -13.33cm
[Link] mirror forms an image behind the mirror whose magnification is [Link] the object is placed at a distance of 30cm
from the mirror then the focal length of the mirror is
A. -30cm B. -60cm C. +60cm D.20cm
[Link] the diagram which explains the usage of concave mirror as a dentist mirror
A.(a) B.(b) C.(c) D.(d)
[Link] ray diagram representing the path of light ray refracted through a glass slab
P B.Q C. R D.S
[Link] correct diagram representing light ray passing parallel to principal axis of a convex lens is
I B. II [Link] [Link]
[Link] relative refractive index of medium X with respect to medium Y is [Link] refractive index of medium X is 1.47
then the refractive index of medium Y is
A.1.308 B.1.65 C.1.54 D.1.77
11.A concave lens of focal length 15cm produces an image whose magnification is 1/[Link] distance of the image from
the object is
A.30cm B.20cm C. 10cm D.15cm
[Link] power of concave lens is [Link] focal length of the lens is
A. -40cm B. 0.4cm C. – 0.4cm D. 40cm
[Link] the diagram given below and identify the correct options regarding the diagram given:
(i)The above mirror is a converging mirror
(ii)The mirror always forms a virtual image which is diminished
(iii)The focal length of the above mirror is positive
(iv)The mirror is used as a rear view mirror
A.(i) & (iv) B. (ii) & (iii) C. (i),(iii) & (iv) D.(ii),(iii) &(iv)
[Link] the diagram given below and identify the options which is correct: (one small box in the diagram is 1cm)
(A)The focal length of the lens is 3cm,magnification is +1.5
(B)The focal length of lens is 3cm, magnification is -1.5
(C)The focal length of lens is 6cm ,magnification is 6
(D) The focal length of lens is -6cm ,magnification -6
[Link] the diagram given below and identify the options which are correct:
(i) Medium A is optically denser than Medium B
(ii)The light ray passing obliquely from medium A to medium B
bends towards the normal
(iii)The light ray passing normally from medium A to medium B
goes along the normal.
(iv)The relative refractive index of medium A with respect to
medium B is nAB=vB/vA
A.(i) & (ii) B.(ii) & (iv) C.(i),(ii) & (iii) D.(i),(iii) & (iv)
For the questions 16 to 20 two statements are given under. One is labelled Assertion (A) and other is labelled
Reasoning (R) . Select the correct answer to these questions from the codes (A), (B), (C) and (D)
(A) Both A and R are correct and R is correct explanation for A
(B) Both A and R are correct and R is not the correct explanation for A
(C) A is true but R is false
(D) A is false but R is true
[Link]: The height of the object is always positive
Reason: The object is always placed above the principal axis in the upward direction
[Link]:Large concave mirrors are used to concentrate sunlight in solar cooker to produce heat.
Reason:Concave mirror produces parallel beam of light when the light ray passes through principal focus.
[Link]: An object is placed at a distance of f from a convex mirror of focal length fm, its image is formed at infinity.
Reason: The distance of image in a convex mirror can never be infinity.
[Link]: Higher is the refractive index of a medium, lesser is the speed of light in that medium
Reason: Refractive index is inversely proportional to speed of light.
[Link]:The mirror formula can be applied to a plane mirror.
Reason: The plane mirror is a spherical mirror of infinite focal length.
CASE STUDY -1
Read the following passage and answer all the questions :
The position ,nature and size of the image of an object formed by
a convex lens depends on the position of the object with respect
to its optic centre and can be studied by using the Cartesian sign
convention and drawing the corresponding ray diagrams. The
nature, position and size of the image can be noted and
measured from the optic centre of the convex lens.
[Link] ray diagram showing the formation of image of a distant object is
A.(A) B.(B) C.(C) D.(D)
[Link] focal length of the convex lens as shown in the fig.1 is
A. 40cm B. 10cm C.30cm D.35cm
[Link] lens which can be used to view the small letters in the dictionary is
A. a convex lens of focal length 50cm B. a concave lens of focal length 50cm
C. a convex lens of focal length 5cm D.a concave lens of focal length 5cm
24. A convex lens produces an image of height 4cm of an object of height 2cm on the sameside where the object is
[Link] the object is placed at a distance of 30cm from the mirror ,the focal length of the lens is
A. 20cm B.30cm C. 60cm D.40cm
CASE STUDY -2
The convex mirror always forms a virtual image of the object and the image formed by the convex mirror is smaller than
the size of the actual object. Therefore, the most common convex mirror uses are in places where bigger objects are to
be viewed in a smaller size. Since convex mirrors have a wider view field than concave mirrors and plane mirrors, they
are mostly used inside mirrors of automobiles. Large offices, stores, and hospitals use a convex mirror to let people see
around the corner so that they can avoid running into each other and prevent any [Link] mirrors are widely
used as rear-view mirrors in automobiles and vehicles.
25. The magnification produced by a rear view mirror that is used in the vehicles is
(A) less than 1 (B) more than 1 (C) equal to 1 (D) less than 1 or more than 1
26.A convex mirror always forms a image which is
A. virtual and enlarged [Link] and enlarged C. real and diminished [Link] and diminished
[Link] the object is moved from infinity to the pole of a convex mirror ,the image
[Link] from pole to the focus of the convex mirror [Link] from focus to the pole of the mirror
[Link] remains the same that is at focus [Link] of the above
28. The full length image of a distant tall building can be seen by using
(A) concave mirror (B) convex mirror (C) concave lens (D) convex lens
