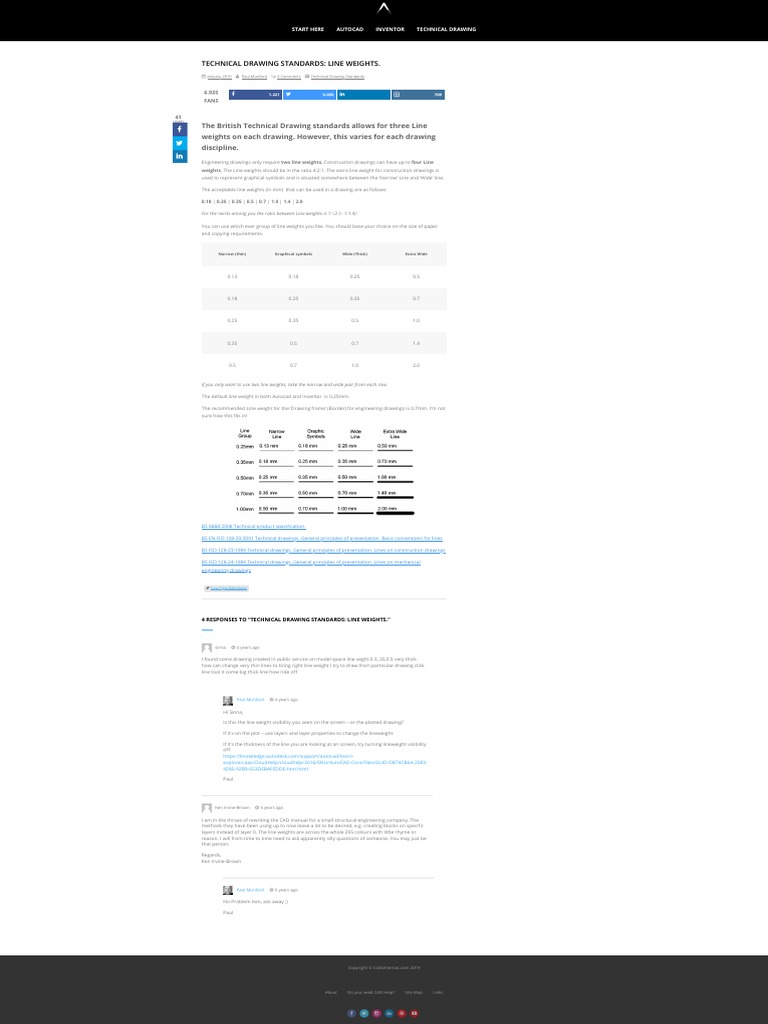

TECHNICAL DRAWING STANDARDS: LINE WEIGHTS.
January 2010 Paul Munford 4 Comments Technical Drawing Standards
6.935 1.221 5.005 709
FANS
41
SHARES
a The British Technical Drawing standards allows for three Line
weights on each drawing. However, this varies for each drawing
d discipline.
k Engineering drawings only require two line weights, Construction drawings can have up to four Line
weights. The Line weights should be in the ratio [Link]. The extra line weight for construction drawings is
used to represent graphical symbols and is situated somewhere between the ‘Narrow’ Line and ‘Wide’ line.
The acceptable line weights (in mm) that can be used in a drawing are as follows:
0.18 | 0.25 | 0.35 | 0.5 | 0.7 | 1.0 | 1.4 | 2.0
For the nerds among you the ratio between Line weights is 1:√2 (≈ 1:1.4):
You can use which ever group of line weights you like. You should base your choice on the size of paper
and copying requirements.
Narrow (thin) Graphical symbols Wide (Thick) Extra Wide
0.13 0.18 0.25 0.5
0.18 0.25 0.35 0.7
0.25 0.35 0.5 1.0
0.35 0.5 0.7 1.4
0.5 0.7 1.0 2.0
if you only want to use two line weights, take the narrow and wide pair from each row.
The default line weight in both Autocad and Inventor is 0.25mm.
The recommended Line weight for the ‘Drawing frame’ (Border) for engineering drawings is 0.7mm. I’m not
sure how this ts in!
BS 8888:2008 Technical product speci cation.
BS EN ISO 128-20:2001 Technical drawings. General principles of presentation. Basic conventions for lines
BS ISO 128-23:1999 Technical drawings. General principles of presentation. Lines on construction drawings
BS ISO 128-24:1999 Technical drawings. General principles of presentation. Lines on mechanical
engineering drawings
Line Type De nitions
