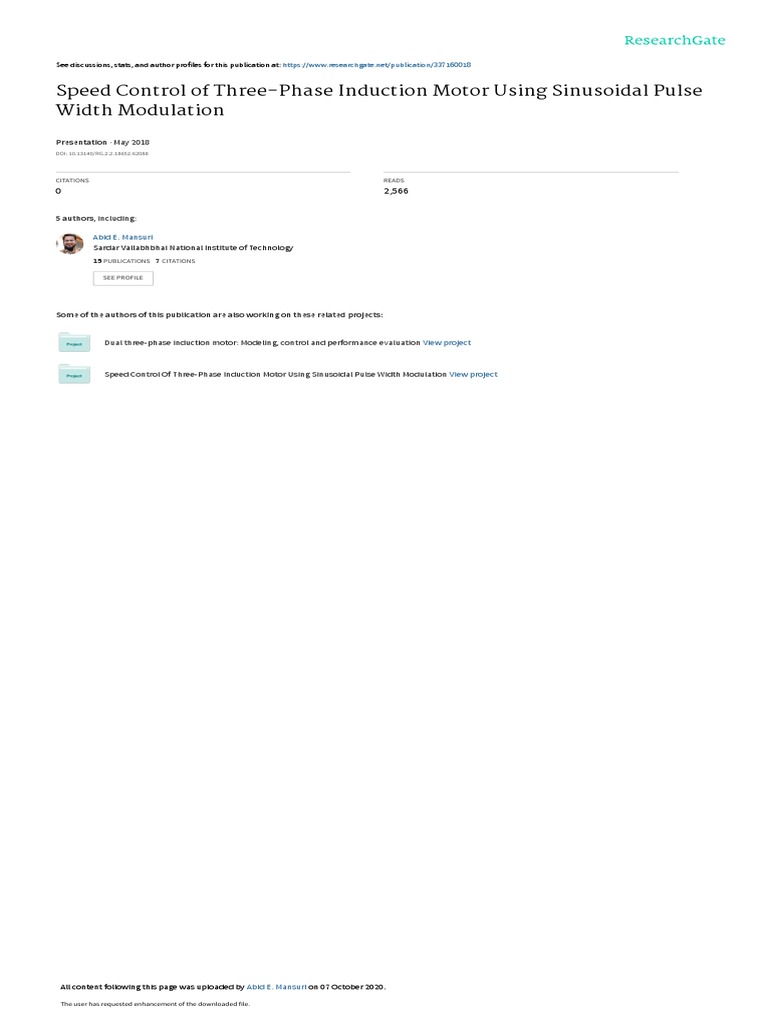

Speed Control of Three-Phase Induction Motor Using Sinusoidal Pulse Width Modulation
net/publication/337160018
CITATIONS READS
0 2,566
5 authors, including:
Abid E. Mansuri
Sardar Vallabhbhai National Institute of Technology
15 PUBLICATIONS 7 CITATIONS
SEE PROFILE
Some of the authors of this publication are also working on these related projects:
Dual three-phase induction motor: Modeling, control and performance evaluation View project
Speed Control Of Three-Phase Induction Motor Using Sinusoidal Pulse Width Modulation View project
All content following this page was uploaded by Abid E. Mansuri on 07 October 2020.
PREPARED BY:
• Several factors which include robustness, low cost and low maintenance have
made induction motor popular for industrial applications compared to dc motor.
• The amplitude modulation index Ma is usually adjusted by varying Vm while keeping Vcr fixed.
The frequency modulation index,
fcr
𝑀f = (2)
fm
• The output freq. of the Inverter can be found by using the frequency of the sinusoidal
reference signal. Modulation index is controlled by peak amplitude of sinusoidal reference
signal and these modulation index M can be controlled RMS voltage of inverter output.
V/F Control Method
• The voltage and frequency are attempted to fluctuate, keeping their proportion
consistent, at that point the Torque created by IM will stay steady for all the speed.
• The scalar control technique depends on differing two parameters all the while.
V/F Control Method
• The speed can be shifted by increase or decrease the input frequency, but this results in
change of impedances will change. The change of impedances eventuates the increase
or decrease of current. If the current is small, the torque of motor decreases.
• If the voltage increases or the frequency decreases, the coils can be saturation or burned
can occur in the coils.
• To keep away from these issues, it is important to shift the frequency and the voltage at
the same time.
V/F Control Method
VDC VDC
F PI F
+ +
- Controller +
Three Phase Three Phase
V VSI V VSI
va vb vc va vb vc
IM
IM
Techogenerator
Simulation (Open Loop)
• Circuit diagram of V/f control for 3-phase induction motor using SPWM technique
Simulation (Open Loop)
• V/f control using SPWM technique
Simulation (Open Loop)
• Simulink model of inverter
Simulation (Open Loop)
• Simulink model of 3-phase induction motor
Simulation Result (Open Loop)
• Generated Pulse Using SPWM Technique
For V/f Control.
• Combination Of 3-phase & Carrier Wave
Simulation Result (Open Loop)
• Line to Ground Voltage • Line to Line Voltage
Simulation Result (Open Loop)
• Stator Current
• Rotor Current
Simulation Result (Open Loop)
• Output speed
• Output torque
Simulation (Close Loop)
• V/f control for 3-phase induction motor using SPWM technique
Simulation (Close Loop)
• SPWM technique using V/f control (CLOSE LOOP)
Simulation Result (Close Loop)
• Stator Current at different speed
• Output speed at 1400 RPM &1200 RPM • Output Speed At 1200 RPM & 1000 RPM
Simulation Result (Close Loop)
• Output of constant torque at different speed
Result
• Result for Open loop control at different speed
• B-Phase
Driver Card
Optical Isolation
IR2110 Driver IC
Output of Driver Card
