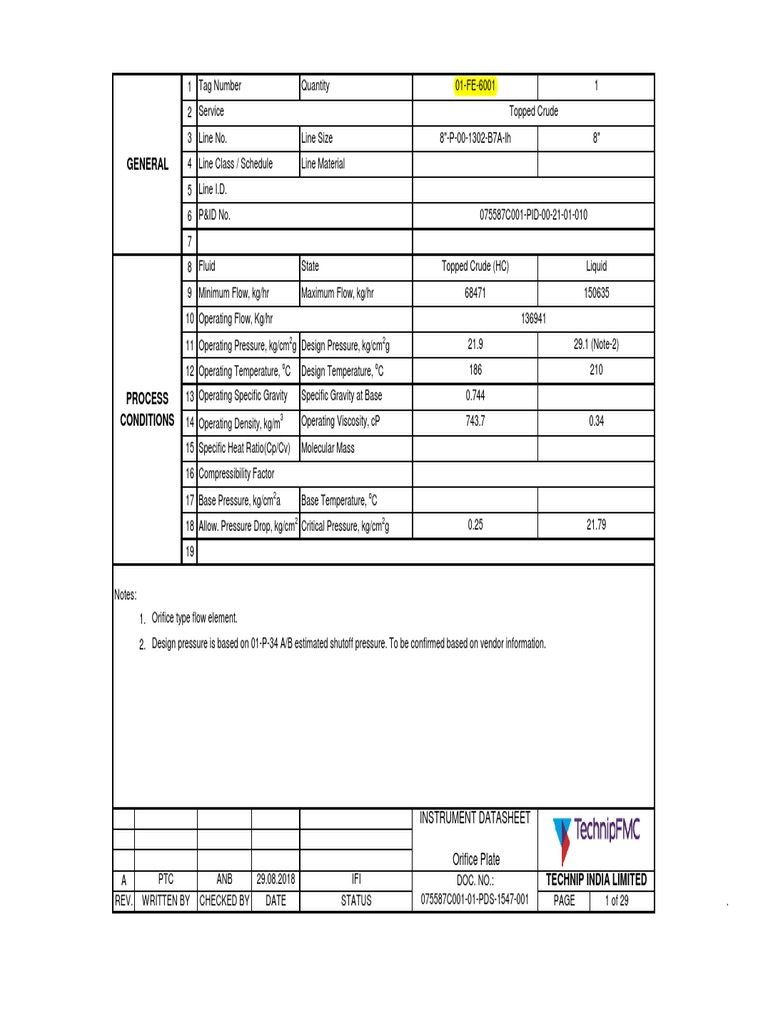

1 Tag Number Quantity 01-FE-6001 1

2 Service Topped Crude

3 Line No. Line Size 8"-P-00-1302-B7A-Ih 8"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-01-010
7
8 Fluid State Topped Crude (HC) Liquid
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 68471 150635
10 Operating Flow, Kg/hr 136941
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 21.9 29.1 (Note-2)
o o
12 Operating Temperature, C Design Temperature, C 186 210

PROCESS 13 Operating Specific Gravity Specific Gravity at Base 0.744

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 743.7 0.34
15 Specific Heat Ratio(Cp/Cv) Molecular Mass
16 Compressibility Factor
17 Base Pressure, kg/cm2a Base Temperature, oC
18 Allow. Pressure Drop, kg/cm2 Critical Pressure, kg/cm2g 0.25 21.79
19

Notes:
1. Orifice type flow element.
2. Design pressure is based on 01-P-34 A/B estimated shutoff pressure. To be confirmed based on vendor information.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 1 of 29 .
 1 Tag Number Quantity 01-FE-1334 (N) 1
2 Service Feed to Pretopping Column
3 Line No. Line Size 8"-P-00-1111-B1A-Ih 8"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-01-010
7
8 Fluid State Crude (HC) Liquid
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 75288 165604
10 Operating Flow, Kg/hr 150549
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 5.3 20.2
o o
12 Operating Temperature, C Design Temperature, C 202 270

PROCESS 13 Operating Specific Gravity Specific Gravity at Base 0.695

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 695 0.6
15 Specific Heat Ratio(Cp/Cv) Molecular Mass
16 Compressibility Factor
17 Base Pressure, kg/cm2a Base Temperature, oC
18 Allow. Pressure Drop, kg/cm2 Critical Pressure, kg/cm2g 0.25 31.38
19

Notes:
1. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 2 of 29 .
 1 Tag Number Quantity 01-FE-1101 (N) 1
2 Service Crude
3 Line No. Line Size 8"-P-00-2001-1-B1A 8"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-01-010
7
8 Fluid State Crude (HC) Liquid
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 75000 165000
10 Operating Flow, Kg/hr 150000
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 19.2 20.2
o o
12 Operating Temperature, C Design Temperature, C 25 55

PROCESS 13 Operating Specific Gravity Specific Gravity at Base 0.834

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 834 8.76
15 Specific Heat Ratio(Cp/Cv) Molecular Mass
16 Compressibility Factor
17 Base Pressure, kg/cm2a Base Temperature, oC
18 Allow. Pressure Drop, kg/cm2 Critical Pressure, kg/cm2g 0.25 23.87
19

Notes:
1. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 3 of 29 .
 1 Tag Number Quantity 01-FE-2024 (N) 1
2 Service MP steam to Pretopping Column
3 Line No. Line Size 4"-SM-00-2310-B2A-Ih 4"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-01-010
7
8 Fluid State Steam Vapor
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 150 660
10 Operating Flow, Kg/hr 600
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 1.5 - 7.5 18
o o
12 Operating Temperature, C Design Temperature, C 265 - 288 300

PROCESS 13 Operating Specific Gravity Specific Gravity at Base

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 3.358 0.019
15 Specific Heat Ratio(Cp/Cv) Molecular Mass 18.02
16 Compressibility Factor 0.976
2 o
17 Base Pressure, kg/cm a Base Temperature, C
18 Allow. Pressure Drop, kg/cm Critical Pressure, kg/cm2g
2
0.2
19

Notes:
1. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 4 of 29 .
 1 Tag Number Quantity 01-FE-039 (N) 1
2 Service SR KERO - I Product
3 Line No. Line Size 3"-P-00-2032-A1A 3"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-01-011-2
7
8 Fluid State SR KERO-I (HC) Liquid
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 9901 23980
10 Operating Flow, Kg/hr 21800
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 7.1 15.5 (Note-1)
o o
12 Operating Temperature, C Design Temperature, C 45 75

PROCESS 13 Operating Specific Gravity Specific Gravity at Base 0.763

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 763 0.7
15 Specific Heat Ratio(Cp/Cv) Molecular Mass
16 Compressibility Factor
17 Base Pressure, kg/cm2a Base Temperature, oC
18 Allow. Pressure Drop, kg/cm2 Critical Pressure, kg/cm2g 0.25 23.86
19

Notes:
1. To be confirmed based on Shut-off pressure of 01-P-31 A/B.
2. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 5 of 29 .
 1 Tag Number Quantity 01-FE-023 (N) 1
2 Service SR Heavy Gasoline Product
3 Line No. Line Size 3"-P-00-1606-A1A 3"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-01-016
7
8 Fluid State SR Heavy Gasoline (HC) Liquid
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 4400 13420
10 Operating Flow, Kg/hr 12200
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 3.76 6
o o
12 Operating Temperature, C Design Temperature, C 40 70

PROCESS 13 Operating Specific Gravity Specific Gravity at Base 0.718

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 718 0.4
15 Specific Heat Ratio(Cp/Cv) Molecular Mass
16 Compressibility Factor
17 Base Pressure, kg/cm2a Base Temperature, oC
18 Allow. Pressure Drop, kg/cm2 Critical Pressure, kg/cm2g 0.5 29.57
19

Notes:
1. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 6 of 29 .
 1 Tag Number Quantity 01-FE-068 (N) 1
2 Service MP Steam to SR KERO-I Stripper (CL-3A)
3 Line No. Line Size 3"-SL-00-6001-A2A-Ih 3"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-01-016
7
8 Fluid State MP Steam Vapor
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 148 352
10 Operating Flow, Kg/hr 320
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 10 18
o o
12 Operating Temperature, C Design Temperature, C 280 300

PROCESS 13 Operating Specific Gravity Specific Gravity at Base

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 4.3 0.019
15 Specific Heat Ratio(Cp/Cv) Molecular Mass 1.298 18.02
16 Compressibility Factor 0.971
2 o
17 Base Pressure, kg/cm a Base Temperature, C
18 Allow. Pressure Drop, kg/cm Critical Pressure, kg/cm2g
2
0.25
19

Notes:
1. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 7 of 29 .
 1 Tag Number Quantity 01-FE-102 (N) 1
2 Service Splitter-I Reflux
3 Line No. Line Size 4"-P-123-A1A-Ih 4"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-01-023-1
7
8 Fluid State Naphtha (HC) Liquid
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 13934 33838
10 Operating Flow, Kg/hr 30762
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 5.7 12.7 (Note-1)
o o
12 Operating Temperature, C Design Temperature, C 60 90

PROCESS 13 Operating Specific Gravity Specific Gravity at Base 0.663

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 663 0.23
15 Specific Heat Ratio(Cp/Cv) Molecular Mass
16 Compressibility Factor
17 Base Pressure, kg/cm2a Base Temperature, oC
18 Allow. Pressure Drop, kg/cm2 Critical Pressure, kg/cm2g 0.25 34.77
19

Notes:
1. Based on 01-P-32 A/B estimated shut-off pressure. To be confirmed during detail engineering.
2. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 8 of 29 .
 1 Tag Number Quantity 01-FE-106 (N) 1
2 Service Fuel Gas to Splitter-I Heater
3 Line No. Line Size 4"-FG-101-A1A-It 4"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-01-023-2
7
8 Fluid State Fuel Gas (HC) Vapor
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 264 581
10 Operating Flow, Kg/hr 528
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 3.0 10
o o
12 Operating Temperature, C Design Temperature, C 40 65

PROCESS 13 Operating Specific Gravity Specific Gravity at Base

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 2.86 0.012
15 Specific Heat Ratio(Cp/Cv) Molecular Mass 1.266 18.7
16 Compressibility Factor 1.000
2 o
17 Base Pressure, kg/cm a Base Temperature, C
18 Allow. Pressure Drop, kg/cm Critical Pressure, kg/cm2g
2
0.25
19

Notes:
1. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 9 of 29 .
 1 Tag Number Quantity 01-FE-103 (N) 1
2 Service Splitter-I Heater Inlet
3 Line No. Line Size 6"-P-126-B1A-Ih 6"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-01-023-2
7
8 Fluid State Naphtha (HC) Liquid
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 33450 73590
10 Operating Flow, Kg/hr 66900
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 7.0 14.4 (Note-1)
o o
12 Operating Temperature, C Design Temperature, C 167 195

PROCESS 13 Operating Specific Gravity Specific Gravity at Base 0.609

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 609 0.15
15 Specific Heat Ratio(Cp/Cv) Molecular Mass
16 Compressibility Factor
17 Base Pressure, kg/cm2a Base Temperature, oC
18 Allow. Pressure Drop, kg/cm2 Critical Pressure, kg/cm2g 0.25 27.39
19

Notes:
1. Based on 01-P-32 A/B estimated shut-off pressure. To be confirmed during detail engineering.
2. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 10 of 29 .
 1 Tag Number Quantity 01-FE-108 (N) 2
2 Service Splitter-I Heater Inlet
3 Line No. Line Size 6"-P-126-B1A-Ih 6"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-01-023-2
7
8 Fluid State Naphtha (HC) Liquid
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 16725 36795
10 Operating Flow, Kg/hr 33450
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 7.0 14.4 (Note-1)
o o
12 Operating Temperature, C Design Temperature, C 167 195

PROCESS 13 Operating Specific Gravity Specific Gravity at Base 0.609

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 609 0.15
15 Specific Heat Ratio(Cp/Cv) Molecular Mass
16 Compressibility Factor
17 Base Pressure, kg/cm2a Base Temperature, oC
18 Allow. Pressure Drop, kg/cm2 Critical Pressure, kg/cm2g 0.25 27.39
19

Notes:
1. Based on 01-P-32 A/B estimated shut-off pressure. To be confirmed during detail engineering.
2. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 11 of 29 .
 1 Tag Number Quantity 01-FE-204 (N) 1
2 Service RN to Storage
3 Line No. Line Size 3"-P-249(N)-A1A-Is 3"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-01-024-1
7
8 Fluid State Reformer Naphtha (HC) Liquid
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 4494 12344
10 Operating Flow, Kg/hr 11222
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 6.3 14.4 (Note-1)
o o
12 Operating Temperature, C Design Temperature, C 45 70

PROCESS 13 Operating Specific Gravity Specific Gravity at Base 0.725

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 725 0.4
15 Specific Heat Ratio(Cp/Cv) Molecular Mass
16 Compressibility Factor
17 Base Pressure, kg/cm2a Base Temperature, oC
18 Allow. Pressure Drop, kg/cm2 Critical Pressure, kg/cm2g 0.25 27.39
19

Notes:
1. Based on 01-P-32 A/B estimated shut-off pressure. To be confirmed during detail engineering.
2. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 12 of 29 .
 1 Tag Number Quantity 01-FE-205 (N) 1
2 Service RN to Storage
3 Line No. Line Size 3"-P-249(N)-A1A-Is 3"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-01-024-1
7
8 Fluid State Reformer Naphtha (HC) Liquid
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 4494 12344
10 Operating Flow, Kg/hr 11222
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 6.3 14.4 (Note-1)
o o
12 Operating Temperature, C Design Temperature, C 45 70

PROCESS 13 Operating Specific Gravity Specific Gravity at Base 0.725

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 725 0.4
15 Specific Heat Ratio(Cp/Cv) Molecular Mass
16 Compressibility Factor
17 Base Pressure, kg/cm2a Base Temperature, oC
18 Allow. Pressure Drop, kg/cm2 Critical Pressure, kg/cm2g 27.39
19

Notes:
1. Based on 01-P-32 A/B estimated shut-off pressure. To be confirmed during detail engineering.
2. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 13 of 29 .
 1 Tag Number Quantity 01-FE-2088 (N) 1
2 Service Feed to Stabilizer (C-003)
3 Line No. Line Size 3"-P-310-A1A-Is 3"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-01-025
7
8 Fluid State HC Liquid Liquid
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 6600 17050
10 Operating Flow, Kg/hr 15500
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 12.5 15.5
o o
12 Operating Temperature, C Design Temperature, C 40 70

PROCESS 13 Operating Specific Gravity Specific Gravity at Base 0.675

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 675 0.2
15 Specific Heat Ratio(Cp/Cv) Molecular Mass
16 Compressibility Factor
17 Base Pressure, kg/cm2a Base Temperature, oC
18 Allow. Pressure Drop, kg/cm2 Critical Pressure, kg/cm2g 0.5 36.07
19

Notes:
1. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 14 of 29 .
 1 Tag Number Quantity 01-FE-402 (N) 1
2 Service MP Steam to Stabilizer Reboiler (E-031)
3 Line No. Line Size 3"-SM-401-B2A-Ih 3"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-01-026
7
8 Fluid State MP Steam Vapor
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 1350 2970
10 Operating Flow, Kg/hr 2700
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 10.0 18
o o
12 Operating Temperature, C Design Temperature, C 280 300

PROCESS 13 Operating Specific Gravity Specific Gravity at Base

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 4.63 0.019
15 Specific Heat Ratio(Cp/Cv) Molecular Mass 1.265 18.02
16 Compressibility Factor 0.971
2 o
17 Base Pressure, kg/cm a Base Temperature, C
18 Allow. Pressure Drop, kg/cm Critical Pressure, kg/cm2g
2
0.15
19

Notes:
1. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 15 of 29 .
 1 Tag Number Quantity 01-FE-403 (N) 1
2 Service LPG Reflux to Stabilizer
3 Line No. Line Size 2"-P-407-A1A 2"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-01-026
7
8 Fluid State LPG (HC) Liquid
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 2050 8030
10 Operating Flow, Kg/hr 7300
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 12.2 17
o o
12 Operating Temperature, C Design Temperature, C 40 70

PROCESS 13 Operating Specific Gravity Specific Gravity at Base 0.565

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 565 0.1
15 Specific Heat Ratio(Cp/Cv) Molecular Mass
16 Compressibility Factor
17 Base Pressure, kg/cm2a Base Temperature, oC
18 Allow. Pressure Drop, kg/cm2 Critical Pressure, kg/cm2g 0.5 45.74
19

Notes:
1. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 16 of 29 .
 1 Tag Number Quantity 56-FE-5101 (N) 1
2 Service SR Light Naphtha to Naphtha Splitter Surge Drum (056-V-51)
3 Line No. Line Size 3"-P-56-51-001-A3-IF 3"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-56-001
7
8 Fluid State SR light Naphtha (HC) Liquid
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 5755 16500
10 Operating Flow, Kg/hr 15000
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 2.3 12.7 (Note-1)
o o
12 Operating Temperature, C Design Temperature, C 60 70

PROCESS 13 Operating Specific Gravity Specific Gravity at Base 0.663

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 663 0.22
15 Specific Heat Ratio(Cp/Cv) Molecular Mass
16 Compressibility Factor
17 Base Pressure, kg/cm2a Base Temperature, oC
18 Allow. Pressure Drop, kg/cm2 Critical Pressure, kg/cm2g 0.25 34.77
19

Notes:
1. Based on 01-P-33 A/B estimated shut-off pressure. To be confirmed during detail engineering.
2. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 17 of 29 .
 1 Tag Number Quantity 56-FE-5103 (N) 1
2 Service Heavy LN Naphtha to Battery Limit
3 Line No. Line Size 2"-P-56-51-050-A3-IF 2"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-56-001
7
8 Fluid State Heavy LN Naphtha (HC) Liquid
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 1930 5159
10 Operating Flow, Kg/hr 4690
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 3.9 9.78
o o
12 Operating Temperature, C Design Temperature, C 45 70

PROCESS 13 Operating Specific Gravity Specific Gravity at Base 0.708

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 708 0.34
15 Specific Heat Ratio(Cp/Cv) Molecular Mass
16 Compressibility Factor
17 Base Pressure, kg/cm2a Base Temperature, oC
18 Allow. Pressure Drop, kg/cm2 Critical Pressure, kg/cm2g 0.5 30.39
19

Notes:
1. Based on 56-P-51 A/B estimated shut-off pressure. To be confirmed during detail engineering.
2. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 18 of 29 .
 1 Tag Number Quantity 56-FE-5102 (N) 1
2 Service SR Light Naphtha feed to Naphtha Splitter (056-C-02)
3 Line No. Line Size 3"-P-56-51-003-A3-IF 3"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-56-001
7
8 Fluid State SR light Naphtha (HC) Liquid
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 5755 16500
10 Operating Flow, Kg/hr 15000
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 5.0 9.71 (Note-1)
o o
12 Operating Temperature, C Design Temperature, C 60 70

PROCESS 13 Operating Specific Gravity Specific Gravity at Base 0.663

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 663 0.22
15 Specific Heat Ratio(Cp/Cv) Molecular Mass
16 Compressibility Factor
17 Base Pressure, kg/cm2a Base Temperature, oC
18 Allow. Pressure Drop, kg/cm2 Critical Pressure, kg/cm2g 0.5 34.77
19

Notes:
1. Based on 56-P-51 A/B estimated shut-off pressure. To be confirmed during detail engineering.
2. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 19 of 29 .
 1 Tag Number Quantity 56-FE-5106 (N) 1
2 Service NHDT Feed Naphtha Trim Cooler
3 Line No. Line Size 3"-P-56-51-044(N)-A3-IF 3"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-56-001
7
8 Fluid State SR Light Naphtha (HC) Liquid
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 3825 11341
10 Operating Flow, Kg/hr 10310
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 5.2 11.27
o o
12 Operating Temperature, C Design Temperature, C 45 70

PROCESS 13 Operating Specific Gravity Specific Gravity at Base 0.672

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 672 0.24
15 Specific Heat Ratio(Cp/Cv) Molecular Mass
16 Compressibility Factor
17 Base Pressure, kg/cm2a Base Temperature, oC
18 Allow. Pressure Drop, kg/cm2 Critical Pressure, kg/cm2g 0.25 36.34
19

Notes:
1. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 20 of 29 .
 1 Tag Number Quantity 56-FE-5107 (N) 1
2 Service NHDT Feed Naphtha Trim Cooler
3 Line No. Line Size 3"-P-56-51-038(N)-A3-IF 3"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-56-001
7
8 Fluid State SR Light Naphtha (HC) Liquid
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 3825 11341
10 Operating Flow, Kg/hr 10310
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 5.2 11.27
o o
12 Operating Temperature, C Design Temperature, C 45 70

PROCESS 13 Operating Specific Gravity Specific Gravity at Base 0.672

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 672 0.24
15 Specific Heat Ratio(Cp/Cv) Molecular Mass
16 Compressibility Factor
17 Base Pressure, kg/cm2a Base Temperature, oC
18 Allow. Pressure Drop, kg/cm2 Critical Pressure, kg/cm2g 0.25 36.34
19

Notes:
1. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 21 of 29 .
 1 Tag Number Quantity 56-FE-5111 (N) 1
2 Service NHDT Feed to Storage Tank
3 Line No. Line Size 3"-P-56-51-048(N)-A3-1F 3"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-56-001
7
8 Fluid State SR Light Naphtha (HC) Liquid
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 3825 11341
10 Operating Flow, Kg/hr 10310
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 5.2 11.27
o o
12 Operating Temperature, C Design Temperature, C 45 70

PROCESS 13 Operating Specific Gravity Specific Gravity at Base 0.672

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 672 0.24
15 Specific Heat Ratio(Cp/Cv) Molecular Mass
16 Compressibility Factor
17 Base Pressure, kg/cm2a Base Temperature, oC
18 Allow. Pressure Drop, kg/cm2 Critical Pressure, kg/cm2g 0.25 36.34
19

Notes:
1. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 22 of 29 .
 1 Tag Number Quantity 56-FE-5112 (N) 1
2 Service NHDT Feed to Storage Tank
3 Line No. Line Size 3"-P-56-51-046(N)-A3-1F 3"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-56-001
7
8 Fluid State SR Light Naphtha (HC) Liquid
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 3825 11341
10 Operating Flow, Kg/hr 10310
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 5.2 11.27
o o
12 Operating Temperature, C Design Temperature, C 45 70

PROCESS 13 Operating Specific Gravity Specific Gravity at Base 0.672

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 672 0.24
15 Specific Heat Ratio(Cp/Cv) Molecular Mass
16 Compressibility Factor
17 Base Pressure, kg/cm2a Base Temperature, oC
18 Allow. Pressure Drop, kg/cm2 Critical Pressure, kg/cm2g 0.25 36.34
19

Notes:
1. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 23 of 29 .
 1 Tag Number Quantity 01-FE-XXXX 1
2 Service RCO to DCU B/L
3 Line No. Line Size 6"-P-00-2091-B1A-It 6"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-01-010
7
8 Fluid State Reduced Crude Oil (HC) Liquid
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 15750 63870
10 Operating Flow, Kg/hr 32500
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 6.56 11.3
o o
12 Operating Temperature, C Design Temperature, C 105 130

PROCESS 13 Operating Specific Gravity Specific Gravity at Base 0.898

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 898 11
15 Specific Heat Ratio(Cp/Cv) Molecular Mass
16 Compressibility Factor
17 Base Pressure, kg/cm2a Base Temperature, oC
18 Allow. Pressure Drop, kg/cm2 Critical Pressure, kg/cm2g 0.5 14.89
19

Notes:
1. Detail of existing tag is not available. To be confirmed during detail engineering.
2. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 24 of 29 .
 1 Tag Number Quantity 01-FE-069 1
2 Service MP Steam to SR KERO-I Stripper (CL-3B)
3 Line No. Line Size 3"-SL-00-2301-A2A-Ih 3"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-01-016
7
8 Fluid State MP Steam Vapor
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 80 187
10 Operating Flow, Kg/hr 170
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 10 18
o o
12 Operating Temperature, C Design Temperature, C 280 300

PROCESS 13 Operating Specific Gravity Specific Gravity at Base

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 4.3 0.019
15 Specific Heat Ratio(Cp/Cv) Molecular Mass 1.298 18.02
16 Compressibility Factor 0.971
2 o
17 Base Pressure, kg/cm a Base Temperature, C
18 Allow. Pressure Drop, kg/cm Critical Pressure, kg/cm2g
2
0.25
19

Notes:
1. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 25 of 29 .
 1 Tag Number Quantity 01-FE-004 1
2 Service SR light Gasoline Product
3 Line No. Line Size 4"-P-00-2197-A1A 4"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-01-010
7
8 Fluid State SR Light Gasoline (HC) Liquid
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 6600 17050
10 Operating Flow, Kg/hr 15500
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 6.0 10
o o
12 Operating Temperature, C Design Temperature, C 40 70

PROCESS 13 Operating Specific Gravity Specific Gravity at Base 0.674

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 674 0.3
15 Specific Heat Ratio(Cp/Cv) Molecular Mass
16 Compressibility Factor
17 Base Pressure, kg/cm2a Base Temperature, oC
18 Allow. Pressure Drop, kg/cm2 Critical Pressure, kg/cm2g 0.25 35.79
19

Notes:
1. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 26 of 29 .
 1 Tag Number Quantity 01-FE-1133 1
2 Service RCO Product to Storage
3 Line No. Line Size 6"-P-00-2097-B1A 6"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-01-011-2
7
8 Fluid State Reduced Crude Oil (HC) Liquid
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 10784 63870
10 Operating Flow, Kg/hr 31370
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 6.3
12 Operating Temperature, oC Design Temperature, oC 90

PROCESS 13 Operating Specific Gravity Specific Gravity at Base 0.906

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 906 15.4
15 Specific Heat Ratio(Cp/Cv) Molecular Mass
16 Compressibility Factor
17 Base Pressure, kg/cm2a Base Temperature, oC
18 Allow. Pressure Drop, kg/cm2 Critical Pressure, kg/cm2g 0.25 14.89
19

Notes:
1. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 27 of 29 .
 1 Tag Number Quantity 01-FE-019 1
2 Service SR Heavy Gasoline Reflux to Main Fractioninating Column (CL-2)
3 Line No. Line Size 6"-P-00-1460-A1A 6"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-01-016
7
8 Fluid State SR Heavy Gasoline (HC) Liquid
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 20832 46354
10 Operating Flow, Kg/hr 42140
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 3.7 6
o o
12 Operating Temperature, C Design Temperature, C 40 70

PROCESS 13 Operating Specific Gravity Specific Gravity at Base 0.718

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 718 0.4
15 Specific Heat Ratio(Cp/Cv) Molecular Mass
16 Compressibility Factor
17 Base Pressure, kg/cm2a Base Temperature, oC
18 Allow. Pressure Drop, kg/cm2 Critical Pressure, kg/cm2g 0.25 29.57
19

Notes:
1. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 28 of 29 .
 1 Tag Number Quantity 56-FE-5105 1
2 Service SR Light Naphtha Reflux to Naphtha Splitter (056-C-02)
3 Line No. Line Size 4"-P-56-51-035-A3-IF 4"
GENERAL 4 Line Class / Schedule Line Material
5 Line I.D.
6 P&ID No. 075587C001-PID-00-21-56-001
7
8 Fluid State SR Light Naphtha (HC) Liquid
9 Minimum Flow, kg/hr Maximum Flow, kg/hr 5635 13609
10 Operating Flow, Kg/hr 12372
11 Operating Pressure, kg/cm2g Design Pressure, kg/cm2g 5.9 11.27
o o
12 Operating Temperature, C Design Temperature, C 55 85

PROCESS 13 Operating Specific Gravity Specific Gravity at Base 0.656

CONDITIONS 14 Operating Density, kg/m 3
Operating Viscosity, cP 656 0.21
15 Specific Heat Ratio(Cp/Cv) Molecular Mass
16 Compressibility Factor
17 Base Pressure, kg/cm2a Base Temperature, oC
18 Allow. Pressure Drop, kg/cm2 Critical Pressure, kg/cm2g 0.25 36.34
19

Notes:
1. Orifice type flow element.

INSTRUMENT DATASHEET

Orifice Plate
A PTC ANB 29.08.2018 IFI DOC. NO.: TECHNIP INDIA LIMITED
REV. WRITTEN BY CHECKED BY DATE STATUS 075587C001-01-PDS-1547-001 PAGE 29 of 29 .
