User Guide: 8186 SIP Horn Speaker FW Version 1.7

8186 SIP Horn Speaker FW 1.

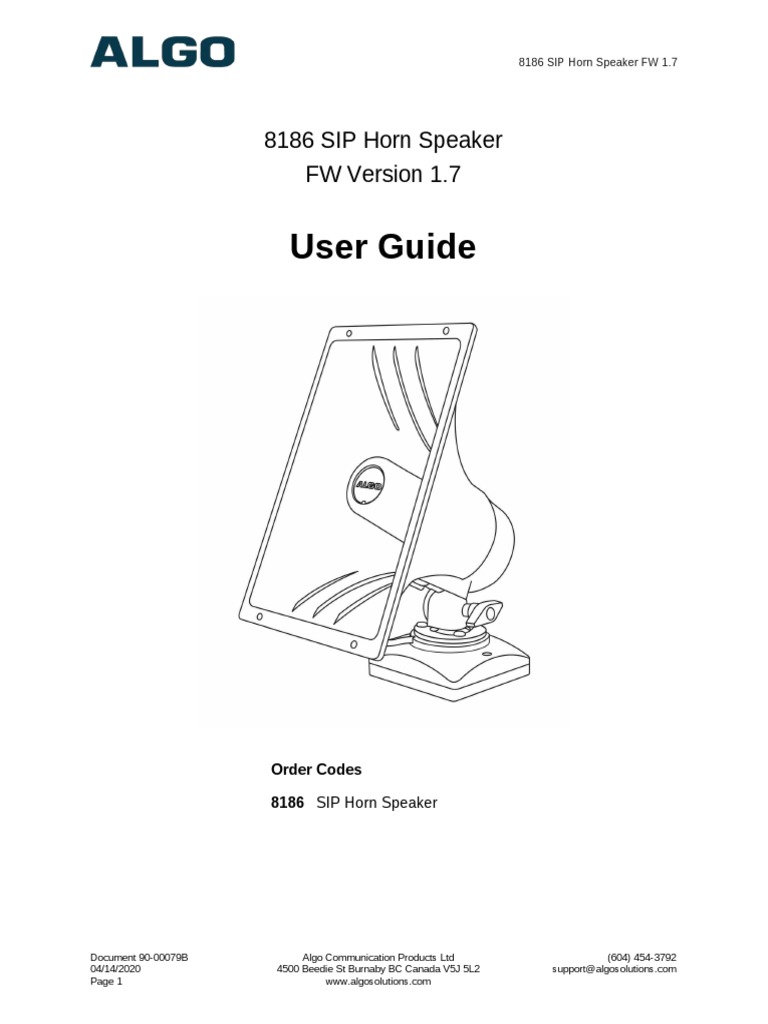

8186 SIP Horn Speaker

FW Version 1.7
User Guide
Order Codes
8186 SIP Horn Speaker
Document 90-00079B Algo Communication Products Ltd (604) 454-3792

04/14/2020 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com
Page 1 www.algosolutions.com
8186 SIP Horn Speaker FW 1.7
Table of Contents
IMPORTANT SAFETY INFORMATION...................................................................................................... 4
OVERVIEW.................................................................................................................................................. 7
Introduction.................................................................................................................................................. 7
Key Features.................................................................................................................................................. 8
SETUP AND INSTALLATION................................................................................................................... 10
Getting Started - Quick Install & Test............................................................................................................ 10
Installation & Mounting............................................................................................................................... 11
Programming and Configuration.................................................................................................................. 12
FEATURES................................................................................................................................................ 13
SIP Paging: One 8186.................................................................................................................................... 13
SIP Ring Event.............................................................................................................................................. 13
Multicast Overview...................................................................................................................................... 13
SIP Paging: Multiple 8186s (Using Multicast)................................................................................................ 14
SIP Paging: Multiple Speakers (Using Individual SIP extensions)....................................................................15
SIP Activated Notification Alerts................................................................................................................... 15
Background Music Streaming....................................................................................................................... 15
PolycomTM Group Paging.............................................................................................................................. 16
TLS for SIP Signaling and Provisioning........................................................................................................... 17
WIRING CONNECTIONS.......................................................................................................................... 21
Network Connection.................................................................................................................................... 21
Connecting Input Devices............................................................................................................................. 21
Inputs/Outputs............................................................................................................................................ 22
Reset........................................................................................................................................................... 22
WEB INTERFACE STATUS AND LOGIN................................................................................................. 23
Web Interface Login..................................................................................................................................... 23
Status.......................................................................................................................................................... 24
WEB INTERFACE BASIC SETTINGS...................................................................................................... 25
Basic Settings Tab – SIP................................................................................................................................ 25
Basic Settings Tab – Features........................................................................................................................ 27
Basic Settings Tab – Multicast....................................................................................................................... 29
Basic Settings Tab – Multicast (Master Settings)........................................................................................... 30
Basic Settings Tab – Multicast (Slave Settings).............................................................................................. 33
WEB INTERFACE ADDITIONAL FEATURES..........................................................................................35
Additional Features Tab – Input/Output....................................................................................................... 35
Additional Features Tab – Emergency Alerts................................................................................................. 39
Additional Features Tab – More Page Extensions.......................................................................................... 41
Additional Features Tab – More Ring Extensions.......................................................................................... 42
WEB INTERFACE ADVANCED SETTINGS.............................................................................................43
Advanced Settings Tab – Network................................................................................................................ 43
Advanced Settings Tab – Admin.................................................................................................................... 45
Advanced Settings Tab – Time...................................................................................................................... 48
Advanced Settings Tab – Provisioning........................................................................................................... 49

Advanced Settings Tab – File Manager.......................................................................................................... 51

Advanced Settings Tab – Advanced Audio.................................................................................................... 52
Advanced Settings Tab – Advanced SIP......................................................................................................... 54
Advanced Settings Tab – Advanced Multicast............................................................................................... 57
WEB INTERFACE SYSTEM..................................................................................................................... 59
System Tab – Maintenance.......................................................................................................................... 59
System Tab – System Log............................................................................................................................. 60
SPECIFICATIONS..................................................................................................................................... 61
FCC COMPLIANCE STATEMENT............................................................................................................ 62

Important Safety Information

Important Safety Information
This product is powered by a certified limited power source (LPS), Power over Ethernet
(PoE); through CAT5 or CAT6 connection wiring to an IEEE 802.3af compliant network
PoE switch. The product is intended for installation indoors or on outdoor perimeter of a
building. If used in an outdoor environment, additional protective measures must be taken
according to the installation manual. All wiring connections to the product must be in the
same building. If the product is installed beyond the building perimeter or used in an inter-
building application, the wiring connections must be protected against
overvoltage/transient. Algo recommends that this product is installed by a qualified
electrician.
If you are unable to understand the English language safety information then please
contact Algo by email for assistance before attempting an installation
support@algosolutions.com.
Consignes de Sécurité Importantes

Ce produit est alimenté par une source d’alimentation limitée certifiée (alimentation par
Ethernet); des câbles de catégorie 5 et 6 joignent un commutateur réseau à alimentation
par Ethernet homologué IEEE 802.3af. Le produit est conçu pour être installé à l’intérieur
ou dans une zone adjacente à un édifice; selon le manuel d’installation, des mesures de
sécurité additionnelles s’avèrent alors nécessaires. Tout le câblage rattaché au produit
doit se trouver dans le même édifice. Si le produit est installé au-delà du périmètre de
l’édifice ou utilisé pour plusieurs édifices, le câblage doit être protégé des surtensions
transitoires. Algo recommande qu’un électricien qualifié se charge de l’installation de ce
produit.
Si vous ne pouvez comprendre les consignes de sécurité en anglais, veuillez
communiquer avec Algo par courriel avant d’entreprendre l’installation au
Información de Seguridad Importante

Este producto funciona con una fuente de alimentación limitada (Limited Power Source,
LPS) certificada, Alimentación a través de Ethernet (Power over Ethernet, PoE); mediante
un cable de conexión CAT5 o CAT6 a un conmutador de red con PoE en cumplimiento
con IEEE 802.3af. El producto se debe instalar en lugares cerrados o en el perímetro de
un edificio al aire libre. Si se utiliza en un ambiente al aire libre, se deben tomar medidas
de protección adicionales de acuerdo con el manual de instalación. Todas las conexiones
cableadas al producto deben estar en el mismo edificio. Si el producto se instala fuera del
perímetro del edificio o se utiliza en una aplicación en varios edificios, las conexiones
cableadas se deben proteger contra sobretensión o corriente transitoria. Algo recomienda
que la instalación de este producto la realice un electricista calificado.

Si usted no puede comprender la información de seguridad en inglés, comuníquese con

Algo por correo electrónico para obtener asistencia antes de intentar instalarlo:
Wichtige Sicherheitsinformationen
Dieses Produkt wird durch eine zertifizierte Stromquelle mit begrenzter Leistung (LPS –
Limited Power Source) betrieben. Die Stromversorgung erfolgt über Ethernet (PoE –
Power over Ethernet). Dies geschieht durch eine Cat-5-Verbindung oder eine Cat-6-
Verbindung zu einer IEEE 802.3af-konformen Ethernet-Netzwerkweiche. Das Produkt
wurde konzipiert für die Installation innerhalb eines Gebäudes oder außerhalb eines
Gebäudes. Bei der Anwendung außerhalb eines Gebäudes müssen zusätzliche
Schutzmaßnahmen gemäß der Gebrauchsanweisung durchgeführt werden. Alle
Kabelverbindungen zum Produkt müssen im selben Gebäude bestehen. Wenn das
Produkt jenseits des Gebäudes oder für mehrere Gebäude genutzt wird, müssen die
Kabelverbindungen vor Überspannung und Spannungssprüngen geschützt werden. Algo
empfiehlt das Produkt von einem qualifizierten Elektriker installieren zu lassenv.
Sollten Sie die englischen Sicherheitsinformationen nicht verstehen, kontaktieren Sie bitte
Algo per Email bevor Sie mit der Installation beginnen, um Unterstützung zu erhalten.
Algo kann unter der folgenden E-Mail-Adresse erreicht werden:
安全须知
本产品由认证的受限电源（LPS），以太网供电（PoE），通过 CAT5 或 CAT6 线路联接至
IEEE 802.3af 兼容的 PoE 网络交换机供电。本产品适用于室内或建筑物周边安装。所有联
接本产品的线路必须源自同一建筑物。本产品如需用于超出建筑物周边范围或跨建筑物的
安装，线路联接部分必须有过压和瞬态保护。Algo 建议本产品由专业电工安装。
如果您对理解英文版安全须知有问题，安装前请通过电子邮件和 Algo 联
系，support@algosolutions.com。
CAUTION
The 8186 Horn Speaker is capable of output levels in excess of 116dB at 1 meter. Ensure
nobody is in close proximity to the horn, especially during installation and testing of the
product.
INSTALLATION
The 8186 Horn Speaker should only be installed by a qualified electrician. An improperly
installed 8186 could fall from the wall or ceiling and cause serious injury or death.
Local building codes may require one or more additional safety measures, particularly in
earthquake prone regions.

EMERGENCY COMMUNICATION
If used in an emergency communication application, the 8186 Horn Speaker should be
routinely tested. SNMP supervision is recommended for assurance of proper operation.
Contact Algo for other methods of operational assurance including the use of the
integrated microphone for automated “sound to air” acoustic testing.
WET OR OUTDOOR ENVIRONMENTS

The 8186 Horn Speaker is intended for indoor or outdoor locations and may be subjected
to spray or weather provided the rear wiring cavity is properly sealed to prevent water
ingress.
Gaskets included with the 8186 Horn Speaker may be effective against water ingress on
some, but not all surfaces in which case additional protective measures must be taken
such as a perimeter sealant.
CAT5 or CAT6 connection wiring to an IEEE 802.3af compliant network PoE switch
must not leave the building perimeter without adequate lightning protection.
Relay input and output connections must not leave the building perimeter without
adequate lightning protection.

Overview
Introduction
The 8186 SIP Horn Speaker is a SIP compliant and multicast capable IP speaker suitable
for voice paging, loud ringing, and alert/notification applications, particularly wide-area
and/or high noise environments (e.g. warehouse, factory). When installed properly, the
8186 can be used for outdoor applications.
An integrated microphone provides talkback capability and ambient noise detection for
automatic level control.
Dual SIP extensions provide both voice paging and notification (ring) capability. One or
both extensions can be registered with any Communication Server (hosted or enterprise)
that supports 3rd party SIP Endpoints. Additional page and ring extensions are also
supported, as well as Emergency Alert extensions.
Multiple speakers in a SIP environment require only one speaker to register as a SIP
extension. Multicasting capabilities allow the SIP registered speaker to ring/page and
simultaneously stream multicast audio to the other speakers. Any number and variety of
Algo speakers, paging adapters, and strobes can be configured in a multicast zone.
The 8186 SIP Horn Speaker is configured using central provisioning features or by
accessing the web interface using browsers such as Chrome, Firefox, or Edge.
What is Included
• 8186 SIP Horn Speaker
• Mounting bracket
• Gaskets
• Flat head screwdriver
• Getting Started Sheet
What is not Included
• Optional Call Button/Wall Switch (Algo 1202, 1203 or 1204)
• This Installation Guide (www.algosolutions.com/8186/guide)

Key Features
SIP Extensions
The 8186 connects to an on-premise or hosted communication server in the same way as
a SIP telephone. To register the 8186 with the server the following information is required:
1. IP address (e.g. 192.168.1.1) or domain name (e.g. myserver.com) of the SIP
Server
2. SIP extension (e.g. 3790)
3. Authentication ID
4. Password
The 8186 supports two SIP extensions which behave differently – RING and PAGE. One
or both may be used depending on the application. If the RING extension is called the
8186 will not answer. Instead, it will play the selected audio file until the ringing stops.
Typically the RING extension is programmed as part of a hunt group so that it receives a
ring signal simultaneously with one or more phones to function as a loud ringer in noisy or
large areas.
If the PAGE extension is called, the 8186 will answer and allow paging over its internal
speaker. When the 8186 answers it will play a configurable tone to the caller so they know
when they can begin speaking. The same tone is also played over the speaker before the
announcement. If Paging to a single 8186, talkback may be enabled using the integrated
microphone. The audio direction is determined by the speech activity of the caller.
Loudness
Equipped with a high-efficiency integrated amplifier and tuned high-quality loudspeaker,
the 8186 is capable of output levels in excess of 116dB at 1 meter.
Multicasting
Allows multiple units to simultaneously play Ring or Page audio. One 8186 may be
configured as a ‘Master’ device and broadcast an audio stream to any
number/combination of Algo IP speaker, paging adapter, or strobe endpoint configured as
multicast ‘Slaves’. This feature provides scalability without requiring each endpoint Slave
to be registered with a SIP extension.
PolycomTM Group Paging
The 8186 support Polycom Group Paging. The 8186 can be added to a Polycom Group
Page so that voice paging is heard over Polycom telephone speakers and overhead
paging simultaneously.
Ambient Noise Compensation
The 8186’s can automatically adjusts loud ring and paging volume to compensate for
background ambient noise. If ‘Ambient Noise Compensation’ is enabled, the alert volume
will get louder or quieter by the same dB level as the ambient noise measured just prior to
the alert.

Configuration & Provisioning

Configuration can be done through a web interface control panel. Central provisioning
may also be used to allow units to be pre-configured for a specific server prior to
deployment in the field. Configuration files are automatically downloaded from a server
(via TFTP, FTP, HTTP, HTTPS) using DHCP.
Blue Indicator Light
The blue LED by default will be on when the speaker is active. The blue LED will also be
on during power up and boot process.
The blue LED can also provide a heartbeat with a flash every 60 seconds to indicate that
the speaker is powered and connected to the network.
If the 8186 SIP Horn Speaker is in talkback mode the blue LED will be flashing.

Setup and Installation

Getting Started - Quick Install & Test
This guide provides important safety information which should be read thoroughly
before permanently installing the speaker.
1. Connect the 8186 SIP Horn Speaker to an IEEE 802.3af compliant PoE network
switch. The blue light will remain on until boot up is completed – about 30 seconds.
2. After the blue LED turns off, connect the reset terminals on the back of the unit to
hear the IP address over the speaker. The IP address may also be discovered by
downloading the Algo Locator Tool to find Algo devices on your network:
www.algosolutions.com/locator
3. Mount the speaker. Summarized instructions are provided in the next section of this
sheet.
4. Access the 8186 SIP Horn Speaker web page by entering the IP address into a
browser (Chrome, Firefox or Edge) and login using the default password: algo.
5. Enter the IP address or the name for the SIP server into the SIP Domain field under
the Basic Settings > SIP tab.
6. Enter the Ring and/or Page SIP extension and credentials. Leave the credentials
blank for either extension if there is no intended use to have both registered.
(Note: The speaker supports multiple Ring, Emergency Alert, and Page SIP
extensions. The Page extension auto-answers for voice announcements. The Ring
and Emergency Alert extensions will play an audio file over the speaker without
answering.)
7. Verify the extension is properly registered with the SIP server in the Status tab.
Ensure the SIP Registration is “Successful”.
8. Make a test call from a telephone to the speaker for one or all extensions.

Installation & Mounting

The 8186 SIP Horn Speaker can be wall or ceiling mounted. Concealed wiring may enter
from the wall into the wiring cavity. Alternatively, surface wiring may enter through a
channel from the bottom edge. The channel is intended for cabling 0.2" or 5mm in
diameter and is intentionally snug to protect against moisture ingress.
The 8186 SIP Horn Speaker can be mounted in any orientation but both the bracket and
housing must identify TOP. This keeps the bracket wiring channel on the bottom and the
RJ45 jack on the top side. Moreover, water needs to be able to drain through the bottom
of the mounting plate, so its orientation is extremely important.
The mounting plate may be used to mount over flush or surface mounted electrical boxes
or mud rings and fits securely to a 2 gang electrical box (not included) for installation with
wiring conduit.
The 8186 SIP Horn Speaker is rated IP65 for wet locations however care must be taken to
ensure that water does not enter the wiring cavity. The supplied gaskets or sealant must
be used to protect the wiring cavity in wet environments. If sealant is used, ensure the
bottom center area of the mounting plate is not obstructed, as water may need to drain
out. In dry indoor environments the gaskets are not required. If the wall gasket is used
with surface wiring then the gasket should be attached after placing the cable into the
wiring channel.
The 8186 SIP Horn Speaker should not be installed beyond a building perimeter without
adequately protecting the building wiring from lightning surges.

Programming and Configuration

After connecting the 8186 to a network PoE, the blue indicator light will turn on during
initialization. The 8186 will then attempt to obtain an IP address from the DHCP server. If
there is no DHCP server or the attempt was unsuccessful, the 8186 will default to the
static IP address 192.168.1.111.
Note: If you don’t have a PoE switch, you’ll need a PoE injector that installs between
the 8186 and network switch. The PoE injector will supply 48 Vdc to the 8186. Most
PoE injectors are capable of providing more power than the 8186 requires (12.95 W).
Ensure that the PoE injector is fully compliant to the IEEE 802.3af standard.
After a successful boot up the blue LED will turn off, and the speaker will have obtained
an IP address.
Connect the reset terminals on the back of the unit to hear the IP address over the
speaker. Connect the reset terminals again to stop playing the IP address over the
speaker.
The IP address may also be discovered by downloading the Algo locator tool to find Algo
devices on your network: www.algosolutions.com/locator
Enter the IP address (e.g. 192.168.1.111) into a browser such as Chrome, Firefox, or Edge. The
web interface should be visible and the default password will be algo in lower case letters.

Features
SIP Paging: One 8186
The 8186 SIP speaker can be registered as a third-party SIP extension with a hosted or
enterprise Communications Server supporting 3rd party SIP endpoints.
To register the speaker with the SIP server, use the Basic Settings > SIP tab in the web
interface to enter the Communication Server IP address, extension, username, and
password. This information will be available from the IT Administrator.
If VLAN is used, navigate to the Advanced Settings > Network tab to set VLAN options.
Important: once the speaker is using VLAN you will need to be on the same VLAN to
access the web interface.
The speaker may now be accessed by dialing its assigned extension from a telephone,
device, or client. The speaker will auto-answer, play the default pre-announce tone, and
allow voice paging until disconnected.
There are a number of configurable speaker options:
• Increase or Decrease Speaker Volume
• Enable AGC (automatic gain control)
• Enable Ambient Noise Monitoring (speaker volume adapts to background noise)
• Enable Talkback
• Customize pre-announce tone
The best voice paging quality and intelligibility will be obtained using the G.722 wide-band
audio codec. Most current IP telephones support G.722 which is sometimes referred to as
“HD” voice or audio.
SIP Ring Event

Set Monitoring Mode to ‘Monitor Ring’ and enter credentials. When a call is made to the
SIP extension the 8186 will play the selected audio file from memory. Often, the 8186 will
be part of a hunt group or ring group to ring in conjunction with a telephone.
Multicast Overview
In addition to the ring and page features, the 8186 is able to send and receive IP audio
multicast messages over the network to support larger deployment for both paging and
ring/notification. This provides a scalable and efficient method of building large scale
notification solutions.
An Algo 8186 can be configured as a Master endpoint. When called from a phone, the SIP
registered 8186 auto-answers and plays the page audio over its speaker. Simultaneously,
the registered 8186 endpoint broadcasts the audio over the network using RTP multicast

to any number/combination of Algo IP speakers, paging adapters, and strobes as

required.
The Slave endpoints require a PoE network connection but do not require registration to
the communication server.
Multicasting can also be used to distribute loud ring or other alerting (e.g. safety, security,
or emergency events) over multiple Algo endpoints (e.g. 8180, 8186, 8188, 8128, 8201,
8301, and 8373).
SIP Paging: Multiple 8186s (Using Multicast)

Multicast features in the 8186 SIP Horn Speaker require that only ONE of the speakers be
registered as a SIP extension. Additional speakers may be added as multicast Slaves
receiving a stream from the SIP registered Master speaker. Please note that any number
and combination of Algo speakers, paging adapters and strobes can be part of a
multicast.
The Master speaker will page normally while simultaneously streaming audio to the Slave
speakers. The Slave speakers do not require SIP extensions and do not need to register
with the SIP Communication Server.
To enable multicast streaming from the SIP speaker, go to its web interface and navigate
to the Basic Settings > Multicast tab. Choose multicast mode ‘Master/Sender’ and
zone ‘All Call’. The multicast addresses pre-populated in the table, under Advanced
Settings > Advanced Multicast section, will work in most cases and should only be
altered for rare cases.
To enable multicast monitoring in the other speakers, go to the web interface for each
speaker and again navigate to the Basic Settings > Multicast tab. This time though,
choose multicast mode “Slave/Receiver”. There is no need to select a zone as the
speaker will automatically monitor the “All Call” zone IP address.
The page pre-announce tone is generated from the Master. The following options are
valid for each multicast Slave speaker:
• Increase or Decrease Speaker Volume
• Enable Ambient Noise Monitoring (speaker volume adapts to background noise)
Talkback can only be used for the SIP registered Master speaker. When paging with
talkback enabled, only the area near the Master speaker is covered for talkback. The
microphones in the multicast/Slave speakers are disabled except for ambient noise
monitoring.
Note: See “Basic Setting Tab – Multicast” section bellow for more configuration
options and instructions.

SIP Paging: Multiple Speakers (Using Individual SIP extensions)

In some cases, it may be desirable for every speaker to have a SIP extension. Multicast
may still be used to page multiple speakers but each speaker can also be called
individually or generate a call when appropriately configured.
A speaker configured as a SIP Multicast Slave will give its highest priority to the ‘Priority
Call’ zone. Other than the ‘Priority Call’ zone, a page using its SIP extension, has priority
over all other multicast zones.
Communication Servers with the capability of dialing many SIP extensions simultaneously
for paging may be able to create zones by calling “page groups” and also page telephone
speakers in conjunction with overhead speakers.
SIP Activated Notification Alerts

In addition to voice paging, the 8186 can play audio files for emergency, safety, and
security announcements, customer service, shift changes, etc.
Audio files can be stored in speaker memory and played over the speaker in response to
an event such as a ring or relay input, and also multicast to other Algo SIP endpoints on
the network. See Additional Features > Emergency Alerts and Additional Features >
Input/Output for more details.
Background Music Streaming

The 8301 Paging Adapter & Scheduler (sold separately), set as a Multicast master, can
stream background music to other Algo slave devices on the network from a music source
connected to the 8301’s AUX Input.
When multicasting music, ensure that Automatic Gain Control (AGC) is ‘Disabled’ in Basic
Settings > Features tab on all the slave devices. Meanwhile, on the Multicast master
device, select ‘G.722’ for the ‘Master Output Codec’ setting in Advanced Settings >
Advanced Multicast tab.

PolycomTM Group Paging
The 8186 SIP Horn Speaker has been designed to support Polycom Group Paging.
The 8186 can be added to a Polycom Group Page so that voice paging is heard over
Polycom telephone speakers and overhead paging simultaneously.
The 8186 SIP Horn Speaker may be accessed remotely via SIP and may
generate a multicast page within the LAN sending voice page to both Algo
paging speakers and Polycom telephones. Audio delay may be added to the
8186 to synchronize with voice page over the Polycom telephone speakers

TLS for SIP Signaling and Provisioning

Algo devices that support firmware 1.6.4 or later support Transport Layer Security (TLS).
This feature adds security by ensuring that Algo products can trust the hosted SIP server.
This is useful for when third-party devices or attackers may try to intercept, replicate, or
alter Algo products, and try to connect to the server. TLS protocol will ensure that third
parties cannot read/modify any actual data. Previously security was less of a concern
because phone systems were on isolated networks, but hosted services are becoming
increasingly more common. Using a hosted SIP service requires traffic to be sent over the
public internet and thus much more susceptible to attacks. Signed certificates are an
important piece in the Algo device’s operation, to ensure the security, integrity, and
privacy of its communication. Algo components that use TLS are Provisioning and SIP
Signaling.
These Algo devices each come pre-loaded with certificates from a list of trusted certificate
authorities (CA), which are installed in the hardware at the time of manufacture. Note
these pre-installed trusted certificates are not visible to users and are separate from the
‘certs’ folder.
The TLS handshake happens to make sure that the client and server can trust each other,
and once that trust is established, the two parties can freely send encrypted data and
decrypt any data that they receive. After the TLS handshake process is complete, a TLS
session is established, and the server and client can then exchange messages that are
symmetrically encrypted with shared (pre-master) secret key.
For further details reference the Algo TLS guide for SIP Signalling and HTTPS
Provisioning.
Uploading Public CA Certificates to Algo SIP Endpoints

To install the public CA certificate on the Algo 8186, follow the steps below:
1. Obtain a public certificate from your Certificate Authority.
2. Rename the public certificate 'siptrusted.pem' (only .pem format is supported).
3. In the web interface of the Algo device, navigate to the Advanced Settings -> File
Manager tab.
4. Upload the certificate files into the 'certs' directory. Click the Upload button in the
top left corner of the file manager and browse to the certificate.
For SIP TLS, no default public CA certificates are used; only the above .pem file is
supported, so this certificate file must be uploaded in order for SIP TLS authentication to
occur.
For Provisioning TLS, only the default pre-installed public CA certificates are supported;
no .pem file can be uploaded in this case.

HTTPS Provisioning
Provisioning can be secured by setting the ‘Download Method’ to ‘HTTPS’ (under the
Advanced Settings > Provisioning tab). This prevents configuration files from being
read by an unwanted third-party. This resolves the potential risk of having sensitive data
stolen, such as admin passwords and SIP credentials.
Important: To verify the server ‘Enable’ the ‘Validate Server Certificate’ option. This
then checks if the certificate that is provided by the server is signed by any of the CAs
included in the list of trusted CAs (used by the Debian infrastructure and Mozilla
browsers). If we receive a certificate signed by any of these CAs, then that server will
be trusted.
The ‘Validate Server Certificate’ parameter can also be enabled through provisioning:
prov.download.cert = 1

SIP Signaling (and RTP Audio)

SIP signalling is secured by setting ‘SIP Transportation’ to ‘TLS’ (under the Advanced
Settings > Advanced SIP tab). Setting it to ‘TLS’ ensures that the SIP traffic will be
encrypted. The SIP signalling is responsible for establishing the call (the control signals to
start and end the call with the other party), but it does not contain the audio.
For the audio (voice) path, use the setting ‘SDP SRTP Offer’. Setting this to ‘Optional’,
means the SIP call’s RTP audio data will be encrypted (using SRTP) if the other party also
supports audio encryption. If the other party does not support SRTP, then the call will still
proceed, but with unencrypted audio. In order to make audio encryption mandatory for all
calls, set ‘SDP SRTP Offer’ to ‘Standard’. In this case, if the other party does not support
audio encryption, then the call attempt will be rejected.

Important: In order for a SIP server to validate the Algo device, an additional certificate
has to be manually installed on the 8186. To add this user certificate file use a ‘.pem’
filetype extension and have the file named ‘sipclient’. This is done by manually adding
a file named ‘sipclient.pem’, which contains a device certificate and private key, to the
‘certs’ folder (under the ‘Advanced Settings’ tab File Manager’). In the future, ‘.crt’,
‘.cer’, and ‘.der’ certificate extensions will also be supported and you will not be
restricted to naming the file ‘sipclient.pem’.

Wiring Connections
Network Connection
The speaker provides a RJ45 jack for network connection. A cable run from the switch can
be terminated to a modular jack with connection by patch cord, or terminated with a RJ45
plug.
PoE (Power over Ethernet) must be 48V 350 mA IEEE 802.3af compliant whether
provided by the network switch or injector.
There are two lights on the Ethernet jack:
Green light: On when Ethernet is working, flickers off to indicate activity on the port.
Amber light: Off when successful 100Mbps link is established. Typically on only
briefly at power up.
Under normal conditions, the Amber light will turn on immediately after the Ethernet cable
is first connected. This indicates that PoE power has been successfully applied. Once the
device connects to the network, it will switch to the Green light instead, which will typically
flicker indicating traffic on the network.
Connecting Input Devices

The dry contact relay on the 8186 SIP Horn Speaker can be prompted by any normally
open, normally closed switch, Algo 1202 Call Button, Algo 1203 Call Switch and Algo
1204 Volume Control Switch. The input switches can be connected to the back of the
8186 via the “IN” terminal.
Connection options can be configured from normally open switch, to normally closed
switch, to Algo 1202 Call Button with large blue button, to Algo 1203 single gang backlit
Call Switch, to Algo 1204 Volume Control Switch or as an EOL resistor termination. The
connection options can then be configured to complete an ‘Action’ when Relay Input is
triggered.
Note: See “Additional Features Tab – Input/Output” section of this user guide for
additional information on input device configuration

Inputs/Outputs
On the back, the 8186 SIP Horn Speaker has a relay output, relay input and terminal
block reset.
Terminal Block Relay In

By default, these terminals are inactive. Connection options are a normally closed switch,
normally open switch, 1202 Call Button, 1203 Call Switch, 1204 Volume Control Switch or
EOL resistor termination.
Terminal Block Relay Out
By default these terminals provide a normally open contact closure when the 8186 SIP
Horn is active.
Reset
Terminal Block Reset
The reset relay terminal on the back can be used to reset the 8186 SIP Horn Speaker only
at time of power up. To return all the settings to the factory default for the 8186, reboot or
power cycle the 8186. Wait until the LED flashes, then connect the reset terminals and
hold until the 8186 LED begins a double flash pattern. Release the reset connection and
allow the unit to complete its boot process.
Do not short the reset terminals until the LED begins flashing.
A reset will set all configuration options to factory default including the password.
Once booting has completed, shorting the reset terminals will cause the device to
speak its IP address.

Web Interface Status and Login

Web Interface Login
The web interface requires a password which is ‘algo’ by default. This password can be
changed in the Admin tab after logging in the first time.
Web Interface is accessed by entering 8186’s IP Address into the web browse.
Important: It is highly recommended to change the default password if the device is

directly connected to a public network.

Status
The device’s Status page will be available before and after log on. The section can be
used to check 8186’s SIP Registration status of the Ring/Page extensions, Call Status,
Multicast Mode (Slave/Master), Relay Input Status, Proxy Status, and general MAC, IP,
Netmask, Date/Time, and Timezone information.
The Status page can be hidden when logged out for security purposes under the
Advanced Settings > Admin tab.

Web Interface Basic Settings

Basic Settings Tab – SIP
SIP Server information and Credentials should be obtained from your telephone system
administrator or hosted account provider. After saving the settings, see the Status page to
confirm that the registration was successful.
Important: Any time changes are made to settings in the web interface the ‘Save’
button must be clicked to save the changes.
SIP Domain (Proxy Server)

The IP address (e.g. 192.168.1.1) or domain name (e.g. myserver.com) of the SIP Server.
Ring/Alert Mode
Option for adding a second SIP extension for Ring event. If activated, screen expands to
enter SIP extension parameters for a Ring/Alert Extension.

The device will detect inbound ring events on this extension and play the alerting tone
(and multicast if configured) until the inbound call stops ringing. It will not answer the call
on this extension.
Ring Extension
This is the SIP extension for the 8186 speaker’s Ring parameter. The device will detect
inbound ring events on this extension and play the alerting tone (and multicast if required)
until the inbound call stops ringing. It will not answer the call on this extension.
Page Extension
This is the SIP extension for the 8186 speaker. The device will auto-answer any inbound
call received on this extension and provide a voice paging path (and multicast if
configured).
Authentication ID
May also be called Username for some SIP servers and in some cases may be the same
as the SIP extension used for the associated Ring and/or Page parameter.
Authentication Password
SIP password provided by the system administrator for the SIP account used for the
associated Ring and/or Page parameter.
Display Name
Enter a "Display Name" that will be sent when the SIP call is made. The PBX and
phone(s) will have to be configured to display this message as the Caller ID.

Basic Settings Tab – Features
Ring/Alert Tone
Select an audio file to play when a ring event is detected on the SIP Ring extension. The
file may be played immediately to the speaker from the web interface for test purposes
using the Play, Loop, and Stop buttons. During multicast, the device will broadcast an
audio stream using the Master’s selected ring tone.
Note: This is the “Default” tone that will be played if selected for Multicast, Additional
Ring Extension settings.

Ring/Alert Volume
Set speaker volume for SIP ring event. This setting is an amplifier gain control and the
output level will also depend on the levels recorded into the source audio file played from
memory. This setting is only used for local tones, and not when receiving multicast (see
Page Speaker Volume below).
Caution: The 8186 SIP Horn Speaker is capable of output levels in excess of 116dB at
1 meter. Ensure nobody is in close proximity to the horn, especially during installation
and testing of the product.
Ring Limit
Typically set to no limit, this feature can be used to set a limit on how long the speaker will
ring before timing out. A new ring event is required before the speaker will play the audio
file again.
Page Speaker Volume
Speaker page volume control for SIP or multicast paging. This setting is an amplifier gain
control and output level will depend on streaming level. This setting will apply to all
inbound multicast (slave mode), regardless of content.
Page Mode
A call to the SIP page extension can be one-way, two-way using the integrated
microphone, or delayed. In delay mode, the speaker will store the page into memory and
then play after disconnect.
In delay mode, press “*” to cancel a page while the recording state is in process to prevent
it from being sent after hanging up.
Page Timeout
A time limit may be set for an active page.
Page Tone
Select pre-announce tone for paging. Use only Default, or custom uploaded file. The other
pre-installed tone files all contain silence at the end in order to generate ring "cadence" of
6 seconds. This silence will block the voice path for several seconds at the start of a page.
The “Default” tone will play the page-notif.wav file.
Note: The “Default Page Tone”, in Advanced Multicast, will play the tone set here.
G.722 Support
Enable or disable the G.722 codec.
DTMF Detection Type
Select the preferred DTMF detection method.
Ambient Noise Compensation
To configure, set the volume to an appropriate level for a quiet environment and enable
the Ambient Noise Compensation. The integrated microphone will measure the ambient

noise during idle periods and automatically increment the speaker volume, if any increase
in background noise is detected. Ambient noise level is averaged over 10 seconds. The
noise compensation will not be functional when playing background music.
Automatic Gain Control (AGC)
Normalizes the audio level. Automatically maximize level of voice received from calling
phone in order to make page volume more consistent.
Basic Settings Tab – Multicast

Multicast IP Addresses
Each 8186 SIP Horn Speaker has its own IP address, and shares a common multicast IP
and port number (multicast zone) for multicast packets. The master speaker transmits to a
configurable multicast zone, and the slave units listen to all the multicast zones assigned
to them.
The network switches and router see the packet and deliver it to all the members of the
group. The multicast IP and port number must be the same on all the master and slave
units of one group. The user may define multiple zones by picking different multicast IP
addresses and/or port numbers.
1. Multicast IP addresses range: 224.0.0.0/4 (from 224.0.0.0 to 239.255.255.255)
2. Port numbers range: 1 to 65535
3. By default, the 8186 SIP Horn Speaker is set to use the multicast IP address
224.0.2.60 and the port numbers 50000-50008
Make sure that the multicast IP address and port number do not conflict with other
services and devices on the same network.
Multicast Page Zones
The 8186 SIP Horn Speaker supports nine “basic” multicast zones. These zones are
defined by the multicast IP addresses.
Somewhat arbitrarily, these zones are defined below but may be used in other ways. The
important consideration is that there is a priority hierarchy – streaming activity on a zone
higher on the list, will be treated as a higher priority than a zone lower on the list – with
music being the lowest priority.
1. Priority
2. All Call
3. Zone 1
4. Zone 2
5. Zone 3
6. Zone 4
7. Zone 5
8. Zone 6
9. Music

“Expanded” zones can also be enabled, in the Basic Settings > Multicast tab, allowing
up to 50 zones in total. These have the same behaviors as the basic zones, but are
hidden by default to simplify the interface.
Basic Settings Tab – Multicast (Master Settings)
Note: See (Advanced Settings > Advanced Multicast) section for more information on
populated IP values below:

Multicast Mode (Master/Sender Selected)

If master is enabled the 8186 will broadcast an IP stream when activated in addition to
playing the audio over its own speaker. (Note that the 8186 cannot be both a multicast
Master and Slave simultaneously).
Number of Zones
Select “Basic Zones Only” if configuring nine or fewer multicast zones (shown beside
“Speaker Playback Zones”) or select “Basic and Expanded Zones” to configure up to 50
zones. The expanded zones have the same behavior as the basic Slave zones, but are
hidden by default to simplify the interface.
Multicast Type
The 8186 SIP Horn Speaker may broadcast multicast paging, compatible with Polycom
“on premise group paging” protocol and most multicast-enabled phones that use RTP
audio packets.
Select “Regular” if solely multicasting to Algo SIP endpoints and/or multicast-enabled
phones.
To multicast page announcements solely to Polycom phones, select “Polycom Group
Page” or “Push-to-Talk”. Then, configure the 8186 with “Polycom Zone” (IP Address and
Port) and “Polycom Default Channel”. Always ensure that the multicast settings on all
Slaves match those of the Master.
Select “Regular RTP + Polycom Group Page/Push-to-Talk” to multicast page audio to
both Polycom phones, Algo SIP endpoints, and multicast-enabled phones.
Polycom Group Selection Mode
“Single Zone” always broadcasts on one pre-configured Polycom Group. In “DTMF
Selectable Zone” mode, the group is determined by the DTMF selection between 1 – 50.
Note: DTMF Codes for groups 10 and higher start with an “*”.
Zone Selection Mode

‘Single Zone’ always broadcasts on one IP address. ‘DTMF Selectable Zone’ mode, offers
dynamic zone selection and requires only the master device to have a registered SIP
Extension. The zone definitions can be found in the Advanced Settings > Advanced
Multicast tab.

In ‘DTMF Selectable Mode’, to page, dial the SIP extension of the master device: ####,
then dial the desired DTMF page zone (e.g. 1, 2, etc.) on the keypad when prompted.
1. Press DTMF Extension 9 for Priority Call
2. Press DTMF Extension 0 (or 8) for All Call
3. Press DTMF Extension 1 for Zone 1…
4. Press DTMF Extension *10 for Zone 10
5. Press DTMF Extension *11 for Zone 11…
Note: DTMF codes for zones 10 and higher start with an “*”
Alternatively, multiple SIP extensions can be registered on the Master device. Each
extension is mapped to a unique zone, allowing zones to be called directly (for instance
from speed-dial keys) without the use of DTMF. See Additional Features > More Page
Extensions tab.
Zone Selection Tone

Only visible when ‘Zone Selection Mode’ is set to ‘DTMF Selectable Zone’. The tone
played over the phone to prompt the user to select a zone to multicast to.

Master Single Zone

The zone that multicast stream will be sent to. If ‘DTMF Selectable Zone’ is chosen above,
this setting will not apply to Paging, since the zone now must be dynamically selected per
call via DTMF. However, the specified ‘Master Single Zone’ setting is still used for any
multicast events triggered by the Ring, analog input, or the relay input.
Speaker Playback Zones
Allows Master device to play audio for selected zones only. This is useful if using DTMF
Selectable Zone mode (or More Page Extensions per zone) and wishing to make the
Master unit a member of only certain zones.
Basic Settings Tab – Multicast (Slave Settings)
Multicast Mode (Slave Selected)

If Slave is enabled the 8186 will activate when receiving a multicast message. Will mimic
audio stream, but use local volume settings (‘Page Speaker Volume’ in Basic Settings >
Features).
Number of Zones
Select ‘basic’ zones if configuring nine or fewer multicast zones or ‘expanded’ to configure
up to 50 zones. The expanded zones have the same behavior as the basic Slave zones,
but are hidden by default to simplify the interface.

Multicast Type - Regular

Select ‘Regular (RTP)’ if solely multicasting to Algo SIP endpoint(s) and/or multicast
enabled phone(s) that use RTP audio packets.
Multicast Type – Polycom Group Paging/Push-to-Talk
The 8186 SIP Horn Speaker may receive multicast paging compatible with Polycom “on
premise group paging” protocol.
To configure the 8186 as a slave to play Polycom page announcements, select “Group
Page” or “Push-to-Talk”. Then enter the Polycom Zone (IP Address and Port) that
matches the configuration of the Polycom phones and Channels. The “Default Channel” is
the target group in a Polycom paging environment.
The Polycom phone used as page audio source for the 8186(s), must be configured to
use either the G.711 or G.722 audio codec. The Polycom phone(s) must also be
configured with the “Compatibility” setting (“ptt.compatibilityMode”) disabled in order for
this codec setting to be applied.
If using a Polycom phone as the Multicast master, a tone may be set for any of the 25
Polycom Groups configured on the Algo device. If an Algo device is used as a Multicast
master, a tone does not have to be set as the Algo master will provide its own tone.
Polycom Group Tones can be set in Advanced Settings > Advanced Multicast tab.
Slave Zones
Select one or more multicast zones for the 8186 to monitor. Note that multicast zone
priority is based on the zone definition list order (top to bottom).

Web Interface Additional Features

Additional Features Tab – Input/Output
When triggered by an input relay, the 8186 SIP Horn Speaker can perform actions such
as playing a pre-recorded announcement over the speaker(s), sending the announcement
as a private message to a phone, or initiating a two-way conversation between the
speaker and a phone.
Relay Input Mode
The input relay to the 8186(s) can be prompted by any normally open or normally closed
switch. Algo offers the 1202 Call Button, the 1203 Call Switch, or the 1204 Volume Control

Switch with supervision. Via supervision settings, notification actions can also be triggered
if the input switch is disconnected.
1203 Call Switch
The 1203 Call Switch is a simple contact closure switch with an illuminated
button and supervision capabilities. When used in conjunction with the 8186,
the 1203 can prompt a single action with one-touch, or a continuous action if
the button is held.
Mute Switch
Apply an external switch (short-circuit) across the Relay Input terminals 5 & 6 in order to
mute the speaker. This allows a temporary "disable" switch to control the device if desired,
for example in a boardroom to block paging during important meetings.
Leave the Relay Input terminals open (no-connect) for regular full-volume operation when
in this mode.
1202 Call Button
The 1202 Call Button is a one-touch button for event notification and
response. It can be used with the 8186 for improved customer service,
emergency notification, and non-emergency alerting. The Call Button’s
one-touch button can trigger a single or continuous action, which can be
halted via the small cancel/reset button located below the main call
button.
While the 8186 can be configured to play the audio file only once, it can also be enabled
to play it continuously with just one touch on the 1202 Call Button. The action can then be
stopped via the smaller oval cancel button located below the main call button on the 1202
Call Button.
1204 Volume Control Switch
The 1204 Volume Control Switch is a simple 2 terminal potentiometer that

will allow attenuation below the max volume level (configured under ‘Basic
Settings > Features’)
Algo’s 1204 can be used for variable volume control. The maximum volume should still be
set in the Basic Settings > Features tab as usual, and then the Volume Control Switch will
allow attenuation below this level. Enabling Priority Multicast Override allows priority
multicast to override the volume set by the Volume Control Switch. Enabling ‘Mute On
Lowest Setting’ allows audio to be completely muted when volume control switch is turned
all the way down.

Action – Play Tone

When the 8186 input is triggered, a tone or a pre-recorded audio file will play over the
local speaker, or multicast if enabled. This function can be used to call support/assistance
in service or retail environments, notify about an emergency at a specific location in
medical or educational facilities, or sound an alarm during an intrusion.
 Action When Input Triggered:

o Tone/Pre-recorded Announcement
o Tone Duration
Action – Make Two-Way SIP Voice Call

When the 8186 input is triggered, a voice path will open for an intercom-like call via the
8186 to a pre-configured phone extension. This option can be used when a call needs to
be made from a public place where a phone would not be practical to use.

o Extension to Dial
o Allow 2nd Button Press
 Outbound SIP Call Settings:
o Outbound Ring Limit
o Ringback Tone
o Maximum Call Duration
Action – Make SIP Call with Tone

When the 8186 input is triggered, a private call can be generated to a pre-configured
phone extension with a pre-recorded message. For instance, a call to a supervisor’s
phone notifying about an emergency or intrusion at some location.
 Extension to Dial
 Allow 2nd Button Press
 Tone/Pre-recorded Announcement
 Interval Between Tone (seconds)
 Maximum Tone Duration
 Outbound SIP Call Settings:
 Outbound Ring Limit

Action When Tamper Detected (Supervision)
In addition to the main events, the device can be configured with supervision to also
execute one of the above three actions in case the device goes offline due to wiring failure
or after being tampered with. For example, a tone could sound over the speaker(s), or a

private pre-recorded message could be sent to a specified phone extension. The

supervision configuration options will appear once a relay option with supervision is
selected. See the Electrical Specification section for details on supervision detection
circuit.
Extension to Dial
SIP account required in Page Extension fields in order to make a call. Can be configured if
‘Make SIP Voice Call’ or ‘Make SIP Call with Tone’ actions are enabled under ‘Call Button
Settings’.
Interval Between Tones
Specify the time delay (seconds) between tones. Can be configured if Play Tone’ or ‘Make
SIP Call with Tone’ actions are enabled under ‘Call Button Settings’.
Maximum Tone Duration
Select the maximum tone duration. The tone will be terminated once the maximum time is
reached. Can be configured if ‘Play Tone’ or ‘Make SIP Call with Tone’ actions are
enabled.
Allow 2nd Button Press
If enabled, 2nd button press will either simply End Call or End and Restart Call. Therefore,
if an input is triggered for the second time (since the first input trigger enables one of the
four actions listed above) the SIP call will either simply be terminated or terminated and
immediately called again.
Outbound Ring Limit
Typically set to ensure that a call will not reach voicemail. This feature, under ‘Outbound
SIP Call Settings’, can be used to set a limit on how long the speaker will ring before
timing out.
Ring back Tone
If enabled, under ‘Outbound SIP Call Settings’, a ringback tone will play over the speaker
during an outbound SIP call, while waiting for the far-end party to answer.
Maximum Call Duration
Select the maximum call length. The call will be terminated once the maximum time is
reached. In the event that a call inadvertently reaches voicemail or gets accidentally left
on hold, this setting ensures that the 8186 returns on-hook.
Output Light
Enable/Disable the blue light on the speaker entirely (keep the light off even when the
speaker is active).
Heartbeat Light
If enabled, the small blue indicator will flash every 30 seconds as visual confirmation that
the 8186 is powered and running.
Output Relay
Enable or disable the output relay. Please note this is a normally open relay only.

Additional Features Tab – Emergency Alerts
Emergency Alerts allow for an announcement to be triggered & latched by calling a pre-
configured Emergency extension and hanging up. The announcement can be chosen to
play once or to play until cancel. If “Play Until Cancelled” is selected, announcement will
continue to play until the "Call-to-Cancel" extension is called to clear the announcement
(or a defined timeout is reached). The Emergency Alerts are useful for emergency
notifications (e.g. evacuation, lock down, medical emergency, etc.), allowing staff to
quickly dial a pre-configured number under such circumstances.

If the “Answer Inbound Call” option is “Enabled” the call is auto-answered and a
confirmation tone is played before starting the alert. If “Disabled”, the alert is triggered just
by the inbound ring, without answering the call. (In both instances, the announcement will
play until the time limit is reached or the “Cancel Extension” is called). The auto-answering
option can be useful when the caller cannot hear announcement from their location.
However, in instances where the call might go to a group/multiple extensions (including
this device), the auto-answer may intercept that call and prevent it from ringing on other
devices.
Up to 10 extensions can be registered allowing up to 10 different announcements. Audio
files can also be easily uploaded to create custom announcements.
Note: Some SIP phone systems may not support this feature if they limit the number of
extensions that can be registered on a single device.

Additional Features Tab – More Page Extensions
Additional SIP extensions can be registered for each multicast zone that will be used. This
allows the advantage of dialing directly to a zone without needing to enter DTMF Codes
(e.g. speed-dial keys can be used), but this may require additional SIP licenses depending
on the SIP provider.
To configure additional page extensions (up to 50) click “Enable” beside the target
extension and enter the Extension, Authentication ID, and Authentication password.
The 8186 will auto-answer any inbound calls received on these numbers and provide a
voice paging path and multicast if configured. Note that only a single call can be active at
a time.
Note: Some SIP phone systems may not support this feature if they limit the number of
extensions that can be registered on a single device.
Multicast Zone Definitions can be found in Advanced Settings > Advanced Multicast.

Additional Features Tab – More Ring Extensions
Up to 10 SIP Ring extensions can be registered. To configure additional ring extensions,

click “Enable” beside the target extension and enter the Extension, Authentication ID, and
Authentication password. A unique Ring Tone and multicast zone can be assigned to
each extension if desired.
Note: It is recommended that Provisioning Mode be set to Disabled if this feature is not
in use. This will prevent unauthorized re-configuration of the device if DHCP is used.

Web Interface Advanced Settings

Advanced Settings Tab – Network
Protocol
DHCP is an IP standard designed to make administration of IP addresses simpler. When
selected, DHCP will automatically configure IP addresses for each 8186 on the network.
Alternatively, the 8186 can be set to a static IP address.
VLAN Mode
Enables or disables VLAN Tagging. VLAN Tagging is the networking standard that
supports Virtual LANs (VLANs) on an Ethernet network. The standard defines a system of

VLAN tagging for Ethernet frames and the accompanying procedures to be used by
bridges and switches in handling such frames. The standard also provides provisions for a
quality of service prioritization scheme commonly known as IEEE 802.1p and defines the
Generic Attribute Registration Protocol.
VLAN ID
Specifies the VLAN to which the Ethernet frame belongs. A 12-bit field specifying the
VLAN to which the Ethernet frame belongs. The hexadecimal values of 0x000 and 0xFFF
are reserved. All other values may be used as VLAN identifiers, allowing up to 4094
VLANs. The reserved value 0x000 indicates that the frame does not belong to any VLAN;
in this case, the 802.1Q tag specifies only a priority and is referred to as a priority tag. On
bridges, VLAN 1 (the default VLAN ID) is often reserved for a management VLAN; this is
vendor specific.
VLAN Priority
Sets the frame priority level. Otherwise known as Priority Code Point (PCP), VLAN Priority
is a 3-bit field which refers to the IEEE 802.1p priority. It indicates the frame priority level.
Values are from 0 (lowest) to 7 (highest).
802.1x Authentication
Credentials to access LAN or WLAN that have 802.1X network access control (NAC)
enabled. This information will be available from the IT Administrator.
Differentiated Services (6-bit DSCP value)
Provides quality of service if the DSCP protocol is supported on your network. Can be
specified independently for SIP control packets versus RTP and RTCP audio packets.
DNS Caching Mode
In "SIP" mode, only the results of DNS queries for SIP requests will be cached. In "All"
mode, the results of all DNS queries will be cached.

Advanced Settings Tab – Admin
Password
Password to log into the 8186 SIP Horn Speaker web interface. You should change the
default password algo in order to secure the device on the network. If you have forgotten
your password, you will need to perform a reset using the Reset Button in order to restore
the password (as well as all other settings) back to the original factory default conditions.
For additional password security see “Force Strong Password” below.

Confirmation
Re-enter network admin password.
Device Name (Hostname)
Name to identify the device in the Algo Network Device Locator Tool.
Introduction Section on Status Page
Allows the introduction text to be hidden from the login screen.
Show Status Section on Status Page when Logged Out
Use this option if you wish to block access to the status page when logged out. The
settings and configurations, on the status page, will be hidden entirely unless you’re
logged in – this feature is useful when you want only trusted users to view possible
sensitive device information.
Web Interface Session Timeout
Set the maximum period of inactivity after which the web interface will log out
automatically.
Play Tone at Startup
A tone can be played at startup to confirm that the device has booted.
Log Level
Use on the advice of Algo technical support only.
Log Method
Allows the 8186 SIP Horn Speaker to write to external Syslog server if the option for
external (or both) is selected.
Log Server
If external (or both) is selected this is the address of the Syslog server on the network.
Web Interface Protocol
HTTPS is always enabled on the device. Use this setting to disable HTTP. When HTTP is
disabled, requests will be automatically redirected to HTTPS. Also note that since the
device can have any address on the local network, no security certificate exists, and thus
most browsers will provide a warning when using HTTPS.
Force Strong Password
When enabled, ensures that a secure password is provided for the device’s web interface
for additional protection. The password requirements are:
 Must contain at least 10 characters

 Must contain at least 1 uppercase character
 Must contain at least 1 digit (0 – 9)
 Must contain at least 1 special character
Allow Secure SIP Password
Allows SIP passwords to be stored in the configuration file in an encrypted format, to
prevent viewing and recovery. Once enabled, the SIP “Realm” field should be entered and

all the configured Authentication Password(s) must be re-entered in the Basic Settings >
SIP tab, and any other locations where SIP extension have been configured, to save the
encrypted password(s).
If the Realm is changed at a later time, all the passwords will also need to be re-entered
again to save the passwords with the new encryption.
To obtain your SIP Realm information, contact your SIP Server administrator (or check the
SIP log file for a registration attempt). The Realms may be the same or different for all the
extensions used.
SNMP Support
Additional SNMP support is anticipated for future, but the 8186 SIP Horn Speaker will
respond to a simple status query for automated supervision. Contact Algo technical
support for more information.
System Integrity Checking
This feature verifies installed system packages to ensure they have not been tampered
with by running ‘Perform Check’. Enabling this feature may cause reboots and upgrades
to take 30 seconds longer. Verification results can be found on the Status page.
SA-Announce Support
Syn-Apps’ SA-Announce paging application converts unicast streams to multicast and
delivers them to the target endpoints. The feature can only be used on the 8186 when
Multicast Master Mode is disabled (set to ‘None’) in the Basic Settings > Multicast tab.
SA-Announce Server
Enter the SA-Announce Server to use the Syn-Apps paging feature. To use the server
provided by the DHCP Option 72, leave the field blank.
Local Management Port
Enter the local management port for the SA-Announce Server.
InformaCast Support
This feature requires a valid InformaCast license to be activated. Please contact
sales@algosolutions.com for assistance.

Advanced Settings Tab – Time
Network time is used for logging events into memory for troubleshooting.
Time Zone
Select a time zone.
NTP Time Servers 1/2/3/4
The speaker will attempt to use Timer Server 1 and work down the list if one or more of
the time servers become unresponsive.
NTP Time Server Source
When “Use DHCP Option 42” is chosen, if an NTP Server address is provided via the
DHCP Option 42, that NTP Server will be used instead of the 4 mentioned above.
Alternatively, “Ignore DHCP Option 42” can be chosen to only use servers mentioned
above.
Device Date/Time
This field shows the current time and date as set on the device. If testing the device on a
lab network that may not have access to an external NTP server, the “Sync with browser”
button can be used to temporarily set the time on the device.
Note: This time value will be lost at power down, or overwritten if NTP is currently
active. Time and date are used only for logging purposes and are not typically required.

Advanced Settings Tab – Provisioning
Note: It is recommended that Provisioning Mode be set to Disabled if this feature is not
in use. This will prevent unauthorized re-configuration of the device if DHCP is used.
Provisioning allows installers to pre-configure the 8186 SIP Horn Speaker units prior to
installation on a network. It is typically used for large deployments to save time and ensure
consistent setups.
The device can be provisioned via the Auto mode (where all three DHCP options (Option
66/160/150) will be automatically checked for an active provisioning server), just one of
the three specified DHCP options, or a Static Server. In addition, there are four different
ways to download provisioning files from a “Provisioning Server”: TFTP (Trivial File
Transfer Protocol), FTP, HTTP, or HTTPS.
For example, the 8186 configuration files can be automatically downloaded from a TFTP
server using DHCP Option 66. This option code (when set) supplies a TFTP boot server
address to the DHCP client to boot from.
Important: DHCP must be enabled if using DHCP Option 66/160/150, in order for
Provisioning to work.

One of two files can be uploaded on the Provisioning Server (for access via TFTP, FTP,
HTTP, or HTTPS):
Generic (for all Algo 8186 Speakers) algop8186.conf
Specific (for a specific MAC address) algom[MAC].conf
Both protocol and path is supported for Option 66, allowing for http://myserver.com/config-
path to be used.
MD5 Checksum
In addition to the .conf file, an .md5 checksum file must also be uploaded to the
Provisioning server. This checksum file is used to verify that the .conf file is transferred
correctly without error.
A tool as such can be found at the website address below and may be used to generate
this file: http://www.fourmilab.ch/md5
The application doesn’t need an installation. To use the tool, simply unzip and run the
application (md5) from a command prompt. The proper .md5 file will be generated in the
same directory.
If using the above tool, be sure to use the “-l” parameter to generate lower case letters.
Generating a generic configuration file
1. Connect the 8186 to the network
2. Access the 8186 Web Interface Control Panel
3. Configure the 8186 with desired options
4. Click on the System tab and then Maintenance.
5. Click “Download” to download the current configuration file
6. Save the file settings.txt
7. Rename file settings.txt to algop8186.conf
8. File algop8186.conf can now be uploaded onto the Provisioning server
If using a generic configuration file, extensions and credentials have to be entered
manually once the 8186 has automatically downloaded the configuration file.
Generating a specific configuration file
1. Follow steps 1 to 6 as listed in the section “Generating a generic configuration file”.
2. Rename file settings.txt to algom[MAC address].conf (e.g.
algom0022EE020009.conf)
3. File algom[MAC address].conf can now be uploaded on the Provisioning server.
The specific configuration file will only be downloaded by the 8186 with the MAC address
specified in the configuration file name. Since all the necessary settings can be included in
this file, the 8186 will be ready to work immediately after the configuration file is
downloaded. The MAC address of each 8186 speaker can be found on the back label of
the unit.

For more Algo SIP endpoint provisioning information, see:

www.algosolutions.com/provision
Advanced Settings Tab – File Manager
Uploading Custom Audio Files

Custom audio files may be uploaded into memory (1 GB) to play for notification
applications. Place your audio files into the tones directory.
An existing file may also be modified by downloading the original by right clicking the tone
and selecting ‘Download’, making the desired changes, and then uploading the new
version with a different name. Audio files must be in the following format:
 WAV format
 8kHz or 16kHz sampling rate
 16-bit PCM, or u-law
 Mono
 Smaller than 200MB
File names must be limited to 32 characters, with no spaces.
For further instructions reference the Custom Tone Conversion and Upload Guide.
Tone Files Included in Memory
The 8186 SIP Horn Speaker includes several pre-loaded audio files that can be selected
to play for various events. The web interface allows selection of the audio file and also

the ability to play the file immediately over the speaker for testing. Files may also be
deleted or renamed.
Advanced Settings Tab – Advanced Audio
Dynamic Range Compression (DRC)

If enabled, compresses the dynamic range of page audio to increase loudness.
Dynamic Range Compression Gain
‘Dynamic Range Compression’ must be enabled to display this setting. Higher
compression gain increases distortion.
Jitter Buffer Range
The jitter buffer removes the jitter in arriving network packets by temporarily storing them.
This process corrects the inconsistent delays on the network. It is recommended to use
the lowest value.
Always Send RTP Media
If enabled, audio packets will be sent at all times, even during one-way paging mode. This
option is needed in cases when the server expects to see audio packets at all times.
Speaker Filter
Applies a high-pass filter to the speaker output. Used to reduce audio artifacts like
humming or buzzing by filtering out unwanted frequencies.

Speaker Noise Filter

Enables heavy filtering below 145Hz to reduce mains induced noise (fans).
Microphone Filter
Applies a high-pass filter to the microphone input. Used to reduce audio artifacts like
humming or buzzing by filtering out unwanted frequencies.
Microphone Noise Filter
Enables heavy filtering below 145Hz to reduce mains induced noise (fans).

Advanced Settings Tab – Advanced SIP
SIP Transportation
Which transport layer protocol to use for SIP messages. Setting ‘SIP Transportation’ to
‘TLS’, ensures the encryption of SIP traffic.
SIPS Scheme
Only visible when ‘SIP Transportation’ set to ‘TLS’. Enabling SIPS Scheme requires the
SIP connection from endpoint to endpoint to be secure.

SDP SRTP Offer

Setting ‘SDP SRTP Offer’ to ‘Optional’, means the SIP call’s RTP data will be left
unencrypted if the other party does not support SRTP. Setting ‘SDP SRTP Offer’ to
‘Standard’, makes RTP voice data encryption mandatory, meaning the normal audio RTP
packets will now be secure (SRTP). This means SIP calls will be rejected if other party
does not support SRTP. The ‘Standard’ option secures the audio data between parties, by
making sure that it’s not left out in the open for third parties to later reconstruct and listen
to.
SIP Outbound Support (RFC 5626)
Enable this option to support best networking practices according to RFC 5626. This
option should generally be enabled if the Algo device is being registered with a hosted
server or if TLS is being used for SIP Transportation.
Outbound Proxy
IP address for outbound proxy. A proxy (server) stands between a private network and the
internet.
Register Period (seconds)
Maximum requested period of time where the 8186 SIP Horn Speaker will re-register with
the SIP server. Default setting is 3600 seconds (1 hour). Only change if instructed
otherwise.
Media NAT
IP address for STUN server if present or IP address/credentials for a TURN server.
Server Redundancy Feature
Two secondary SIP servers may be configured. The 8186 SIP Horn Speaker will attempt
to register with the primary server but switch to a secondary server if necessary. The
configuration allows re-registration to the primary server upon availability or to stay with a
server until unresponsive.
Backup Server #1
Only visible if ‘Server Redundancy Feature’ is enabled. If primary server is unreachable
the 8186 SIP Horn Speaker will attempt to register with the backup servers. If enabled, the
8186 will always attempt to register with the highest priority server.
Backup Server #2
Only visible if ‘Server Redundancy Feature’ is enabled. If backup server #1 is unreachable
the 8186 SIP Horn Speaker will attempt to register with the 2nd backup server. If enabled,
the 8186 will always attempt to register with the highest priority server.
Polling Intervals (seconds)
Only visible if ‘Server Redundancy Feature’ is enabled. Time period between sending
monitoring packets to each server. Non-active servers are always polled, and active
server may optionally be polled (see below).

Poll Active Server

Only visible if ‘Server Redundancy Feature’ is enabled. Explicitly poll current server to
monitor availability. May also be handled automatically by other regular events, so it can
be disabled to reduce network traffic.
Automatic Failback
Only visible if ‘Server Redundancy Feature’ is enabled. Reconnect with higher priority
server once available, even if backup connection is still fine.
Polling Method
Only visible if ‘Server Redundancy Feature’ is enabled. SIP message used to poll servers
to monitor availability.
Keep-alive Method
If Double CRLF is selected the 8186 will periodically send a CRLF message for both UDP
and TCP connections to maintain connection with the SIP Server.
Keep-alive Interval
Interval in seconds that the CRLF message should be sent.
Use Outgoing TLS port in SIP headers
Use ephemeral port number from outgoing SIP TLS connection instead of listening port
number in SIP Contact and Via headers. This is useful to connect the device to some local
SIP servers, like Asterisk or FreeSWITCH.
Do Not Reuse Authorization Headers
When enabled, all SIP authorization information from the last successful request will not
be reused in the next request.
Allow Missing Subscription-State Headers
When enabled, allow SIP NOTIFY messages that do not contain a "Subscription-State"
header.

Advanced Settings Tab – Advanced Multicast
The default prepopulated multicast addresses above will work in most cases and should
only be altered for rare cases.
Audio Sync (Slave Mode)
When using multicast with other third-party devices that have a delay in their audio path,
the audio on the 8186 may be heard slightly earlier than on these other devices. By
adding audio delay up to one second, the 8186 may be synchronized with other speakers
or telephones that have greater latency. This feature applies to Multicast Slave mode only.
Master Output Codec (Master Mode)
Audio encoding format used by the Master device when sending output to the slaves.
Master Output Packetization Time (Master Mode)
The size of the audio packets sent by the Master to the Slaves. The default of 20ms is
recommended, unless a different value is specifically required for compatibility with other
devices.

RTCP Port Selection

Select the port on which RTCP packets will be sent or received. If using the 'Next Higher
Port' option, ensure that the default multicast zone definitions are modified such that
zones are only assigned to even-numbered ports, leaving the next higher odd-numbered
ports free for RTCP packets.
Zone Definition
The “Expanded” Slave or Master zones can be enabled/disabled in Basic Settings >
Multicast. Default IP addresses and ports may be revised for any given zone in the table.
Important: Ensure that the Address and Port settings are the same for all master and
slave devices.
Page Tone and Page Volume

Master Mode: By default, the same tone can be set for all Slave zones in the Basic
Settings > Features tab. Unique paging tones may be revised for any given slave zone in
the table above.
Slave Mode: When an Algo device is the multicast Master, a page tone will play on the
Slave device, so it is recommended to set the Slave tone to “None”. If a page is received
from a non-Algo device that doesn’t send a tone, a tone can be inserted on the Slaves
(above) each time they detect page audio starting, allowing them to play a tone.
By default, the same page volume can be set for all Slave zones in the Basic Settings >
Features tab. Unique page volumes may be revised on a per-zone basis in the table
above. For instance, emergency pages can be louder on certain Slave speakers.
Polycom Slave Tones
Available if Multicast Slave and “Polycom Group Page” or “Polycom Push-to-Talk” are
selected in the Basic Settings > Multicast tab. A tone may be set for any of the 25
Polycom Groups. If using an Algo device as a Multicast master, it is recommended to set
the slave tones to “None” to avoid conflicts, as the Algo devices already multicast a tone
by default.

Web Interface System

System Tab – Maintenance
Download Configuration File

Save the device settings to a text file for backup or to setup a provisioning configuration
file.
Restore Configuration File
Restore settings from a backup file.
Restore Configuration to Defaults
Resets all 8186 SIP Horn Speaker device settings to factory default values.
Download Backup File
Saves the device settings (configuration) and all the files in File Manager: certificates,
licenses, and tones to a backup zip file.
Restore from Backup Zip File
Restores the device settings (configuration) and all the files in File Manager: certificates,
licenses, and tones from a backup zip file

Restore All Settings and Files to Defaults

Resets the device settings (configuration) and all the files in File Manager: certificates,
licenses, and tones to factory default values.
Reboot the Device
Reboots the device.
Method
Specify whether the firmware files will be downloaded from the local computer or a remote
URL.
Firmware Image
Point to the firmware image provided by Algo.
MD5 Checksum
Point to the checksum file provided by Algo.
How To Upgrade 8186 SIP Horn Speaker Firmware
1. From the top menu, click on System, then Maintenance.
2. In the Upgrade section, click on Choose File and select the 8186 speaker firmware
file to upload. Note that both the FW firmware and MD5 checksum files must be
loaded.
3. Click Upgrade
4. After the upgrade is complete, confirm that the firmware version has changed (refer
to top right of the Control Panel).
System Tab – System Log

System log files are automatically created and assist with troubleshooting in the event the
8186 SIP Horn Speaker does not behave as expected.

Specifications
Power Input: PoE (IEEE 802.3af Class 0) 48V, 12.95W
(Max 12.95W - Idle nominal 2W)
SIP: SIP Extensions:

• 50 Page (Capable of hands-free talkback)
• 10 Emergency Alert
• 10 Ring
SIP Signalling/Transport Protocols: UDP, TCP, TLS, RTP,
SRTP
Multicast & Third-Party RTP Multicast (Send and Receive 50 Zones)

Compatibility: Polycom Group Page
Singlewire InformaCast (additional license required)
Syn-Apps Revolution
Configuration & Configuration: Web interface or provisioning server

Provisioning: Web Interface: HTTP, HTTPS
Provisioning: TFTP, FTP, HTTP, HTTPS
DHCP Options 66, 150, 160
Reboot via SIP 'check-sync'
Supervision: Compatible with any third party SNMP
monitoring software or the Algo 8300 Controller
Networking: Networking: IPv4, DHCP, VLAN

Link Layer: LLDP, CDP
QoS: DSCP
NAT: STUN, TURN, CRLF Keep Alive, SIP Outbound
Address Resolution: DNS, SRV Record
Redundancy: Secondary and tertiary SIP server
Time: NTP Server (up to four)
Audio: Speaker: Double re-entrant horn speaker, 11" x 6 5/8"

(30cm x 16.8cm) rectangular
SPL: 116 dBA at 1m (1 kHz sine wave)
Frequency Response: 350 – 9,000 Hz (- 10 dB)
Dispersion Angle: 76H x 51V (2 kHz -6dB); Oriented
Vertically 11” tall x 6 5/8” Wide
Microphone: Omnidirectional - talkback and ambient noise
monitoring
Audio Codecs: G.711 u-law, G.711 A-law, G.722 Wideband
Audio Memory: 1 GByte audio storage
Input/Output: Relay Input: Normally open or normally closed dry contact

supervision using Algo 1202 Call Button, Algo 1203 Call
Switch, 1204 Volume Control or EOL resistor termination
Relay Output: Max 30 V 50 mA (normally open)

Relay Input Current Active Idle Tamper

Draw Detection
Thresholds: Normally Open >4mA <4mA N/A
Normally Open with Supervision >20mA 4-20mA <4mA
Normally Closed <4mA >4mA N/A
Normally Closed with 4-20mA >20mA <4mA

supervision
Nominal 12V source, current limited to 40mA

Typical supervision resistor value = 1k ohm
Environmental: -40 to +50° C (-40 to +122° F);

Suitable for outdoor and wet environments when properly
installed.
Environmental & IPX6 rating
Mechanical: Dimensions (Product): 11” x 6.6” x 10.5” (28cm x 16.8cm x
26.7cm)
Weight (Product): 5.0 lbs (2.3 kg)
Weight (Shipping): 6.5 lbs (2.9 kg)
Compliance: RoHS, CE, FCC Class A, CISPR 22 Class A, CISPR 24,

CSA/UL (USA & Canada), EN60950
FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy, and if it is not installed and used in accordance with the instruction
manual, it may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the
user will be required to correct the interference at his own expense.


User Guide: 8186 SIP Horn Speaker FW Version 1.7

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

User Guide: 8186 SIP Horn Speaker FW Version 1.7

Uploaded by

Copyright:

Available Formats

8186 SIP Horn Speaker FW 1.

8186 SIP Horn Speaker

8186 SIP Horn Speaker

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

Advanced Settings Tab – File Manager.......................................................................................................... 51

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

Important Safety Information

Consignes de Sécurité Importantes

Información de Seguridad Importante

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

Si usted no puede comprender la información de seguridad en inglés, comuníquese con

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

WET OR OUTDOOR ENVIRONMENTS

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

Configuration & Provisioning

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

Setup and Installation

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

Installation & Mounting

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

Programming and Configuration

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

SIP Ring Event

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

to any number/combination of Algo IP speakers, paging adapters, and strobes as

SIP Paging: Multiple 8186s (Using Multicast)

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

SIP Paging: Multiple Speakers (Using Individual SIP extensions)

SIP Activated Notification Alerts

Background Music Streaming

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

PolycomTM Group Paging

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

TLS for SIP Signaling and Provisioning

Uploading Public CA Certificates to Algo SIP Endpoints

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

SIP Signaling (and RTP Audio)

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

Connecting Input Devices

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

Terminal Block Relay In

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

Web Interface Status and Login

Important: It is highly recommended to change the default password if the device is

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

Web Interface Basic Settings

SIP Domain (Proxy Server)

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

Basic Settings Tab – Features

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

Basic Settings Tab – Multicast

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

Basic Settings Tab – Multicast (Master Settings)

Document 90-00079B Algo Communication Products Ltd (604) 454-3792

Multicast Mode (Master/Sender Selected)
