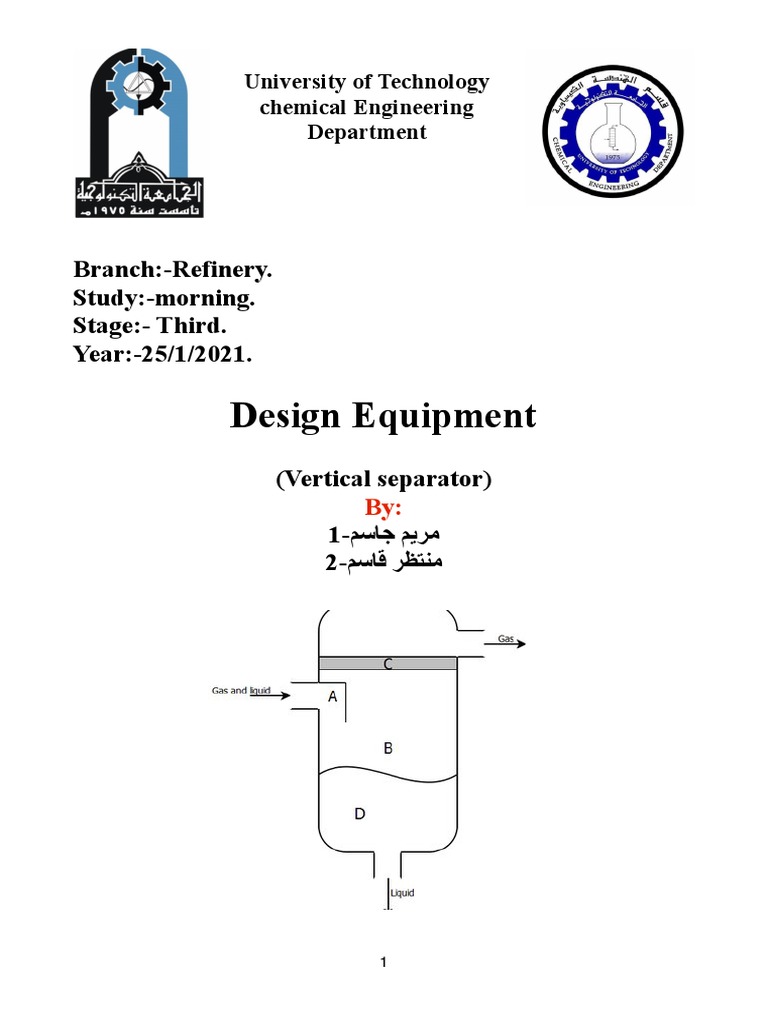

chemical Engineering
Department
Branch:-Refinery.
Study:-morning.
Stage:- Third.
Year:-25/1/2021.
Design Equipment
(Vertical separator)
By:
1-ﻣﺮﯾﻢ ﺟﺎﺳﻢ
2-ﻣﻨﺘﻈﺮ ﻗﺎﺳﻢ
Introduction:-
*separator:-
-A cylindrical or spherical vessel used to separate oil, gas and water from the total
fluid stream produced by a well. Separators can be either horizontal or vertical.
Separators can be classified into two-phase and three-phase separators (commonly
called free-water knockout). The two-phase type deals only with oil and gas, while
the three-phase type handles oil, water and gas. Additionally, separators can be
categorized according to their operating pressure. Low-pressure units handle
pressures of 10 to 180 psi [69 to 1241 kPa]. Medium-pressure separators operate
from 230 to 700 psi [1586 to 4826 kPa]. High-pressure units handle pressures of 975
to 1500 psi [6722 to 10,342 kPa]. Gravity segregation is the main force that
accomplishes the separation, which means the heaviest fluid settles to the bottom and
the lightest fluid rises to the top. Additionally, inside the vessel, the degree of
separation between gas and liquid will depend on the separator operating pressure,
the residence time of the fluid mixture and the type of flow of the fluid. Turbulent
flow allows more bubbles to escape than laminar flow.
vertical separator:-
-A vertical separator is a vessel for the bulk removal of liquids or solids by gravity.
Operators prefer to utilize vertical separators over other separators when the well
streams have large liquid to gas ratios, constant flow, and small liquid surge
characteristics (high gas/ low liquid). Vertical separators are also preferred when well
streams have sizable quantities of sand, mud, or other related substances as well as
process flow streams, which are characterized by large instantaneous volumes of
liquid or slugs. Lastly, when there are horizontal space limitations, but little or no
vertical height limitations (i.e. offshore platform), vertical separators would be a
good, space-saving option.
These separators may go by many names like oil-water separator, three-phase
separator, two-phase separators, but functionality is all relatively the same. With these
reasons it is important to have properly functioning parts because without them it is
just a pressure vessel.
Gas-Liquid separator:-
-vapor–liquid separator is a device used in industrial applications to separate a vapor–
liquid mixture into its constituent phases. It can be a vertical or horizontal vessel, and
can act as a 2-phase or 3-phase separator.
A typical vapor–liquid separator including commonly a de-entrainment pad and
sometimes an inlet distributor.
A vapor–liquid separator may also be referred to as a flash drum, breakpot, knock-out
drum or knock-out pot, compressor suction drum, suction scrubber or compressor
inlet drum, or vent scrubber. When used to remove suspended water droplets from
streams of air, it is often called a demister.
2
Application:-
Separators are perfect for separation tasks in which a high degree of selectivity is
required or in which the separation of the finest particles is important. They are also
used for separating solid/liquid mixtures having only a small difference in density.
Disk stack separators have many applications that can be found in the most diverse
branches of industry, for example:
• In the food and beverage sector
• In the grease and oil processing industry
• In the chemical, pharmaceutical, and biotechnology industries
• In the petroleum industry and energy production
• In environmental protection
The technology of separating water from gas and vice versa is extensively used by
several industrial sectors for multiple applications, some of which are mentioned
below.
• Oil refineries
• Petrochemical and chemical plants
• Compressor systems
• Natural-gas processing plants
• Flare stacks
• Combined cycle power plants
• Refrigeration systems
• Gas pipelines
• Soil vapor extraction
• Paper mills
• Steam condensate flash drums
• Geothermal power plants
• Air conditioning
5
Calculations:-
A-
ρL − ρv
1-ut = 0.07
ρv
878.346 − 6.125
ut = 0.07 = 0.84m /sec
6.125
us = 0.84 × 0.15 = 0.126m /sec
mv
2-Vapour volumetric flow rate =
ρv
6500
= = 0.3m 3 /sec
6.125 × 3600
4 × Vv
3-Dv =
π × us
4 × 0.3
Dv = = 1.74m. Take it 1.75m
π × 0.126
mL
4-Liquid volumetric flow rate =
ρL
9000
= 3 × 10−3m 3 /sec
878.346 × 3600
3-From table (13.2) Typical design stress for plate (carbon steel)
pi × Di
4-Thickness for plate T =
2SE − 1.2pi
1.32 × 1750
T= = 9.5mm
2 × 135 × 0.9 − 1.2 × 1.32
Thickness of the plate + c
9.5+2=11.5mm
9.5+2=11.5mm
6- The nozzles
For into gas-liquid and out gas
Q
A=
u
0.3m /sec
A= = 0.02m 2
15m /sec
pi
A= × D2
4
A
D=
π /4
0.02
D= = 0.16m. 160mm thickness of the Diameter from pipe schedule is.
π /4
(7.11mm)
8
Reference:-
•chemical engineering design (volume 6) Table(13.2)
page 812 ,815 & 825
• https://www.pdfdrive.com/search?q=Gas-
Liquid+And+Liquid-
Liquid+Separators&pagecount=&pubyear=&searchin=
&em=
• https://petrowiki.spe.org/Oil_and_gas_separators
• https://croftsupply.com/search.php?
search_query=SeparAtor
• https://en.m.wikipedia.org/wiki/
Separator_(oil_production)
9
