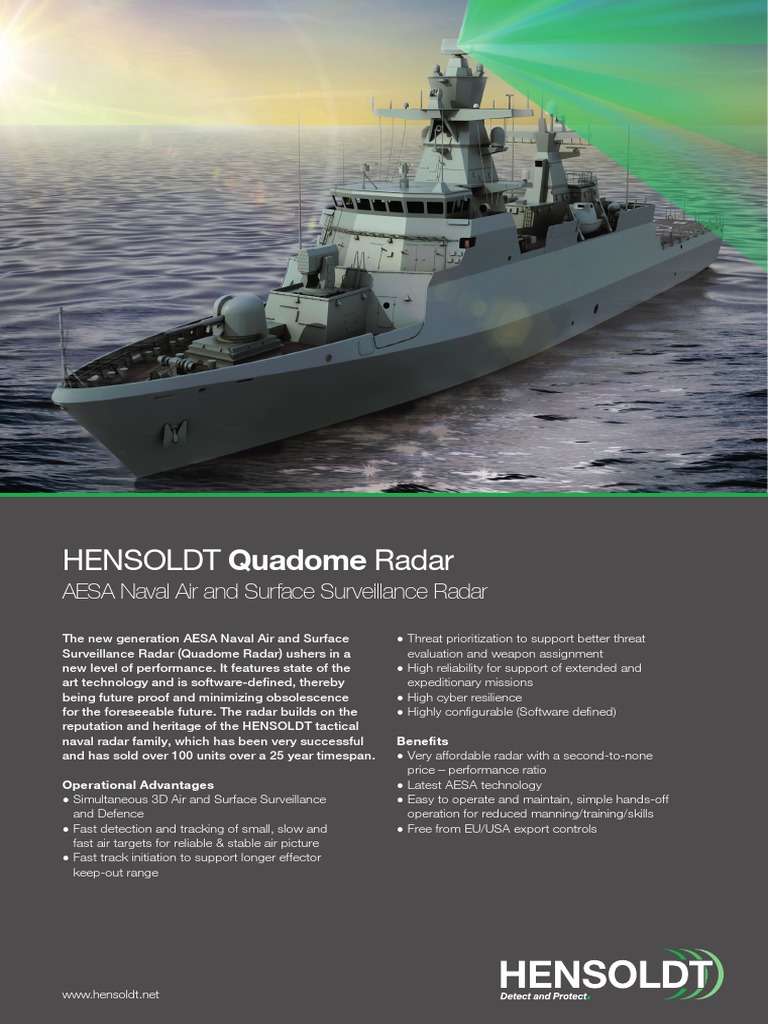

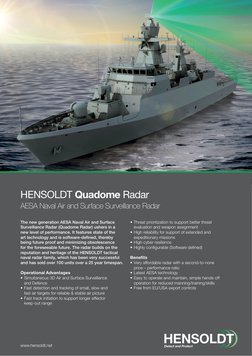

HENSOLDT Quadome Radar
AESA Naval Air and Surface Surveillance Radar
The new generation AESA Naval Air and Surface • Threat prioritization to support better threat
Surveillance Radar (Quadome Radar) ushers in a evaluation and weapon assignment
new level of performance. It features state of the • High reliability for support of extended and
art technology and is software-defined, thereby expeditionary missions
being future proof and minimizing obsolescence • High cyber resilience
for the foreseeable future. The radar builds on the • Highly configurable (Software defined)
reputation and heritage of the HENSOLDT tactical
naval radar family, which has been very successful Benefits
and has sold over 100 units over a 25 year timespan. • Very affordable radar with a second-to-none
price – performance ratio
Operational Advantages • Latest AESA technology
• Simultaneous 3D Air and Surface Surveillance • Easy to operate and maintain, simple hands-off
and Defence operation for reduced manning/training/skills
• Fast detection and tracking of small, slow and • Free from EU/USA export controls
fast air targets for reliable & stable air picture
• Fast track initiation to support longer effector
keep-out range
www.hensoldt.net

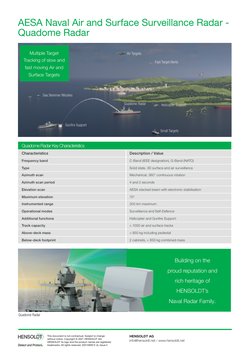

AESA Naval Air and Surface Surveillance Radar -
Quadome Radar
Multiple Target Air Targets
Tracking of slow and Fast Target Alerts
fast moving Air and
Surface Targets
Sea Skimmer Missiles
Quadome Radar Helicopter Support
Gunfire Support
Small Targets
Quadome Radar Key Characteristics
Characteristics Description / Value
Frequency band C-Band (IEEE designation), G-Band (NATO)
Type Solid state, 3D surface and air surveillance
Azimuth scan Mechanical, 360° continuous rotation
Azimuth scan period 4 and 2 seconds
Elevation scan AESA stacked beam with electronic stabilisation
Maximum elevation 70°
Instrumented range 200 km maximum
Operational modes Surveillance and Self-Defence
Additional functions Helicopter and Gunfire Support
Track capacity > 1000 air and surface tracks
Above-deck mass < 850 kg including pedestal
Below-deck footprint 2 cabinets, < 850 kg combined mass
Building on the
proud reputation and
rich heritage of
HENSOLDT’s
Naval Radar Family.
Quadome Radar
This document is not contractual. Subject to change HENSOLDT AG
without notice. Copyright © 2021 HENSOLDT AG.
HENSOLDT its logo and the product names are registered info@hensoldt.net / www.hensoldt.net
trademarks. All rights reserved. 20210909 E UL Issue 2
