3.

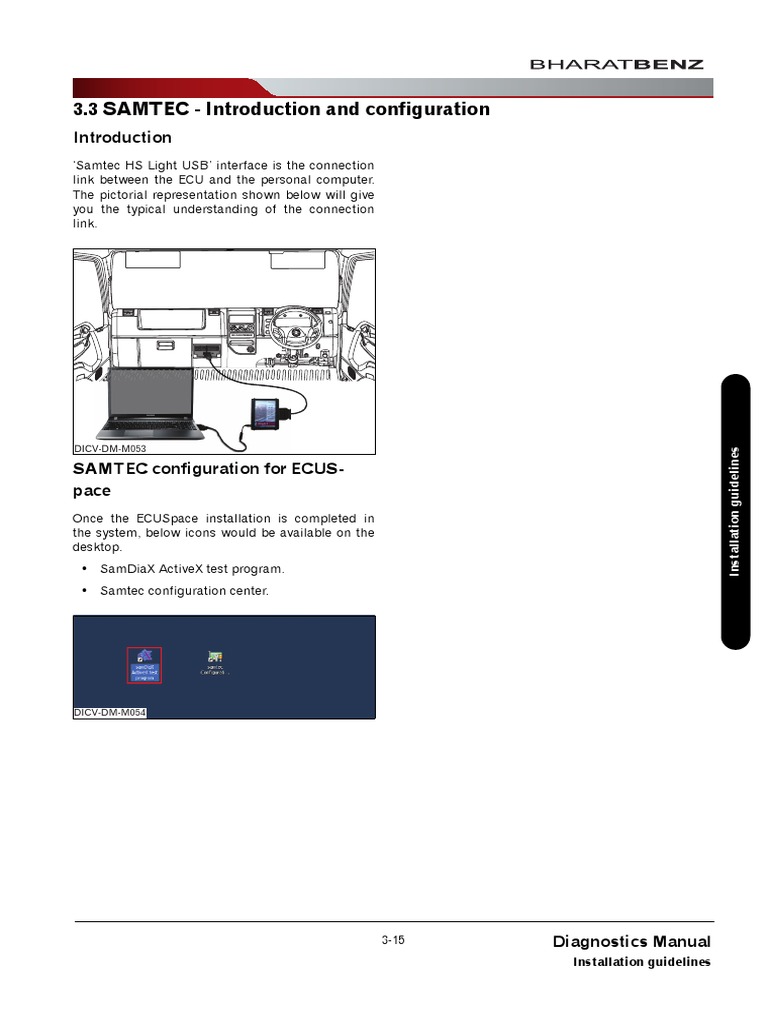

3 SAMTEC - Introduction and configuration

Introduction
‘Samtec HS Light USB’ interface is the connection
link between the ECU and the personal computer.
The pictorial representation shown below will give
you the typical understanding of the connection
link.

BHARATBENZ

DICV-DM-M053

guidelines
SAMTEC configuration for ECUS-

Troubleshooting
pace

Installation
Once the ECUSpace installation is completed in
the system, below icons would be available on the
desktop.
• SamDiaX ActiveX test program.
• Samtec configuration center.

DICV-DM-M054

3-15 Diagnostics Manual

Installation guidelines
 3.3.1 BS-III OBD cable
Configuration procedure 4. Select the ‘HSX/HS+/HSlight-Interface-USB’
option and click START button.
Connect the Samtec device to the laptop.
1. Double click the samDiaX Active test program
icon from the desktop.
2. Click on the ‘Edit the device configuration’
icon highlighted in red box to configure the
device.

DICV-DM-M057
5. Hardware connected to the system is
detected and a message is displayed as
below.
Installation guidelines

DICV-DM-M055
6. Click on the “Add detected devices to device
configuration“ icon highlighted in red box to
3. A new screen will pop-up for configuration. add the detected device and close the current
Click on the ‘Automatic detection of screen.
hardware’ icon highlighted in RED box to
open the detection screen.

DICV-DM-M056 DICV-DM-M058

3-16 Diagnostics Manual

Installation guidelines
 7. Click ‘Save parameters in a new file’ button to 9. Select the ‘Parameter’ button highlighted in
save the detected device and close it. red box to do parameter setting.

DICV-DM-M059 DICV-DM-M061
8. Select the detected device from drop-down 10. Click on browse button to select the
list. “CNF_EDC17CV54_CAN.spa“ file (C:\Program
Files(x86)\BOSCH\EcuSpace).

guidelines
Troubleshooting
Installation
DICV-DM-M060

DICV-DM-M062

3-17 Diagnostics Manual

Installation guidelines
 11. Select the ‘.spa’ file and click open. 13. Click on Communication button highlighted
in red box.

DICV-DM-M063
12. Click on Load button highlighted in red box to DICV-DM-M065
load the selected ‘.spa’ file and then click on 14. Enter the ‘1101’ command into
Save button highlighted in blue box to save ‘txtBlockString’ highlighted in red box.
the file.
15. Click on Start button highlighted in blue box
to start the communication.
Installation guidelines

16. Click on Send button highlighted in green box

and check whether data received in
“RxBlockString“ is matching. If matched ECU
is connected properly. Close the samDiaX
window.

DICV-DM-M064

DICV-DM-M066

3-18 Diagnostics Manual

Installation guidelines
3.3.2 BS-IV OBD cable
Configuration procedure 6. Select CNF_EDC17CV54_CAN.spa (5) and
click on Open button (6).
1. Open SamDiax ActiveX Configuration Tool
from desktop.
2. Select device from drop-down list (1). 5

3. Click on ‘Parameter’ tab (2).

4. Click the ‘Browse’ button (3)

6
3

DICV-DM-M407
2 7. Click on ‘Load’ button (7).
DICV-DM-M405

8. Click on ‘Save’ button (8).

guidelines
Troubleshooting
5. Go to C:/Program Files(x86)/Bosch/EcuSpace/
8
BS4_SPA (4). 7

Installation
4
DICV-DM-M408
DICV-DM-M406

3-19 Diagnostics Manual

Installation guidelines
 9. Click on ‘Communication’ tab highlighted in 14. Click on ‘X’ button (14) or ‘Schließen’ (15) to
red colored box (9). close the application.

9
14
DICV-DM-M409

DICV-DM-M411
15

10. Enter 1101 in TxBlockString box (10).

11. Click on ‘Start’ button (11).
12. Click on ‘Send’ button (12).
13. Check if 5101 appears in RxBlockString box
Installation guidelines

(13); if it matches then configuration has been

done properly.

11 12

10

13
DICV-DM-M410

3-20 Diagnostics Manual

Installation guidelines
