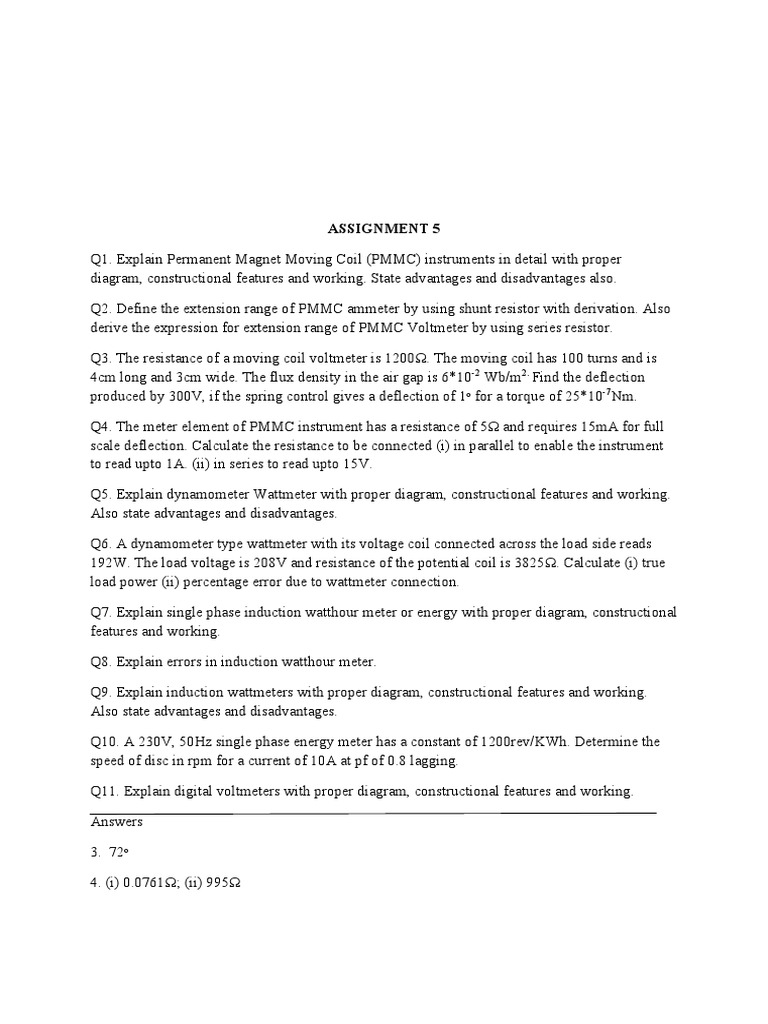

ASSIGNMENT 5

Q1. Explain Permanent Magnet Moving Coil (PMMC) instruments in detail with proper
diagram, constructional features and working. State advantages and disadvantages also.

Q2. Define the extension range of PMMC ammeter by using shunt resistor with derivation. Also
derive the expression for extension range of PMMC Voltmeter by using series resistor.

Q3. The resistance of a moving coil voltmeter is 1200Ω. The moving coil has 100 turns and is
4cm long and 3cm wide. The flux density in the air gap is 6*10-2 Wb/m2. Find the deflection
produced by 300V, if the spring control gives a deflection of 1ᵒ for a torque of 25*10-7Nm.

Q4. The meter element of PMMC instrument has a resistance of 5Ω and requires 15mA for full
scale deflection. Calculate the resistance to be connected (i) in parallel to enable the instrument
to read upto 1A. (ii) in series to read upto 15V.

Q5. Explain dynamometer Wattmeter with proper diagram, constructional features and working.
Also state advantages and disadvantages.

Q6. A dynamometer type wattmeter with its voltage coil connected across the load side reads
192W. The load voltage is 208V and resistance of the potential coil is 3825Ω. Calculate (i) true
load power (ii) percentage error due to wattmeter connection.

Q7. Explain single phase induction watthour meter or energy with proper diagram, constructional
features and working.

Q8. Explain errors in induction watthour meter.

Q9. Explain induction wattmeters with proper diagram, constructional features and working.
Also state advantages and disadvantages.

Q10. A 230V, 50Hz single phase energy meter has a constant of 1200rev/KWh. Determine the
speed of disc in rpm for a current of 10A at pf of 0.8 lagging.

Q11. Explain digital voltmeters with proper diagram, constructional features and working.

Answers

3. 72ᵒ

4. (i) 0.0761Ω; (ii) 995Ω

6. (i) 180.7W; (ii) 6.25%

10. 3684rpm
