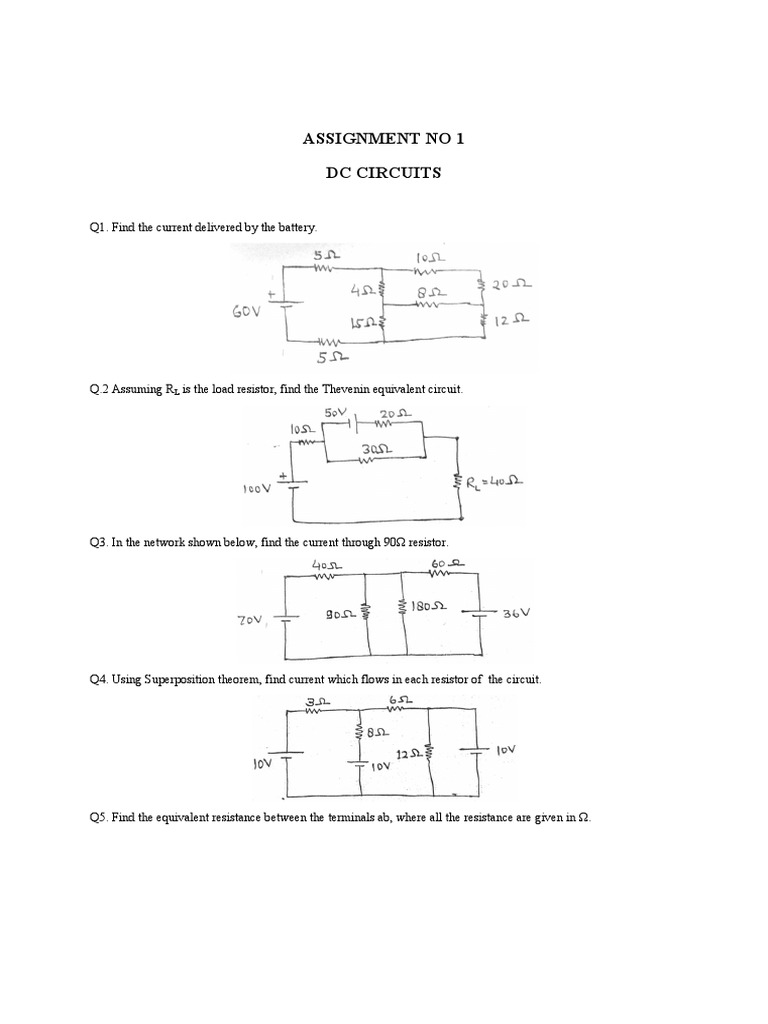

ASSIGNMENT NO 1

DC CIRCUITS

Q1. Find the current delivered by the battery.

Q.2 Assuming RL is the load resistor, find the Thevenin equivalent circuit.

Q3. In the network shown below, find the current through 90Ω resistor.

Q4. Using Superposition theorem, find current which flows in each resistor of the circuit.

Q5. Find the equivalent resistance between the terminals ab, where all the resistance are given in Ω.
Q6. Find the value of E which permits a dissipation of 180Win the 20Ω resistor.

Q7. Using superposition theorem, find the current flowing in R2=20Ω.

Q8. Find the current in 2kΩ resistance in the given figure

Q9. For the given figure find the Thevenin vltage Vab
Q10. Find the thevenin voltage of given figure across AB

Q11. In the given figure find the equivalent resistance across terminal ab

Q12. In the given figure find the power supplied by the voltage source

Q13. Find the Z in the parallel circuit using nodal analysis

Q14. In the given circuit what value of RL maximizes the power delivered to it. Find the maximum power also.

Q15. Verify the Tellegen’s theorem in the given figure

Answers: 1. 2.86A; 2. VOC= 130V, Rth=22Ω; 3. 0.448A; 4. I3=0, I6=0, I8=0, I12= 0.835A;

5. 18.75Ω; 6. 165V; 7. 1A; 8. 0A; 9. -1.5V; 10.) 3.36V; 11). 8/15Ω 12). 0W

13. 5(cos30 + jsin30)Ω 14. 4Ω, 625W

 Assignment 2
Single Phase AC Circuits
Q1. With reference to figure find the input impedance Zin between terminals

a) Between a and g
b) Between a and b

Q2. For RLC circuit, determine Is and is(t) if both sources are operated at ω= 2rad/sec and Ic with
magnitude 2A and angle 28ᵒ.

Q3. Applying the voltage 8<50ᵒV at a frequency ω= 100 rad/sec to a 4H inductor. Determine the
phasor current and the time domain current.

Q4. Calculate values for average power delivered to each of the two loads shown in figure also
the apparent power supplied the source and the power factor of the combined load.

Q5. Impedances Z2 and Z3 in parallel are in series with impedance Z1 across a 100V, 50 Hz A.C.
supply
Z1=6.25+j1.25Ω; Z2= 5Ω; Z3= 5-jXcΩ

Determine the value of capacitance of Xc such that the total current of the circuit will be in phase
with the total voltage. What is then the current and power.

Q6. A load is connected across terminal A and B. What should be the impedance be obtained so
that maximum power dissipated in it?

Q7. A series RLC circuit hat the values R=10Ω, L=0.01H, C= 100µF. Calculate resonant
frequency, quality factor, bandwidth and half power frequencies.

Q8.Find the average power dissipated through 4Ω resistor by current i=2cos10t-3cos20t, also
find RMS value of current.

Q9. Determine both the average and RMS value from the waveform.

Q10. For the given power triangle, determine S(in polar form) and power factor.

Q11. Consider a parallel RLC circuit such that L=2mH, Q=5 and C=10nF. Determine value of R
and ω.
Q12. Find the ω, Q and bandwidth for the series resonant circuit given Vs=100cosωt mV,
R=10Ω, C=200nF and L=2mH.

Q13. A series connected circuit has R=4Ω, L=25mH. Calculate value of C which produce Q=50.

Determine average power dissipated at the resonance frequency and at the half power
frequencies.

Answers

Q1. a) 2.81+j4.49Ω b). -0.828-j3.8Ω

Q2. 2.06<13.96ᵒA, 2.06cos(2t+13.96)A

Q3. 0.02<-140ᵒA, 0.02cos(100t-140)A

Q4. 288W, 144W, 720VA, 0.6(lag)

Q5. 3181F, 10A, 1KW

Q6. 5.316-j3.07Ω

Q7. 159.15Hz, 1, 1000rad/sec, 1618rad/sec, 618rad/sec

Q8. √(13/2)A, 26W

Q9. -10/6, 2.89

Q10. 1+j4KVA, 0.242

Q11. 2.236kΩ, 223.6Krad/sec

Q12. 50krad/sec, 10, 5krad/sec

Q13. 0.625nF, 1.250KW, 0.625KW.
