GR200 Overview

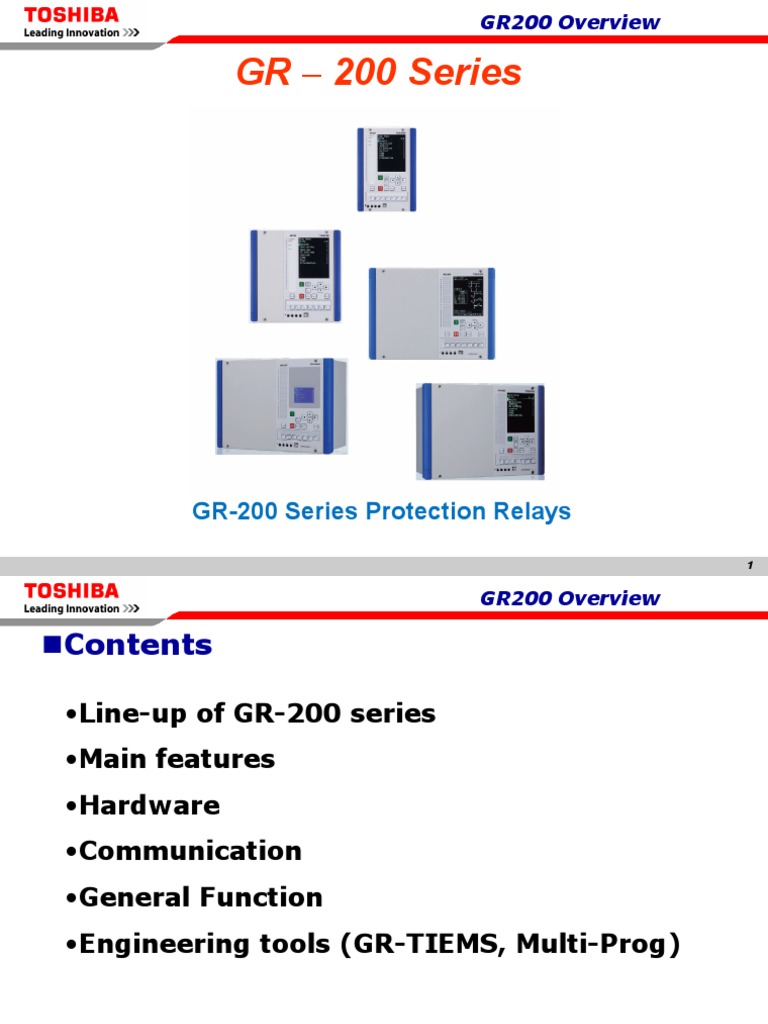

GR – 200 Series

GR-200 Series Protection Relays

1
 GR200 Overview

Contents

•Line-up of GR-200 series

•Main features
•Hardware
•Communication
•General Function
•Engineering tools (GR-TIEMS, Multi-Prog)

2
 GR200 Overview

Line-up of GR200 series

Full-range of Power System Protection
GR200 Series Numerical Relay
◆ GBU200 Bay Control
◆ GRL200 Line Differential
◆ GRZ200 Distance Protection
◆ GRT200 Transformer Protection
◆ GRB200 Busbar Protection
◆ GRD200 Multi-Function Protection & Control
◆ GRG200 Generator and Motor Protection
◆ GRX200 Railway DC Protection

3
 GR200 Overview

● Application Example

4
 GR200 Overview

Main features
•Intelligent Platform
- Fully modularized hardware architecture
- Flexible firmware platform enabling easy addition of
function

5
 GR200 Overview

• Extensive Hardware Option & Flexible Adaptation

- Flexible hardware combinations to meet specific
application
- Wide variety of Binary Input & Output combinations
- Standard LCD and large LCD with touch type screens

6
 GR200 Overview

• Function-wise Implementation
- Library of function blocks enables wide application
for protection, control, measurement & other function
- Easy IED customization to add/delete particular
function block
- Flexible implementation of new function or to
modify specific function

7
 GR200 Overview

Hardware CT/VT Module

I/O, Module Comm.Module

8
 GR200 Overview

•Case size
- Various case size of GR-200 can be selected in the
term of width from 1/3x19”; 1/2x19”; 3/4x19”;
1/1x19”

9
 GR200 Overview

1/3”size 1/2”size 3/4”size Large LCD

1/1”size 3/4”size Standard LCD

10
 GR200 Overview

•CT/VT module
- Various CT/VT modules can be selected in accordance
with the requirement of the user application. A maximum
of two modules can be mounted in a case of 1/1x19”.

11
 GR200 Overview

•CT/VT module

12
 GR200 Overview

•Input and Output modules

- Binary input and output, DC analog input and output
modules are provided to enable flexible configuration to
meet the user requirements.

13
 GR200 Overview

•Input and Output modules

14
 GR200 Overview

•Communication module
- A maximum number of 5 communication modules can
be accommodated in one case.

15
 GR200 Overview

•HMI function
- Touch type screen provided
with standard or large LCD
display

- 24 configurable tri-state LED

selectable Red/Green/Yellow
provided at the local human-
machine interface

- 7 programmable function
keys; direct control buttons for
open/close (I/O); control
authority (43R/L); operation
keys

16
 GR200 Overview

General function
•Recording

- Alarm and events (each with 1024 records) can be

recorded with 1ms resolution
- The 8 most recent time-tagged fault records including
pre-fault and fault values for current and voltages in text
format

17
 GR200 Overview

- Disturbance records
acquired sampled data
from all analog input
and binary input
signals selected

18
 GR200 Overview

•Setting groups
- 8 Setting group are provided, allowing the user to set
one for normal condition, while other groups may be
set to cover alternative operating conditions

•Simulation and test

- GR-200 series IED provides simulation and test
function to enable a check to be made of control
function without the need to make hardwired
connections. The simulation and test facility is available
in Test mode only

19
 GR200 Overview

•Test terminal
- GR-200 series IEDs are equipped with three signal
monitoring terminals on the front fascia panel for testing
protection and control

Monitoring jacks with

LEDs (A, B, C)

USB port

20
 GR200 Overview

•Time Synchronization
- Time synchronization can be achieved over the IEC
61850 station bus with SNTP (Simple Network Time
Protocol) or by using the GPS signal available via an
IRIG-B port

SNTP

IRIG-B
21
 GR200 Overview

Engineering tools
Engineer Supporting Tool (GR-TIEMS)
- Relay Setting and
Monitoring software
- Waveform analysis of
record

22
 GR200 Overview

GR-TIEMS displays

23
GR200 Overview

24
GR200 Overview

25
GR200 Overview

26
 GR200 Overview

PLC（Programmable Logic Control)-MultiProg

- The user configurable sequence logics on binary
signals
- Configurable binary inputs, binary outputs and
LEDs, and the initiation trigger of record
- The sequence logics with timers, flip-flops, AND,
OR, XOR, NOT logics

27
GR200 Overview

28
