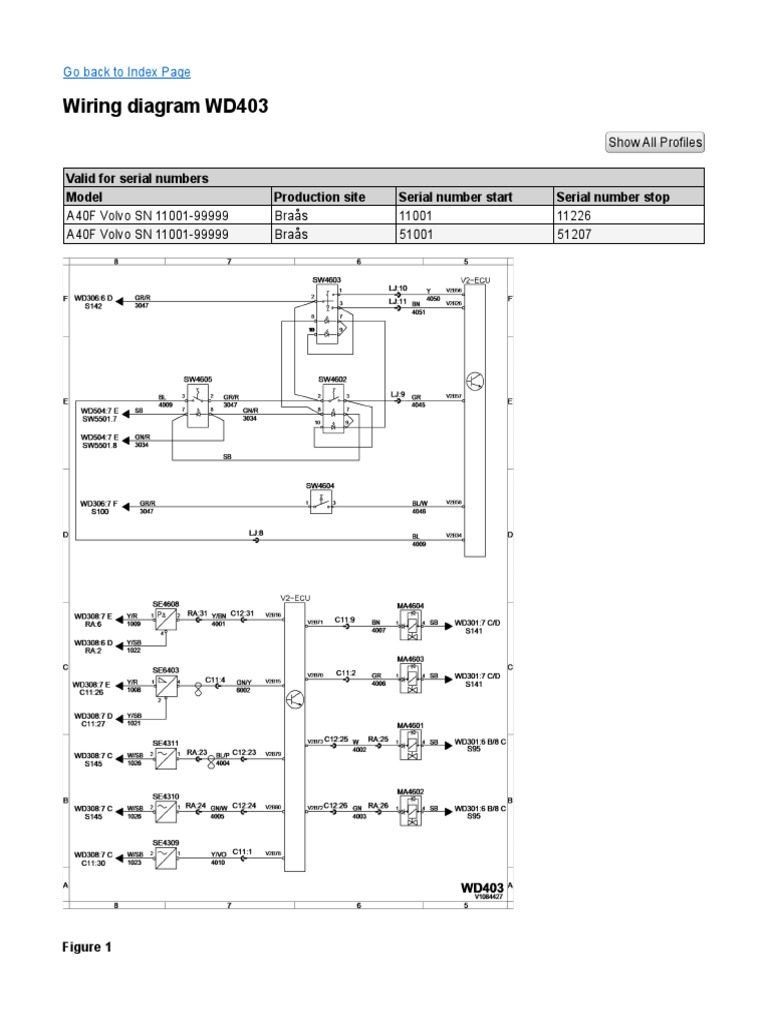

Wiring diagram WD403

Show All Profiles

Valid for serial numbers

Model Production site Serial number start Serial number stop
A40F Volvo SN 11001-99999 Braås 11001 11226
A40F Volvo SN 11001-99999 Braås 51001 51207

Figure 1
Component list

Name Description Name Description

MA4601 Solenoid valve, engagement transverse SE4310 Sensor, input rpm, rear bogie axle
differential locks, bogie axles
MA4602 Solenoid valve, engagement dog-clutch, 6- SE4311 Sensor, rear output rpm, dropbox
wheel drive
MA4603 Solenoid valve, engagement transverse SE4608 Sensor, air pressure, trailer
differential lock, front axle
MA4604 Solenoid valve, longitudinal differential lock, SE6403 Sensor, steering angle
dropbox
SE4309 Sensor, front output rpm, dropbox SW4604 Switch, all differential locks

For specifications and position of connectors, see Connectors, position.

Figure 2
