Decision Tree

Predictive Modelling
Decision Tree

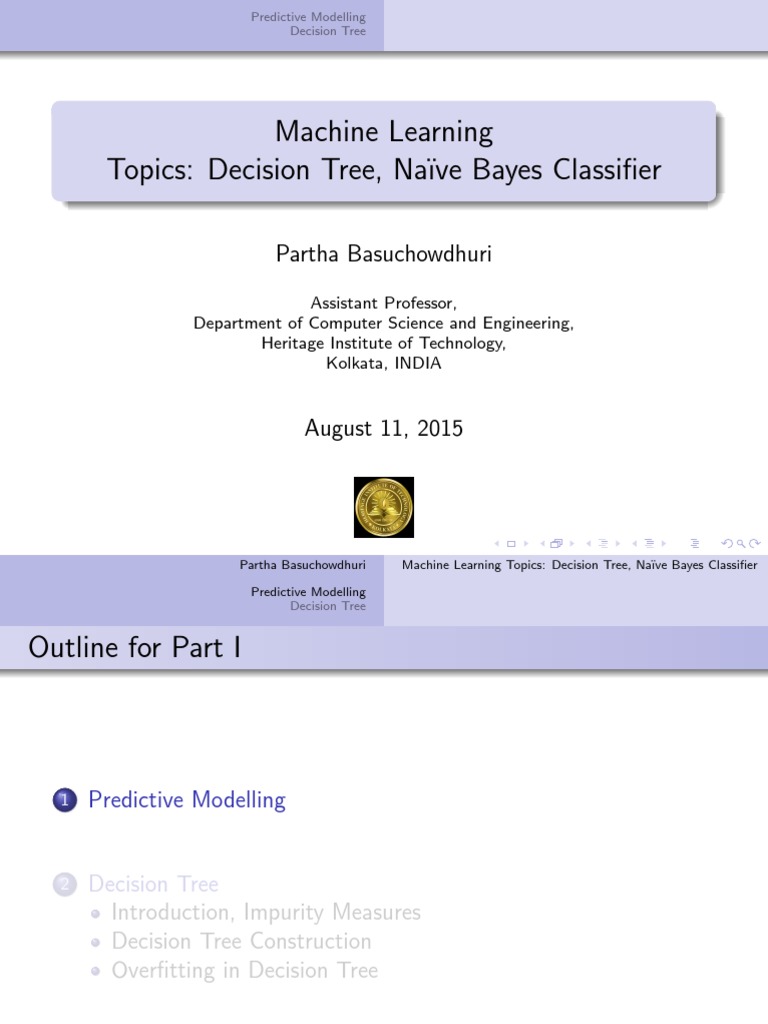

Machine Learning
Topics: Decision Tree, Naı̈ve Bayes Classifier
Partha Basuchowdhuri
Assistant Professor,
Department of Computer Science and Engineering,
Heritage Institute of Technology,
Kolkata, INDIA
August 11, 2015
Partha Basuchowdhuri Machine Learning Topics: Decision Tree, Naı̈ve Bayes Classifier
Decision Tree
Outline for Part I
1 Predictive Modelling
2 Decision Tree
Introduction, Impurity Measures
Decision Tree Construction
Overfitting in Decision Tree
Decision Tree
Machine Learning - What is it?
Idea comes from Turing test.
Whether a conversation between a human and a machine

would generate human-like responses.
Decision Tree
Decision Tree
Idea comes from Turing test.
Whether a conversation between a human and a machine

would generate human-like responses.
Definition: Machine Learning (Mitchell, 1997)

A computer program is said to learn from experience E with
respect to some class of tasks T and performance measure P, if its
performance at tasks in T , as measured by P, improves with
experience E .
Decision Tree
Machine Learning - How do we use it?
We use it for predicting future patterns or future behavior of a

system.
Decision Tree

system.
How can we predict future?
Decision Tree

system.
By learning from the present and past. This knowledge from

prior instances is known as apriori knowledge.
Decision Tree

system.
By learning from the present and past. This knowledge from

prior instances is known as apriori knowledge.
The model is known as a hypothesis. It is learned based on

the apriori knowledge. This phase is known as training.
Decision Tree
Machine Learning - Significance of dataset

Usually the data is divided into three parts - training data,
validation data and test data.
Decision Tree

Training data: Part of dataset used to build the model.
Decision Tree

Validation data: May be the model still does not account for
a few cases. This type of data further improves the model by
taking some corrective measures.
Decision Tree

Test data: Part of dataset kept aside to test the predictive

model when ready.
Decision Tree

Test data: Part of dataset kept aside to test the predictive

model when ready.
Analysis of the prediction results on the test data tells us how

accurate the predictive model is.
Decision Tree
How good is your predictive model?

Problem
Given a picture of 7 cats and 9 dogs, you are asked to build a
computational model (may be image processing based) that could
identify the dogs.
Say, your model can identify - 8 dogs out of which 3 are actually
cats
TRUE + TRUE +
Precision = Predicted TRUE = (TRUE +)+(FALSE +)
Decision Tree

Problem
identify the dogs.
cats
TRUE + TRUE +
Precision = Predicted TRUE = (TRUE +)+(FALSE +)
TRUE + TRUE +
Recall = Actual TRUE = (TRUE +)+(FALSE −)
Actual TRUE Actual FALSE

Predicted TRUE TRUE+ FALSE+
Predicted FALSE FALSE- TRUE-
Decision Tree

Problem
identify the dogs.
cats
5 5
Precision = 5+3 = 8 (what is the significance?)
Decision Tree

Problem
identify the dogs.
cats
5 5
Precision = 5+3 = 8 (what is the significance?)
5 5
Recall = 5+4 = 9 (what is the significance?)
Actual TRUE Actual FALSE

Predicted TRUE TRUE+ FALSE+
Predicted FALSE FALSE- TRUE-
Decision Tree
Outline for Part II
1 Predictive Modelling
2 Decision Tree
Decision Tree
Motivation - An example that requires making a decision
Decision Tree
Decision Tree - Dataset
Decision Tree
Decision Tree - Disjunction of Conjunctions
Observations:
Decision Tree
Observations:
Every path starting from the root and ending at a leaf node,
would form a rule to achieve the target.
Decision Tree
Observations:
Every path starting from the root and ending at a leaf node,
would form a rule to achieve the target.
The tree can be seen as disjunction of such conjunctive rules.
Decision Tree
Decision Tree
Decision Tree
Decision Tree - How to make decisions?
Decision Tree
Purity in Decisions - How to understand?
We try to find the pure decisions in order to build the decision

tree.
Decision Tree

tree.
How to find pure decisions?
Decision Tree

tree.
We need a purity/ impurity measure to evaluate prospective

decisions.
Decision Tree

tree.
We need a purity/ impurity measure to evaluate prospective

decisions.
Three such impurity measures are -

1 Entropy.
2 Gini index.
3 Misclassification Error.
Decision Tree
Measuring Impurity - Entropy

Entropy -
A probabilistic measure of impurity of decisions based on a certain
combination of attributes (and attribute values). It is measured as
below,
Xc Xc
E (D) = − pi ×log2 (pi ) or , E (D) = − pi ×logc (pi )
i=1 i=1
c is the number of target classes.
Decision Tree

Entropy -
below,
Xc Xc
i=1 i=1
A predictive model with c classes can have a maximum entropy of:

1 log (c) for equation I.
2
2 1 for equation II.
Decision Tree

Entropy -
below,
Xc Xc
i=1 i=1
A predictive model with c classes can have a maximum entropy of:

1 log (c) for equation I.
2
2 1 for equation II. ! !

9 9 5 5
E ([9+, 5−]) = − × log2 − × log2 = 0.940
14 14 14 14
Decision Tree
Nature of Entropy
Decision Tree
Other Impurity Measures -

Gini Index -
Xc
G (D) = 1 − pi2
i=1
Misclassification Error -
c
ME (D) = 1 − maxi=1 (pi )
Decision Tree
Other Impurity Measures -

Gini Index -
Xc
G (D) = 1 − pi2
i=1
Misclassification Error -
c
ME (D) = 1 − maxi=1 (pi )
Example:
!2 ! !2
5 9
G ([9+, 5−]) = 1 − + = 0.46
14 14
!
9 5
ME ([9+, 5−]) = 1 − max , = 0.357
14 14
Decision Tree
Impurity Measures -
Example 1:
Node N1 Count E(0+,6-) = - (0/6)log2 (0/6) - (6/6)log2 (6/6) = 0
Class 0 0 G(0+,6-) = 1 - (0/6)2 - (6/6)2 = 0
Class 1 6 ME(0+,6-) = 1 - max((0/6), (6/6)) = 0
Example 2:
Node N1 Count E(1+,5-) = - (1/6)log2 (1/6) - (5/6)log2 (5/6) = 0.65
Class 0 1 G(1+,5-) = 1 - (1/6)2 - (5/6)2 = 0.278
Class 1 5 ME(1+,5-) = 1 - max((1/6), (5/6)) = 0.167
Example 3:
Node N1 Count E(0+,6-) = - (3/6)log2 (3/6) - (3/6)log2 (3/6) = 1
Class 0 3 G(0+,6-) = 1 - (3/6)2 - (3/6)2 = 0.5
Class 1 3 ME(0+,6-) = 1 - max((3/6), (3/6)) = 0.5
Decision Tree
Nature of Impurity Measures
Decision Tree
How to Build a Decision Tree -
Decision Tree
Choosing the best attribute -
Find the attribute leading to maximum gain in Entropy

X |Dv |
Gain(D, A) = E (D) − E (Dv )
v ∈Values(A) |D|
Decision Tree
We eventually get the following -

Gain(D, Outlook) = 0.246 Gain(D, Humidity) = 0.151
Gain(D, Wind) = 0.048 Gain(D, Temperature) = 0.029
Decision Tree
We eventually get the following -

Gain(D, Outlook) = 0.246 Gain(D, Humidity) = 0.151
Gain(D, Wind) = 0.048 Gain(D, Temperature) = 0.029
Decision Tree
Iteratively continue the process -
Consider the extracted subset to be a new dataset and repeat the

same procedure on it.
Decision Tree
Iteratively continue the process -
Maximum gain can be obtained with Humidity.
Decision Tree
Final Decision Tree
The final Decision Tree looks like this.
Decision Tree
Overfitting - Decision Tree

Definition - Overfitting
Given a hypothesis space H, a hypothesis h ∈ H is said to overfit
the training data if there exists some alternative hypothesis h0 ∈ H,
such that h has smaller error than h0 over the training examples,
but h0 has a smaller error than h over the entire distribution of
instances.
If we have less nodes, the model may underfit, whereas with too
many nodes the model may overfit.
Decision Tree
How to correct overfitting - Pruning

We use a part of the initial dataset (30% of training data) to
correct the model. This dataset is known as validation data.
Decision Tree

Start from the nodes and move bottom-up.
Decision Tree

If the entropy at a leaf’s level is more than that of its parent,
then prune the child nodes of its parent.
Decision Tree

If the entropy at a leaf’s level is more than that of its parent,
then prune the child nodes of its parent.
This method is known as Reduced Error Pruning. There are
many other pruning (Rule Post-Pruning, etc) methods as well.

Decision Tree
